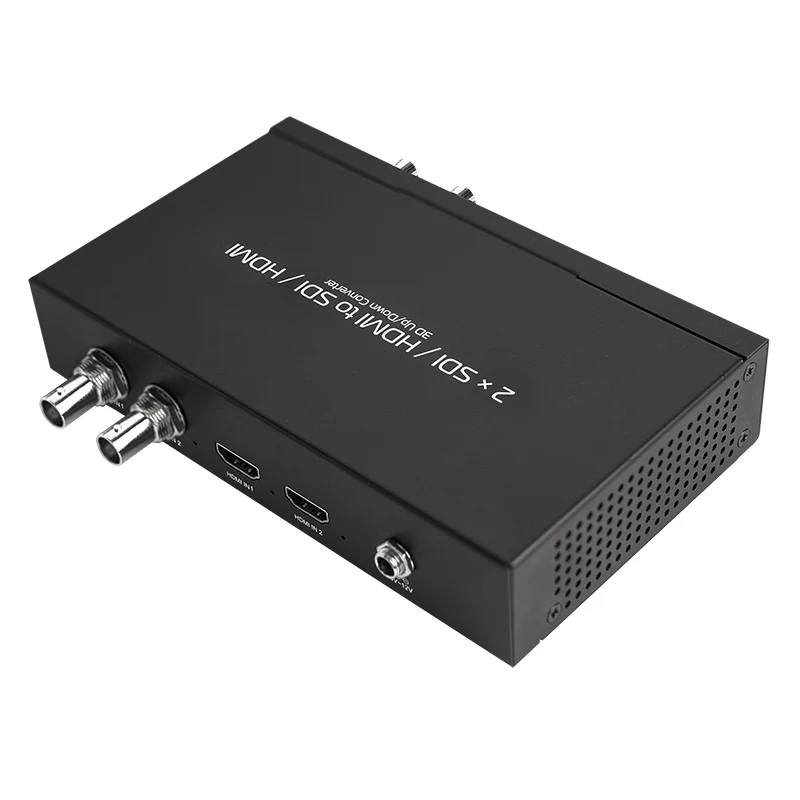

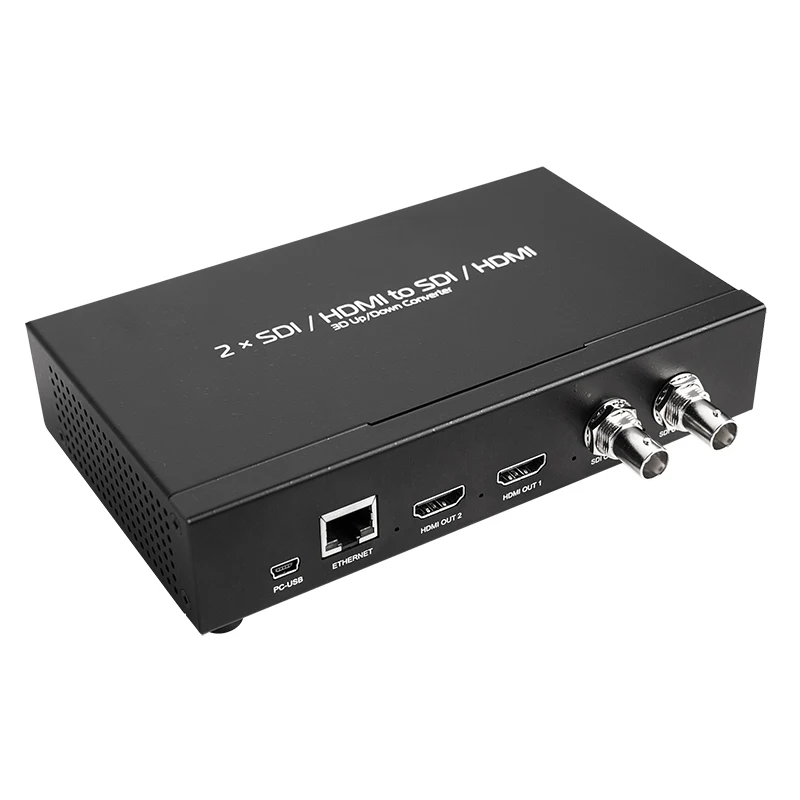

2D to 3D 1080p side by side line by line surgery image video converter

Model Name

2 × SDI/HDMI to SDI/HDMI

Description

2 ×SDI/HDMI to 2 ×SDI and 2 × HDMI Up/Down Converter with 3D Support

Feature

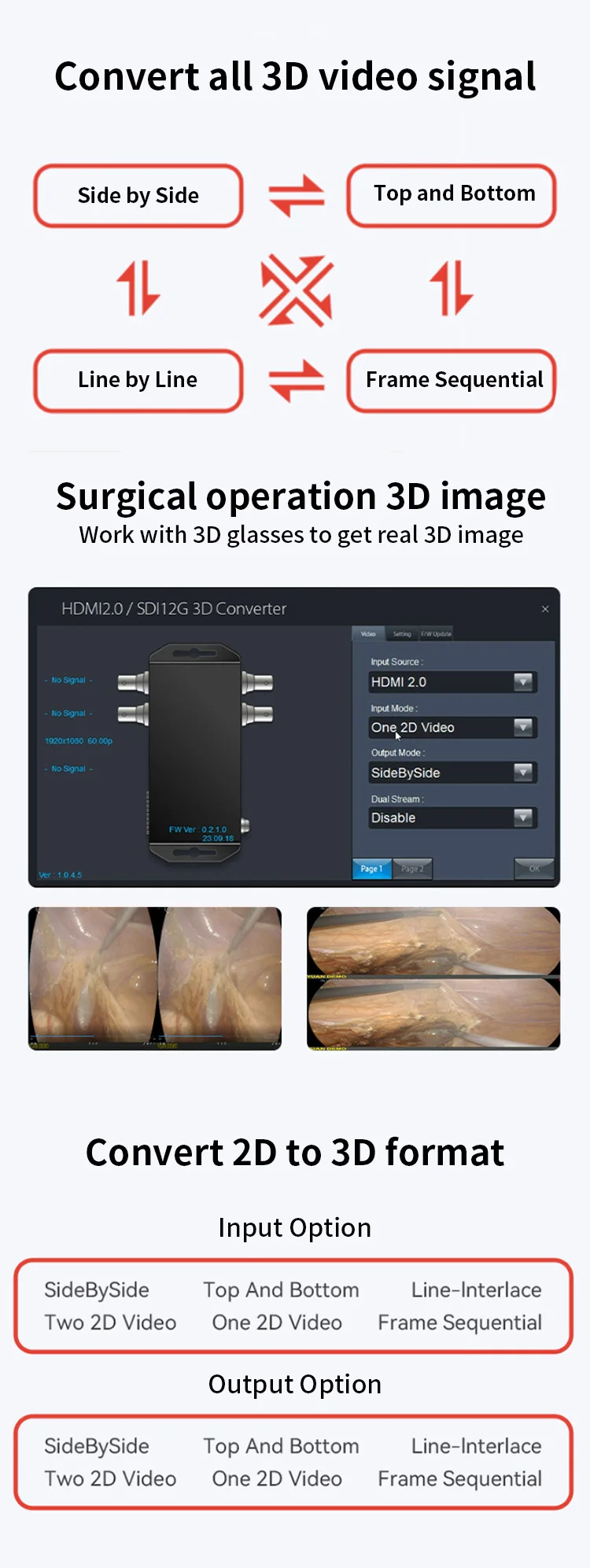

Side by Side, Top and Bottom, Line by Line 3D Mode and Frame

Sequential Support

Two 2D Video Convert to One 3D Video Support

One 3D Video Convert to Two 2D Video Support

 I ↔ P Conversion ( Built-In Interlacer and DeInterlacer. )

60fps ↔ 59.94fps Conversion

Frame Rate and Format Up/Down Conversion

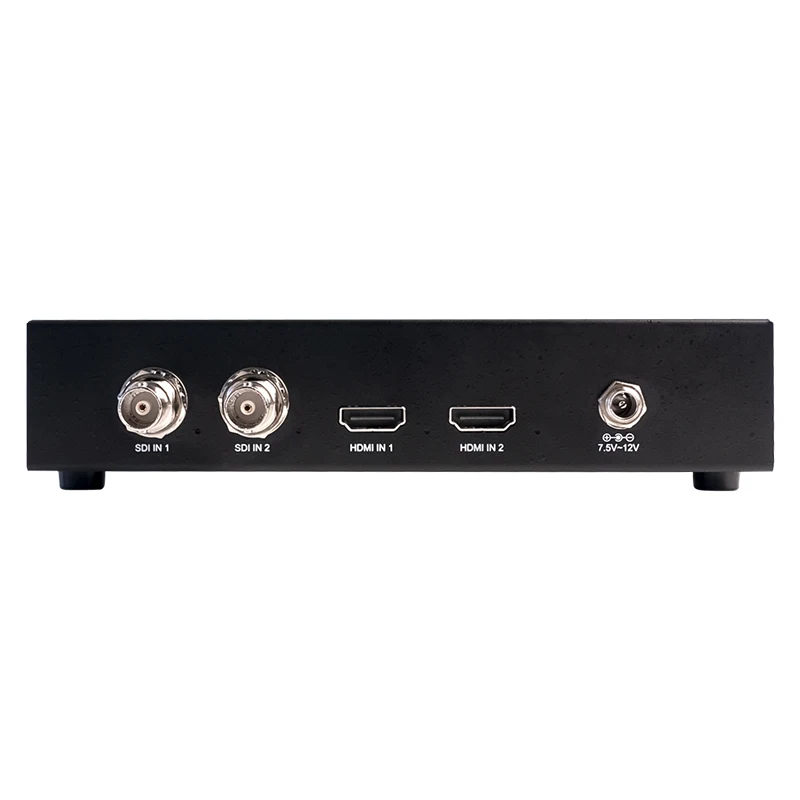

Input Interface

Video

HDMI×2 ( 2D / 3D )

SDI×2 ( 2D / 3D )

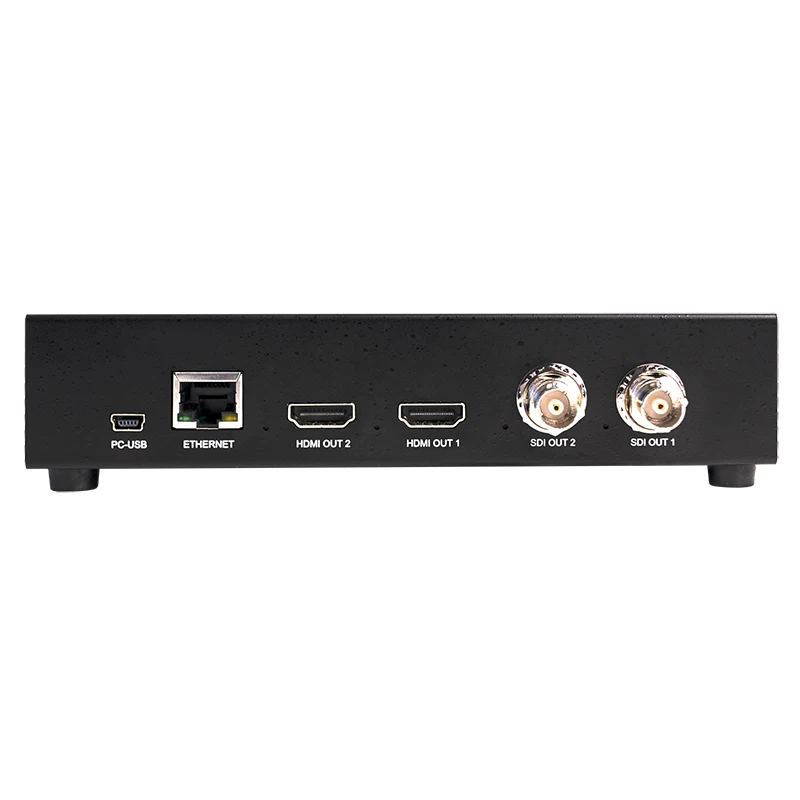

Output Interface

Converted Video

HDMI×2 ( 2D / 3D )

SDI×2 ( 2D / 3D )

Supported Video Input Format

       HDMI
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

SDI
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

Supported Video Output Format

HDMI ( Up/Down Converted )
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SDI ( Up/Down Converted )
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

Audio Input Format

HDMI : 2 Channels, 24bit, 192KHz
SDI : 2 Channels, 24bit, 192KHz

Audio Output Format

HDMI : 2 Channels, 24bit, 192KHz
SDI : 2 Channels, 24bit, 192KHz

Plug & Play

Yes

DC In

7.5V ~ 15V

Dimension

L:171mm×W:103mm×H:35.1mm
