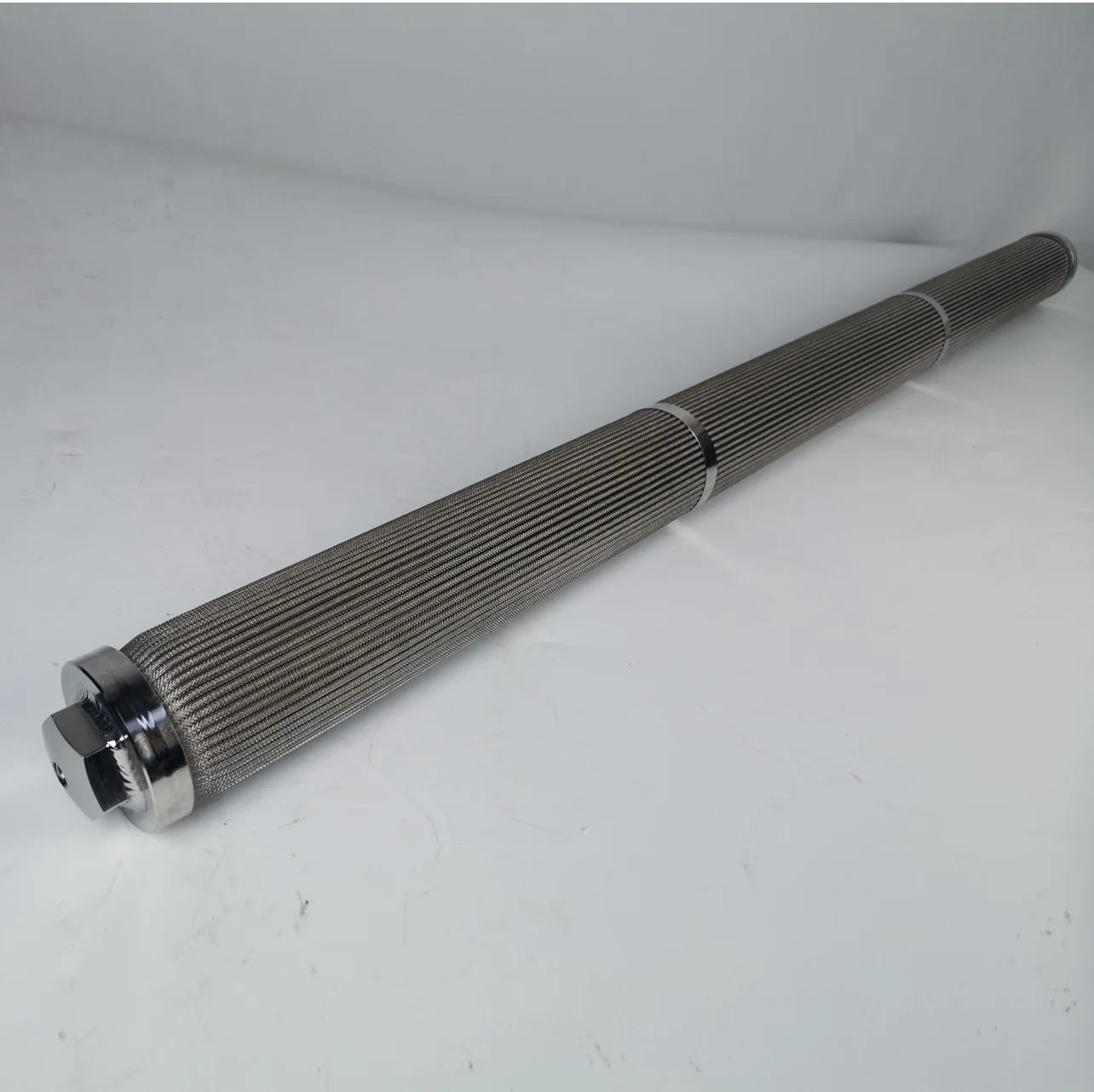

China manufacturer cheap price stainless steel sintered felt pleated filter element
- Category: >>>
- Supplier: Xinxiang Deya Filtration Equipment Co. Ltd.
Share on (1601282365056):
Product Overview
Description
Product Description
Features of Deya Sintered Filter Element:
Large filtration area: The filtration area of the stainless steel folding filter element is 5-10 times of the ordinary cylindrical filter element.

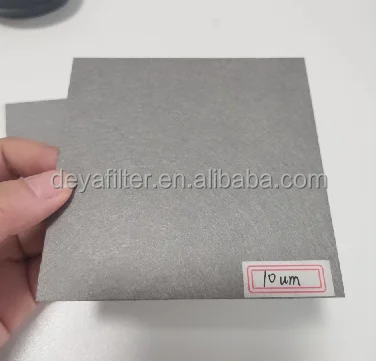

Wide range of filtration accuracy: The filtration accuracy of the stainless steel sintered felt can reach: 5~150 um.
3 um can be customized The filtration accuracy of the stainless steel wire mesh can reach:1~500 um
Good temperature resistance: The stainless steel folding filter element can be applied to a wide range of temperature:-196°C---400°C
3 um can be customized The filtration accuracy of the stainless steel wire mesh can reach:1~500 um
Good temperature resistance: The stainless steel folding filter element can be applied to a wide range of temperature:-196°C---400°C
Deya Sintered Filter Element Properties:
1. Large particle retaining capacity, great filtration precision, pressure increases slightly and prolong performance
2. Great porosity and high permeability, small pressure loss and great flow.
3. High corrosion resistance, temperature resistant and resistance to acids, alkali, organic solvents and drugs at 480oC for
prolong use.
prolong use.
4. Quick processing, forming and welding
5. Made as per user’s needs of specifically improved, thickened type, intensive network and different specifications.
6. Strengthened felt, thickening felt and mesh laminated and other kinds of felts are made upon order.
Product Description of Deya sintered filter element:

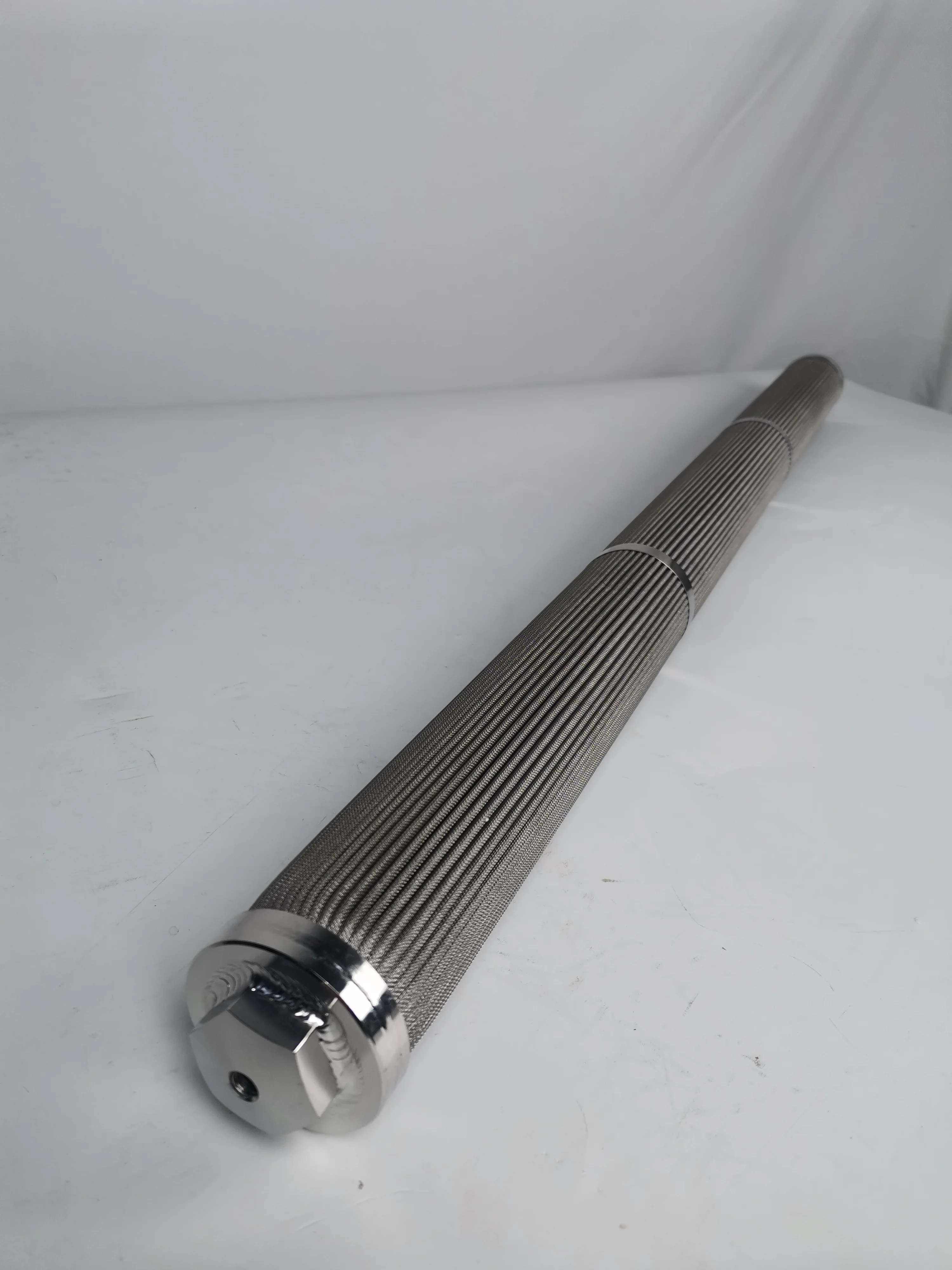

Stainless steel sintered folded filter element generally adopts 304, 304L, 316, 316L stainless steel woven mesh or stainless steel
fiber sintered felt as the main filter material, stainless steel folded filter element each sealing surface adopts argon arc welding process, the filter layer adopts multiple folding process, the whole stainless steel folded filter element forms a complete filter element structure, no leakage, No media shedding phenomenon.
fiber sintered felt as the main filter material, stainless steel folded filter element each sealing surface adopts argon arc welding process, the filter layer adopts multiple folding process, the whole stainless steel folded filter element forms a complete filter element structure, no leakage, No media shedding phenomenon.
Deya Sintered Filter Element Structure:
* Connection thread: thread connection.
* Inner hexagon: make the filter easy to install and remove.
* Outer protective layer: protect the filter media from damage during the filtration process.
* Inner supporting pipe: no damage under high strength to ensure smooth filtration.
* Pleat: increase the filter area.
* Support layer: support the major filtering layer.
* Major filtering layer: play a main role in filtration.
* Protective layer: protect the major filtering layer.
* Flow conducing centrum: push the melt move upward, so that the melt will not deposit on the bottom.
* Inner hexagon: make the filter easy to install and remove.
* Outer protective layer: protect the filter media from damage during the filtration process.
* Inner supporting pipe: no damage under high strength to ensure smooth filtration.
* Pleat: increase the filter area.
* Support layer: support the major filtering layer.
* Major filtering layer: play a main role in filtration.
* Protective layer: protect the major filtering layer.
* Flow conducing centrum: push the melt move upward, so that the melt will not deposit on the bottom.
Working Principle of Deya sintered filter element:
The filtration system adopts one filter for filtering and one stand-by filter operation mode to achieve continuous, uninterrupted
filtration process. First, the polymer melt enters into the filter from the bottom and flows from outside to inside. Impurities
are trapped on the filter surface and clean melt flows from the filter inside to the clean melt pipeline at the top of the filter,
and then flows out of the filter. When the differential pressure reaches the preset value, the filter filtration efficiency slows
down, and the control system will convey the melt to another filter. At the same time, the filter for filtering is replaced and
washed.
filtration process. First, the polymer melt enters into the filter from the bottom and flows from outside to inside. Impurities
are trapped on the filter surface and clean melt flows from the filter inside to the clean melt pipeline at the top of the filter,
and then flows out of the filter. When the differential pressure reaches the preset value, the filter filtration efficiency slows
down, and the control system will convey the melt to another filter. At the same time, the filter for filtering is replaced and
washed.
Filter material can choose:

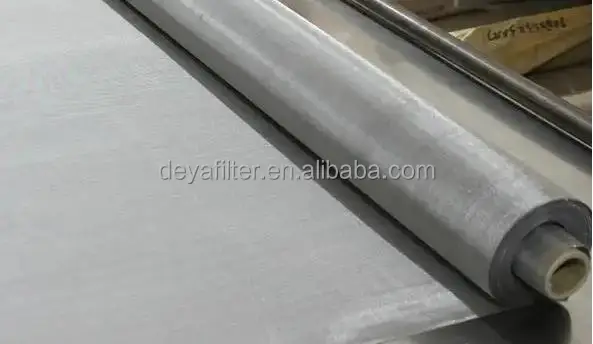

Stainless steel mesh is made of stainless steel wire, the fold wave filter element has good strength, not easy to fall off, easy
to clean, high temperature resistance, economic use and so on
to clean, high temperature resistance, economic use and so on
Filter material can be choosed:
temperature. The broken wave filter element has the characteristics of high porosity, large filtration area, strong contaminant
carrying capacity and strong reusability.

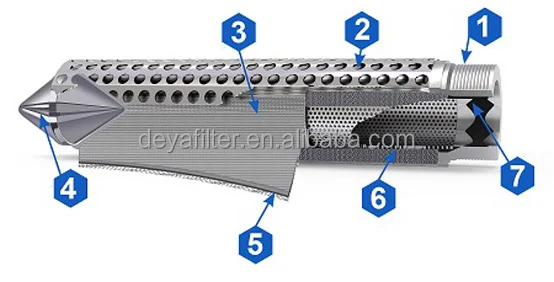

Nomenclature of Sintered Filter Element:
1. Adaptor
2. Perforated Guard3. Support Mesh
4. Reducer
5. Filtration Mesh
6. Perforated Pipe
7. Hexagonal Bush.
Details Images

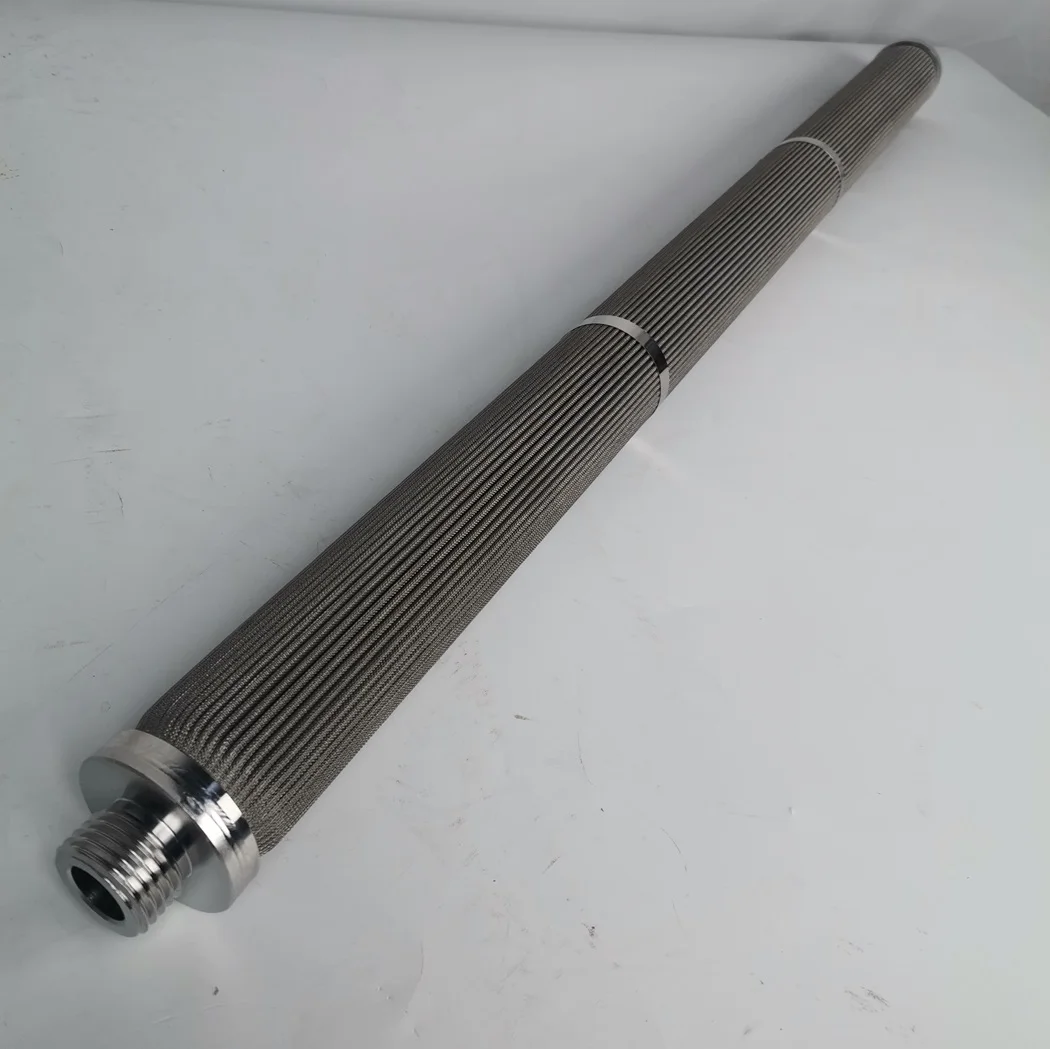

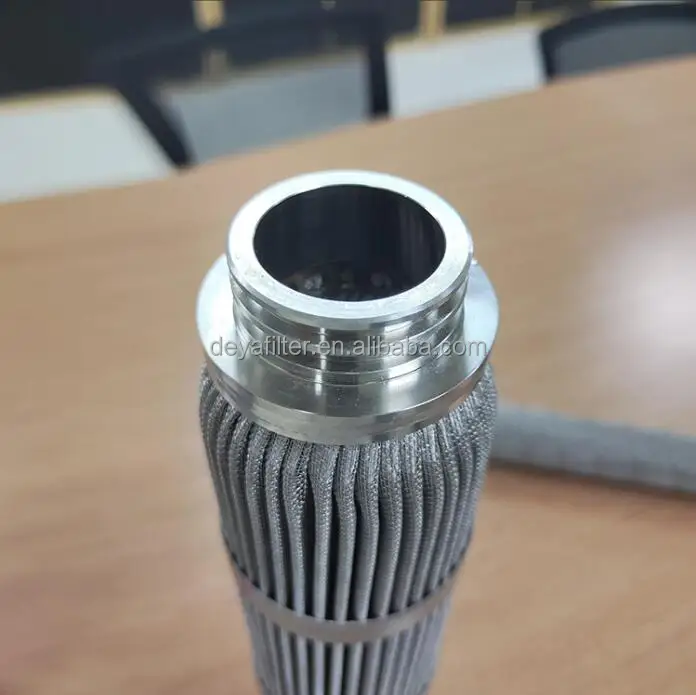

Kinds of interfaces of Deya Sintered Filter Element:
Standard interface(such as 222,220,226); other special interfaces connection ways customize available
Filter mesh:
304 304 l 316 316 l stainless steel sintered felt
End cover:
Material: Carbon steel, galvanized plate, zinc plating plate, stainless steel plate, stainless iron plate, aluminum plate

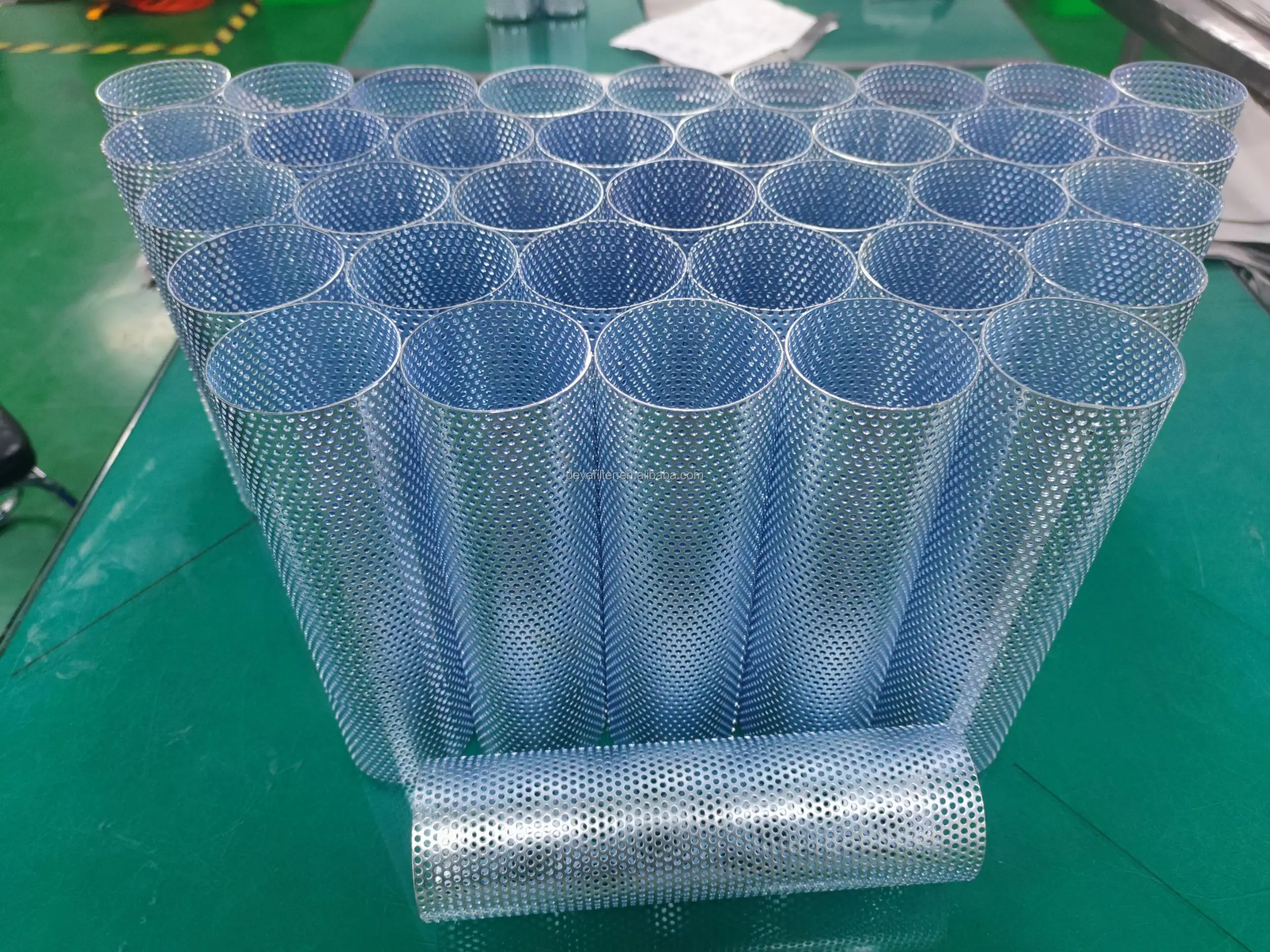

Skeleton:
Square hole: 3*5 4*6
Round hole: 5*5 10*10
Product Presentation
Type | Stainless steel sintered felt filter element |
Material | Stainless steel 304/316 L，special material can be customized. |
Filter layer material | Stainless steel fiber sintered felt /stainless steel wire mesh |
Filtration precision | 5~150 um, 3 um can be customized/1~500 um |
Length range | ≤1200mm,over 1200mm can be customized, need to splice |
Outer diameter range | Standard:30-100 mm,other size can be customized. |
Skeleton | Steel plate punching square hole/round hole |
Application
Chemical Industry
Feed solution inpurities removal and filtration and Power recovery, ect.
Plastic Recycling Industry
Plastic bottle recycling
Plastic bag recycling
Pharmaceutical Industry
Catalyst recovery
Power recovery, ect.
Filtration in Chemical Fiber Industry
Polyester & Spandex
Nylon and other high performance polymer fiber production
Rubber
Tire production
Rubber product production
Hot Gas Filter industry
Sintered felt filter bags production
