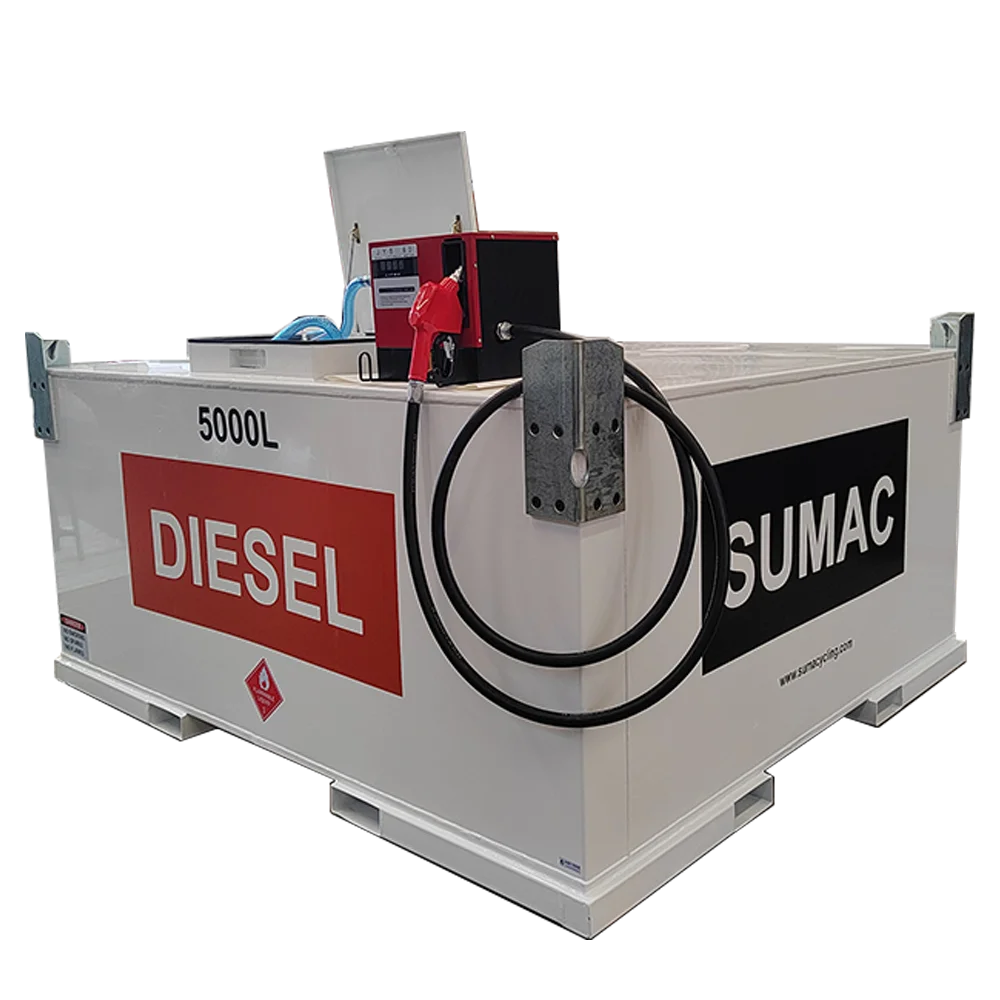

Sumac Cube Transfer 1000L 10000L Carbon Steel Fuel Tank with pump Auto Nozzle 4M Hose Diesel Gasoline Tank Sale For Australia
- Category: >>>
- Supplier: Sumac Auto Recycling Equipment Co. Ltd.
Share on (1601282376500):
Product Overview
Description

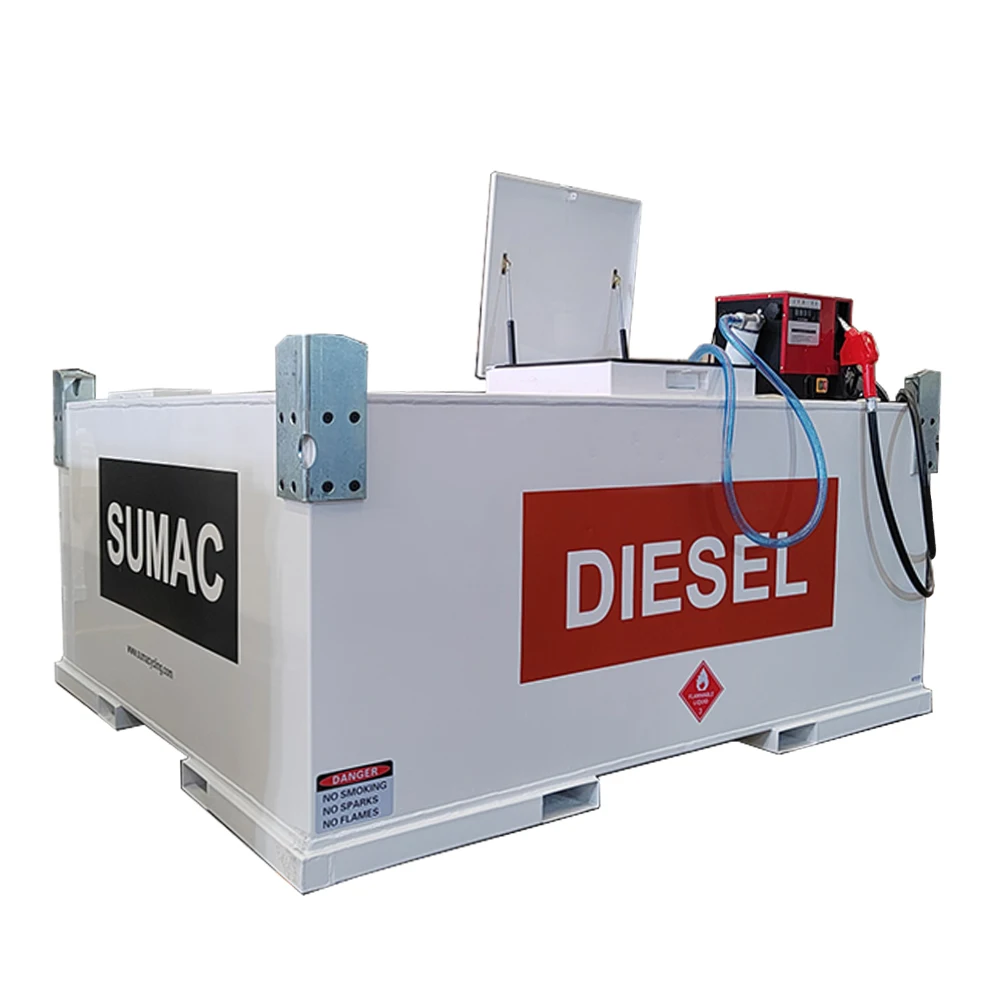

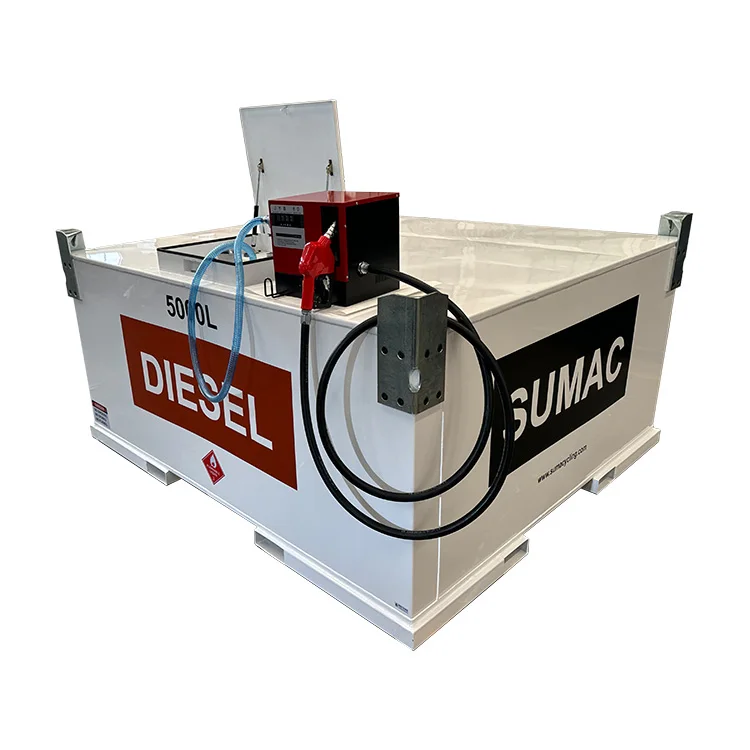

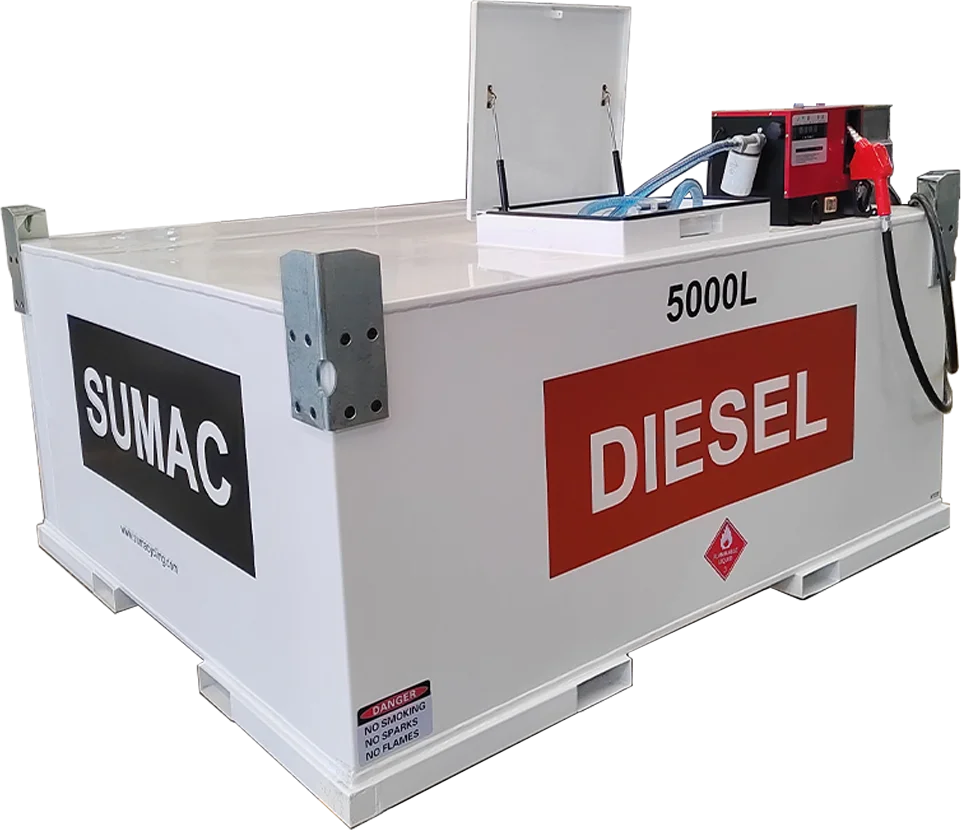

1000L To 5000L Carbon Steel Transporting Mobile Portable Gasoline Diesel Fuel Tank with Pump For Vehicle Refueling
SUMAC ARST Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L.
ARST Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
ARST Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
Fuel Tank
Model | ARST-500 | ARST-1000 | ARST-2000 | ARST-3000 | ARST-4500 | ARST-5000 | ARST-5000 with frame | ARST-6000 with frame | ARST-10000 with frame | ||||||||
Length | 1105mm | 1100mm | 2180mm | 2180mm | 2200mm | 2900mm | 3395mm | 4280mm | 7220mm | ||||||||
Width | 710mm | 1100mm | 1420mm | 2035mm | 2780mm | 2200mm | 2200mm | 2200mm | 2200mm | ||||||||
Height | 1270mm | 1310mm | 1305mm | 1320mm | 1300mm | 1290mm | 1270mm | 1271mm | 1271mm | ||||||||
Volume | 500L | 1000L | 2000L | 3000L | 4500L | 5000L | 5000L | 6000L | 10000L | ||||||||
Empty Weight | 284Kg | 450Kg | 960Kg | 1300Kg | 1600Kg | 2200Kg | 2400Kg | 2800Kg | 5000Kg | ||||||||
Feeding/ Discharging | 1 inch or Customized | ||||||||||||||||
Test Pressure | 35Kpa | ||||||||||||||||
Material | Carbon Steel | ||||||||||||||||
Type | Stationary | ||||||||||||||||
Appliccation | Fuel, petrol, oil, diesel, def, aviation fuel, coolant, Any liquid, other than a flammable liquid under normal temperature. | ||||||||||||||||
Electric Diesel Pump
Model | JYB-60 |
Voltage | AC 220V / DC 24V / DC 12V |
Flow Meter | FM-120L in liter |
Suction Hose | 2m |
Delivery Hose | 4m |
Nozzle | Automatic Nozzle |
Flow Rate | 20-60L per minute |
Filter | Yes |
Packing Size | 430x440x410mm |
Gross Weight | 23Kg |
1pc lockable lid on the top of tank- which is both used as tank connections and a manhole
4 Way forklift pockets - Liftable by crane and easily stackable: 2 high full, 3 high empty
· Dipstick
· Digital Fuel Gauge
Q. What is your standard configuration for connections
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
E-Vent,Free Vent: DN50.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
E-Vent,Free Vent: DN50.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
Q. How can i pay the money without risk?
A. You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q. Can I do your agent in our country or some district?
A. Yes, if you quantity is enough, no problem, the 40HQ container is okay.
A. You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q. Can I do your agent in our country or some district?
A. Yes, if you quantity is enough, no problem, the 40HQ container is okay.
