SHANTUI DH24 B3 LGP 240HP Hydrostatic Bulldozer for Maximum Efficiency and Environmental Responsibility
- Category: >>>
- Supplier: Liebty Machinery Technology (Hangzhou) Co. Ltd.
Share on (1601282408950):
Product Overview
Description
Contact
Sales Manager:Darren Wu
Whatsapp/wechat/mobile: +86 15857120551
E-mail: Darren@liebty.com
Company: Liebty Machinery Technology(Hangzhou) Co.,Ltd
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe Street, Bingjiang District, Hangzhou,Zhejiang, China
Products Description
Product Features:
Configuration selling point
The machine is equipped with the Weichai WD12 engine and Linde hydraulic components, meticulously matched to create a golden power
control assembly. It is further enhanced by the self-developed machine control system, resulting in straightforward control,
exceptional efficiency, and fuel savings. The Shantui-specific chassis system consisting of four wheels and one track delivers an
extended service life and high reliability.
Ease of maintenance and operation comfort
The static-pressure drive system ensures high reliability. The integrated positive-pressure cab provides spacious and comfortable
working environment with low noise. The intelligent touchscreen instrument monitors operating parameters and fuel consumption in
real time, with automatic fault alarm. The electro-hydraulic control operation is light and labor-saving. The design allows easy
access to maintenance and inspection of engine, hydraulic components, and electrical parts;
Adaptability to diverse working conditions
The optional three-tooth ripper and the low ground pressure design make the machine exceptionally well-suited for wetland
environments.
Configuration selling point
The machine is equipped with the Weichai WD12 engine and Linde hydraulic components, meticulously matched to create a golden power
control assembly. It is further enhanced by the self-developed machine control system, resulting in straightforward control,
exceptional efficiency, and fuel savings. The Shantui-specific chassis system consisting of four wheels and one track delivers an
extended service life and high reliability.
Ease of maintenance and operation comfort
The static-pressure drive system ensures high reliability. The integrated positive-pressure cab provides spacious and comfortable
working environment with low noise. The intelligent touchscreen instrument monitors operating parameters and fuel consumption in
real time, with automatic fault alarm. The electro-hydraulic control operation is light and labor-saving. The design allows easy
access to maintenance and inspection of engine, hydraulic components, and electrical parts;
Adaptability to diverse working conditions
The optional three-tooth ripper and the low ground pressure design make the machine exceptionally well-suited for wetland
environments.
Specification
Overall weight(kg) | 26420 |
Engine brand | WEICHAI |
Rated power/rated speed(kW/rpm) | 185kw/2100rpm |
Machine external dimensions(mm) | 6097x4365x3402 |
Track center distance(mm) | 2250 |
Track shoe width(mm) | 910 |
Ground contact length(mm) | 3482 |
Fuel tank capacity(L) | 489 |
Blade type | Swampstraighttiltblade |
Blade capacity(m³) | 6.5m³ |
Emissions (Indicated as per international standards) | Eu stageⅡ |
Company Profile
Details Images
Adaptability to diverse working conditions

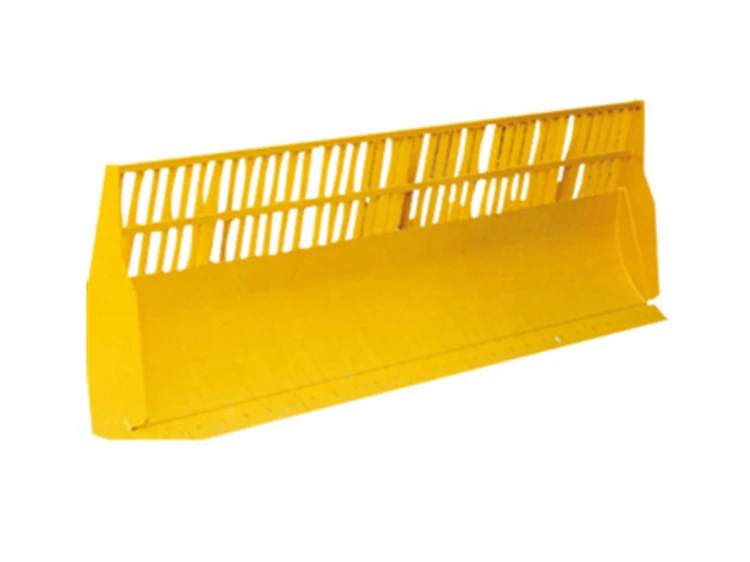

The machine is equipped with a straight tilt blade for enhanced cutting force. With its broad track contact area, it excels in
challenging conditions such as wetlands and marshes without getting stuck, demonstrating excellent passability;
Adaptability to diverse working conditions
The serialization design is applied for the frame based on the skid-steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
