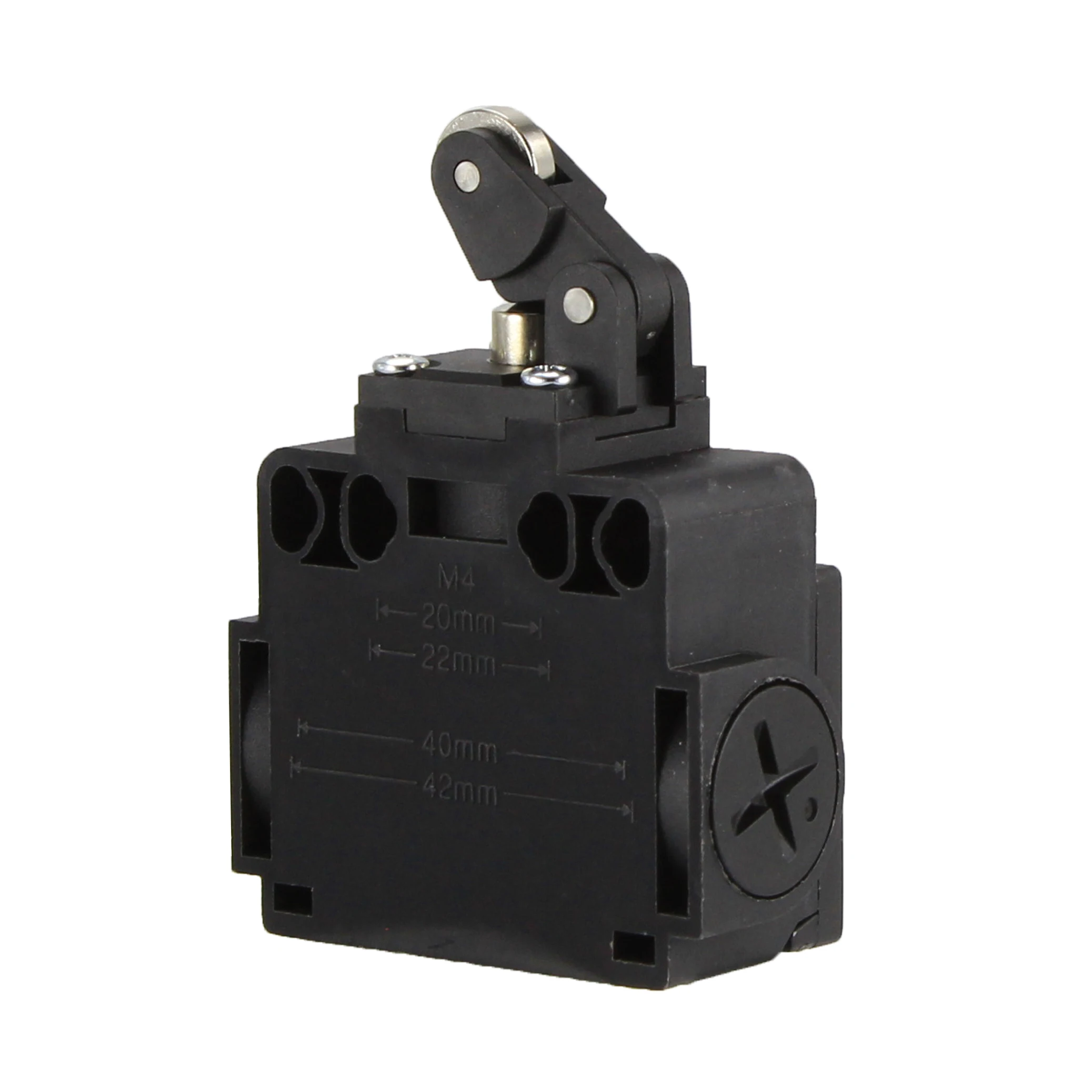

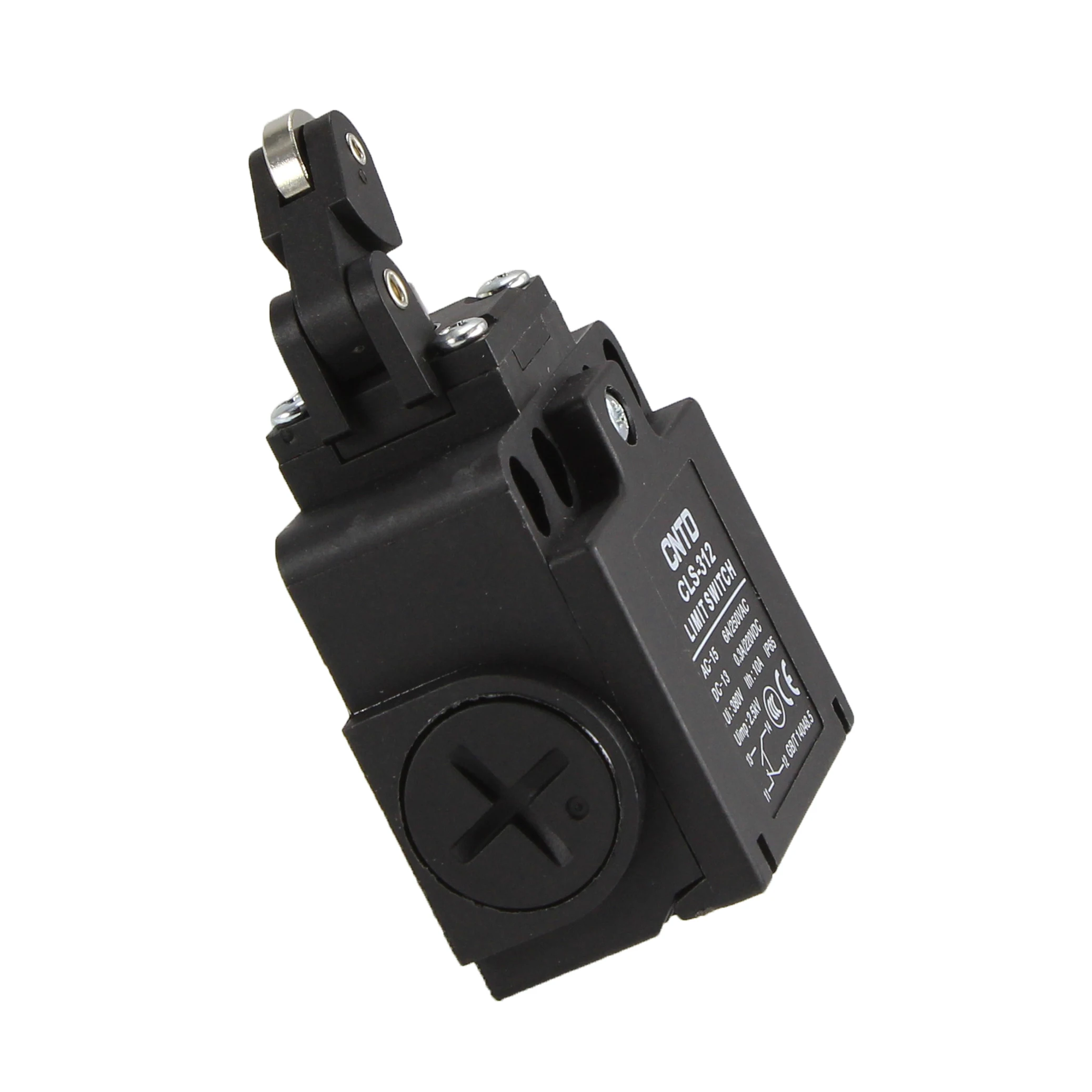

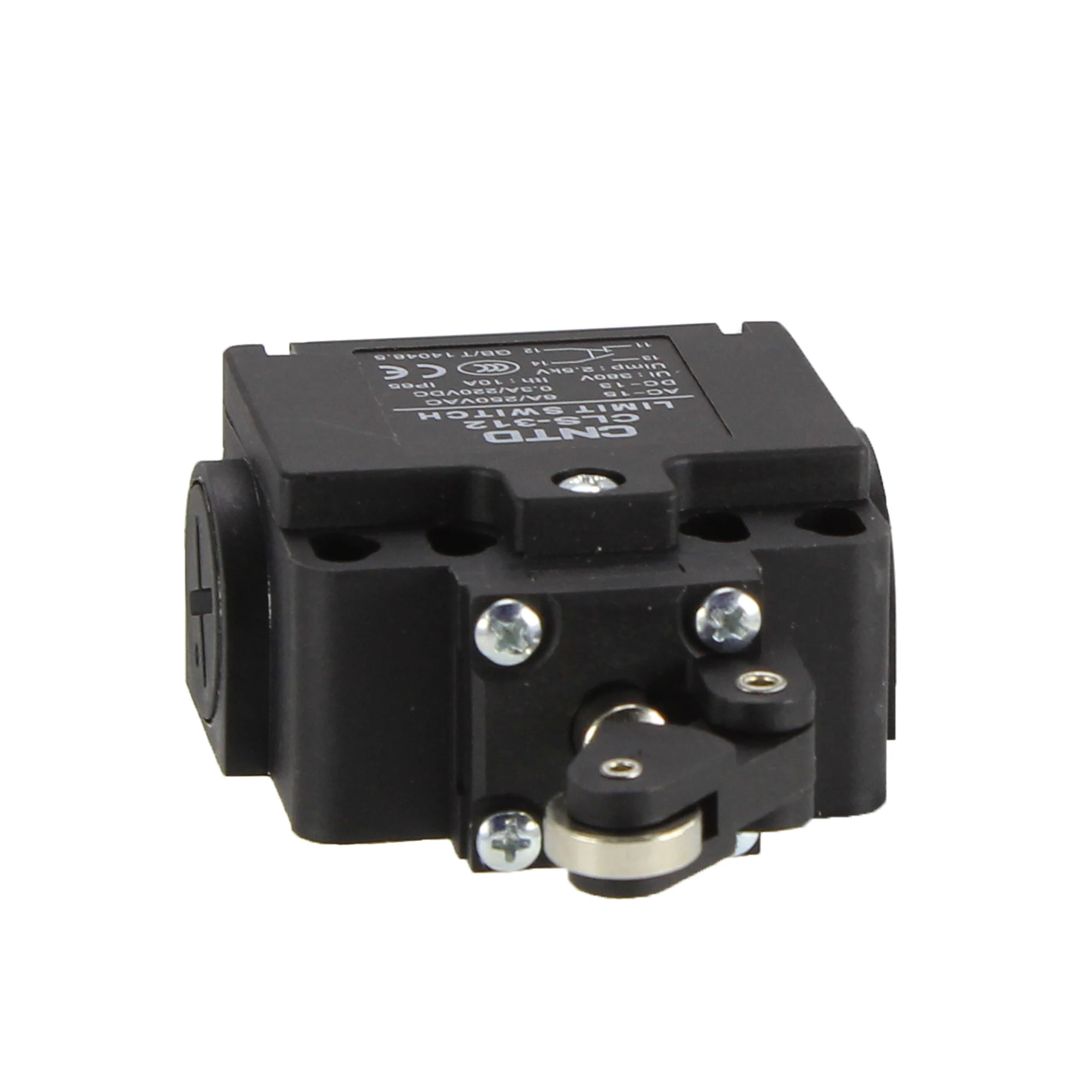

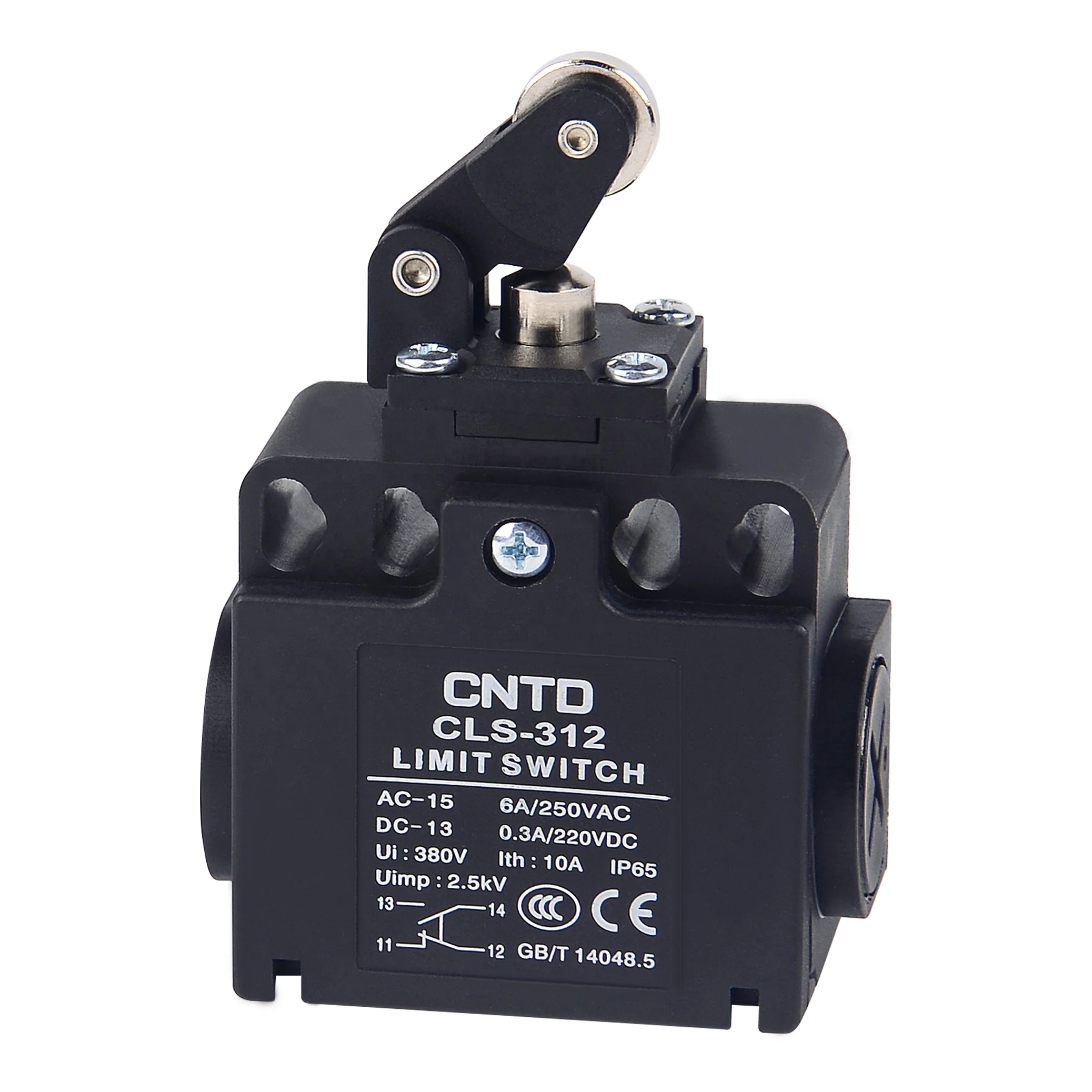

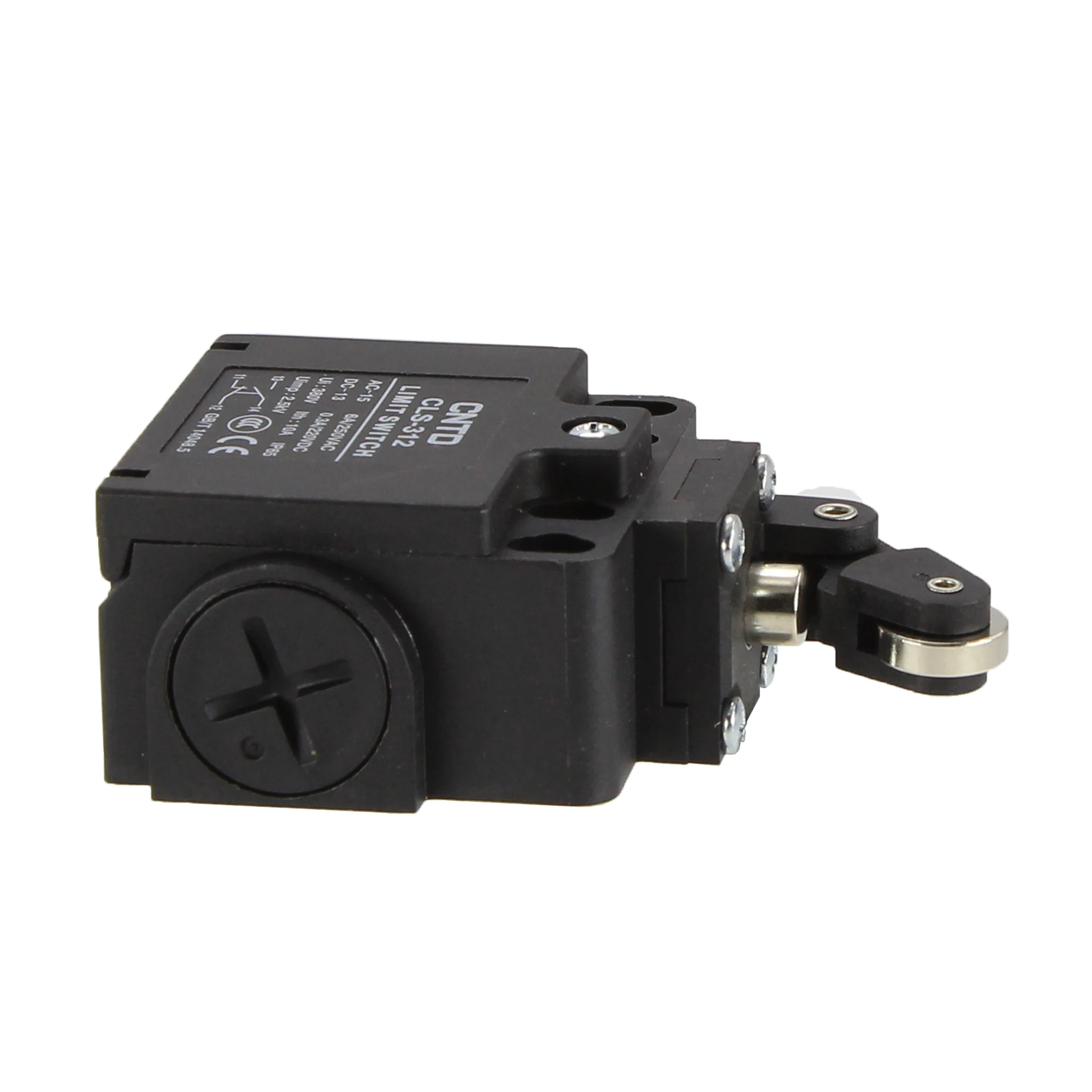

10A 380VAC Roller Punch Momentary Travel Switch IP66 Waterproof Elevator Vertical Limit
- Category: >>>
- Supplier: Yueqing Yijia Electric Co. ltd
Share on (1601282503403):
Product Overview
Description
Double circuit type of limit switch
Economic plastic type of limit switch
Small size, water-proof and oil-proof construction
Built-in contact box has double spring and long mechanical life
Smooth operation with larger over travel distance
Various actuators for different applications
Specifications
Operation speed | 5mm-0.5m/s | |||
Operating frequency | Electical: 30 operations/min | |||
Contact rsistance | 25m max. (initial value) | |||
Insulation resistance | 100m min. (below 500VDC) | |||
Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |||
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | ||||
1500VAC, 50/60 Hz for 1 minute between each terminal and ground | ||||
Vibration | 10~55Hz,1.5mm double amplitude | |||
Shock | Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 300m/Sec² (about 30G'S) | |||
Ambient temperature | Using: -20~ 70°C (With no icing) | |||
Humidity | <95% RH | |||
Electrical life | 500,000 operations above | |||
Protection level | IP66 | |||
NOTES: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example:CLS-103-P.
