Product Overview

Description



Product Description

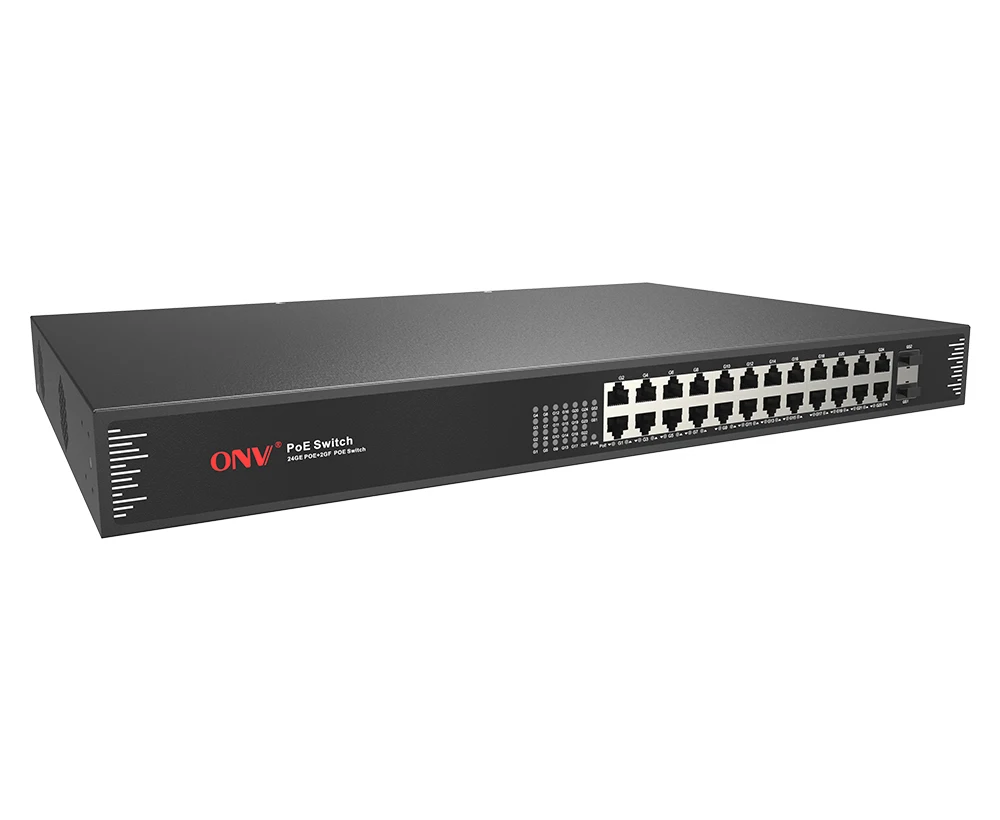

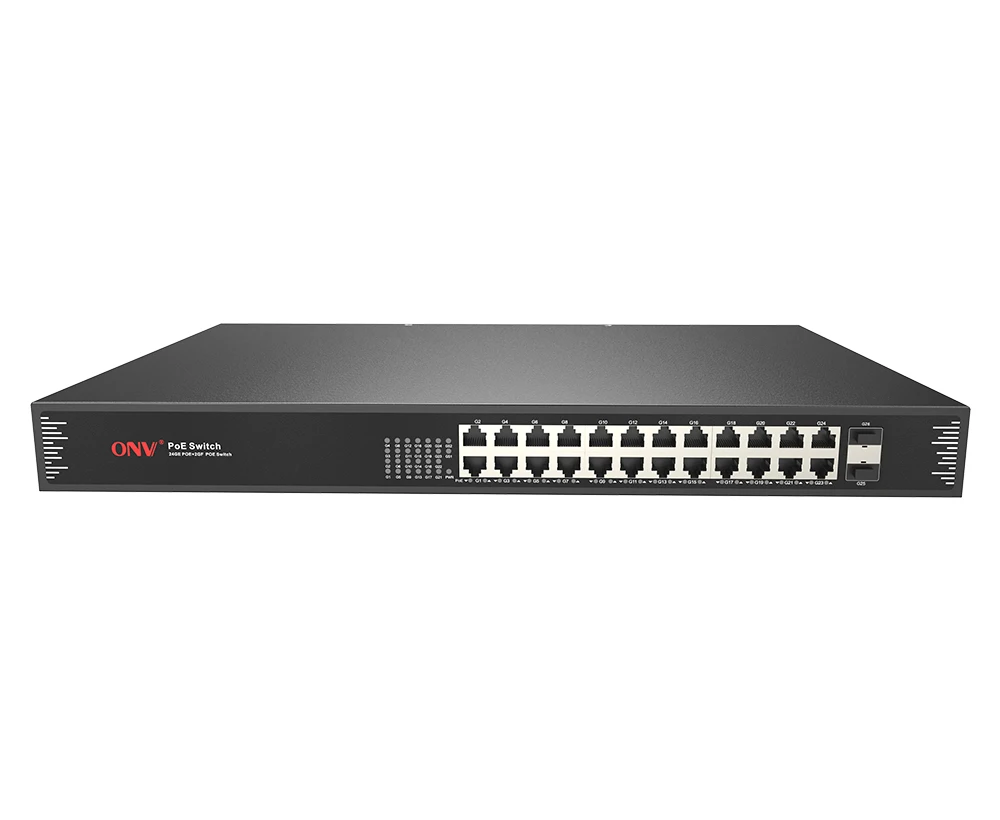

Gigabit 26-port PoE switch
Unmanaged PoE fiber switch with 24*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. It built-in 400W power supply and 1U/19" cabinet installation.




Specification


Model
ONV-POE33024PF
ONV-POE33024PF-at
Interface Characteristics
Fixed Port
2*1000Base-X uplink SFP fiber ports (Data)
24*10/100/1000Base-T PoE ports (Data /Power)
Ethernet Port
Port 1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber
optical module. LC)
Optical Cable/ Distance
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode
Store and Forward (Full Wire Speed)
Switching Capacity
52Gbps
Forwarding
Rate@64byte
38.69Mpps
MAC
8K
Buffer Memory
4M
Jumbo Frame
9.6K
LED Indicator
Power: PWR (Green), Network: 1-24/ G1-2 (Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port
Port 1-24
Power Supply Pin
1/2(+) 3/6 (-)
Max Power Per Port
30W, IEEE 802.3 af/at
Total PWR / Input Voltage
400W/ (AC100-240V)
600W/ (AC100-240V)
Power Consumption
Standby< 25W, Full load<380W
Standby<26W, Full load<600W
Power Supply
Built-in power supply, AC100~240V 50-60Hz, 5.0A
Built-in power supply, AC100~240V 50-60Hz, 6.6A
Physical Parameter
Operation TEMP / Humidity
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C, 5%~95% RH Non condensing

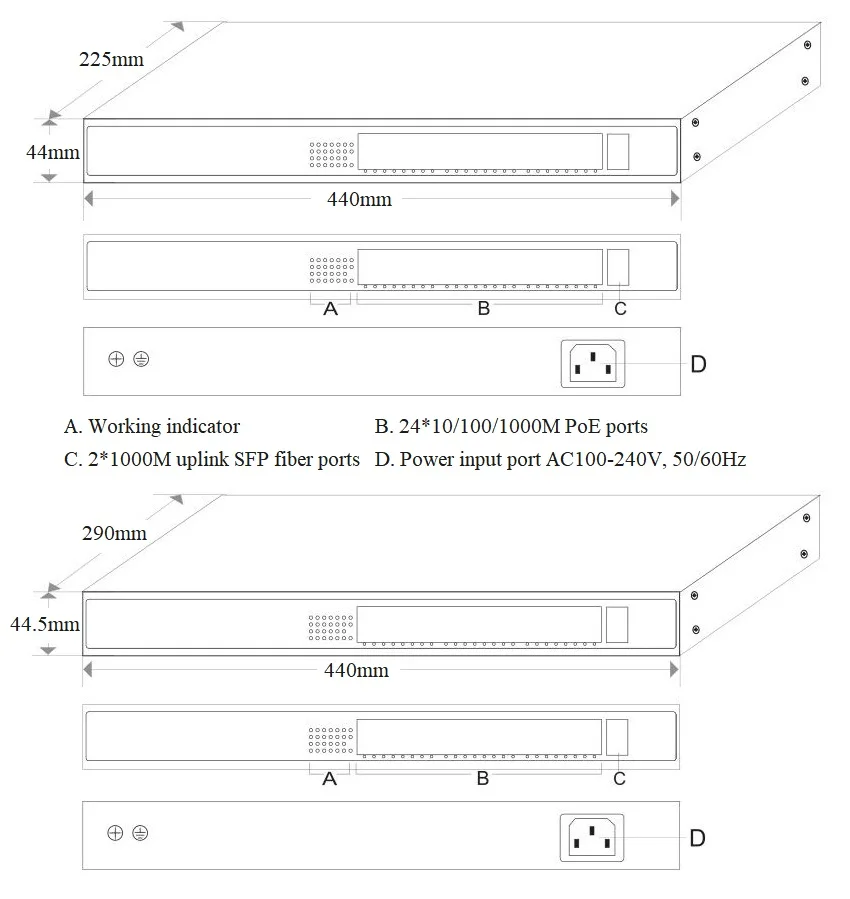

Dimension (L*W*H)
440*225*44mm
440*290*44.5mm
Net /Gross Weight
3.0kg / 3.7kg
3.2kg / 3.9kg
Installation
Desktop, wall mount, 1U/19” cabinet
Certification & Warranty
Lightning Protection
Lightning protection: 4KV 8/20us, Protection level: IP30
Certification
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty
3 years, lifelong maintenance.
