Small Ball Mill for Ore Mine/Chemical/Powder Fine Grinding Jar Miller 5 20L Laboratory Roller Grinding Ball Mill
- Category: >>>
- Supplier: Hainan Oasis Industrial Equipment Technology Co. Ltd.
Share on (1601282601732):
Product Overview
Description
Products Description

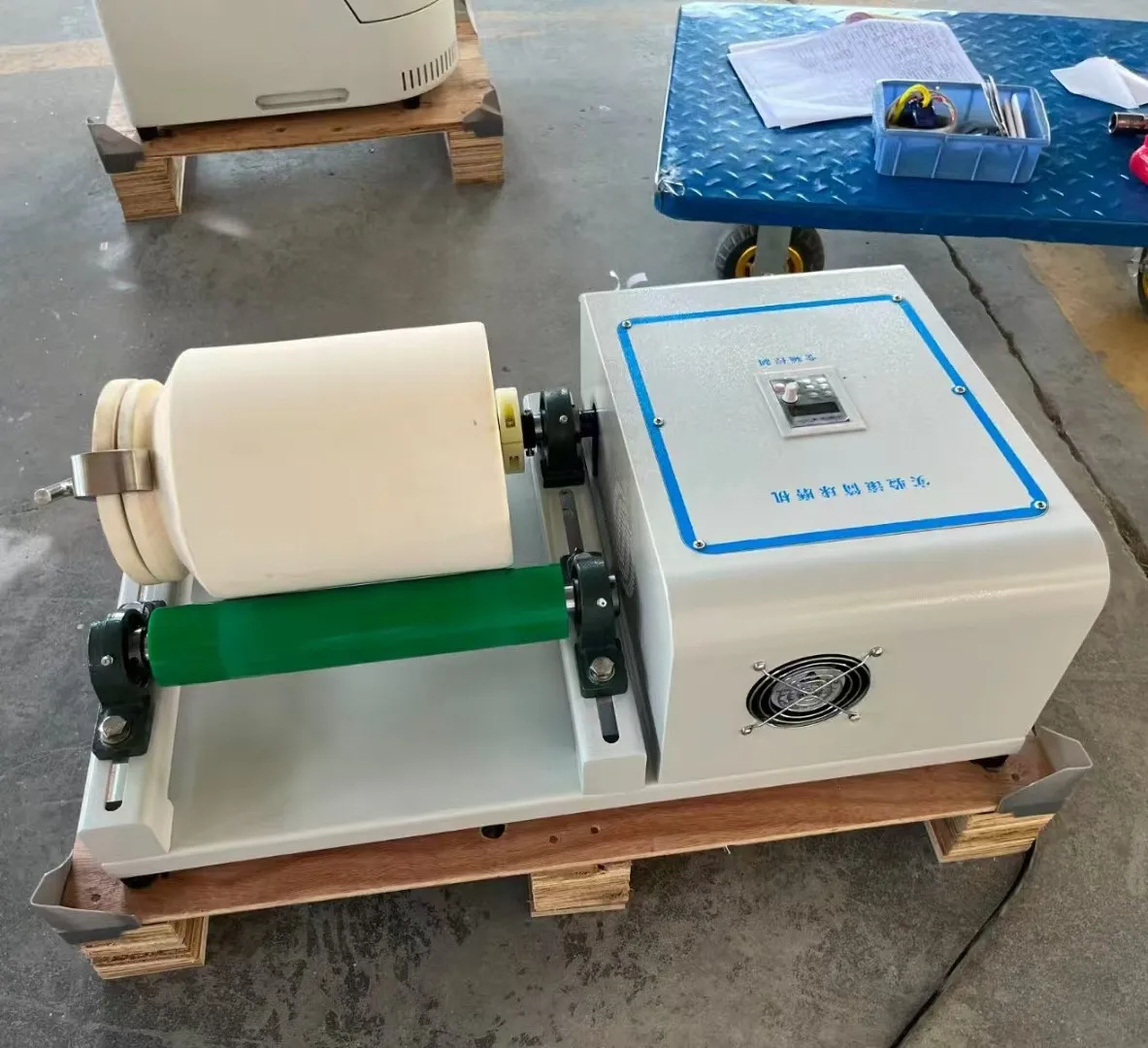

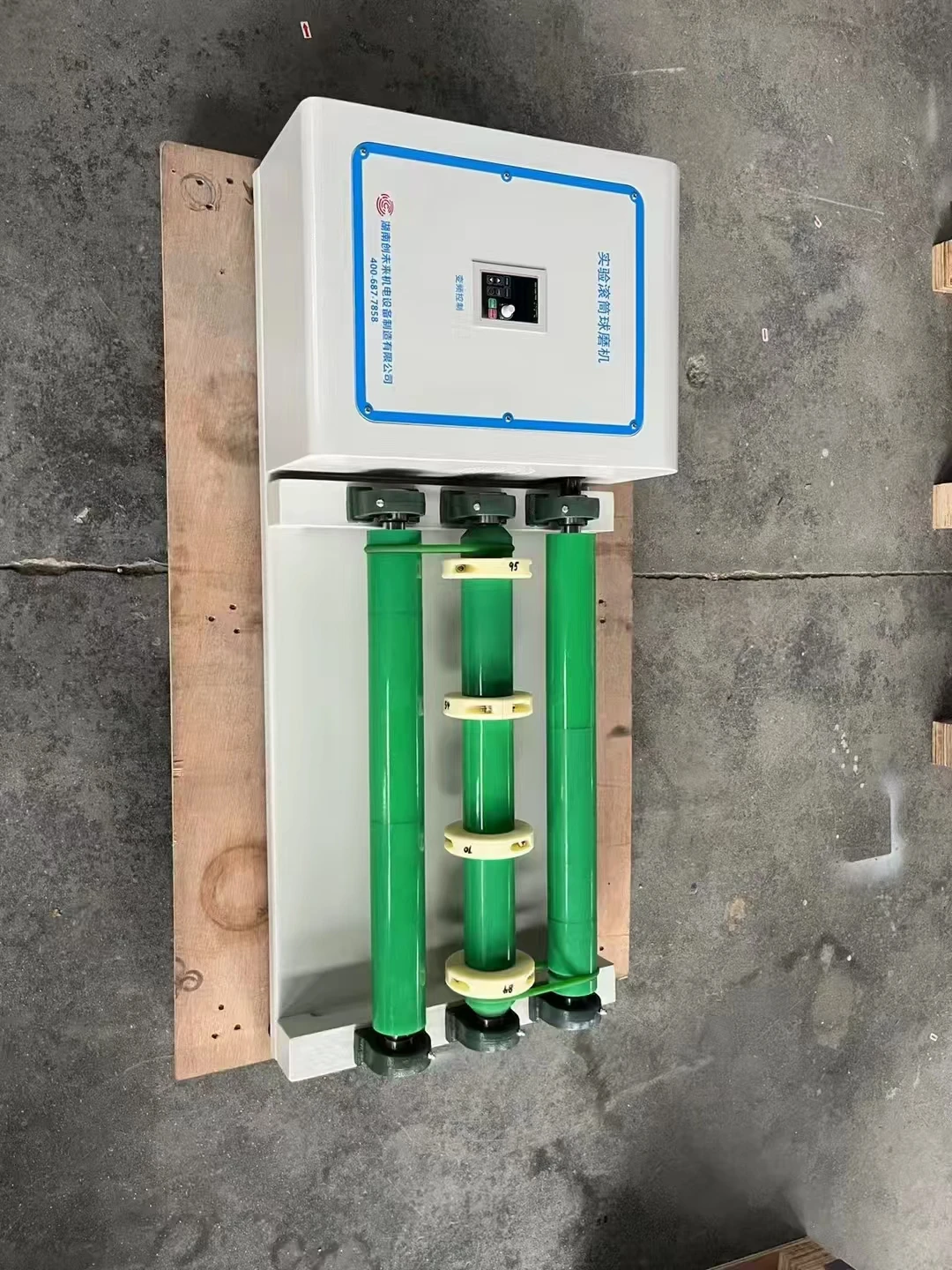

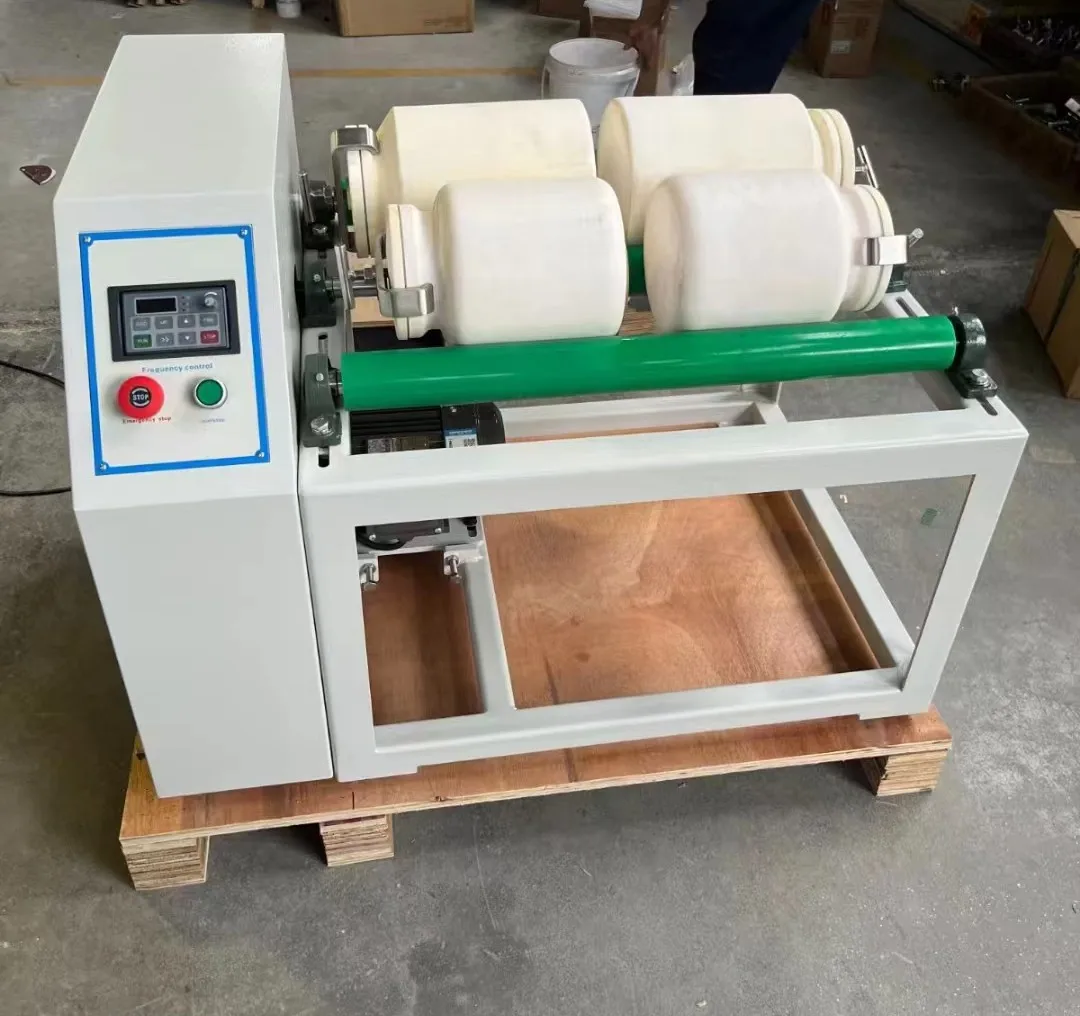

Laboratory Roll Ball Mill
Jar mill ball mill is also called rolling machine, the machine appearance is novel, reasonable structure, easy to use. The machine tank speed optimization design, the tank by the rubber roller to support the best rotation, can make the grinding tank in the medium ball to form a inclined flow movement dispersion material, to obtain the best grinding effect. Can mill (roller machine) machine adopts display time controller control, can set the working time at any time according to the need, and has the suspension, cumulative timing control function, the operation is time-saving, labor-saving, easy and convenientName | Dimension | Motor | Power Supply | Main Rotate Speed | Roll Length | Single Tank Weight | Input Size | Output Size | Speed adjustment mode | |||||
QM-5 | 730*415*260/32kg | Y0.37-4B3 | 0.4kw/220V | 60-570±10(rpm | 260 | 35kg | （mm） | （mesh） | ||||||
QM-15 | 845*435*270/43kg | Y0.75-4B3 | 0.75KW/220V | 60-570±10(rpm | 340 | 80kg | ≤10 | 300≤x≤1000 | Frequency control or fixed speed | |||||
GQM-2-5 | 890*440*685/59kg | Y0.75-4B3 | 0.75KW/220V | 50-410±10(rpm) | 609 | 35kg | ||||||||
GQM-2-15 | 1040*550*690/80kg | Y1.1-4B3 | 1.5KW/220V | 40-340±10(rpm) | 762 | 80kg | ||||||||
GQM-2-20 | 1270*580*690/90kg | Y1.5-4B3 | 1.5KW/220V | 40-365±10(rpm) | 976 | 120kg | ≤20 | |||||||
GQM-4-5 | 890*660*690/70kg | Y0.75-4B3 | 0.75KW/220V | 50-410±10(rpm) | 609 | 35kg | ||||||||
GQM-4-5(Double) | 890*470*870/920kg | Y0.75-4B9 | 1.5KW/220V | 50-470±10(rpm) | 609 | 35kg | ||||||||
GQM-4-15 | 1040*800*690/95kg | Y1.5-4B3 | 1.5KW/220V | 40-340±10(rpm) | 762 | 80kg | ||||||||
GQM-4-20 | 1270*820*690/122kg | Y2.2-4B3 | 2.2KW/380V | 40-365±10(rpm) | 976 | 120kg | ≤30 | |||||||
GQM-8-5 | 890*660*960/106kg | Y1.5-4B3 | 1.5KW/220V | 50-410±10(rpm) | 609 | 35 | ||||||||
GQM-8-15 | 1040*800*960/152kg | Y2.2-4B3 | 2.2KW/380V | 40-365±10(rpm) | 762 | 80 | ||||||||
GQM-8-20 | Customized | |||||||||||||
Details Images

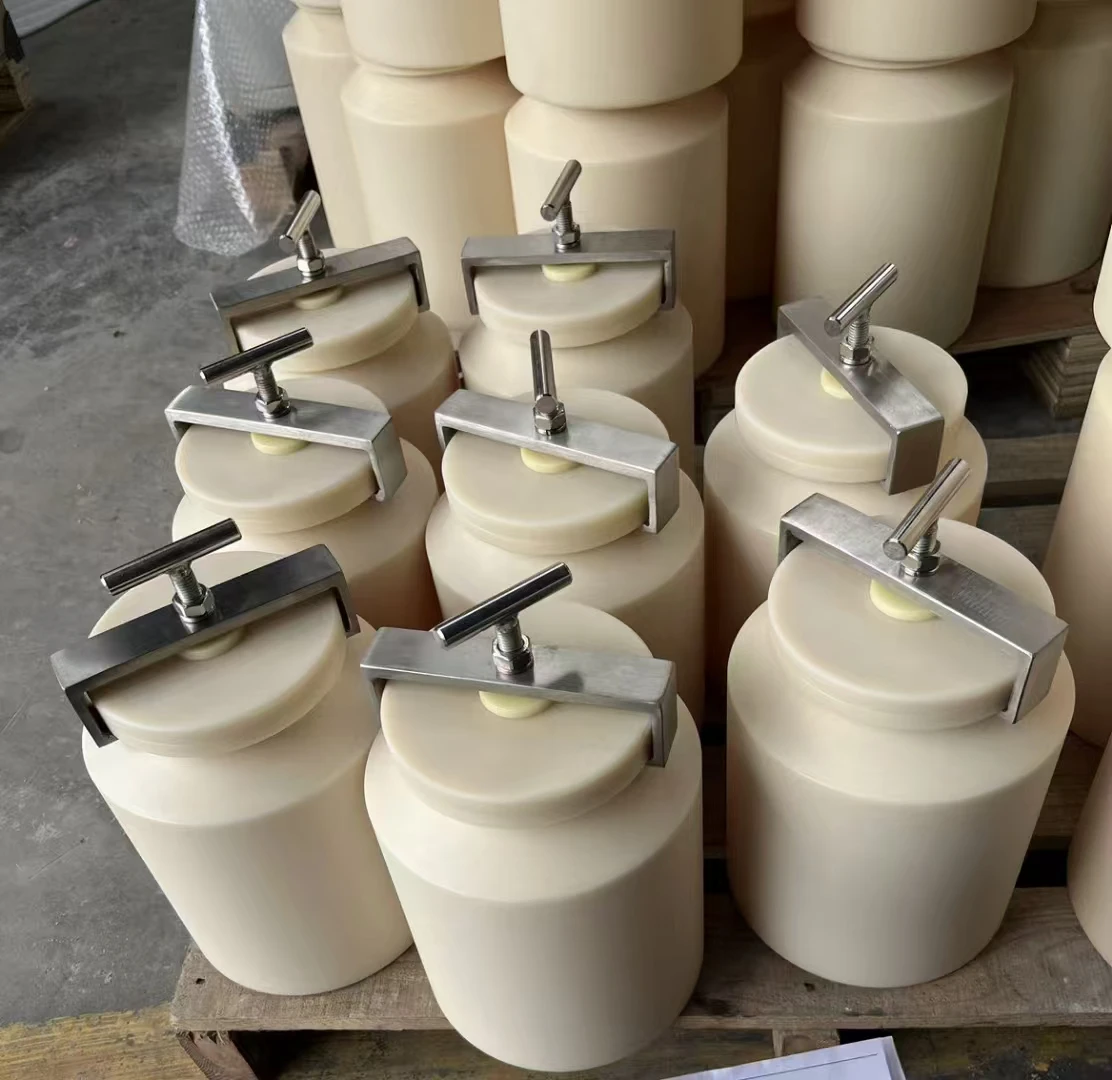

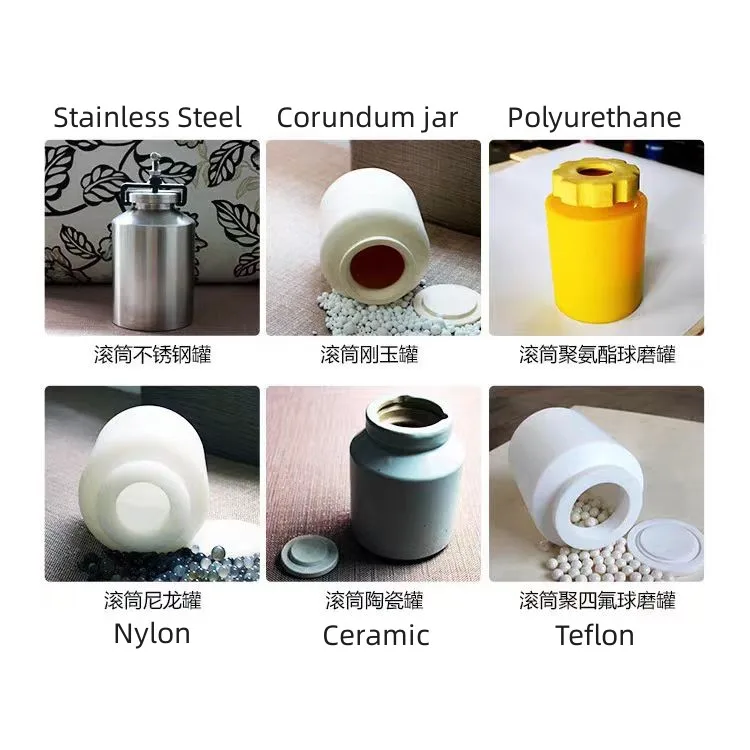

Besides the planetary ball mill machine, our factory provides all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jar etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Recommend Products
Company Profile
Hainan Oasis Industrial Equipment Technology Co., Ltd. established in Hainan free trade port engaged in mechanical equipment research and development;Mining machinery, sand making and washing equipment, experimental beneficiation equipment,intelligent instruments,construction waste treatment equipment,waste sorting and recycling equipment manufacturing and marketing; Precious metal smelting;Engineering and technical research, beneficiation test development;Industrial engineering design services;Special equipment manufacturing;Technical consultation;Planning and design services;Technology import and export.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.
Our Service
Our Service
1. Pre-sale service:
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
1. Pre-sale service:
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
FAQ
1.Q:What Information needed to get accurate quotation and proposal?
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
