Product Overview
Description
Products Description

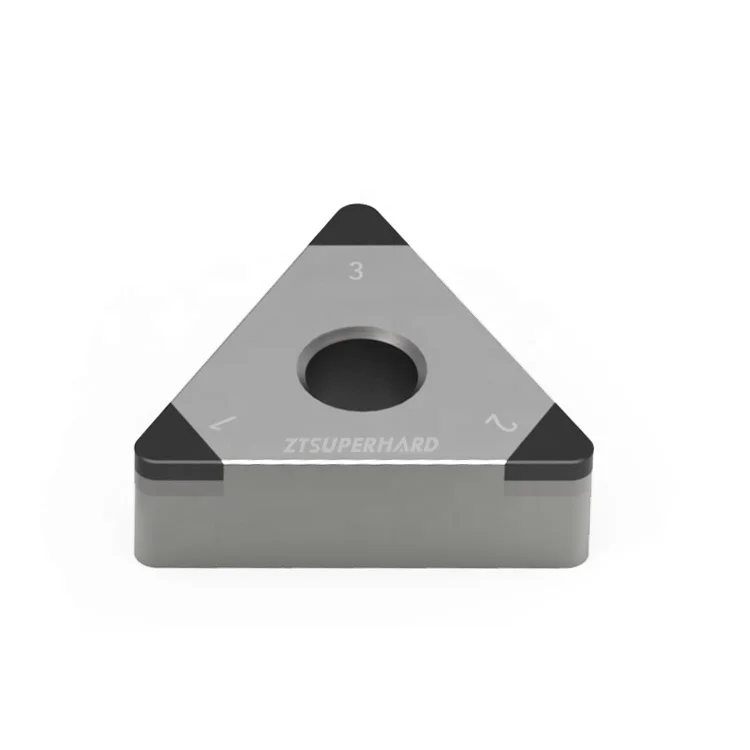

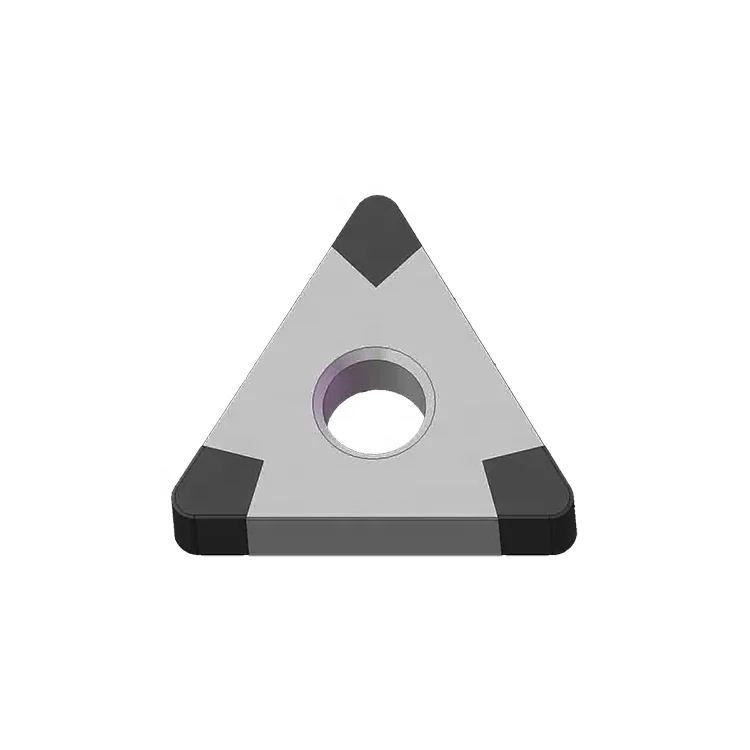

High quality TNGA1604 TNGA160408 TNGA160412 6 pcbn tips TNGA1604 TNGA brazing CBN inserts
TNGA1604 PCBN inserts user vacuum welding solid CBN tip, with high welding strength, high wear resistance, can withstand large cutting force suitable for machining conditions ＜3mm cutting depth.Due to the use of integrated welding technology, both sides of the teeth can be processed, increase the cutting edge, improve the utilization of the brazing CBN inserts
TNGA CBN inserts can be designed according to customer's requirements, which can meet roughing, finishing and wide use, and can meet the processing environment of large depth of cut.

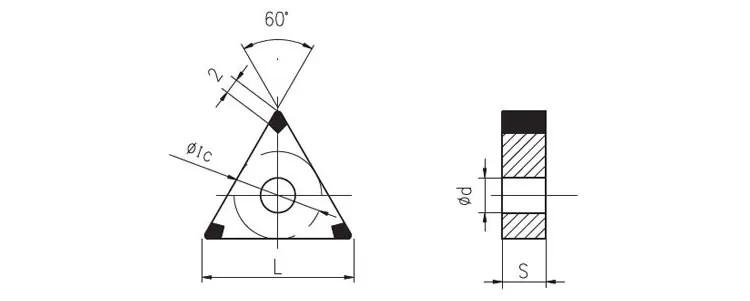

Type | Size | |||||||||
ISO | L | φi.c | s | φd | r | |||||
TNGA160404-6S | 16 | 9.525 | 4.76 | 3.81 | 0.4 | |||||
TNGA160408-6S | 16 | 9.525 | 4.76 | 3.81 | 0.8 | |||||
TNGA160412-6S | 16 | 9.525 | 4.76 | 3.81 | 1.2 | |||||
The standard edge of TNGA CBN inserts are T01020, T01020, S01020, S02020 | ||||||||||
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to
quantity.
Q: How to choose TNGA1604 PCBN inserts?
A: Please advise the object and specification of the cbn inserts
Q: New Project and Not Sure What You Need?
A: We will have one of our highly experienced application development engineers create a wheel for your specific needs based on the material you are working with, your machine type, your processes, and your desired outcome.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to
quantity.
Q: How to choose TNGA1604 PCBN inserts?
A: Please advise the object and specification of the cbn inserts
Q: New Project and Not Sure What You Need?
A: We will have one of our highly experienced application development engineers create a wheel for your specific needs based on the material you are working with, your machine type, your processes, and your desired outcome.
Company Profile
Henan Zhongtu Superhard Material Co., Ltd is located in Zhengzhou high-tech Development Zone. It is a high-tech enterprise integrating production, sales, service and research. The company has grinding wheel workshop and cutting tool workshop. Monthly output of grinding wheels are 5,000 ~ 7,000 pieces and Turning tools are 100,000 ~ 130,000 pieces.
Ztsuperhard adopts advanced technology and equipment, strict quality management, and has won highly praise from customers. ZTSUPERHA main products include resin bond grinding wheels, vitrified bond grinding wheels, metal bond grinding wheels, electroplated bond grinding wheels, PCBN cutting tools, PCD cutting tools etc.
Ztsuperhard adopts advanced technology and equipment, strict quality management, and has won highly praise from customers. ZTSUPERHA main products include resin bond grinding wheels, vitrified bond grinding wheels, metal bond grinding wheels, electroplated bond grinding wheels, PCBN cutting tools, PCD cutting tools etc.
