Vacuum suction cup cnc milling machine multifunctional aluminum copper plate plastic graphite strong suction cup
- Category: >>>
- Supplier: Dongguan Thor Machinery Co. Ltd.
Share on (1601282706432):
Product Overview
Description
Product Description

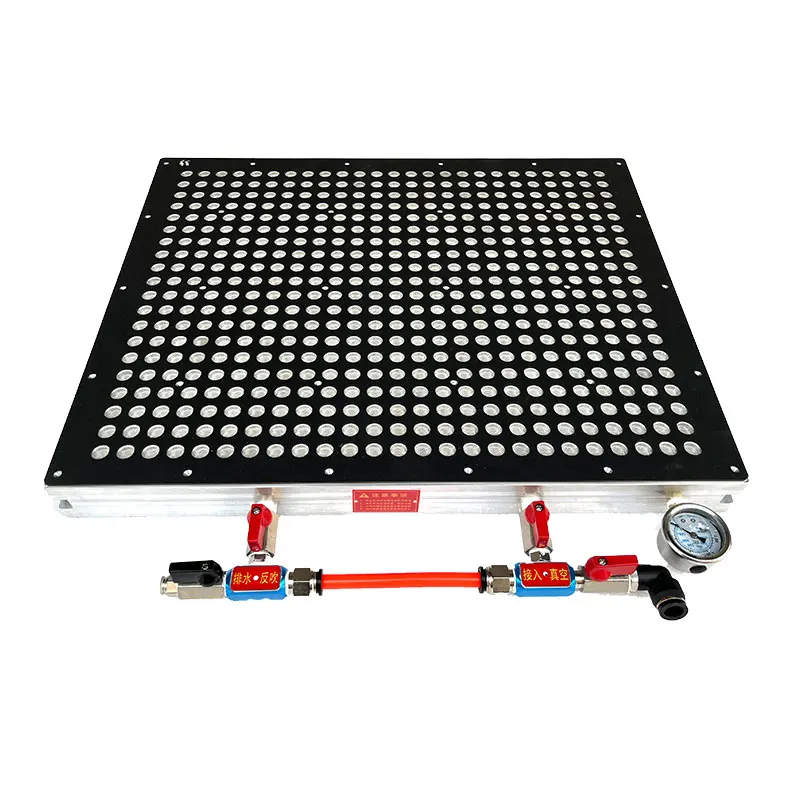

Multi-point VACUUM CHUCK
Upgraded Rapid Adsorption Plate: compares with most vacuum plate fixtures on the market, it does not need sealing strips and glue, or any other tools to fix the workpiece, convenient, quick, and easy!

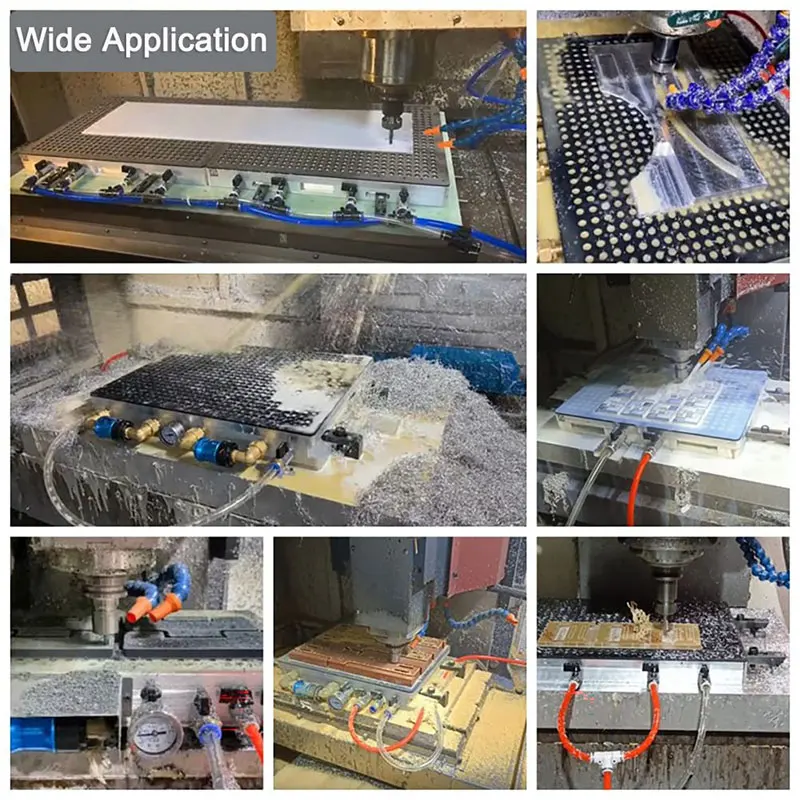

It is suitable for a variety of material workpieces: it can fix different materials and shapes workpiece with 100% flat base,
like stainless steel, wood, PVC, etc. (note: the square of the workpiece base is recommended larger than 10 x 10 cm， and the height of the workpiece should be between 3 – 25 mm)
Separately Adsorption Hole Design: each hole (414 pcs) comes with a built-in filter, which effectively prevents the metal chips block the hole, even if one hole was blocked, it will not affect other holes' working and ensure the processing finishing.
Dia 6-10 mm position holes (10mm depth max) could be drilled for positioning and clamping auxiliary tools.
.
Specification
Model | size | sution hole | Suction hole Dia | Vacuum Dis | Pressure range | Needed pump power | Min workpiece | weight |
3030 | 300*300*50 | 196 | 12mm | 500L/min | -70~-95Kpa | 1500W | 10cm*10cm | 17KG |
3040 | 300*400*50 | 280 | 12mm | 500L/min | -70~-95Kpa | 1500w | 10cm*10cm | 22Kg |
3050 | 300*500*50 | 350 | 12mm | 500L/min | -70~-95Kpa | 1500W | 10cm*10cm | 28Kg |
4040 | 400*400*50 | 400 | 12mm | 500L/min | -70~-95Kpa | 2000W | 10cm*10cm | 30KG |
4050 | 400*500*50 | 500 | 12mm | 500L/min | -70~-95Kpa | 3000W | 10cm*10cm | 35Kg |
4060 | 400*600*50 | 620 | 12mm | 500L/min | -70~-95Kpa | 3000W | 10cm*10cm | 42KG |
5060 | 500*600*50 | 775 | 12mm | 500L/min | -70~-95Kpa | 3000W | 10cm*10cm | 52KG |
5080 | 500*800*50 | 1050 | 12mm | 500L/min | -70~-95Kpa | 3000W | 10cm*10cm | 72Kg |
5050 | 500*500*50 | 625 | 12mm | 500L/min | -70~-95Kpa | 3000W | 10cm*10cm | 48KG |
Specification
Product Category
Company Profile
Packing & Delivery
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Tapping machine, end mill grinder, drill grinder, cutter grinder, chamfering machine ,dividing head, rotary table and so on .
A: We specialized in all kinds of machines ,such as Tapping machine, end mill grinder, drill grinder, cutter grinder, chamfering machine ,dividing head, rotary table and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
6:What is your sea port?
A: Ningbo/Shanghai/shenzhen
Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
6:What is your sea port?
A: Ningbo/Shanghai/shenzhen
Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
