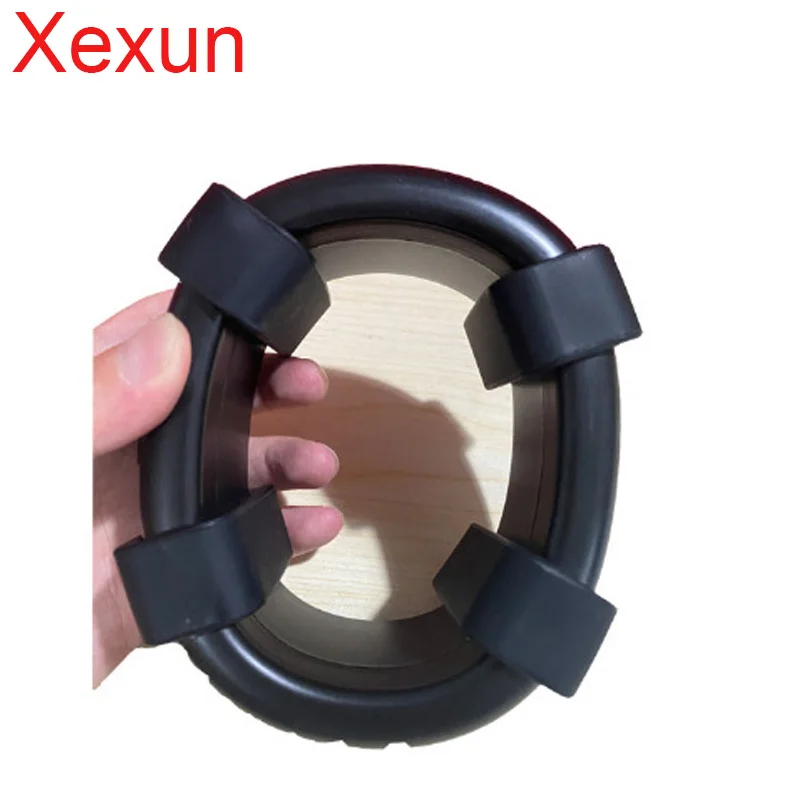

4G Single GPS Tracker Ankle Bracelet Anti disassembly alarm Waterproof Ankle Monitor GPS Locator for Prisoners Offender
- Category: >>>
- Supplier: Shenzhen Xexun Technology Co. Ltd.
Share on (1601282729293):
Product Overview
Description
Application
Detail Marking

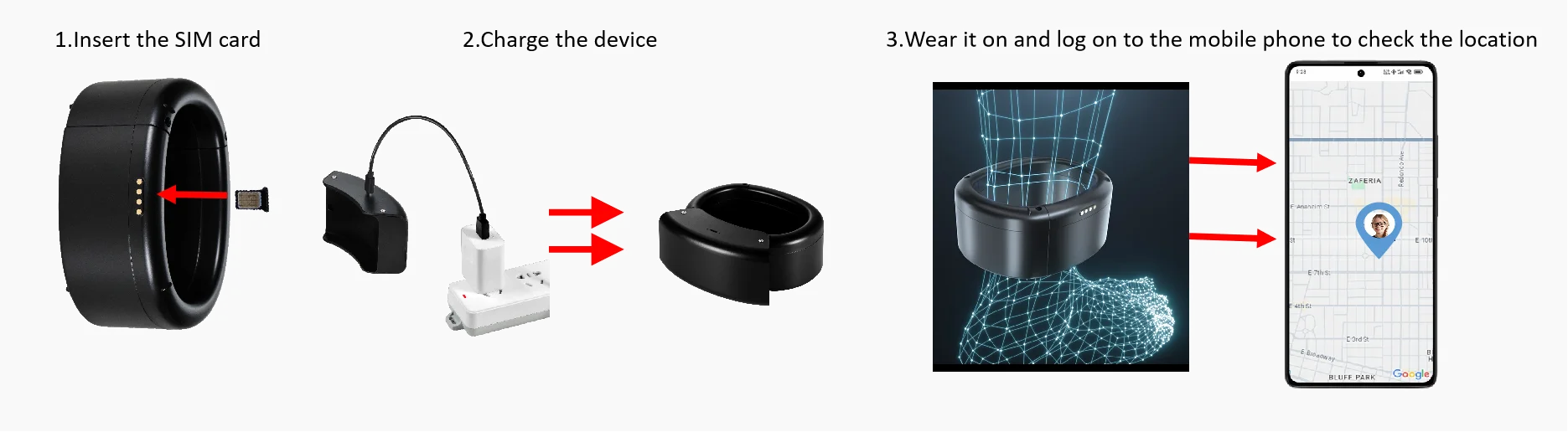

Product Usage
List Of Items
Main Functions
Functions
No. | Name | Describe |
1 | Real time tracking | Indoor and outdoor high-precision real-time tracking. The real-time position of the tracked object can be viewed on the map at any time. |
2 | Blind Area Supplementary Report | It can store the location and alarm information of mobile network interruption state, and automatically resend after network signal recovery. |
3 | Historical Route | You can view the historical route of the terminal in any time period on the map. |
4 | virtual fence | Some key areas can be set as virtual fences. Once the terminal enters or exits the fence, the system will alarm immediately. |
5 | Route Planning | It can set the daily travel route and time interval of the terminal in advance. Once the terminal deviates from the specified route, the system will alarm immediately. |
6 | Wifi Monitoring | The system can automatically collect the specified WiFi hotspots regularly to detect whether the terminal is in the designated area. Once the terminal leaves the designated area, the system will alarm immediately. |
7 | Disassembly Alarm | GPS ankle built-in conduction circuit, illegal disassembly immediately alarm. |
8 | Low Power Alarm | When the terminal power is less than 20%, it will automatically generate low power alarm, vibration will remind the wearer and send the low power alarm information to the management system. |
9 | Message | The terminal can receive the setting instructions and messages pushed by the system. |
10 | Pedometer | The built-in motion sensor can realize the step counting function, and the system can automatically count the steps every day. |
11 | Remote Settings | Support online settings through the network to facilitate remote management. |
12 | Remote Upgrade | Support online upgrade through the network, convenient remote maintenance. |
13 | Two Way Ranging | It can monitor the distance between the GPS ankle and the designated ranging base station in real time. |
14 | Over Distance Alarm | Once the distance between the GPS ankle and the designated ranging base station exceeds the set threshold, the system will alarm immediately. |
Parameter
No. | Name | Parameter |
1 | Model | DDX14 |
2 | Tracking Mode | It supports GPS / Beidou / WiFi / lbs hybrid tracking, and the terminal can automatically switch the most suitable tracking mode according to the change of environment, and supports Gaode and Google maps. |
3 | Tracking Accuracy | Without occlusion, the maximum tracking accuracy can reach 5 meters. |
4 | Tracking Frequency | By default, it is tracked once every hour, which can be set. |
5 | Ranging Method | TOF bidirectional ranging technology based on UWB. |
6 | Ranging Frequency | 3.75-4.25GHz. |
7 | Ranging Distance | In the open environment, the maximum distance can reach 300 meters. |
8 | Ranging Accuracy | In the open environment, the highest accuracy can reach 0.3m. |
9 | Ranging Interval | Once every 30 seconds, can be set. |
10 | Antenna Type | Built in omnidirectional antenna. |
11 | Network Type | 4G. |
12 | Sim Card | Nano SIM card. |
13 | System | We provide supporting management system, also can push data to the third-party management system. |
14 | Data Security | Built in encryption transmission and security authentication to ensure data security. |
15 | Switch On / Off | GPS ankle power on automatically, unable to manually turn off. In special circumstances, the system can be shut down remotely by the administrator. |
16 | Vibration Alert | yes. |
17 | Indicator Light | Power / charge / work / alarm indicator. |
18 | External Interface | Magnetic charging and data interface. |
19 | Battery | 2500 MAH rechargeable battery. |
20 | Standby Time | Tracking once every 30 seconds, standby for 36 hours. |
21 | Charging Time | Two hours. |
22 | Charging Voltage | 5V. |

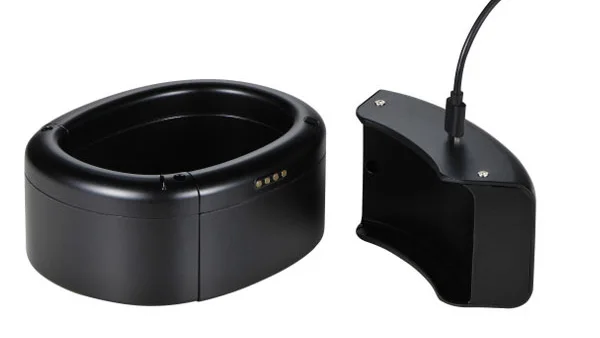

23 | Charging Mode | First, fully charge the snap on mobile power supply, and then buckle the mobile power supply on the GPS ankle to charge the GPS ankle. When charging, there is no need to connect the power cord, and the wearer can walk freely. |
24 | Shell Material | Environmental friendly plastic. |
25 | Waterproof | IP68. |
26 | Size / Weight | The product is 122* 120 * 54mm / 181g. The color box is 147 * 134 * 71MM / 462g. The carton is 450 * 300 * 370mm / 1.46kg (30pieces). |
27 | Work Environment | Temperature: - 20-60 ℃. Humidity: 10% - 90% RH, no condensation. |

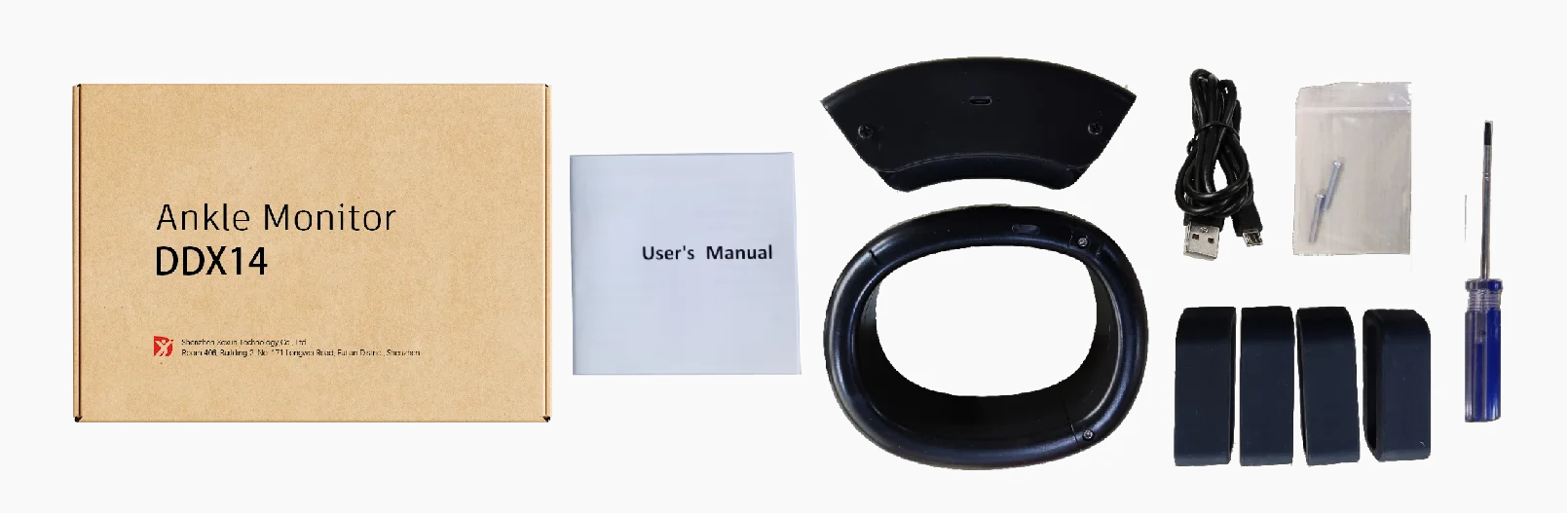

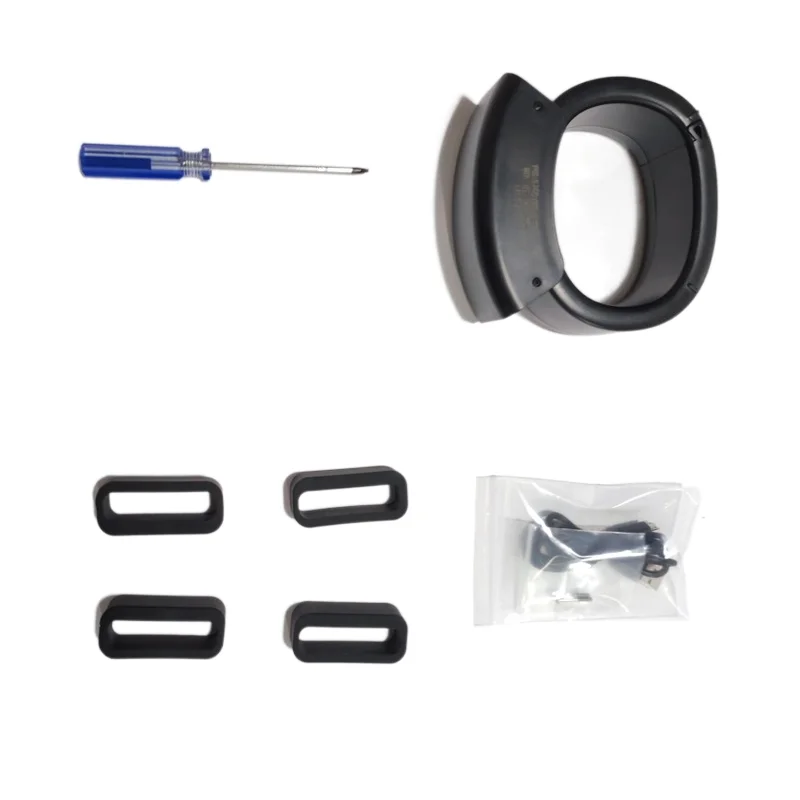

28 | Details Of Accessories | Includes GPS ankle, snap on charger, magnetic data cable, user manual and warranty card. |
Related Products
Our Advantages
Our Customers
Our factory
Exhibition
Our Team
Certifications
FAQ
Q: Are you a manufacturer?
A: Yes, we have been focusing on the development and production of high-precision tracking for more than 18 years.
Q: Do you need SIM card from cellular service provider?
A: Yes, the bracelet needs to be inserted into the nano SIM card.
Q: How do I track the location of the bracelet?
A: You can use our free PC and app software to track the location of the bracelet.
Q: Can you provide SDK or API for us to make our own applications?
A: Yes.
Q: Has your product passed CE / ROHS certification?
A: he bracelet has passed CE / RoHS / CCC / FCC / MSDs
Q: What is your minimum order quantity?
A: We accept a formal order of at least 1 sample and at least 100 units.
Q: Do you accept OEM / ODM?
A: We can use your logo and package for you, and free of charge, you can also modify the hardware and software according to your requirements.
Q: Can you send samples free of charge?
A: You are required to pay for the sample and transportation.
Q: What is the final price?
A: The final price depends on the quantity of your order.
Q: What are your payment terms?
A: 30% deposit TT and 70% balance TT before shipment. You can also pay through Alibaba.
Q: When do you deliver the goods?
A: The sample takes 1-3 days; the bulk order is about 15-45 days according to the quantity.
Q: What mode of transportation can you offer?
A: According to the customer's request, shipping / air transportation is OK.
Q: How long is your guarantee?
A: We offer 12 month guarantee.
