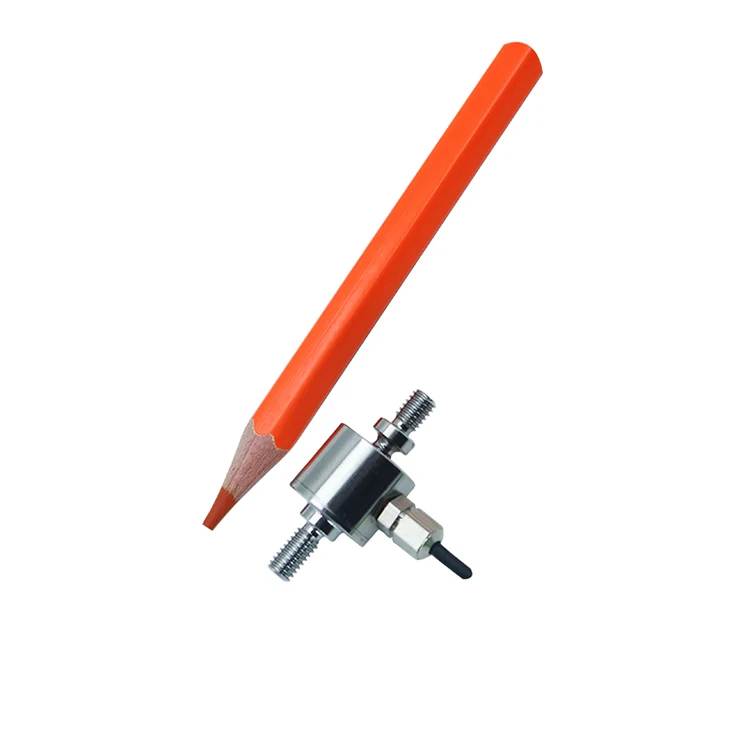

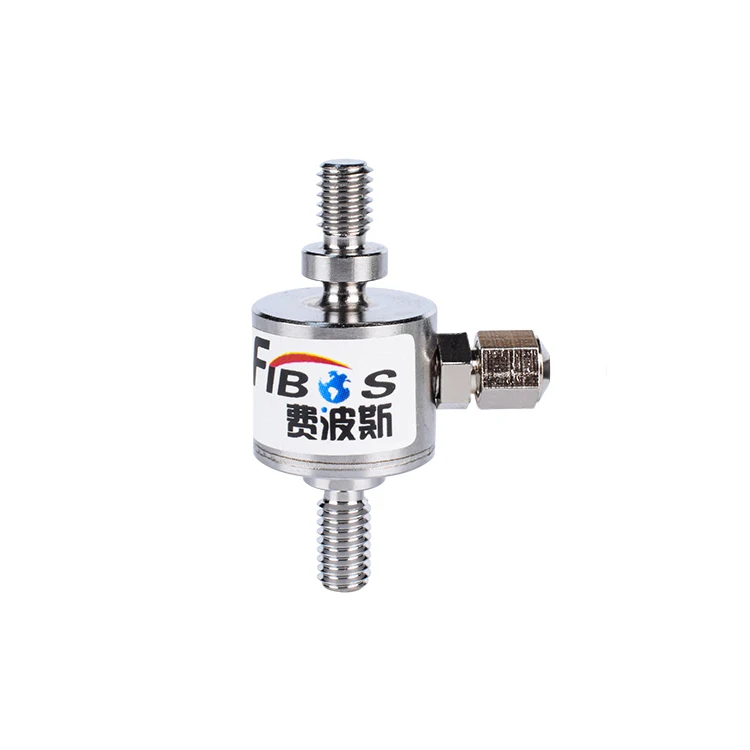

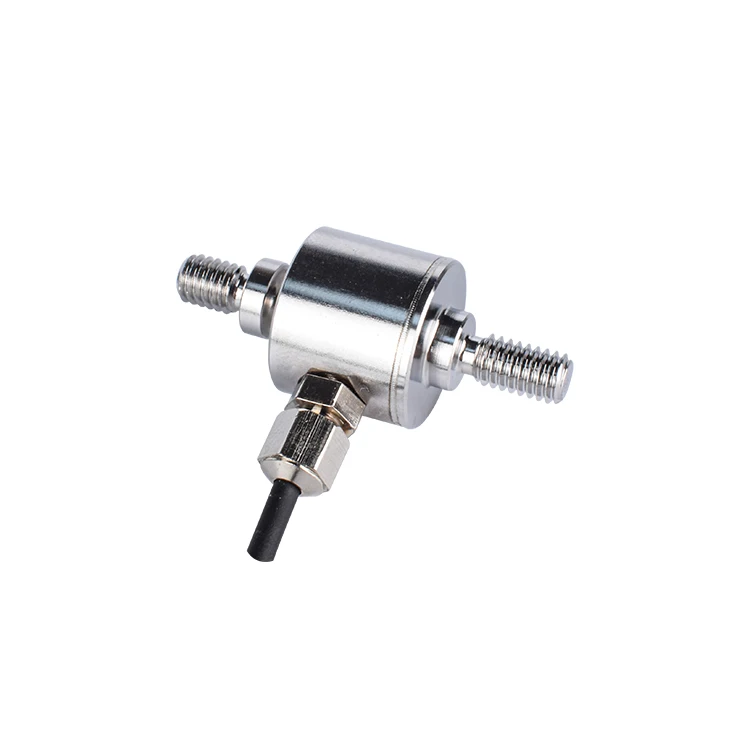

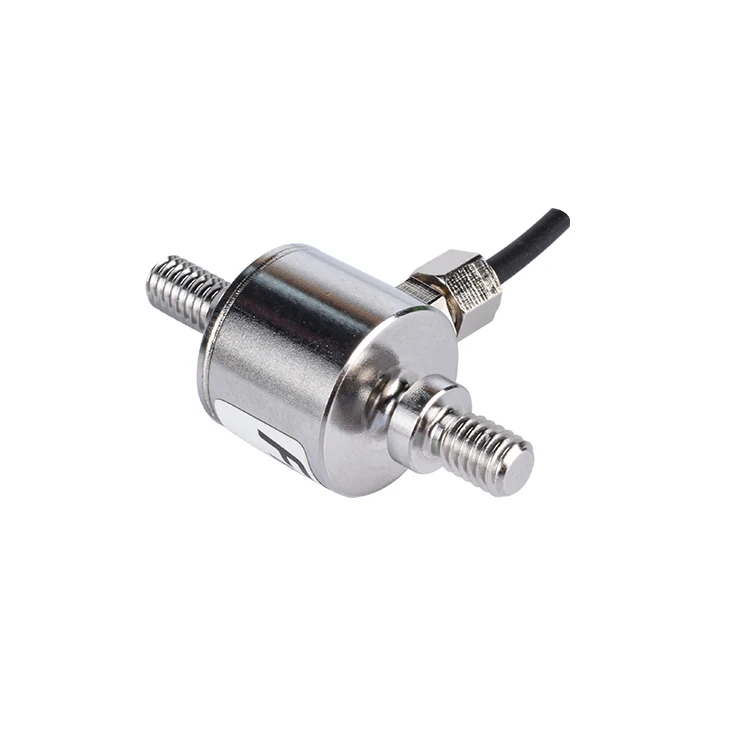

50kg Mini Tension and Compression Force Sensor Inline Load Cell Applicable to Small Space
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1601282744733):
Product Overview
Description
Product Information
Model Number | FA201 |
Capacity | 50,100,200,500,1000N |
Sensitivity | 1.0±20%mV/V |
Zero Balance | ±0.05mV/V |
Creep | ≤0.5%F.S. |
Non-linearity | ≤0.5%F.S. |
Hysteresis | ≤0.5%F.S. |
Repeatability | ≤0.01%F.S. |
Input Impedance | 800~1100Ω |
Output Impedance | 800~1100Ω |
Temp. effect on output | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Wiring | Red: EXC+, Green: Sig+, Yellow: Shielding wire, White: Sig-, Black: EXC |
Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended Excitation | 5~12V |
Max Excitation | 15V |
Compensated Temp Range | -10~60℃ |
Operating Temp Range | -20~80℃ |
Safe Overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Cable Size | φ2x3000mm |
Weight | 0.2KG |
Material | Stainless Steel |
Feature & Application
The characteristics of micro force sensors mainly include the following points
1. Small size: Micro force sensors are usually small in size and can adapt to limited space requirements.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate: Micro force sensors have good compatibility and can be easily integrated with other devices.
The application fields of micro force sensors are very broad, including but not limited to the following aspects
1.3C industry: used for production testing of electronic screens, buttons, etc
2.Automotive industry: used to detect various pressure parameters of vehicles, such as tire pressure, brake system pressure, etc.
3.Healthcare: used to monitor blood pressure, speech pressure, and the flow of medication fluids.
4.Packaging and logistics: used to detect the loading of goods and provide overload protection during transportation protective devices.
Other industrial applications: such as printing, lamination, coating, shearing, papermaking, rubber, textiles, wires and cables,etc pressure testing of the production line.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate: Micro force sensors have good compatibility and can be easily integrated with other devices.
The application fields of micro force sensors are very broad, including but not limited to the following aspects
1.3C industry: used for production testing of electronic screens, buttons, etc
2.Automotive industry: used to detect various pressure parameters of vehicles, such as tire pressure, brake system pressure, etc.
3.Healthcare: used to monitor blood pressure, speech pressure, and the flow of medication fluids.
4.Packaging and logistics: used to detect the loading of goods and provide overload protection during transportation protective devices.
Other industrial applications: such as printing, lamination, coating, shearing, papermaking, rubber, textiles, wires and cables,etc pressure testing of the production line.
