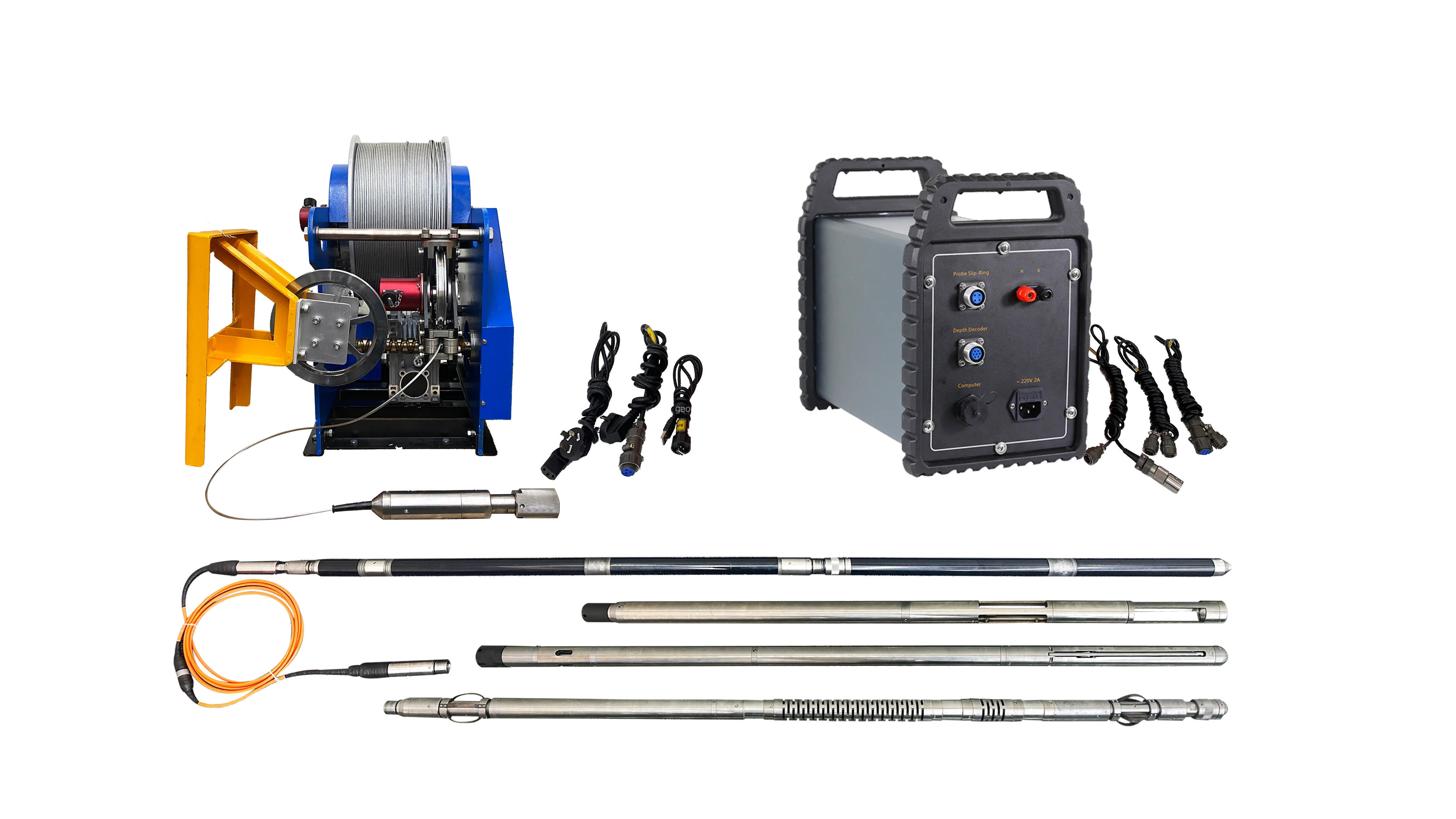

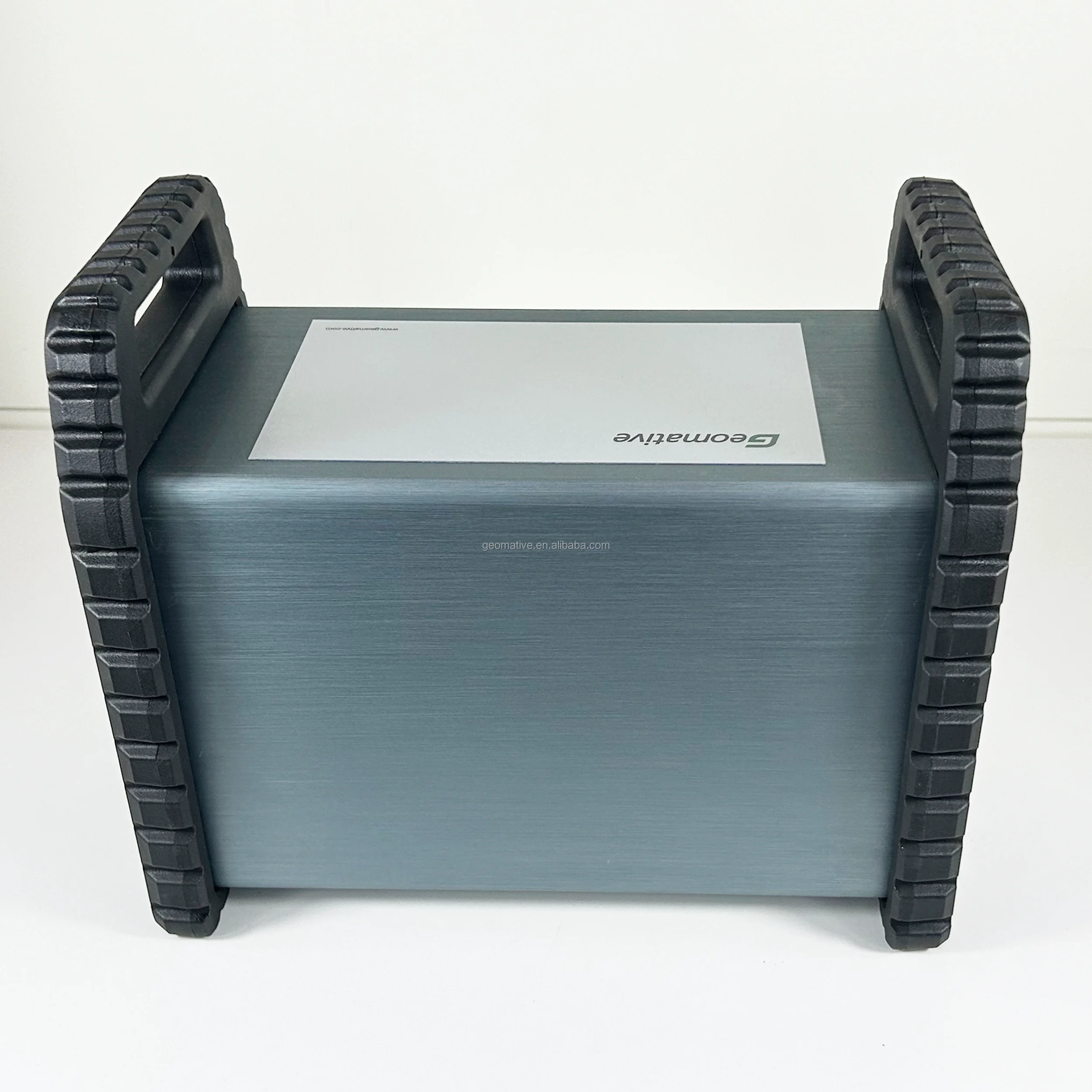

GELS-Y Logging System
GELS-Y is a digital logging system specially designed for the convenience of field work, which can connect with various kinds of pipe and log . Because this system uses a series of advanced technology , it improves the use of one ground-based instrument controlling one heavy logging probe into one ground- based instrument controlling various kinds of logging probe , it also includes the deep measurement , the power supply and so on . The instrument has a light weight and simple operation and maintenance, which can be connected to the tube type , which can be aseismatic, temperature-resistant, moisture proof and high reliability.
Main Feature
1. Standardization and modularity
In the integrated digital control logging system, both hardware and software, no matter probe or ground box, signal measurement or signal transmission, have adopted the standardization and modularization design concept. The benefits of standardization and modularity Product is excellent in products' consistency , maintainability and reliability. It is convenient to operate and maintain. The accessories are 100 percent universal and can be expanded at any time.
2. Fully underground digital and measurement's signal transmission
All the signals from the underground probe are converted by A/D and sent to the ground after being encoded. The underground probe is a two-way street communication. Digital code transmission measurements greatly improve the anti-jamming capability, and the system itself can correct the error code, which guarantees the quality of the signal transmission.
3. Oversampling technology to obtain the most formation information
Logging System uses the sampling method for the collection of formation information. The oversampling amount increases with the decrease of the logging speed, and over sampling ensures the need for digital filtering, enhancing spatial resolution and screening useful information.
4. Small size of the underground probe with high pressure
Logging System probe is almost diameter Φ40 and Φ50 mm, the appearance of length 1000~1500mm size. The probe is made of stainless steel. Resistance to 20~40 MPa water pressure, temperature of 70 ~ 90 ℃. Special orders can be 60 MPa water pressure resistance,temperature 120 ℃ resistance.
In the integrated digital control logging system, both hardware and software, no matter probe or ground box, signal measurement or signal transmission, have adopted the standardization and modularization design concept. The benefits of standardization and modularity Product is excellent in products' consistency , maintainability and reliability. It is convenient to operate and maintain. The accessories are 100 percent universal and can be expanded at any time.
2. Fully underground digital and measurement's signal transmission
All the signals from the underground probe are converted by A/D and sent to the ground after being encoded. The underground probe is a two-way street communication. Digital code transmission measurements greatly improve the anti-jamming capability, and the system itself can correct the error code, which guarantees the quality of the signal transmission.
3. Oversampling technology to obtain the most formation information
Logging System uses the sampling method for the collection of formation information. The oversampling amount increases with the decrease of the logging speed, and over sampling ensures the need for digital filtering, enhancing spatial resolution and screening useful information.
4. Small size of the underground probe with high pressure
Logging System probe is almost diameter Φ40 and Φ50 mm, the appearance of length 1000~1500mm size. The probe is made of stainless steel. Resistance to 20~40 MPa water pressure, temperature of 70 ~ 90 ℃. Special orders can be 60 MPa water pressure resistance,temperature 120 ℃ resistance.
Technical Specification:
Types | Parameter |
Power supply | 220V, 50 Hz |
Using temperature | -20℃ ~ 45℃ |
Using humidity | 90% or less (45℃) |
Depth measurement range | 0 ~ 9999.99 m |
Depth resolution | 0.28 mm |
Speed measurement range | 0 ~ 9999m/h |
Deep optical pulse signal | 3600 pulses per meter |
Bottom hole output signal | bipolar coding |
Communication with the computer | RS232 or USB |
The underground signal detection level | plus or minus 0.5 V ~ plus or minus 12V |
Figure out the depth of the graph | 1：10 ；1：20；1：50； 1：100 ；1：500 etc. |

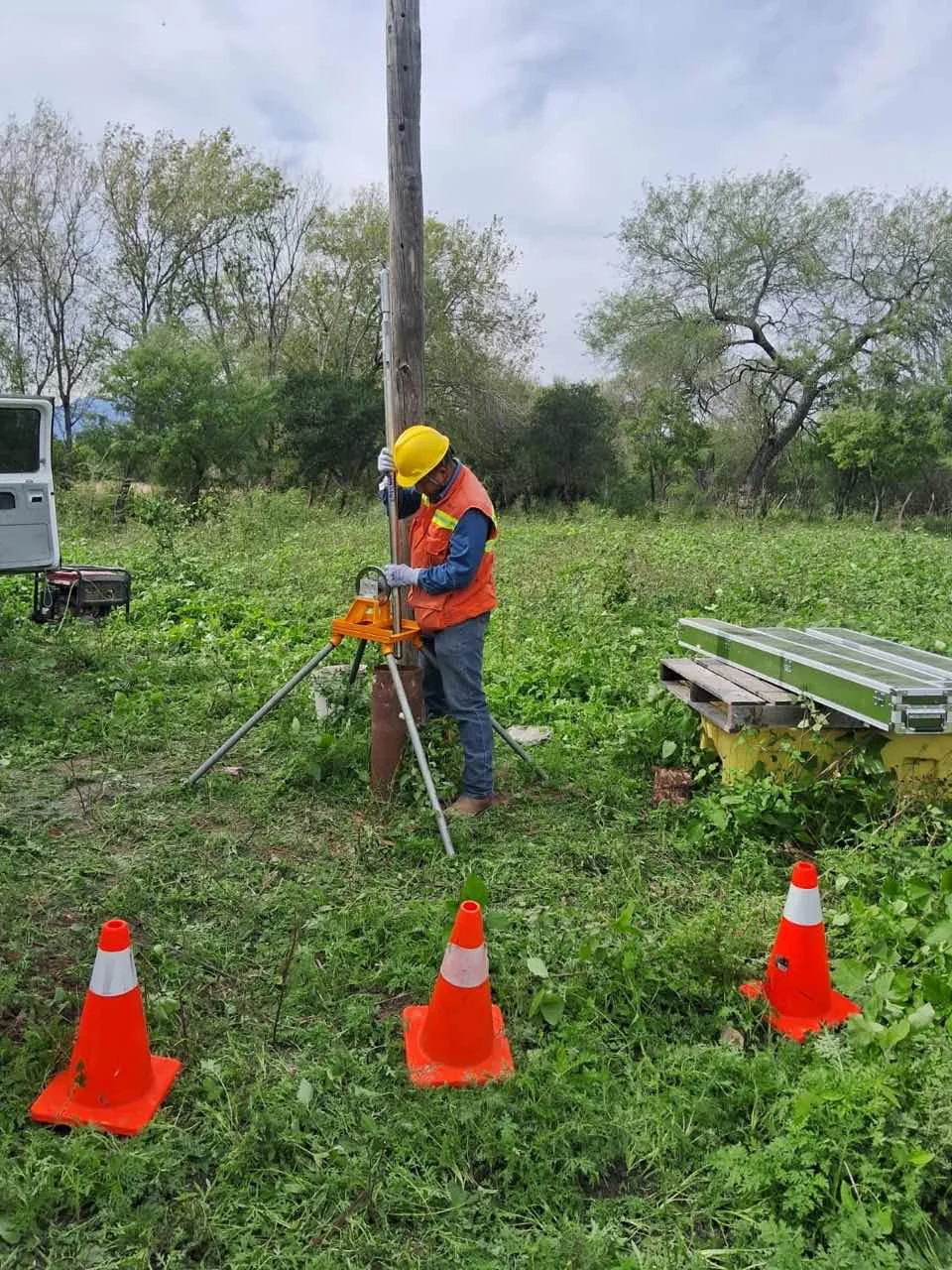

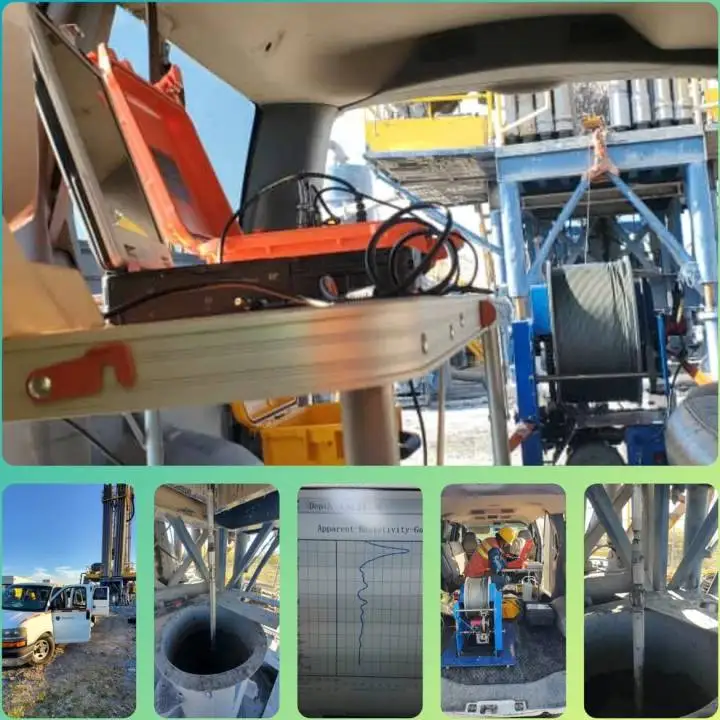

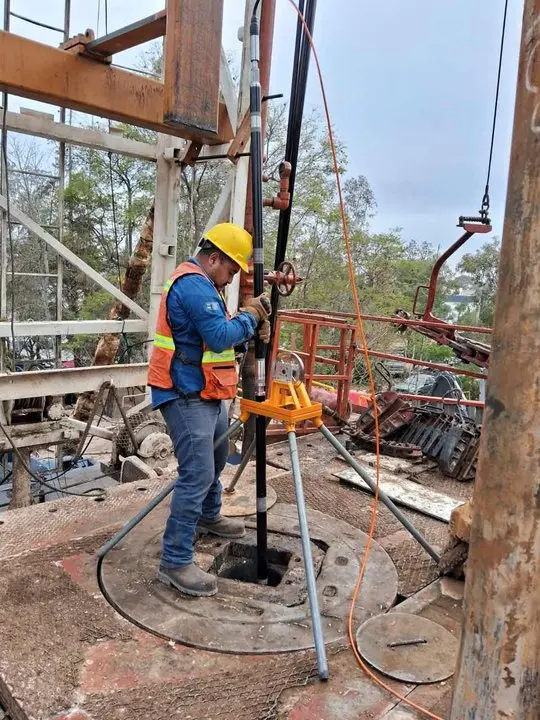

Product Field Operation Pictures
Certifications
Company Profile
who we are?
Founded in 2011, Geomative is strategically located in Canada and China (Shenzhen and Wuhan City), with manufacturing, marketing and technical support departments, so as to provide rapid and high-quality products and technical services to countries and regions nearby. We are an international corporation with extensive involvement in geophysical exploration technique research, instrument development & manufacturing, marketing & distribution, engineering and environmental geophysical exploration services.
Our philosophy is to insist on technical development as our company pioneer, strict adherence to high quality product and services, focusing on our clients' needs. We are awarded with ISO 9001 Quality Management Systems certification and CE certification. We initiated "Geophysics +” concept, aiming at providing professional and reliable geophysical instruments, while offering comprehensive package solution and engineering technical services to our clients.
Our philosophy is to insist on technical development as our company pioneer, strict adherence to high quality product and services, focusing on our clients' needs. We are awarded with ISO 9001 Quality Management Systems certification and CE certification. We initiated "Geophysics +” concept, aiming at providing professional and reliable geophysical instruments, while offering comprehensive package solution and engineering technical services to our clients.

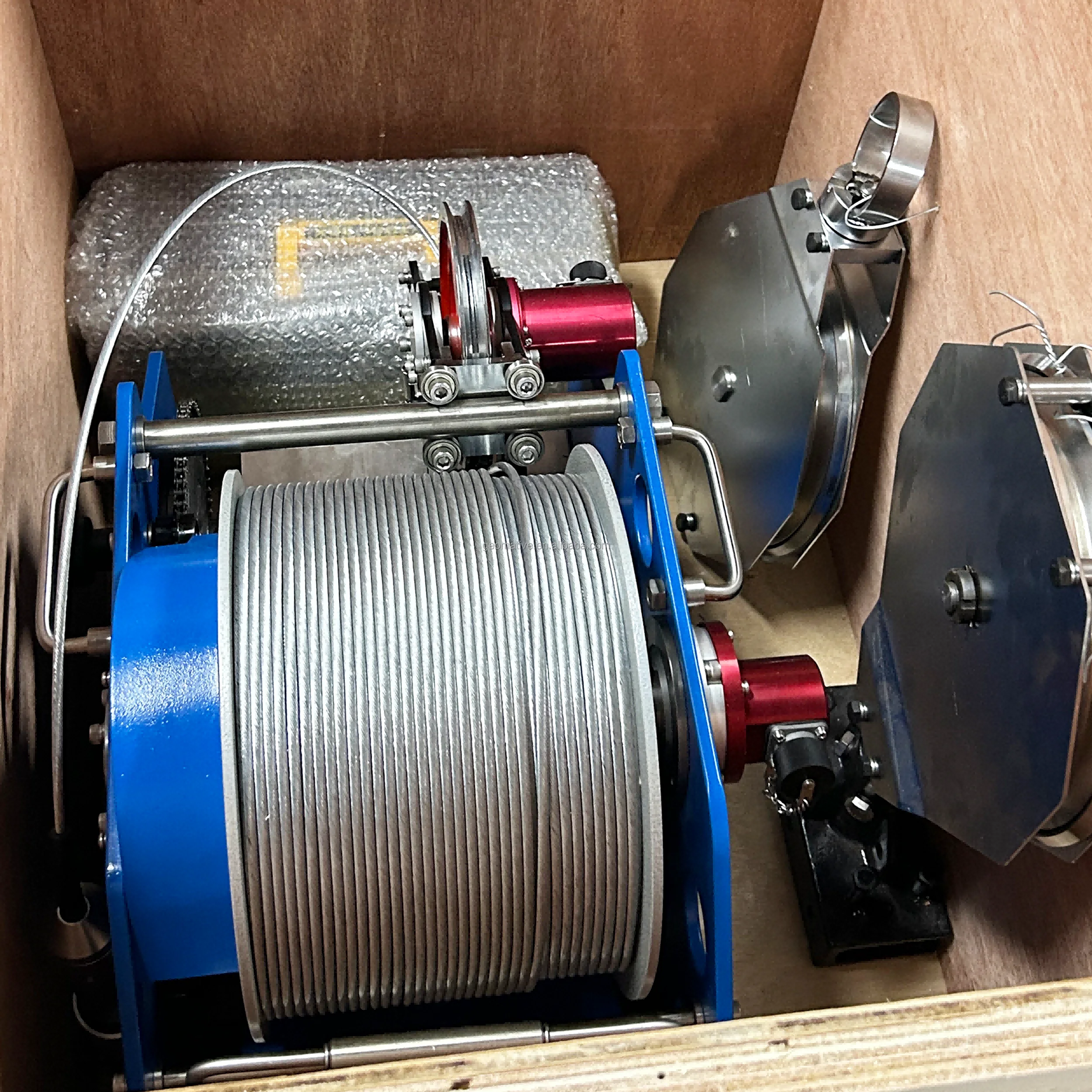

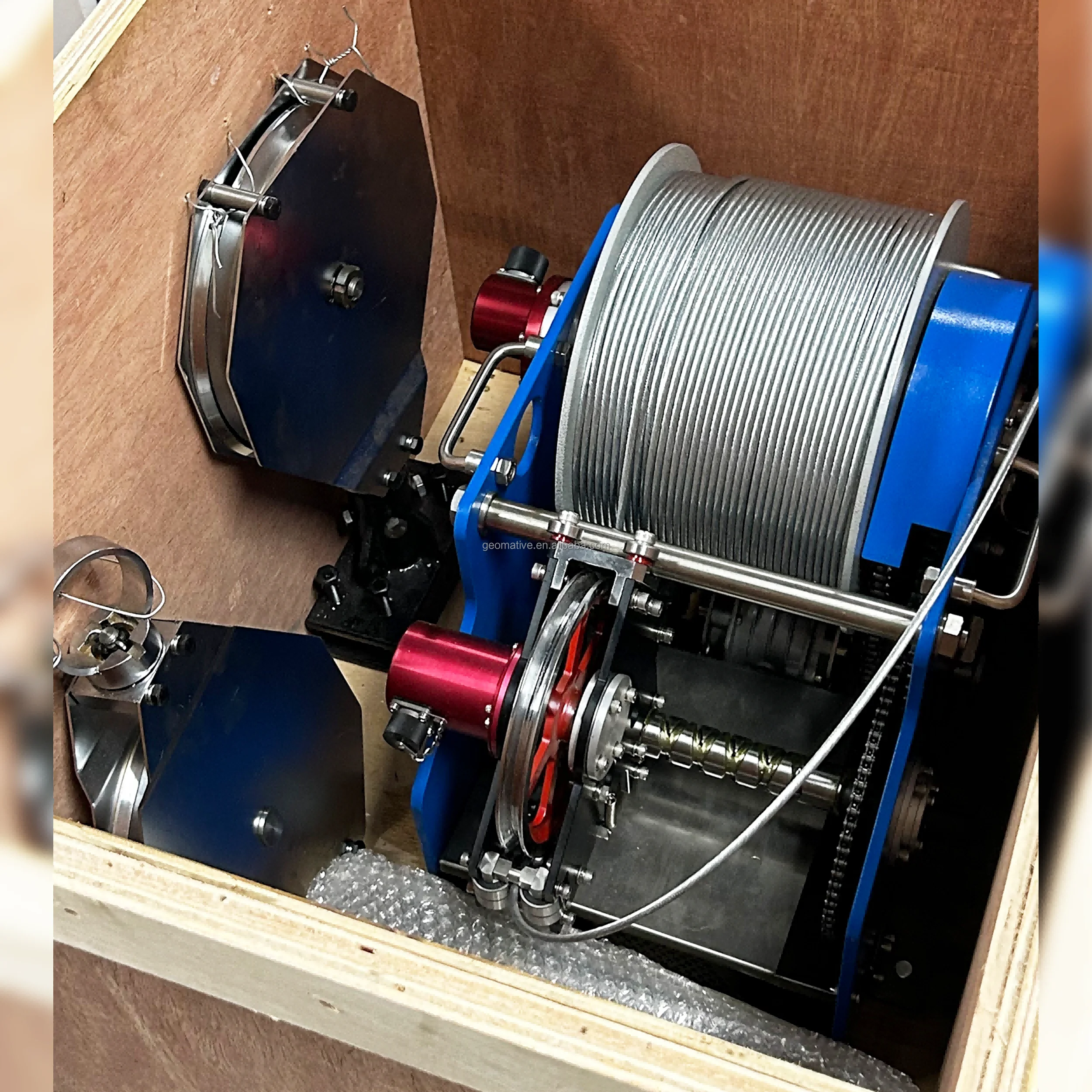

Packing & Delivery
