High pressure industrial 300bar gasoline diving air compressor for sale
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1601282764449):
Product Overview
Description
Product Description
100L/Min 5.5-HP Gas Powered Air Compressor 4500psi Gasoline Drive Air Filling Station for Diving
HY-X400 diving and breathing applications: diving clubs, diving enthusiasts, marine aquaculture, marine rescue, shipboard equipment, underground operations, fishing, aquaculture, sunken salvage, underwater engineering, water parks, shipbuilding and other industries, for diving Provide highly purified, clean, odorless, safe and reliable compressed breathing air for personnel. In an environment that cannot meet the normal breathing of the human body, fill the air into the high-pressure gas cylinder for human breathing.
Main Parameters
Model：HY-X100
Model：HY-X100
Work pressure：30Mpa Mpa(300bar)
Displacement (inhalation state)：100L/min L/min
Type：X-type layout-four-cylinder four-stage reciprocating piston compression
Drive：Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or Honda gasoline engine drive
Lubrication method：Splash lubrication
Cooling method：Air-cooled
Control method：Manual shutdown or (optional to automatically shut down to pressure)
Clean air：1 air filtration, 1 oil-water separation, 1 air purification
Safety devices：Final stage installation valve, transmission part installation protective cover
Packing size (length×width×height)：60×36×43cm
Weight：45kg
Inflation speed：It takes about 22 minutes to fill a 6-liter bottle with 30Mpa
Certified product：CE certification
Displacement (inhalation state)：100L/min L/min
Type：X-type layout-four-cylinder four-stage reciprocating piston compression
Drive：Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or Honda gasoline engine drive
Lubrication method：Splash lubrication
Cooling method：Air-cooled
Control method：Manual shutdown or (optional to automatically shut down to pressure)
Clean air：1 air filtration, 1 oil-water separation, 1 air purification
Safety devices：Final stage installation valve, transmission part installation protective cover
Packing size (length×width×height)：60×36×43cm
Weight：45kg
Inflation speed：It takes about 22 minutes to fill a 6-liter bottle with 30Mpa
Certified product：CE certification
Specification
item | value |
Applicable Industries | Diving cylinder filling, Fire gas cylinder filling |
Condition | New |
Type | PISTON |
Configuration | PORTABLE |
Power Source | AC POWER |
Lubrication Style | Lubricated |
Mute | No |
Place of Origin | China |
Brand Name | HUAYAN |
Model Number | MCH6 |
Voltage | Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or Honda gasoline engine drive |
Dimension(L*W*H) | 35×65×39cm |
Weight | 39kg |
Warranty | 1 Year |
Working Pressure | 300bar |
Air capacity | 80~100L/min |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | Cylinder, safety valve, pressure maintenance valve, automatic shutdown system, transmission part, installation protective cover |
Gas Type | Air |
Product name | 4500 psi high pressure electric air compressor |
Model | MCH6 |
Work pressure | 30Mpa Mpa(300bar) |
Flow rate | 80~100L/min |
Type | 4cylinder 4 stage reciprocating piston compression |
Drive | l Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or Honda gasoline engine drive |
Lubrication method | Splash lubrication |
Cooling method | Air-cooled |
Control method | Automatic shutdown |
Weight | 39KG |

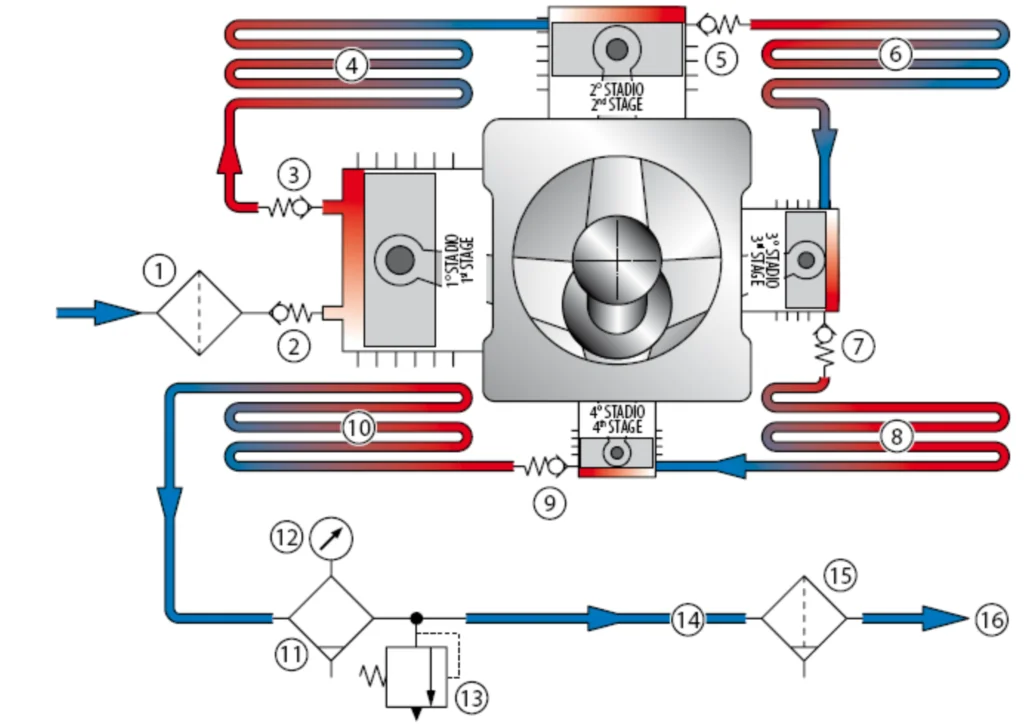

Pure air through an air filter
(1) after filtration, enters into the first-stage cylinder through
(2) the first-stage cylinder intake valve, and after being compressed by the first-stage cylinder, passes through
(3) the first-stage cylinder exhaust valve and enters
(4) the first-stage cylinder Cooler, the cooled gas enters the second-stage cylinder, the compressed gas enters
(6) the second-stage cooler through
(5), the cooled gas enters the third-stage cylinder, and after being compressed by the third-stage cylinder, enters
(7) ( 8) Three-stage cooler, the cooled gas enters the four-stage cylinder, the gas compressed by the four-stage cylinder enters (10) the four-stage cooler through (9), and the compressed and cooled gas enters (11) the oil-water condenser , Enter (15) activated carbon molecular sieve filter, the filtered pure air is discharged through (16) hose. (12) Pressure gauge (13) Safety valve (14) Connecting pipe.
This product is mass-produced after design changes and optimizations in accordance with the Italian model. The final piston adopts a special process, and the piston ring adopts the Japanese Riken process. Unanimous praise from users. This product adopts three-cylinder three-stage compression, splash lubrication, inter-stage safety valve and filter system. HC-W400 can provide safe compressed air for any industry that needs high-pressure pure air source, and provide safe compressed air that meets the requirements of human breathing. This product is designed, produced and tested and accepted in accordance with the requirements of GB/T 12929-2008 "Marine High-pressure Piston Air Compressor"; the air quality meets the EN12021 international breathing compressor breathing standard; HC-W400 is a kind of air compression equipment, which will be free 1 kg (1bar/0.1Mpa) of air in the state is compressed to a high-pressure gas with a gauge pressure of 300 kg (300bar/30Mpa) step by step. After passing through the separator and filter in the unit, the air is removed from the The oil and impurities in the high-pressure air can filter the fine particles (PM2.5) in the inhaled air to a safety value of less than 10 micrograms, which meets the standards set by the World Health Organization, making the exhaust gas clean and tasteless. The personnel provide highly purified, clean, odorless, safe and reliable compressed breathing air.
Main Application
Main Application of this high pressure compressor :
Fire-fighting breathing application: equipped in the gas supply stations of the fire brigade or various fire-fighting vehicles to provide emergency gas supply at the scene of a fire or in the rescue and relief process, so that the majority of firefighters will be exposed to heavy smoke, poisonous gas, steam or lack of oxygen. In this environment, you can breathe highly purified, clean, odorless, safe and reliable compressed air, thus ensuring that fire extinguishers can safely and effectively carry out fire fighting, rescue, disaster relief, and rescue.
Diving breathing applications: diving clubs, diving enthusiasts, marine breeding, sea rescue, ship equipment, underground operations, fishery fishing, aquaculture, sunken object salvage, underwater engineering, water parks, shipbuilding and other industries, providing high Purified, clean, odorless, safe and reliable compressed breathing air. In an environment that cannot meet the requirements of the human body for normal breathing, the air is filled into a high-pressure gas cylinder for human breathing.
Diving breathing applications: diving clubs, diving enthusiasts, marine breeding, sea rescue, ship equipment, underground operations, fishery fishing, aquaculture, sunken object salvage, underwater engineering, water parks, shipbuilding and other industries, providing high Purified, clean, odorless, safe and reliable compressed breathing air. In an environment that cannot meet the requirements of the human body for normal breathing, the air is filled into a high-pressure gas cylinder for human breathing.
Packing & Delivery
Wooden Package for High Pressure Air Compressor
Company Profile
Xuzhou Huayan Gas Equipment Co., Ltd. is a supplier of compressors, oxygen generators, nitrogen generators, gas cylinders, etc. The company is headquartered in Xuzhou City, Jiangsu Province, China, covers an area of 91,260. Our company has accumulated a wealth of design and manufacturing experience, since 1965 the production of gas compressors, with professional forging, casting, heat treatment, welding, machining, assembly tests, and other production and processing capabilities, and has complete technical testing equipment and methods. We can design, manufacture and install products according to the customer's parameters.
Our products have been exported to dozens of countries in the world, mainly Indonesia, Egypt, Vietnam, Korea, Thailand, Finland, Australia, Czech Republic, Ukraine, Russia, and other countries, covering the fields of national defense, aerospace, nuclear power, petrochemicals and so on. We can provide complete one-stop solutions for every customer all over the world, and guarantee that every customer can be assured of quality products and an excellent service attitude.
Our products have been exported to dozens of countries in the world, mainly Indonesia, Egypt, Vietnam, Korea, Thailand, Finland, Australia, Czech Republic, Ukraine, Russia, and other countries, covering the fields of national defense, aerospace, nuclear power, petrochemicals and so on. We can provide complete one-stop solutions for every customer all over the world, and guarantee that every customer can be assured of quality products and an excellent service attitude.
