LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
narrow space aisle low height mini single girder remote control overhead crane bridge crane for sale
- Category: >>>
- Supplier: Henan Seven Industry Co. Ltd.
Share on (1601282769928):
Product Overview
Description

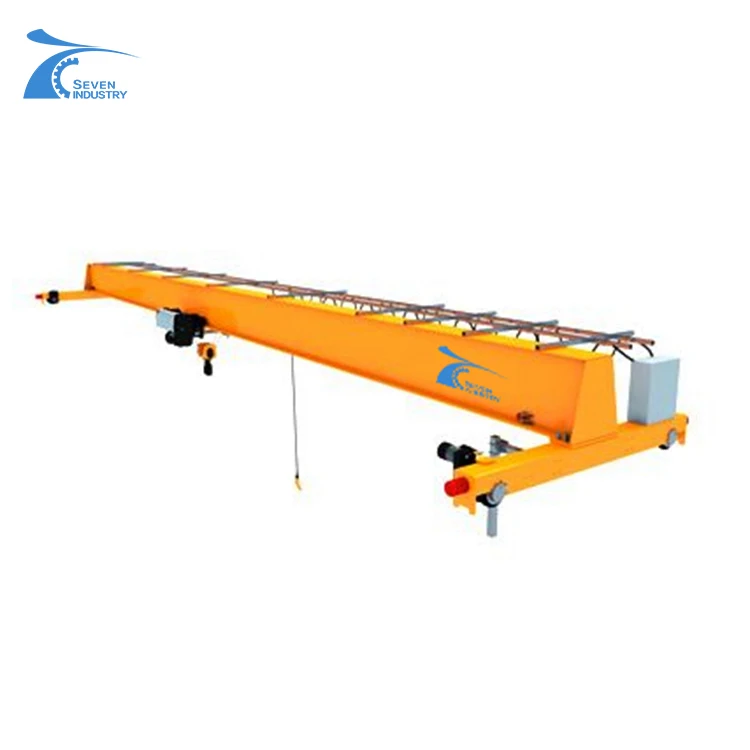

1. The single girder overhead crane is a kind of crane with the bridge on the elevated track. The bridge frame runs longitudinally along the track laid on both sides of the elevated frame, and the crane trolley runs horizontally along the track laid on the bridge frame to form a rectangular working area, which can make full use of the space under the bridge frame to lift materials.
2. This eot crane is widely used in machinery manufacturing, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries on-site construction operations, and material handling operations in workshops and warehouses, and are especially suitable for industrial construction operations and equipment hoisting in large factories.
2. This eot crane is widely used in machinery manufacturing, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries on-site construction operations, and material handling operations in workshops and warehouses, and are especially suitable for industrial construction operations and equipment hoisting in large factories.
Item | single girder overhead crane |
Loading Capacity | 1t-20ton |
Span | 4.5m-31.5m |
Lifting Height | 3m-18m or according to customer request |
Working Duty | FEM2m-A5 |
Lifting Speed | 0.8/5m/min,1/6.3m/min |
Traveling Speed | 2-20m/min(ground control), 3-30m/min(cabin control) |
Power Source | 380v/400v/415v/440v/460v,50hz/60hz,3 phase or customized |
Width of track | 37-70mm |
Control Mothod | pendant control, remote control(wireless radio control) |
This overhead crane has the advantages of compact structure, strong rigidity, easy operation, low noise, safety and reliability,and outstanding beautiful appearance, structural design.
The main beam and the end carriage are connected by bolts, which are convenient for disassembly and quick
installation transportation.
installation transportation.
All parts of overhead crane are made of high-quality and sophisticated parts, which greatly guarantees the service life of the bridge crane.
Main Beam
1.It employs bias-rail box-type structure
2.connects eith end beam by high-strength
3.bolt ensuringeasy transportation.
2.connects eith end beam by high-strength
3.bolt ensuringeasy transportation.

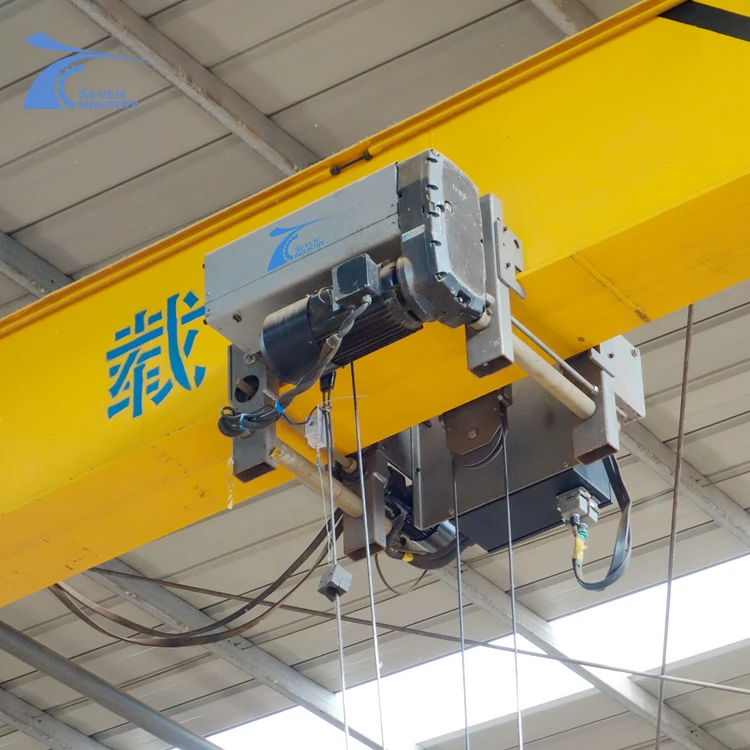

Hoist
1.Capacity: 1-50t
2. Protection class F class
3. Single/Double speed, with traveling trolley and reducer, drum and motor, include overload limiter switch
End Outrigger
Mainly composed of anti-twisted box profiles and travel units. They can adapt to various load capacities and can becustomized
according to customer requirements.
according to customer requirements.
Wheel and Reducer
1.A full range of safety systems
2. Products meet international standards
3. Customized services s will meet your needs
Motor
1.The technical parameters comply
2.with standars of FEM and HMI.
3.With high rotational speed and low noise
2.with standars of FEM and HMI.
3.With high rotational speed and low noise
Hook
1. Capacity: 1-450t
2. Type: Single hook, double hooks.
3. Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath.
2. Type: Single hook, double hooks.
3. Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath.
Warehouse
Factory
Outdoors

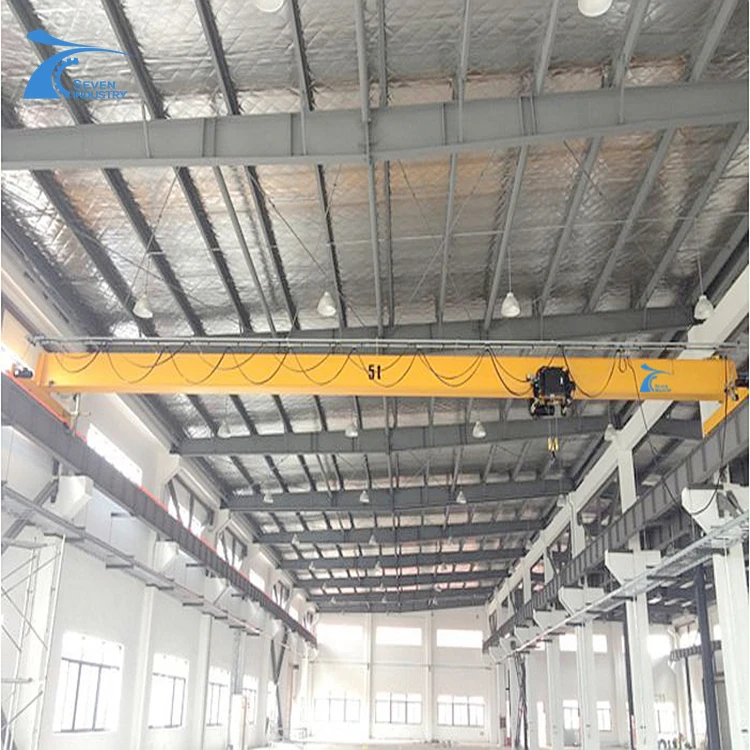

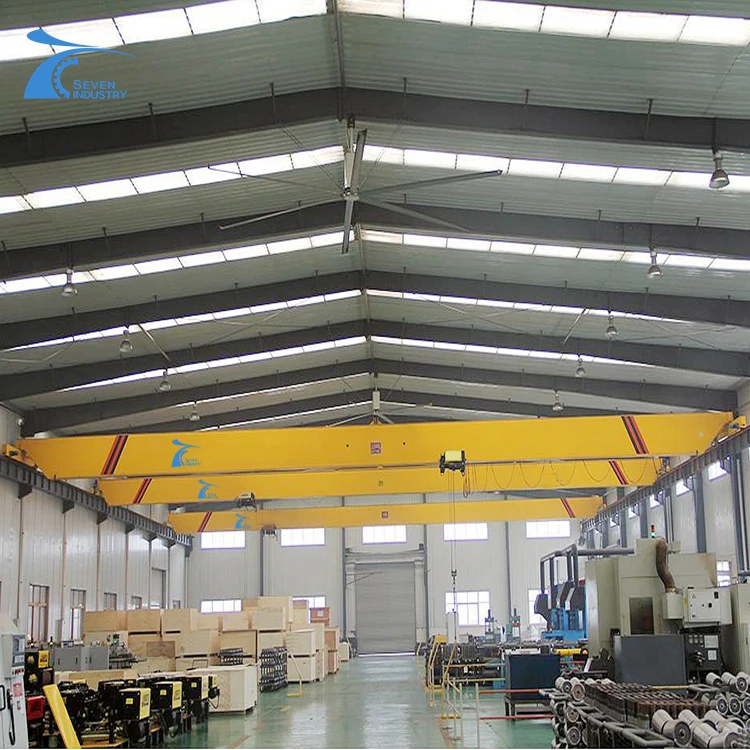

Single girder overhead crane is widely used in plants warehouses, material stocks to lift goods. It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.
