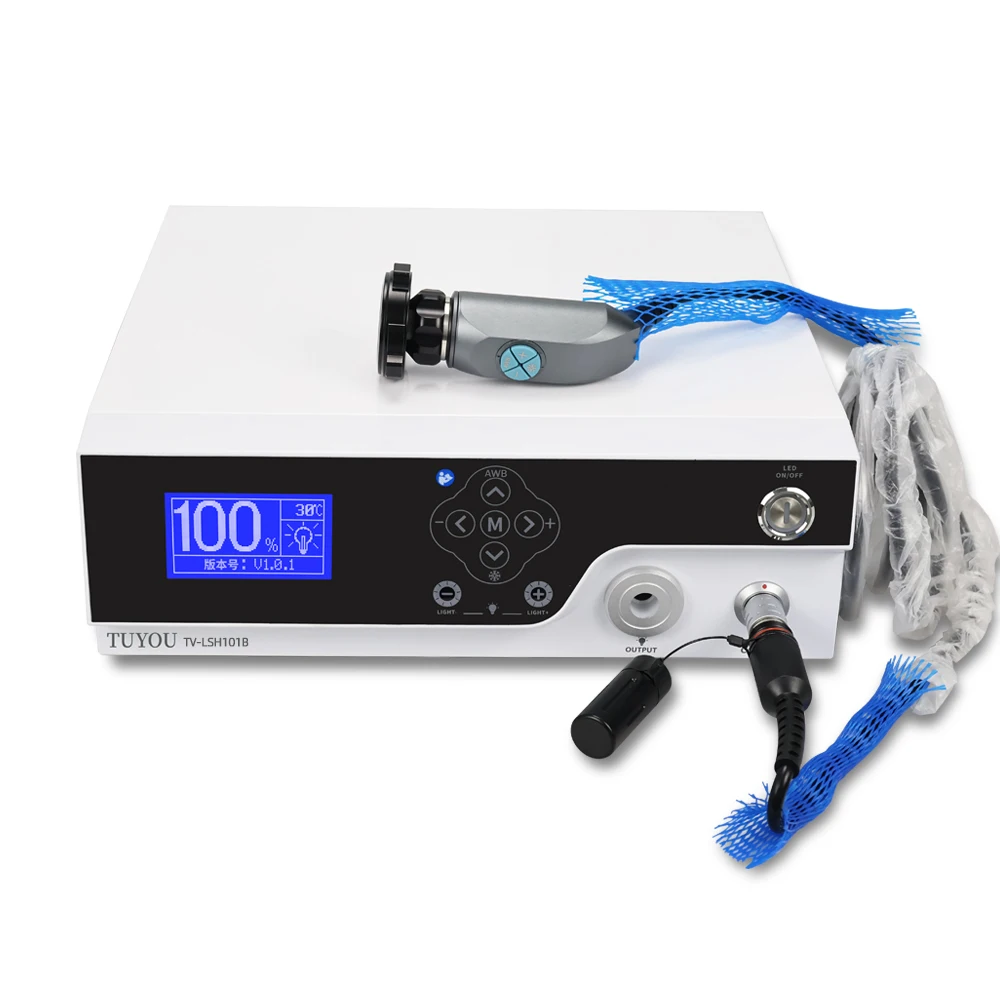

Factory Outlet 6inch Screen With Button Endoscope Camera System For Hospital Use
- Category: >>>
- Supplier: SHENZHEN TUYOU MEDICAL IMAGING CO. LTD.SHENZHEN LTD.
Share on (1601282802643):
Product Overview
Description
Product Parameters

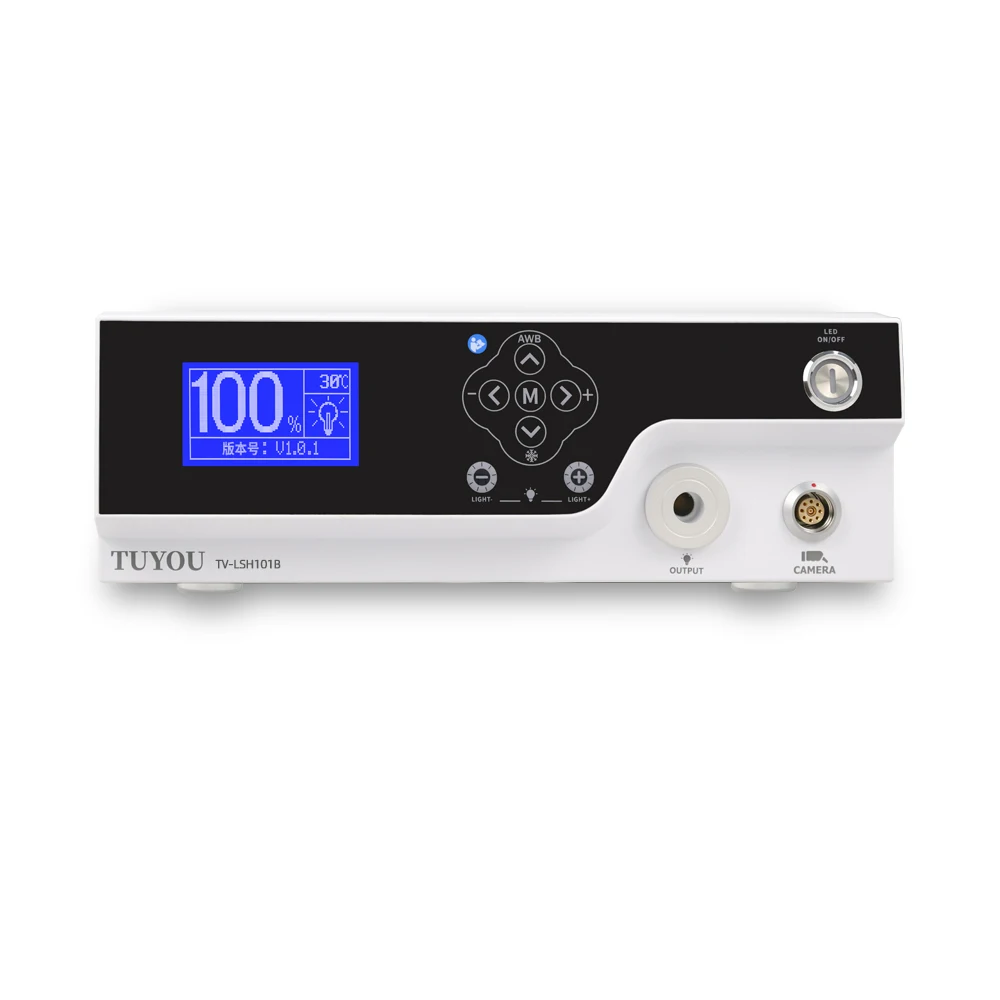

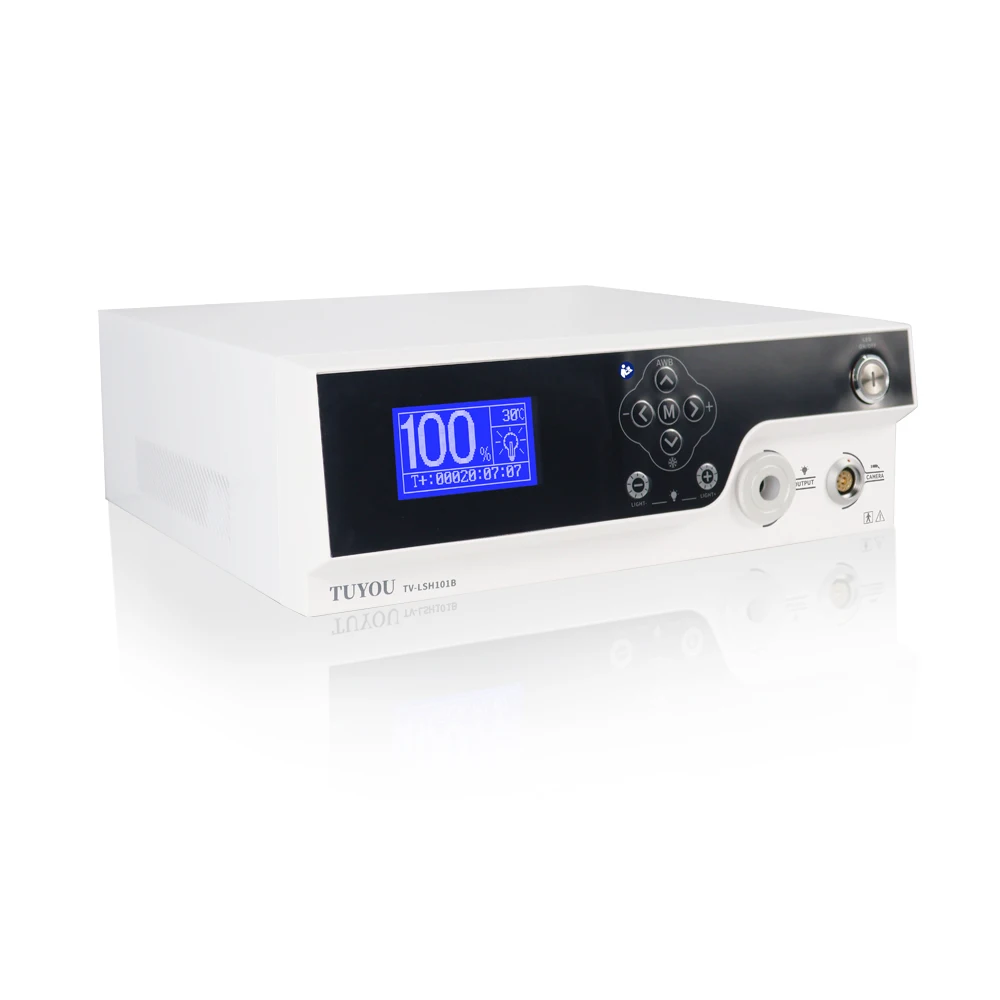

Product Item No. | TV-LSH101B (1080P Carema) |
System Parameters | ||
Input Interface | SDI 1080P 60FPS | |

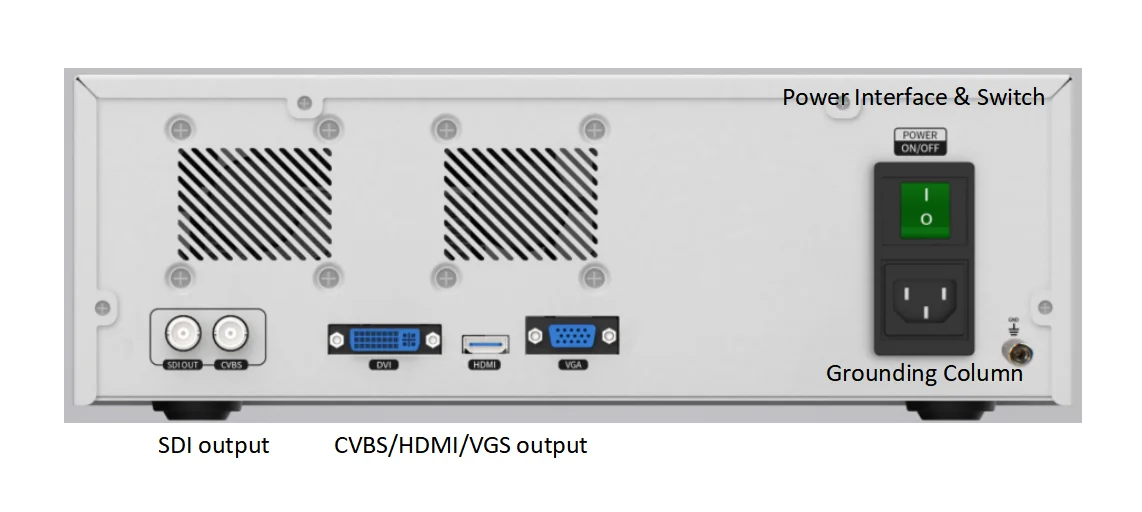

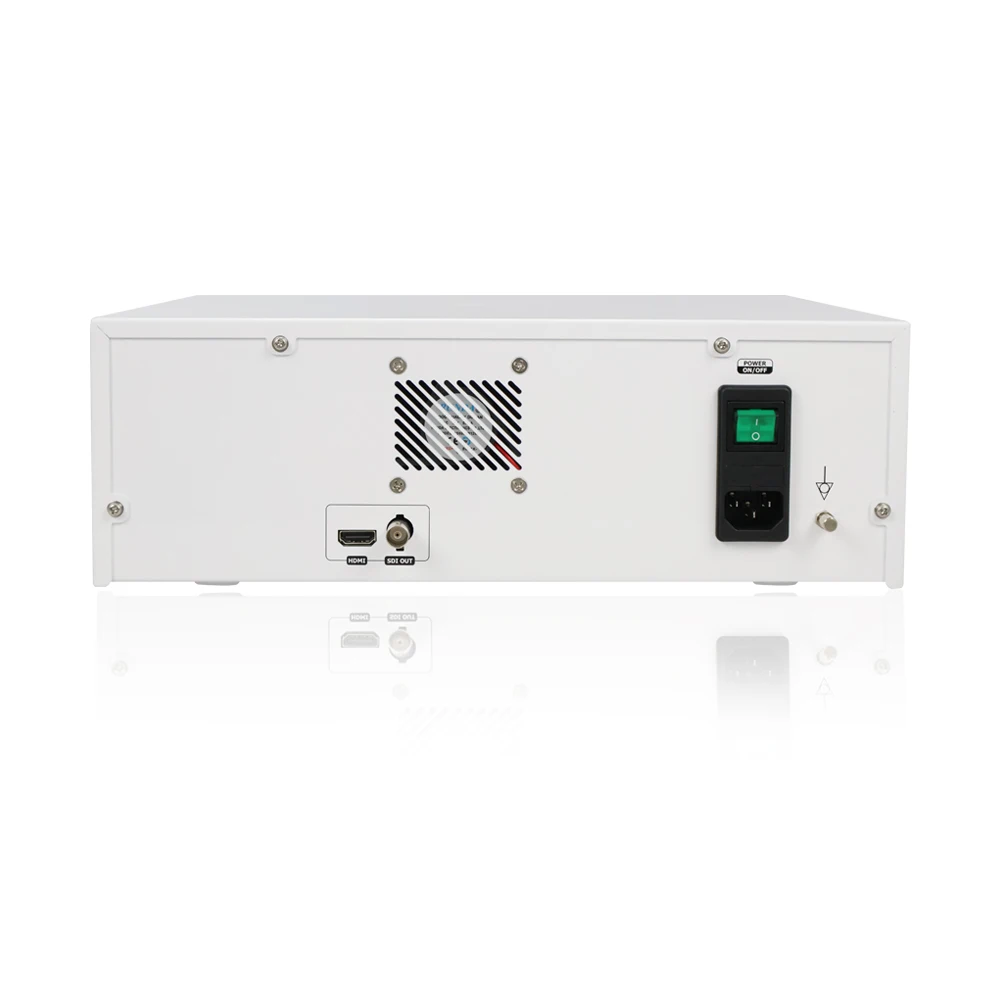

Output Interface | HDMI/SDI | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | 10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 4.2KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Resolution | SDI 1080P 60fps | |
FREEZE | The picture freezes | |
AWB | One Button White Balance | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 1-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~70℃ | |
Power(Max.) Supply | DC12V ±10% <1.7W | |
Working Current | 140mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Effective Optical Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 5800-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8 | |
Product Description
Product Composition Introduction:

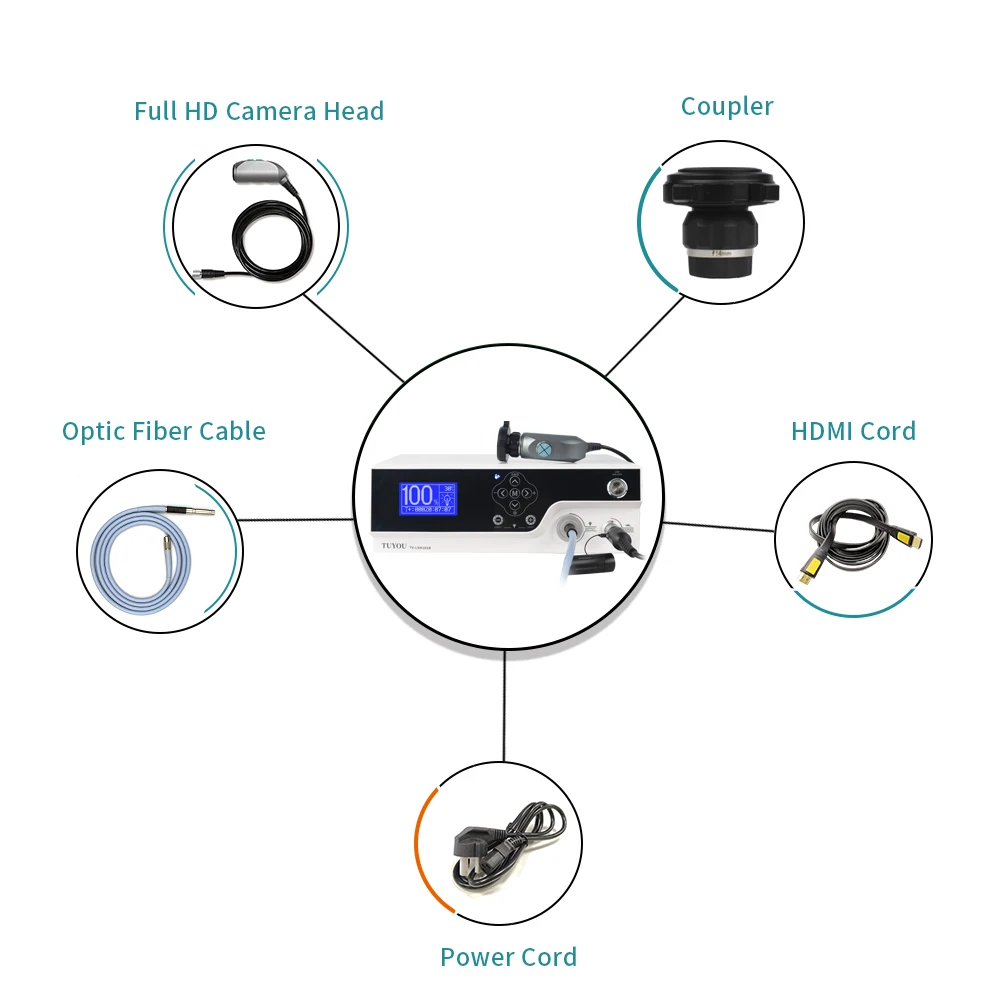

The endoscope light source imaging system consists of a endoscope processor, a handle camera, a light guide and an optical adapter(optical interface).
It is widely used in ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other departments in clinical practice
● Self-contained light source, and self-contained display screen;
● Multiple output signals, can be connected to an external display;
● One-key freeze, one-key white balance, one-key key to zoom in and out;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
The endoscope light source imaging system consists of a endoscope processor, a handle camera, a light guide and an optical adapter(optical interface).
It is widely used in ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other departments in clinical practice
● Self-contained light source, and self-contained display screen;
● Multiple output signals, can be connected to an external display;
● One-key freeze, one-key white balance, one-key key to zoom in and out;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
Notes: In different lens models, optical lenses should be matched. Some shots match as below:
SIZE | Laparoscopic | Synscope | Laryngoscope | Hysteroscope | Arthroscopye |
1/2" | 35mm | 28mm | 28mm | 28mm | 28mm |
1/3"(native) | 28mm | 22mm | 22mm | 22mm | 22mm |
1/4" | 22mm | 18mm | 18mm | 18mm | 18mm |
