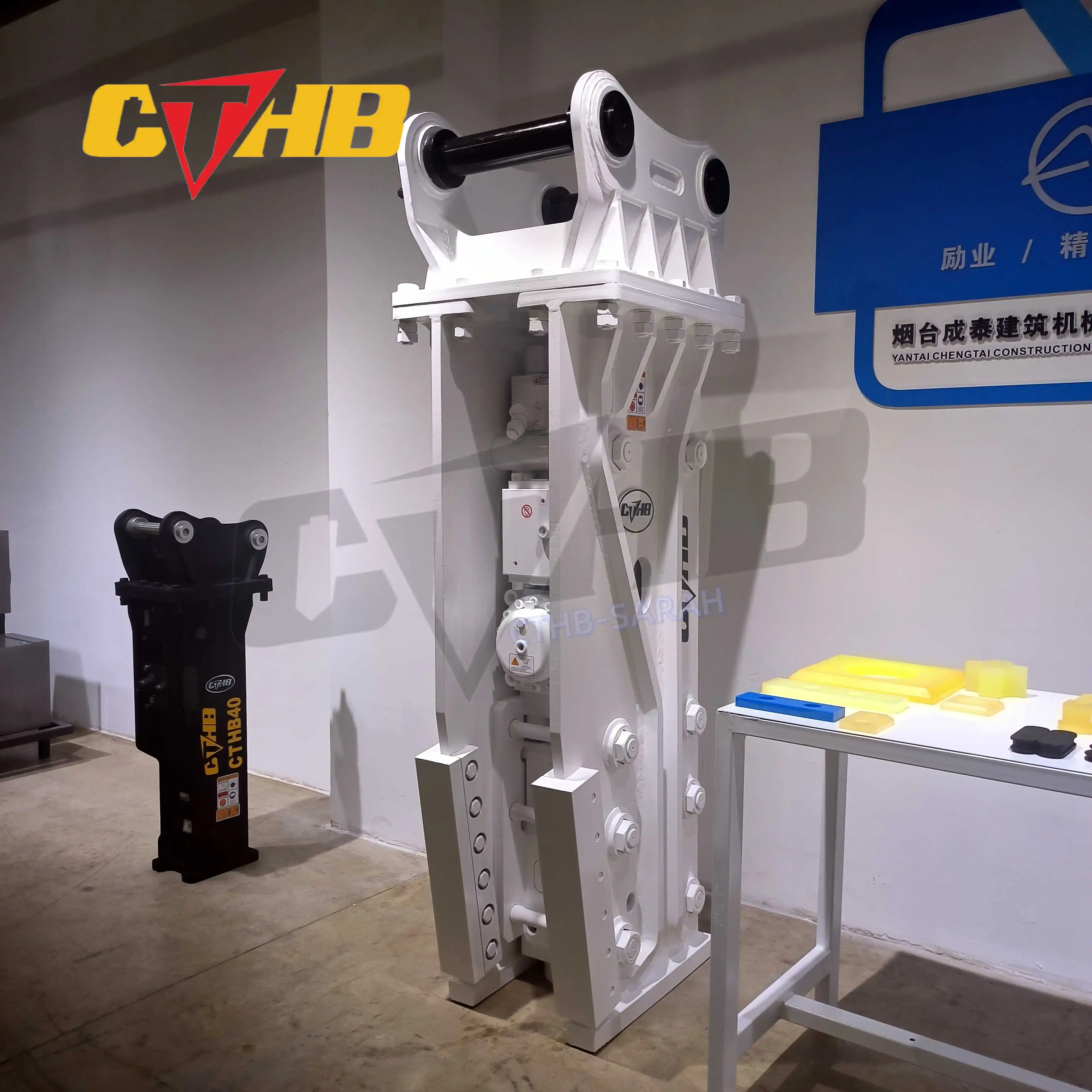

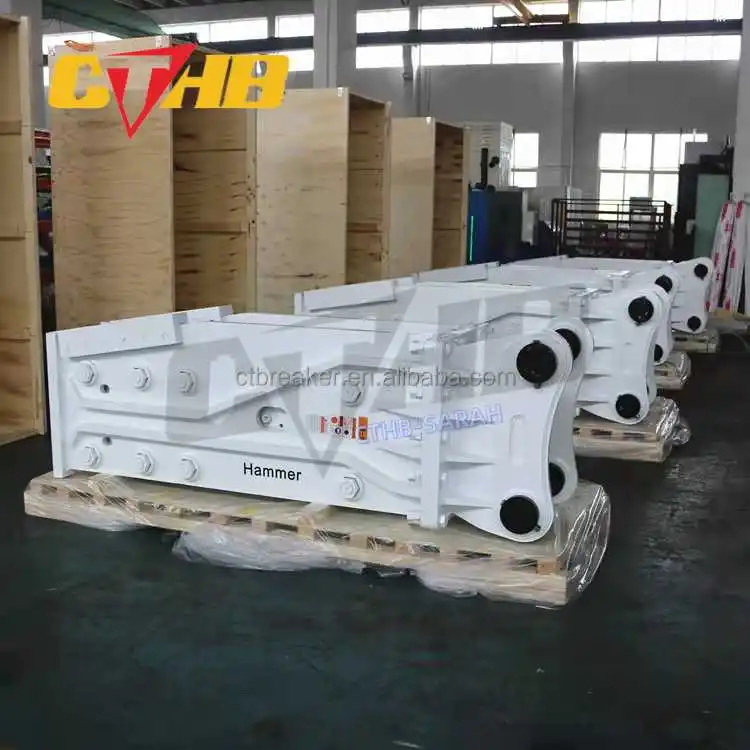

Furukawa Series Hydraulic Hammer HB30G Top Type Rock Breaker Chisel Diameter 150mm for 30ton Excavator
- Category: >>>
- Supplier: Yantai Chengtai Construction Machinery Co. Ltd.
Share on (1601282826316):
Product Overview
Description
Chinese Factory Furukawa Series Hydraulic Breaker Hammer
Factory introduction
Our factory is founded in the year 2015. We began with design, production and sale of heavy-duty hammer.
During the long time market, our products achieved the huge success in this segment.
Now we have hydraulic breakers for excavator weighted from 0.5 tons to 80 tons. Various kinds of excavator attachments suits for excavator from 5 tons to 40 tons, for example, excavator quick hitch,
hydraulic compactors, hydraulic shears, hydraulic pulverizers, grabs and etc.

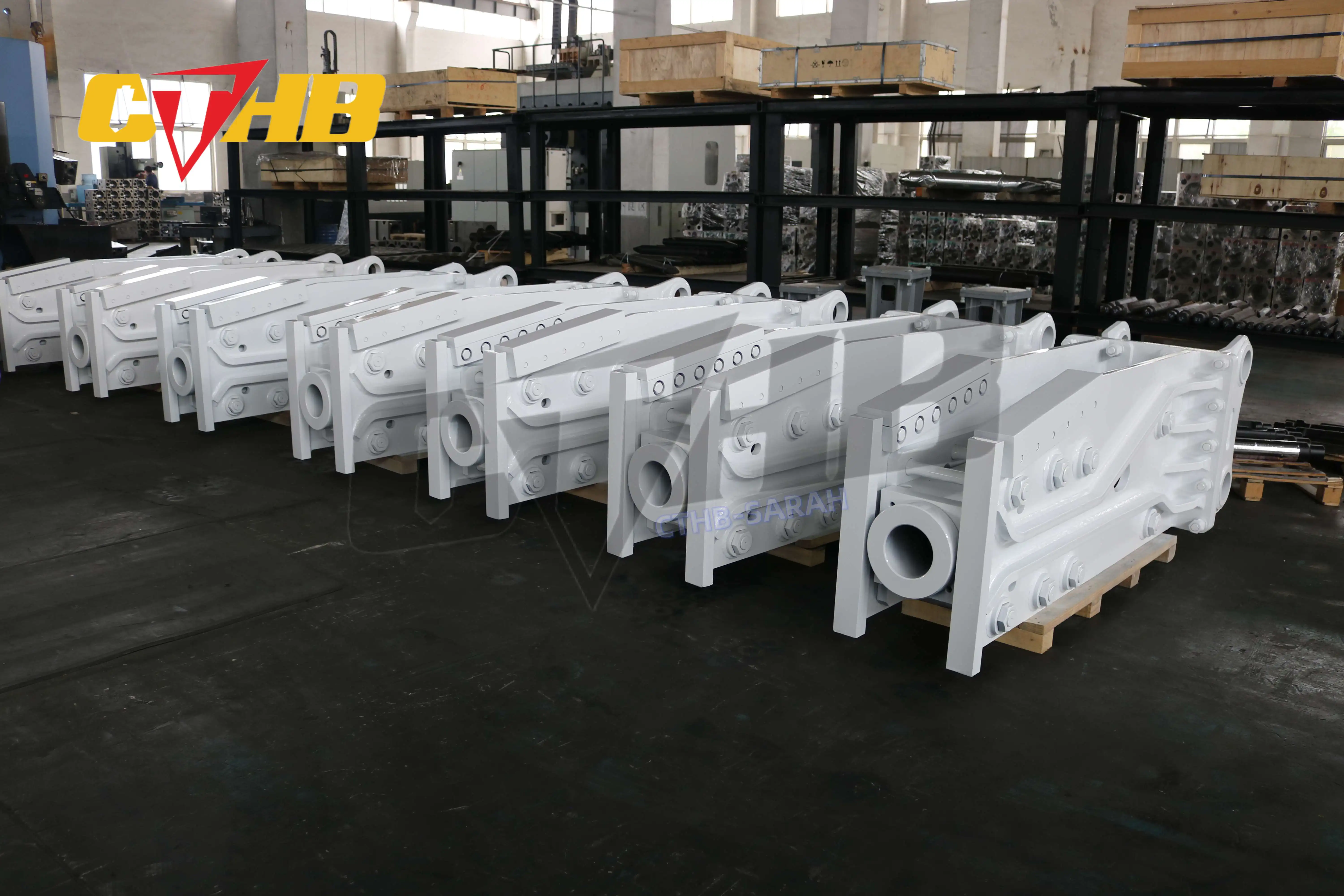

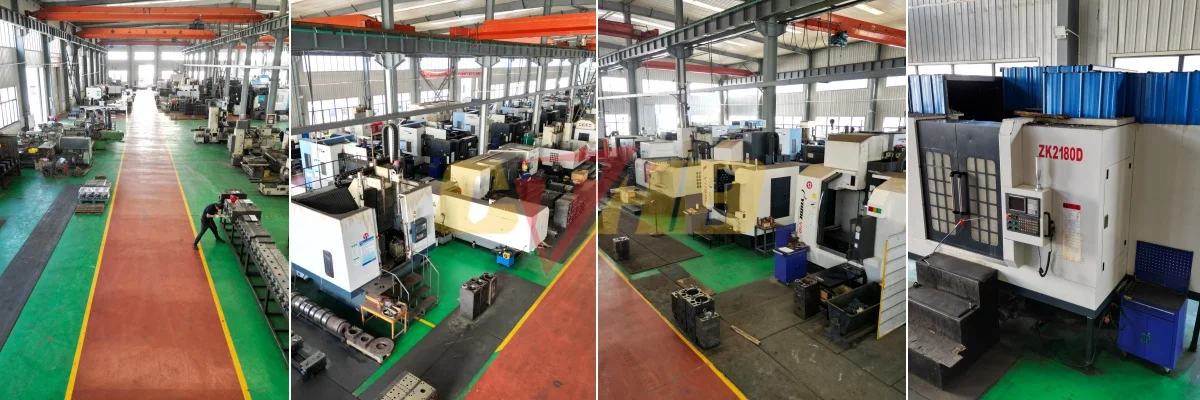

Quick view of the workshop

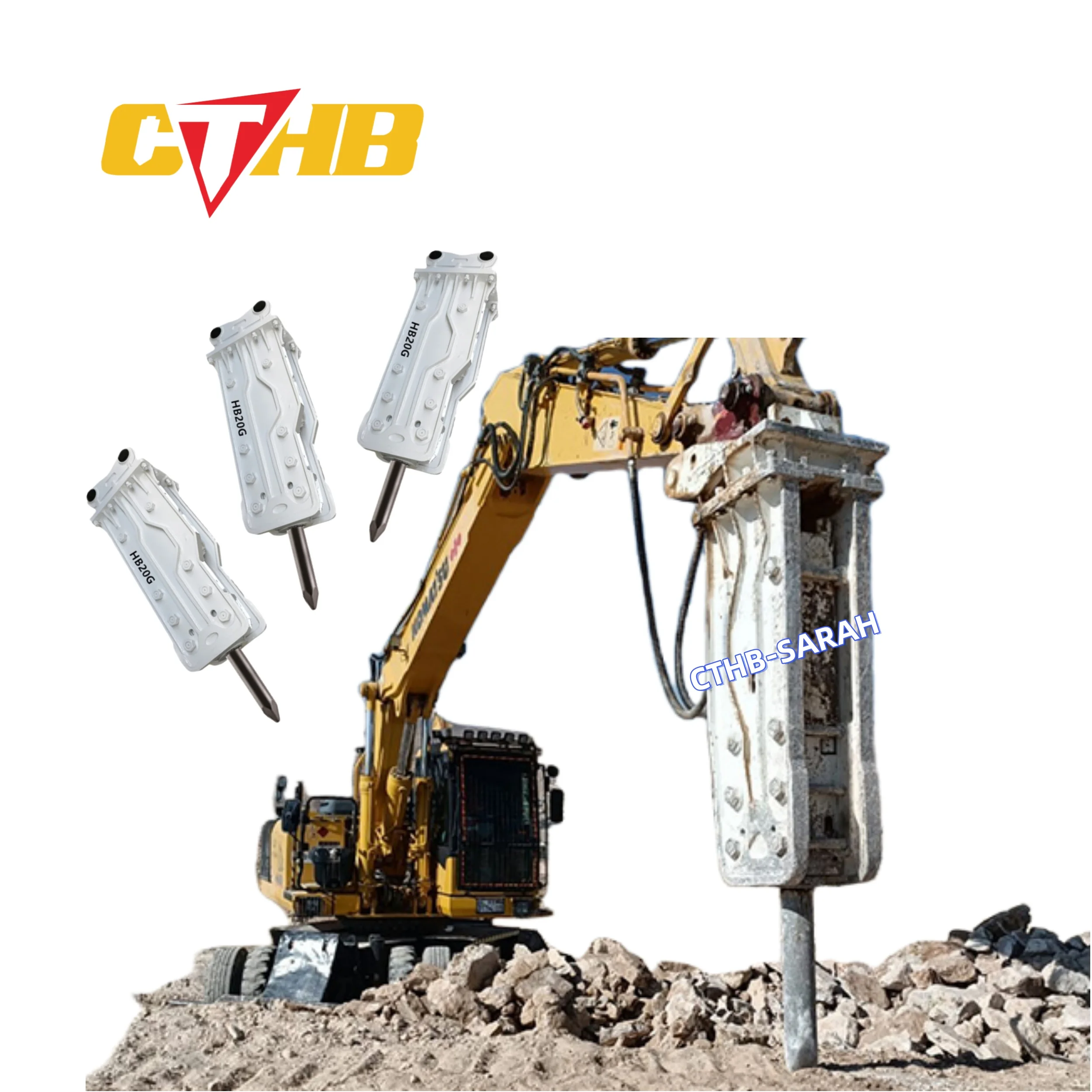

The application of hydraulic breaker
1. Mining: mountain opening, mining, grid screen crushing, secondary crushing
2. Metallurgy: ladle, slag cleaning, furnace dismantling, equipment foundation dismantling
3. Railway: mountain driving, tunnel excavation, road and bridge demolition, roadbed consolidation
4. Highway: highway repair, cement pavement crushing, foundation excavation
5. Municipal gardens: concrete crushing, water, electricity, gas engineering construction, old city renovation
6. Construction: Demolition of old buildings, broken reinforced concrete
7. Ships: hull removal of mussels and rust
8. Others: ice breaking, frozen soil breaking, sand vibrating
2. Metallurgy: ladle, slag cleaning, furnace dismantling, equipment foundation dismantling
3. Railway: mountain driving, tunnel excavation, road and bridge demolition, roadbed consolidation
4. Highway: highway repair, cement pavement crushing, foundation excavation
5. Municipal gardens: concrete crushing, water, electricity, gas engineering construction, old city renovation
6. Construction: Demolition of old buildings, broken reinforced concrete
7. Ships: hull removal of mussels and rust
8. Others: ice breaking, frozen soil breaking, sand vibrating

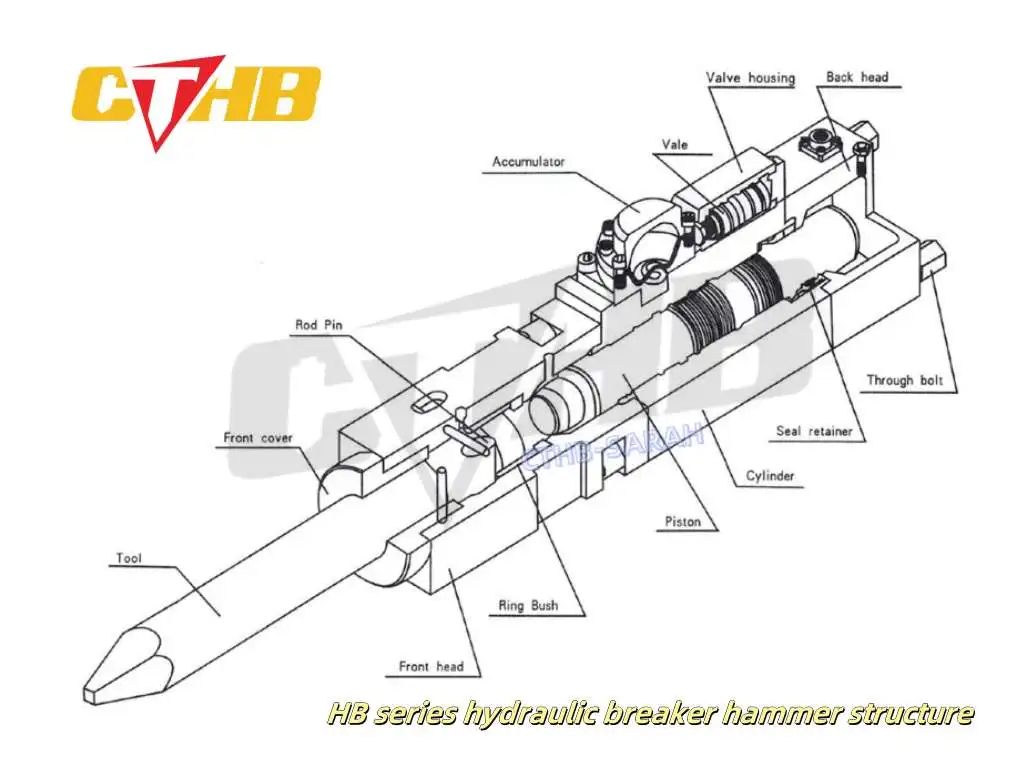

Structure of HB series hydraulic breaker
1.Cylinder
2.Valve Assembly
Easy maintenance and prevent cylinder from deforming.
3.Piston
Piston moves, hits the chisel, so kinetic energy of piston’s motion is converted to breakers’ impact power.
4.Front Head
Front head supports the whole breaker.
5.Chisel Pin
6.Chisel Bush
7.Chisel
Special super heat treatment. Moil point, blunt, and wedge chisel optional.
2.Valve Assembly
Easy maintenance and prevent cylinder from deforming.
3.Piston
Piston moves, hits the chisel, so kinetic energy of piston’s motion is converted to breakers’ impact power.
4.Front Head
Front head supports the whole breaker.
5.Chisel Pin
6.Chisel Bush
7.Chisel
Special super heat treatment. Moil point, blunt, and wedge chisel optional.
How to choose our hydraulic breaker according to your excavator
| Excavator (loader)weight | Excavator (loader)Brand | Suit breaker model | Chisel diameter |
| 6-9Ton | Any Brand | CTHB5G | 75mm |
| 13-18Ton | Any Brand | CTHB15G | 120mm |
| 18-26Ton | Any Brand | CTHB20G | 135mm |
| 27-35Ton | Any Brand | CTHB30G | 150mm |
| 35-50Ton | Any Brand | CTHB40G | 160mm |
Our hydraulic breaker type
Box Type Breakers
1.Low noise level.
2.Full-closed box design protects the main body from damage.
1.Low noise level.
2.Full-closed box design protects the main body from damage.

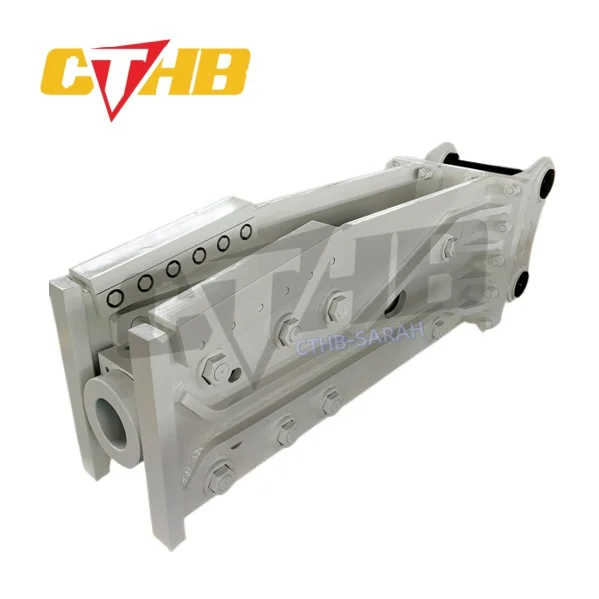

Top Type Breakers
1.Breakers’ length longer and weight heavier.
2.Easy control and position, more convenient to do breaking jobs.
3.Vertical open-bracket design educes the malfunction rate of chisel.
1.Breakers’ length longer and weight heavier.
2.Easy control and position, more convenient to do breaking jobs.
3.Vertical open-bracket design educes the malfunction rate of chisel.

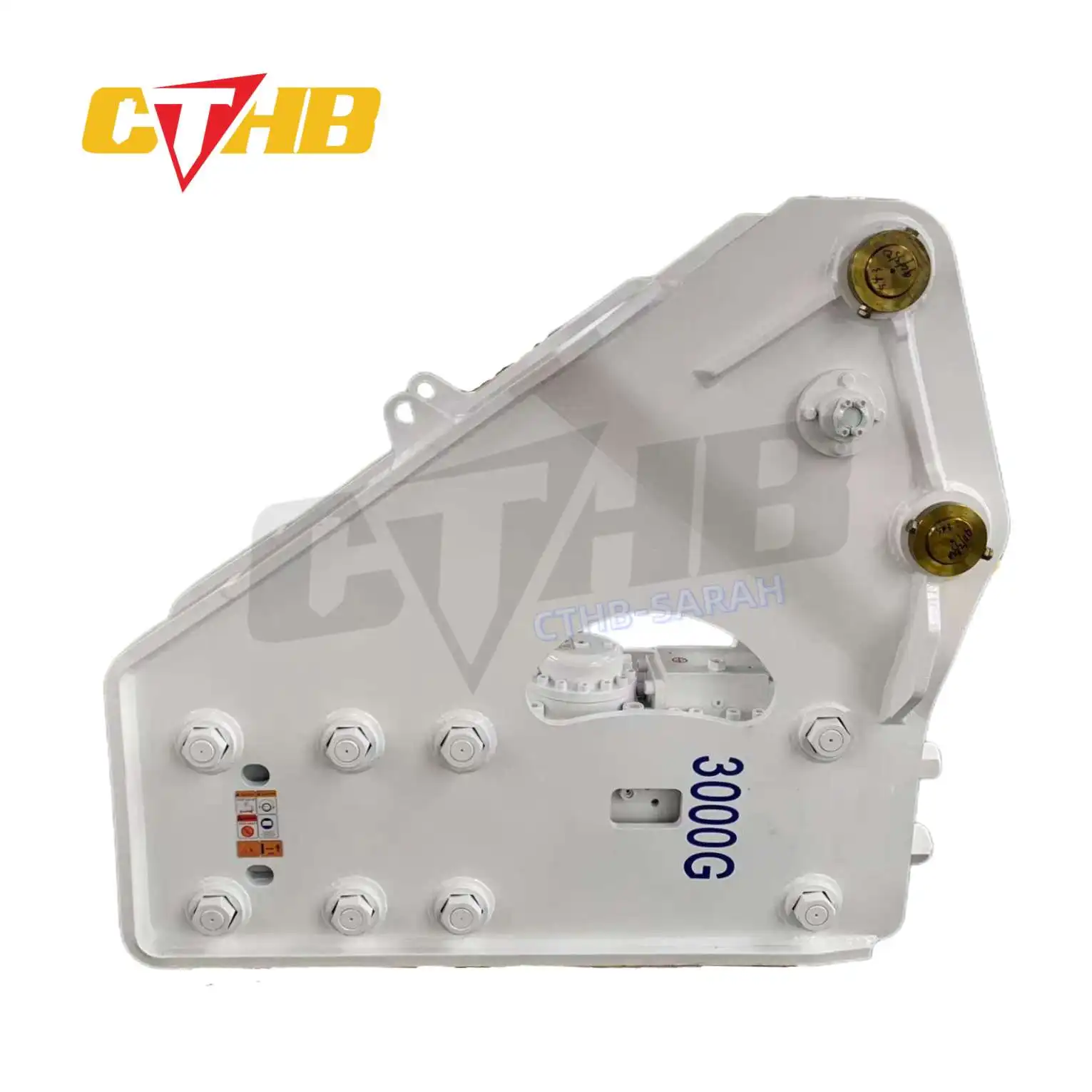

Side Type Breakers
1.Breakers’ overall length reduced.
2.More convenient for chisel to move backwards.
3.Easy maintenance.
1.Breakers’ overall length reduced.
2.More convenient for chisel to move backwards.
3.Easy maintenance.

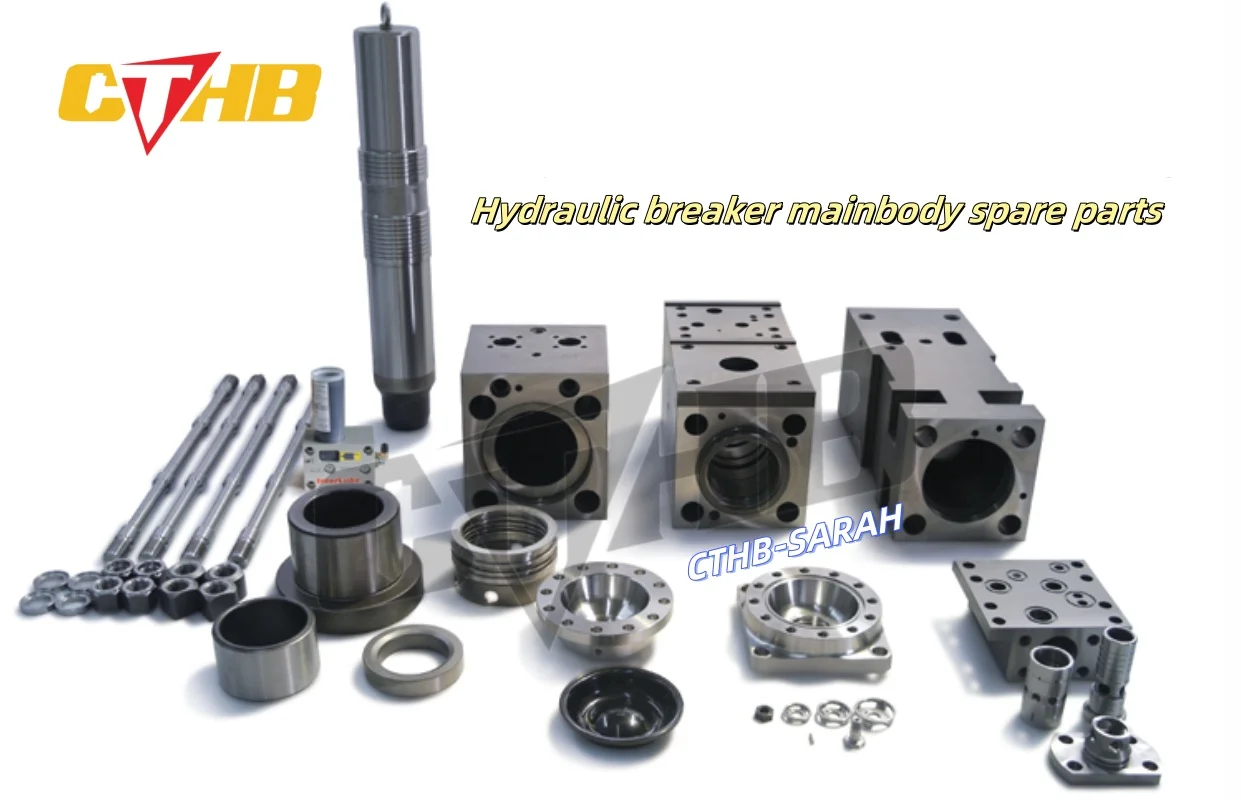

Spare parts
We provide all the spare parts for hydraulic breaker hammer, like: front head, cylinder, back head, piston, piston ring, accumulator, control valve, rubber bowl, through bolt, inner bush and outer bush, side bolt, chisel, chisel pin, etc.

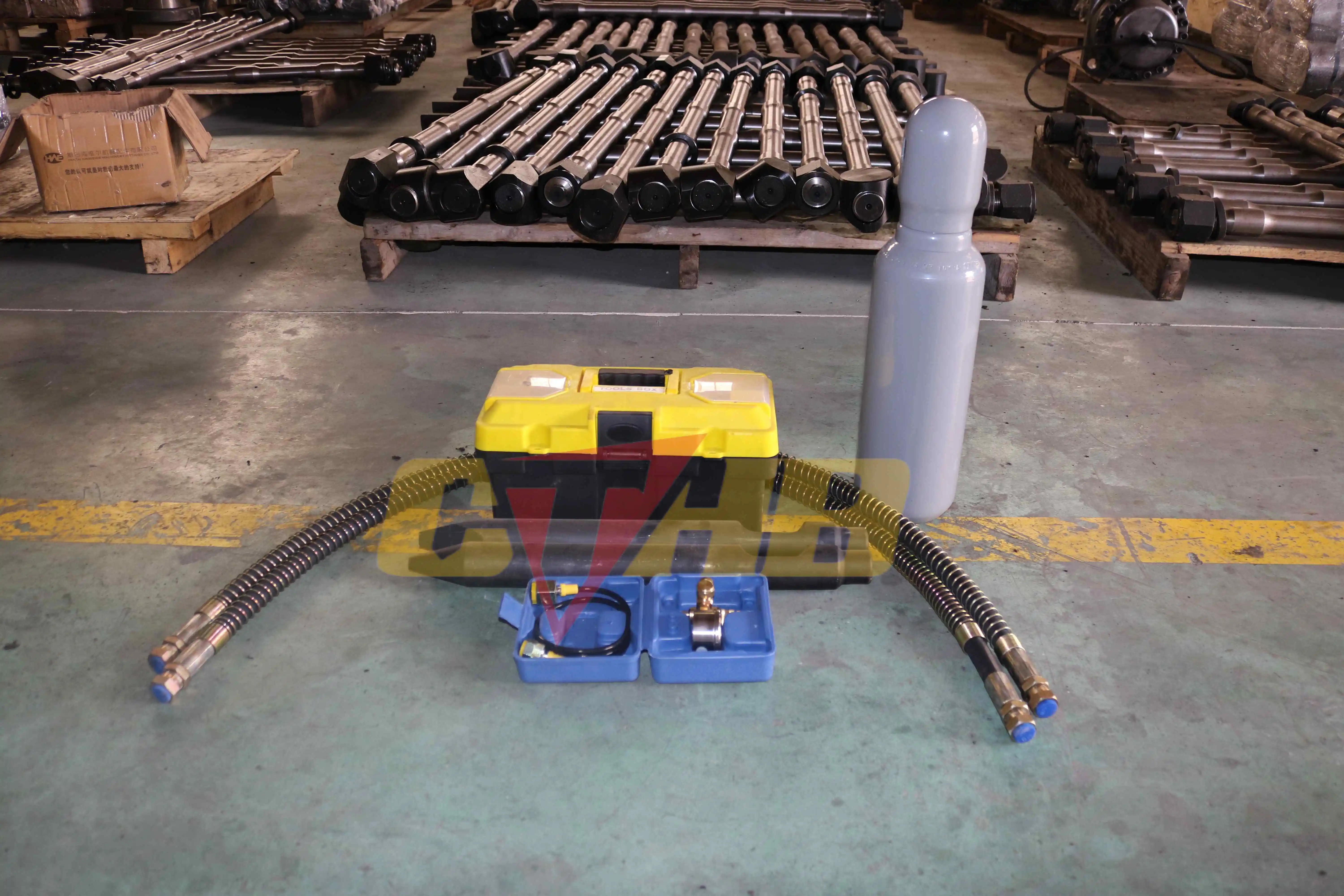

Accessories together with the breaker
Hydraulic Breaker Standard Accessories as follows:
1) Chisel × 2 pcs
2) Hydraulic oil Hose × 2 pcs
3) General Tool with Tool Box × 1 set
4) Manual Book in English × 1 pc
5) Nitrogen Gas Charging Kit with Hose ×1 pc
6) Nitrogen Gas bottle × 1pc

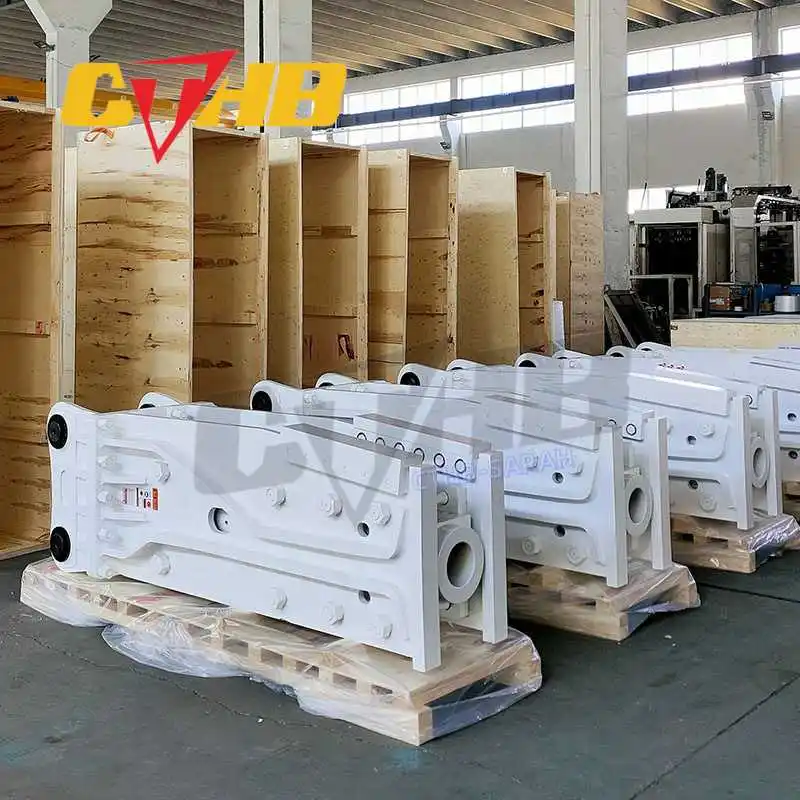

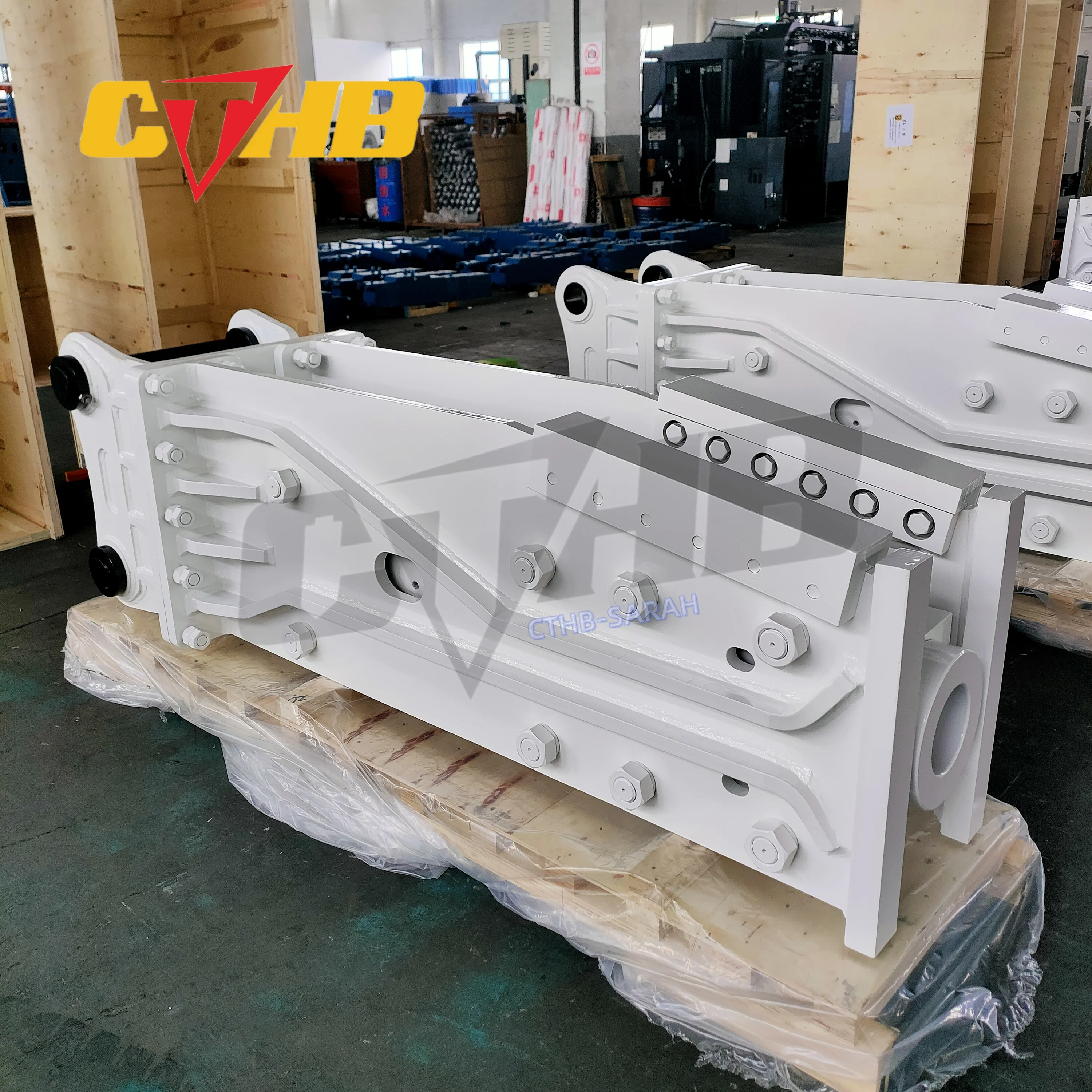

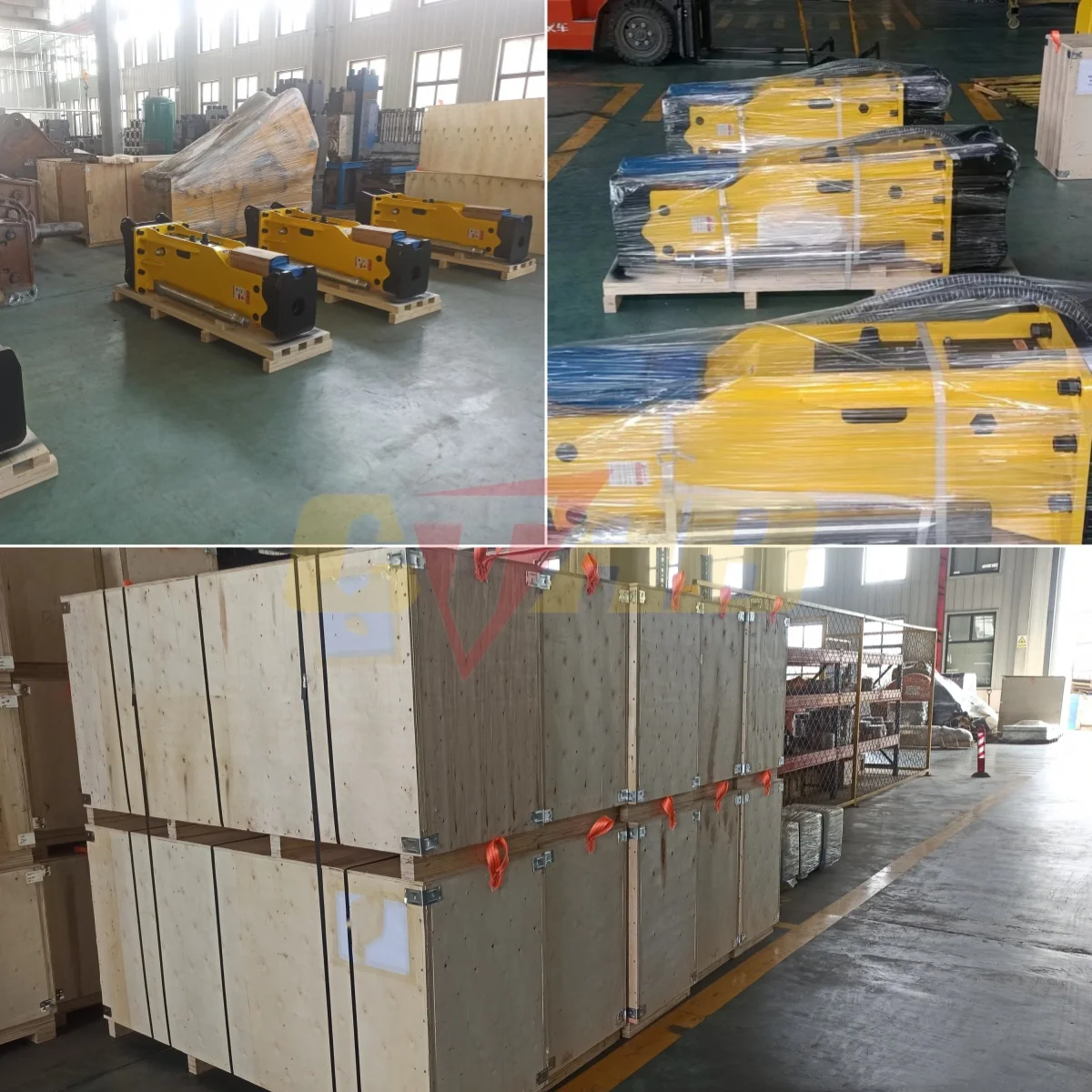

Packing and delivery
We use:
1. Standard export package by poly-wood case.
2. Loading the goods from Qingdao Port or any other ports as customers request.
All hot sale products:
We produce: hydraulic breaker, quick coupler, hydraulic shear, crusher, grapple, pulverizer, auger, ripper, compactor, etc. Our products are not limited to what are on the list. Any demands please feel free to contact Mrs. Sarah.
