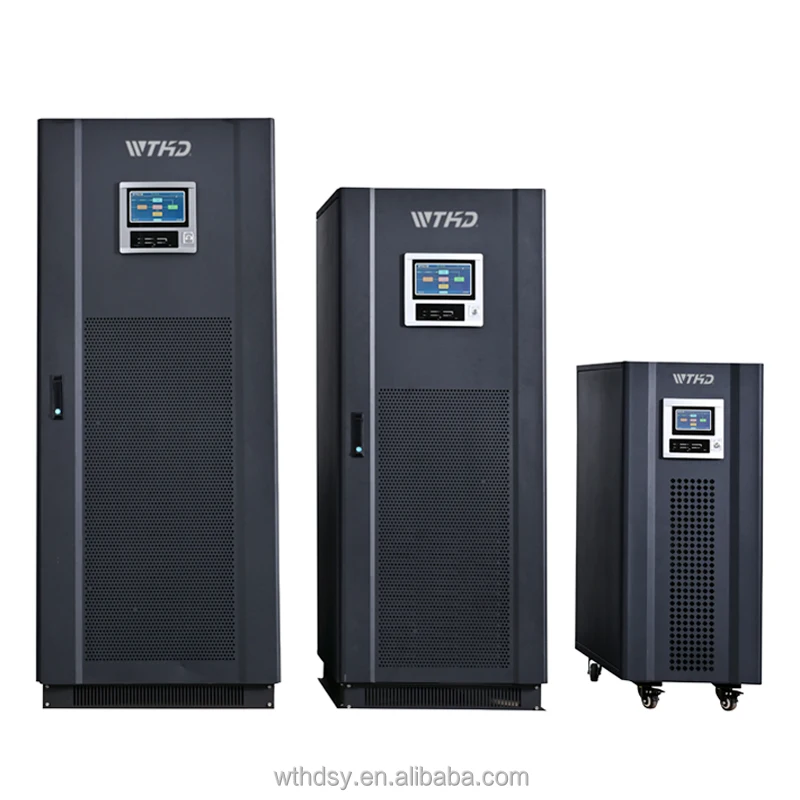

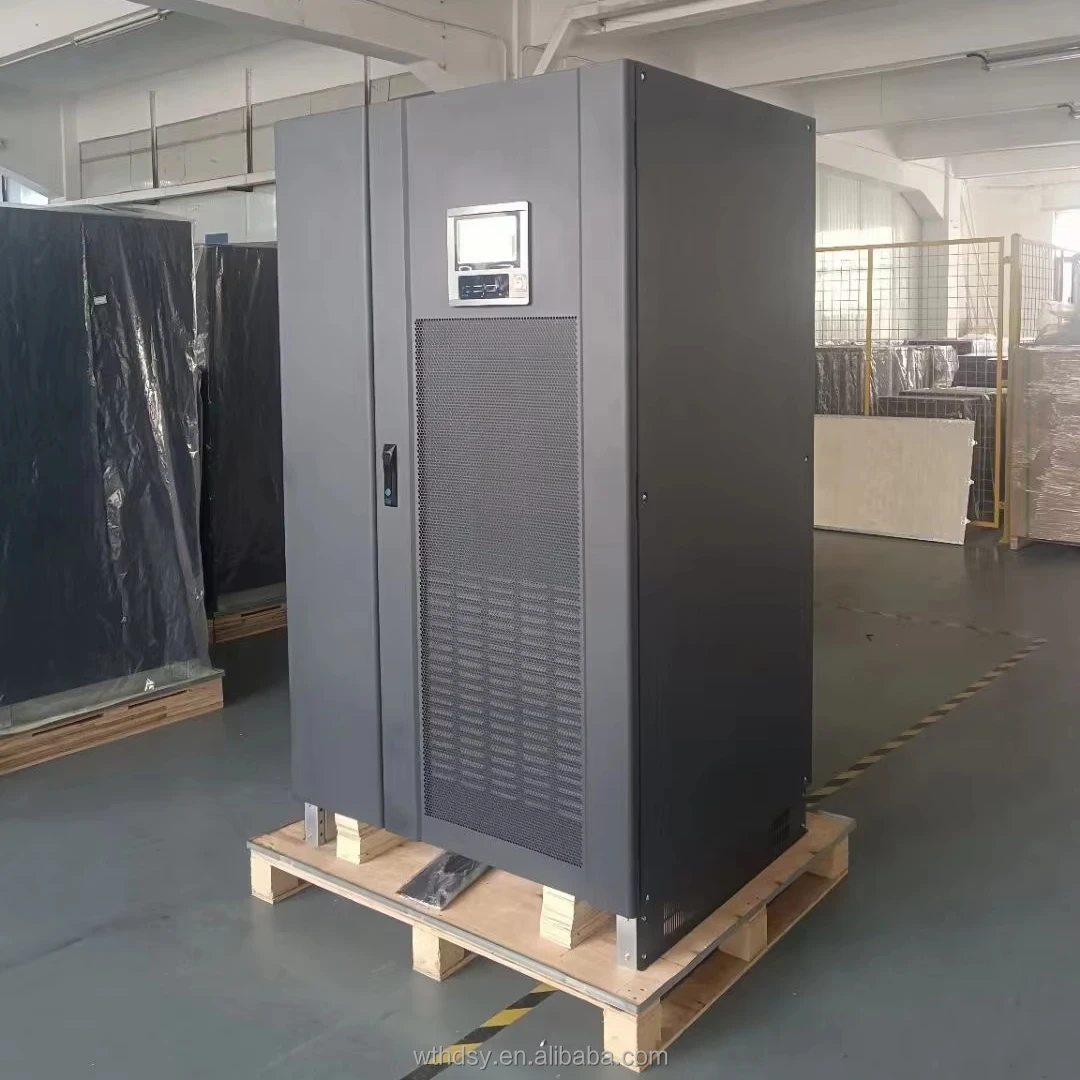

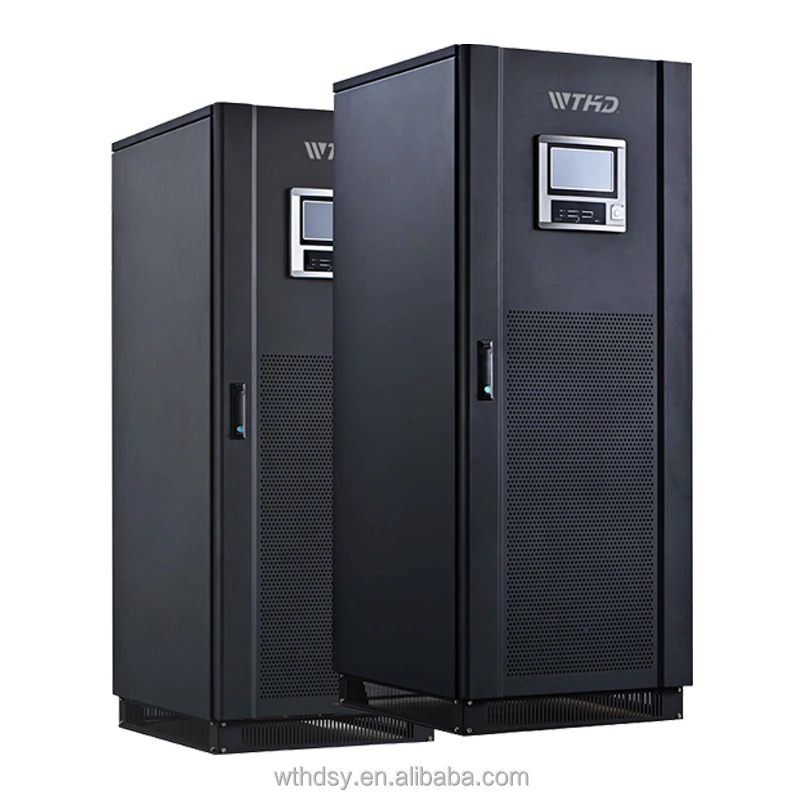

Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer
Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer

Factory outlet 200kVA Online Low Frequency Pure Sine Wave UPS Power Supply Built in isolation transformer

Share on (1601282831785):


Price:$7,959.00 - $8,622.00

Quantity:


Product Overview

Description

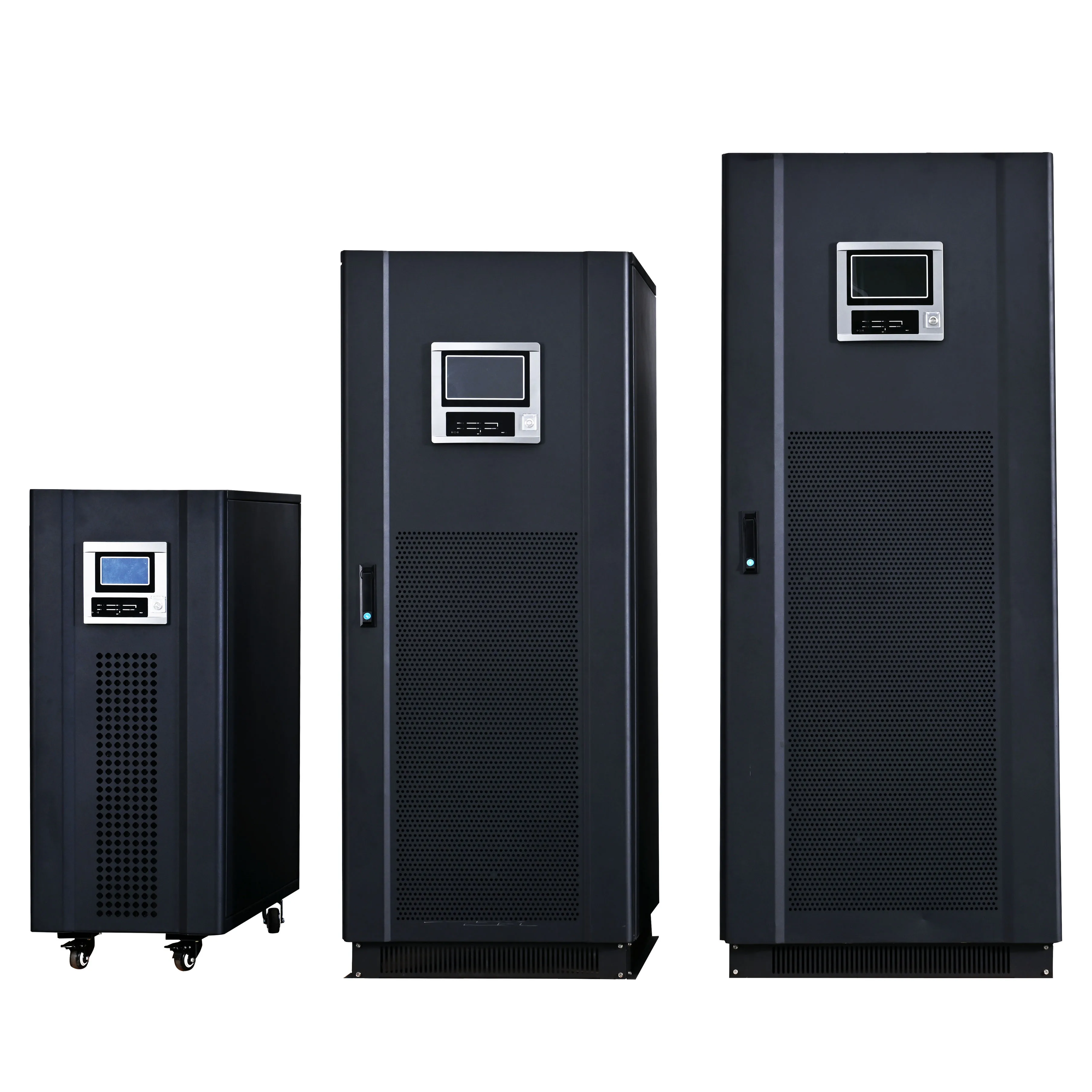

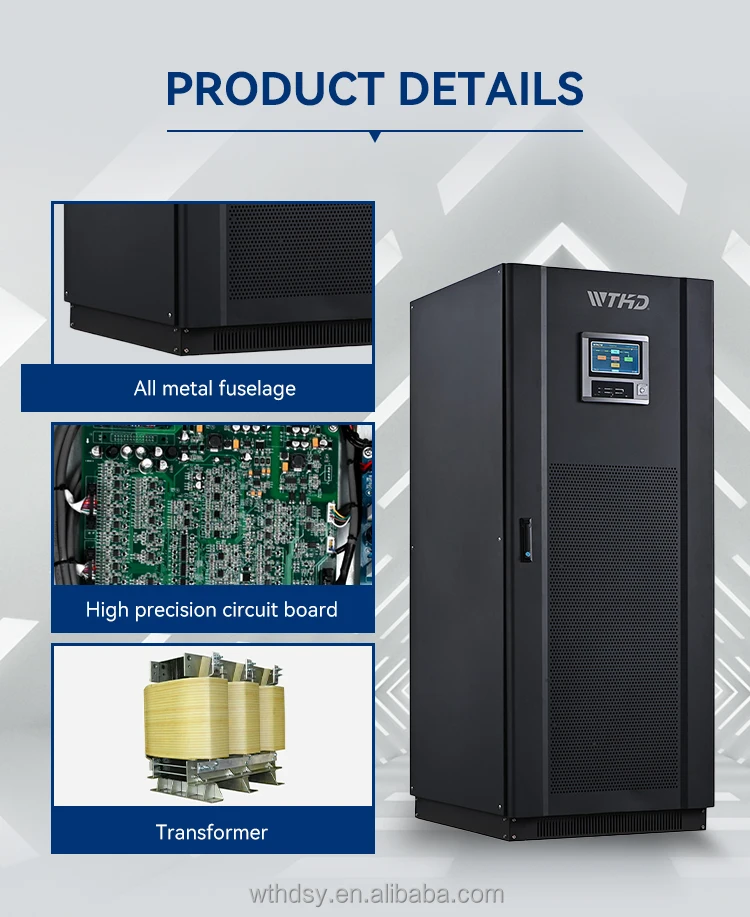

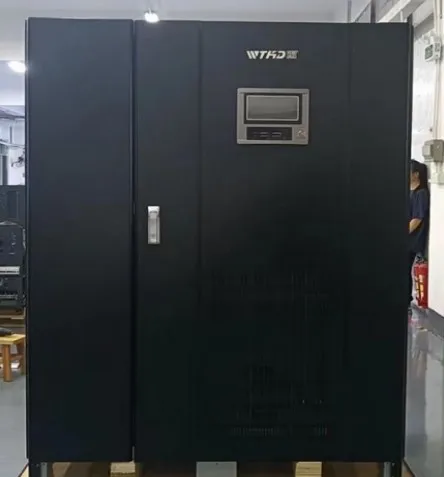

WTHD Industial Three Phase Low Frequency Online UPS

Three phase input and three phase output 160-500KVA





Technical Parameters




Low Frequency Online UPS
WTHD-U-33160
WTHD-U-33200
WTHD-U-33300
WTHD-U-33400
WTHD-U-33500
Rated capacity ( KVA )
160
200
300
400
500





Main Input
Rated input voltage (Vac)
380/400/415
Input voltage range (Vac)
±25%
Phase
Three-phase five-wire (3L+N+PE)
Input frequency range (Hz)
45~65
Input power factor
>0.95 (with filter)



Bypass Input
Rated input voltage (Vac)
380/400/415
Input voltage range (Vac)
±2% (±0.5%, +1%, ±2%, ±3% can be set)
Phase
Three Phase Three Wire ( 3L + N + PE )
Input frequency range (Hz)
±2%（±0. 5%, +1%, ±2%, ±3% can be set）





Output
Voltage (Vac)
380/400/415 ±1%
output power factor
0.9
Frequency (Hz)
Automatically track bypass frequency
waveform
Sine wave THDV less than 2% (pure linear load)
Switching time (ms)
0
Overall efficiency
≥92%
≥95%
overload capacity
105%~110%: 60min to bypass; 110%~125%: 10min to bypass; >125%: 10s to bypass
Battery voltage (Vac)
Battery voltage (Vac)
(Standard 384) / (396/408 can be customized)




Environment
Operating temperature (°C)
- 1 0 ~ 4 0
Storage temperature (°C)
-25~55（without battery）
Relative humidity
0 ~ 9 5% (no frosting)
working altitude
< 1 500 m , use derating according to GB / T 3 8 5 9.2
Noise (dB)
<65
<70
<75
Other features
Protective function
Output overload, mains abnormality, UPS fault, battery undervoltage, etc.
Communication function
Output short circuit, overload, over temperature, battery under voltage, output over and under voltage, fan failure alarm.
mechanical features
Standard: RS232 optional, SNMP/dry contact/USB
Dimensions
700*800*1700
840*1035*1800
custom size
Net weight (kg)
1200(6P)/1750(12P)
1400(6P)/1880(12P)
1750(6P)/2550(12P)
2000(6P)/3000(12P)
3600(12P)
Executive standard
Y D / T 1 0 9 5 - 2 0 1 7






Product Features


Advanced design
More intelligent
Flexible power supply mode


Comprehensive protection measures
Strong environmental adaptability
Flexible monitoring mode


Application field


Industrial application protection
Transportation, electricity, medical care, venues, etc.
Small data room


Communication network management center
Office automation
Experimental instruments and equipment

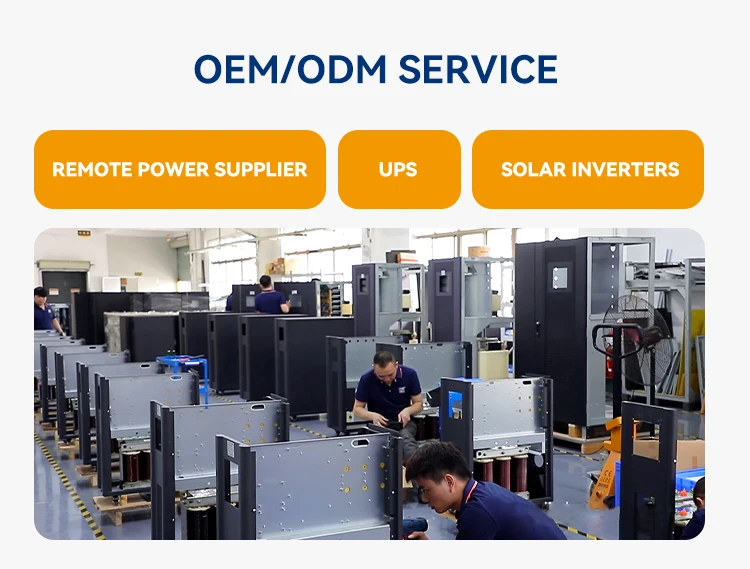

Our core products includes UPS, remote supply power and solar power inverter, with international product qualifications like ISO, CE, FCC and Tell, mainly applying in industry application protection, communication network center, data center, big-scale energy storage, family energy storage and so on. In addition, we also offer OEM and ODM service with competitive and fast product research and development speed.


Why Choose Us




Company Profile




Certifications




Project cases


Integration of power equipment for the "the Belt and Road" of Hungary Serbia Railway
The Hungary-Serbia Railway is a flagship project of cooperation between China and Central and Eastern European countries. Rittal Hongda provides power system equipment integration for railways
Integration of power equipment for the "the Belt and Road" of China Laos Railway
The China-Laos Railway starts from Kunming, Yunnan Province, China in the north, and reaches Vientiane, the capital of Laos in the south, with a mileage of 400 kilometers, 62.6% of which are bridges and tunnels, and a design speed of 160 kilometers per hour.


We also have hundreds of excellent engineering cases
You can contact us to know more details!


Packaging & Shipping




1, The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.

2, invoices, bills of landing, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.



FAQ

Q1: Why you should choose us?
---15 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitive prices
---Delivery in time
---Sincerely services

Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /replacement during warranty period.

Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.

Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be developed within 10-30 days.

Note: Actual freight is subject to order, Please contact us before payment.
