Product Overview
Description
Product Overview

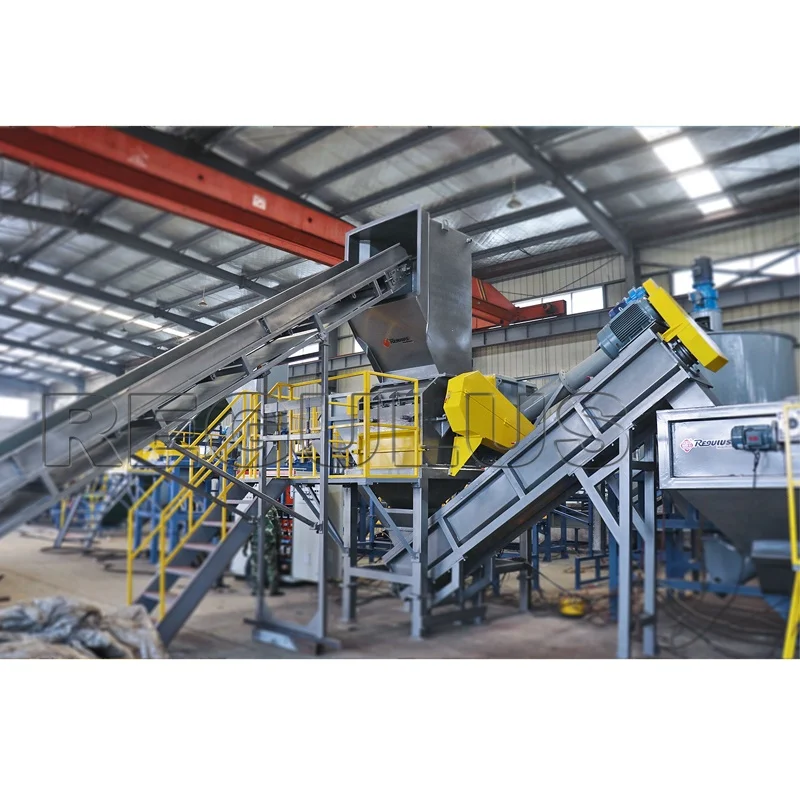

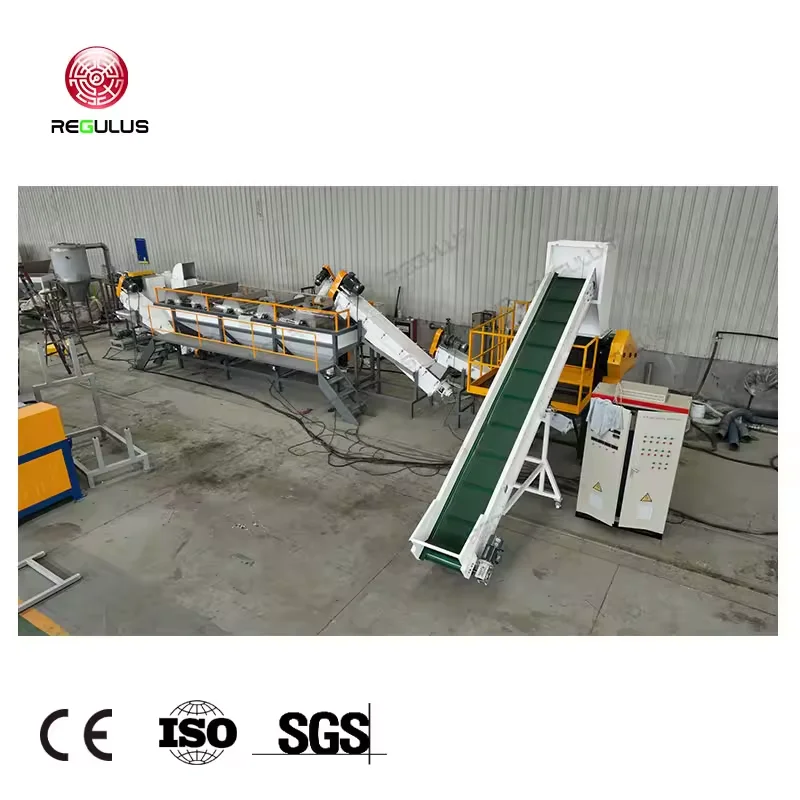

PE PP Washing and Recycling Line

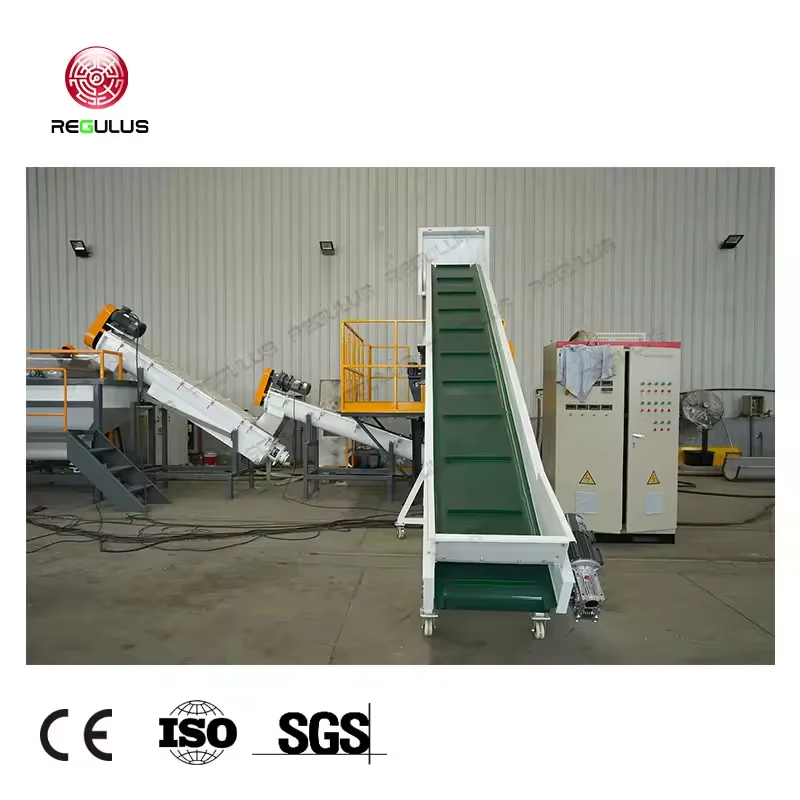

PP, PE film washing and recycling line is mainly consist of the following machines: Belt conveyor, metal detector , crusher, screw feeder, high speed friction washer, floating washer, dewatering machine, drier, storage silo and control cabinet.
The recycled material can be used for directly sale ,pelletizing,injection molding,extrusion and film blowing.
The recycled material can be used for directly sale ,pelletizing,injection molding,extrusion and film blowing.
Application: | ||
Production of post-consumer films | collected from landfills | selectively collected |
Commercial and post-industrial films | packaging films | stretch film |
Agricultural film | greenhouse film | agricultural mulch |
Besides plastic film | plastic jumbo bags, non-woven bags, woven bags | bottles,scraps,raffia |
Mainly in Plastic PE, PP, LLDPE, HDPE, LDPE.
PRODUCT SPECIFICATIONS
PE/PP Plastic Washing Recycling Line 300-1000kg/h
Working Process:

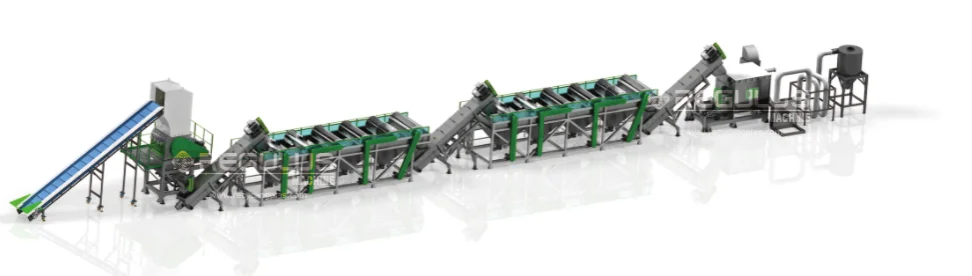

crusher→Friction washer→Washer tank→Friction washer→Washer tank→Dehydration→Dryer→Bagging
used for crushing, washing, drying waste plastics PE.LDPE,LLDPE,HDPE and PP. It includes plastic film, waste agricultural film, industrial packaging fim, woven bags, ton bags
Model | PE-300 | PE-500 | PE-1000 |
Diemension(㎡) | 120 | 150 | 400 |
Installed power(KW) | 200 | 260 | 288 |
(PE) Productivity(kg/h) | 300 | 500 | 1000 |
Water Consumption(㎡/h) | 3 | 4 | 5 |

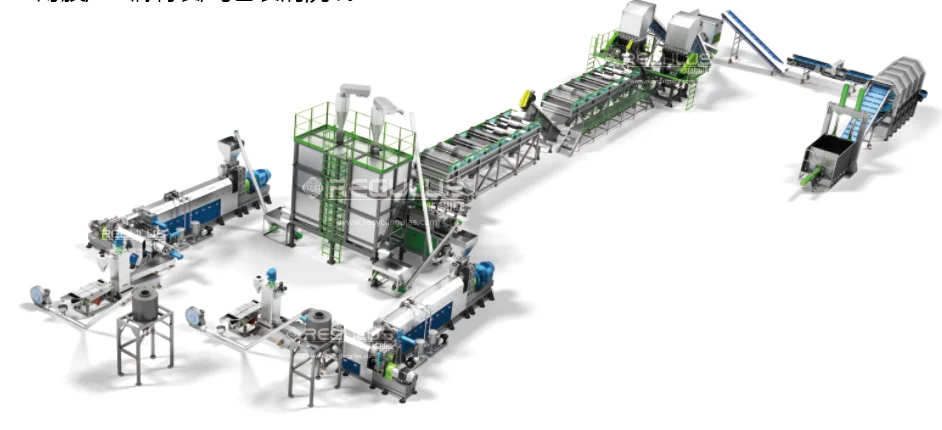

PE Film/ PP Woven Ton Bag Washing Recycling Line 500-1500kg/h
Working Process:

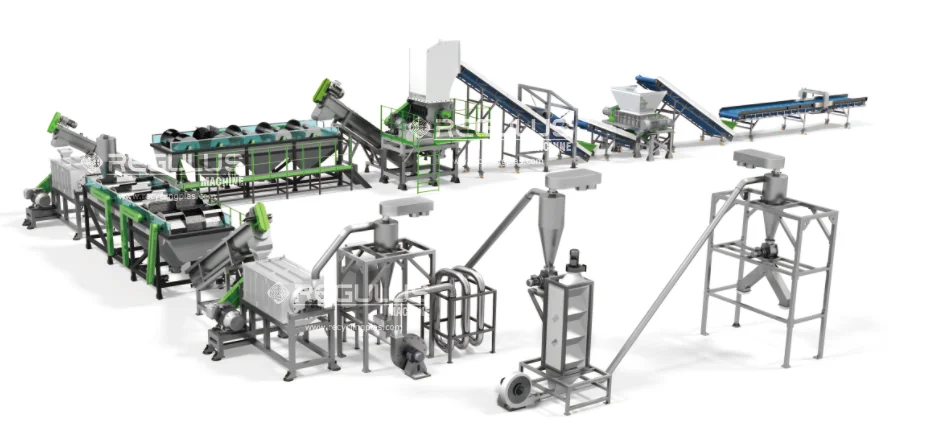

Bales guillotine→Pre-washer→Sorting platform→Shredder→Crusher→Friction washer→Washer tank→Friction washer→Washer tank→Squeeze pelletizer→Silo→Extruder→Pelletizer→Dehydration→Vibrating screen
→Silo→Bagging
used for washing, granulating recycling waste soft plastic PE HDPE LDPE LLDPE film,bags PP ton bags,woven bags,film
Model | PE-R500 | PE-R1000 | PE-R1500 |
Diemension(㎡) | 350 | 700 | 1000 |
Installed power(KW) | 500 | 800 | 1300 |
(PE) Productivity(kg/h) | 500 | 1000 | 1500 |
Water Consumption(㎡/h) | 3 | 5 | 7 |
PE/PP Hard Plastic Washing Recycling Line 500-2000kg/h
Working Process:
sorting platform→shredder→crusher→friction washer→washer tank→friction washer→washer tank→dehydration
→dryer→label separation→color sorting→bagging
PP/PE hard material waste plastics. For example, milk bottles, laundry detergent bottles,engine oil bottles,PE PP plastic containers,trays,tubes,pipes,bottle caps, etc.
Model | PE-Y500 | PE-Y1000 | PE-Y2000 |
Diemension(㎡) | 150 | 400 | 600 |
Installed power(KW) | 180 | 288 | 380 |
(PE) Productivity(kg/h) | 500 | 1000 | 2000 |
Water Consumption(㎡/h) | 3 | 4 | 6 |
Features at a glance:
Function: crushing the material into flakes
By crushing, large-sized raw materials are divided into relatively uniform small-sized raw materials.

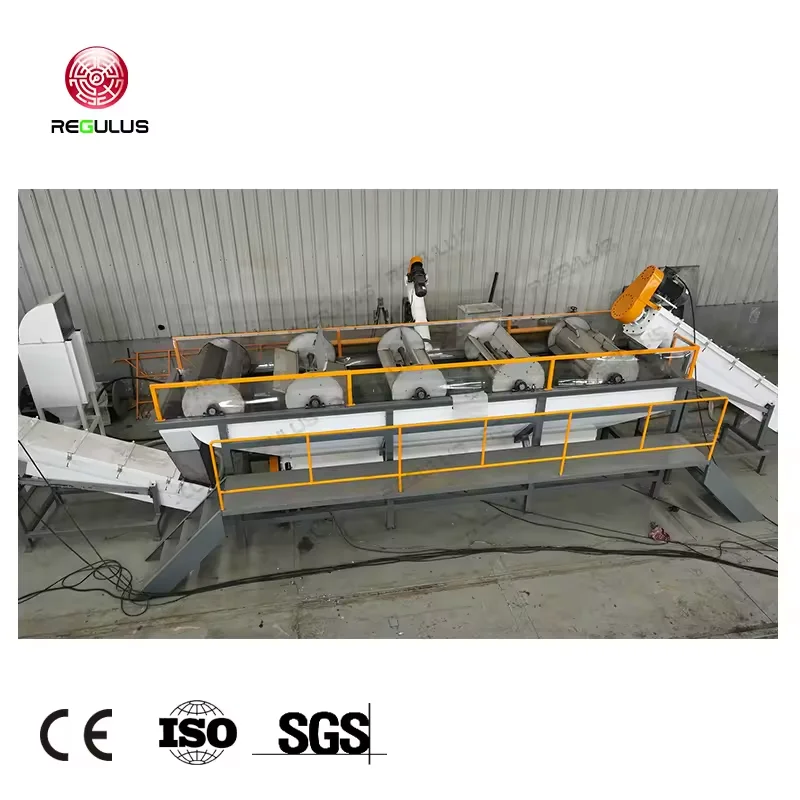

Function: Friction washing the material and loading up it
The friction washer is high rotating speed cleaning equipment. The plastic runs against each other at high speed geeting rid of
hard to remove contamination.
The friction washer is high rotating speed cleaning equipment. The plastic runs against each other at high speed geeting rid of
hard to remove contamination.

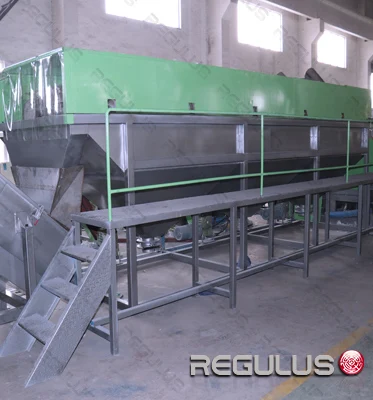

Function: Floating washing separate the sand, soil and other dirtie
In the washing tank, the plastic PP and PE will float, and heavier contamination such as dirt , sand , glass ,metals , other plastics will sink .
Screw Loader
Function: PET flakes conveying
The machine uses centrifugal force to remove a large portion of water within the plastic before moving forward onto the therma dryers.
The machine screw press squeezes the water
out via high pressure.
out via high pressure.
Company Profile
REGULUS MACHINERY GROUP
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. with our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in Malaysia
Project in Russia
SIMILAR PRODUCTS
PE PP plastic washing
https://www.recyclingplas.com/plastic-washing-recycling-machine/ (website)
https://www.recyclingplas.com/plastic-pe-pp-washing-line (video)
Shredder
https://www.recyclingplas.com/plastic-shredder-and-crusher-machine/ (website)
https://www.recyclingplas.com/single-shaft-shredde (video)
Plastic pelletizing recycling machine
https://www.recyclingplas.com/plastic-pelletizing-recycling-machine/ (website)
https://www.recyclingplas.com/plastic-pelletizing-recycling-line (video)
FAQ
Q1. Which kind of waste plastic can your machine recycle?
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
Q1：How can we know what kind recycling machine is suitable for our waste plastic?
A1：You could contact us and send us your waste plastic pictures, and tell us your requirement of product capacity. Wwe will recommend you suitable waste plastic recycling equipment.
Q3: How can we guarantee quality?
A3: All of our workers has more than 10 years experience in producing the plastic machine, and we always final Inspection before delivery.
Q4:.What kind of plastic machine can we buy from your company?
A4: Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, PET Bottle Recycling Line, Plastic pipe and plastic profile Extrusion Line, Plastic agglomerator, Plastic Squeezing dryer Machine, Plastic Shredder, crusher, plastic mixer, plastic pulverizer.
Q5: What services can your company provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C
