Full Automatic Bottling Equipment Pure Mineral Drinking Water Bottled Water Processing 5 Gallon Bottle Filling Machine Plant
- Category: >>>
- Supplier: Zhangjiagang City Ak Machinery Co. Ltd.
Share on (1601282858445):
Product Overview
Description
Product Description
18.9l 20l 20 liter automatic pet barrel bottle water washing bottling filling 5 gallon bottles water filling line machine
Machine Size | 5500*1100*2000MM |
Production Capacity | 150-1500 bottles per hour |
Bottle Size | 3/5 Gallon;20L |
Weight | 3500KG |
Bottle Material | PET/PC Barrel |
Machine Material | Stainless Steel 304/316L |
Way Of Filling | Gravity Filling |
Pressure | 0.7Mpa |
Air Comsumption | 0.8m³/min |
Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
Capacity | 150BPH | 300BPH | 450BPH | 600BPH |
Bottle Volume | 5 Gallon | 5 Gallon | 5 Gallon | 5 Gallon |
Bottle Size | 270*490MM | 270*490MM | 270*490MM | 270*490MM |
Bottle Height | 490MM | 490MM | 490MM | 490MM |
Machine Power | 4.5KW | 7.5KW | 9KW | 11KW |
Machine Size | 4750*1750*2250MM | 4700*2100*2250MM | 4800*2100*2250MM | 4850*2100*2250MM |
Detailed Images

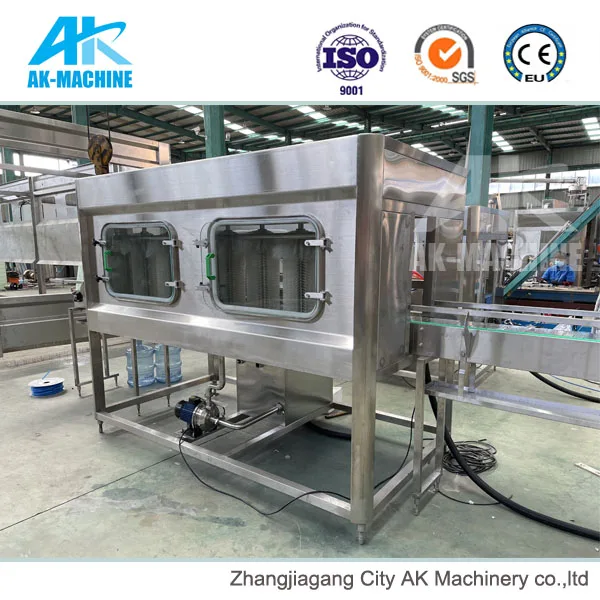

Washing part for filling machine
Washing Part
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style
inject design, more save water consumption and more clean
inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing
bottle crash during washing
<3> 304/316 stainless steel washing pump

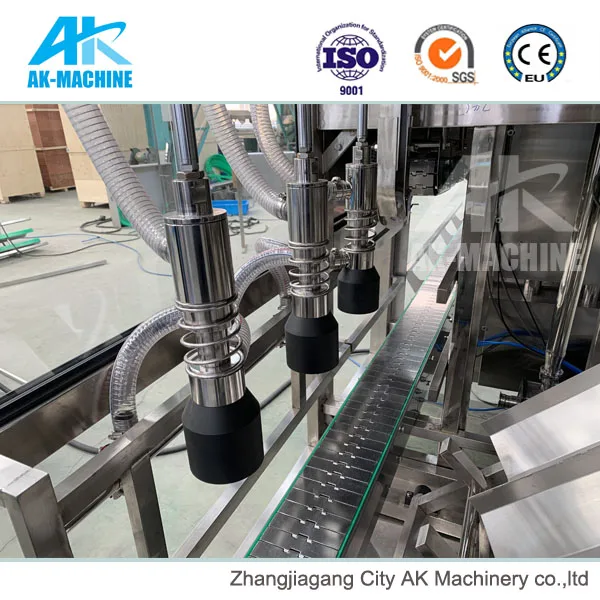

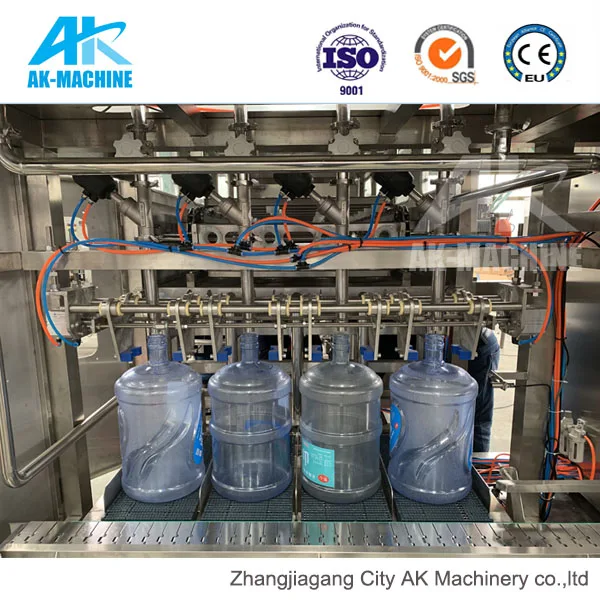

Filling Part For Filling Machine
Filling Part
Fucntion : filling water into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume
adjustable in fine rank, same liquid level after filling
adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish,
no death corner, easy to clean
no death corner, easy to clean
<4> 304/316 stainless steel filling pump

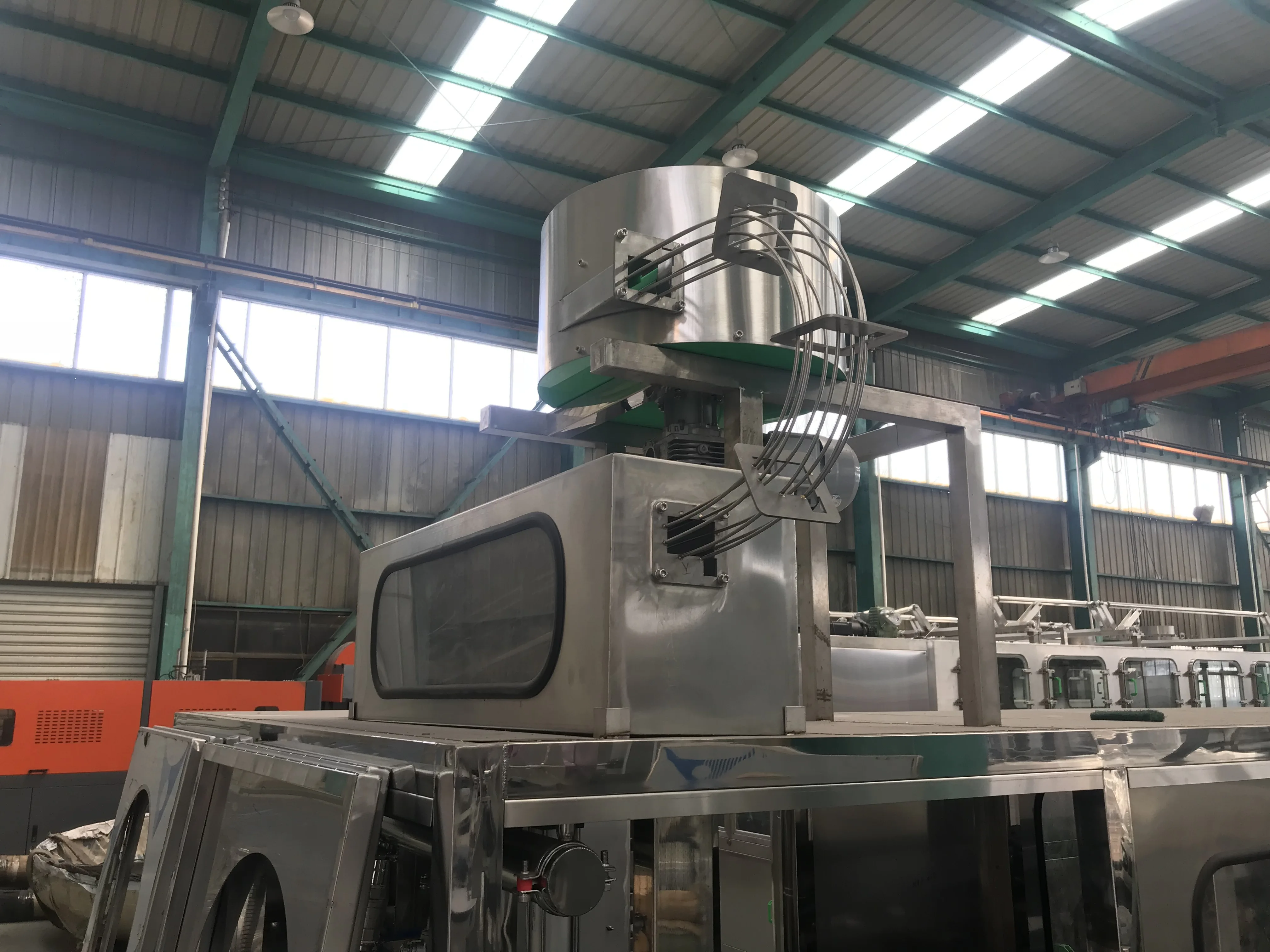

Capping Part For Filling Machine
Capping Part
Function : put caps on bottle .
Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make
sure minimum bottle crash during capping
sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction <3> No bottle no capping
<4> Automatic stop
when lack of bottle
when lack of bottle
Related Products
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.
