0 2000um Digital Thickness Gauge Auto Fe/NFe Probe Car Coating Refinishing Paint Thickness Tester Detector
- Category: >>>
- Supplier: Haiyang Laice Trading Co. Ltd.
Share on (1601282896757):
Product Overview
Description
NT-1S coating thickness gauge is a simple, durable and accurate thickness gauge that adopts magnetic induction (steel, iron etc.) or eddy current method (zinc, aluminum etc.) to take non-destructive measurements of coating and dry film thickness on various substrates.
Products Description
Features:

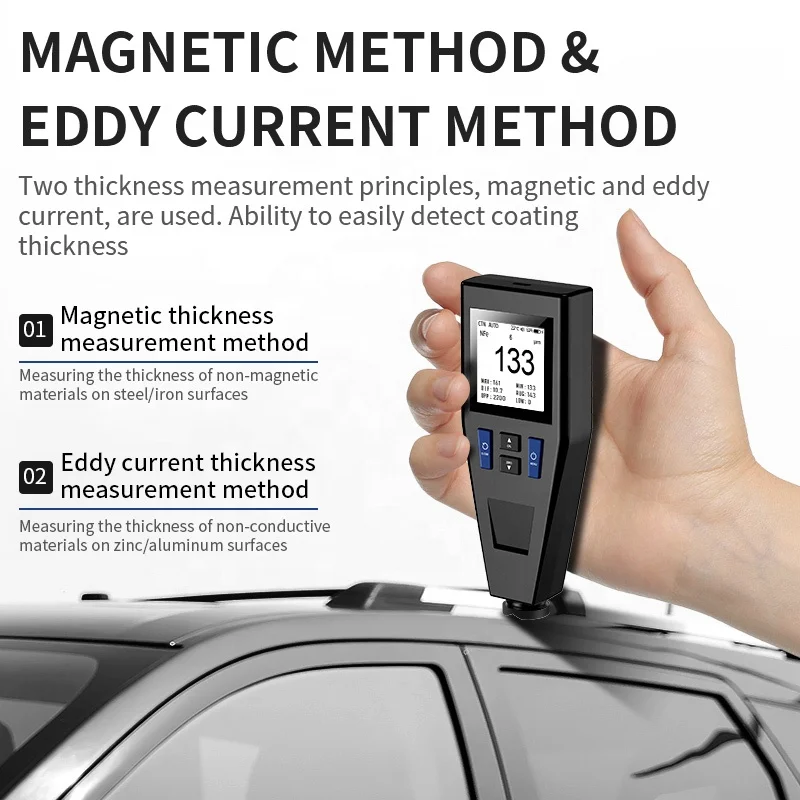

* Two measurement method, magnetic induction for magnetic substrates such as iron and steel; eddy current method for substrates such as brass, aluminum, zinc etc.

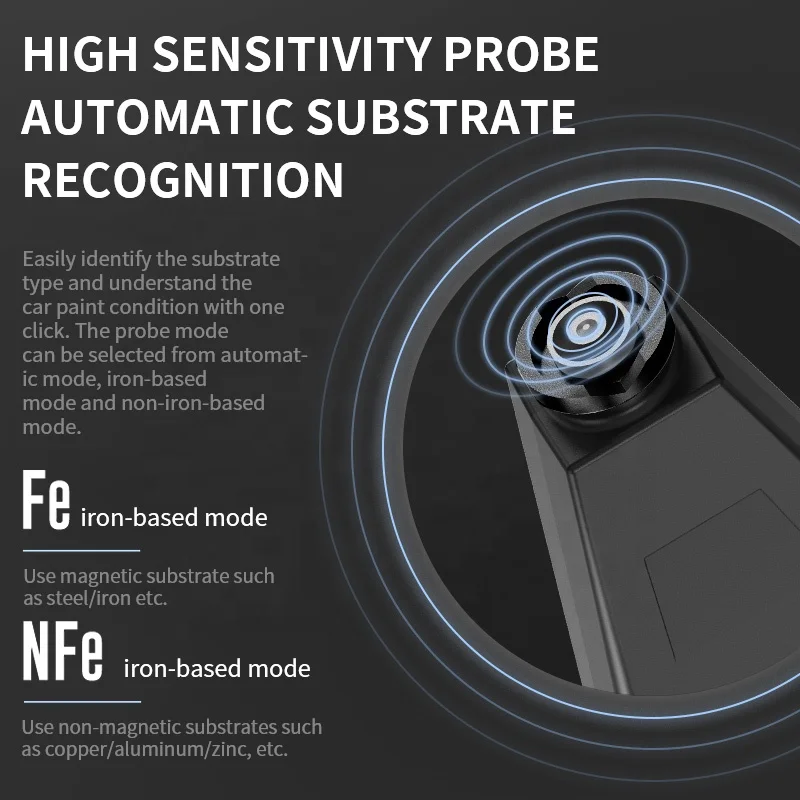

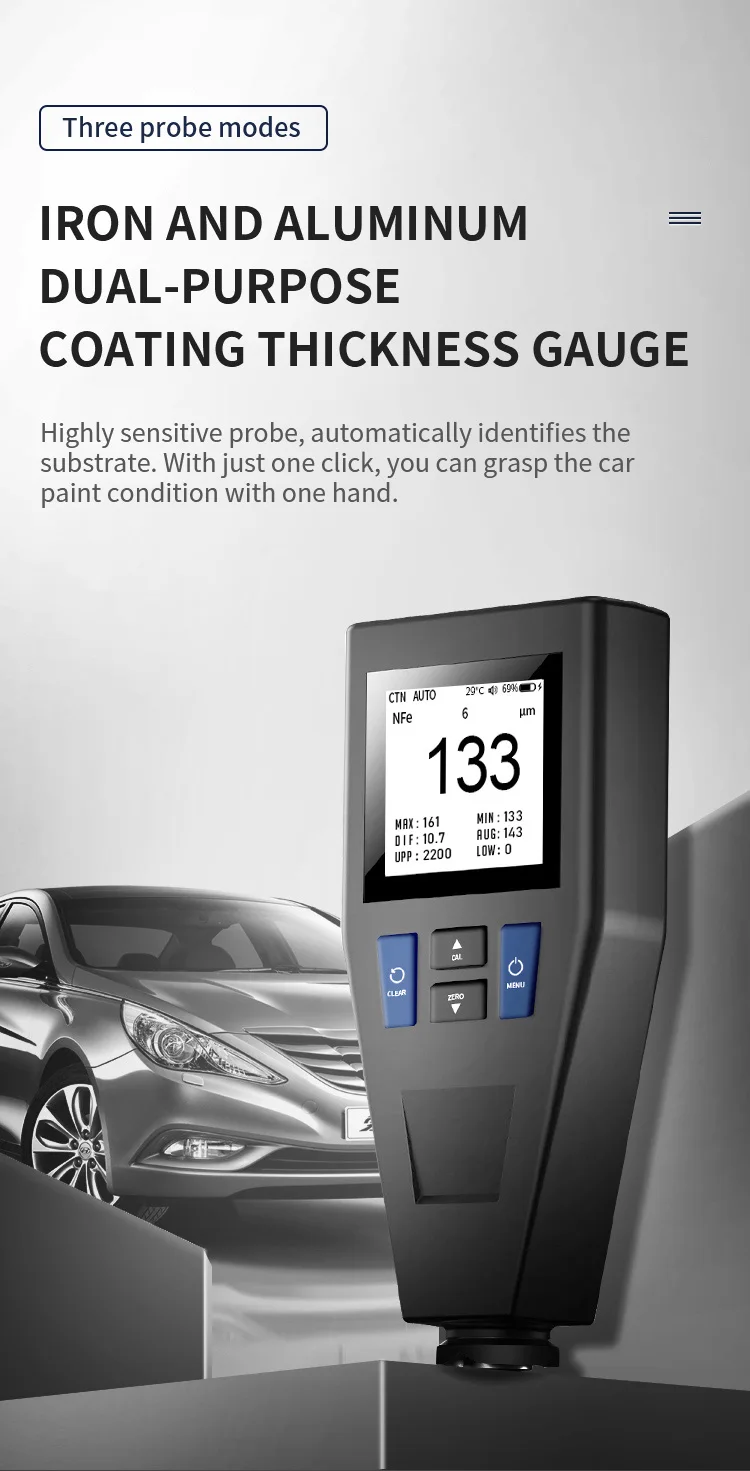

* Highly sensitive probe, automatically identify the substrates

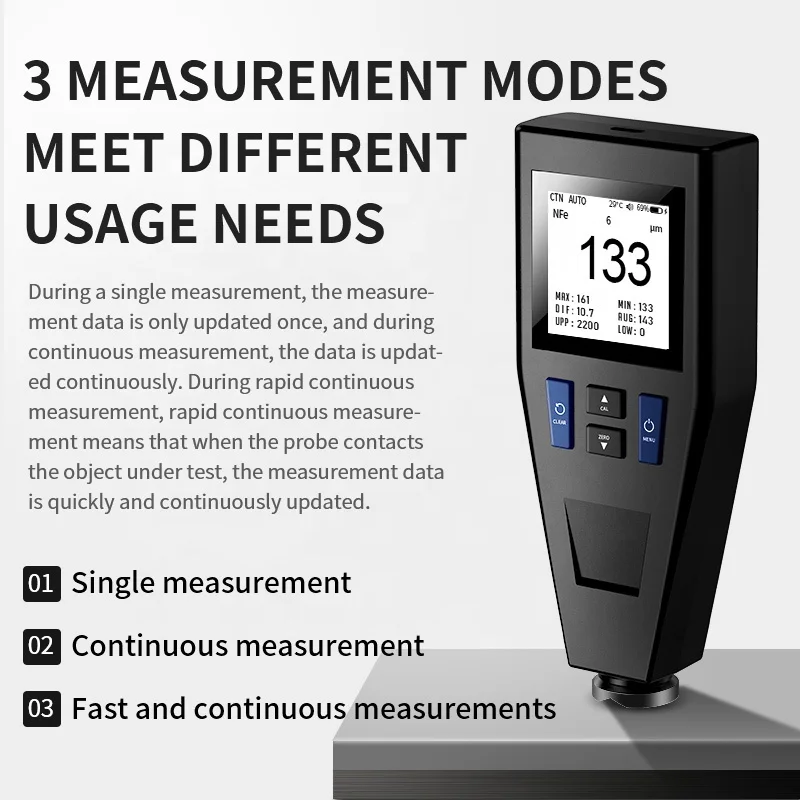

* Three measurement modes, single measurement, continuous measurement, fast continuous measurement.
* IPS High-definition large color screen with clear and easy reading, more settings of brightness, color, screen rotation.

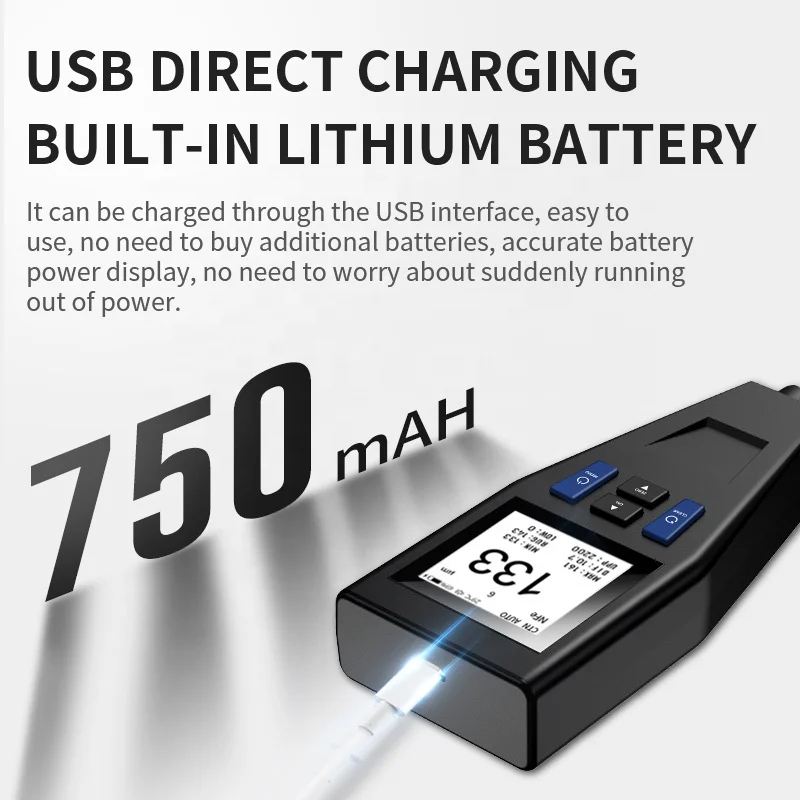

* Built-in lithium battery, USB direct charging, eco-friendly and durable.
* Multiple calibration modes (automatic probe calibration, manual zero calibration, manual multiple points calibration), better decreasing the measurement errors and secure the accurate measurement.
* 2s fast switch on, 50 data can be stored; high and low alarm value can be set.
* Two measurement method, magnetic induction for magnetic substrates such as iron and steel; eddy current method for substrates such as brass, aluminum, zinc etc.
* Highly sensitive probe, automatically identify the substrates
* Three measurement modes, single measurement, continuous measurement, fast continuous measurement.
* IPS High-definition large color screen with clear and easy reading, more settings of brightness, color, screen rotation.
* Built-in lithium battery, USB direct charging, eco-friendly and durable.
* Multiple calibration modes (automatic probe calibration, manual zero calibration, manual multiple points calibration), better decreasing the measurement errors and secure the accurate measurement.
* 2s fast switch on, 50 data can be stored; high and low alarm value can be set.

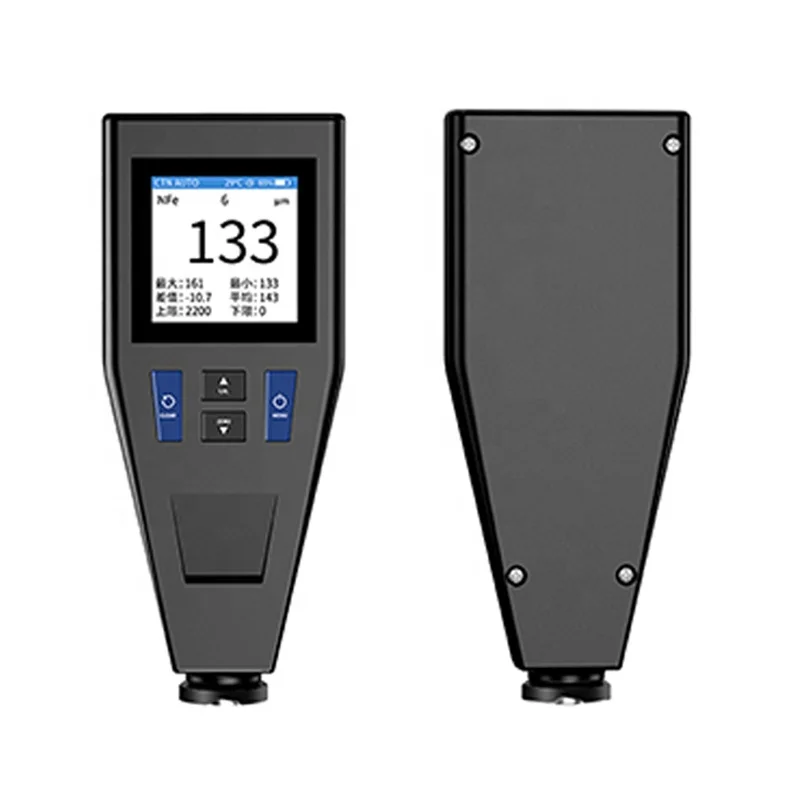

①Measurement mode, SNG: single measurement, CTN: continuous measurement, FCNT: rapid continuous measurement
②Probe mode, AUTO: automatic switching, FE: only iron-based measurement, NFE: only non-ferrous-based measurement
③Instrument internal temperature
④Buzzer sound indication, buzzer sound on/off
⑤Battery level display
⑥Battery charging indicator, when the icon is displayed, it means the battery is charging
⑦The base material for this measurement is NFe: non-ferrous material, Fe: iron-based material
⑧The count value of this measurement, the maximum is 100
⑨Unit of measurement data, optional mm, mil, um
⑩The thickness value measured this time
⑪Count the maximum thickness measured in this group
⑫The difference between the thickness value measured this time and the average value
⑬The upper limit of the alarm value.
Black means the alarm is on, gray means the alarm is off
⑭Statistics of the minimum thickness measured in this group
⑮Calculate the average of the group of measurements
⑯The lower limit of the alarm value.
Black means the alarm is on, gray means the alarm is off
②Probe mode, AUTO: automatic switching, FE: only iron-based measurement, NFE: only non-ferrous-based measurement
③Instrument internal temperature
④Buzzer sound indication, buzzer sound on/off
⑤Battery level display
⑥Battery charging indicator, when the icon is displayed, it means the battery is charging
⑦The base material for this measurement is NFe: non-ferrous material, Fe: iron-based material
⑧The count value of this measurement, the maximum is 100
⑨Unit of measurement data, optional mm, mil, um
⑩The thickness value measured this time
⑪Count the maximum thickness measured in this group
⑫The difference between the thickness value measured this time and the average value
⑬The upper limit of the alarm value.
Black means the alarm is on, gray means the alarm is off
⑭Statistics of the minimum thickness measured in this group
⑮Calculate the average of the group of measurements
⑯The lower limit of the alarm value.
Black means the alarm is on, gray means the alarm is off
Product Paramenters
Principle | Magnetic induction/eddy current | Measurement range | 0-2000um |
Error | ±（2.5%+2um) | Display accuracy | 0.1um(0-99.9um); 1um( ≥100um) |
Unit | um, mm, mils | Min.convex radius of curvature | 5mm |
Min.concave radius of curvature | 25mm | Min. measurement area diameter | 20mm |
Min. substrate thickness | 0.2mm/0.05mm | Calibration | Infinite points calibration, zero calibration, multiple points calibration |
Battery | 3.7V/750mAh lithium battery | Charging voltage/current | 5V/500mA |
USB port | Micro B | Working climate | Temperature:0-50℃（32-122℉）；humidity:20%-90%RH; no strong magnetic field; no strong electromagnetic interference |
Storage condition | Temperature:-10-60℃（-14-140℉） | Dimension | 110*50*21mm (4.33*1.96*0.83inch) |
Material & weight | ABS plastic, silica gel, Plexiglass, weight:70g(3.24oz) | Standard configuration | Main instrument 1set, substrates 2pcs (Fe, nFe 1 pc each), calibration sheet (100um) 3pcs; cable 1pc, user manual 1pc, certificate 1pc, soft bag 1pc, packing box 1pc |
Product Application
Company Profile

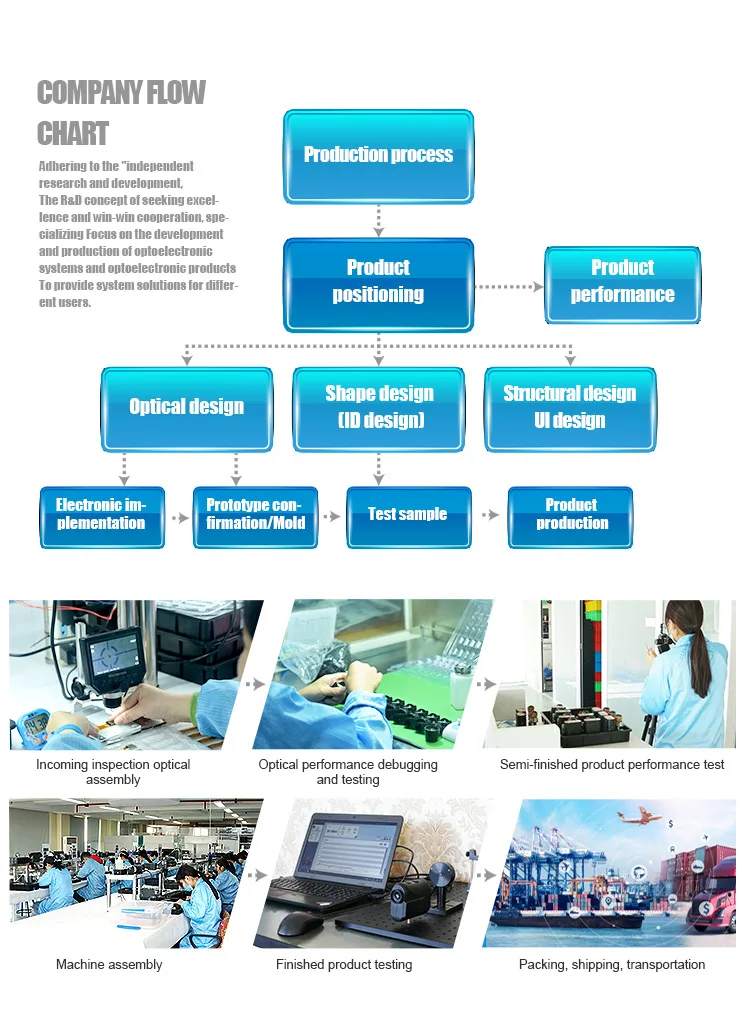

OEM process Introduction
