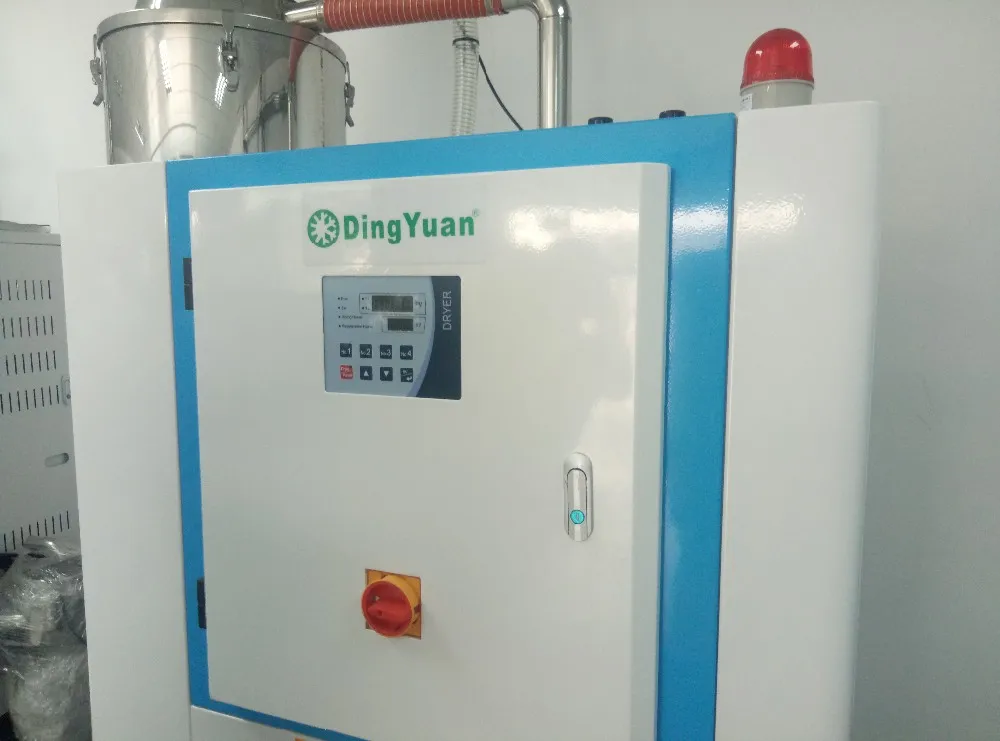

New Product Easy To Operate 3 IN 1 Dehumidifier Factory Production Line Plastic Processing Industry Automatic Drying Tool
DESCRIPTION
With hygroscopic plastic material, drying becomes the most critical step in the process

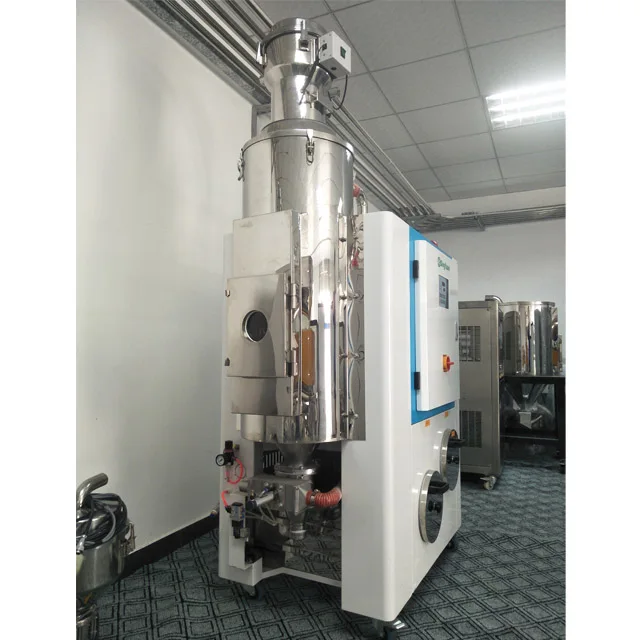

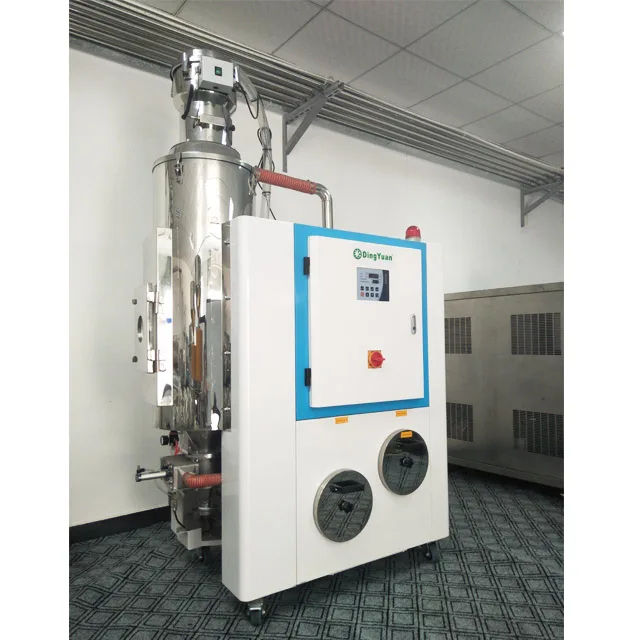

and the moisture in the material must be removed at a steady temperature. Dingyuan’s honeycomb dehumidifier can deliver constant low dew-point air with maximum efficacy and quality. The HAD series “Three-in-one” dehumidifier combine drying, dehumidifying, and two-stage conveying functions in a single unit. Which has closed recycling feeding system and used stainless steel material(double) to improve the efficacy of drying. Dingyuan’s industrial dehumidifier with simple operation, reasonable design, high quality and hundreds of specifications, is an indispensable companion of modern industrial production.
and the moisture in the material must be removed at a steady temperature. Dingyuan’s honeycomb dehumidifier can deliver constant low dew-point air with maximum efficacy and quality. The HAD series “Three-in-one” dehumidifier combine drying, dehumidifying, and two-stage conveying functions in a single unit. Which has closed recycling feeding system and used stainless steel material(double) to improve the efficacy of drying. Dingyuan’s industrial dehumidifier with simple operation, reasonable design, high quality and hundreds of specifications, is an indispensable companion of modern industrial production.
FEATURES

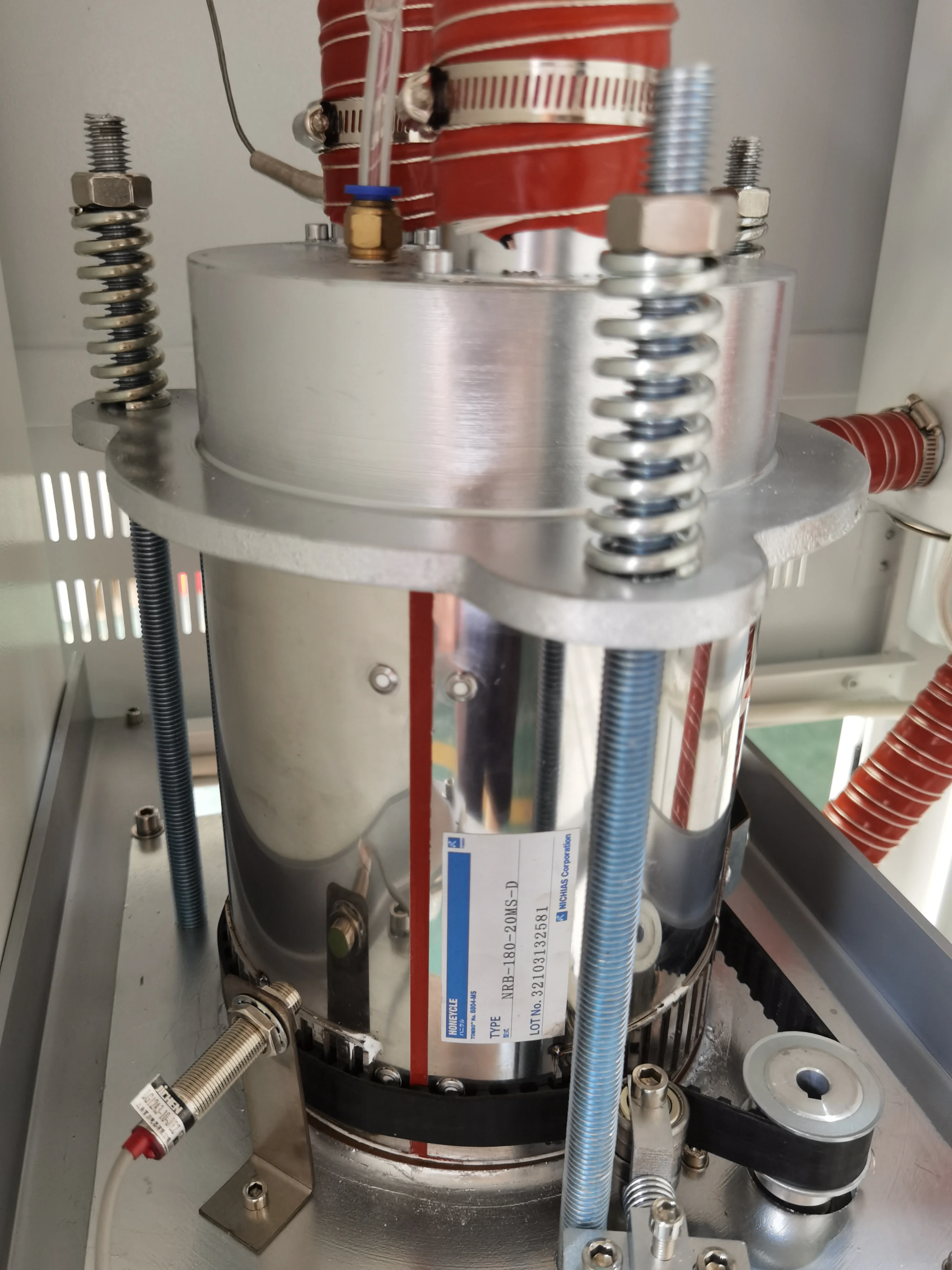

1. Dingyuan's honeycomb dehumidifier are equipped with honeycomb rotor for dehumidifying. They have two kinds of design:Fully-integral and semi-integral depending on the size.
2. Dehumidifier provide dew-point of -40℃ or even lower. Also it can achieve constant detection of all the parameters and
stabilize the dew-point. The largest of which can provide dry air up to a quantity of 4,000 m³/hr.
3. Adopts P.I.D. temperature controller to accurately control regenerative temperature. Centralized automatic control can be realized by optionally selected PLC touch screen controller.
4. For centralized dehumidifierdrying system, adopt heat exchanger to realize heat recycling with which 20% energy can be saved.
2. Dehumidifier provide dew-point of -40℃ or even lower. Also it can achieve constant detection of all the parameters and
stabilize the dew-point. The largest of which can provide dry air up to a quantity of 4,000 m³/hr.
3. Adopts P.I.D. temperature controller to accurately control regenerative temperature. Centralized automatic control can be realized by optionally selected PLC touch screen controller.
4. For centralized dehumidifierdrying system, adopt heat exchanger to realize heat recycling with which 20% energy can be saved.
PRODUCT SPECIFICATIONS
Model | DY-TDH 75-80 | DY-TDH80-25 | |
Drying System | Drying blower power | 0.75 KW | |
2 | Drying heater power | 4.2 KW | |
3 | Drying hopper capacity | 75 KG | |
Dehumidifier System | Regen-blower power | 0.25 KW | |
5 | Regen-heater power | 3.8 KW | |
6 | Dry air capacity | 80 m³/Hr | |
Conveying System | Conveying blower power | 1.1 KW | |
8 | Dia, of conveying hose | 38 inch | |
Hopper capacity | 7.5L | ||
Overall | Total Power | 9.8 KW | |
Dimensions | 1100*870*2255 MM | ||
Weight | 465 KG | ||

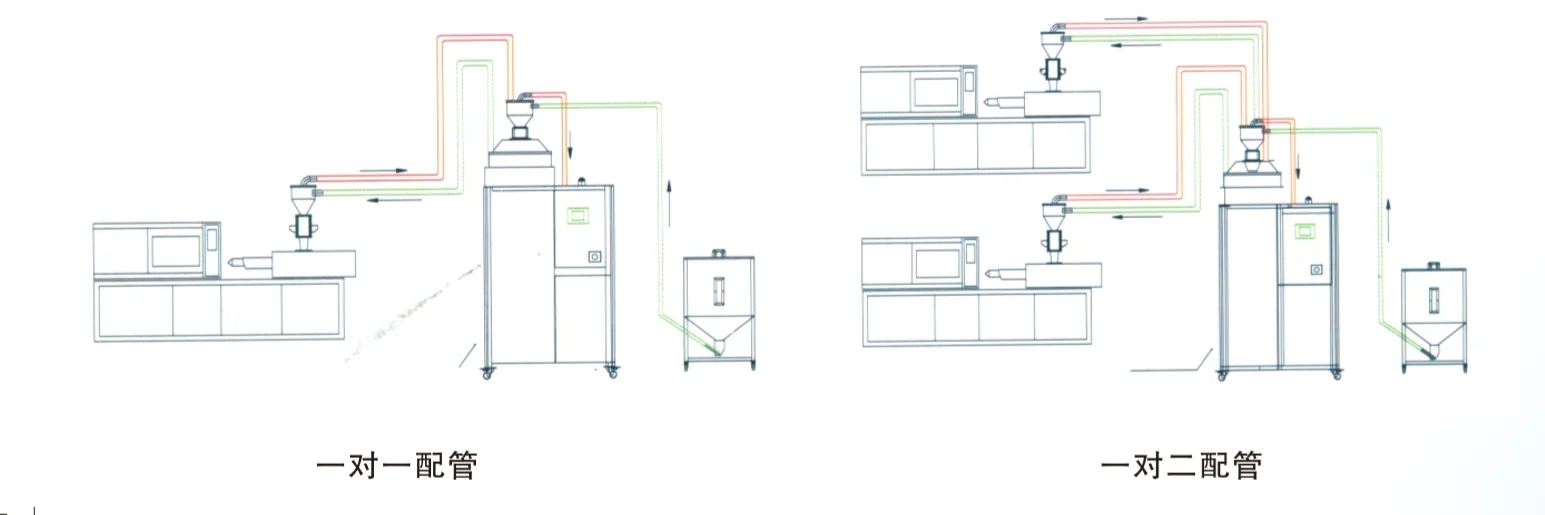

DIAGRAM
