MITR Lab Transparent Acrylic Glove Box for Lithium Battery Research PMMA Operating box
Products Description
Main Feature

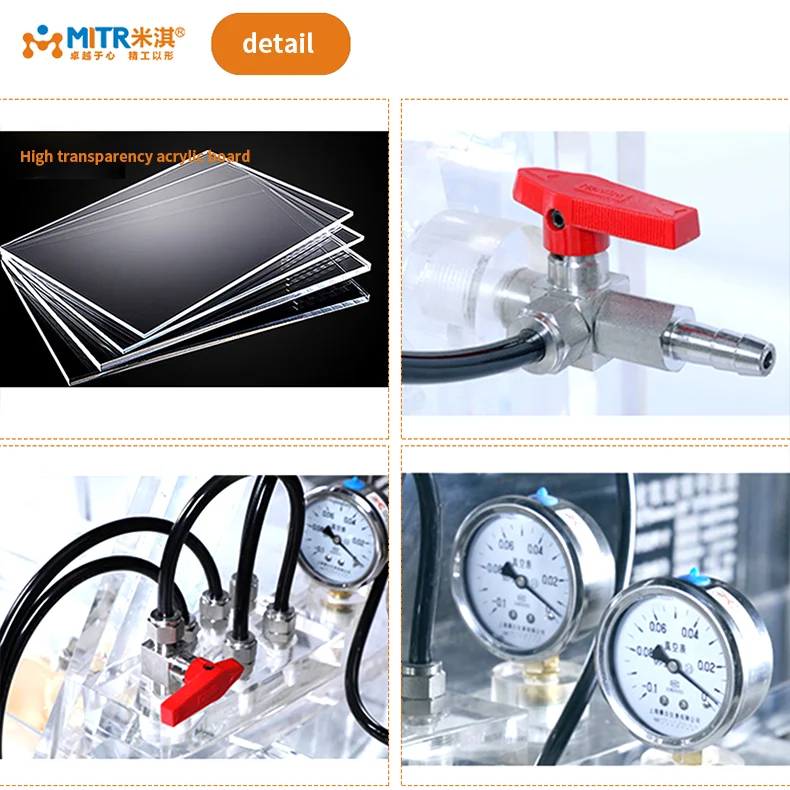

The material is clarity PMMA, which is sample structure and easy to operate be able to pass through ultraviolet light.Under usually conditions, its morphology is stable and high transparent.

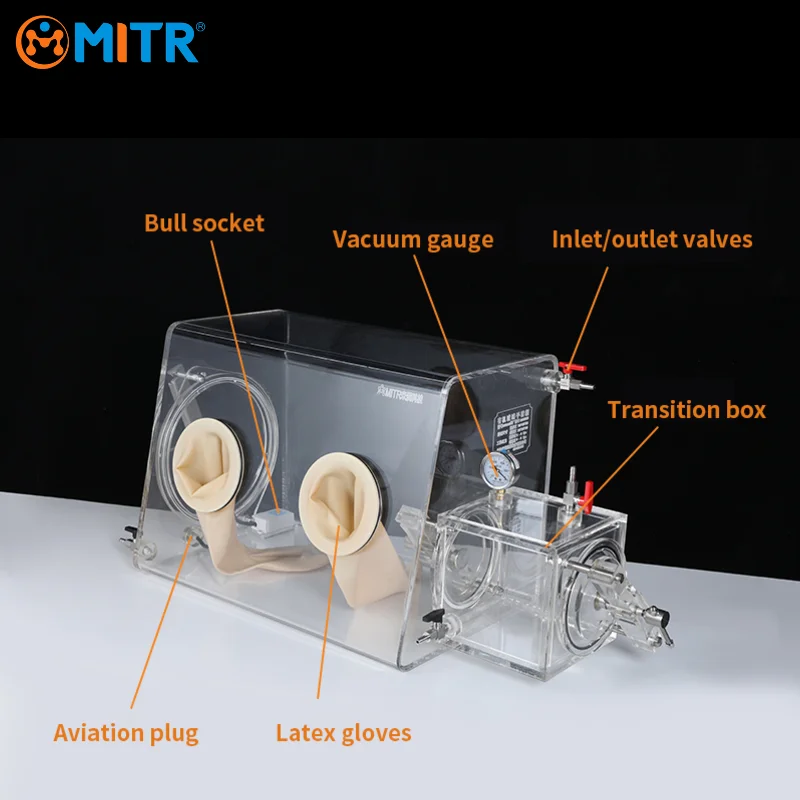

There is a porous electrical socket in the glove box, which is convenient to scientific experiments.
Good sealing performance, and can shield and absorb the α -rays and low-energy β -rays which is emitted by radioactive materials, protect the human body to be damaged by ionizing radiation
Main Application
In cooperation with scientific institution in the experiment of low-energy radioactive substance, it can be worked in the
operation box when aseptic operation of microorganism inoculation and qualitative and quantitative analysis of chemicals and other airtight isolation operations.
Electronic materials, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials,
etc.processing under protective atmosphere.
The glove box is a laboratory facility that high purity inert gas is introduced in the box and cyclic filtration the active
substances. Also known as vacuum glove box, inert gas protective box, etc.
The main function is to remove the O2 and H2O and the organic gas. Widely used in ultra-pure environment without water, oxygen and dust. For example, lithium ion batteries and materials, semiconductors, super capacitors, special lamp, laser welding, brazing, material synthesis, OLED、MOCVD, etc. Also including biological applications, such as anaerobic culture, cell hypoxia culture, etc.
operation box when aseptic operation of microorganism inoculation and qualitative and quantitative analysis of chemicals and other airtight isolation operations.
Electronic materials, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials,
etc.processing under protective atmosphere.
The glove box is a laboratory facility that high purity inert gas is introduced in the box and cyclic filtration the active
substances. Also known as vacuum glove box, inert gas protective box, etc.
The main function is to remove the O2 and H2O and the organic gas. Widely used in ultra-pure environment without water, oxygen and dust. For example, lithium ion batteries and materials, semiconductors, super capacitors, special lamp, laser welding, brazing, material synthesis, OLED、MOCVD, etc. Also including biological applications, such as anaerobic culture, cell hypoxia culture, etc.

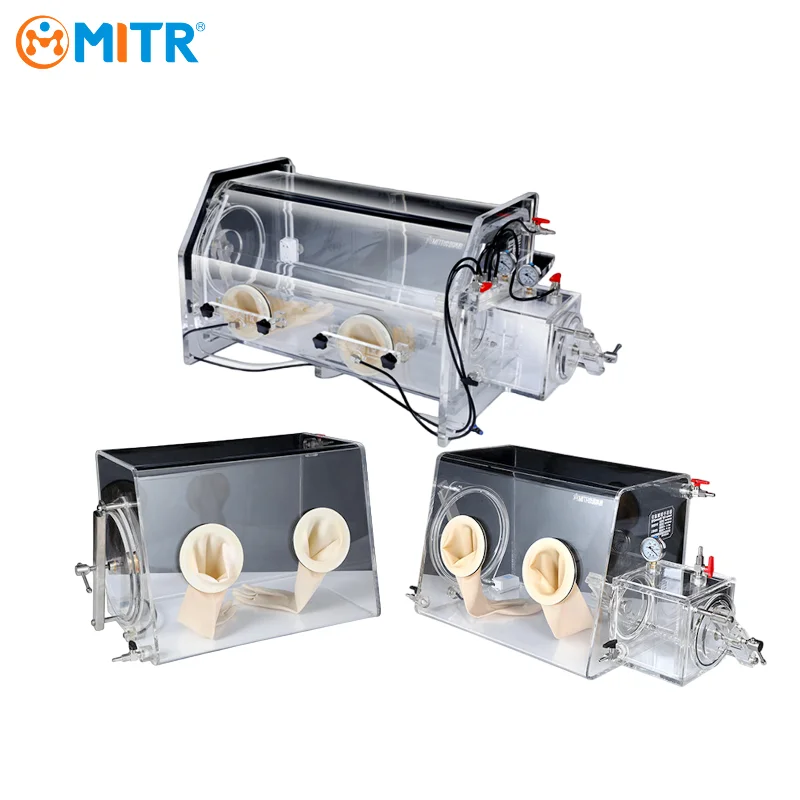

Optional Configuration
Can choose vacuum pump, and also can be customized according to demand.

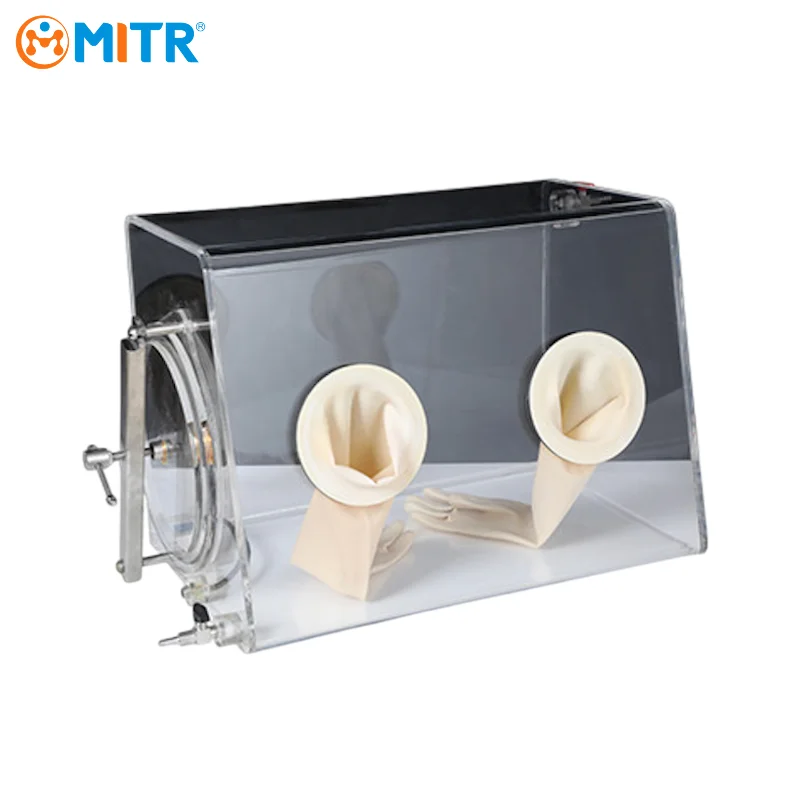

Type A: This glove box is specifically for protection against radiation, isolation operation or dust-proof operation, and no
transition box.
Type B: As an anaerobic glove box, the transition room can be vacuumed but not vacuum in the main box, and the glove box could be
replaced by inert gas.

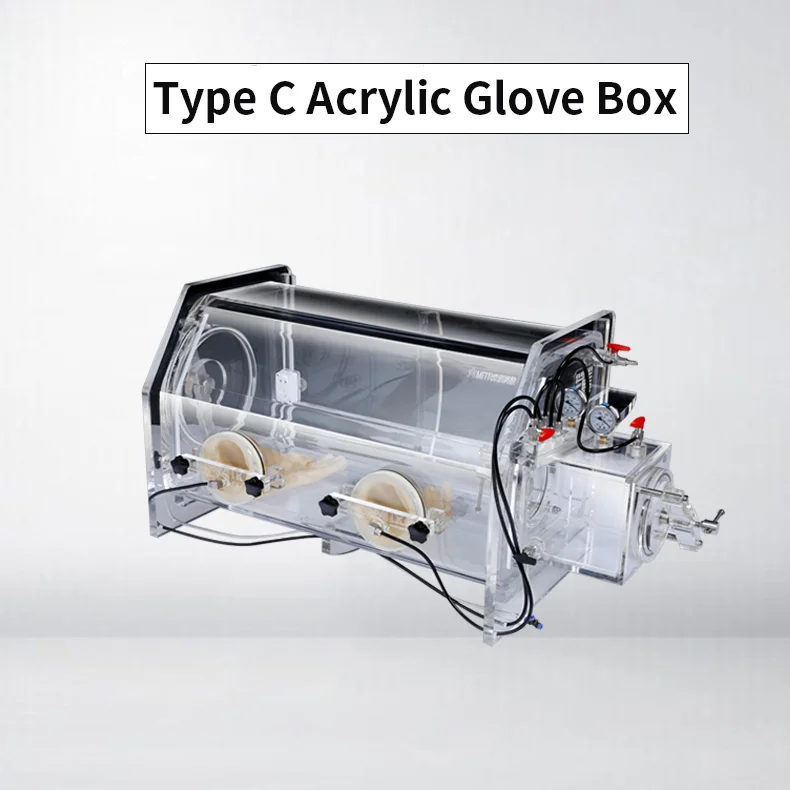

Type C: The main box and transition box can be vacuumed and replaced by inert gas, limit vacuum degree can reach -0.1mpa.
transition box.
Type B: As an anaerobic glove box, the transition room can be vacuumed but not vacuum in the main box, and the glove box could be
replaced by inert gas.
Type C: The main box and transition box can be vacuumed and replaced by inert gas, limit vacuum degree can reach -0.1mpa.

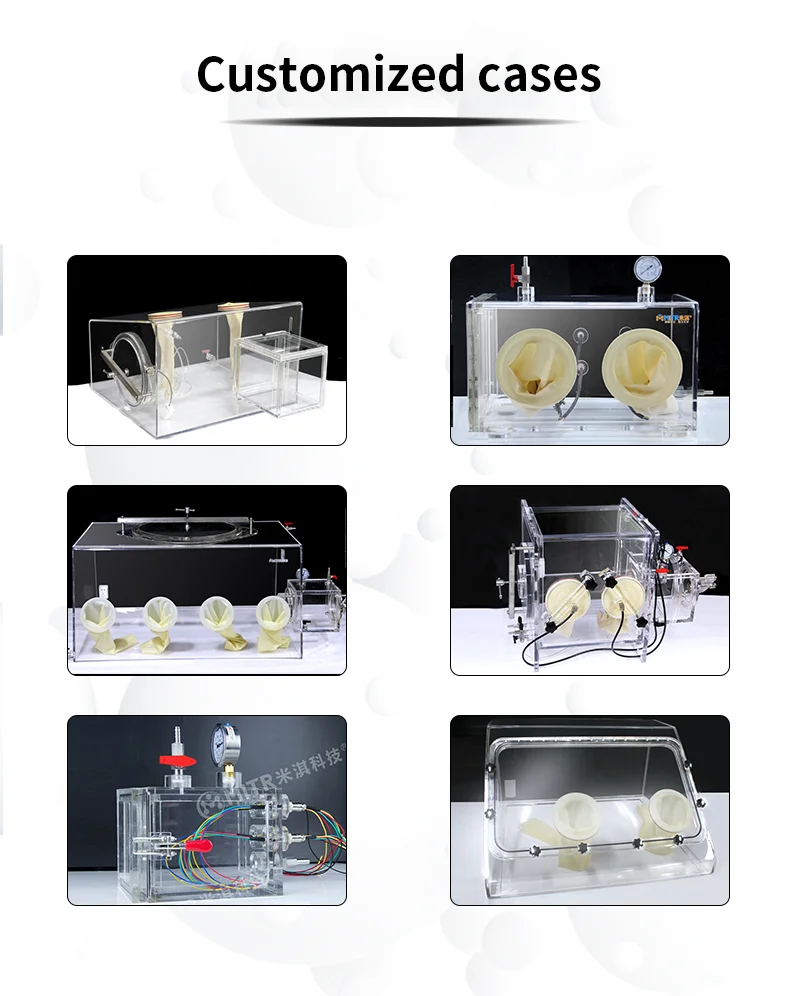

Show Case
Product Paramenters
Model | Main box size(mm) | Thickness(mm) | Transfer box(mm) | ||||||||
Type A | Type B | Type C | Type A | Type B | Type C | ||||||
MT012 | 700*450*500 | 10mm | 10mm | 20mm | No | 240*240*240 | |||||
MT011 | 800*550*600 | 25mm | |||||||||
MT010 | 1000*500*500 | 25mm | |||||||||
MT009 | 1000*700*500 | 30mm | |||||||||
MT008 | 900*600*700 | 30mm | |||||||||
MT007 | 1000*600*700 | 30mm | |||||||||
MT006 | 1000*750*700 | 30mm | |||||||||
MT005 | 1200*600*600 | 30mm | |||||||||
MT004 | 1200*600*700 | 30mm | |||||||||
MT003 | 1200*800*600 | 30mm | |||||||||
MT002 | 1200*800*700 | 30mm | |||||||||
MT001 | 1094*640*645 | 30mm | |||||||||
MT849 | 800*450*900 | No | No | 30mm | |||||||
Model | Vacuum | Material | Left round door | Working Station | ||||
Type A | Type B | Type C | ||||||
MT012 | No | Yes | PMMA | 300mm | 1 pair of glove | |||
MT011 | 350mm | 1 pair of glove | ||||||
MT010 | 300mm | 1 pair of glove | ||||||
MT009 | 300mm | 1 pair of glove | ||||||
MT008 | 300mm | 1 pair of glove | ||||||
MT007 | 300mm | 1 pair of glove | ||||||
MT006 | 300mm | 1 pair of glove | ||||||
MT005 | 350mm | 2 pairs of glove | ||||||
MT004 | 350mm | 2 pairs of glove | ||||||
MT003 | 350mm | 2 pairs of glove | ||||||
MT002 | 350mm | 2 pairs of glove | ||||||
MT001 | 400mm | 2 pairs of glove | ||||||
MT849 | 500*300mm | 1 pair of glove | ||||||
Company Profile
Changsha Mitr Insturment Equipment Co., Ltd. was established in 2007, headquartered in Changsha Hunan China. The company has been focusing on powder new material preparation for 16 years. Specialized in crusher, planetary ball mill, sand mill, grinding ball mill, glove box and related supporting equipment and provide related technical consulting solutions services.
We have exported more than 100 countries like USA, Australia, Mexico, Canada, Spain, Russia, Singapore, Thailand, Saudi Arabia, etc. Our main business is ultra-fine powder crushing / grinding / mixing six links to provide a one-stop solution from the experiment to the producion.
Why Choose Us
FAQ
1. The dimension selected for laboratory using.
It can select the MT012.MT011.MT010.or MT001 for laboratory using.
These four glove boxes can meet the requirements of most customers
2. Equipment selection inside the glove box
If you want to put the balance inside, you can select MT011.MT001.The left round door dimension is 350mm for these two glove boxes.
3. Price/performance ratio selection
To be cost-effective, please choose MT012 and MT011 and MT010
It can select the MT012.MT011.MT010.or MT001 for laboratory using.
These four glove boxes can meet the requirements of most customers
2. Equipment selection inside the glove box
If you want to put the balance inside, you can select MT011.MT001.The left round door dimension is 350mm for these two glove boxes.
3. Price/performance ratio selection
To be cost-effective, please choose MT012 and MT011 and MT010
4. The content range of water and oxygen(O2 &H2O)
Water molecular content is about 10% after type B is replaced by inert gas.After type C vacuumed, the water molecule content is
about 1%-5% (about 100-300ppm).
5. Vacuum pump selection
We suggest to select the 4L to 6L and above model.If the operation box is 1000mm and above model, we suggest to select 6L. If the voltage is 380V in the laboratory, we could choose 8L model.
6. Adding the electric furnace in the operation box, what we should pay attention to?
It can be slightly higher for the local temperature of the electric furnace surface.But the overall temperature should not exceed 50 degrees.
Water molecular content is about 10% after type B is replaced by inert gas.After type C vacuumed, the water molecule content is
about 1%-5% (about 100-300ppm).
5. Vacuum pump selection
We suggest to select the 4L to 6L and above model.If the operation box is 1000mm and above model, we suggest to select 6L. If the voltage is 380V in the laboratory, we could choose 8L model.
6. Adding the electric furnace in the operation box, what we should pay attention to?
It can be slightly higher for the local temperature of the electric furnace surface.But the overall temperature should not exceed 50 degrees.
7. Wanted to use organic solvents inside?
It will cause a certain loss for organic material during of operation because acrylic is an organic material by itself, so it is not recommended to use.
It will cause a certain loss for organic material during of operation because acrylic is an organic material by itself, so it is not recommended to use.
8. Is it suitable for disassemble of lithium battery?
We don’t suggest to use the acrylic glove box because of electrolyte in the lithium battery and corrosively. We have another stainless steel glove box or circulatory system glove box for your selection.
We don’t suggest to use the acrylic glove box because of electrolyte in the lithium battery and corrosively. We have another stainless steel glove box or circulatory system glove box for your selection.
9. What is the difference between your glove box and others?
We are the earliest manufacturer for Acrylic glove box at china.This device is developed and manufactured by our company and obtaining patent protection in 2015.At present, what other manufacturers make in the market are some splicing, that is to say, all the boards and boards are glued together by glue.
But you can see our glove box that integral molding 70%.This is impossible for other manufacturer at present.And our raw material are directly supplied by Japan Mitsubishi Corporation,that have very high transmittance.Currently in the market some of the materials which formaldehyde is very high and great damage to human body. Please select the "MITR" brand.
We are the earliest manufacturer for Acrylic glove box at china.This device is developed and manufactured by our company and obtaining patent protection in 2015.At present, what other manufacturers make in the market are some splicing, that is to say, all the boards and boards are glued together by glue.
But you can see our glove box that integral molding 70%.This is impossible for other manufacturer at present.And our raw material are directly supplied by Japan Mitsubishi Corporation,that have very high transmittance.Currently in the market some of the materials which formaldehyde is very high and great damage to human body. Please select the "MITR" brand.
