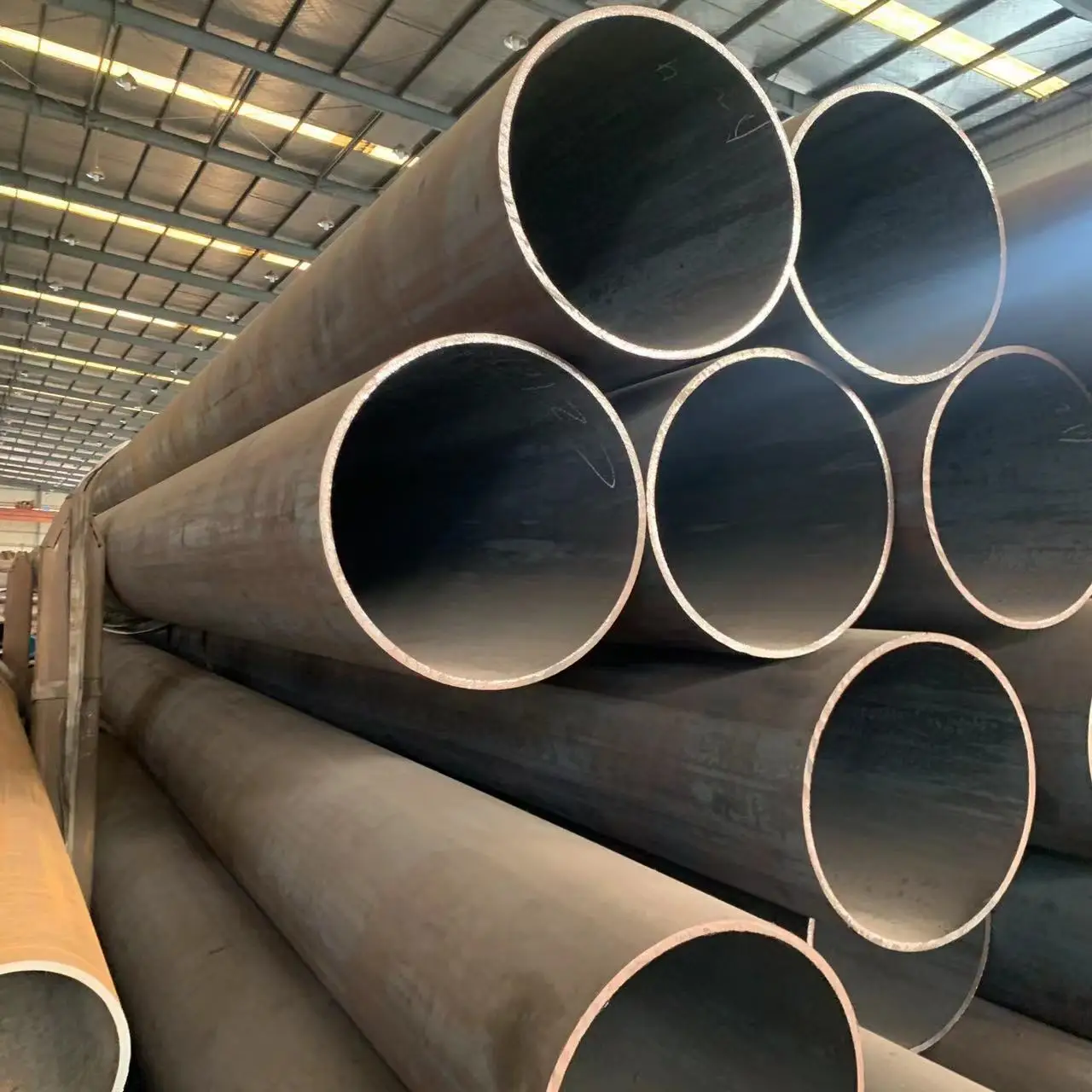

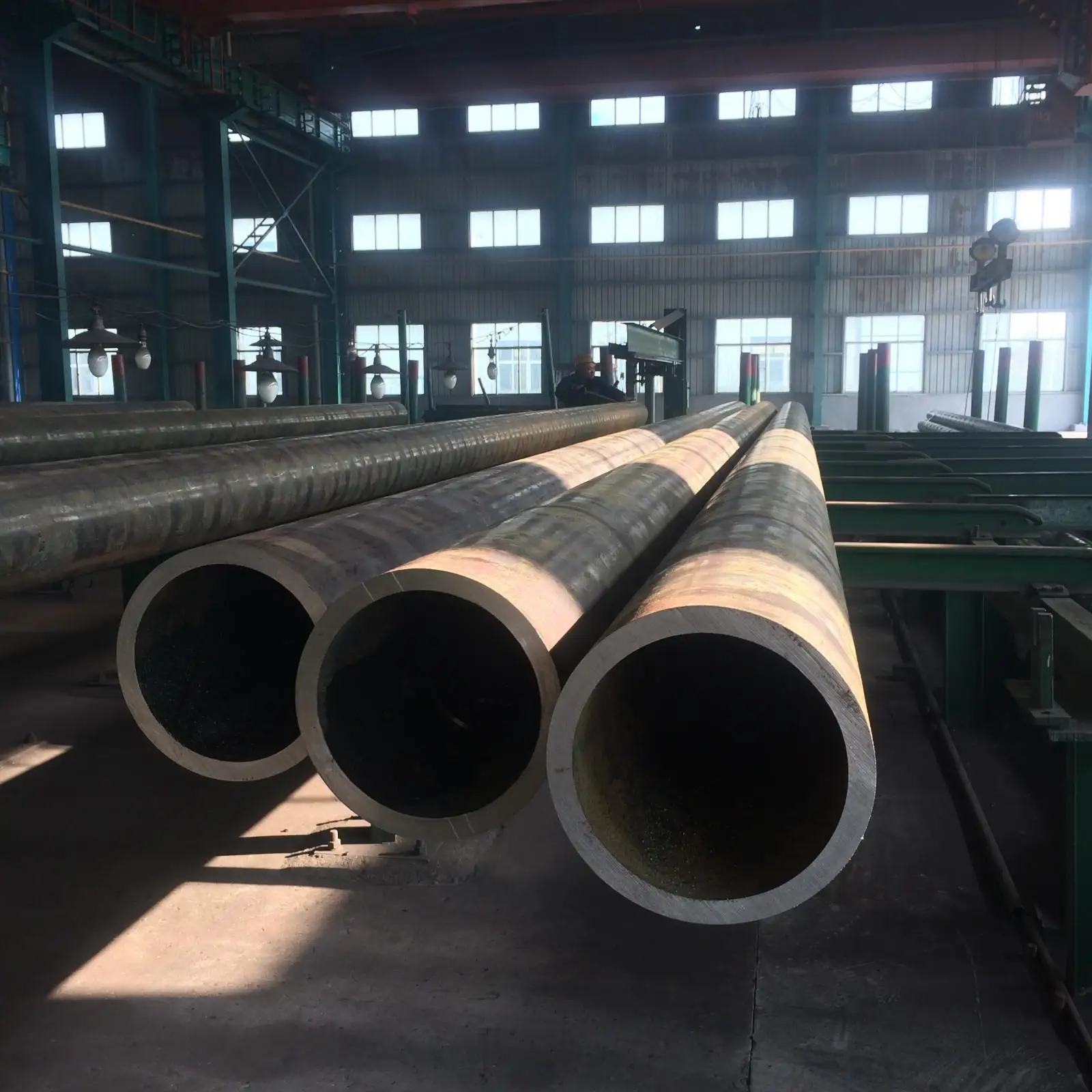

ASTM A106 Seamless Carbon Steel pipe/tube A106 Seamless carbon steel Tube/pipe Professional Manufacturer
- Category: >>>
- Supplier: Jiangsu Tisco Industrial Co. Ltd.
Share on (1601282920858):
Product Overview
Description
ASTM A106 A53 Gr. B API5l Sch40 Sch80 Sch120 Carbon Seamless Steel Pipe Industrial Pipe for Oil and Gas
Product Details
Product name | ASTM A106 A53 Gr. B API5l Sch40 Sch80 Sch120 Carbon Seamless Steel Pipe Industrial Pipe for Oil and Gas | ||
Standard | American | ASTM A53 GrB/ASTM A106 Gr.B/ASTM SA179/ASTM SA192/ASTM SA210/ASTM A213/ASTM A333 GR.6/ASTM A335 P9,P11,T22T91/ASTM A336/ASTM SA519 4140/4130/ASTM A519 ASTM A500 API 5CT J55/K55/N80/L80/P110/K55 API 5L PSL1/PSL2 Gr.B.X42/46/52/56/65/70 etc | |
European | DIN 17175/DN2391/DIN 1629/EN 10208/EN 10210/10219 etc | ||
Japanese | JIS G3454/G3455/G3456/JIS G3444 etc | ||
Russian | GOST 8731-74, 8732-78/ GOST 8733-74, 8734-75/GOST 10704-91 etc | ||
GB | GB/T8162-2008/ GB/T8163-2008/GB5310-2008/GB6479-2000/GB9948-2006/ YB235-70/ GB3423-82/ YB528-65/ GB5213-85/ GB3088-82/ GB3639-2000 etc | ||
Size | OD | 10.3-1219.2mm | |
WT | 1.65-60mm | ||
LENGTH | 5.8/6/11.8/12m | ||
Tolerance | Hot rolled | OD <50 : +/-0.5mm OD >50 : +/-1% WT <4 : +/-12.5% WT 4-20 : +15%, -12.5% WT >20 : +12.5% | |
Cold drawn | OD 6~10 : +/-0.2mm OD 10-30 : +/-0.4mm OD 30~50 : +/-0.45mm OD >50 : +/-1% WT <1 : +/-0.15mm WT 1-3 : +15%, -10% WT >3 : +12.5%, -10% | ||
Condition | Hot Finished, Hot Rolled, Annealed, Pickled, Bright Annealed, Polished, Cold Drawn | Hot Finished, Hot Rolled, Annealed, Pickled, Bright Annealed, Polished, Cold Drawn | |

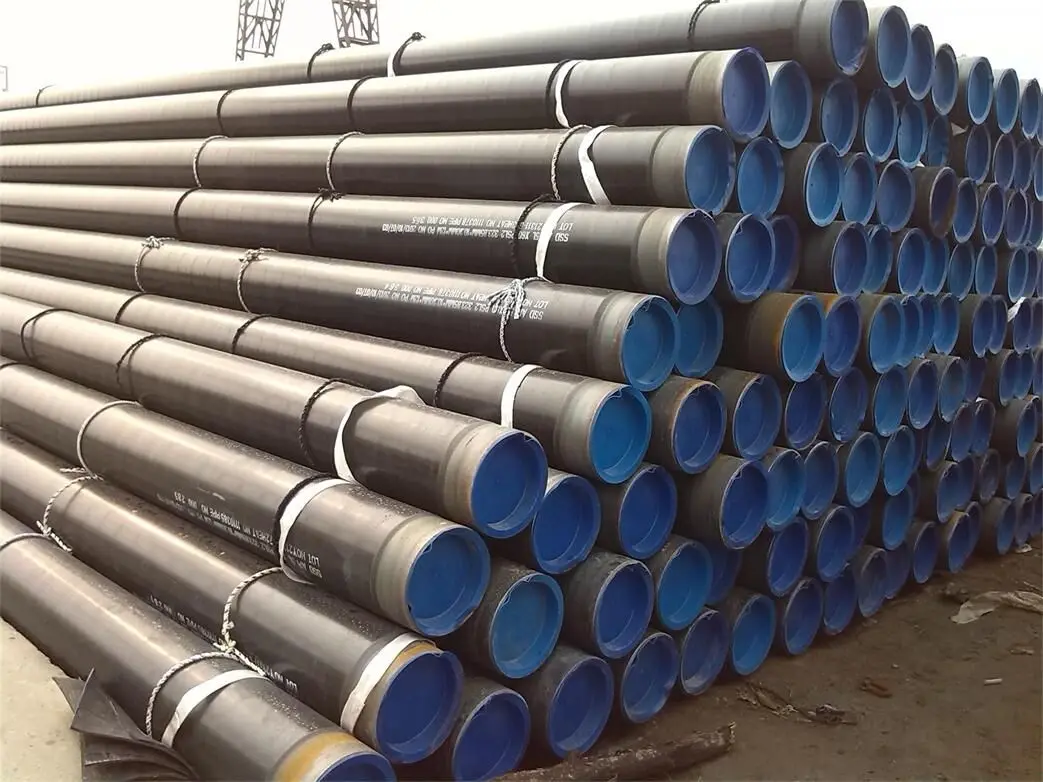

Coating | 3PE/ 3PP/ FBE/ EPOXY/ SPECIAL | ||
Joint | SC / LC / BC / NU / EU / IJ | ||
End form | BE/ BBE/ BLE/ BSE/ TBE/ PBE/ TOE/ BOE/ POE/ BOE/ TOE / POE/ Plain One End | ||
Processing | Bending, Welding, Punching, Cutting, Painting, Milling etc | ||
Packing | Naked/ Ply Wooden Boxes/ PE Fabric Bundles/ Steel Strips Bundled/ Plastic film or as required | ||
Standard | Grade | Chemical Components (%) | Mechanical Properties | ||||||||||
C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | |||||||
ASTM A53 | A | ≤0.25 | - | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 | |||||
B | ≤0.30 | - | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | ||||||
ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 | |||||
B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | ||||||
ASTM SA179 | A179 | 0.06-0.18 | - | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |||||
ASTM SA192 | A192 | 0.06-0.18 | ≤0.25 | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |||||
API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | ≥331 | ≥207 | |||||
B | 0.28 | - | 1.20 | 0.030 | 0.030 | ≥414 | ≥241 | ||||||
X42 | 0.28 | - | 1.30 | 0.030 | 0.030 | ≥414 | ≥290 | ||||||
X46 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥434 | ≥317 | ||||||
X52 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥455 | ≥359 | ||||||
X56 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥490 | ≥386 | ||||||
X60 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥517 | ≥448 | ||||||
X65 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥531 | ≥448 | ||||||
X70 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥565 | ≥483 | ||||||
API 5L PSL2 | B | 0.24 | - | 1.20 | 0.025 | 0.015 | ≥414 | ≥241 | |||||
X42 | 0.24 | - | 1.30 | 0.025 | 0.015 | ≥414 | ≥290 | ||||||
X46 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥434 | ≥317 | ||||||
X52 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥455 | ≥359 | ||||||
X56 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥490 | ≥386 | ||||||
X60 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥517 | ≥414 | ||||||
X65 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥531 | ≥448 | ||||||
X70 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥565 | ≥483 | ||||||
X80 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥621 | ≥552 | ||||||

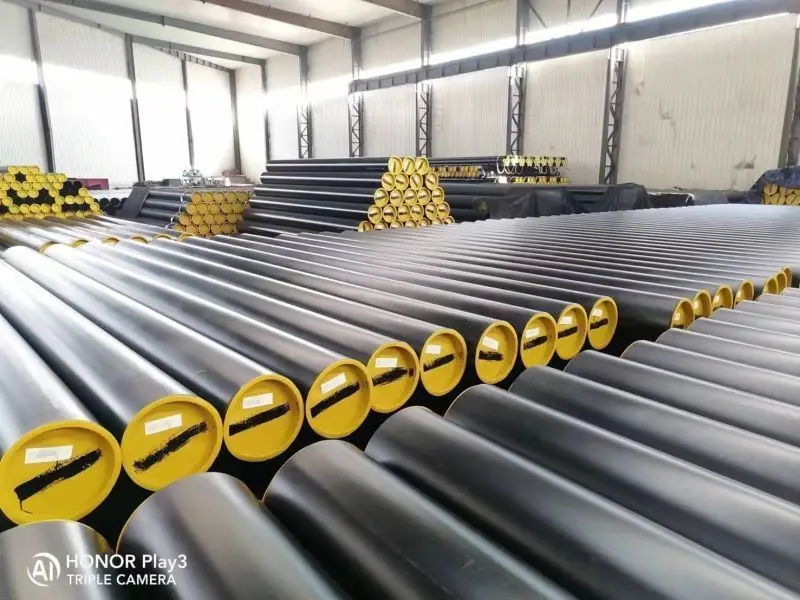

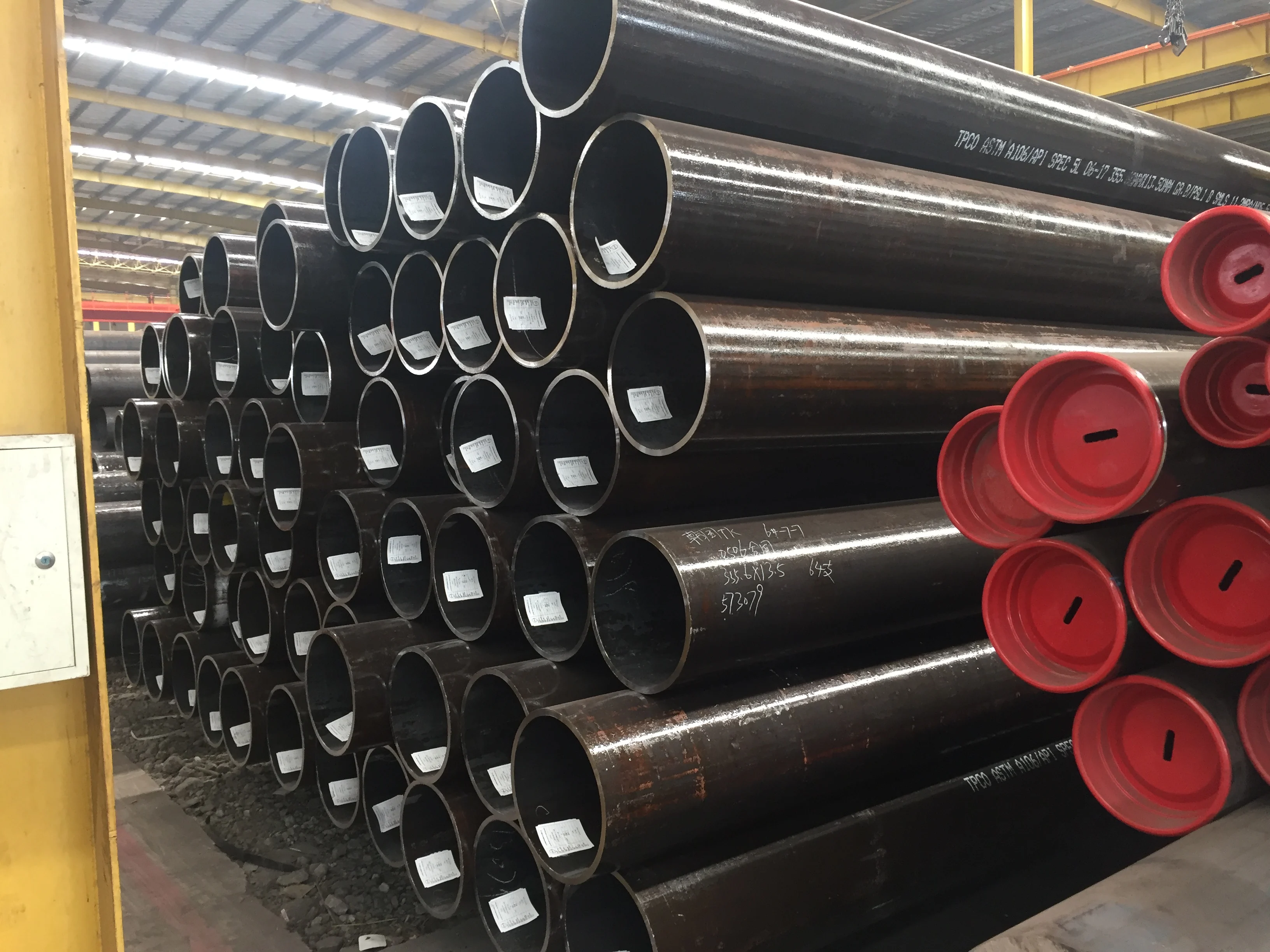

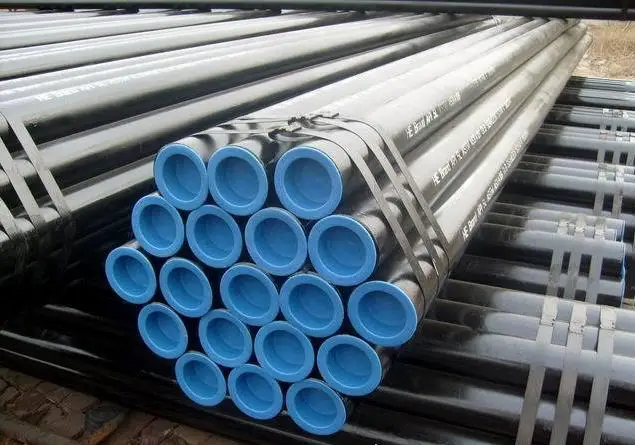

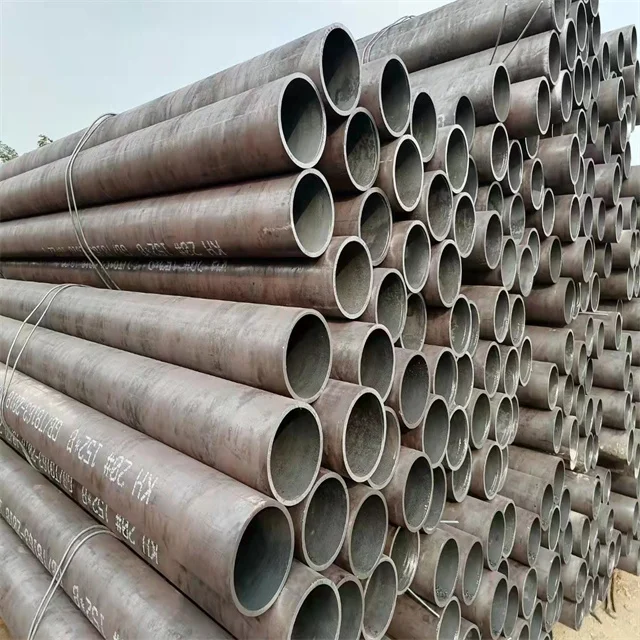

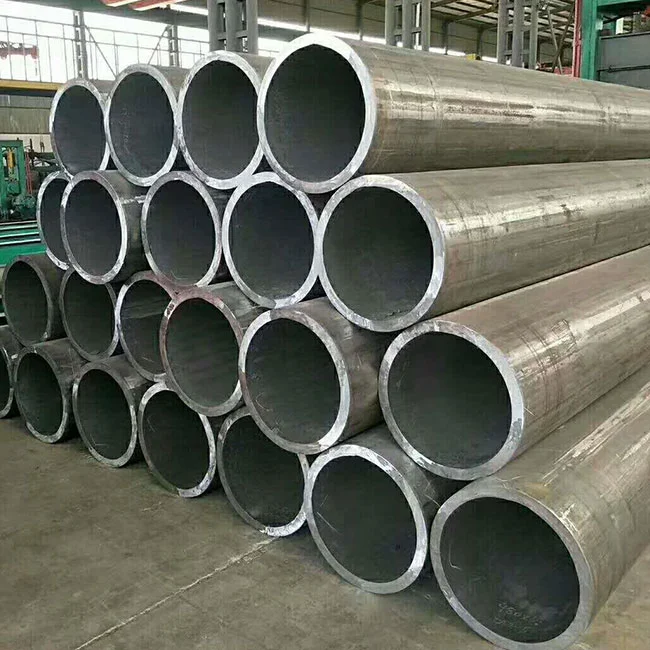

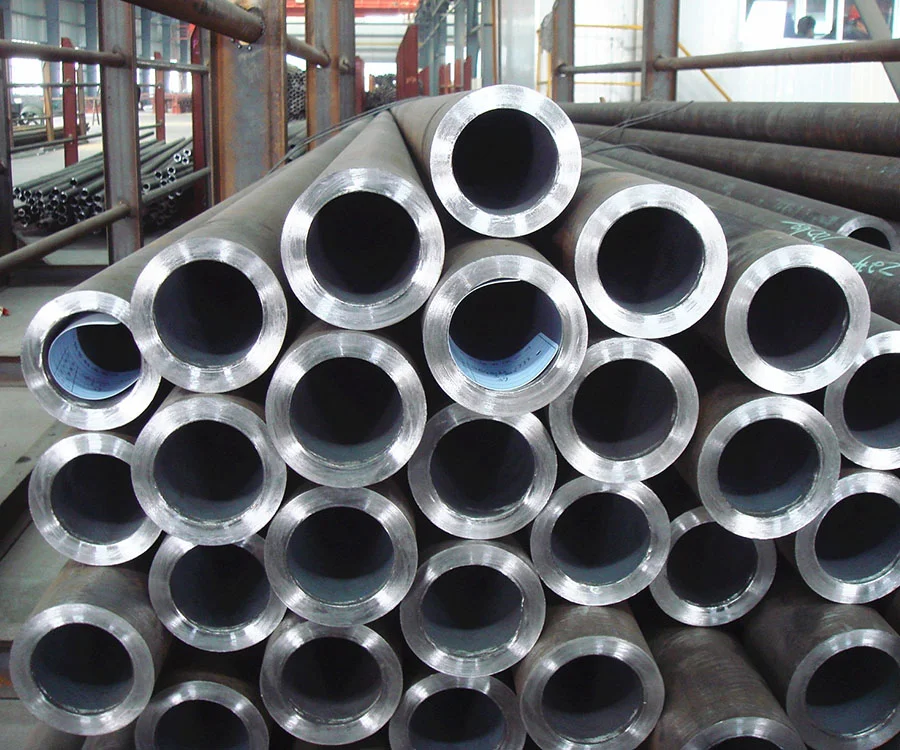

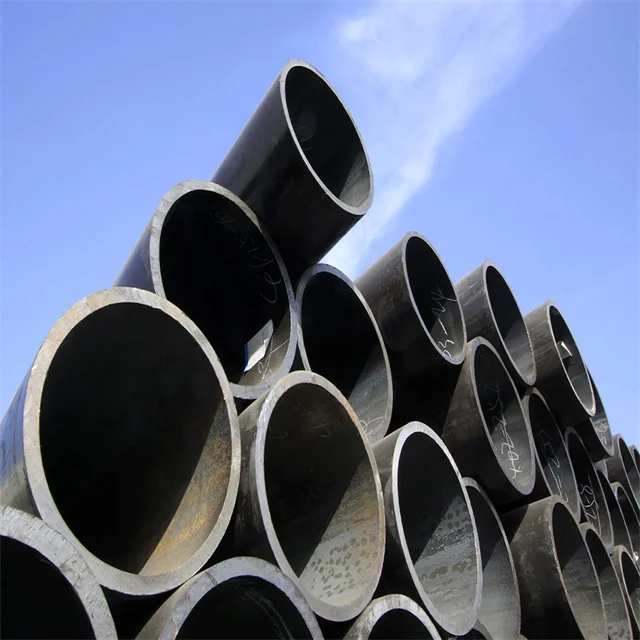

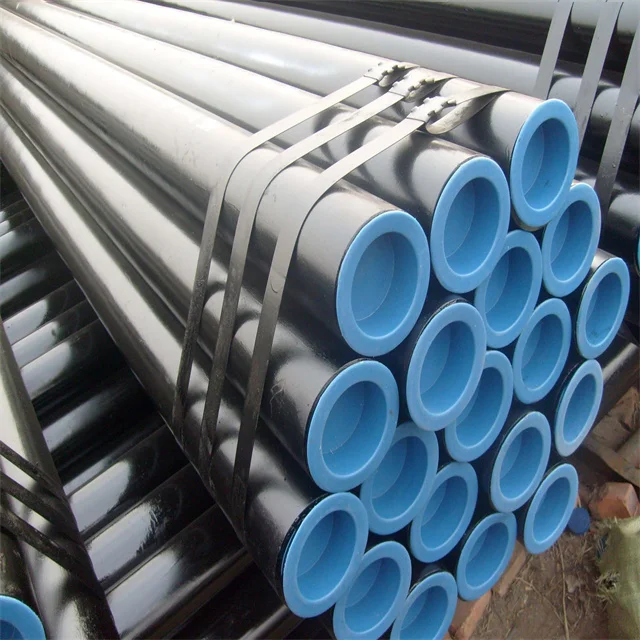

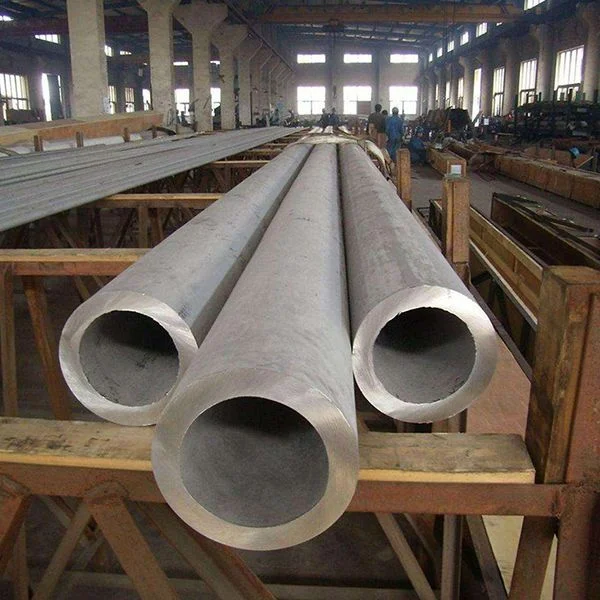

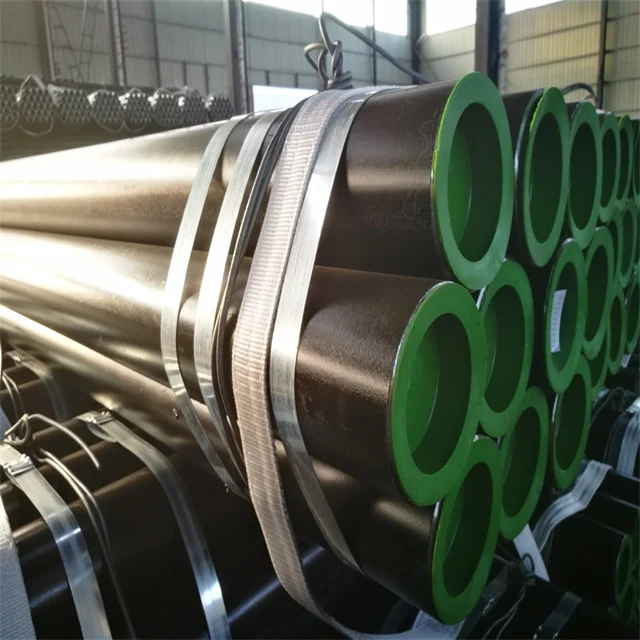

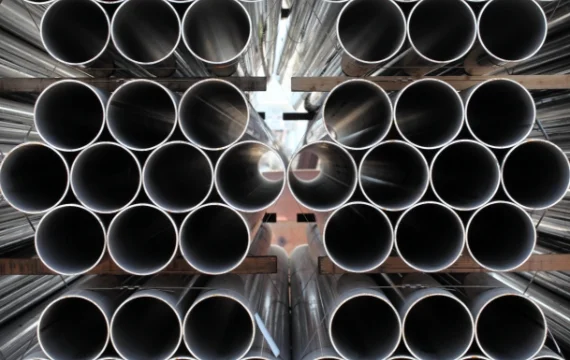

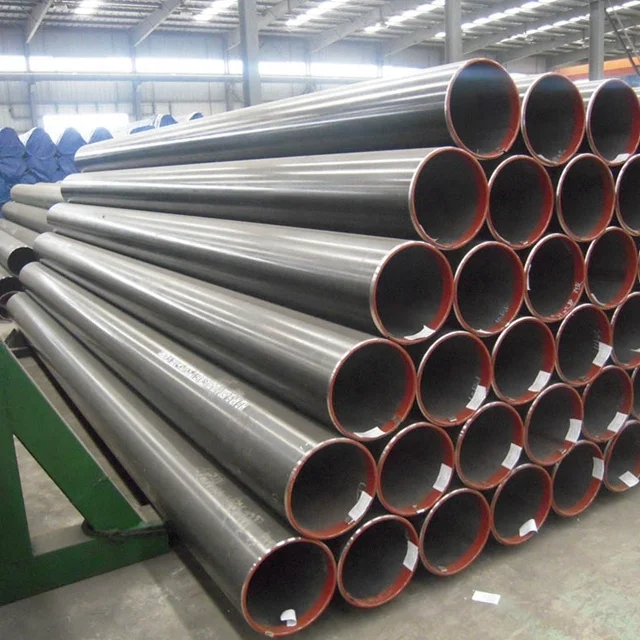

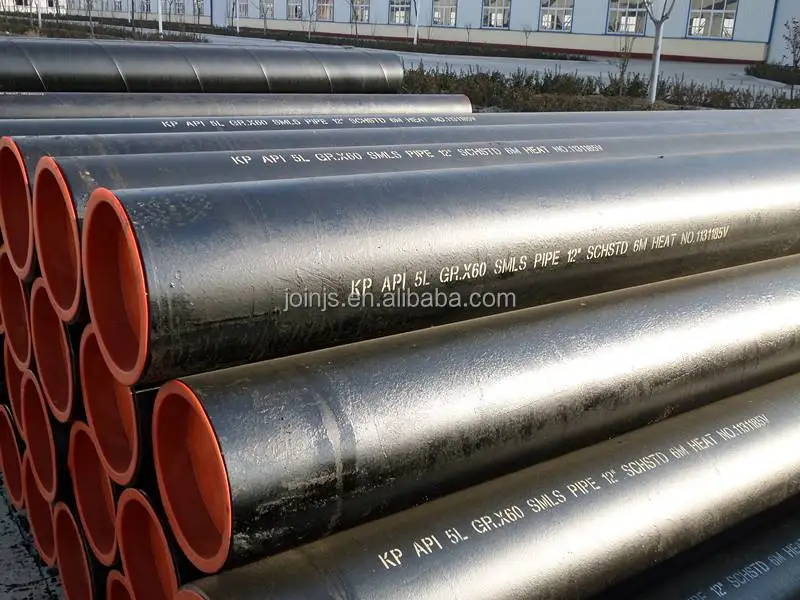

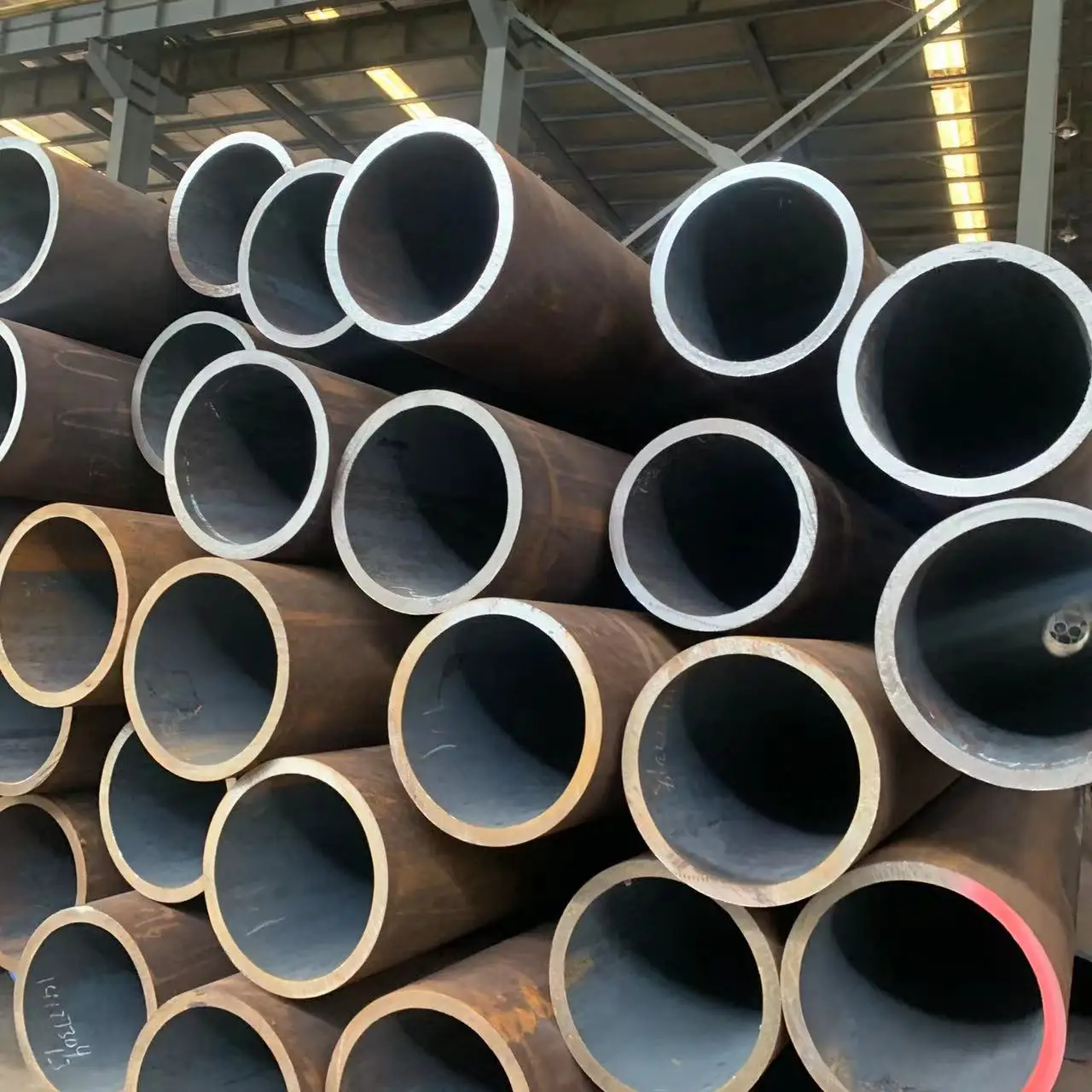

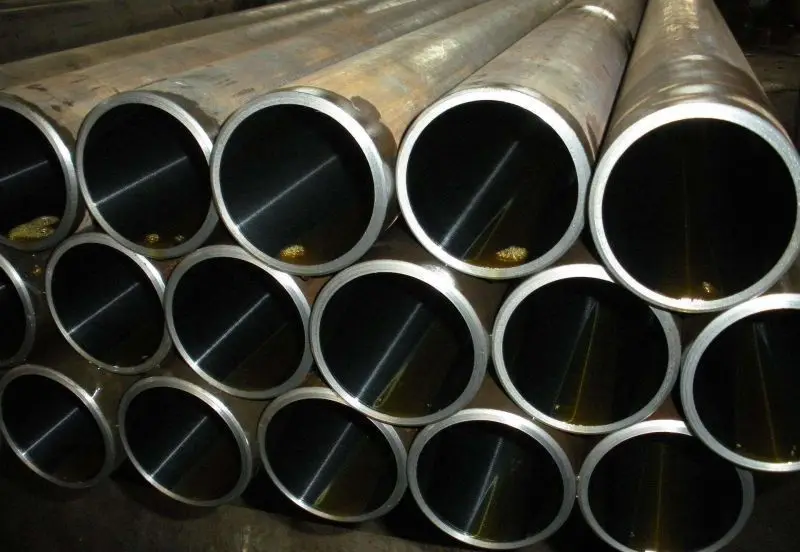

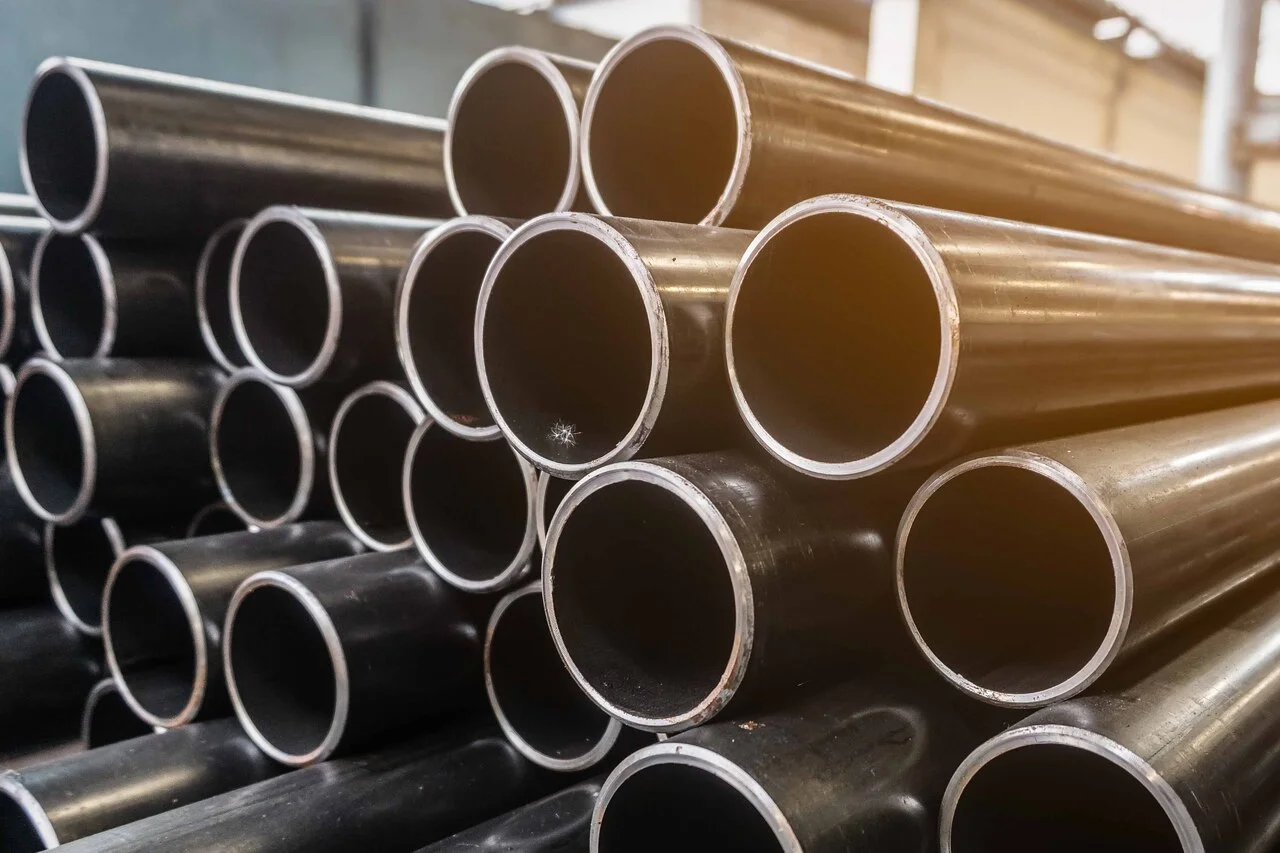

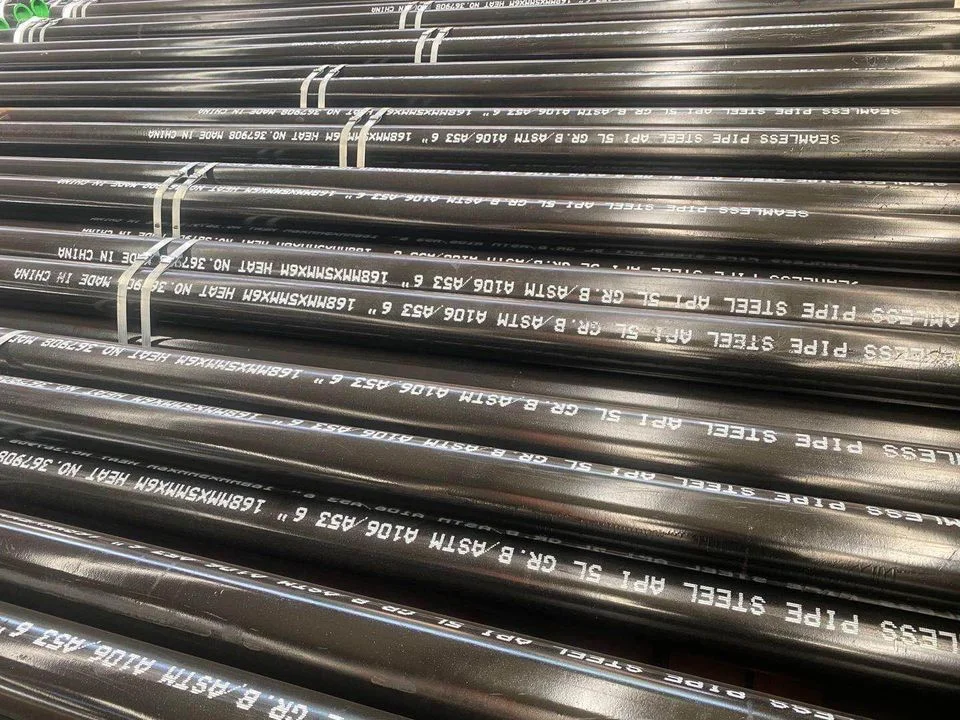

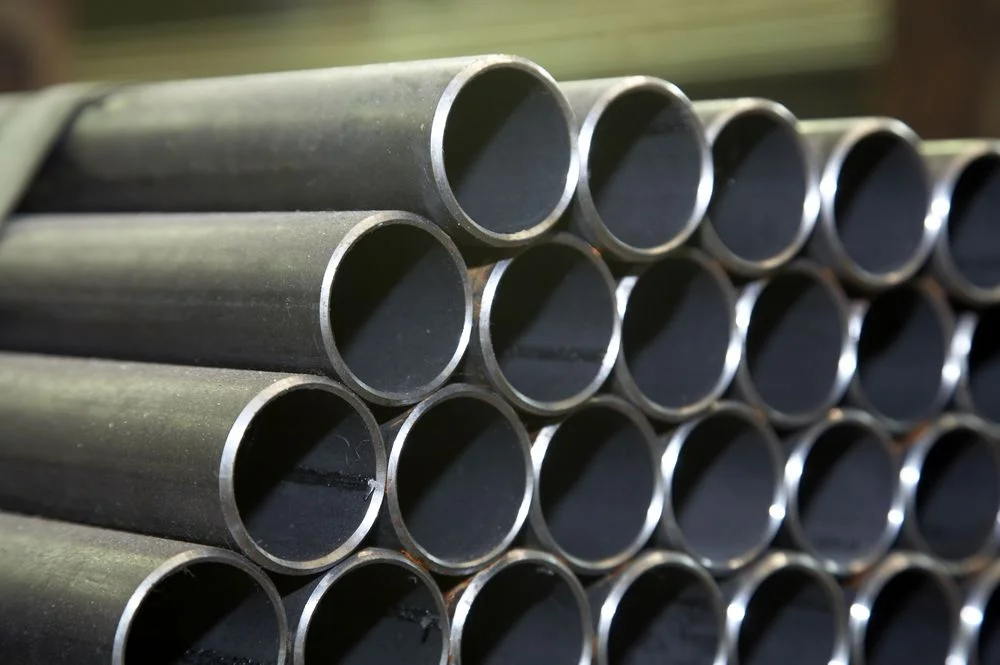

Product Image
Application
Types | Application |
Structure Purposes | General structure and mechanical |
Liquid Services | Petroleum, gas and other fluids conveying |
Low and Medium Pressure Boiler Tube | Steam and boiler manufacturing |
Hydraulic Pillar Service | Hydraulic support |
Auto Semi-shaft Casing | Auto sem-shaft casing |
Line Pipe | Oil and gas conveying |
Tubing and Casing | Oil and gas conveying |
Drill Pipes | Well drilling |
Geological Drilling Pipe | Geological drilling |
Furnace tubes, heat exchangers tubes | Furnace tubes, heat exchangers |

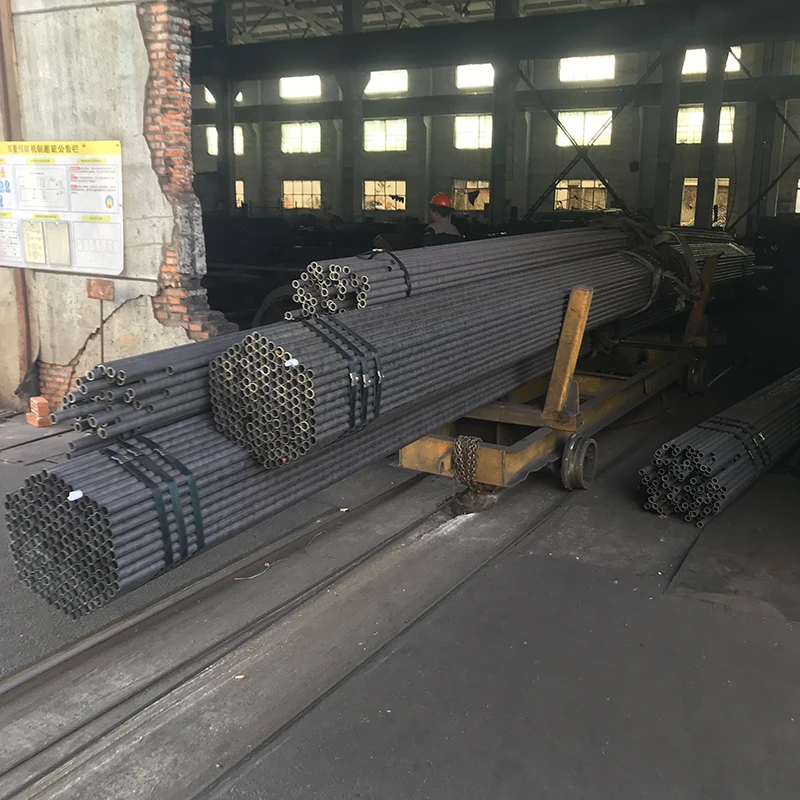

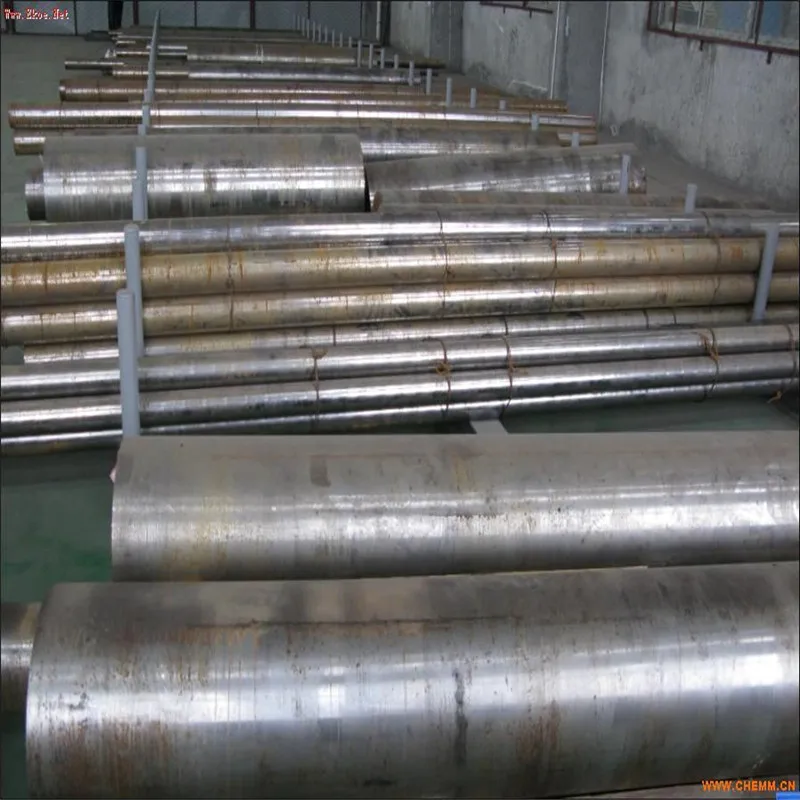

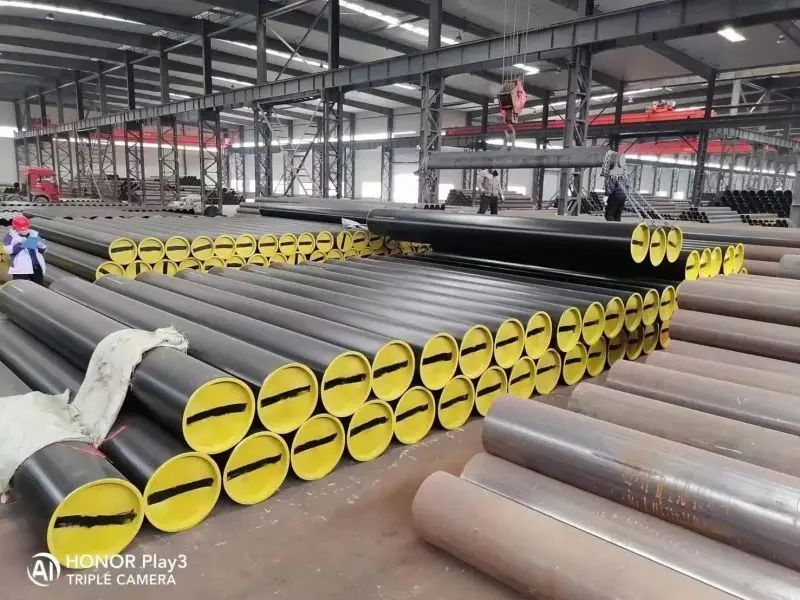

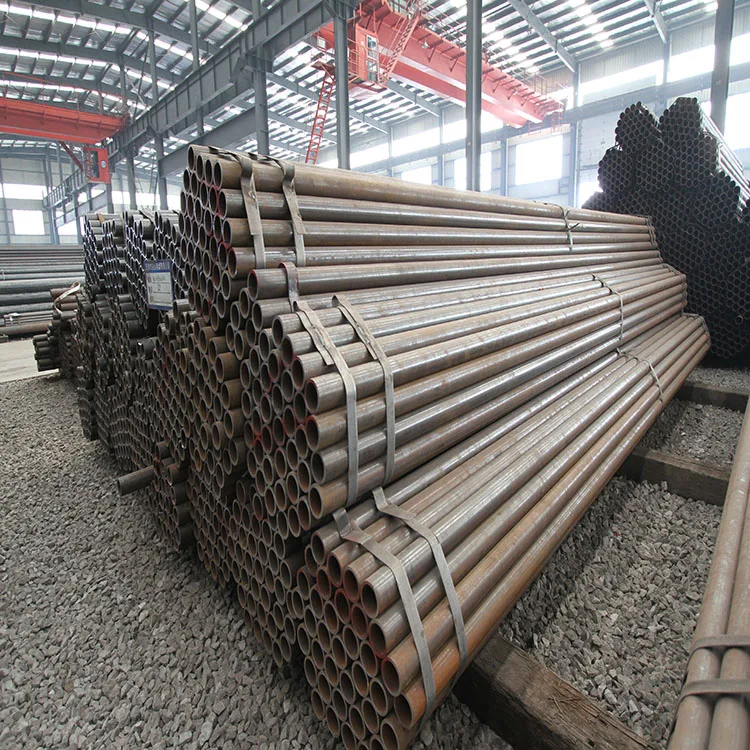

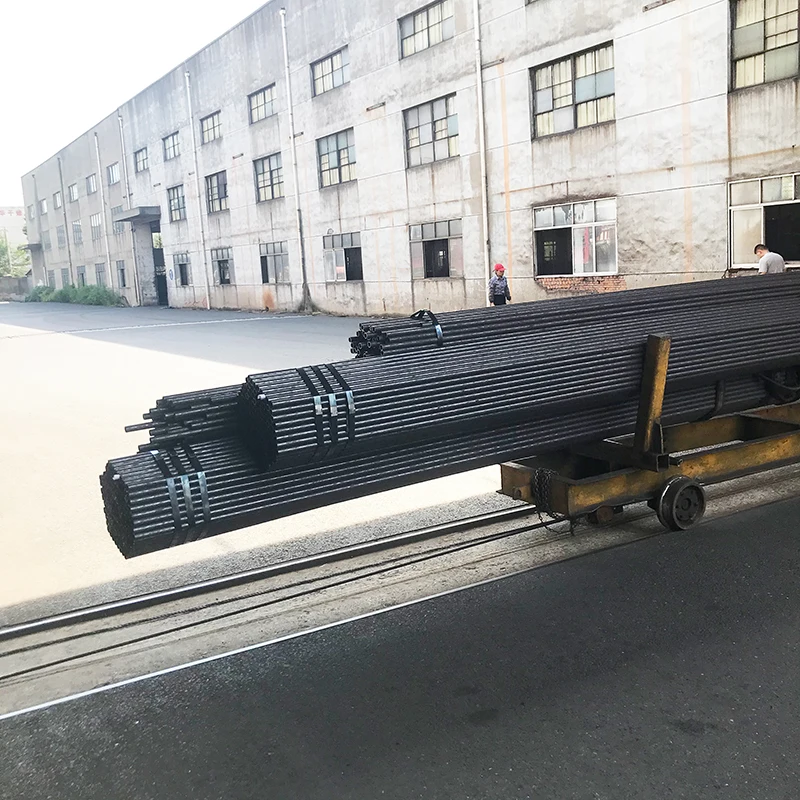

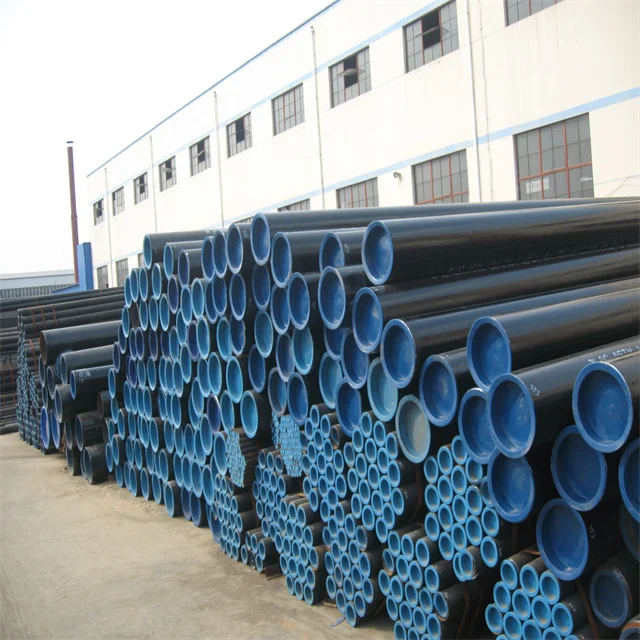

Warehouse
Company Profile
Introduction
JIANGSU TISCO INDUSTRIAL CO., LTD specializes in producing and selling of sheet, coil, bar, pipe, beam, fittings etc, which are made of stainless steel, carbon steel, alloy, brass, aluminium, titanium and so on. As a leading enterprise with rich experience in manufacturing and trading, we have sold various kinds of products domestically and abroad. We are committed to providing high quality products and excellent service to develop a bright future with our clients.

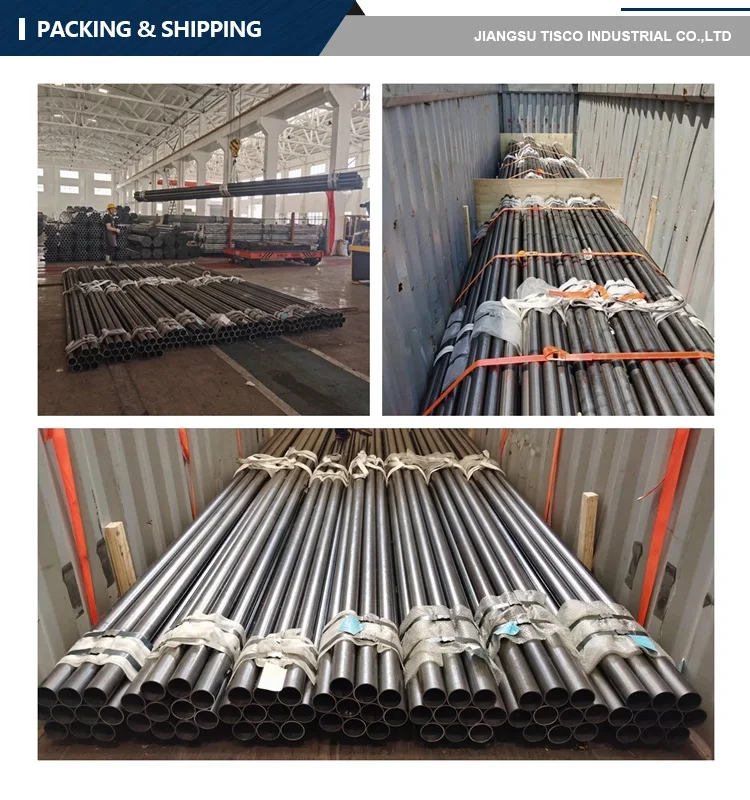

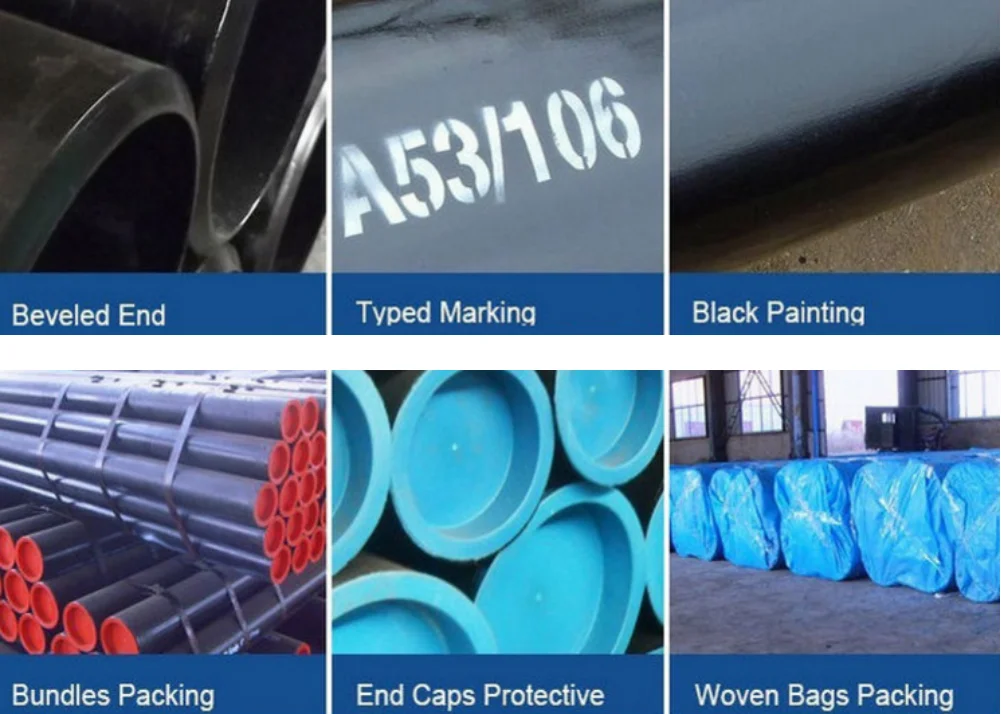

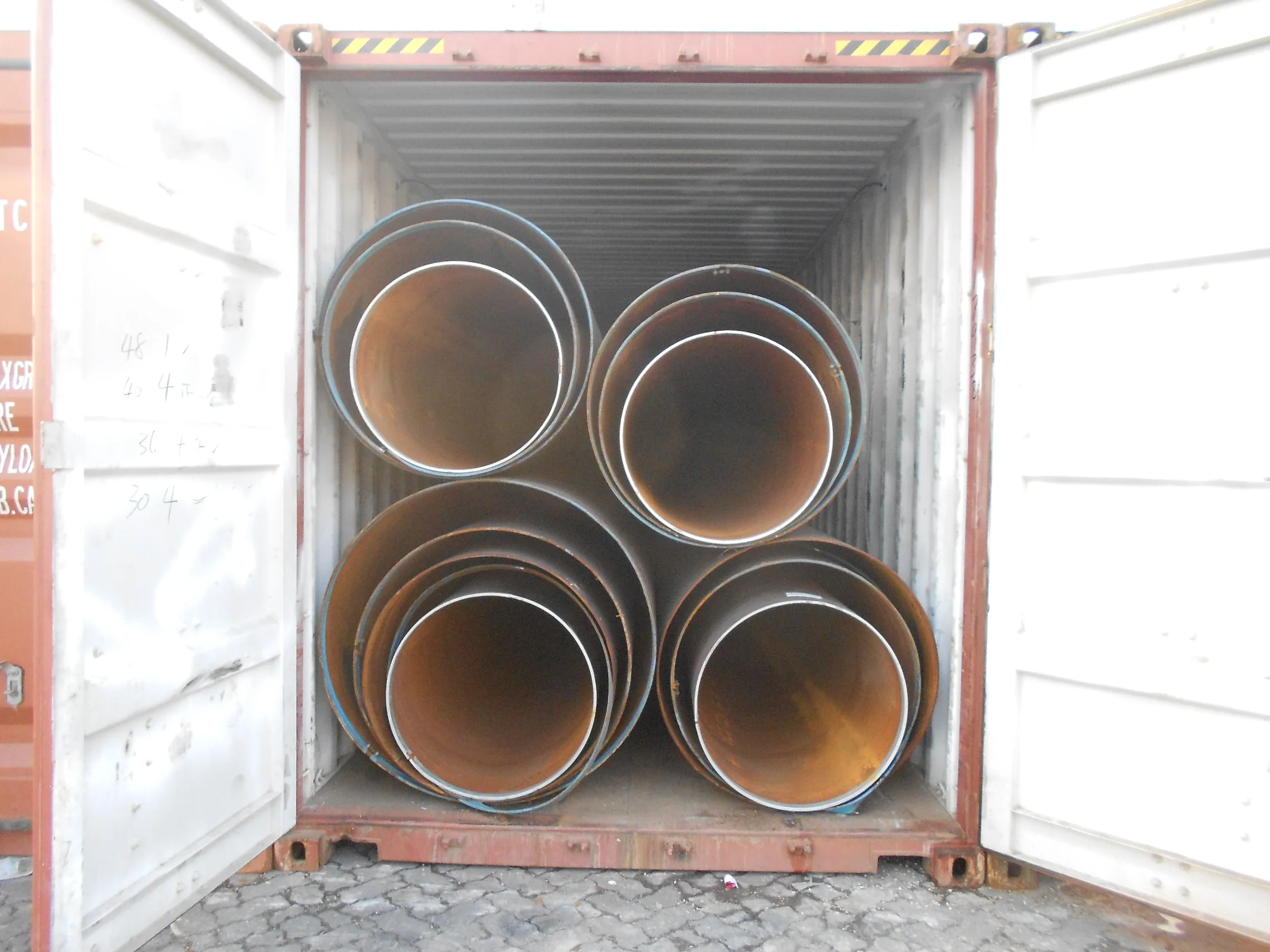

Packing & Shipping

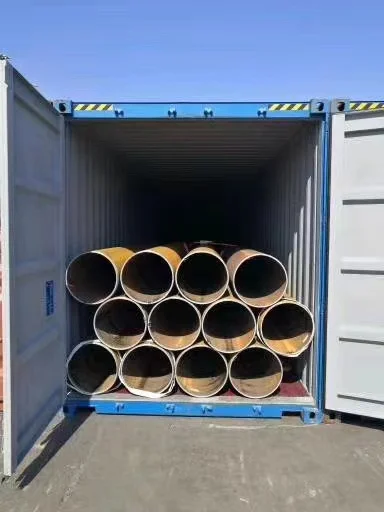

SHIPPING DETAILS:
Export standard package,bundled or be required. The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details 7-15 days, or according to the order quantity or upon negotiation.
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details 7-15 days, or according to the order quantity or upon negotiation.
