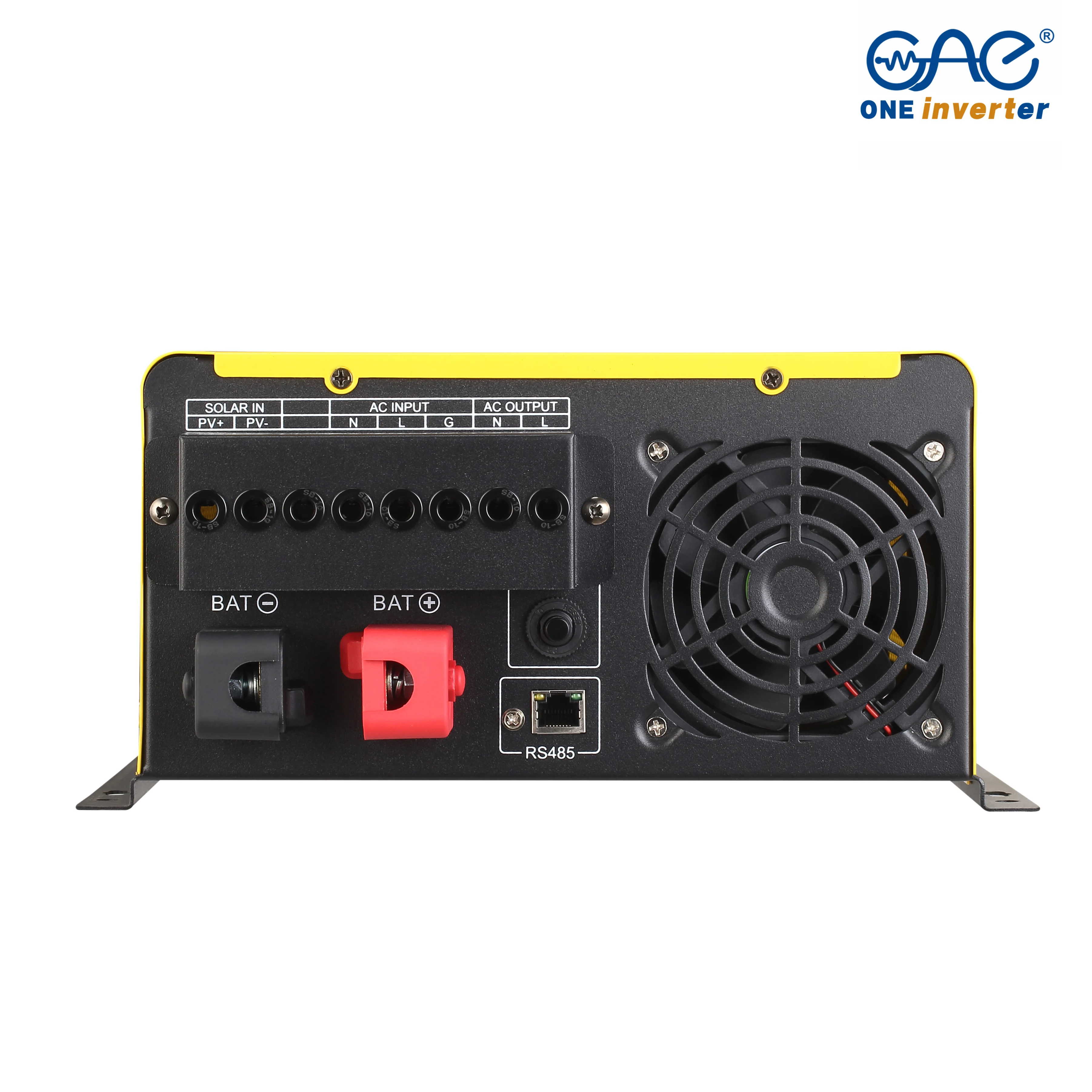

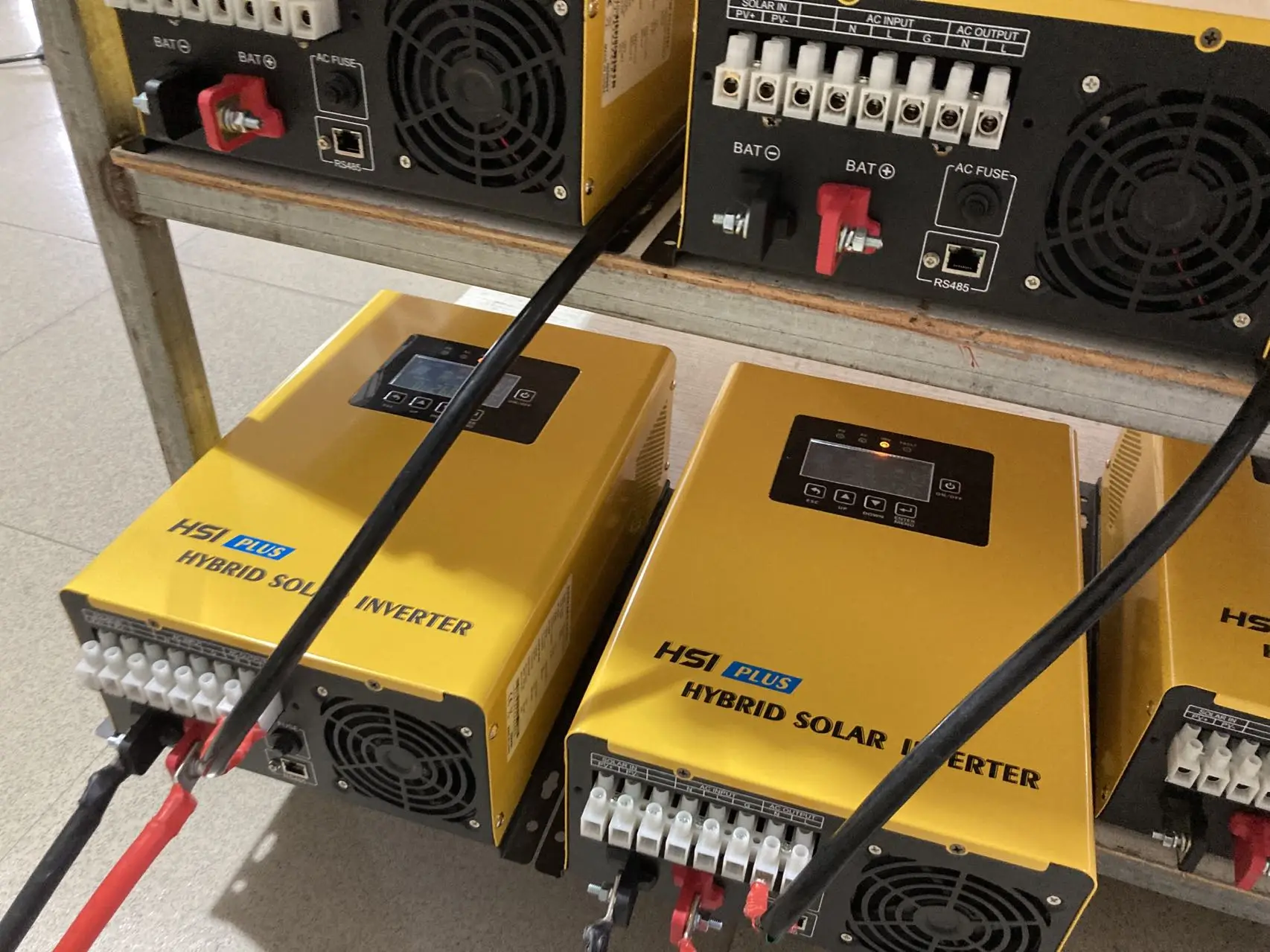

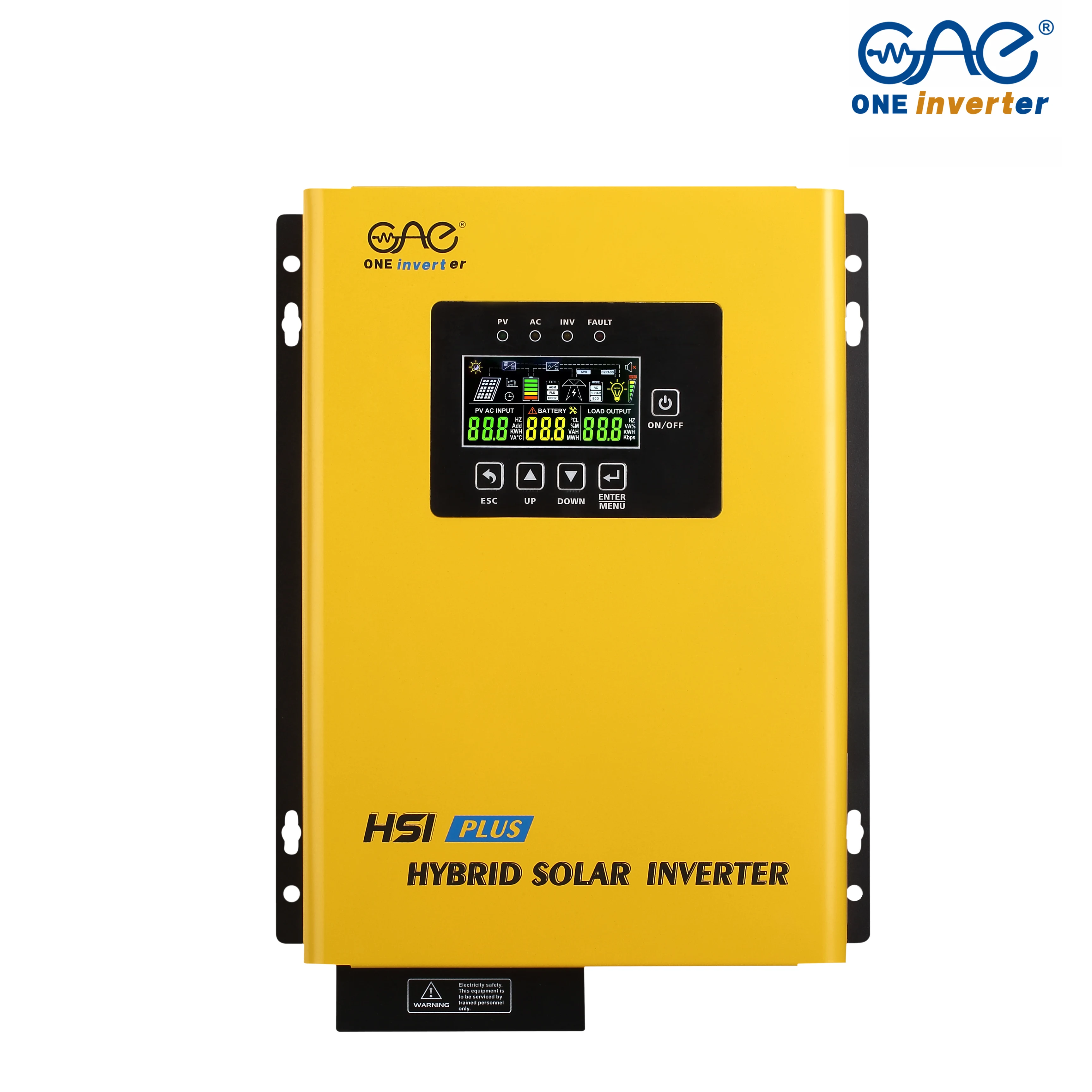

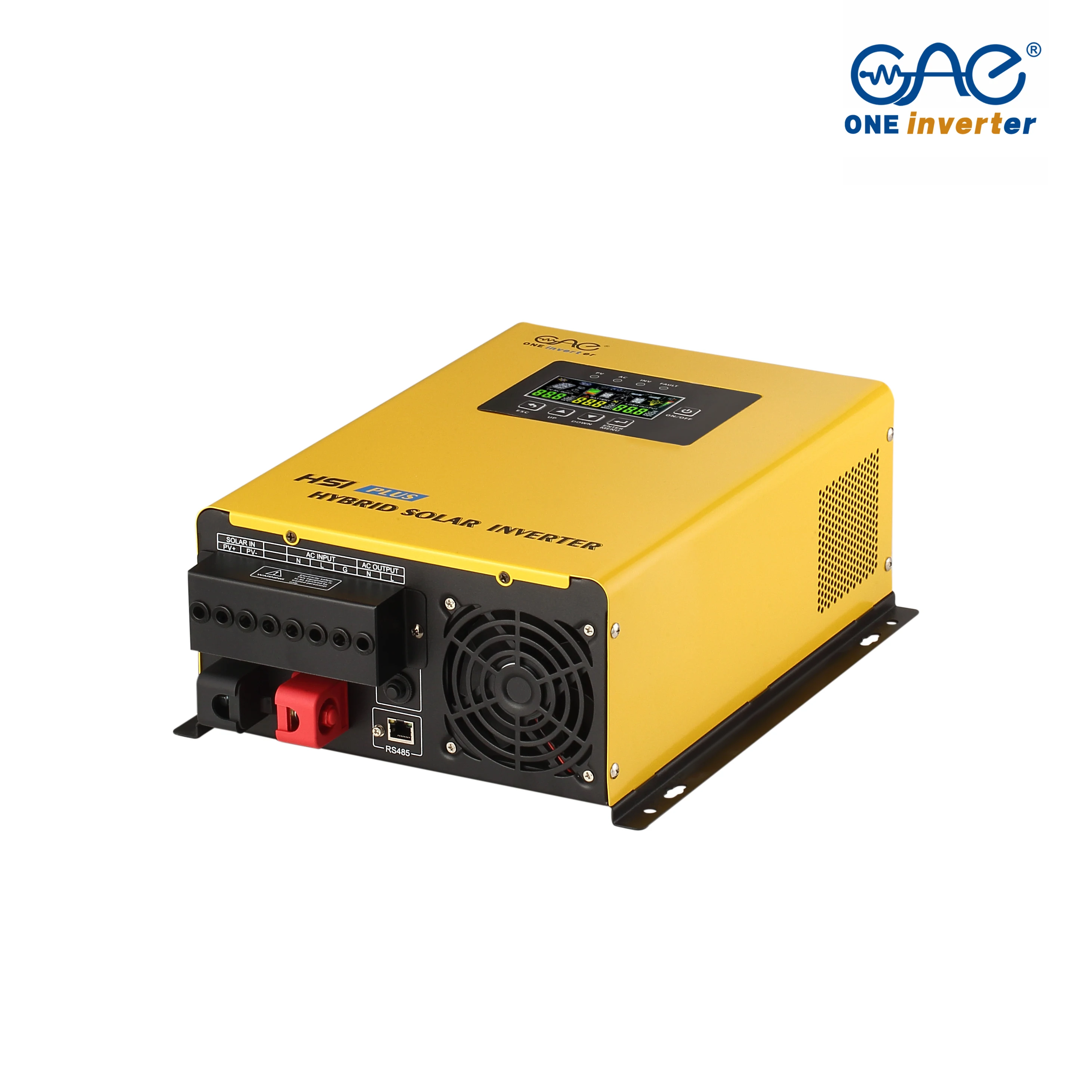

1kw 12v Dc To 220 Ac Solar Controller For Home Off Grid MPPT In Built Solar Inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (1601282938614):
Product Overview
Description
Product Description
Specification
Model | HSI-PLUS-102 | HSI-PLUS-122 | ||
Rated power | 1000W | 1200W | ||
Surge power | 3000W | 3600W | ||
AC Input & Output | ||||
Voltage | 220VAC | |||
Selectable Voltage Range | 165-275VAC | |||
Frequency Range | 50Hz/60Hz automatic recognition | |||
AC Voltage Regulation | (DC Batt.mode)220vac±3% | |||
Transfer Time | ≤5ms | |||
Wave Form | Pure Sine Wave | |||
Transformer type | Toroidal | |||
Transfer efficiency | ≥85% | |||
Battery | ||||
Battery Voltage | 12V/24V | |||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||
DC Charge Voltage | 12~16VDC(12V)/24~32VDC(24V) | |||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm | |||
Solar Charge & AC Charger | ||||
Type | MPPT Solar Charger Controller | |||
Maximum PV Array Open Circuit Voltage | Max. 100V | |||
Maximum PV Array Power | 450W(12V)/900W(24V) | 600W(12V)/1200W(24V) | ||
Maximum AC Charge Current | 15A | |||
Maximum Solar Charge Current | 30A MPPT | 40A MPPT | ||
Maximum Charging Current | 45A | 55A | ||
Working mode | ||||
01 mode | AC mains priority | |||
02 mode | ECO mode | |||
03 mode | DC battery priority | |||
04 mode | Unattended mode | |||
Communication Port | ||||
Type | RS485, available for wifi box & external control screen | |||
Packing Details | ||||
Dimension, | 460*340*210 | |||
D*W*H(MM) | ||||
G.W.(KGS) | 11 | |||
Environment | ||||
Humidity | 0~95%（NO CONDESNSATION) | |||
Operating Temperature | 0~55℃ | |||
Storage Temperature | 0~55℃ | |||
*Product Specifications Are Subject To Change Without Further Notice | ||||
Company Profile
FAQ
Q1: Does your company also provide other solar products except Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
