Custom Lcd Display Ccfl Backlight 13.3Inch Tm133Xg 1024X76 Tft Lcd Display Module With Hd Mi Vga Av Usb Rf Digital Tv Board
- Category: >>>
- Supplier: SHENZHEN VS DISPLAY ELECTRONICS Co. LTD
Share on (1601282958713):
Product Overview
Description
Product Description

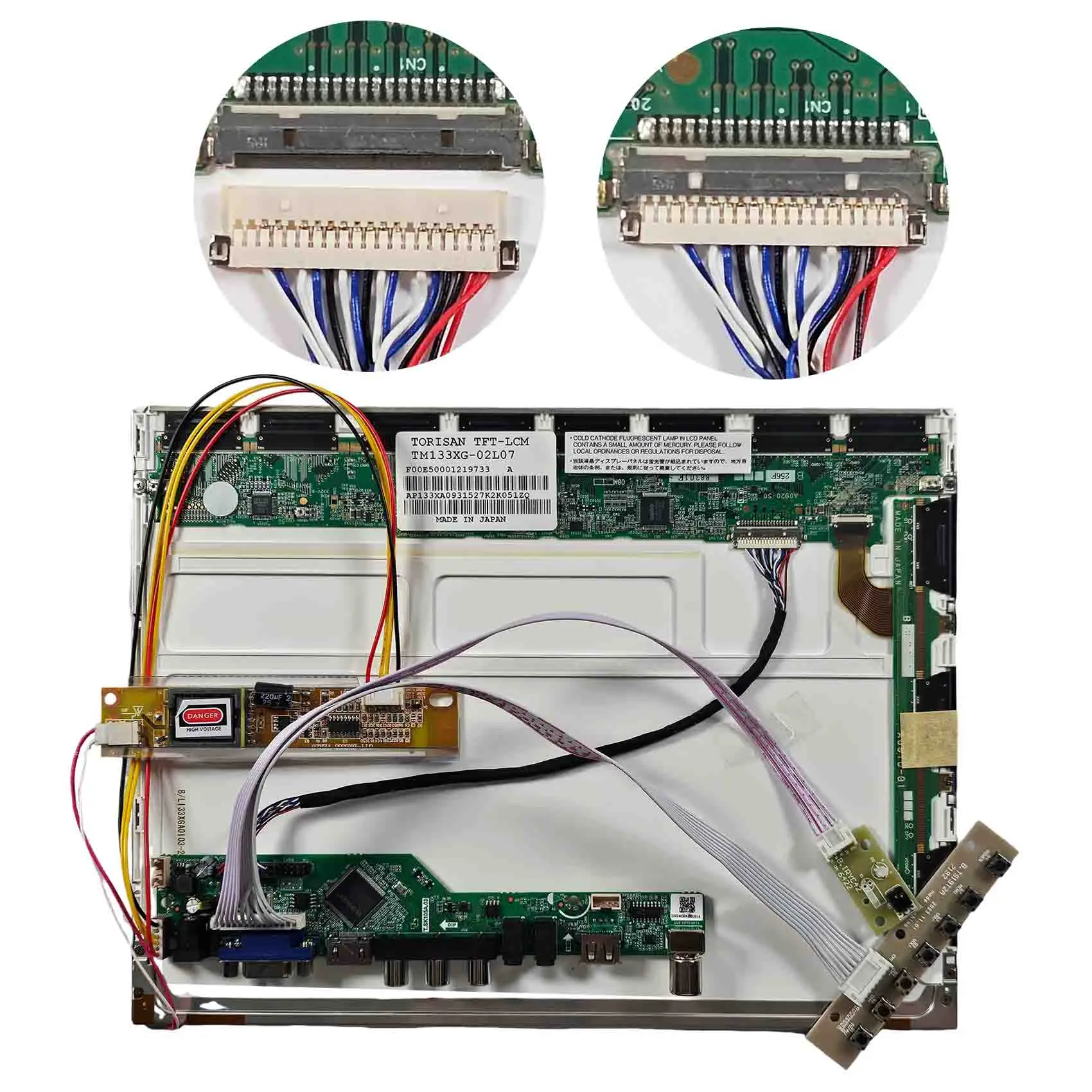

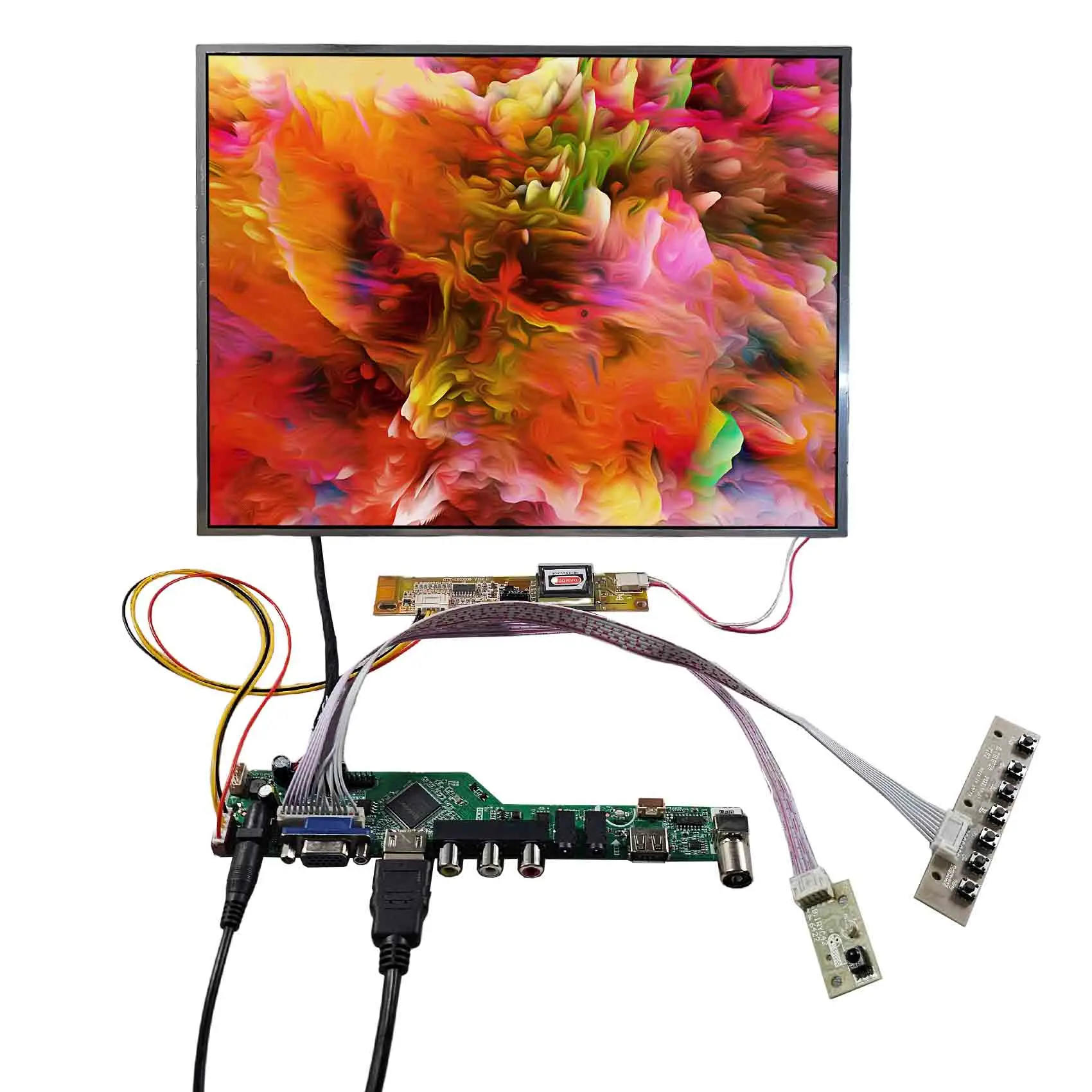

Product Name: | Custom Lcd Display Ccfl Backlight 13.3Inch Tm133Xg 1024X76 Tft Lcd Display Module With Hd-Mi Vga Av Usb Rf Digital Tv Board |
Details: | 13.3" TM133XG 1024X768 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 1024(RGB)×768 Outline Size 284×214.5×5.5 (H×V×D) Display Area 270.336× 202.752 (H×V) Brightness 150 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (TM) Viewing Angle 40/40/10/30 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , Connector 20Pins Backlight CCFL Input Voltage 3.3V (Typ.) |

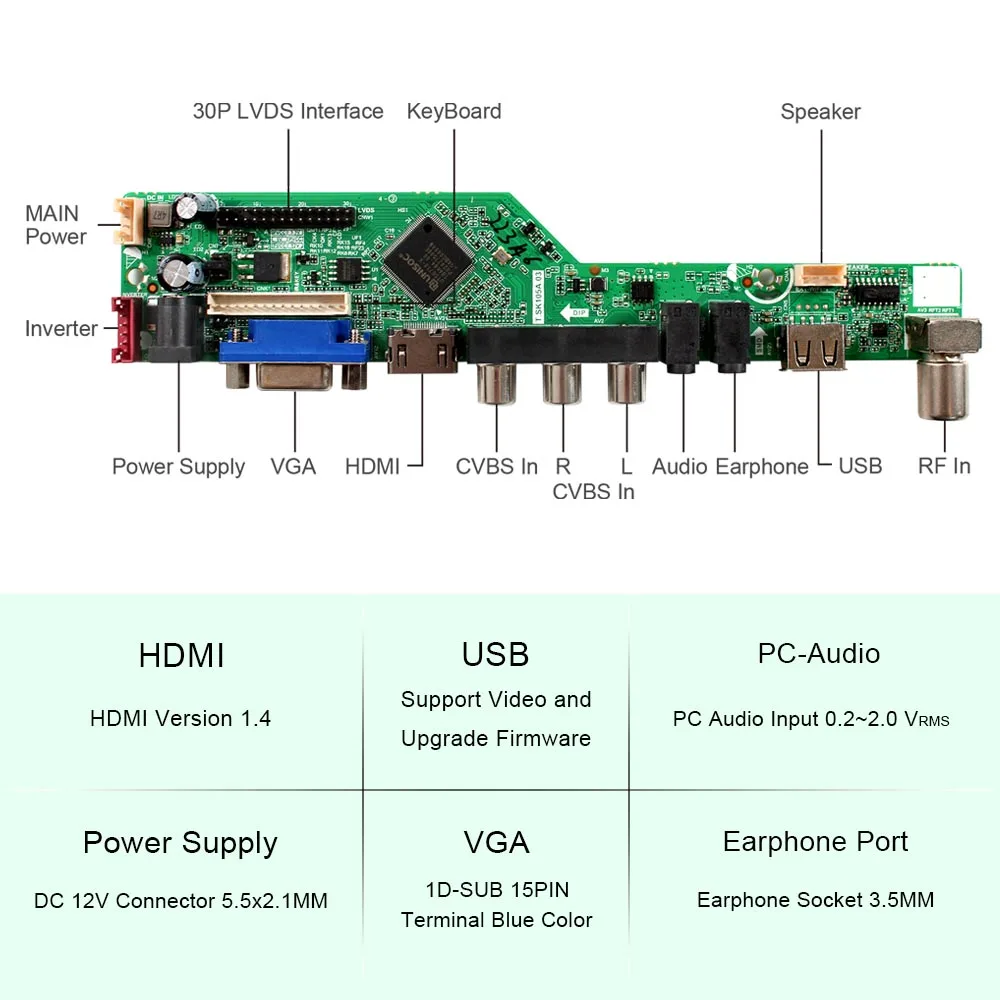

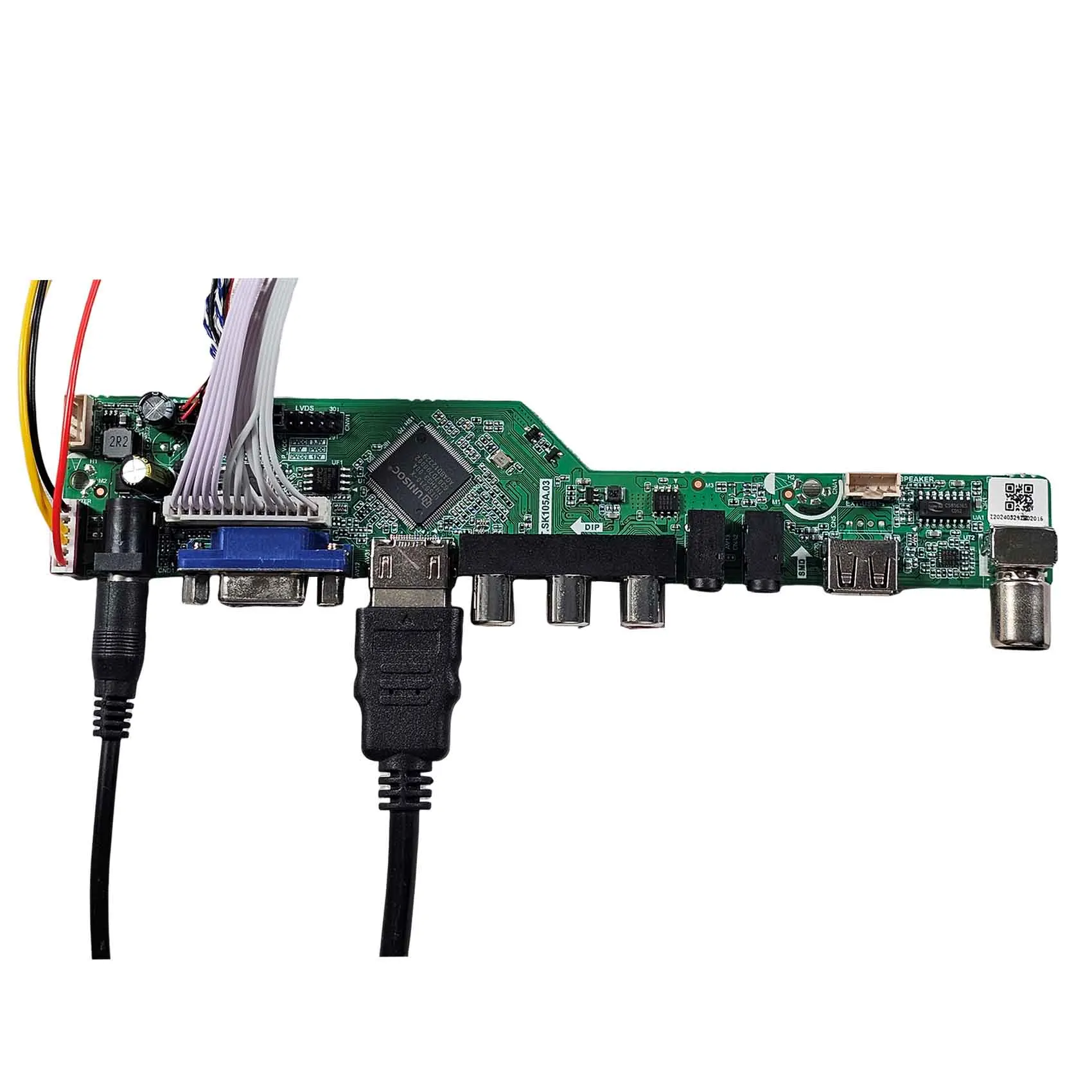

Compatible Work With: | HD-MI VGA AV USB RF LCD Controller Board T.SK105A.03 |
Details: | HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4，HDCP 1.2 USB Support Video AV Compatible With PAL And NTSC Video Input: HD-MI VGA AV USB RF Audio Input: HD-MI PC-Audio Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 188mm x 43mm x 17mm |

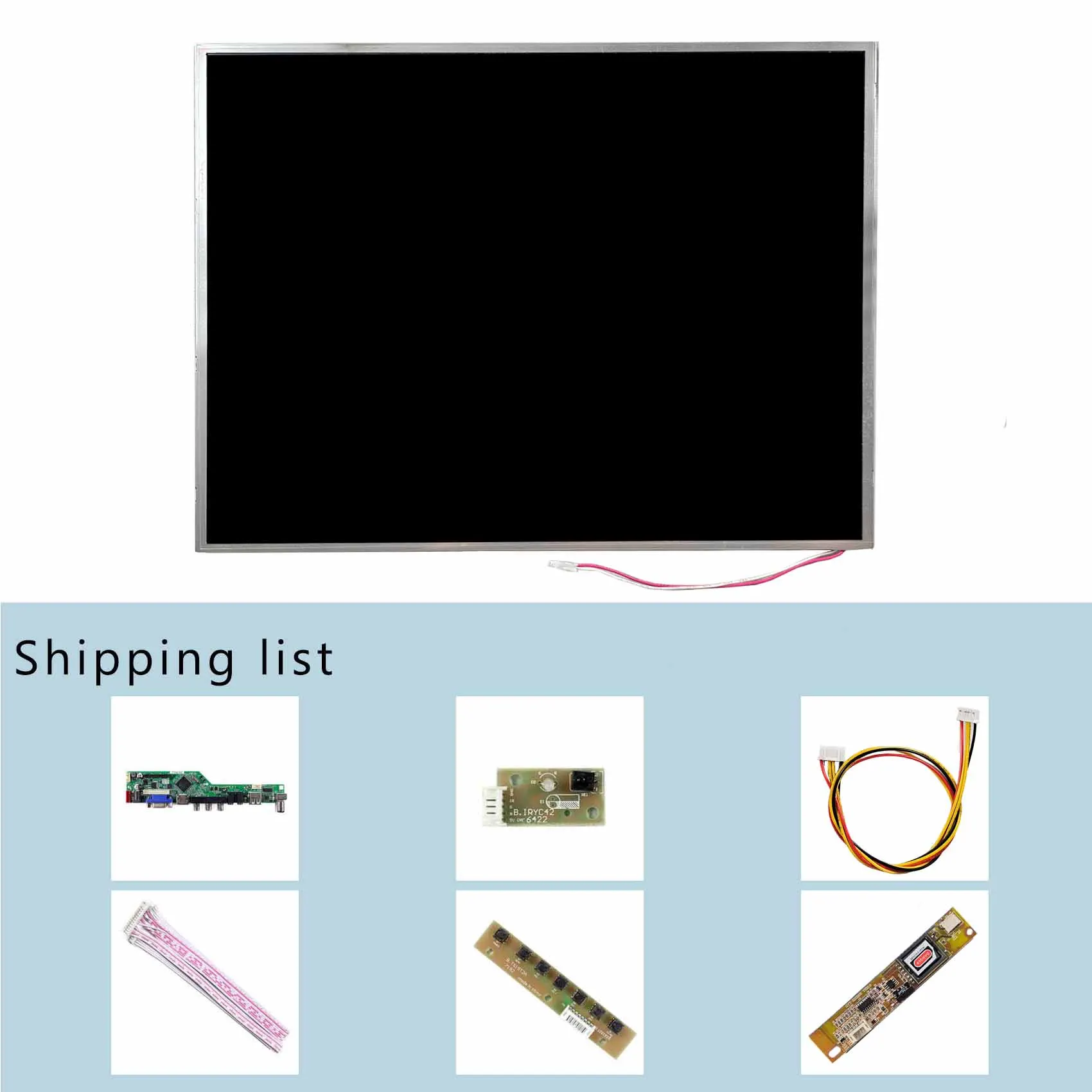

Packing list: | 1× HD-MI VGA AV USB RF LCD Controller Board T.SK105A.03 1× 13.3inch TM133XG 1024X768 LCD Screen 1× CCFL Inverter Board 1× LVDS Cable 1× Keyboard With Cable |
Details Images
Related Products
Our Company
Certifications
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for more than 10years in this field.
Q: How long is your delivery time?
A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
