High Capacity Plastic Recycling Machine / Trash Recycling Machinery / Waste Plastic Garbage Recycling Sorting Trommel Screen
- Category: >>>
- Supplier: Henan Mind Machinery Equipment Co. Ltd.
Share on (1601282967893):
Product Overview
Description

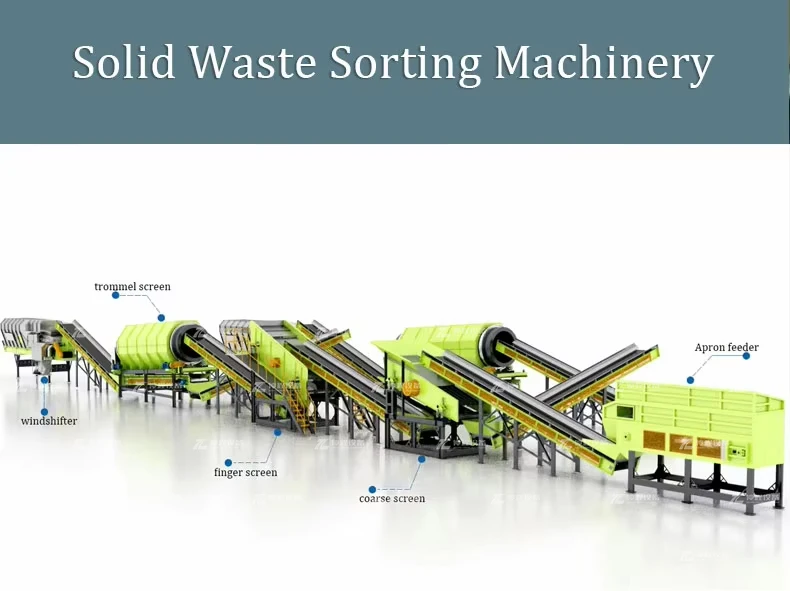

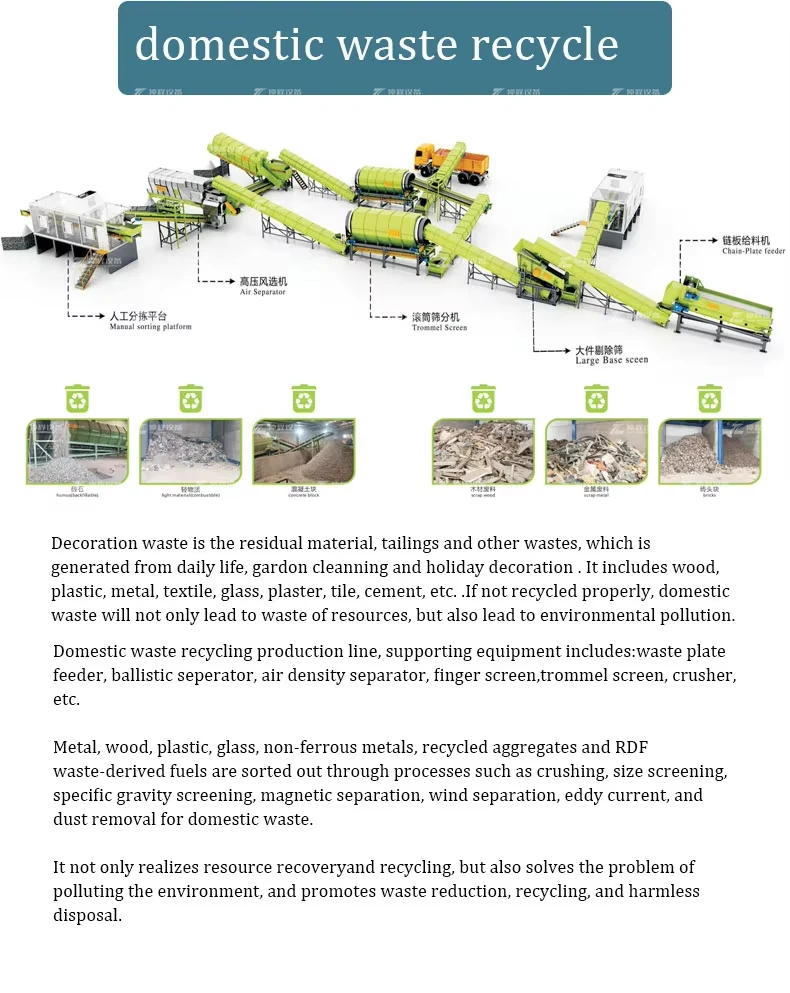

municipal solid waste sorting machines /plastic recycling/RDF making equipment manufacturing line
Product Description
1. Descriptions of City Waste Sorting Machine:
1. Shaftless drum screening machine is a new generation of screening equipment.
2. Shaftless drum screening machine is mainly composed of motor, reducer, drum device, frame, sealing cover, and inlet and outlet.
3. The whole is inclined to the ground plane, and the outside is sealed by a sealed isolation cover to prevent environmental pollution.
4. The variable speed deceleration system makes the screening drum rotate at a constant speed, and the materials are separated from top to bottom through the screening drum. The fine material is discharged from the lower part of the front end of the screening drum, and the coarse material is discharged from the lower end of the screening drum.
Certifications
| Model | Capacity (t/h) | Power (kw) | Drum diameter (mm) | Drum length (mm) | Feed size (mm) | Discharge size (mm) | Dimension (mm) | Weight (kg) |
| GTS1050 | 50 | 3 | 1000 | 1500 | ≤300 | 0-100 | 2600*1400*1700 | 2200 |
| GTS1020 | 100 | 4 | 1000 | 2000 | 3390*1400*2140 | 2800 | ||
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | ||
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 4460×1900×2820 | 5100 | ||
| GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 5960×1900×3080 | 6000 | |
| GTS1848 | 450 | 15 | 1800 | 4800 | 6500×2350×4000 | 7500 | ||
| GTS2055 | 600 | 22 | 2000 | 5500 | 7500×2550×4800 | 9600 | ||
| GTS2265 | 800 | 30 | 2200 | 6500 | 8500×2750×5000 | 12800 |
 |  |

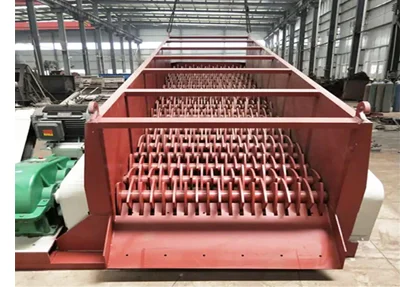

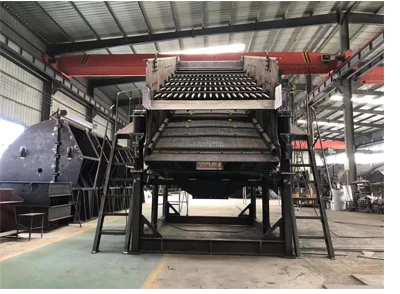

 | This is the advantage of the comprehensive finger screen . 1. The structure is simple and compact, the appearance is beautiful, and the rigidity of the whole machine and the strength of each part are high; 2.Relatively Small size,light weight,large processing capacity per unit of equipment volume and weight, whichis convenientfor system process layout 3.Relatively low energy consumption and high screening efficiency; 4,Easyinstallation and debugging, stable and reliable operation easy operation and maintenance; 5. Modular design of screen surface structure and type, easyto replace, and can meet the needs of different operations |

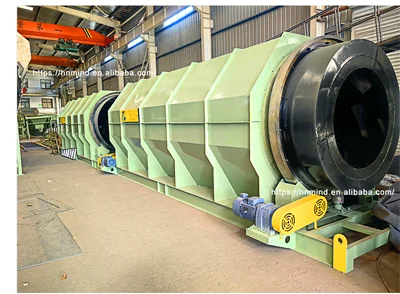

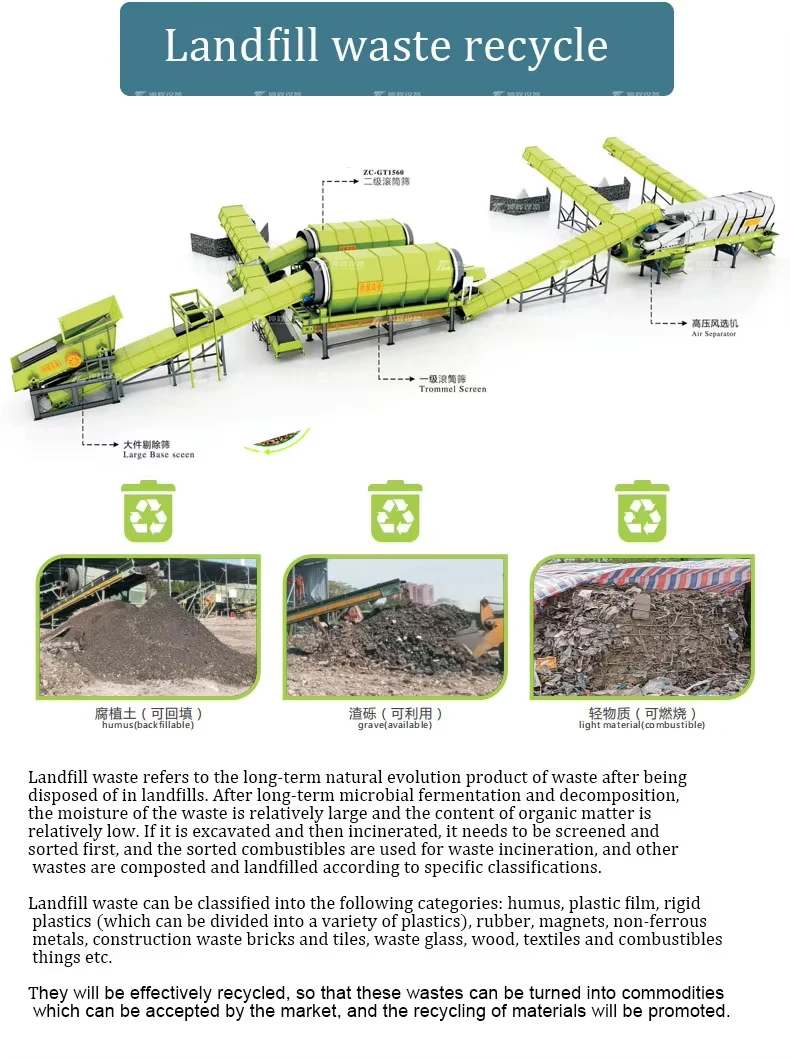

| The trommel screen is mainly composed of a motorreducertrommel deviceframe sealing cover and inlet andoutlet.The trommel device is installed obliguely on the frame.The motor is connected with the trommel device through the reducer and the coupling, and the trommel device is driven around it When the material enters the trommel devicethe materials on the screen surface are turned over and rolled due to the inclination and rotation of the drum device so tha the qualified materials(under-screen products) are discharged through the outer screen of the drumand the unqualified materials(over-screen products) are discharged through the end of the drum |  |

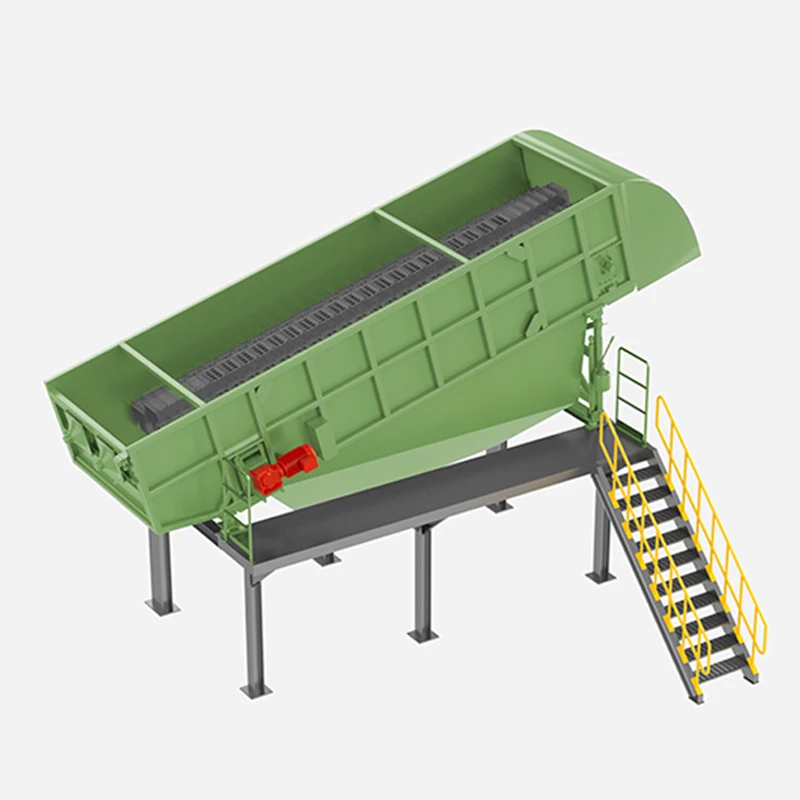

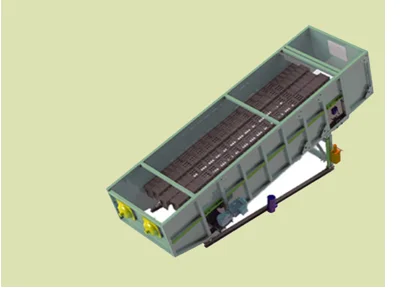

 | The ballistic seperator is a device for sorting according to the shape and specific gravity of the sorted materials,It is an ideal sorting seperator for recycling and sorting domestic waste, pressed kitchen waste, paper recycling and other industries. The ballistic seperator drives the screen plate to move up and down through the eccentric shaft, so that the screened material on the screen plate is shaken and scattered into heav, rolling 3D material parts(such as plastic bottles,wood cans,etc) and light, flat 2D materials Part (flm,paper, cardboard) and part of the material under sieve (sand,food residue), which is convenient for subsequent processing. |
| Disc screenalso known as disc screen and star screen, is a sorting equipment that separates materials of different sizes and shapes through the rolling of the disc |  |

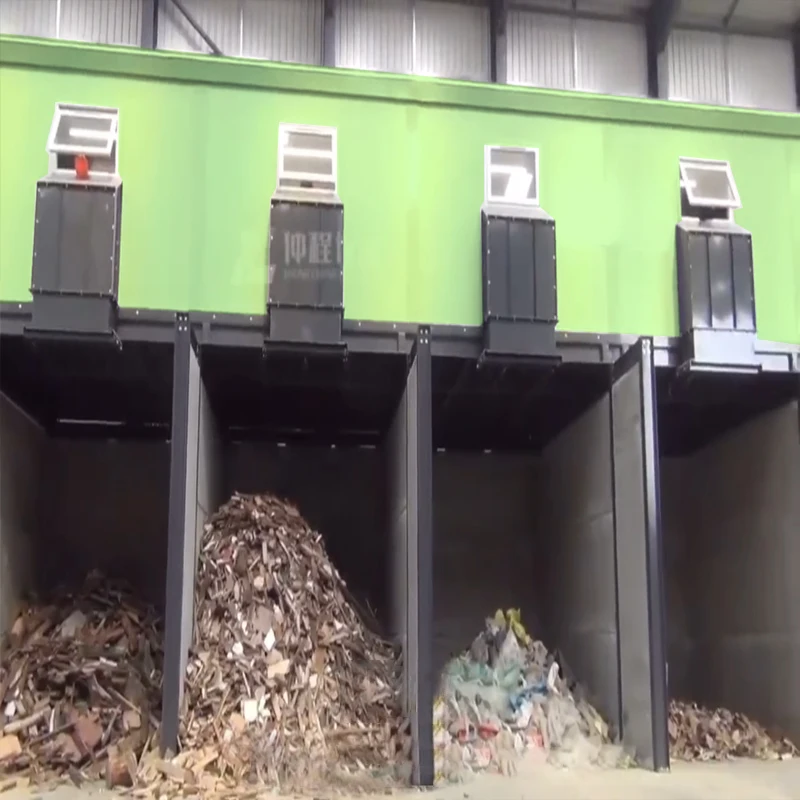

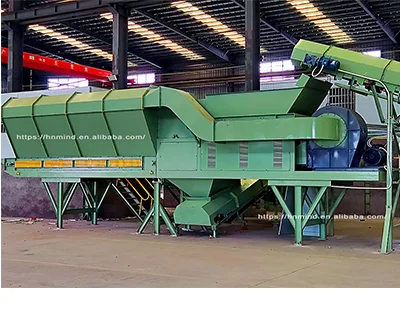

 | The air drum separation technology of waste is a traditional sorting method, which has been widely used in various solid waste recycling and resource recovery fields,In the process of solid waste treatment and resource recovery in developed countries such as Europe and the United States, various kinds of air drum separators are one of the necessary equipments. The main principle is separating the light and small substances from the heavy substances in the material and carrying them away upwards or into the setting chamber in the horizontal direction to separate the light substances in the air by the principle of aerodynamics and under the action of the controllable positive pressure air flow, The light material is carried out by the light material conveyor, The heavy materials will be carried out because they can't support their gravity to settle on the heavy material discharge conveyor due to the upward air flow. |

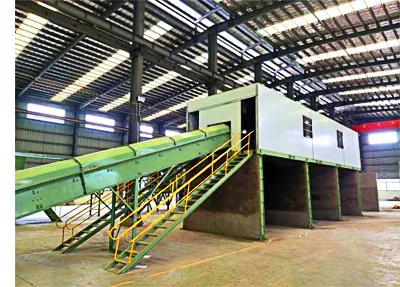

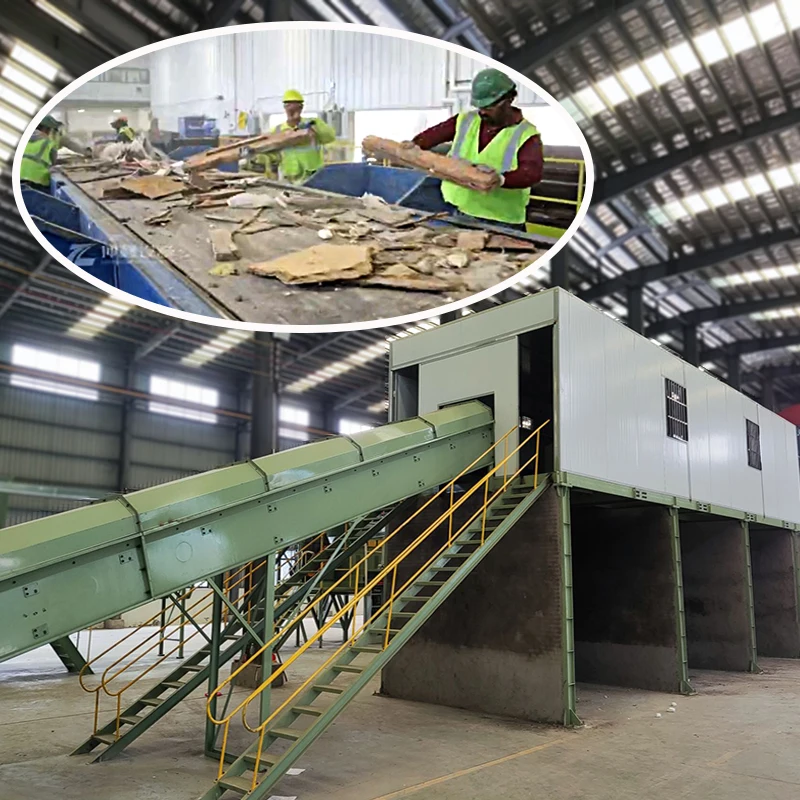

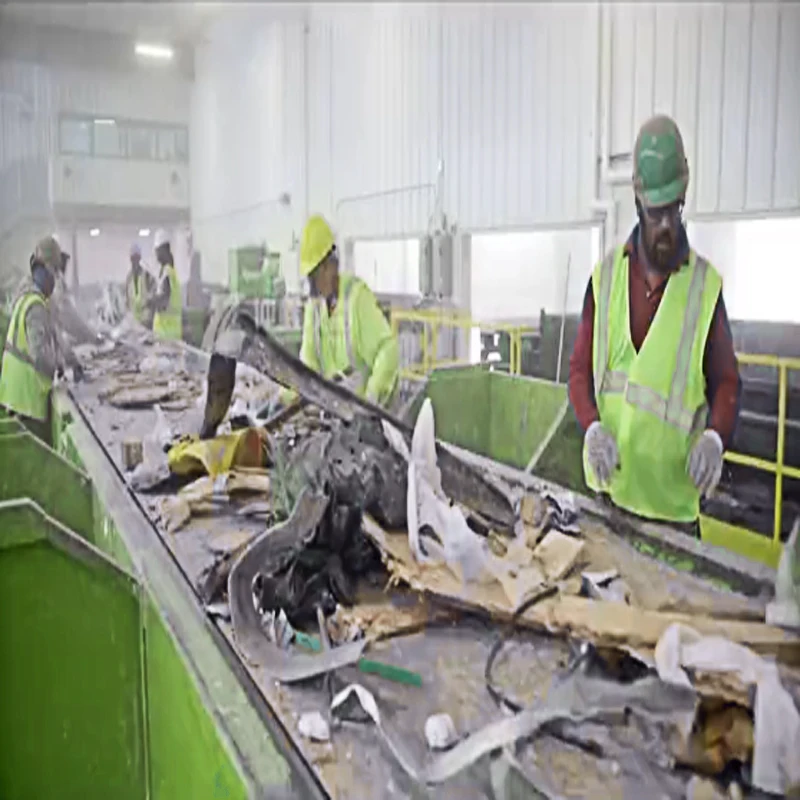

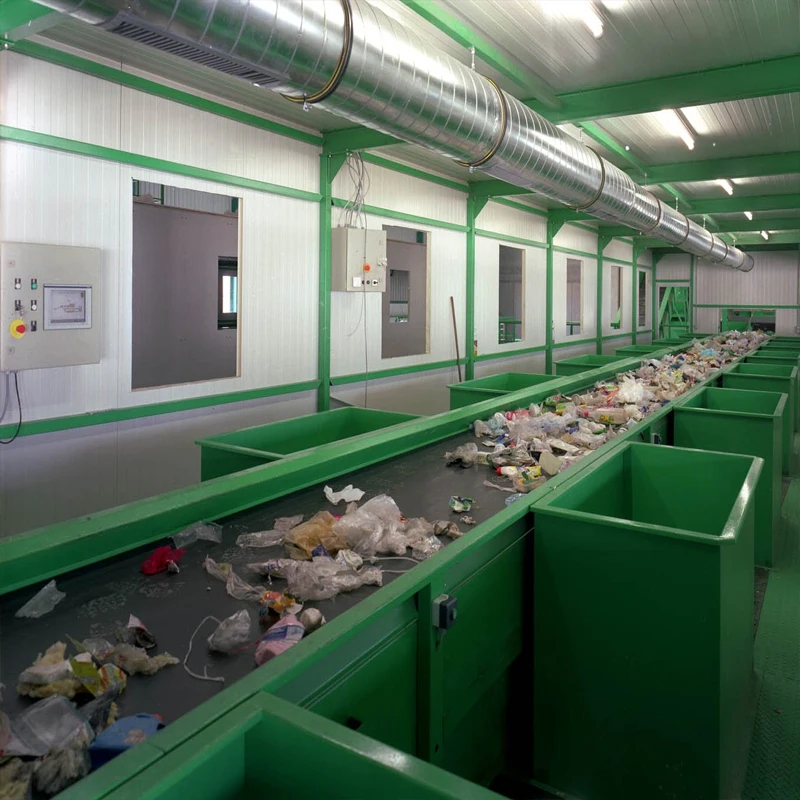

| The manual sorting platform consists of belt conveyor, platform,silo,safety protection device,light steel workshop (optional) etc, material is along with material to the sorting platform. Such as plastic, paper, fabric, battery, glass etc will be sorted and put to different silos by workers. The left material will go next step. There is a silo for every station at both sides of sorting platform. |  |

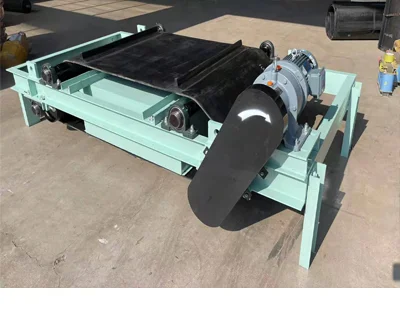

 | permanent overhead self-cleaning magnetic separator is suspended over a conveyor or head pulley to remove ferrous metals.Metal is attracted by the self cleaning model and is automatically and continuously removed from the magnet face by a belt that travels around the body of the magnet. No external power source is required for the magnet. Magnetic Separators may also be placed at and incline.Custom Magnetic Separators can be made on request. |
Our Services
Technological support:
Mind insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
Our professional engineers will design the most reasonable scheme for the real production line.
Packaging & Shipping
| Product Name | Waste Sorting and Recycling Plant |
| Container Size | 20GP, 40GP, 40HQ, etc. |
| Loading Port | Qingdao, Tianjin or Shanghai. |
| Delivery Time | 1.The machines will be packed with bubble wrap or wooden boxes, then fixed tightly. 2.The empty container will be delivered from the port to the factory. 3.The machines and containers will be sent to the port. |
FAQ
Q: Can I visit your factory ?
A: Of course, There are many domestic and international clients visit our factory every year
Q: How is your quality of the machine ?
A: Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
Q: How about your price ?
A: Yes, we are factory and be able to give you the lowest price than market one, and we have a principal that “ for saving time and absolutely honest business attitude,we quote you as low as possible, and discount can be given according to quantity”.
Q: Guaranteed ?
A: If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
Q: Do you have other related products ?
A: Yes, we manufacture all types of crusher, sand making machine, ball mill, magnetic separator, flotation machine, etc.
