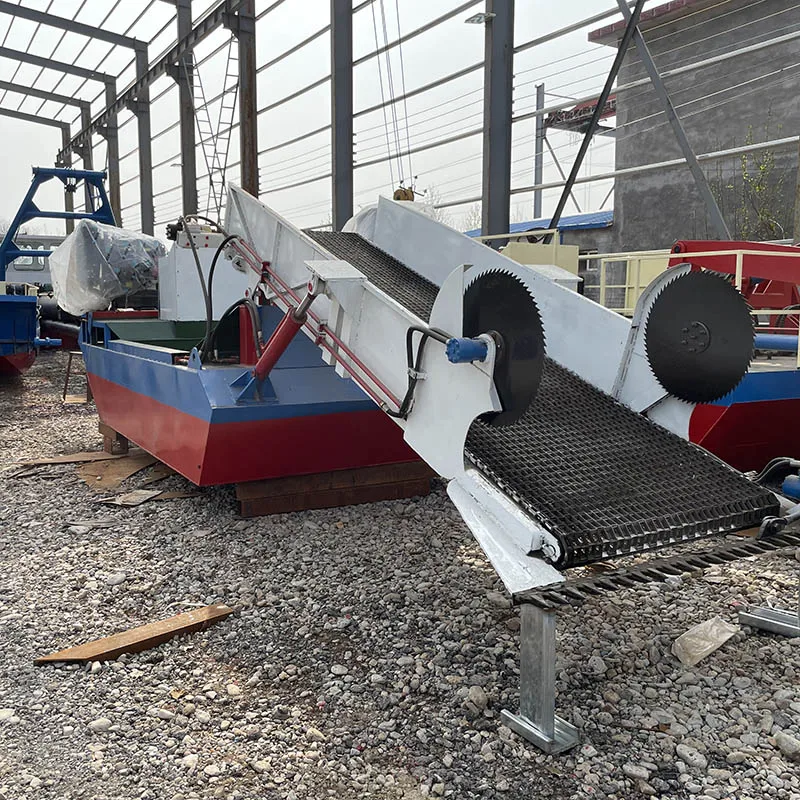

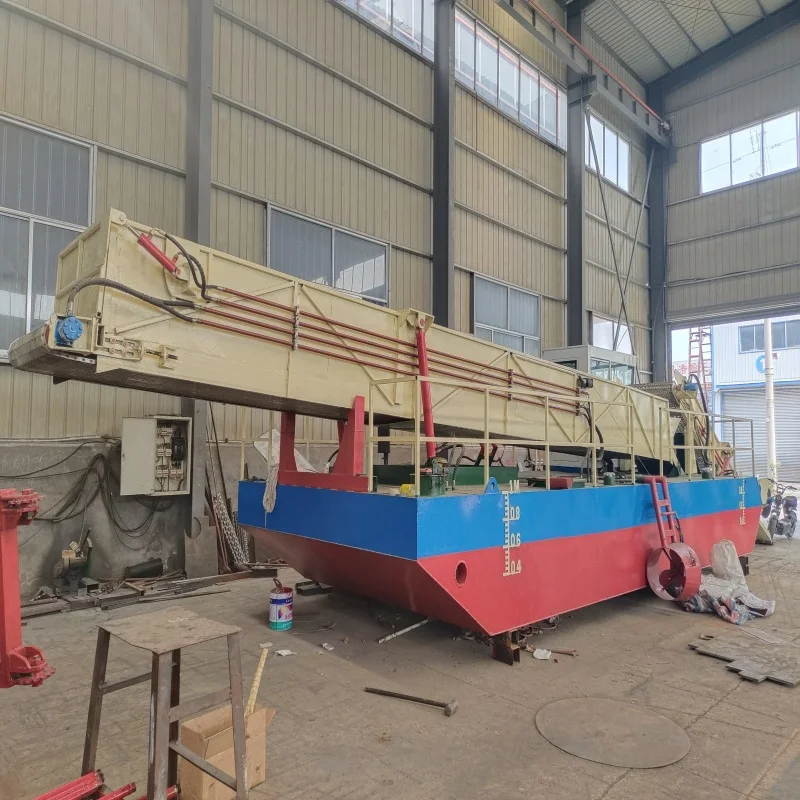

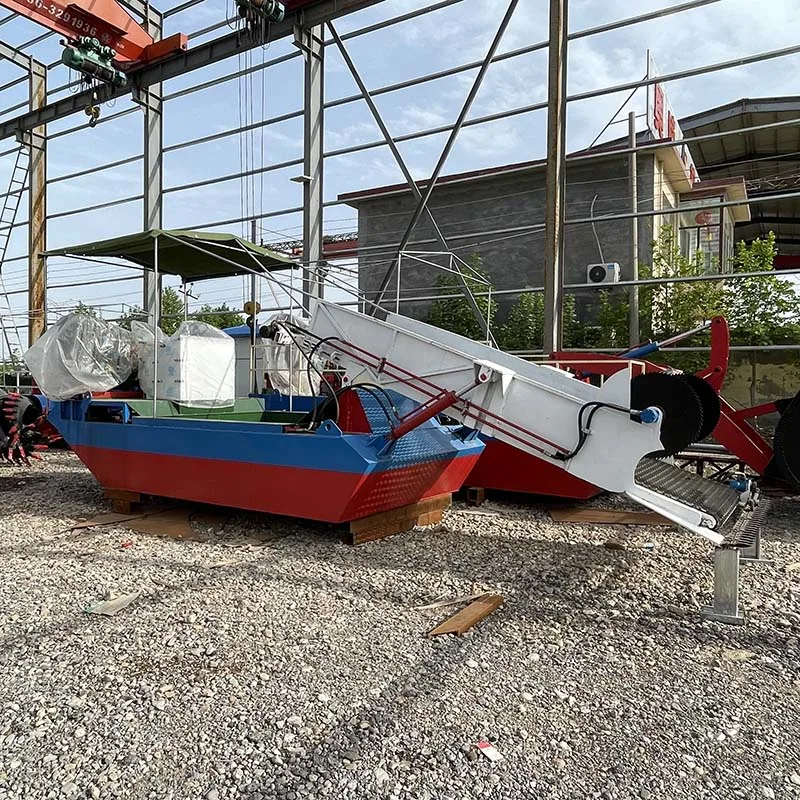

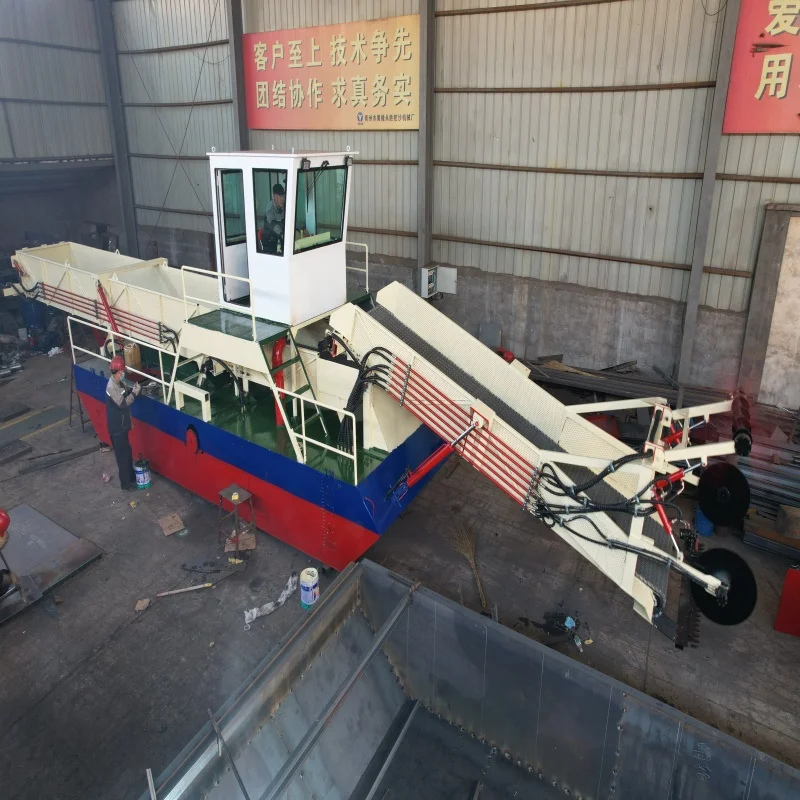

The fully Automatic Waterweed harvester has a total power of 80kw and can be transported in containers
- Category: >>>
- Supplier: Shandong Yongsheng Dredging Machinery Co. Ltd.Shandong Ltd.
Share on (1601282970470):
Product Overview
Description
Products Description
1.Brief Introduction： Waterweed harvester is a kind of equipment for cleaning aquatic plants such as water weeds, duckweed, water hyacinth and floating domestic garbage.
When Waterweed harvester is working, the hydraulic cylinder is controlled by the hydraulic system to lower the front collection tank below the water surface. The most front bottom shear starts to work under the drive of the hydraulic motor, and its main function is to cut the root of the water grass. There are two circular saw blades on both sides of our collection pod, which are driven by hydraulic motor to turn rapidly respectively. Sharp saw blades are the key to cutting transverse aquatic plants, which can not only cut off the branches quickly, but also clear the path for cleaning the ship. The saw blades and the bottom scissors cooperate with each other to carry out the first step of cutting and collecting. Next to the bottom shear is the collection chain in the front cabin. Driven by the motor, the collection chain starts to rotate and transfer the cut water weeds to the storage cabin, thus completing the collection work. When the water weeds or floating objects fill the middle and rear compartments, the ship can drive to the shore to unload the materials. Start the chain in the rear cabin to run quickly, unload the water grass or floating material to the shore, so that a job is completed, and the water cleaning ship is driven back to the work site for cycle working.
Waterweed harvester is currently the most widely used, according to the different plants on the water, can be used for cleaning ship supporting different parts, such as saw blade, bottom shear, vertical shear, wheel knife, etc., according to the water area is different, the design meets the requirements of the hull size, some complex waters can also be used with several cleaning ships, wish our cleaning ship can protect our green mountains to contribute.
When Waterweed harvester is working, the hydraulic cylinder is controlled by the hydraulic system to lower the front collection tank below the water surface. The most front bottom shear starts to work under the drive of the hydraulic motor, and its main function is to cut the root of the water grass. There are two circular saw blades on both sides of our collection pod, which are driven by hydraulic motor to turn rapidly respectively. Sharp saw blades are the key to cutting transverse aquatic plants, which can not only cut off the branches quickly, but also clear the path for cleaning the ship. The saw blades and the bottom scissors cooperate with each other to carry out the first step of cutting and collecting. Next to the bottom shear is the collection chain in the front cabin. Driven by the motor, the collection chain starts to rotate and transfer the cut water weeds to the storage cabin, thus completing the collection work. When the water weeds or floating objects fill the middle and rear compartments, the ship can drive to the shore to unload the materials. Start the chain in the rear cabin to run quickly, unload the water grass or floating material to the shore, so that a job is completed, and the water cleaning ship is driven back to the work site for cycle working.
Waterweed harvester is currently the most widely used, according to the different plants on the water, can be used for cleaning ship supporting different parts, such as saw blade, bottom shear, vertical shear, wheel knife, etc., according to the water area is different, the design meets the requirements of the hull size, some complex waters can also be used with several cleaning ships, wish our cleaning ship can protect our green mountains to contribute.
2. Part Of Specifications For Reference： | ||||
Model | YSWCB8 | YSCSD10 | ||
Storage Size(m3) | 8 | 10 | ||
Power(KW) | 60 | 88 | ||
Full Load Draft(mm) | 0.8 | 0.85 | ||
Moving Way | Paddle wheel | Paddle wheel | ||
Cruising Ability(h) | 16 | 16 | ||
Collection Width(m) | 1.6 | 1.8 | ||
Collection Depth(m) | 1.2 | 1.2 | ||
Why Choose Us
Perfect supporting facilities, rich site construction experience, exquisite production skills, Strict quality control system

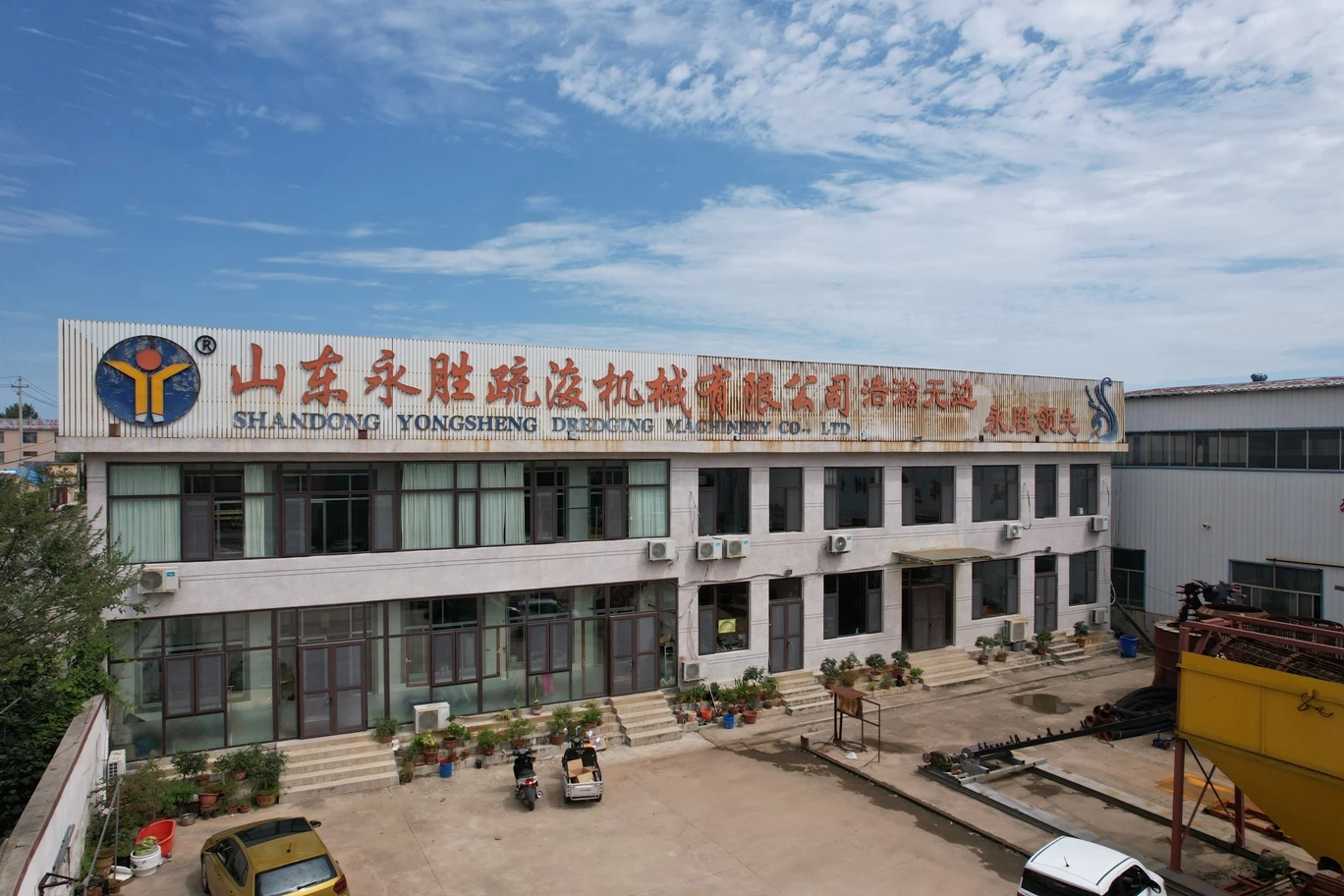

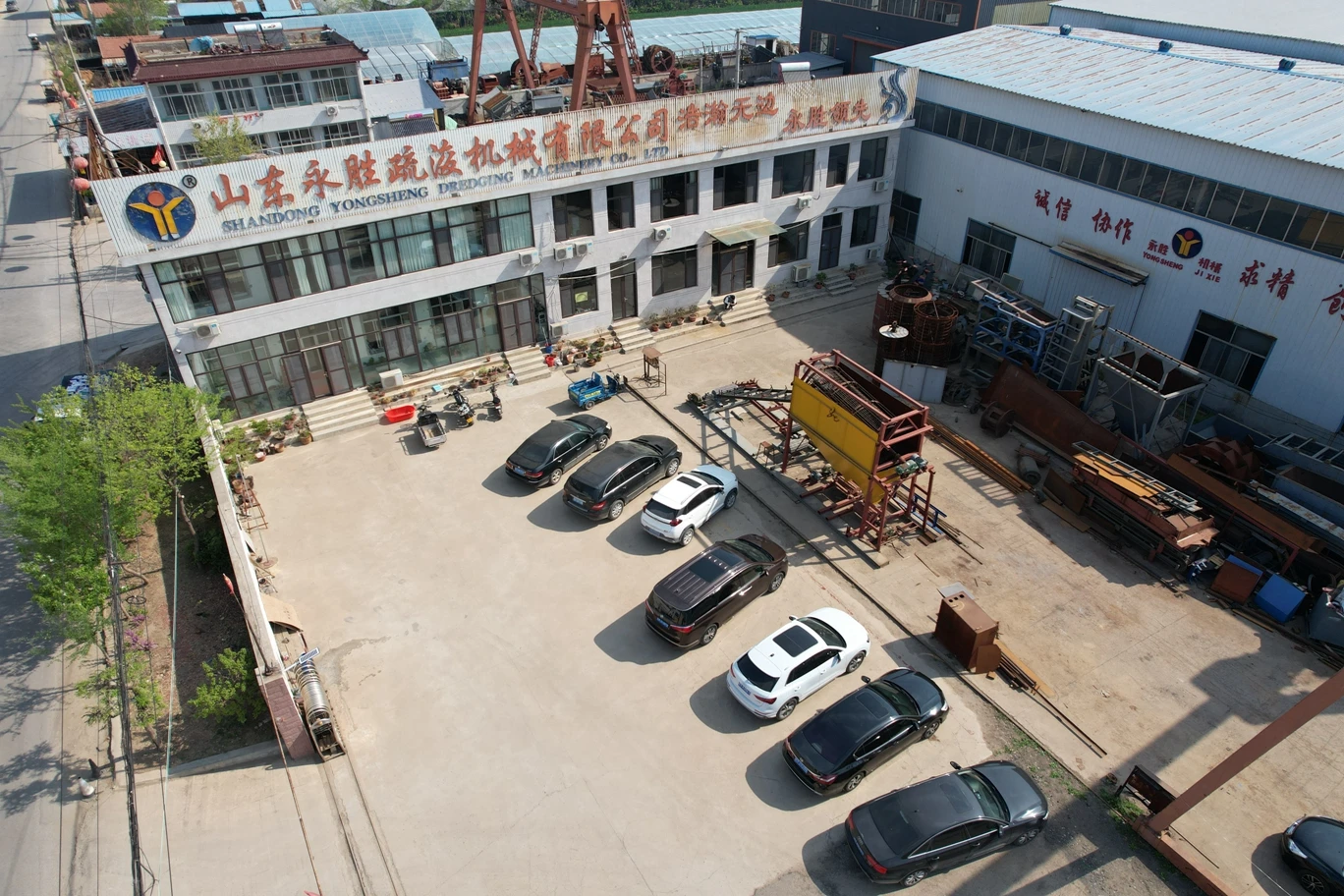

Shandong Yongsheng Dredging Machinery Co.,Ltd is
specializing in the production of dredging equipment, sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification equipment, sand washing equipment, mineral processing equipment, etc.
Our company has 20 years of professional equipment production experience, passed the ISO9001 quality system certification, and is a member of China Dredging association.
specializing in the production of dredging equipment, sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification equipment, sand washing equipment, mineral processing equipment, etc.
Our company has 20 years of professional equipment production experience, passed the ISO9001 quality system certification, and is a member of China Dredging association.

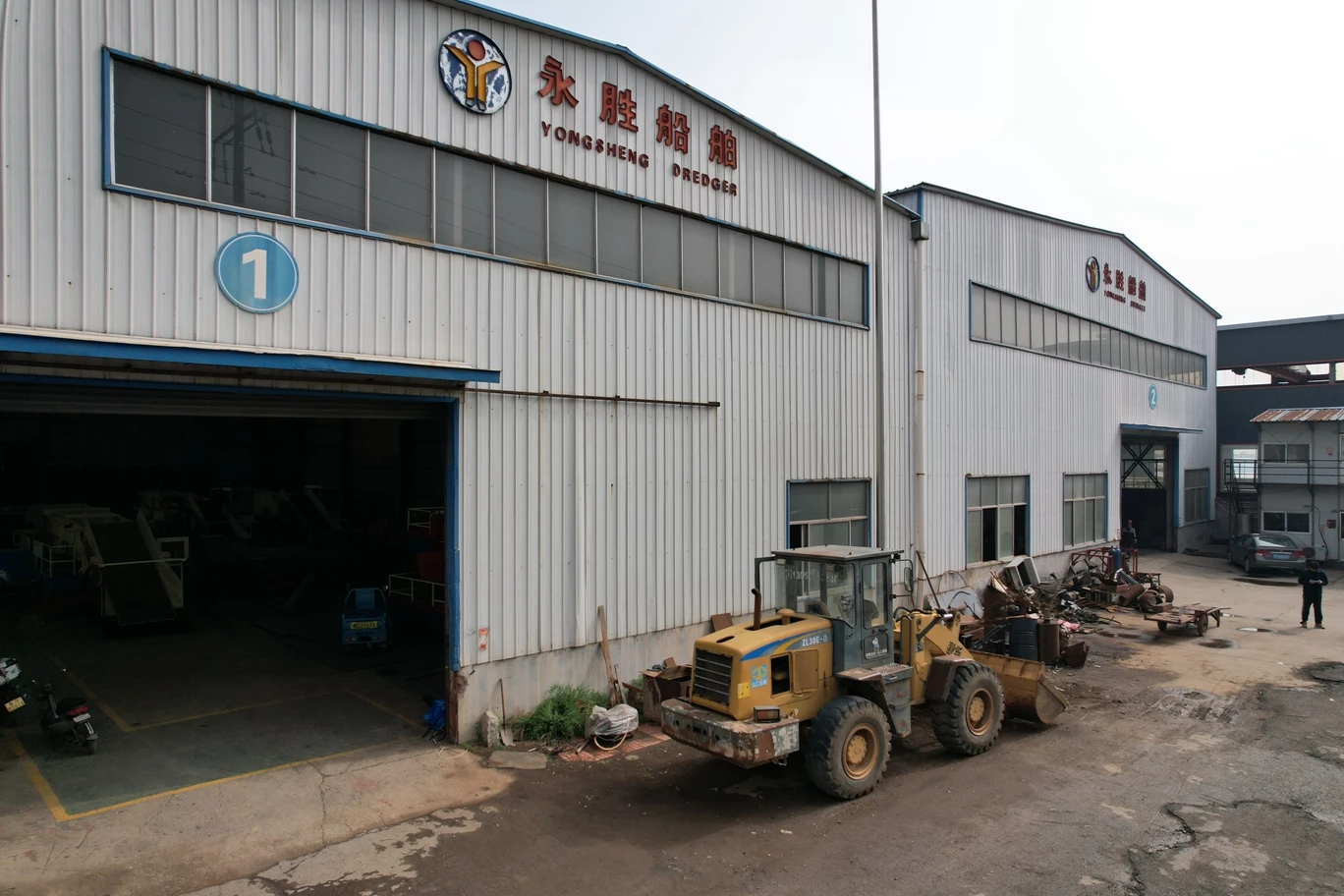

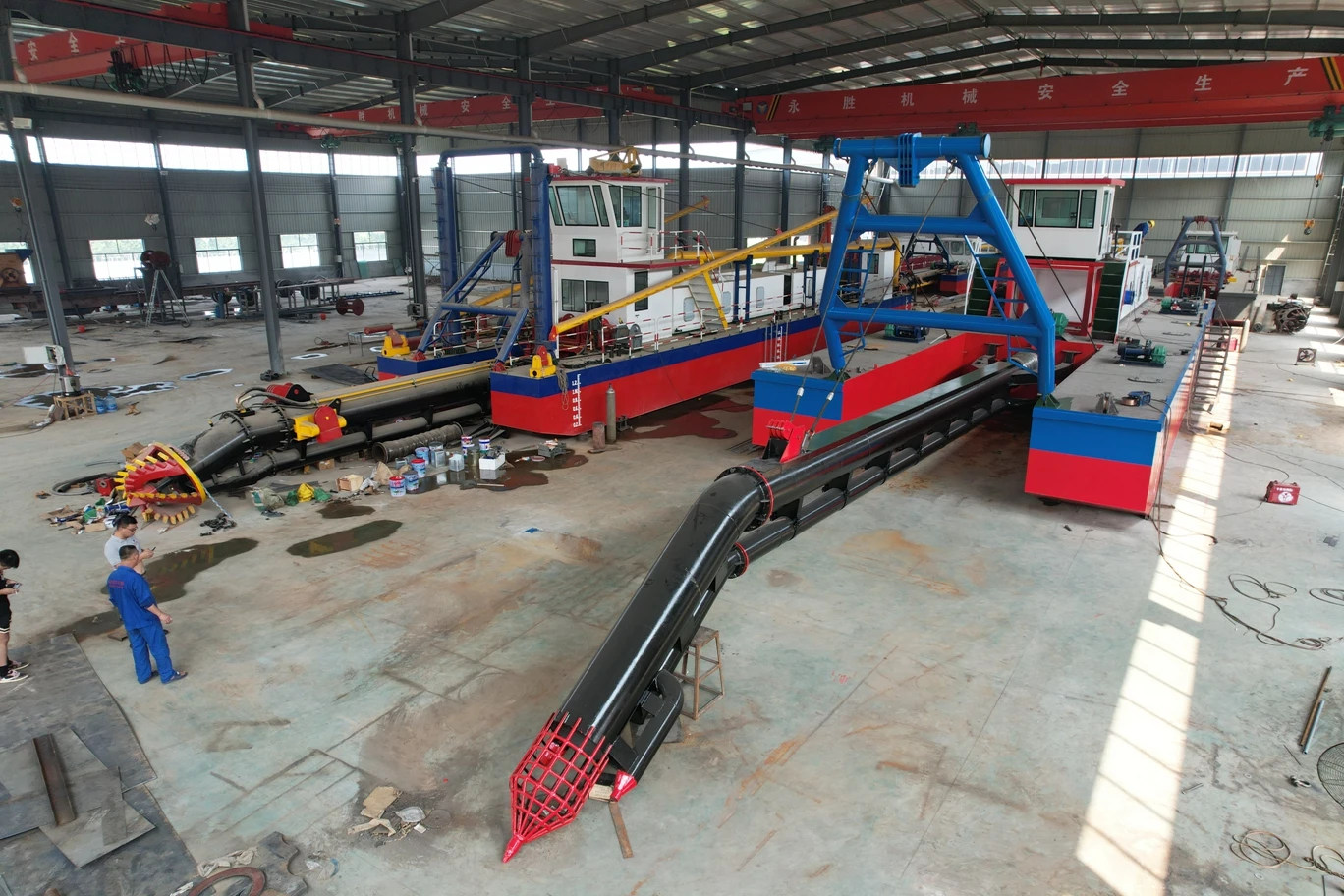

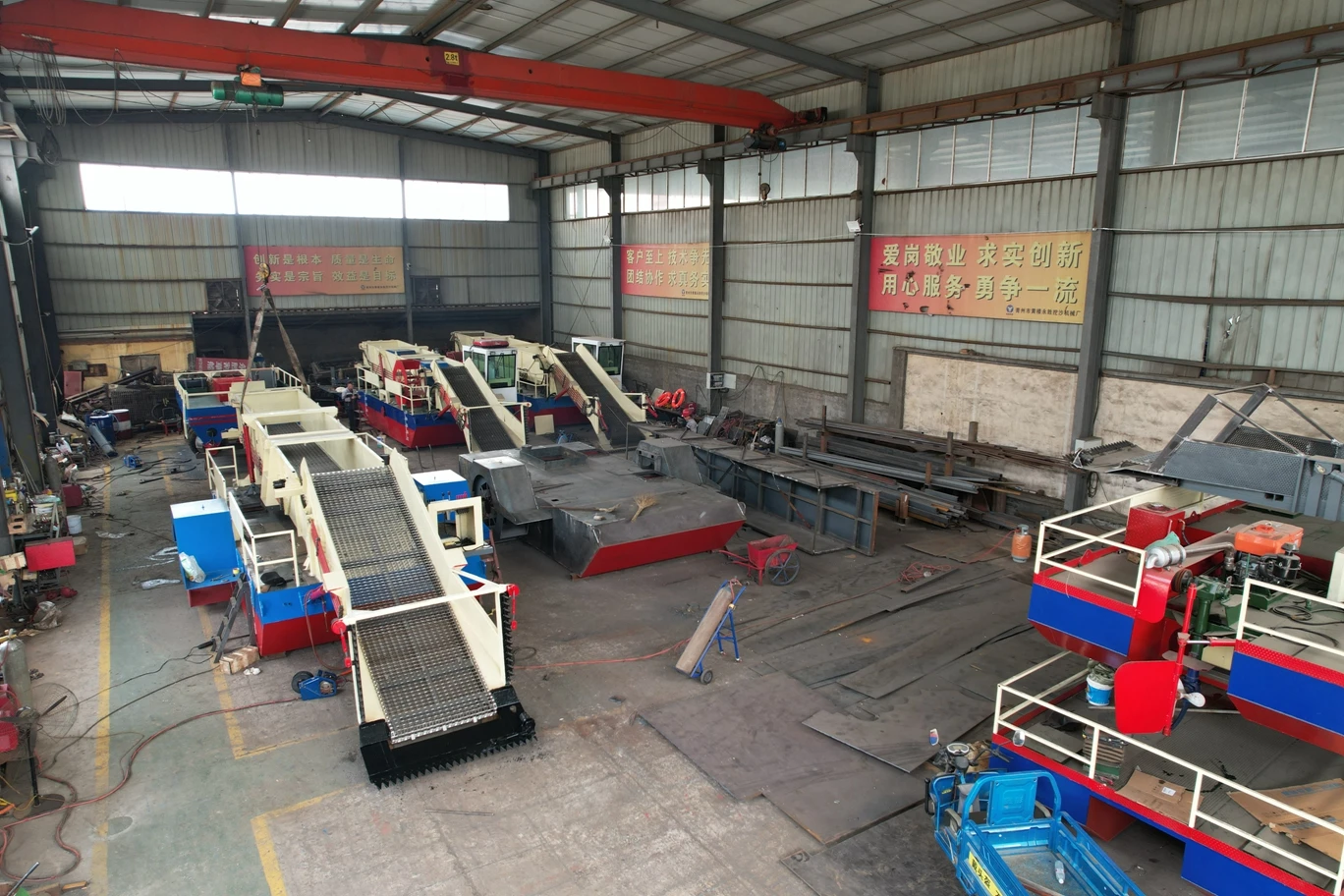

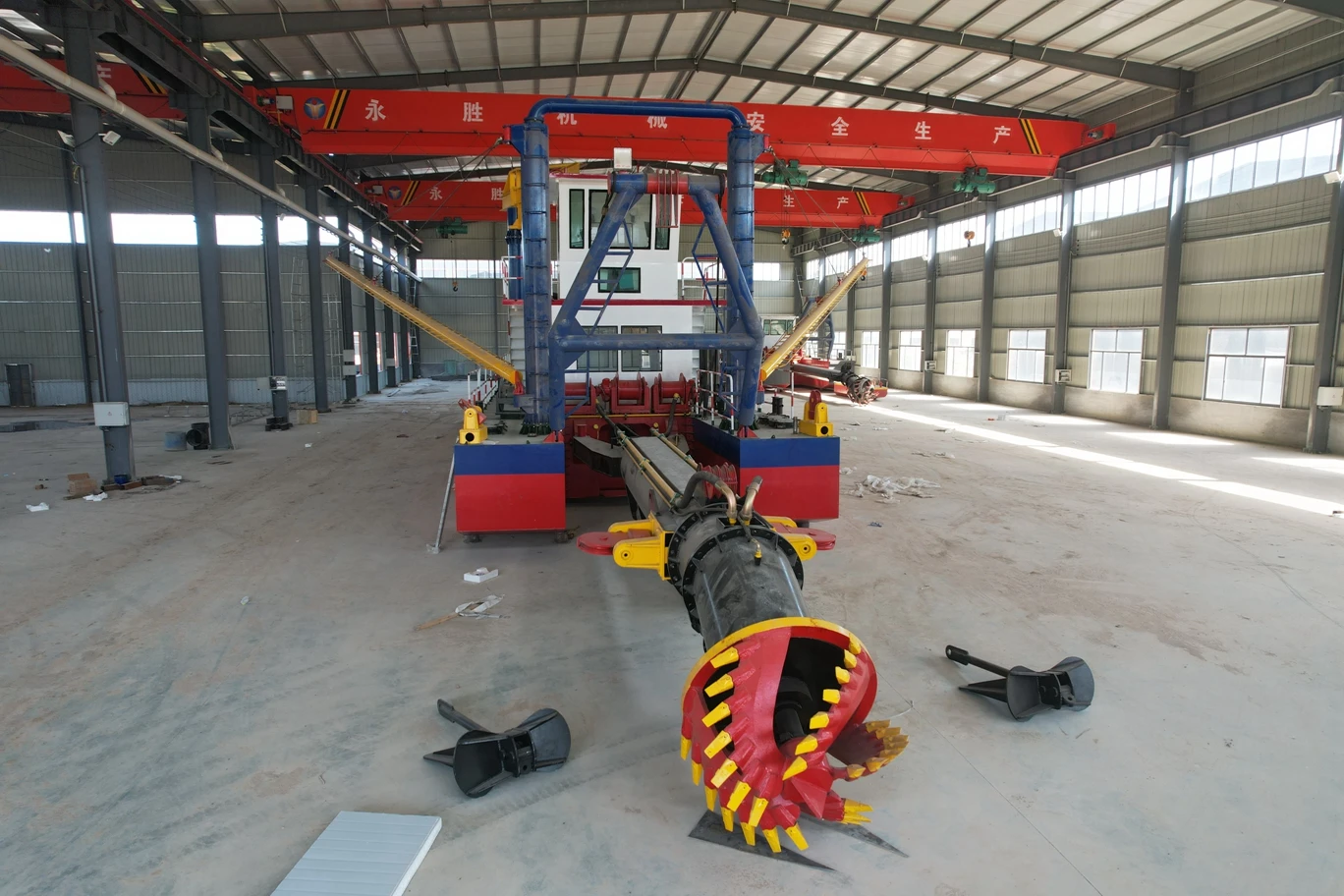

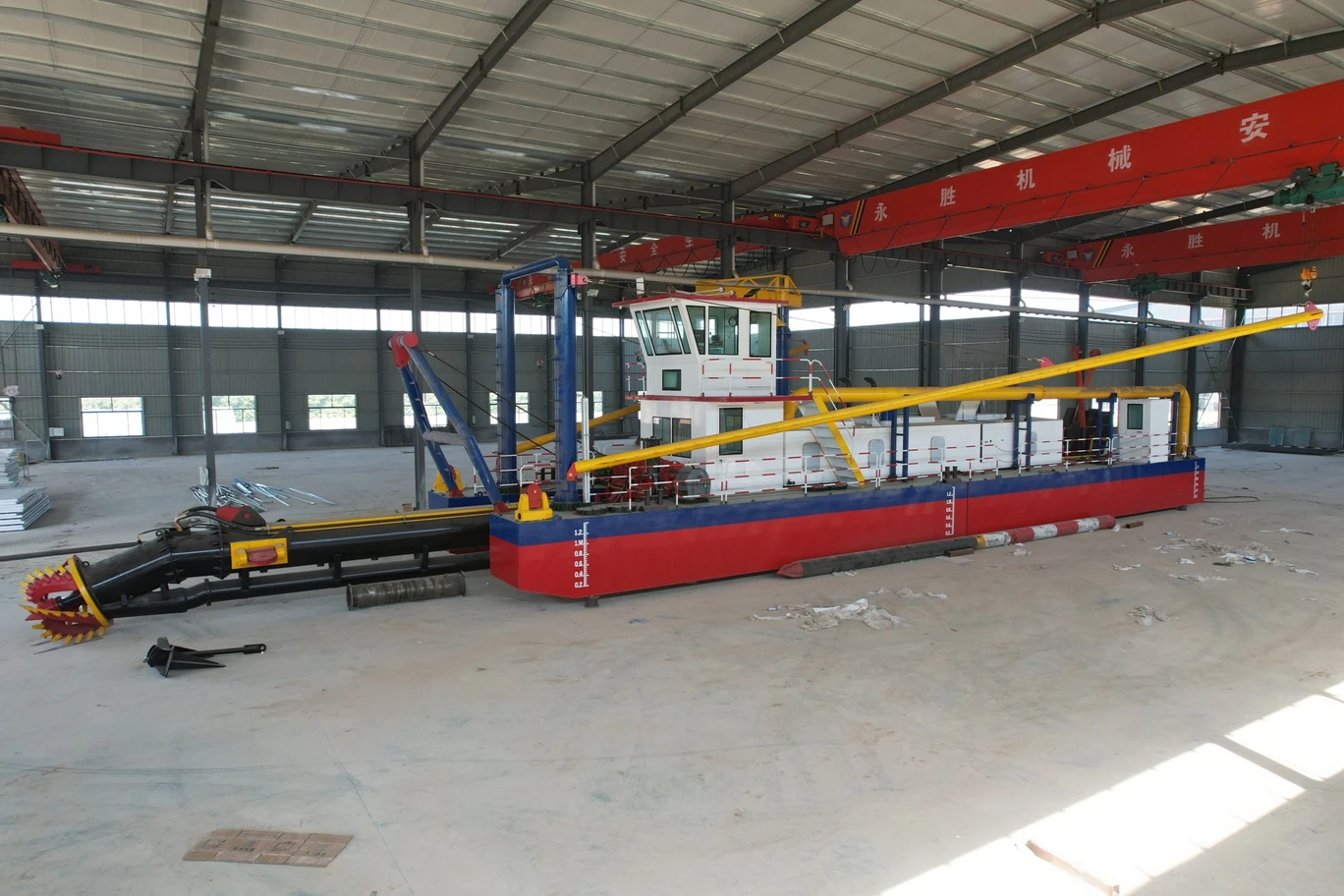

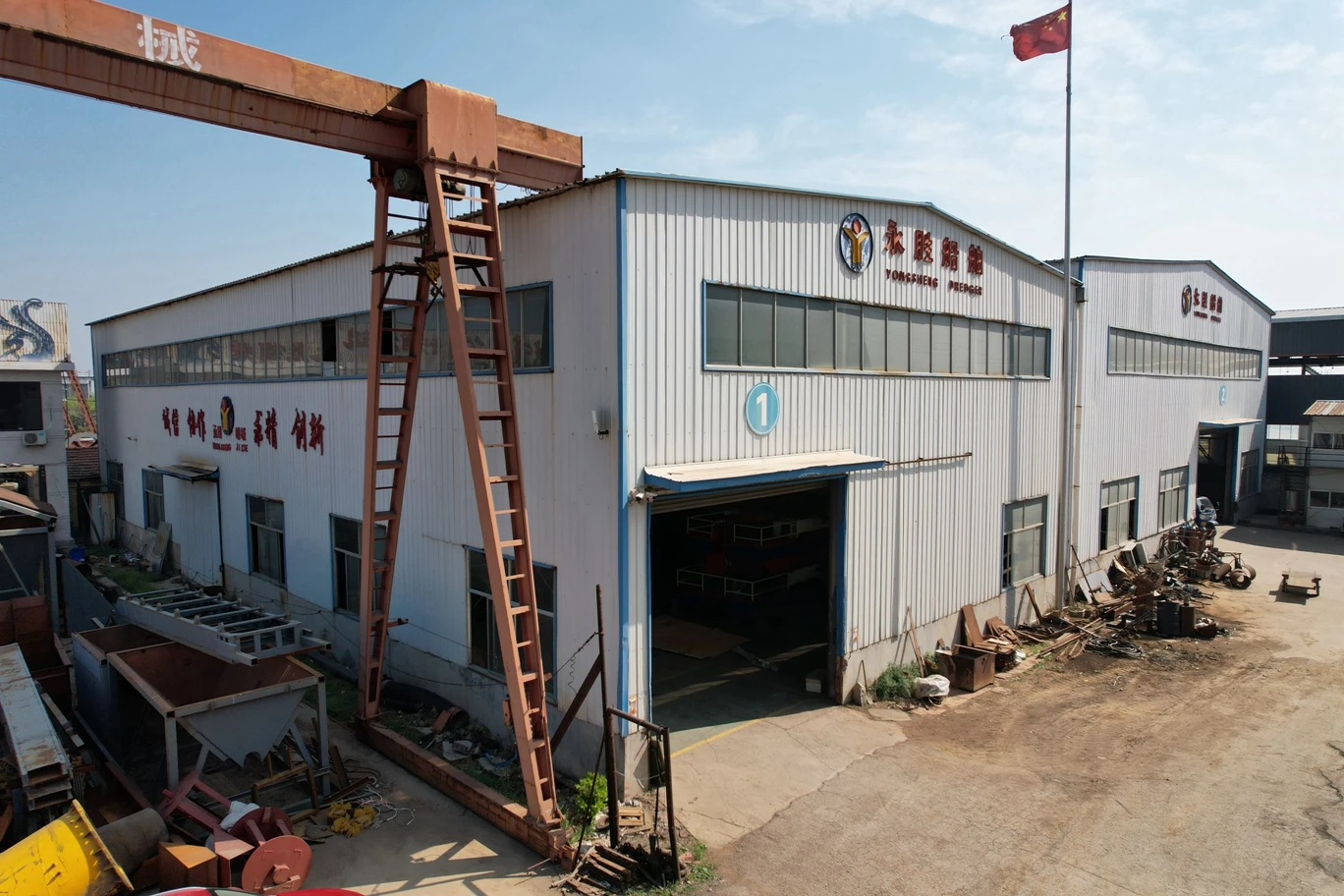

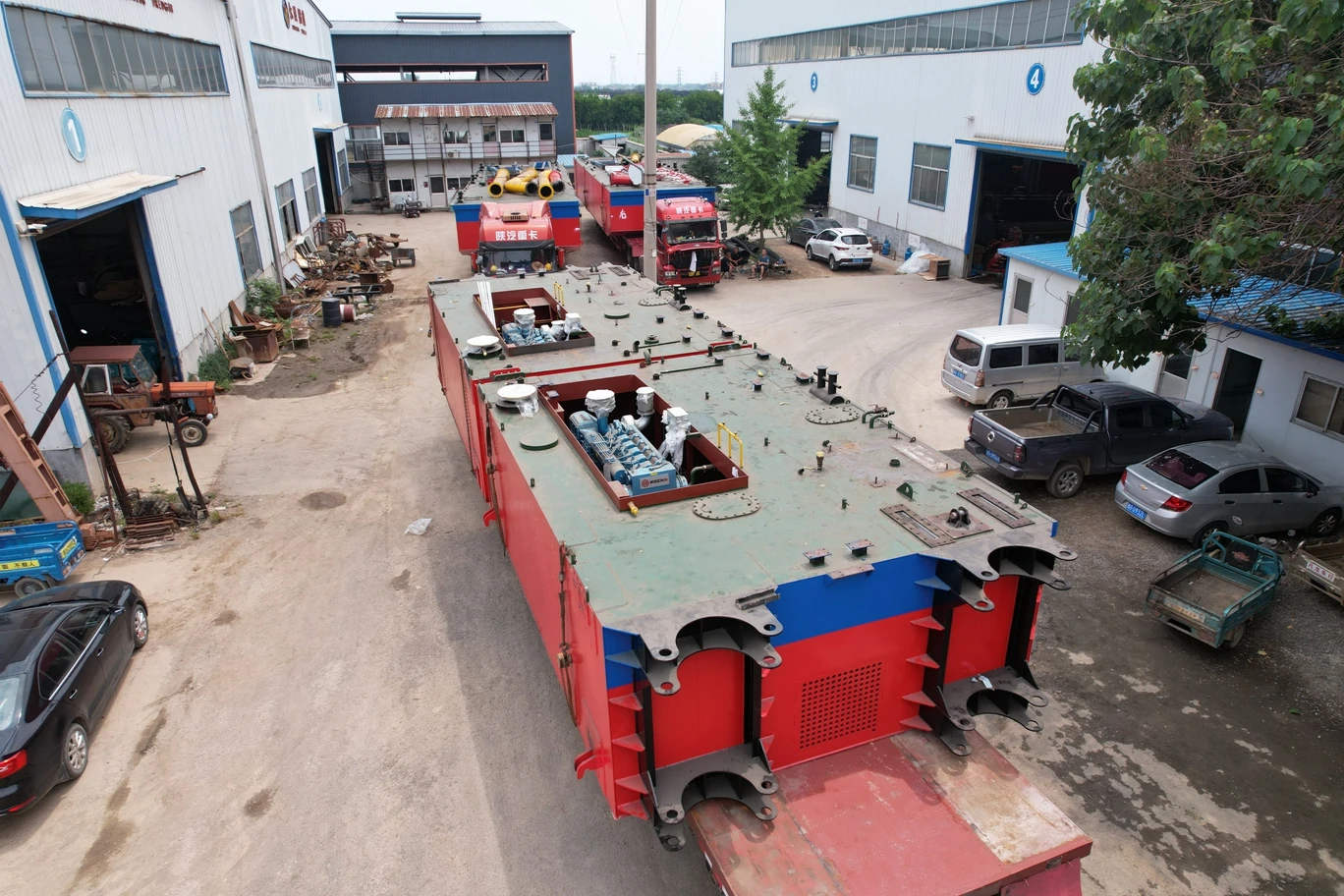

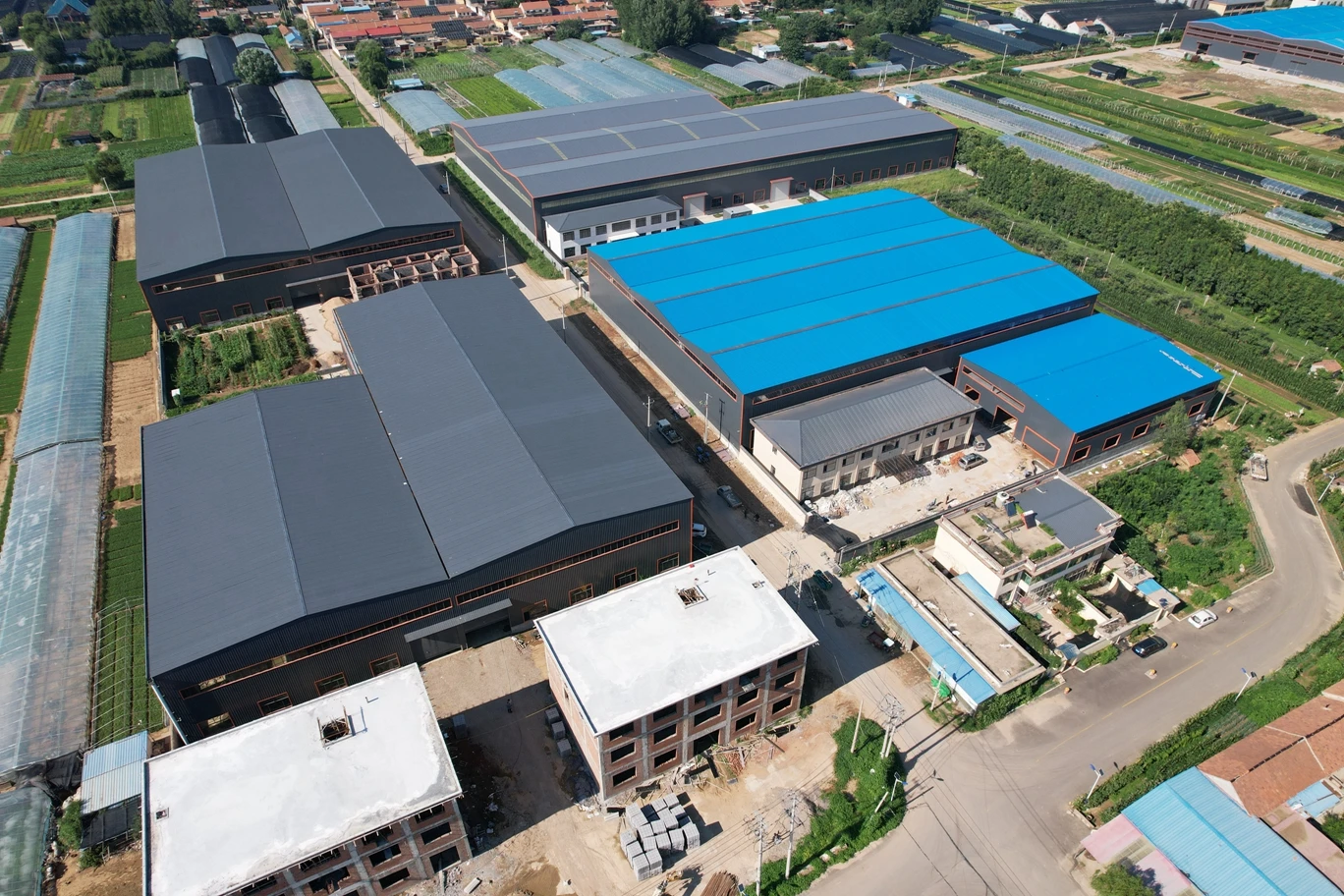

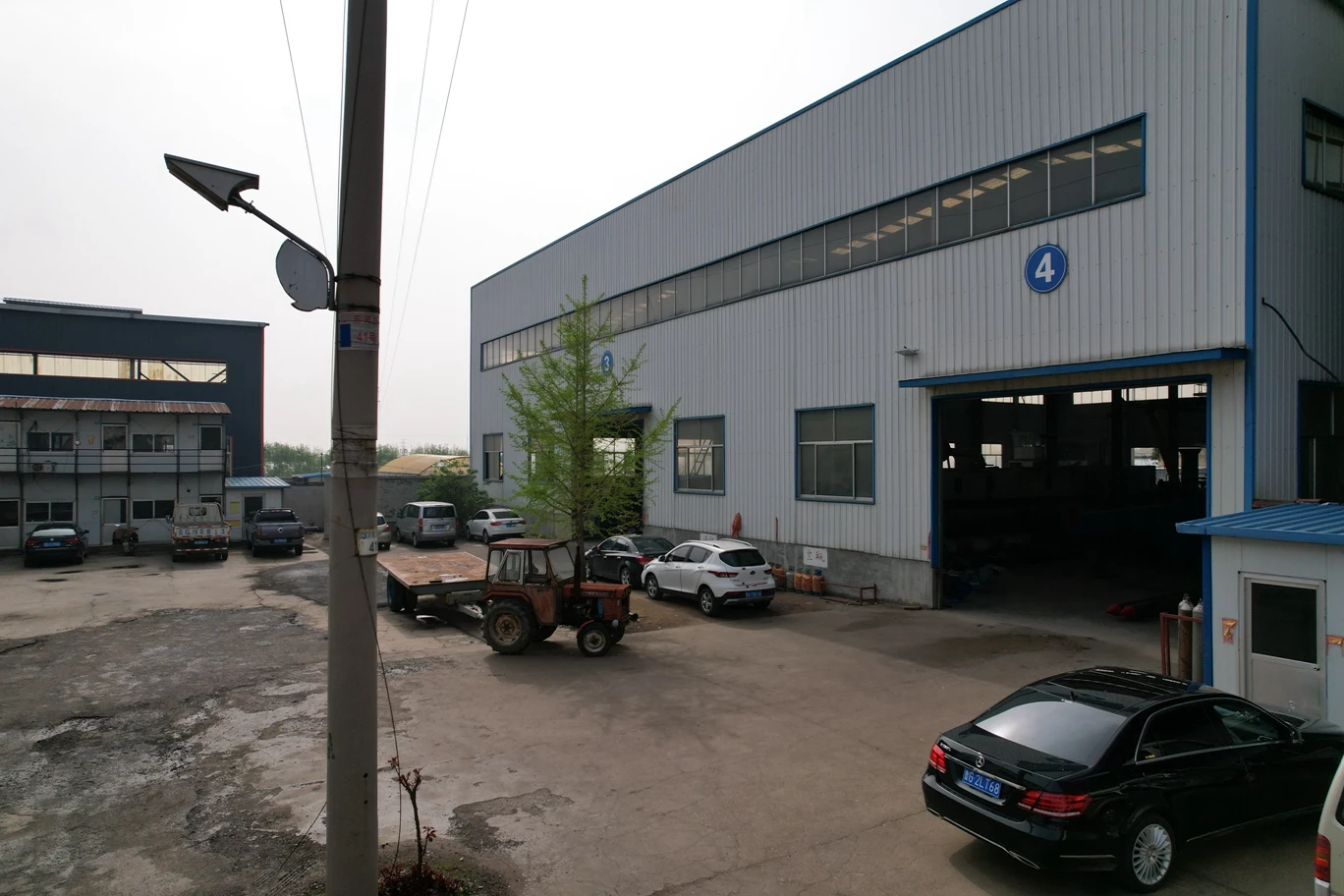

Production Line

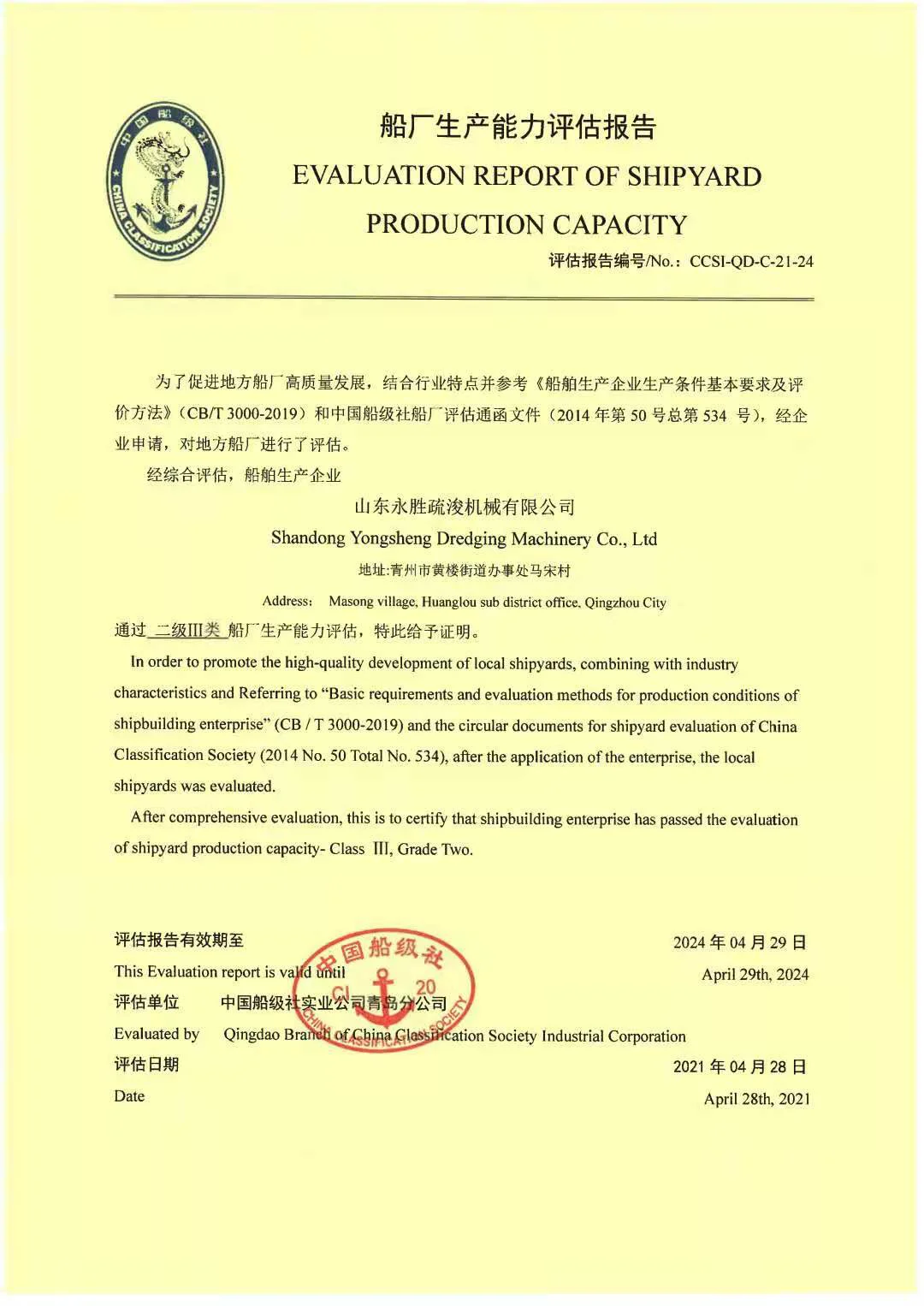

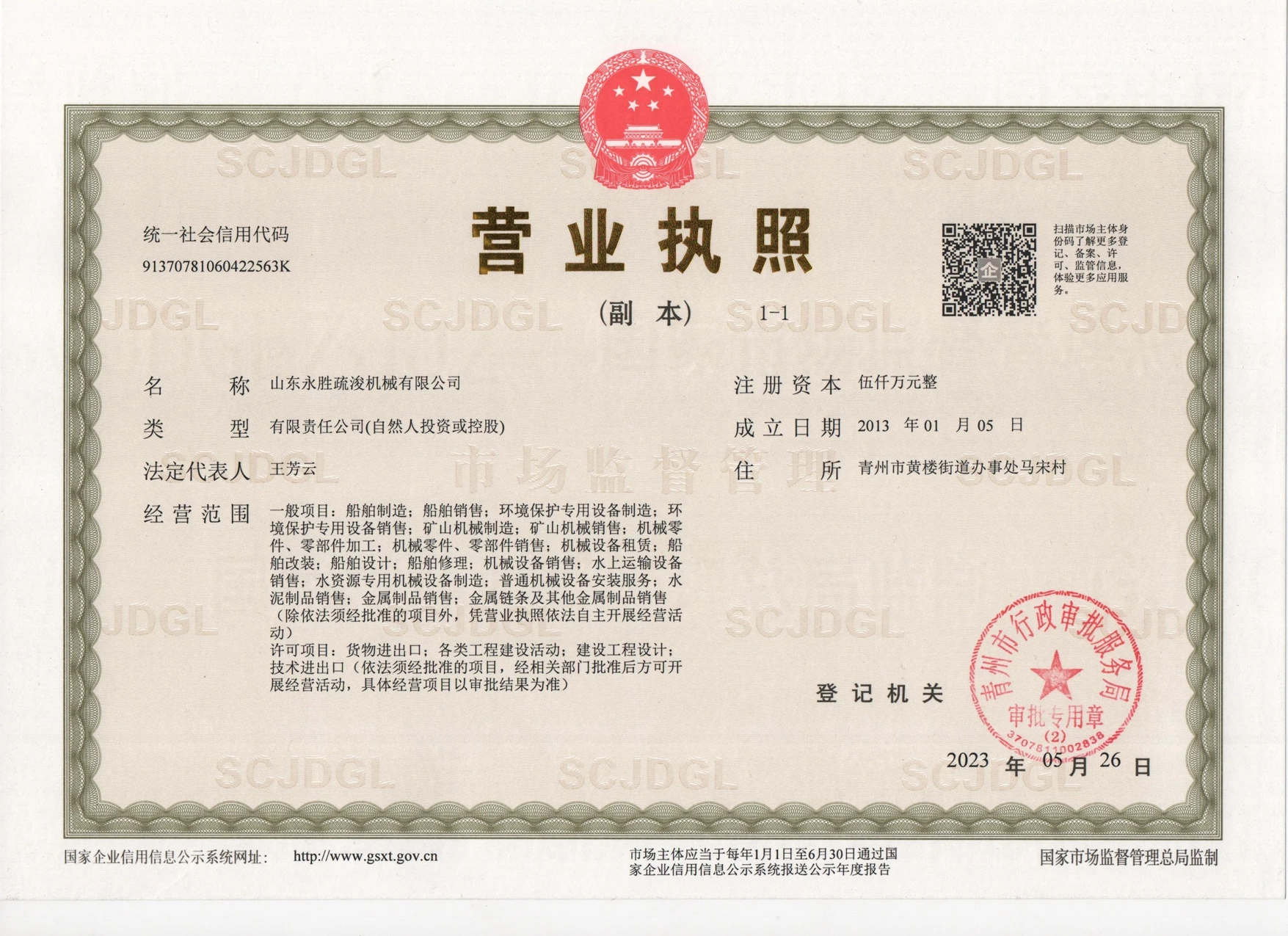

Certifications

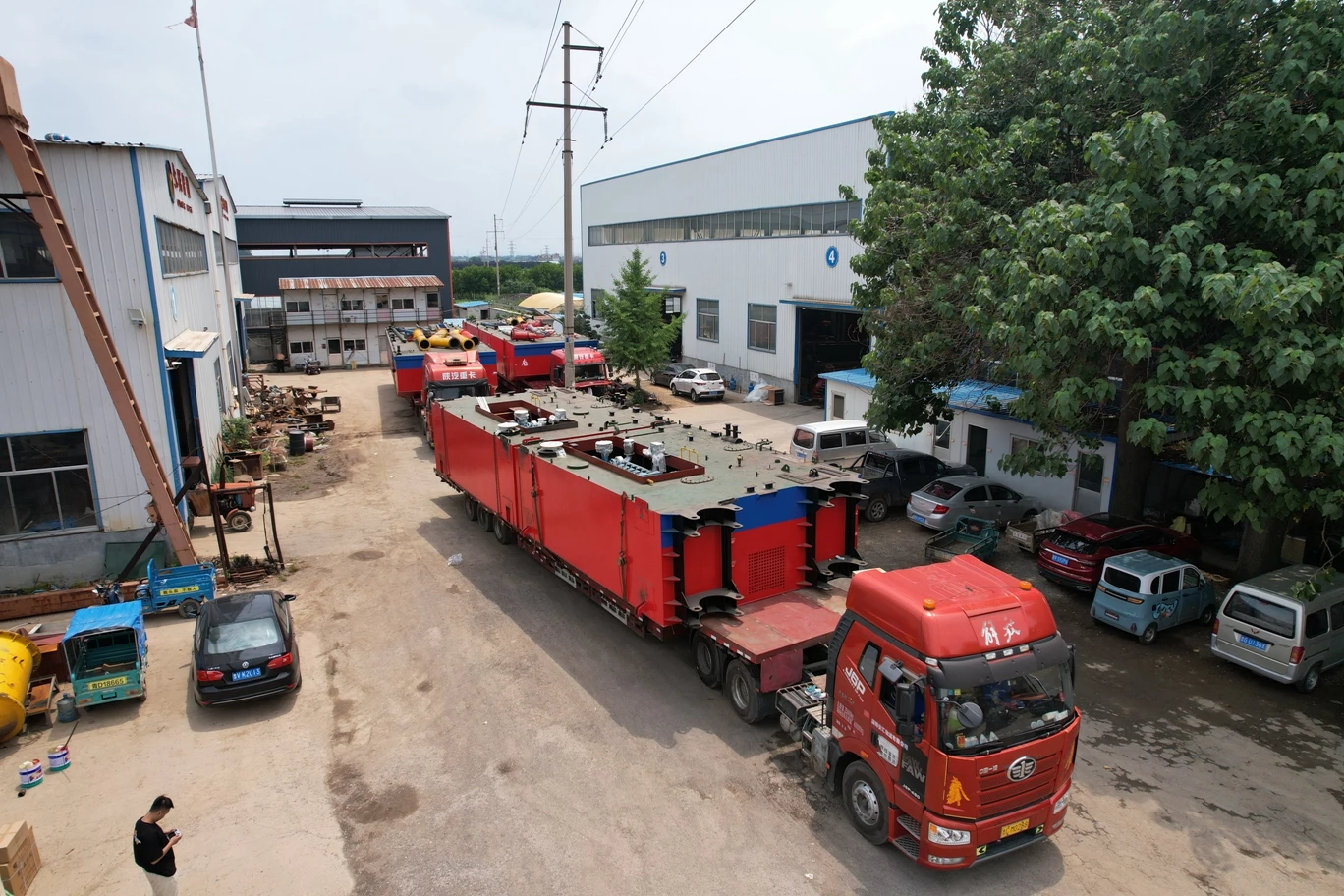

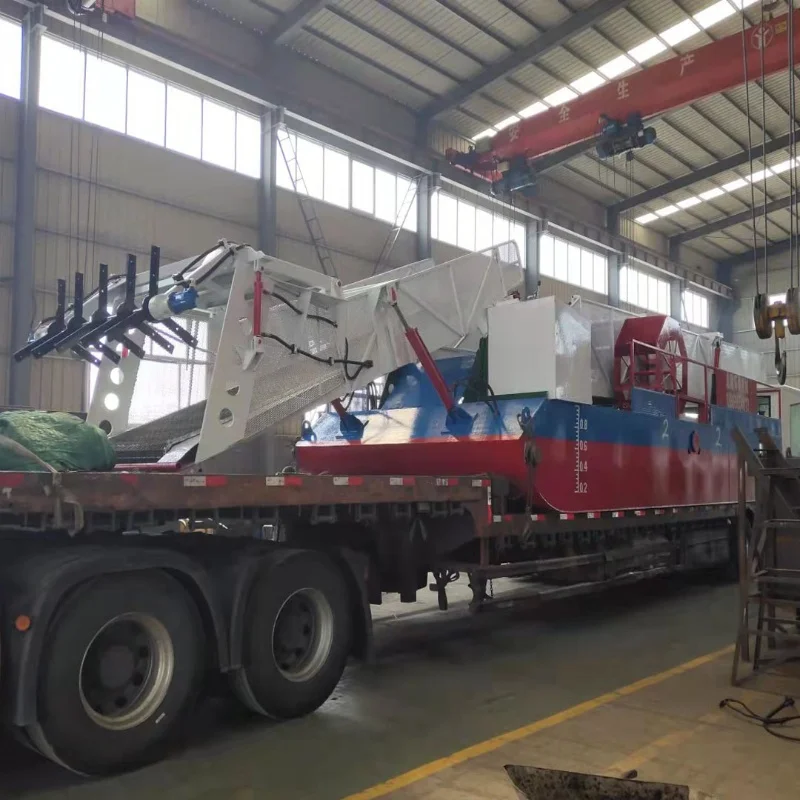

Product packaging
FAQ
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 15-20 days after payment or disposit.
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 15-20 days after payment or disposit.
