Product Overview
Description
ONU 4GE+WiFiac+UBS+CATV XPON Dual Mode ONT WiFi onu gpon catv Epon wifi catv onu
Product Description
Overview

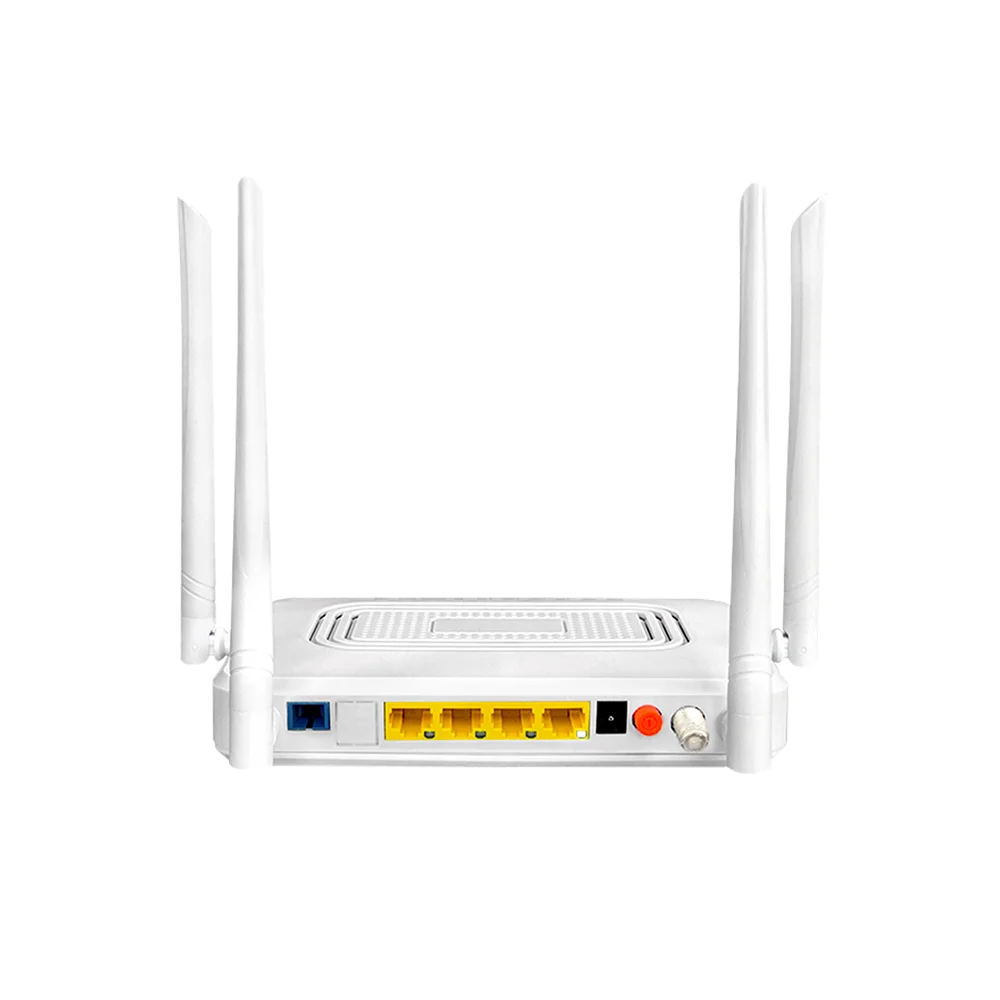

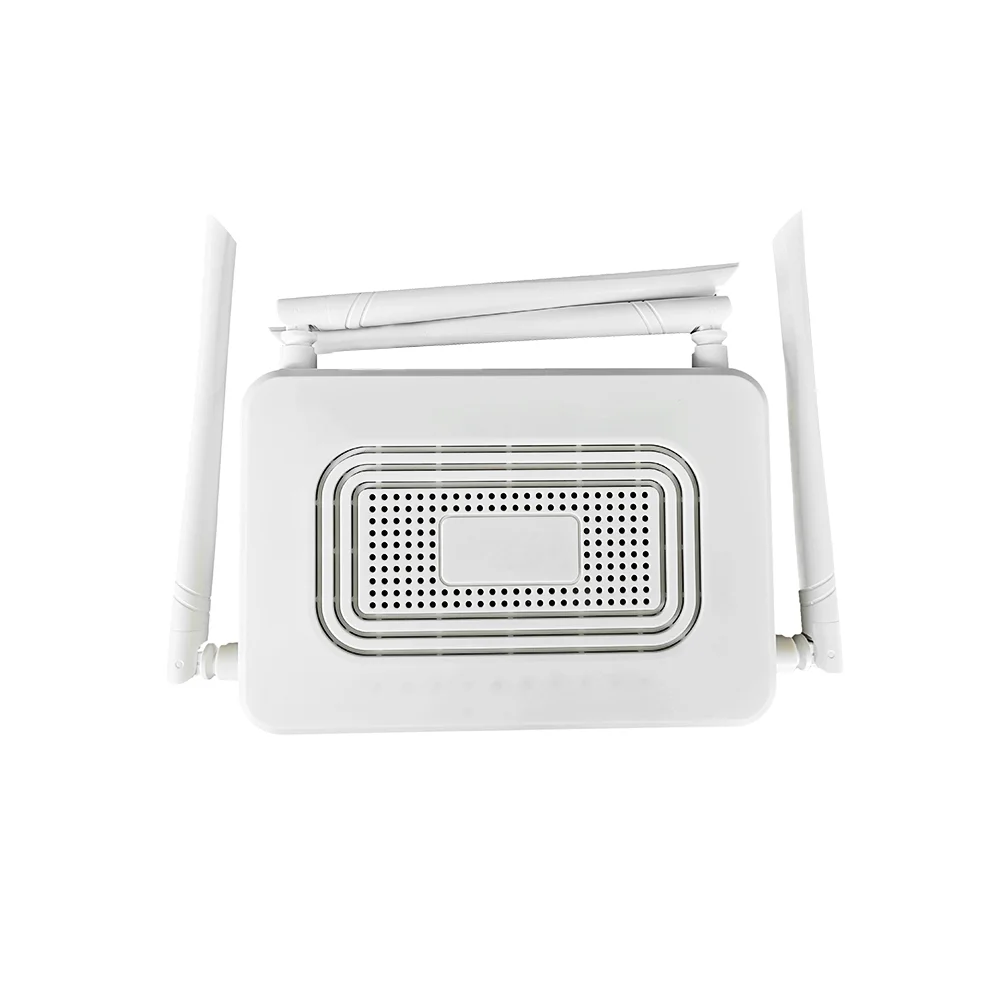

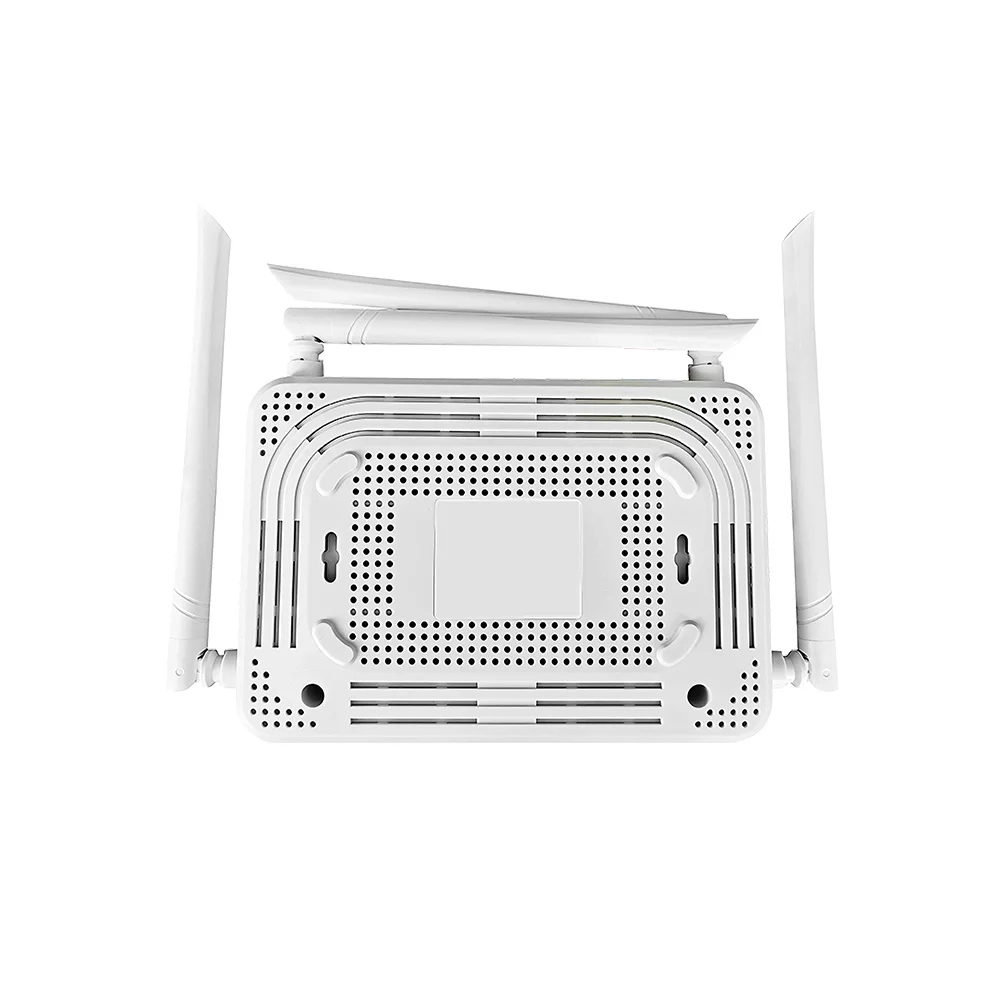

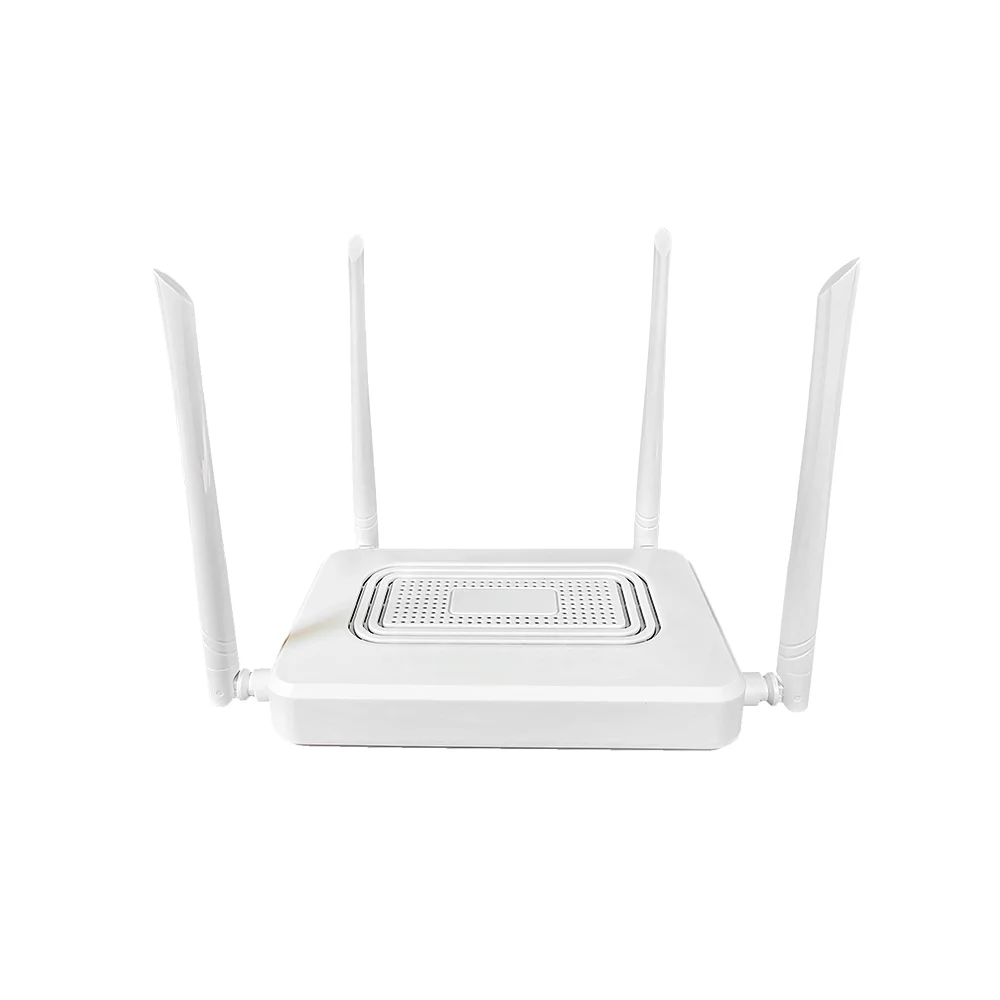

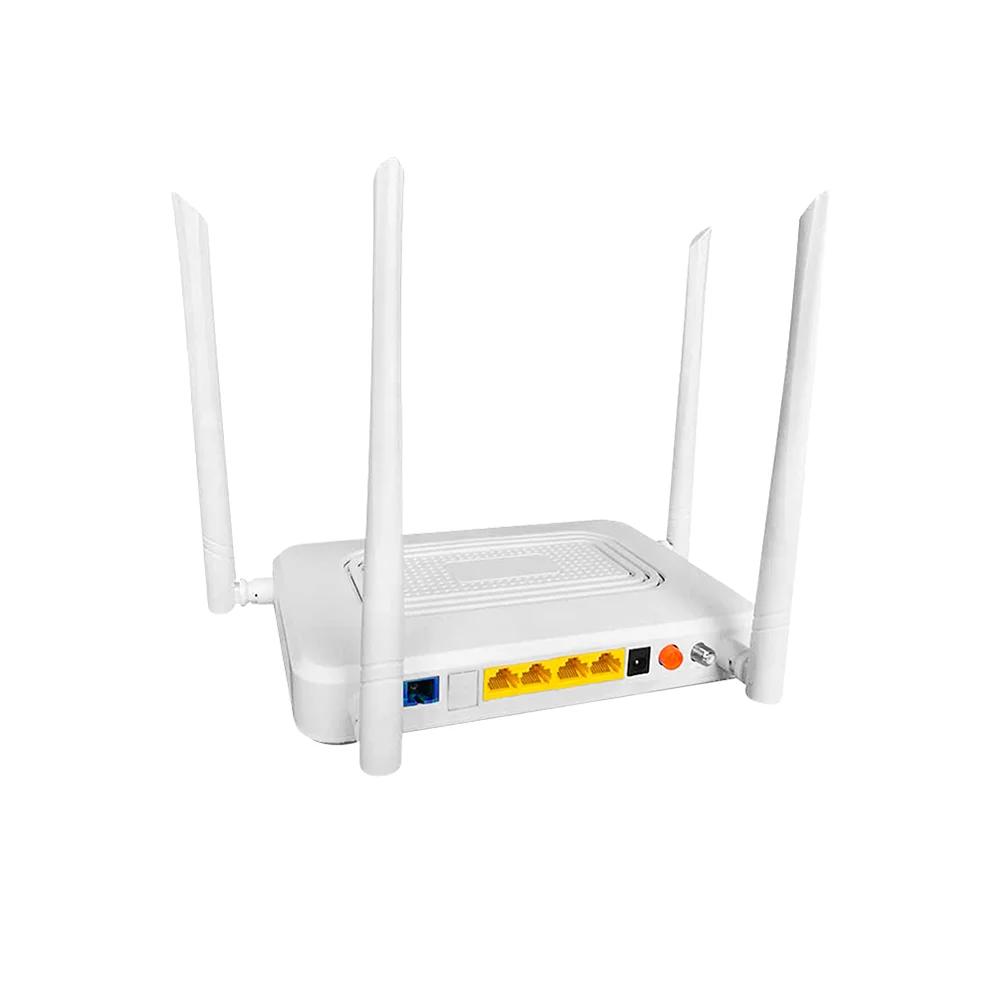

FIBERWAY HP2254R is 4GE+WiFiac+UBS+CATV XPON(GPON and EPON dual mode) HGU ONU. This box design with the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi2.4/5G, Layer 2/3, Wi-Fi EasyMesh.
It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV ,video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully
compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a firewall function.
It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV ,video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully
compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a firewall function.
Functional Feature
HGU ONU, bridging and routing modes can be set
Dual mode ONU compatible with popular EPON and GPON OLT
Support loop detection, IGMP, IGMP snooping
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
USB3.0 For Printer&Storage
Support IEEE802.11b/g/n/ac 4T4R speed up to 1.167Gbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Built-in RF CATV module, Output level:76±2（@-15~0dBm,RF bandwidth:45~1000MHz）
Support Telnet, CLI, OMCI/OAM and Web management
Support NAT, Firewall function
Support remote software upgrade
Dual mode ONU compatible with popular EPON and GPON OLT
Support loop detection, IGMP, IGMP snooping
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
USB3.0 For Printer&Storage
Support IEEE802.11b/g/n/ac 4T4R speed up to 1.167Gbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Built-in RF CATV module, Output level:76±2（@-15~0dBm,RF bandwidth:45~1000MHz）
Support Telnet, CLI, OMCI/OAM and Web management
Support NAT, Firewall function
Support remote software upgrade
Technical parameters
Items | Unit | Specifications |
PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～ +4dBmTransmission distance: 20KM | |
Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
Wavelength | nm | Tx1310, Rx 1490, CATV 1550 |
Interface | data | 4*GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Wireless | WiFi 2.4/5G compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz (WiFi 4) 5.0GHz Operating frequency: 5.150-5.825GHz (WiFi 5 wave 2) WiFi:4*4 MIMO, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 11n--22dBm/11ac--24dBm | |
USB interface | USB 3.0, Transmission Rate: 4.8Gbps | |
Indicator | LED | PWR, PON, LOS, WAN, LAN1~ LAN4, 2.4G, 5G, CATV, USB |
Operating condition | ℃ | Operating temp: -5 ~ +55 |
Storing condition | ℃ | Storing temp: -30 ~ +60 |
Humidity | % | 10~90(non-condensing) |
Power supply | V | DC 12V,1.5A adapter |
Power consumption | W | ≤12 |
Dimension | mm | 242mm×154mm×35mm(L×W×H) |
Net weight | Kg | 0.32 |
CATV
Items | Unit | Specifications |
Optical Connector Type | SC/APC | |
Input optical power range | dBm | -15~ +2 |
Optical return loss | dB | ≥45 |
Wavelength | nm | 1550 ±10 |
RF Output Connector | F | Imperial or metric |
RF Bandwidth | MHz | 47～1000 |
Slope | dB | 0~2 (47～1003MHz) |
RF impedance | Ω | 75 |
RF output return loss | dB | ≥14 |
RF output lever | dBuV | 76±2（@-15~0dBm） |
C/N | dB | ≥47 @-7dBm |
CTB | dB | ≥60 @-7dBm |
CSO | dB | ≥60 @-7dBm |
MER | dB | ≥33 @-10dBm |

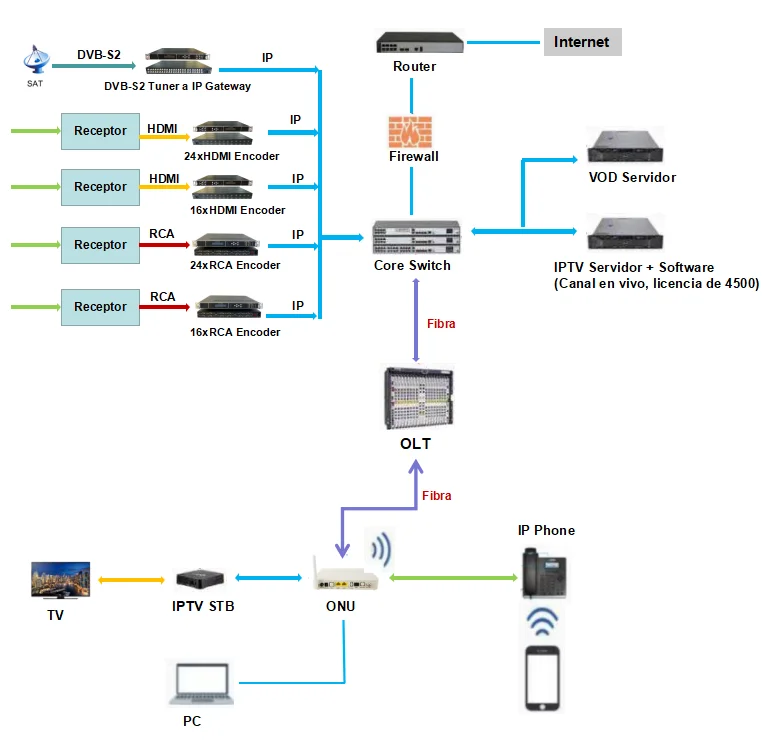

Application
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
