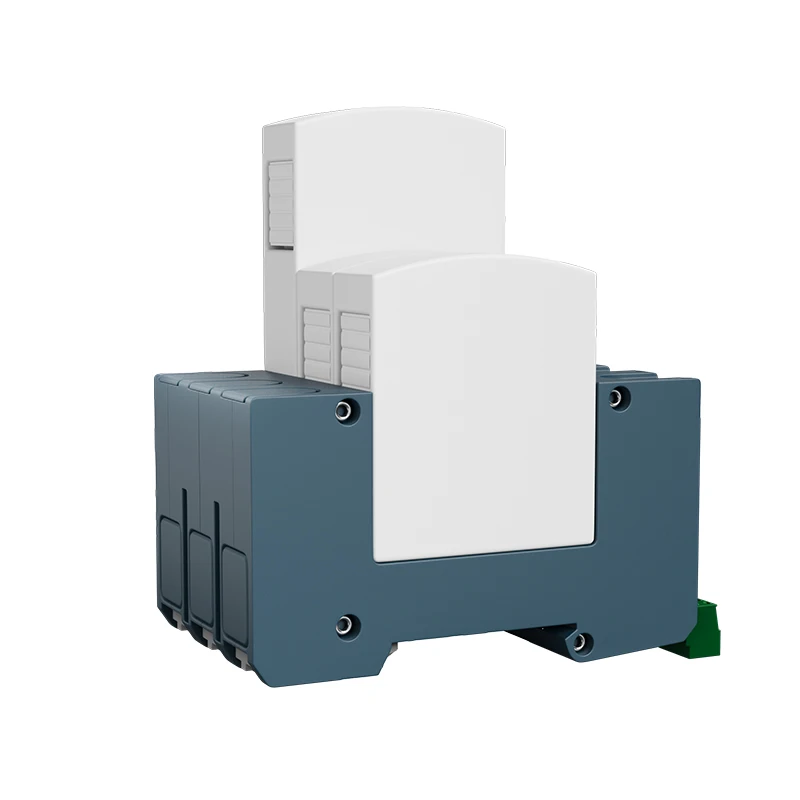

LKX PV 20ka 40ka pv dc 800v/1000v/1200v 2p 3p T2 electric protection led Parafoudre DC SPD surge protection devices
- Category: >>>
- Supplier: Wenzhou Leikexing Technology Co. Ltd.
Share on (1601282999330):
Product Overview
Description
Professional manufacturer of surge protective device (SPDs)
We are a reliable surge protection device manufacturer in China, dedicated to producing top-quality Surge Protective Device (SPDs). With a deep understanding of industry standards and regulations, Leikexing produces millions of surge protection devices annually. Our team is committed to delivering Surge Protective Device (SPDs) that combine exceptional quality with a customer-centric approach, ensuring our products are perfectly aligned with market demands.

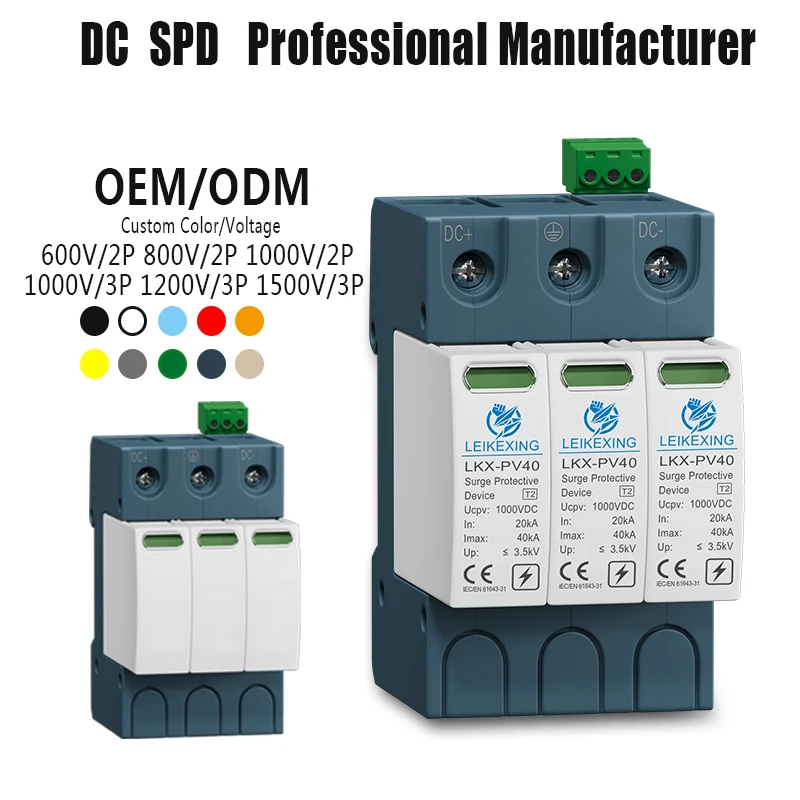

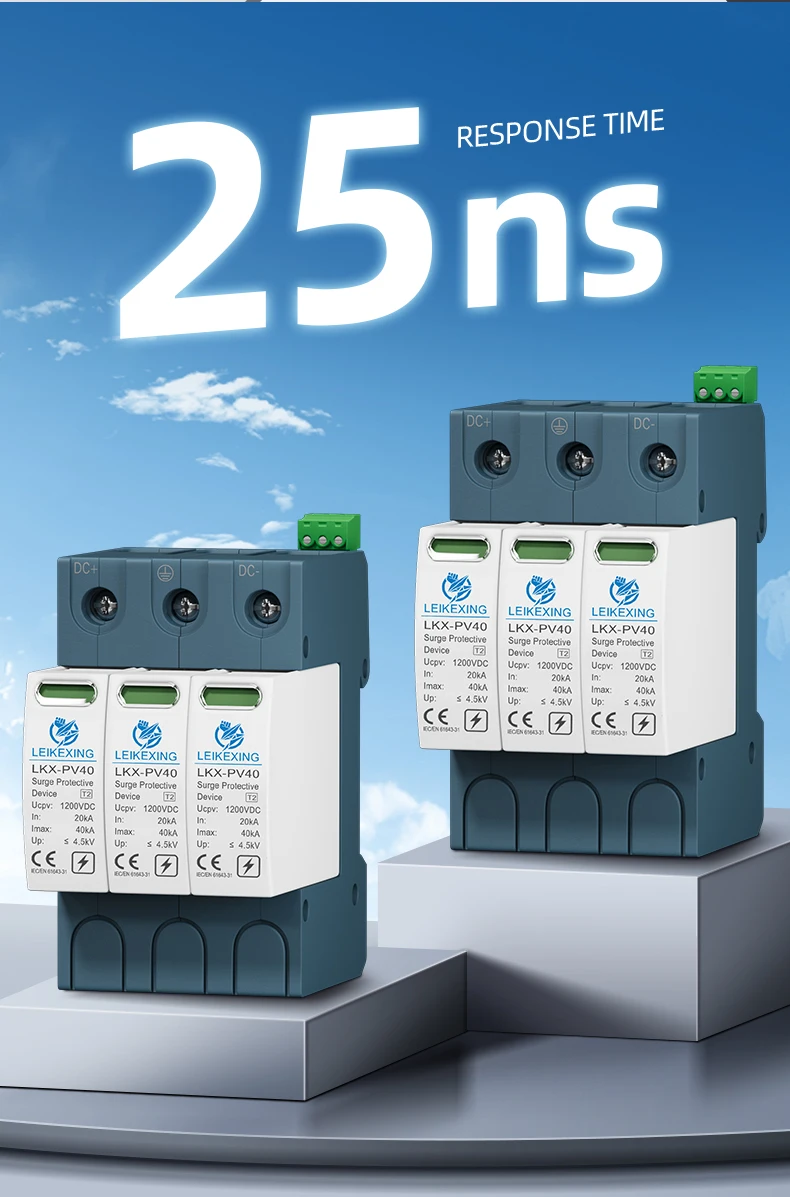

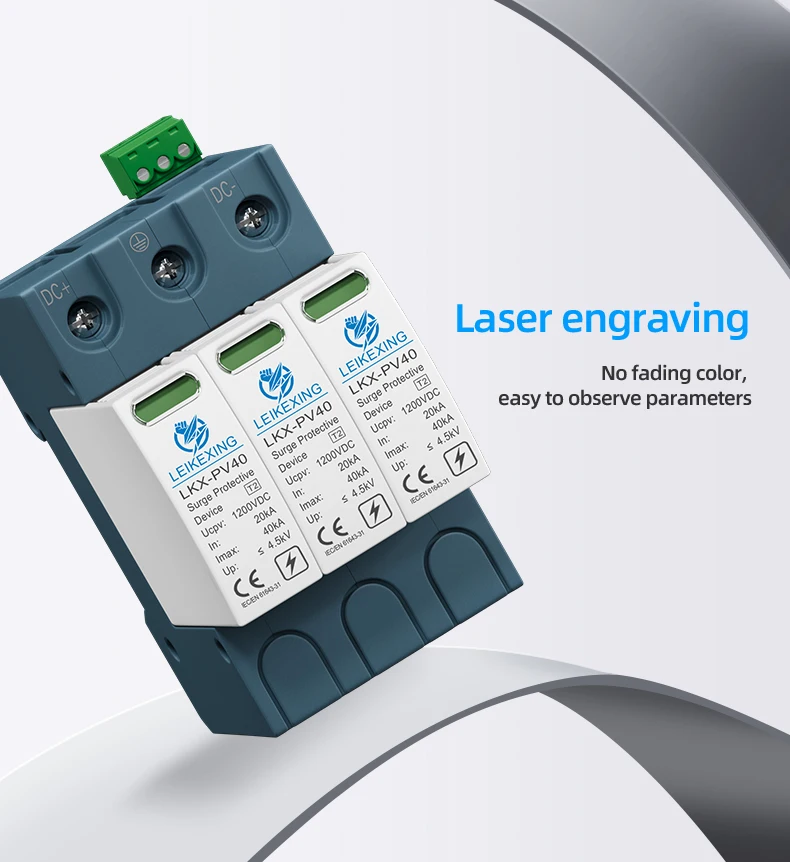

LKX-PV40 surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).

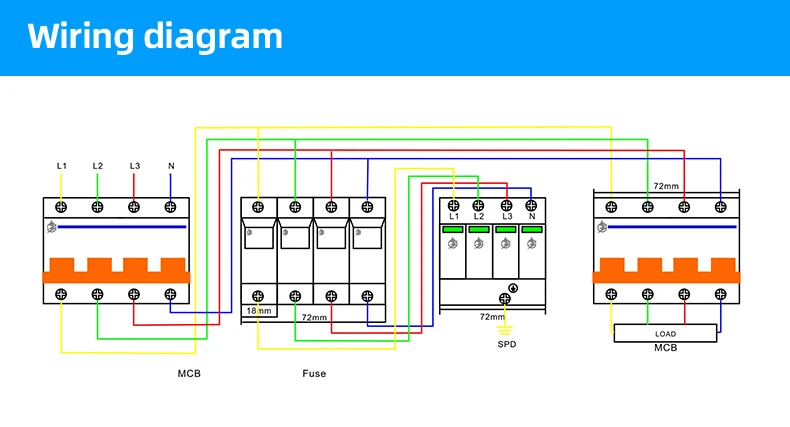

These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
Its installed location are recommended at both ends of the DC power supply line(solar panel side and inverter/converter side), if the line rounting is external and long.

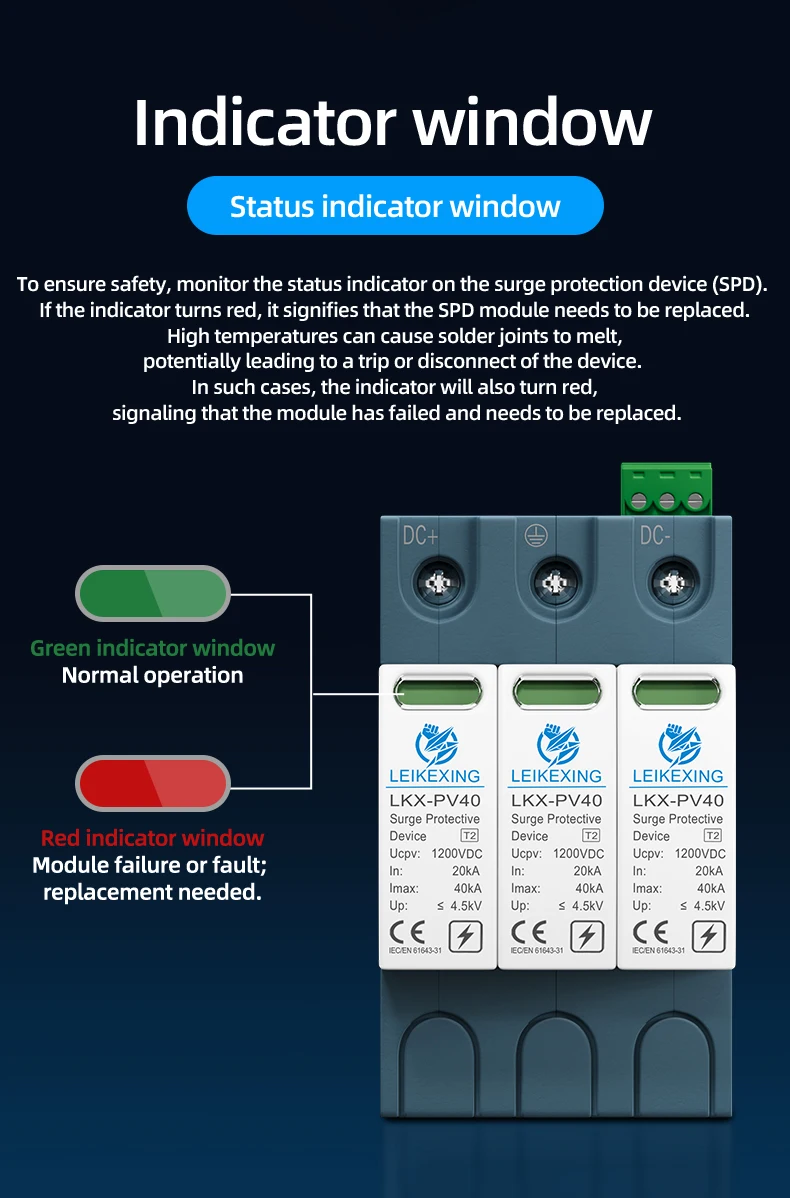

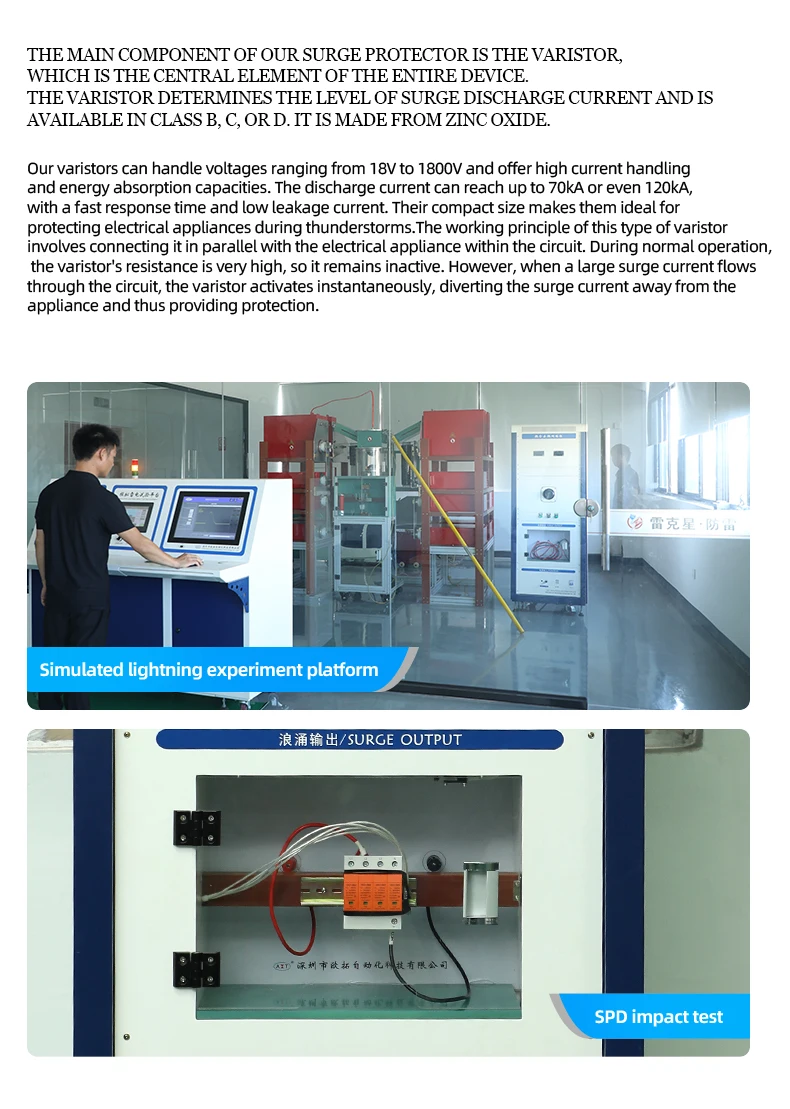

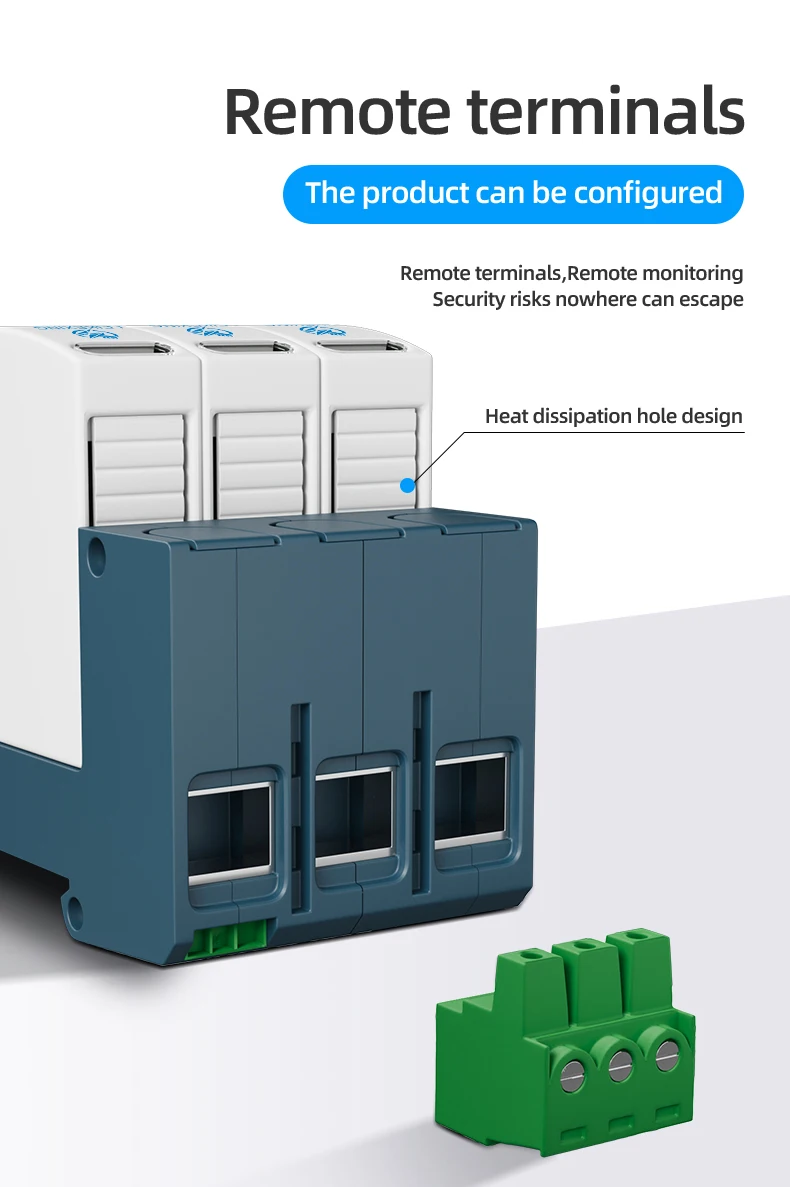

High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Product Voltage | 48V DC SPD | 500V DC SPD | 600V DC SPD | 800V DC SPD | 1000V DC SPD | 1200V DC SPD | 1500V DC SPD |
Product model | LKX-PV40 | LKX-PV40 | LKX-PV40 | LKX-PV40 | LKX-PV40 | LKX-PV40 | LKX-PV40 |
In(kA) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Imax(kA) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Up(kV) | 1.0 | 2.5 | 3.2 | 3.6 | 4.0 | 4.5 | 5.2 |
Response time(ns) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Uc | 48V | 500V | 600V | 800V | 1000V | 1200V | 1500V |
Operating temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
