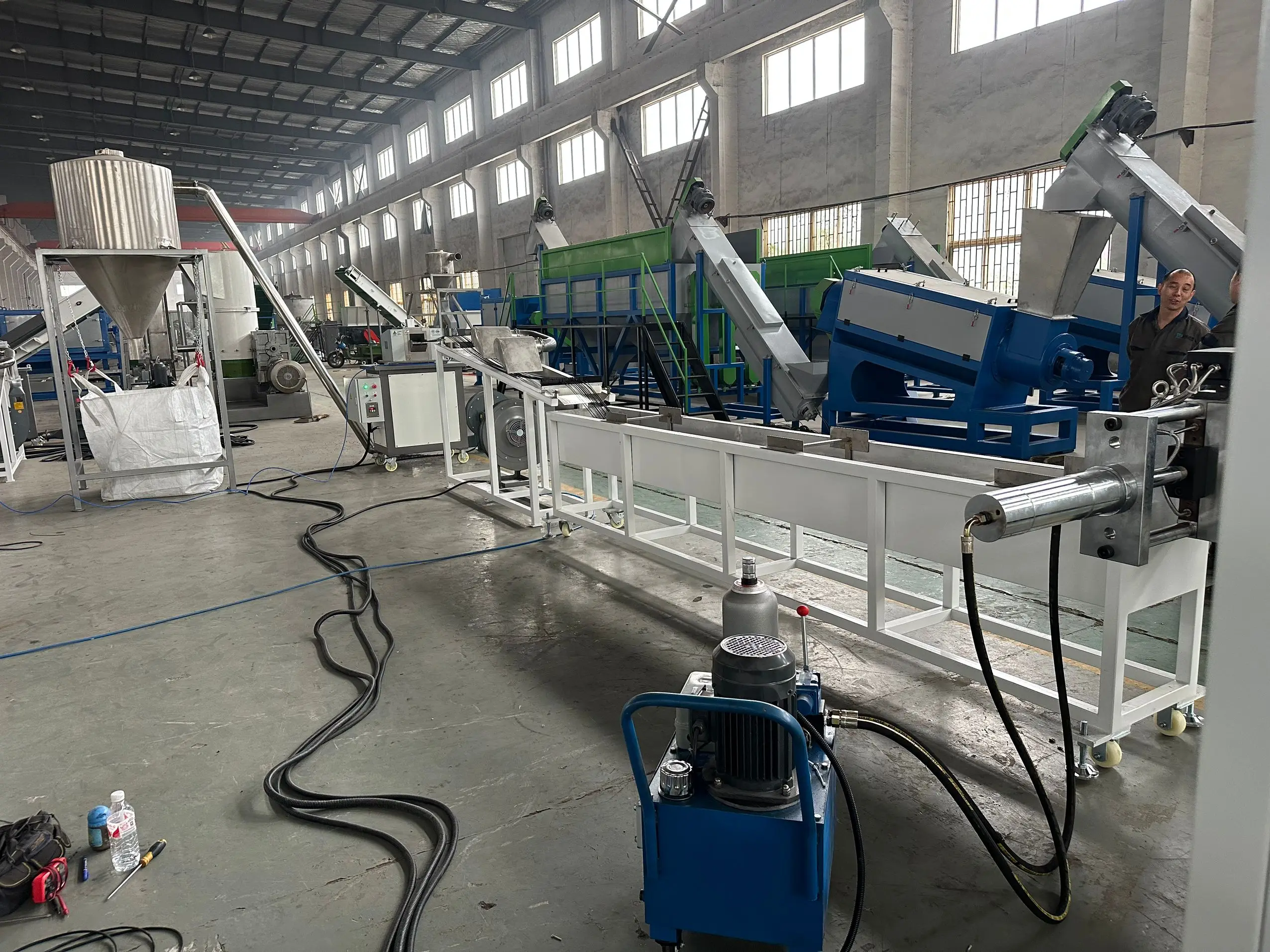

100 1000kg/h PE PP Double Stage Noodle Type Granulator Machine
- Category: >>>
- Supplier: Zhangjiagang Jumu Machinery Co. Ltd.
Share on (1601283000588):
Product Overview
Description
100-1000kg/h PE PP Double Stage Noodle Type Granulator Machine
Vedio Description
This machine consists of a single screw extruder, hydraulic network, granulation head, cooling water tank, granulator, fan cooling and storage box etc.The unique design of screw , suitable for all kinds of raw material granulating, dyeing and regeneration.The output is two times the general models.Special mould design can make granulate more uniform,The unique design of cutter and hardened resulting in longer equipment life. Water-cooled pull strap granulate production line is by extrusion granulation ,with parallel twin-screw extruder or single screw extrusion machine and corresponding granulation auxiliary consisting of granulating equipment.
Product Description
Equipment Detail Diagram

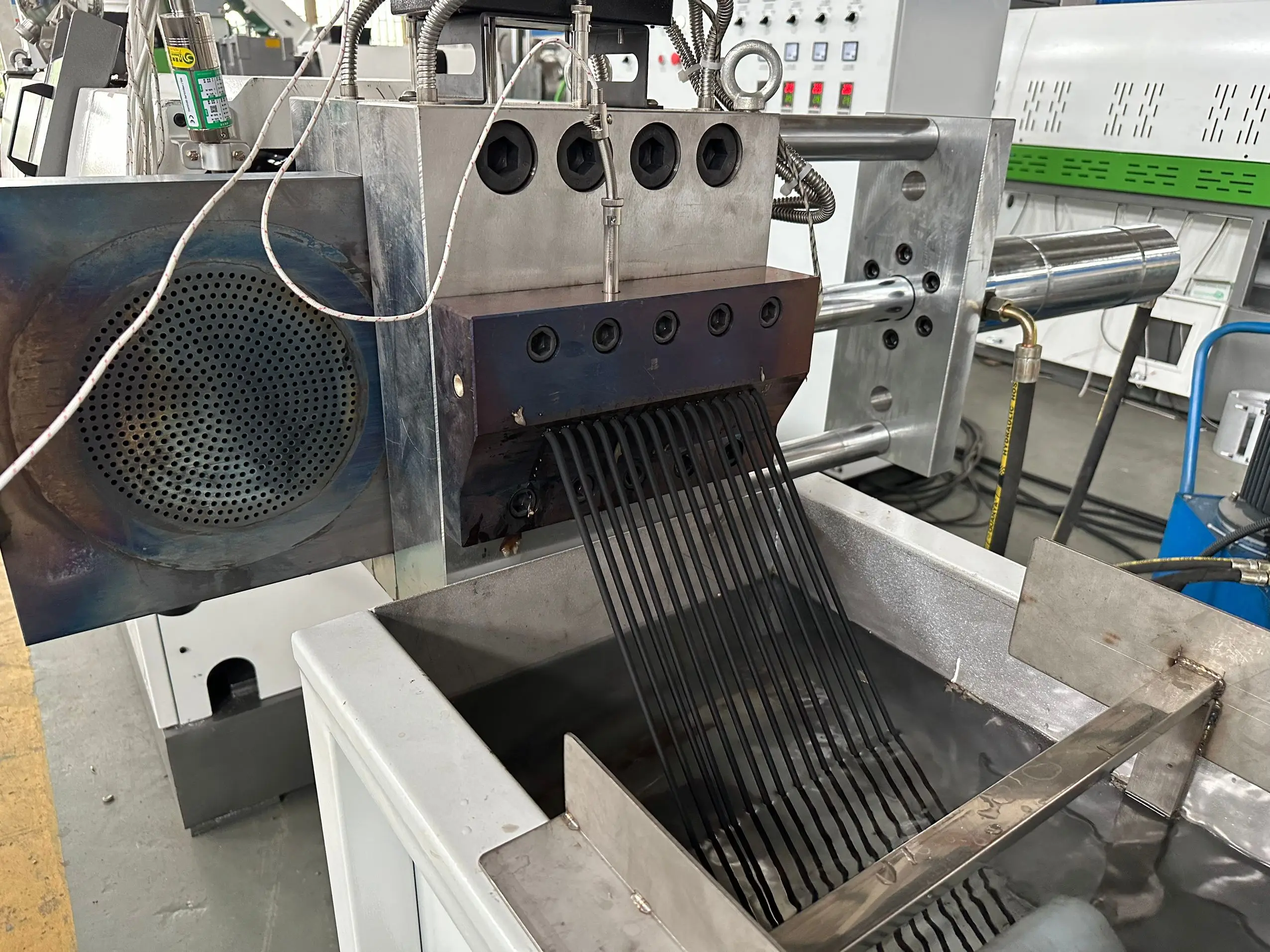

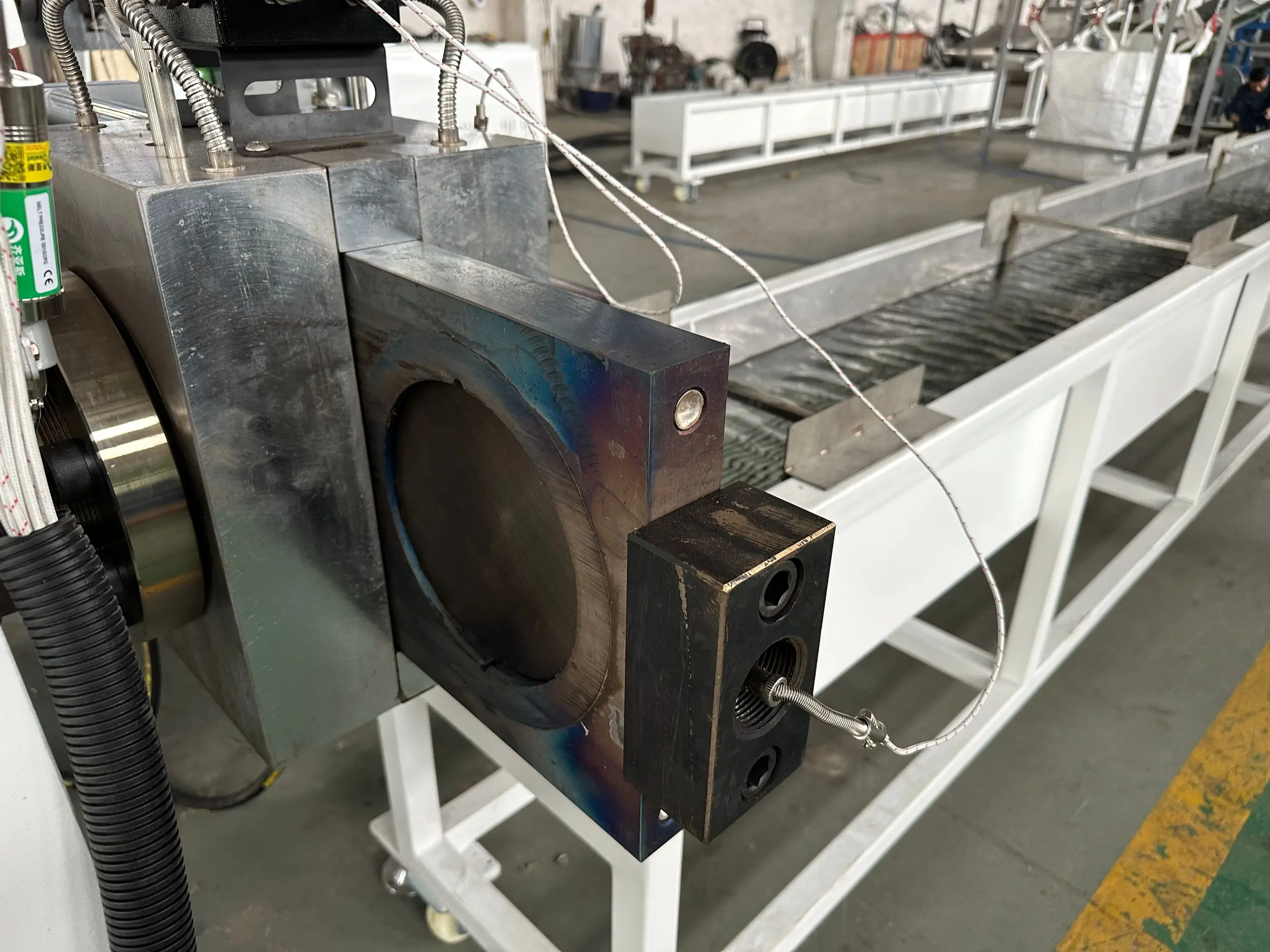

Hydraulic screen exchanger
motor : 2.2kw AC
Take maximum pressure:20 Mpa
Nets material:38 CrMoA
Pressure sensor:YES
Screen diameter:300mm
Screen type:Double filter, no stop

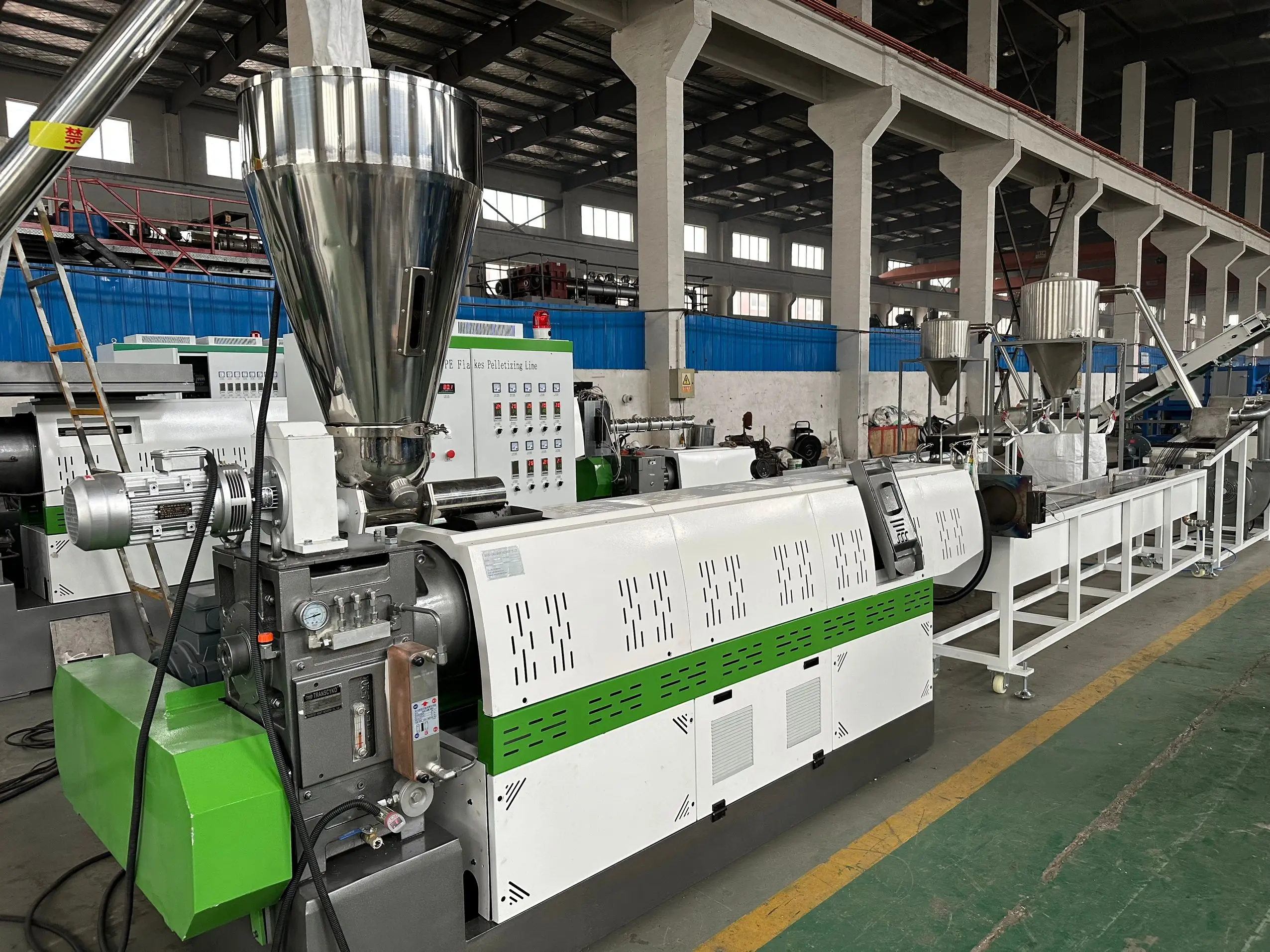

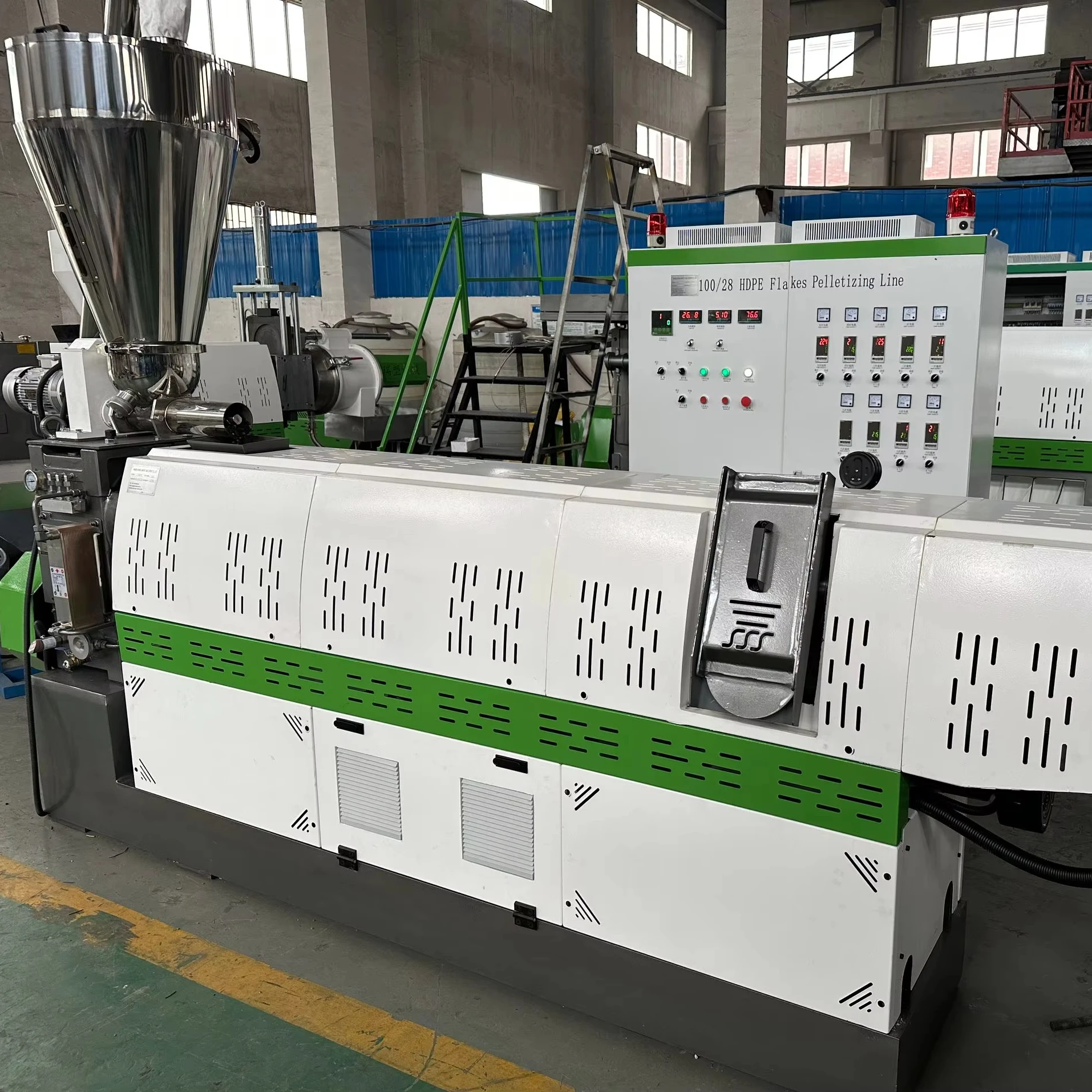

SJ100 Single screw extruder
Screw:38CrMoA1A,Nitrogen treatment
Barrel:38CrMoA1A,Nitrogen treatment
Quenched hardness:HB230-250
Hardness:HV850-950
Gearbox:high torque, low noise, Hardened teeth grinding
Heating:\tCast Aluminum
Wind-cooling:temperature controller
Drive power : 75kw AC motor
Frequency Control:Inverter
Screw diameter:100mm
L/D:\t28:1
Lubrication:forces lubricating

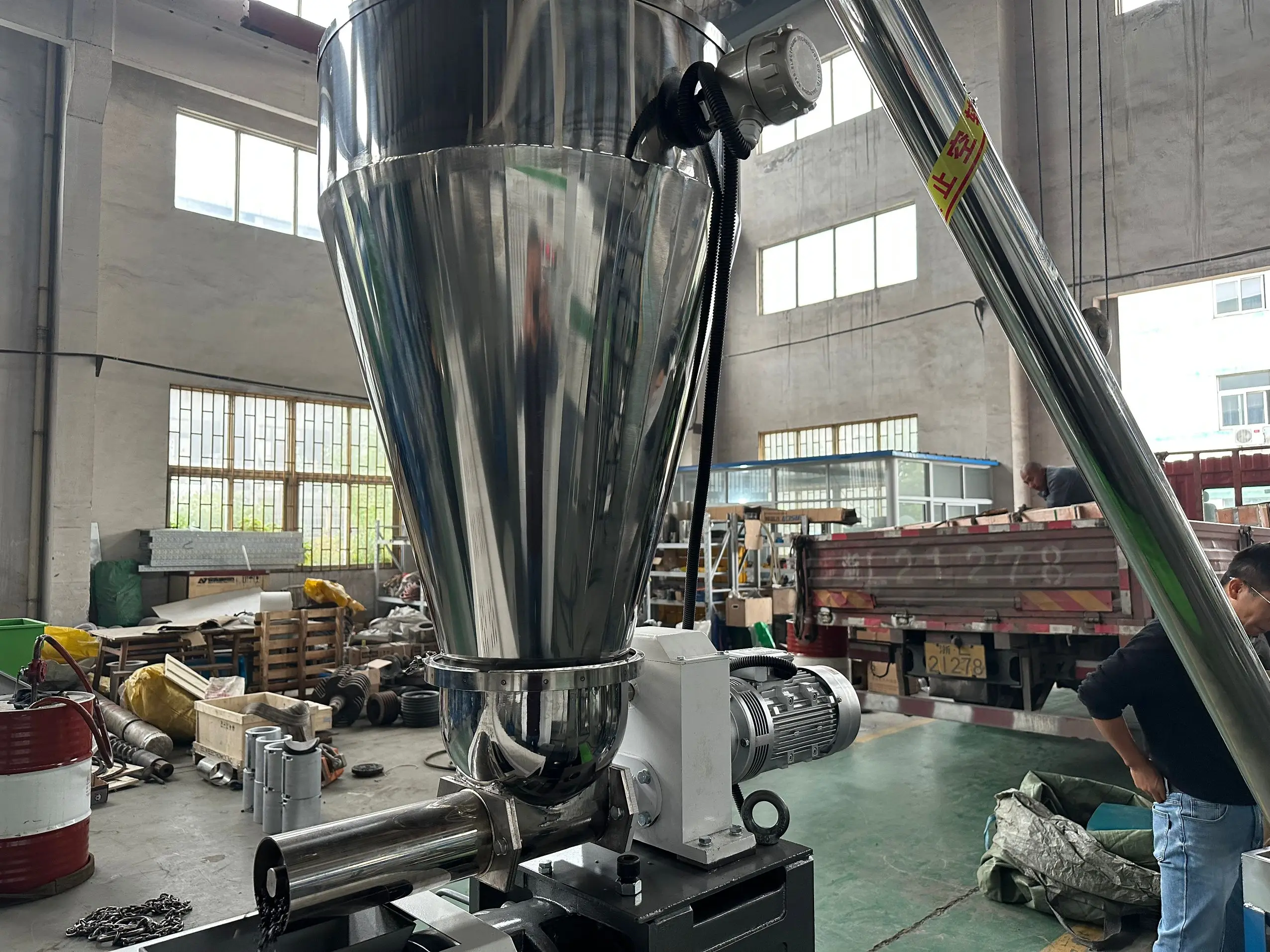

Feeding machine:Metering feeding
degassing:one open zone, the second with a vacuum pump: 3 kw
Barrel:38CrMoA1A,Nitrogen treatment
Quenched hardness:HB230-250
Hardness:HV850-950
Gearbox:high torque, low noise, Hardened teeth grinding
Heating:\tCast Aluminum
Wind-cooling:temperature controller
Drive power : 75kw AC motor
Frequency Control:Inverter
Screw diameter:100mm
L/D:\t28:1
Lubrication:forces lubricating
Feeding machine:Metering feeding
degassing:one open zone, the second with a vacuum pump: 3 kw

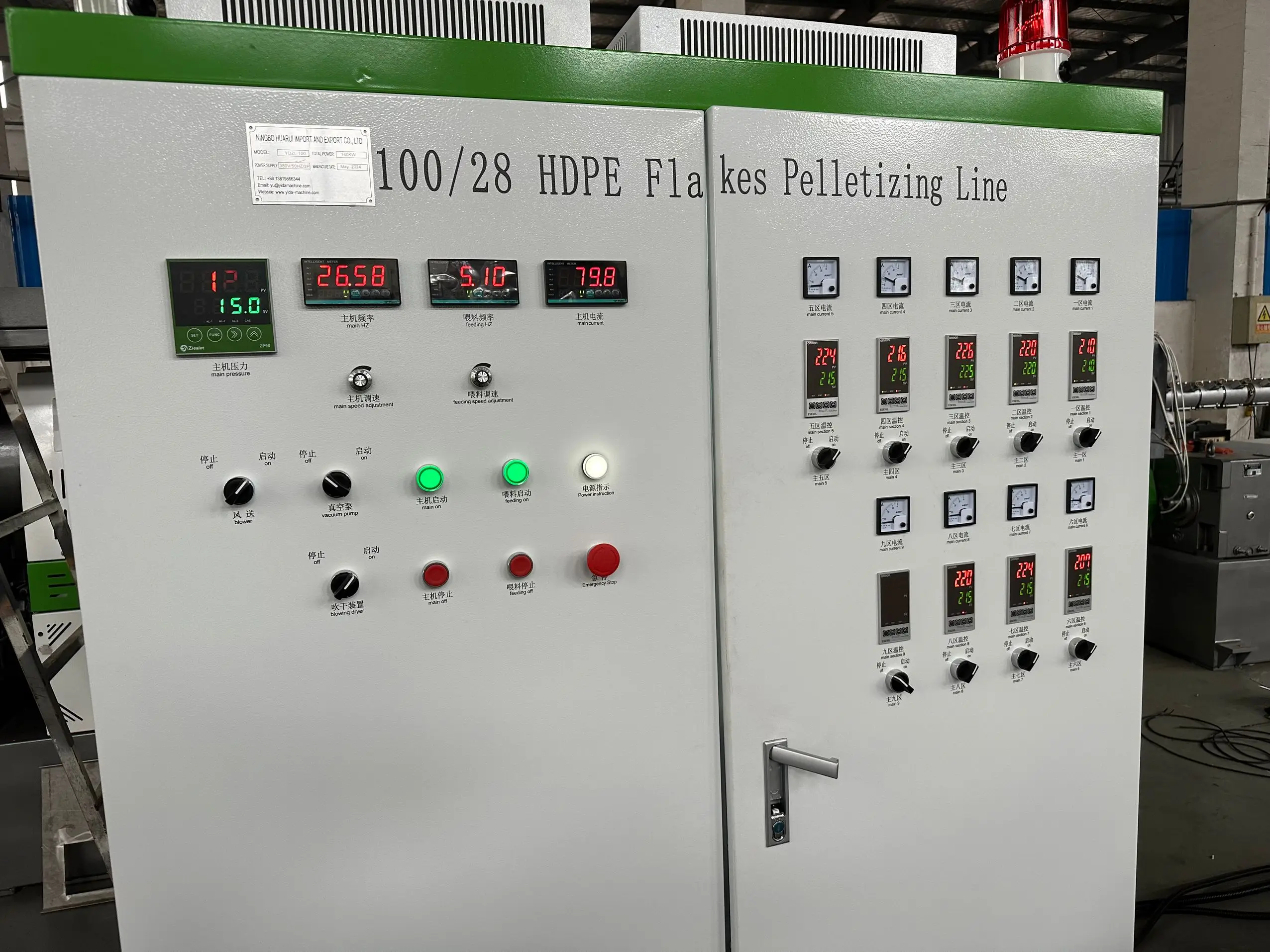

Electric control box
Temperature controller:Japan “Omron”
Frequency converter:INOVANCE OR TECO
Switch:SCHNEIDER
Button:SCHNEIDER
Frequency converter:INOVANCE OR TECO
Switch:SCHNEIDER
Button:SCHNEIDER

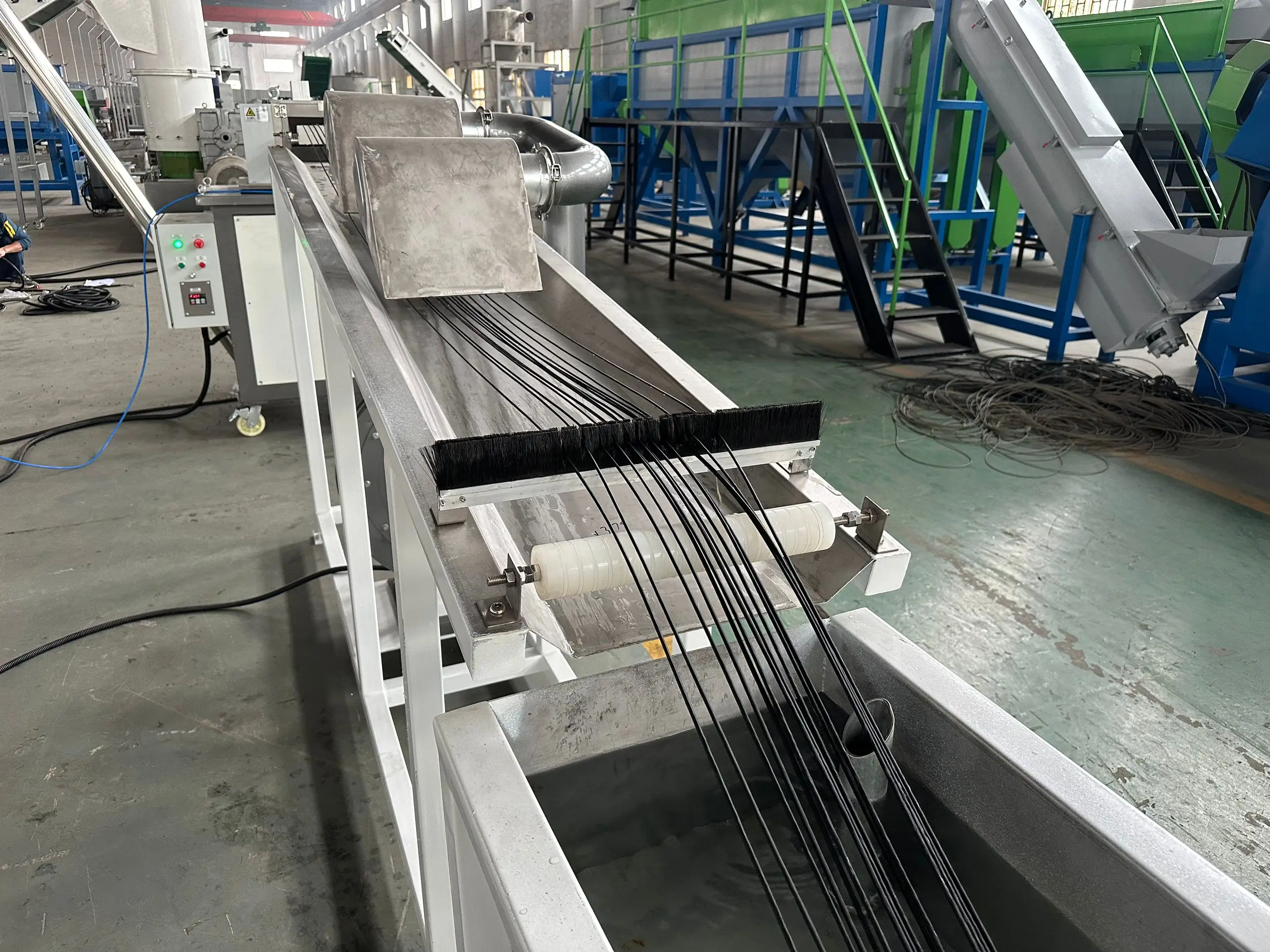

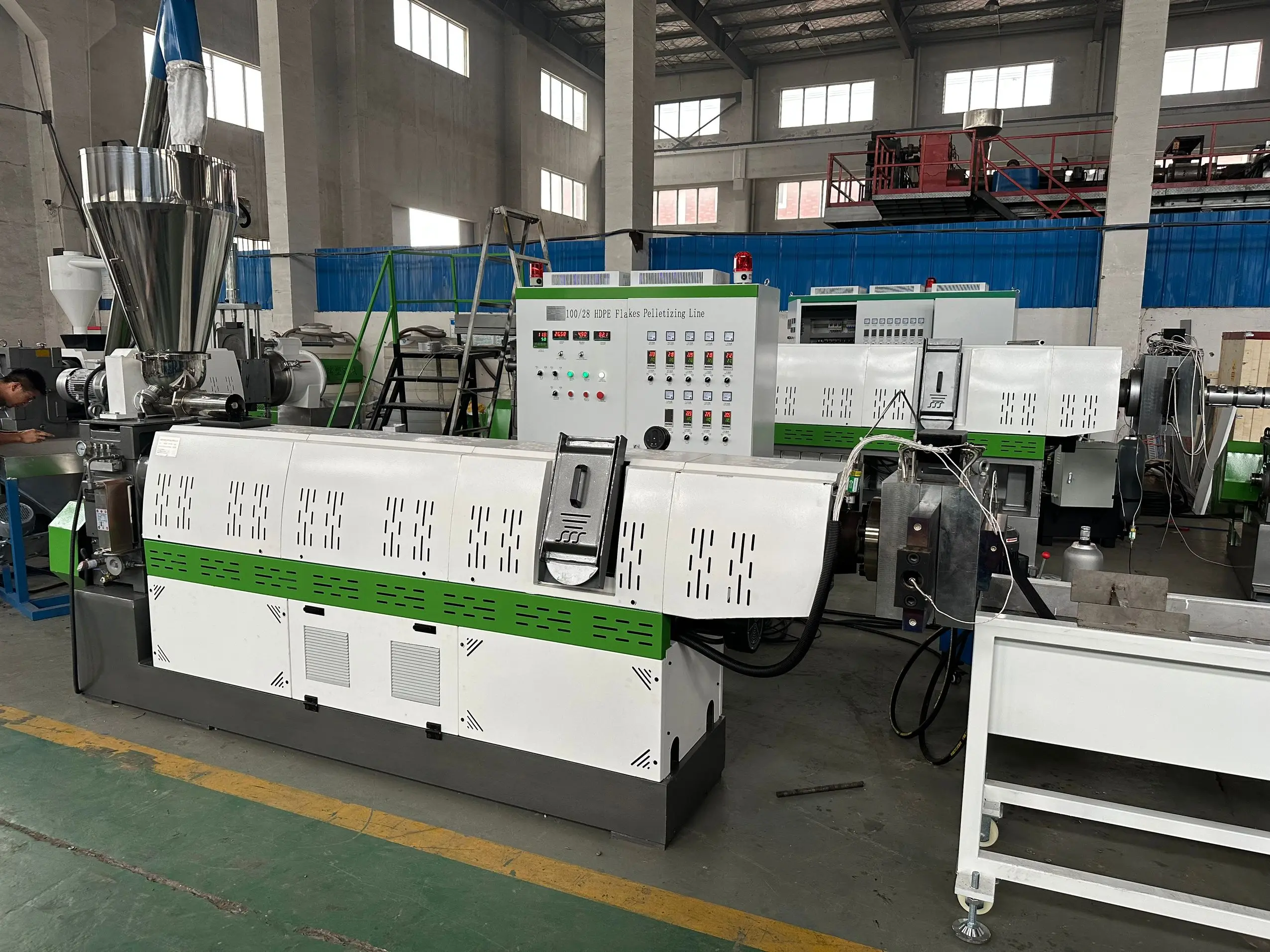

Product Photo
Main Technical Parameter
Model | Screw diameter | L/D | Main motor power | Capacity |
SJ90 | 90mm | 25-33:1 | 55KW | 100-150KG/H |
SJ100 | 100mm | 25-33:1 | 75KW | 150-200KG/H |
SJ120 | 120mm | 25-33:1 | 90KW | 200-300KG/H |
SJ150 | 150mm | 25-33:1 | 132KW | 300-400KG/H |
SJ160 | 160mm | 25-33:1 | 160KW | 500-600KG/H |
SJ180 | 180mm | 25-33:1 | 200K W | 600-800KGH |

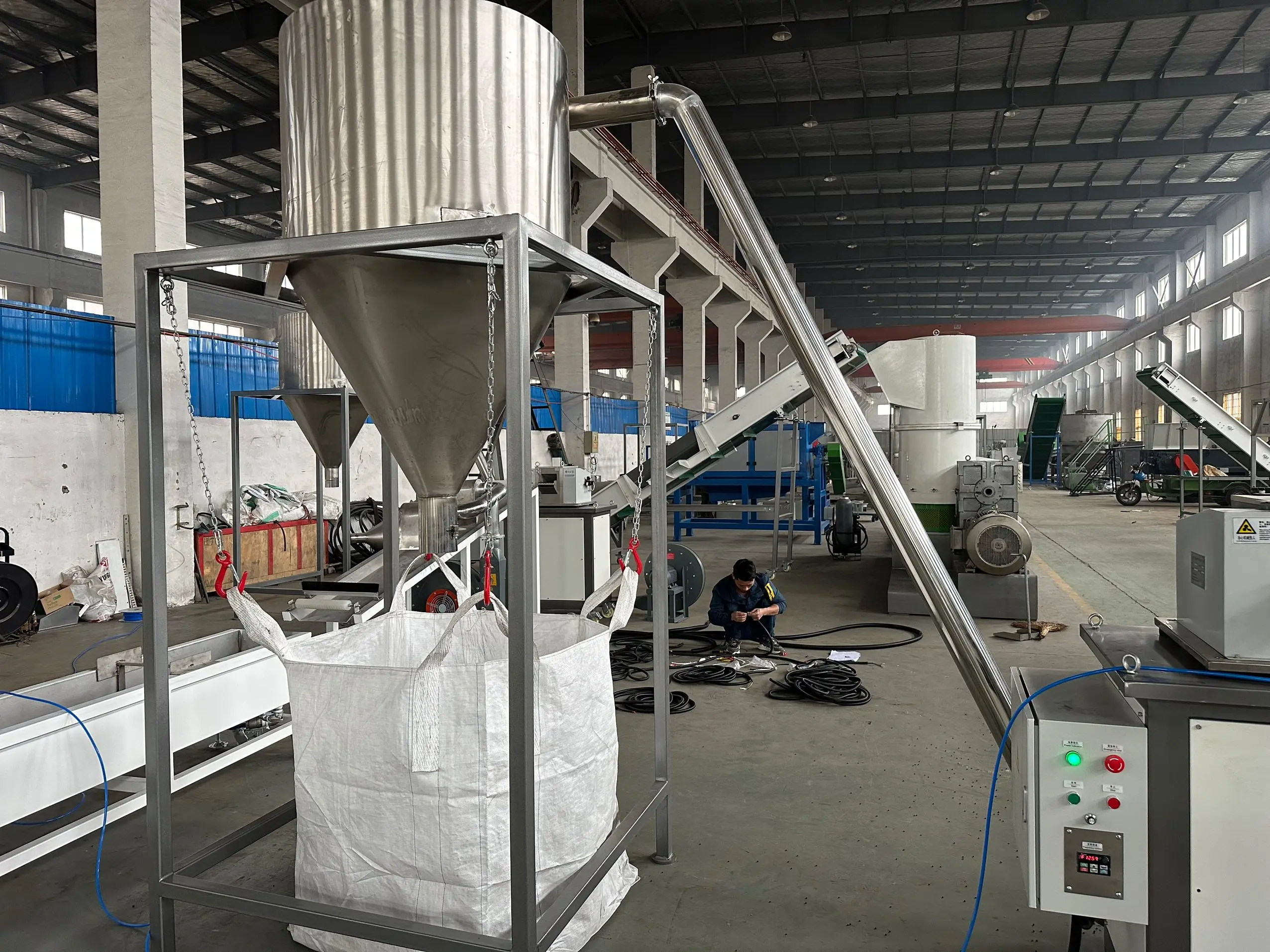

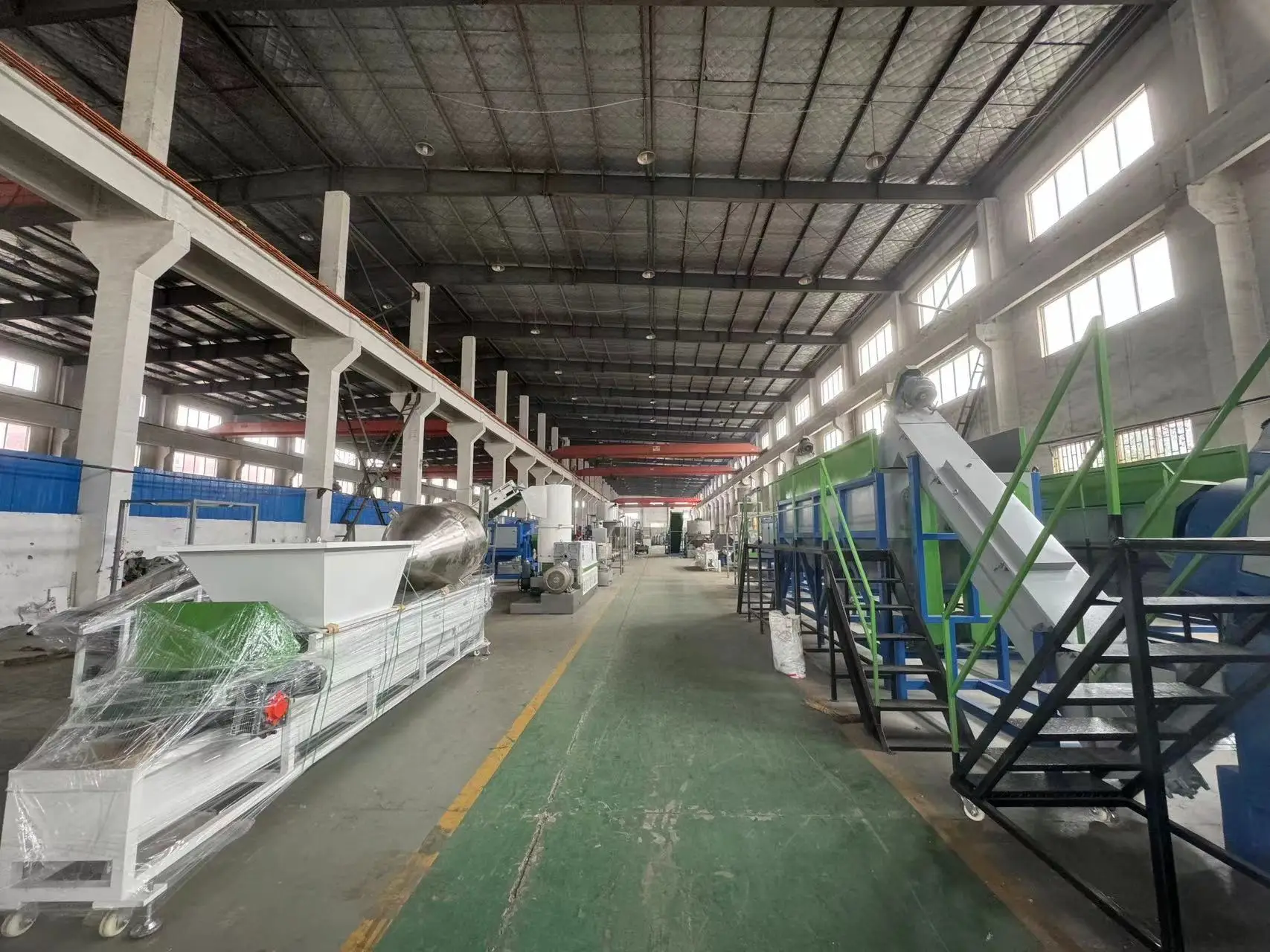

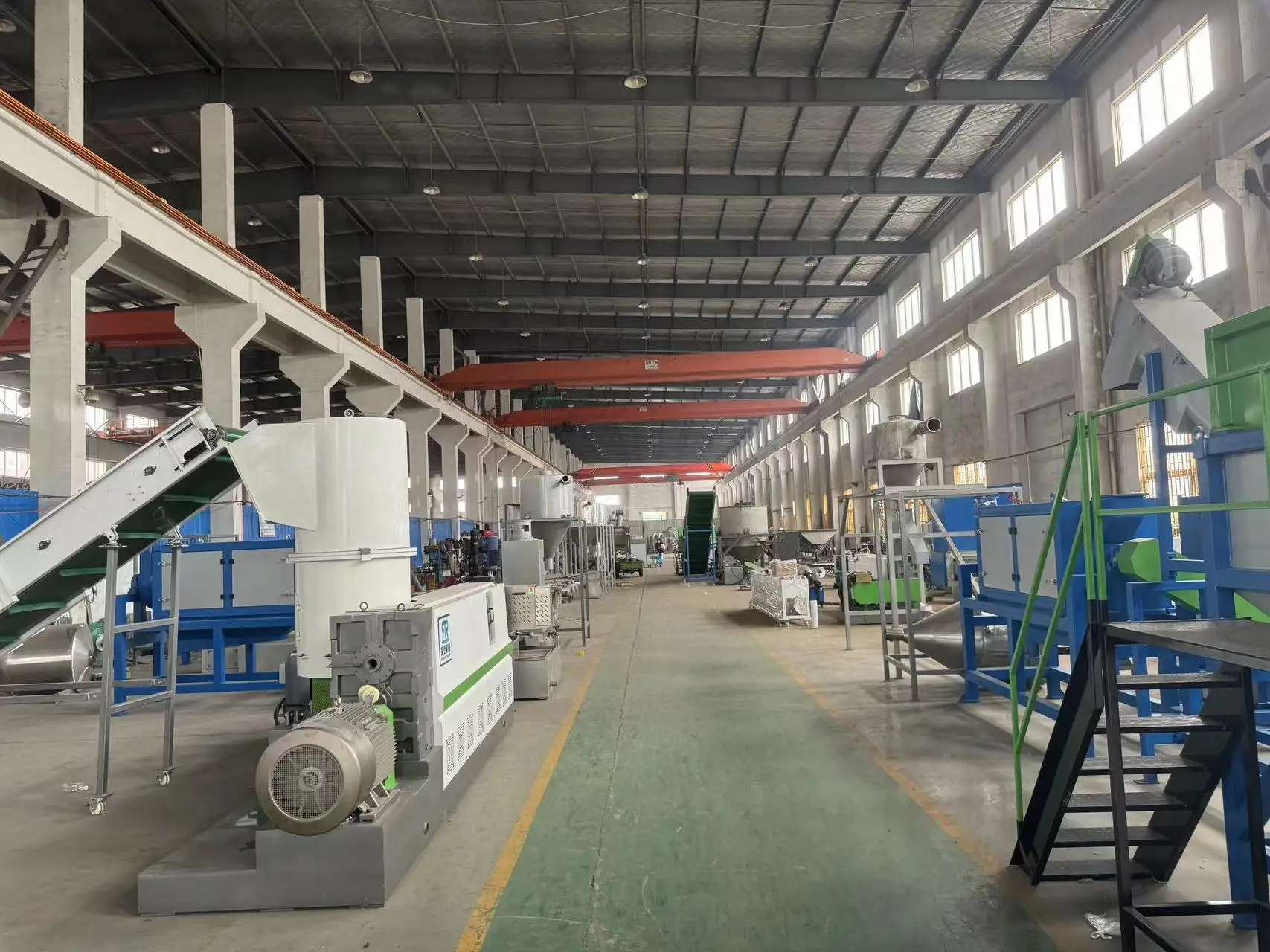

Company Factory

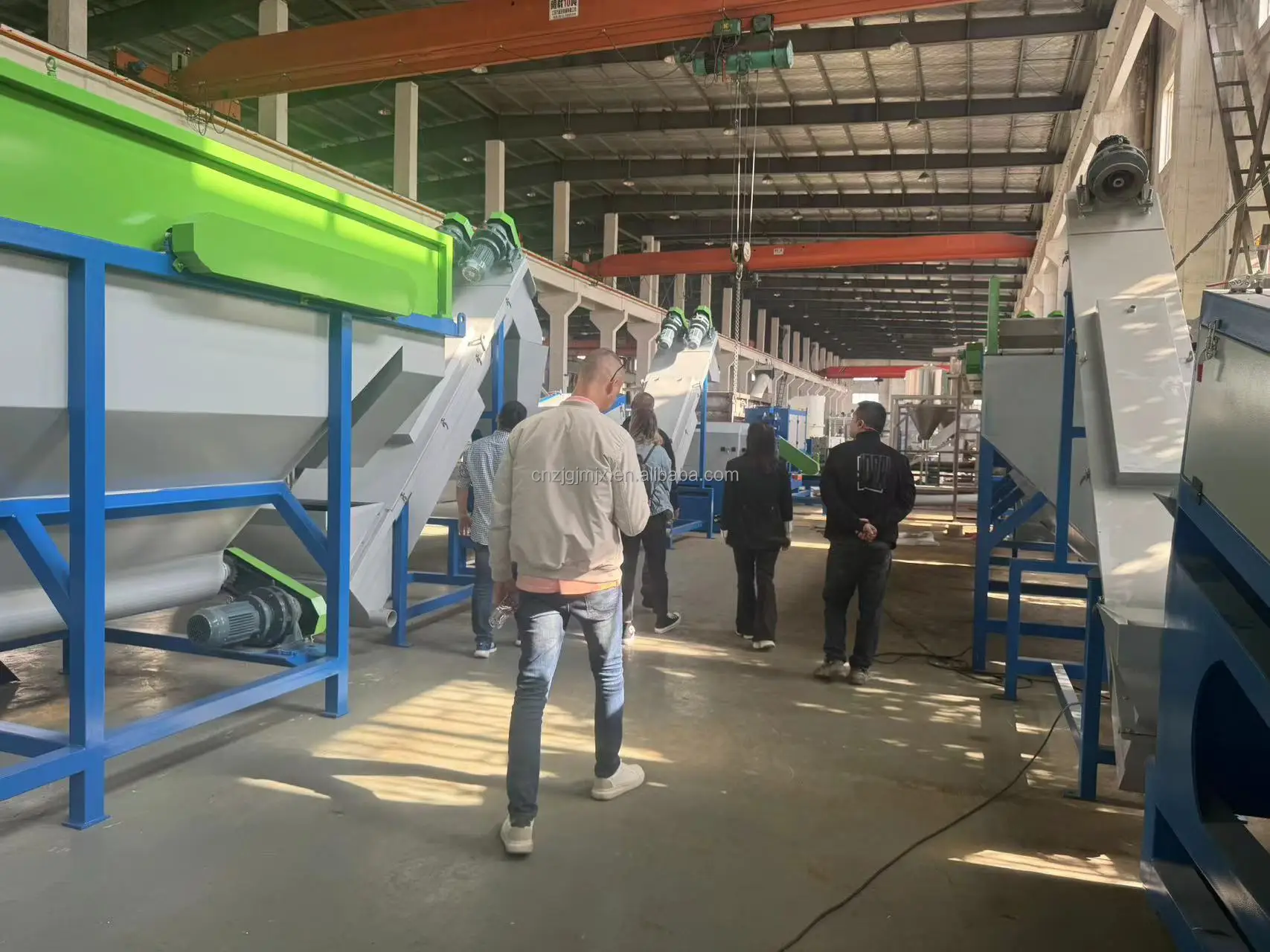

Customer Photos

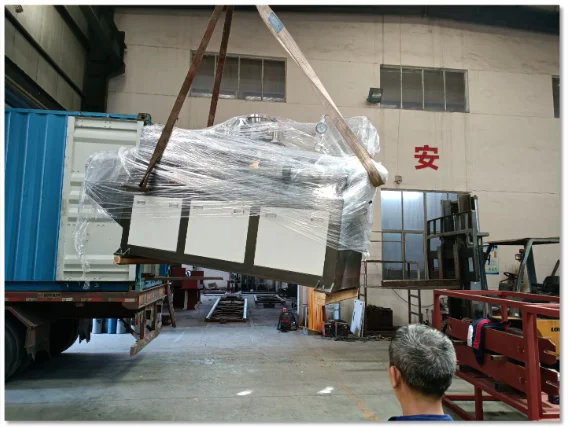

Product packaging
