1200W 3kw 5kw 10kw VAWT Windmill Vertical Axis Wind Turbine 24V 48V 120v 220v Wind Power Generator With MPPT Charger
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601283027176):
Product Overview
Description
You May Like
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Specification
Item | 600W | 1KW | 2KW | 3KW | 5KW | 8KW | |||||
Rated Voltage | 12V-96V | ||||||||||
Start up speed | 2m/s | ||||||||||
Rated wind speed | 11m/s | ||||||||||
Survial Wind Speed | 45m/s | ||||||||||
Wind Wheel Diameter | 0.38M | 0.52M | 0.52M | 1.0M | 1.2M | 1.2M | |||||
Blades Height | 0.68M | 1.1M | 1.1M | 1.7M | 2.0M | 2.0M | |||||
Blades Quantity | 2 PCS | ||||||||||
Blades Material | Glass Fiber | ||||||||||
Control System | Electromagnet | ||||||||||
Mount Height(m) | 3~12m | ||||||||||
Generator protection grade | IP54 | ||||||||||
Work environment temperature | -25~+45ºC | ||||||||||
Work environment humidity | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Overspeed protection | Electromagnetic brake | ||||||||||
Rated Voltage | 12V-96V | ||||||||||
Start up speed | 2m/s | ||||||||||
Rated wind speed | 11m/s | ||||||||||
Survial Wind Speed | 45m/s | ||||||||||

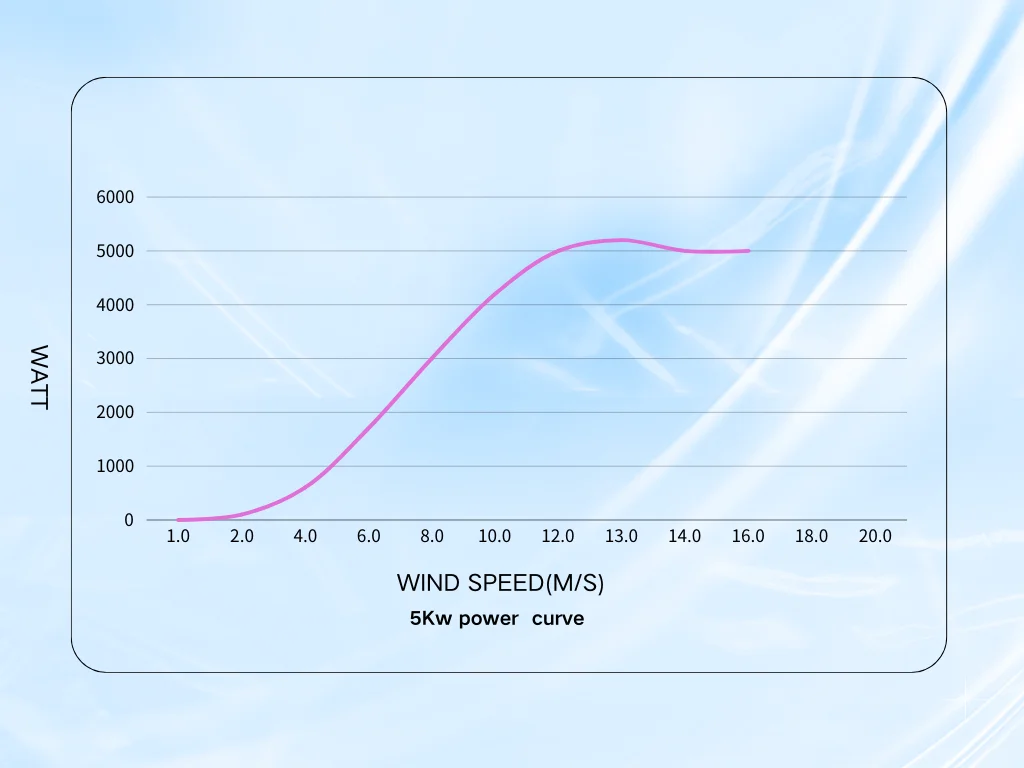

Power curve

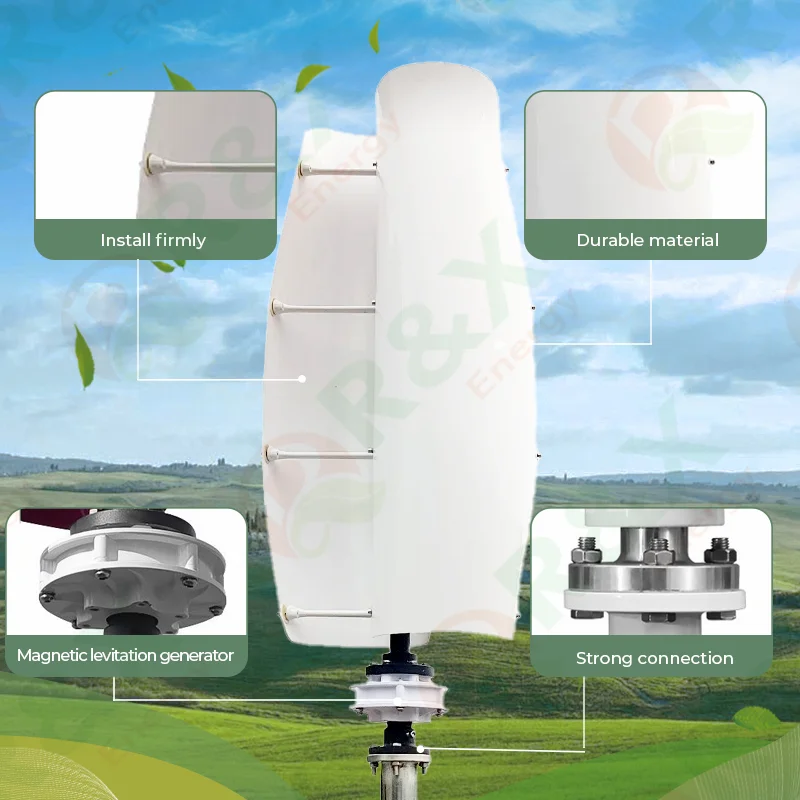

Product Description

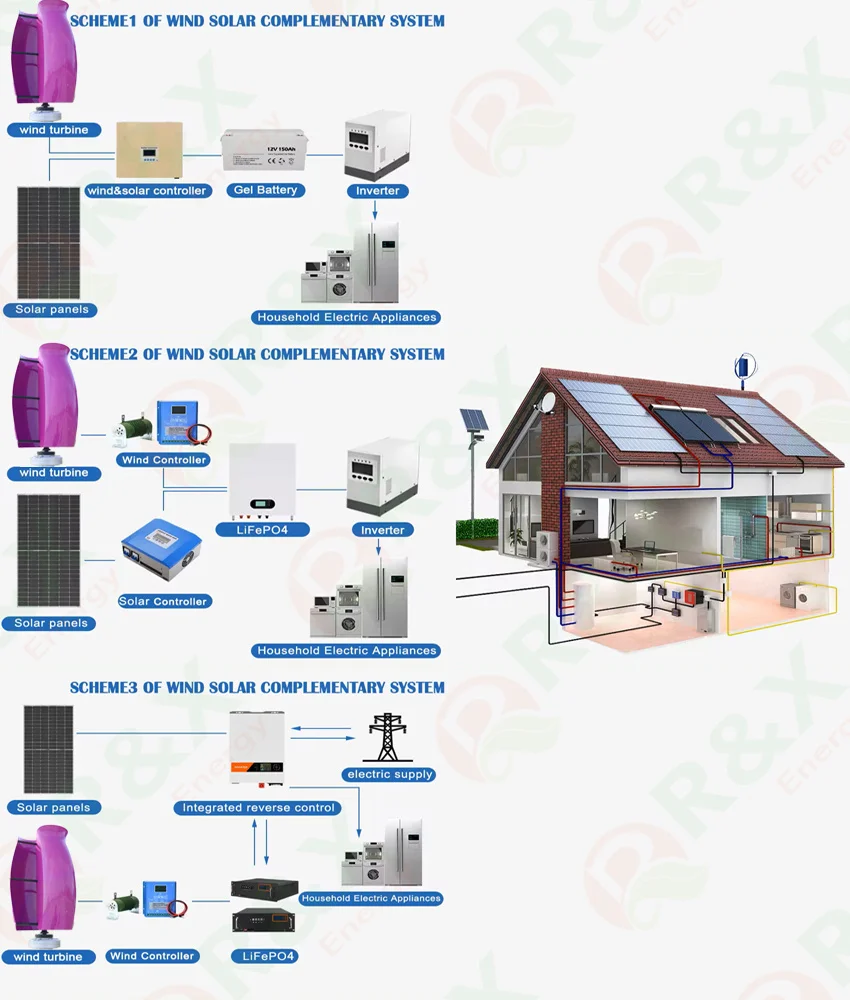

Wiring Diagram
