Wholesale New Trade AC Ammeter Voltmeter 60~500V Smart Wattmeter Dual Display 380V Voltage and Current Converter 3 Phase 2 in 1
- Category: >>>
- Supplier: Shenzhen Qintianyi Electronics Co. Ltd.
Share on (1601283039601):
Product Overview
Description
Wholesale New Trade AC Ammeter Voltmeter 60~500V Smart Wattmeter Dual Display 380V Voltage and Current Converter 3 Phase 2 in 1
The buyer must be Read:
1. This product can be used for sine wave and modified wave inverters, frequently turn on or turn off, or on circuits and equipments that contain harmonic components.
2. When choosing the range,it's not the larger the range, the better.Instead,the larger the range, the greater the error, it is recommended that you choose the range of 1.5 or 2 times the actual measured value.
Technical Parameters:
| Name | Parameter |
| Product name | AC ammeter voltmeter |
| Product type | YB27VA |
| Input voltage | AC60~500V |
| Current | 100A |
| Display color | 0.28 LED Dual color(Red/Blue); Red for voltage,Blue for current |

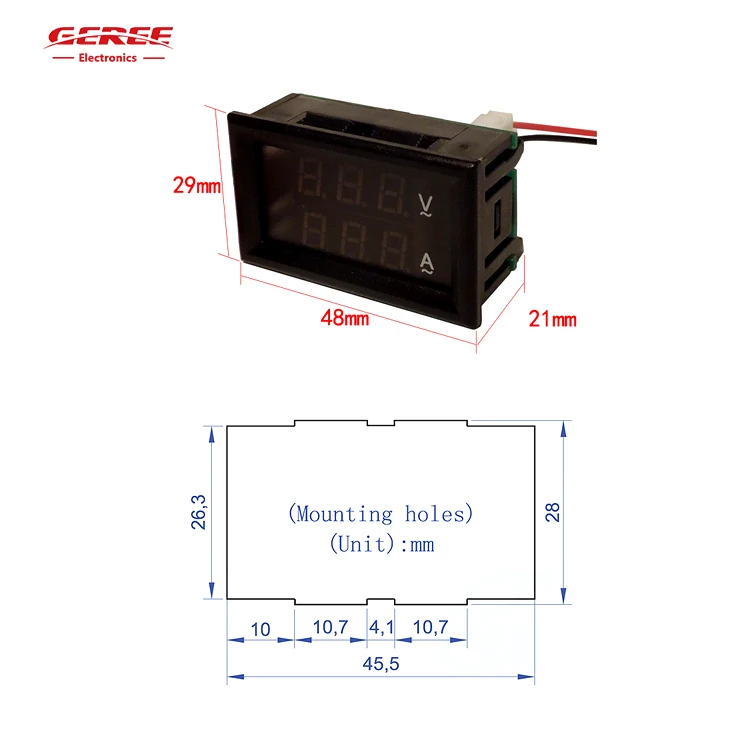

| Dimensions | 48*29*21mm |
| Installation opening | 45.5*26.3mm |
| Measurement rate | ≥500mS/time |
| Measurement accuracy | 1% (± 2 digits) |
| Working humidity | 10~80% |
| working pressure | 80~106kP |
Product Features:
- Both the voltage and current value are displayed on one screen.
- This product is used with superb SMT process.
- 0.28'' LED digital with single color or double color.
- Two-wire,no need external power supply.
- With a nice and tiny transformer.
- It is especially suitable for "harmonic containing" circuits.For example: modified wave inverter.
Packing list:
1*AC 60~500V Dual Color Dispaly Ammeter Voltmeter
contact to us
Statement
We reserve the right of little modification of the appearance of the product , subject to change without prior notice.
FAQ
1.Does your company accept samples?
yes,we accept samples.
2.Does your company accept custom?
yes,we accept custom for most product.
3.What payment do you accept?
Paypal west union TT credit card RMB Alibaba online payment ......
4.When do you send out the package?
we usually send out package about 2-7 days,if quanity is too big or custom,maybe send out package about 2 weeks.
5.What is your lead time ?
After the order have been confirmed the invoice will be sent for reference .Then make payment as the way you like , as soon as the payment have been confirmed ,we will arrange shippment within 3-7 work days .
6.Does your products can be ODM or OEM?
Yes,of course.OEM and OEM service are available from here.we can customize logo or packing as your request.
Packaging & Shipping
*If you need other shipping method , pls cotnact us and offer detailed shipping address , we will check shipping cost for you.
* If you choose to use buyer's shipping agent . Pls contact us .
