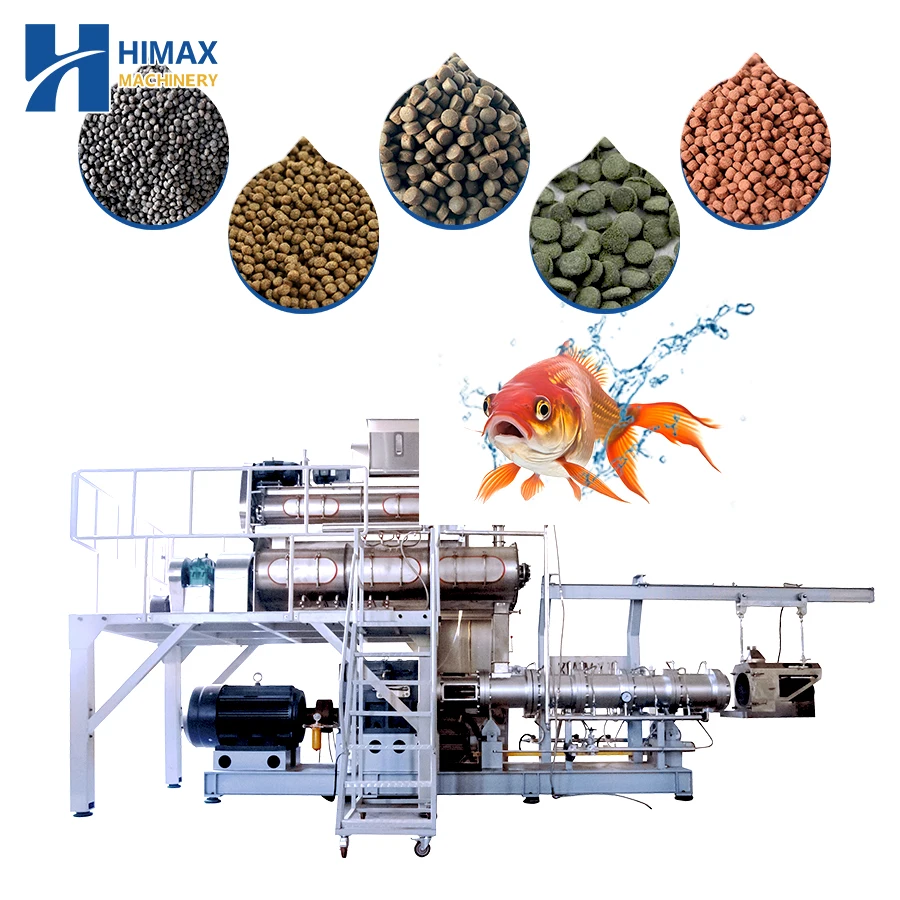

Factory Price Fish Feed Processing Machine Line Floating Fish Feed Production Line Fish Feed Making Machine Product
- Category: >>>
- Supplier: Himax Machinery Inc
Share on (1601283045707):
Product Overview
Description
Product Description
Application: Floating & Sinking fish feed, shrimp, aquatic feed, etc.
Product Description: Aquatic feed made by our twin screw extruder machine. Mainly use corn flour, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed Fish Feed food. By help of minerals, rich nutritional content and protein enrich fish growth life, ideal choice for factory. This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.
Big Output: 500kg/h, 800-1000kg/h, 1000-1500kg/h, 1500-2500kg/h, 3000kg/h and 5000kg/h.
Product Description: Aquatic feed made by our twin screw extruder machine. Mainly use corn flour, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed Fish Feed food. By help of minerals, rich nutritional content and protein enrich fish growth life, ideal choice for factory. This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.
Big Output: 500kg/h, 800-1000kg/h, 1000-1500kg/h, 1500-2500kg/h, 3000kg/h and 5000kg/h.

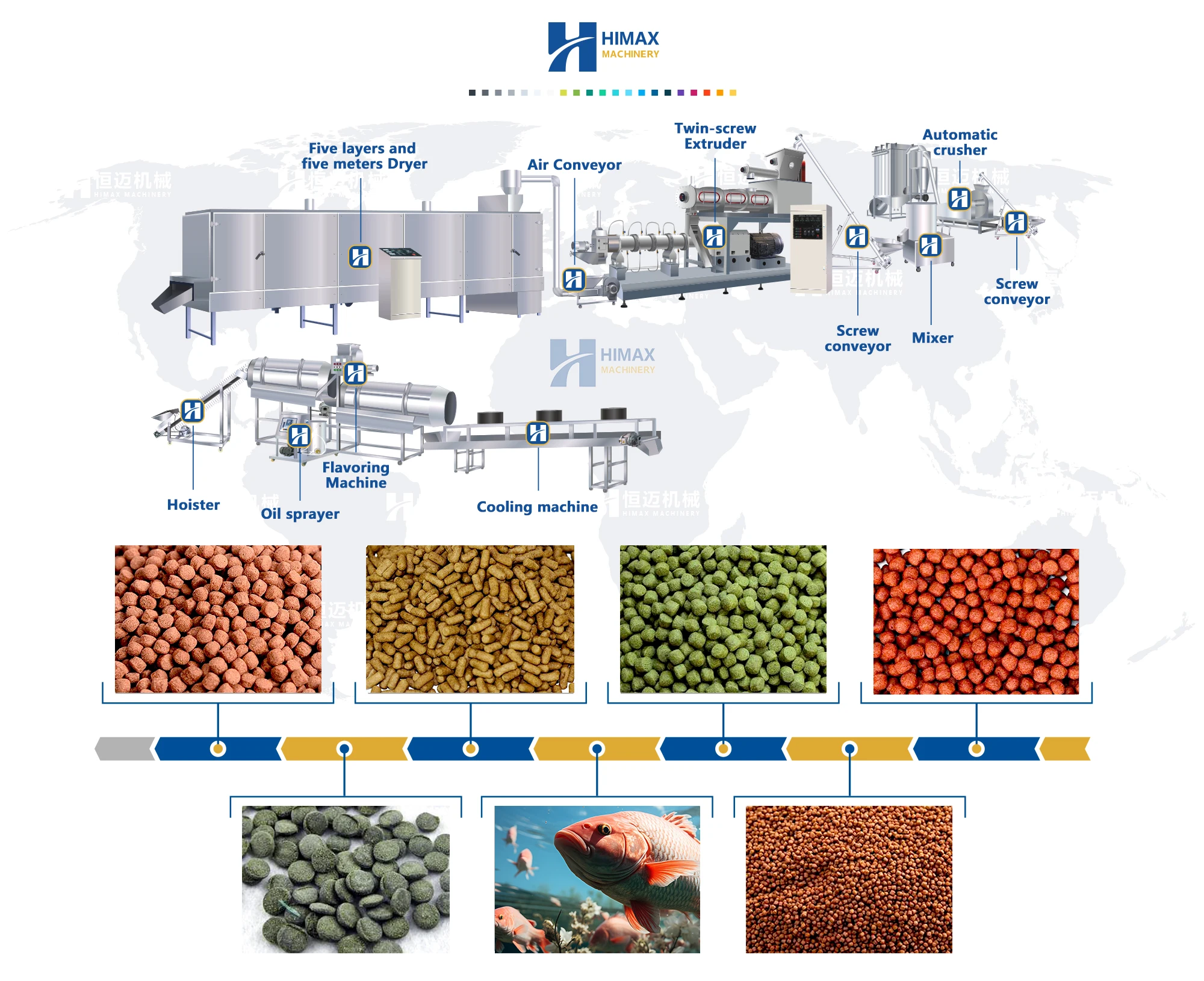

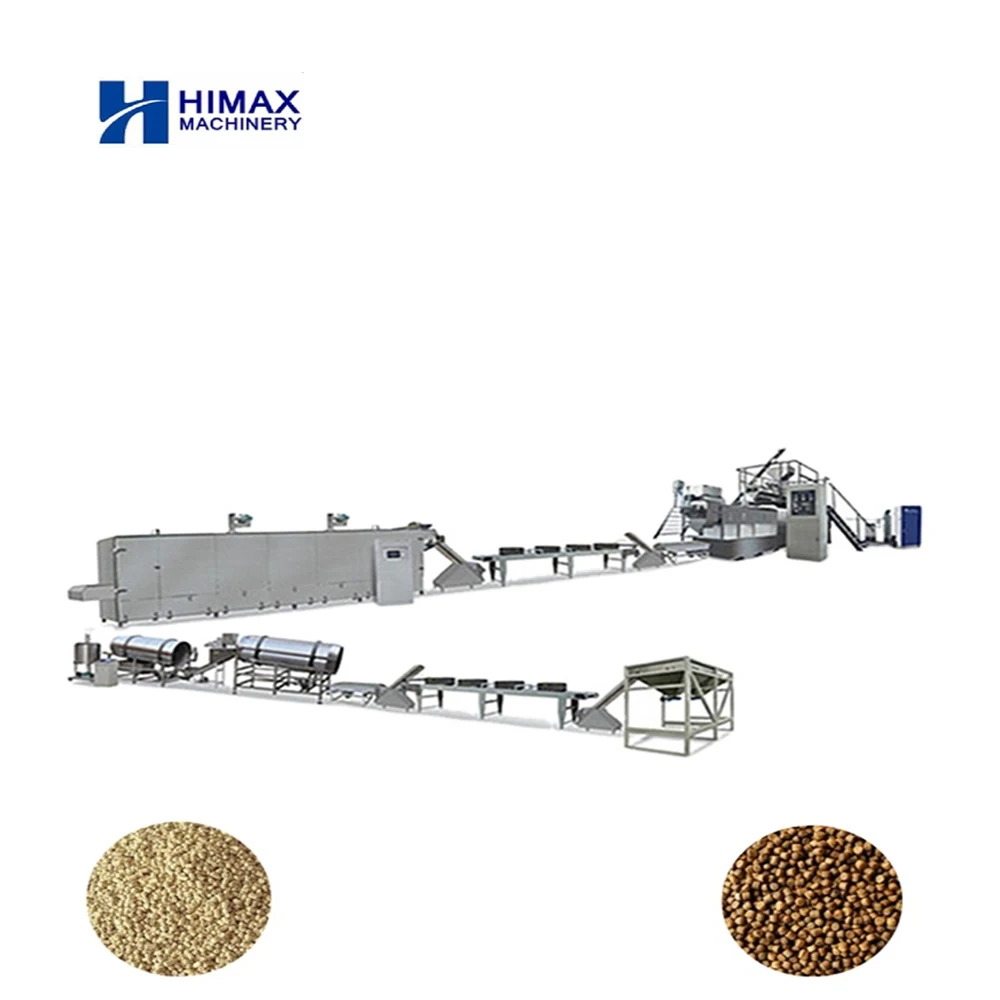

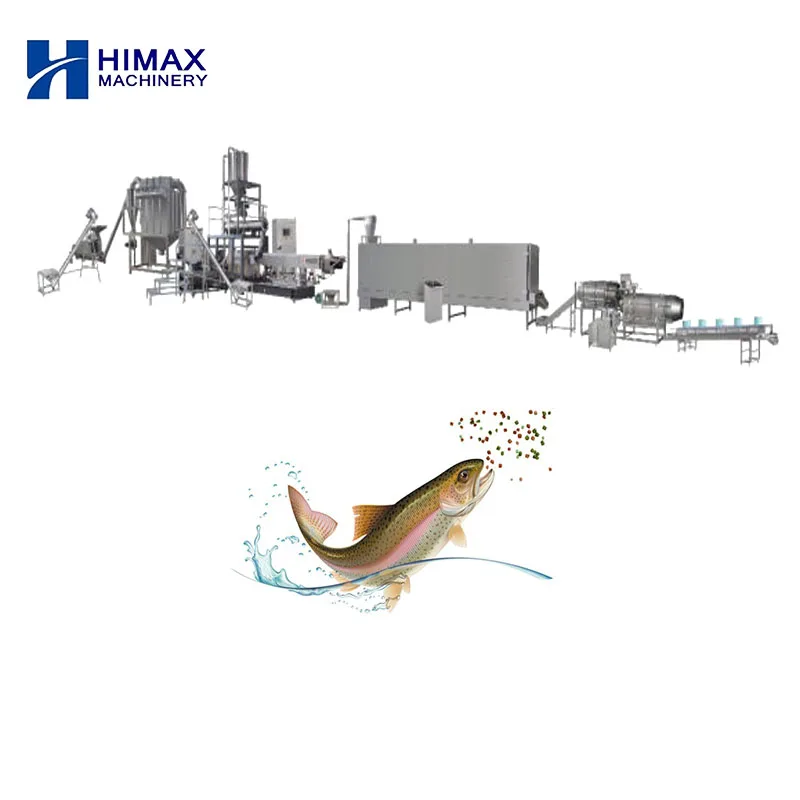

Flow ChartMixer-->Twin-screw extruder-->Air conveyor-->Dryer-->Hoister-->Flavoring machine-->Cooler
Our engineer could design machine layout and processing flowchart drawing according to your factory for the fish feed production line.
Sample
Raw material: corn flour, fish powder, meat powder Protein food, Soyabean and so on.This floating fish feed production line can produce fish feed,shrimp feed and other ocean creature feed,
We not only have the basic fish feed formula , but also the professional formula based on different kinds of fish.
We not only have the basic fish feed formula , but also the professional formula based on different kinds of fish.
The fish feed making machine could make various size of fish feed from 0.9-14mm and various shapes.
Specification
Parameter of fish feed production line
Model | HM70 | HM85 | HM95 | ||
Installed Power | 90KW | 120KW | 180KW | ||
Power Consumption | 50KW | 90KW | 120KW | ||
Production Capacity | 200-260Kg/h | 800-1000Kg/h | 1500-2000Kg/h | ||
Dimension | 24000*1500*2200mm | 30000*3500*2300mm | 45000*2500*2600mm | ||
Application | Adult fish feed/ carp feed/ grass carp feed /prawn feed/ fish meal/ crab feed/ expanded biological feed/ shrimp meal/ tilapia feed/trout feed/ salmon feed/ salmon feed | ||||
Details Images

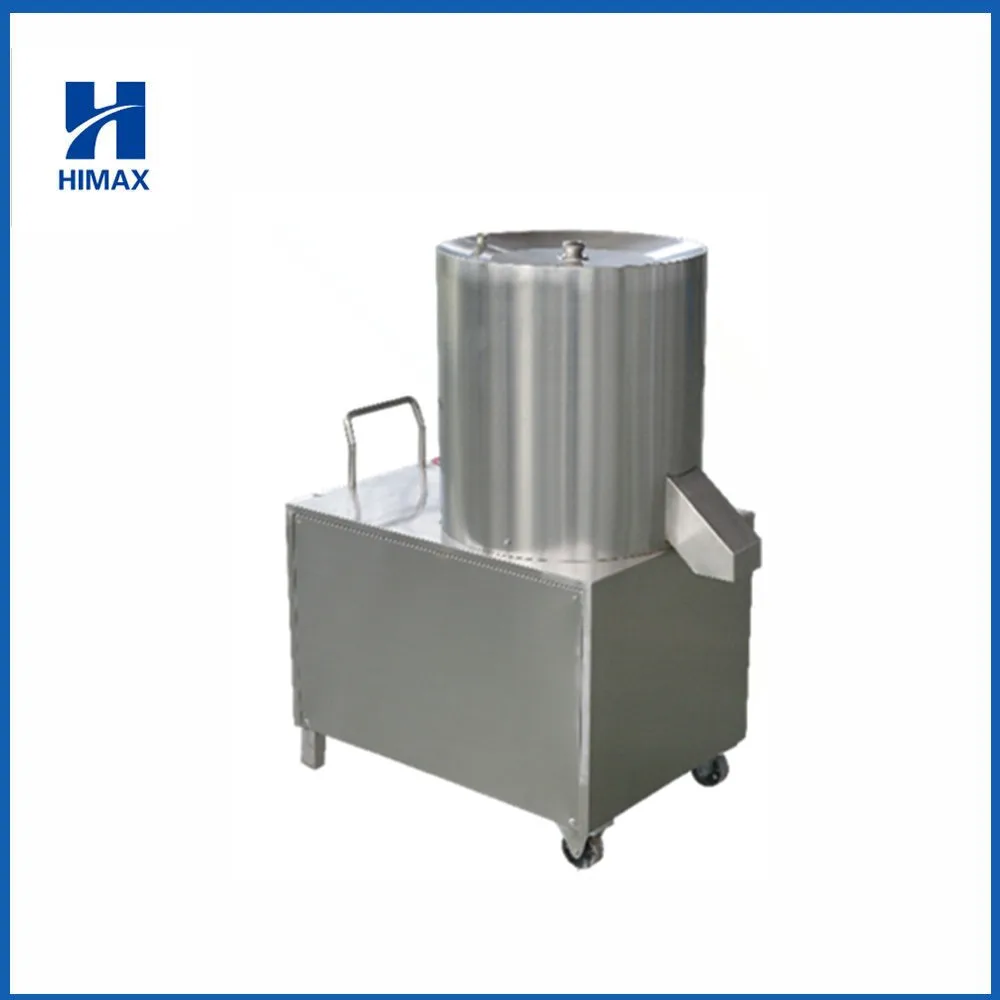

Mixer
mixer makes the raw material adding to water and liquid chemical additive fully mixed
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.

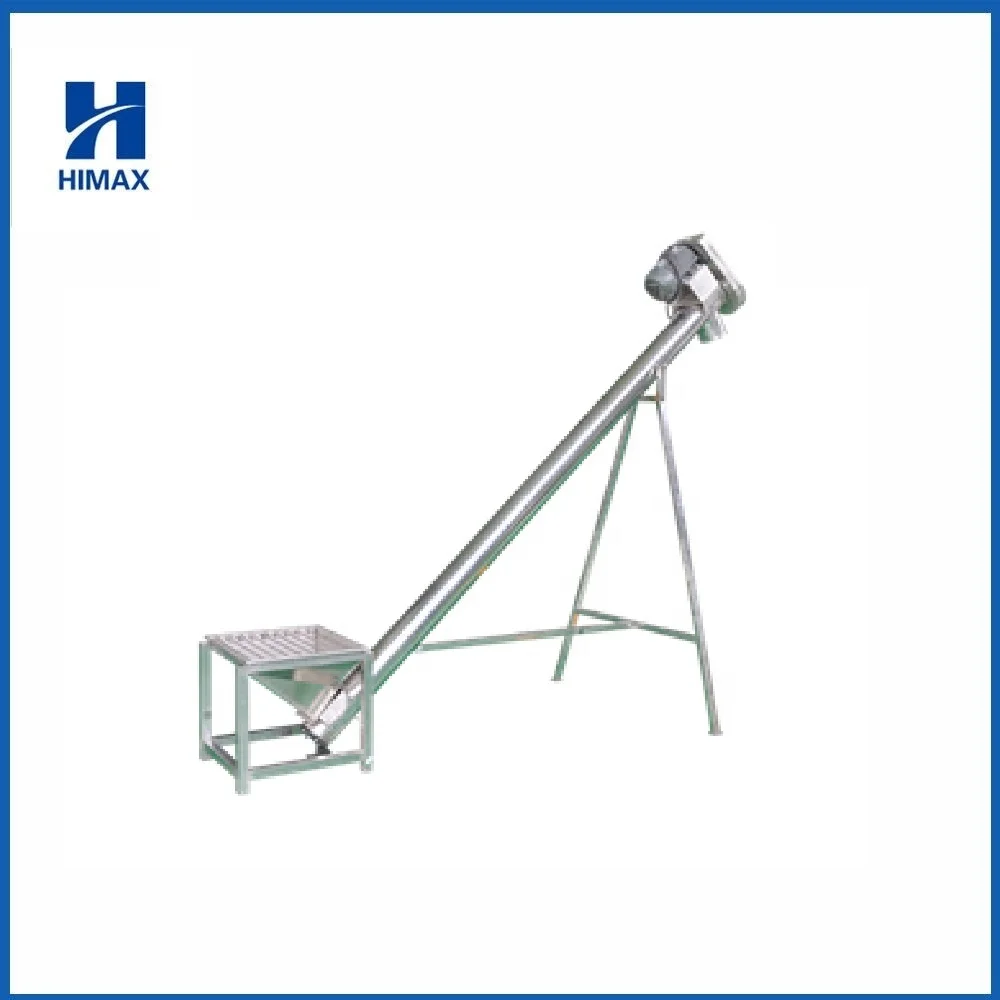

Screw Conveyor
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking,
dusting and pollution; Feed quantity and speed is even and stable.
dusting and pollution; Feed quantity and speed is even and stable.

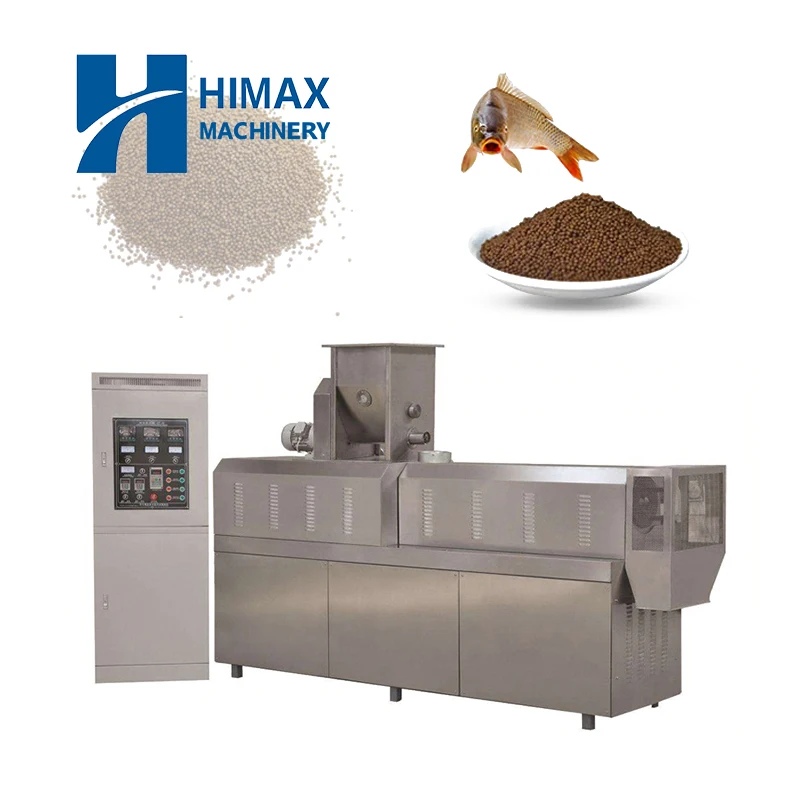

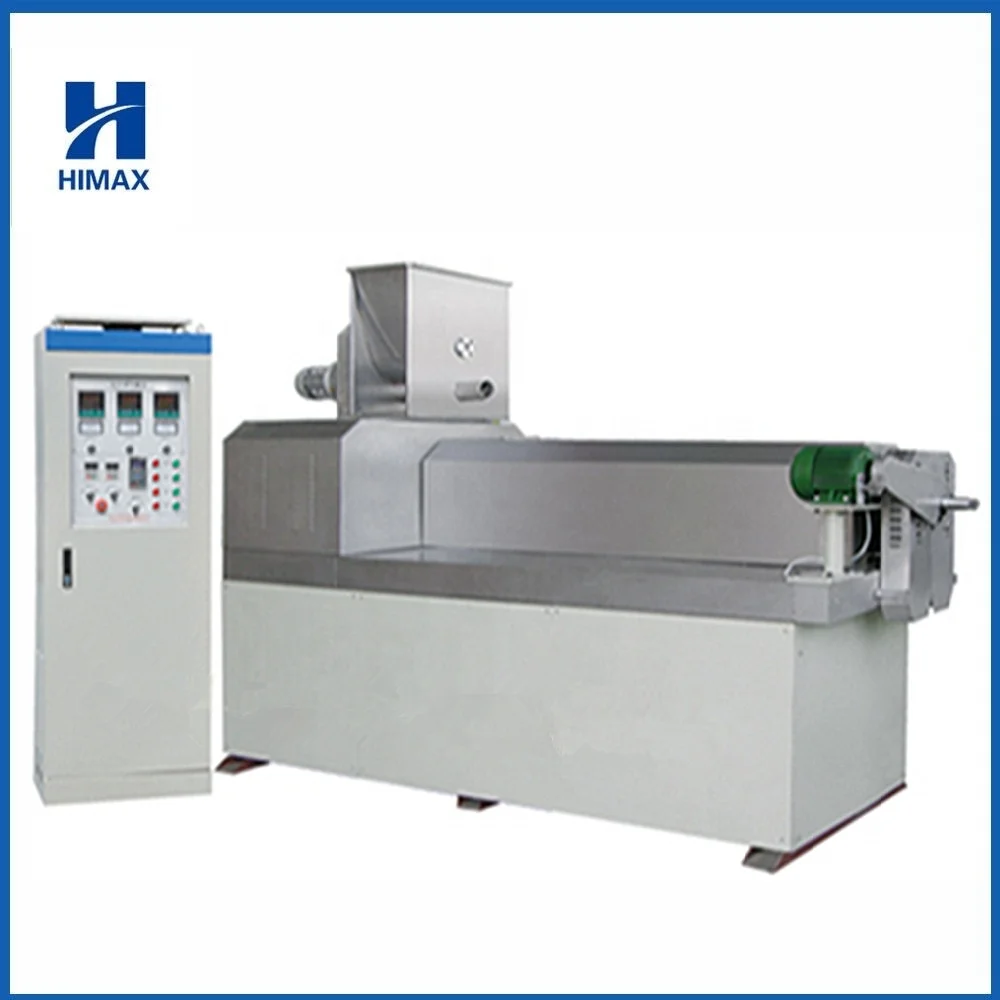

Twin Screw Extruder
The twin -screw extruder is made of the feeding system, extruding system, cutting system, heating system, conditioner and
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.

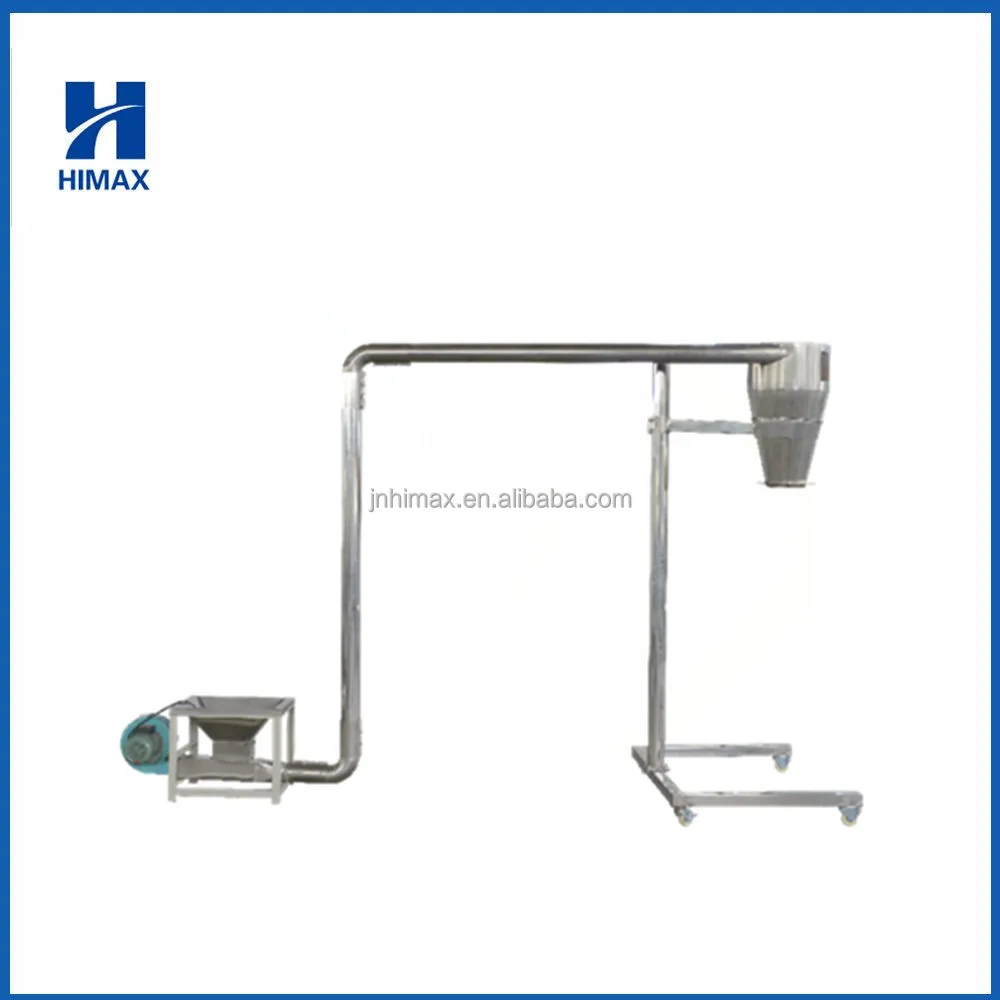

Air Conveyor
1. Air conveyor conveys the food relying on the wind-force from the blower.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.

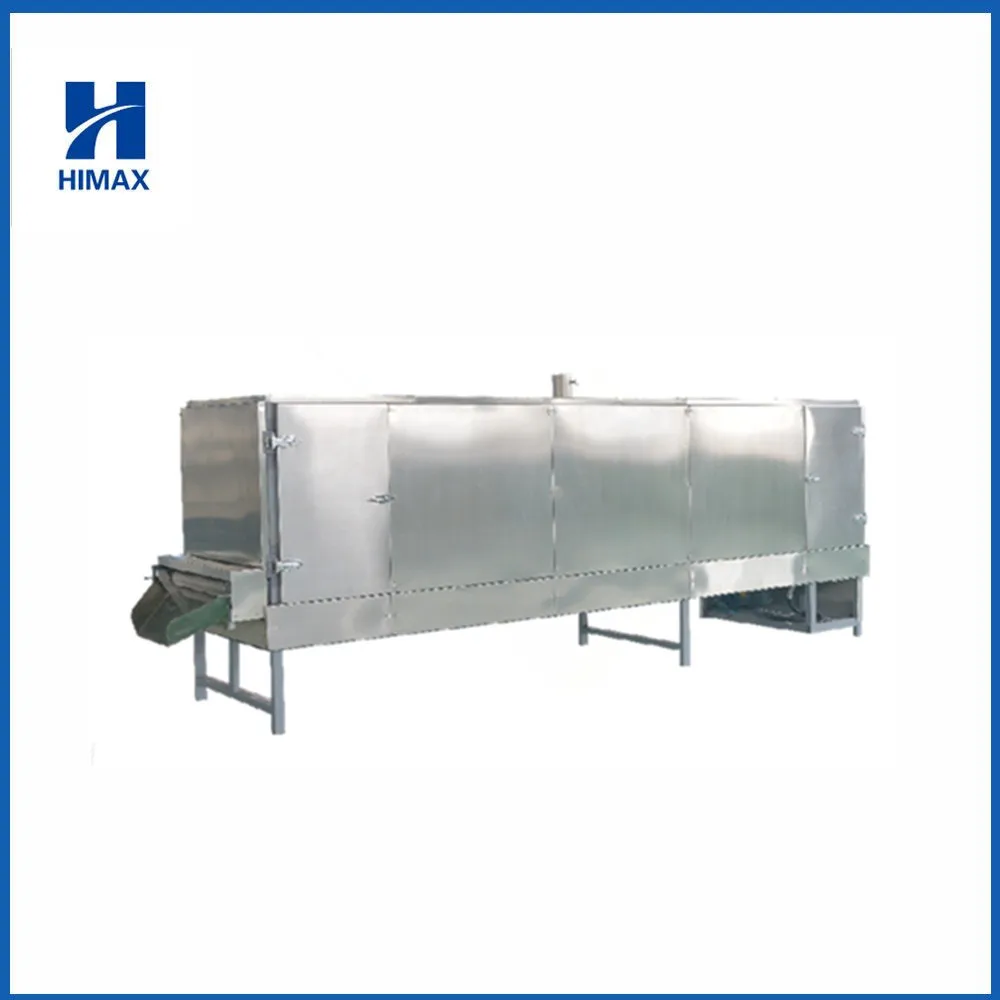

Dryer
The heating way is electric/gas//steam/furel oil heating.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
Packing & Delivery
Company Profile
FAQ
Q: What kinds of products can be made?
A: Floating & Sinking fish, shrimp etc aquatic feed.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on thefinished product, so machine wash-change.
Q:Are you manufacturer or trade?A:Yes,we are manufacturer of food extruder machine and we have exported to many countries all over
the world for many years.
Q:What about your payment methods that you can accept?
A:Normally we can accept 20%T/T deposit，100%T/T balanced reached to the consigned seller before shipment effected.
We are allowed to accept other payments by negotiation with us.
Q:What about your shipping methods?
A:Normally is shipping by sea,we allowed to accept other shipments by negotiation with us.
A: Floating & Sinking fish, shrimp etc aquatic feed.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on thefinished product, so machine wash-change.
Q:Are you manufacturer or trade?A:Yes,we are manufacturer of food extruder machine and we have exported to many countries all over
the world for many years.
Q:What about your payment methods that you can accept?
A:Normally we can accept 20%T/T deposit，100%T/T balanced reached to the consigned seller before shipment effected.
We are allowed to accept other payments by negotiation with us.
Q:What about your shipping methods?
A:Normally is shipping by sea,we allowed to accept other shipments by negotiation with us.
