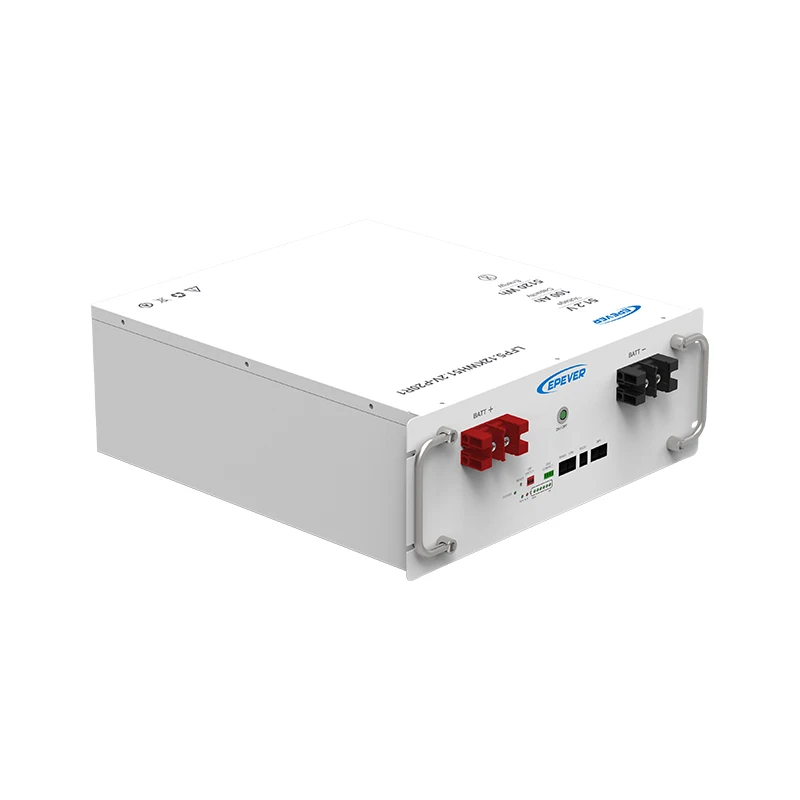

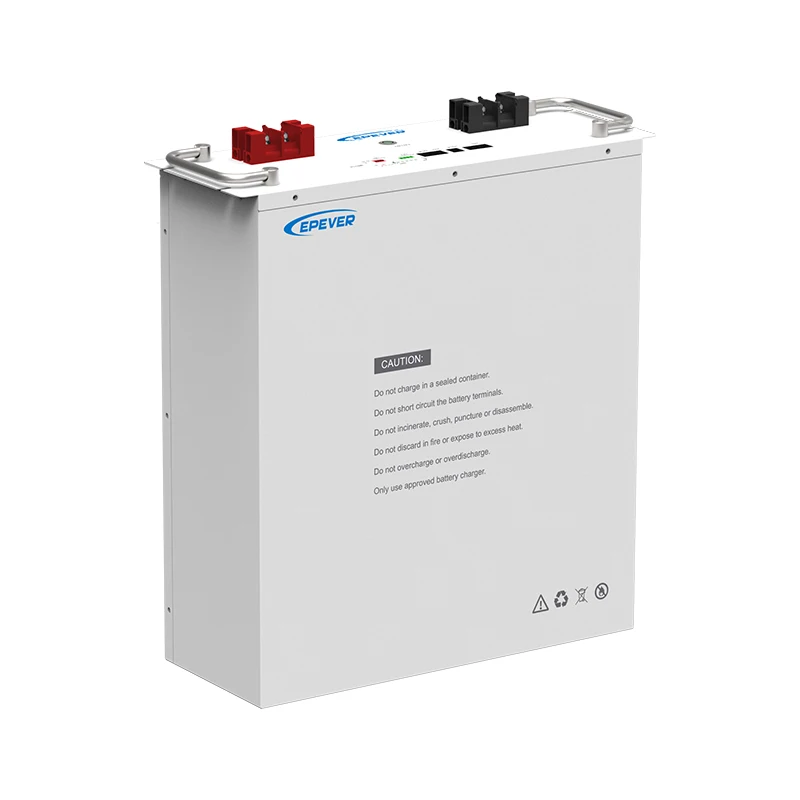

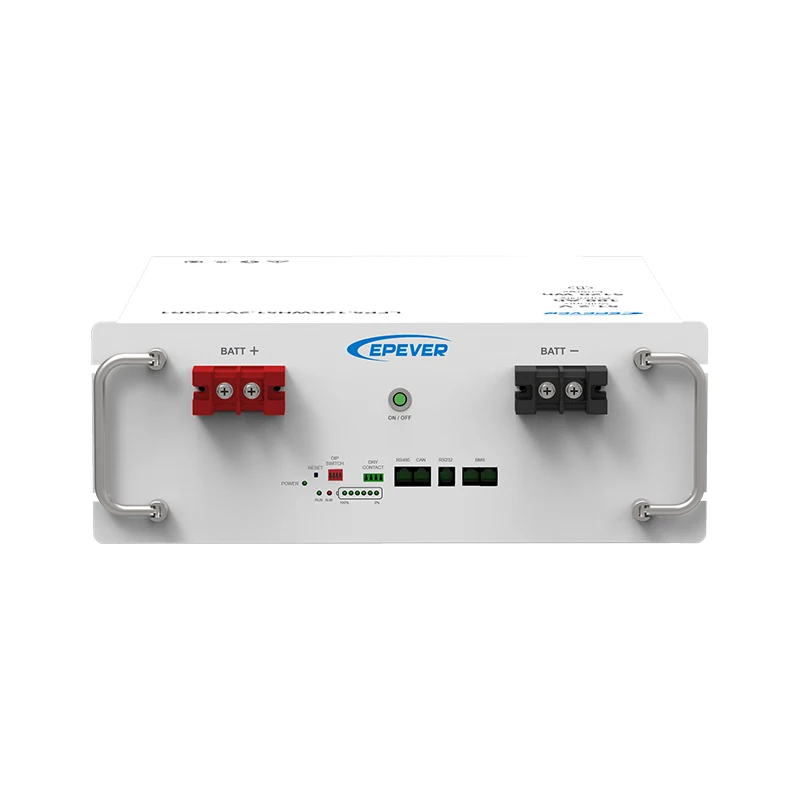

Ukraine Poland Eu Stock Epever 48V 51.2V 100Ah 200Ah Off Grid Solar Energy Grade A Lifepo4 Lithium Battery Pack
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601283051235):
Product Overview
Description
Technical Specifications
Features
A grade brand new prismatic LiFePO4 cells
Over charge, over discharge, over temperature, low temperature,over current and short circuit protection
Max.8 battery packs can be connected in parallel
Cell balance function
≥5000 cycles @80% DOD(25℃,0.5C)
Support RS485, CAN，RS232 communication
Support RS485, CAN，RS232 communication
Over charge, over discharge, over temperature, low temperature,over current and short circuit protection
Max.8 battery packs can be connected in parallel
Model | LFP4.8KWH 48V-P20R1 | LFP5.12KWH 51.2V-P20R1 | LFP5.12KWH 51.2V-P20R2EV50 | LFP10.5KWH 51.2V-P20R1GF30 | |||
Battery Type | LiFePO4 | ||||||
Nominal Voltage (V) | 48 | 51.2 | |||||
Nominal Capacity (AH) | 100 | 205 | |||||
Energy (WH) | 4800 | 5120 | 10496 | ||||
Pack Mode | 15S1P | 16S1P | |||||
Continuous Discharge Current (A) | 50 | 100 | |||||
Charge Cut-off Voltage (V) | 54 | 57.6 | |||||
Discharge Cut-off Voltage (V) | 39 | 41.6 | |||||
Max.Charge Current (A) | 50 | 100 | 150 | ||||
Max.Discharge Current (A) | 100 | 200 | |||||
Peak Discharge Current (A) | 130@10S | 120@10S | 220@5S | ||||
Recommend Discharge Current (A) | 50 | 100 | |||||
Recommend Discharge Depth (％) | 80 | ||||||
Cycle Life | ＞4000 cycles (25°C, 0.5C ) 80% DOD | ＞5000 cycles (25°C, 0.5C ) 80% DOD | ＞3000 cycles (25°C, 0.5C ) 80% DOD | ||||
Communication | RS485 CAN RS232 | ||||||
Display | LED | LED | LCD | LED | |||
Charge&Discharge Temperature (℃) | Charge: 0°C~+55°C / Discharge: -20°C~+60°C | ||||||
Optimal Storage Temperature (℃) | 5℃～+35℃ | ||||||
Recommend Storage Humidity | 60%±20% RH | ||||||
Terminal | M6 | M8 | |||||
Dimensions (L*W*H) (mm) | 532*482*177 | 586*550*232 | |||||
Weight (Kg) | 42.5±0.5 | 45.4±0.5 | 45.6±0.5 | 90.1±0.5 | |||
Certificate | UN38.3、MSDS、IEC62619、 EN IEC61000-6-1/2/3/4 | UN38.3, MSDS | |||||
IP Class | IP20 | ||||||
