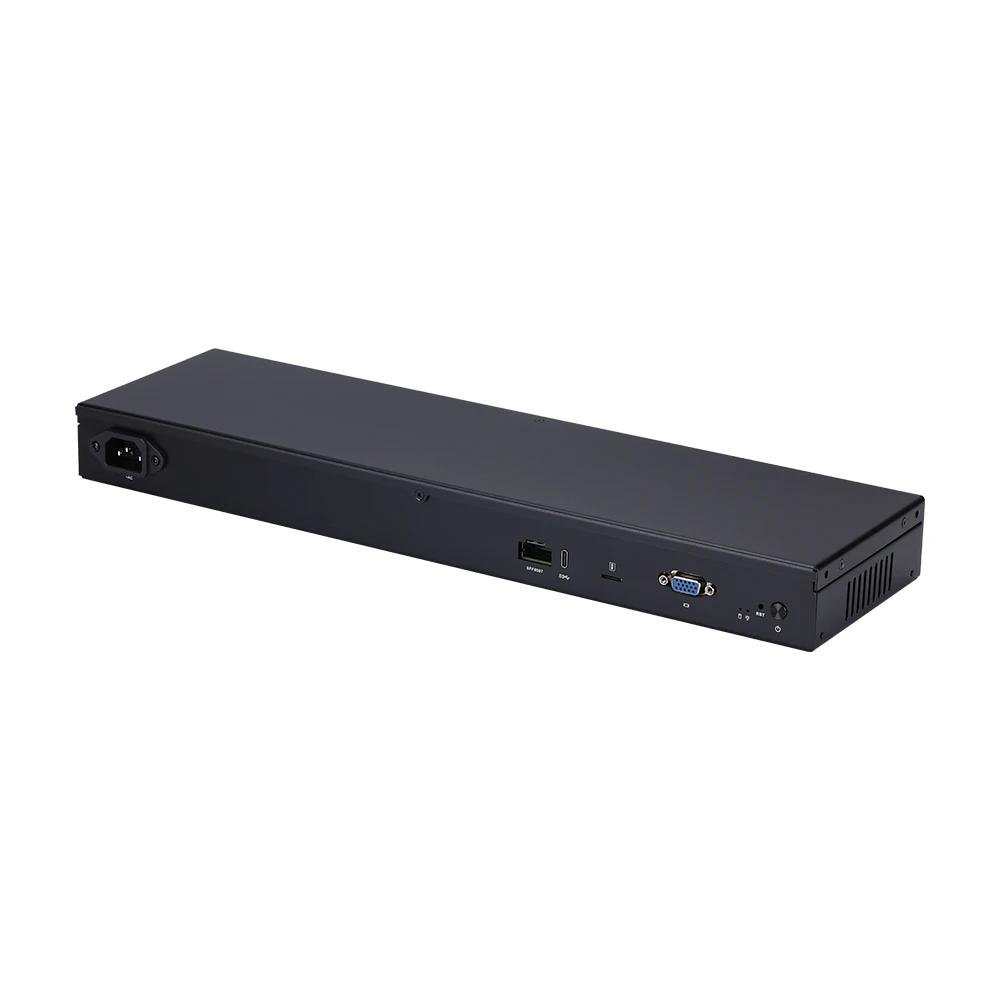

Qotom Mini PC Q20342G9 1U Rack with Atom C3808 Onboard 12 Cores 2.0 GHz, 4x 10G SFP / 5x 2.5G LAN, Mini Server/ Router
- Category: >>>
- Supplier: Shenzhen Qotom Technology Co. Ltd.
Share on (1601283079520):
Product Overview
Description
Products Description
DIY Your Own Advanced Router
Compared with common used router, the freedom from the built-in OS is awesome. It supports pfSense, OPNsense and so on, just choose one you need. Intel 2.5G LAN is more stable than other brands LAN, only one small problem, i226V LAN chip is too new for some OS [Do not support Arista/Untangle NG Firewall 17 (Debian 10) and Sophos XG]. Powerful processor, large memory and 2x M.2 NVME SSD will give you a better experience.
CPU Onboard
Intel Atom Processor C3808
Total Cores: 12
Total Threads: 12
Processor Base Frequency: 2.0 GHz
Cache: 12 MB
TDP: 25 W
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Processor Base Frequency: 2.0 GHz
Cache: 12 MB
TDP: 25 W
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes

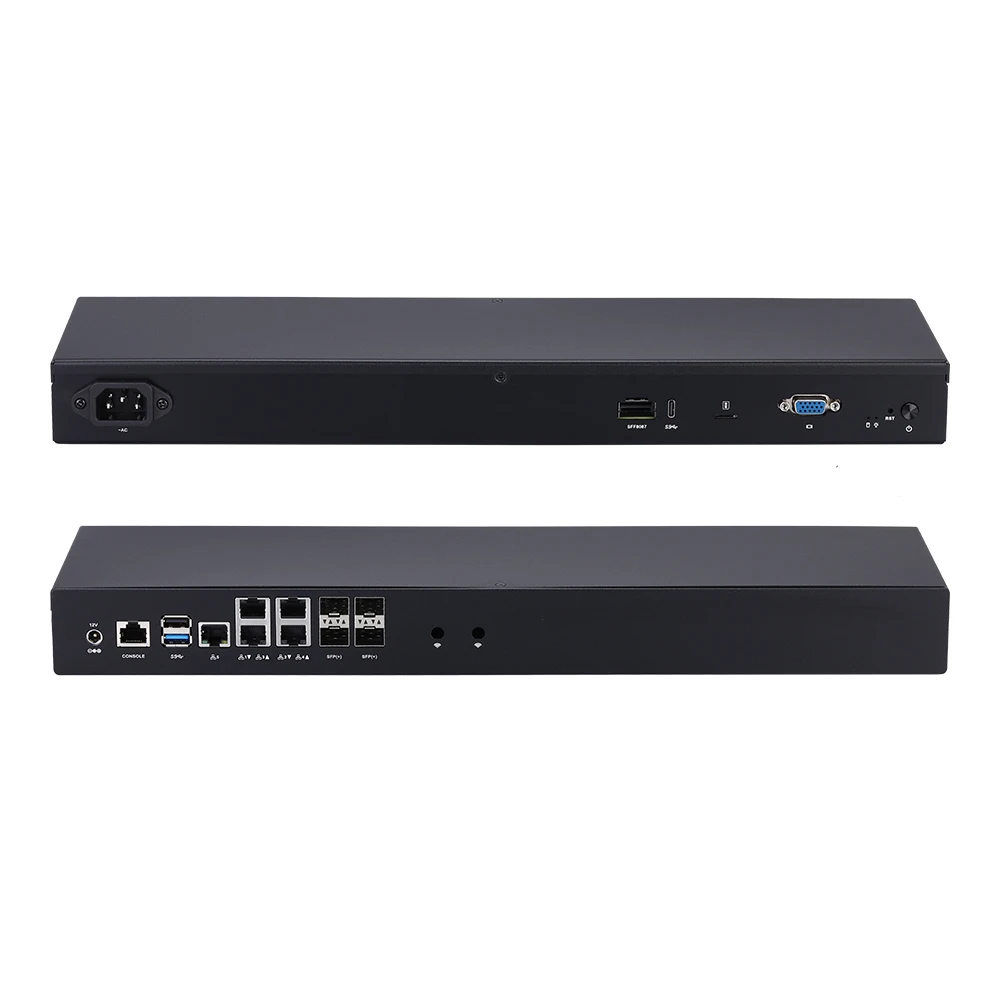

Ports
Front I/O
• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x VGA (DB15)
• 1 x Nano SIM Slot
• 1 x Type C (USB 3.0)
• 1 x Mini SAS (SFF-8087 to 4 SATA)
Rear I/O
• 1 x DC Jack
• 1 x RS-232 (RJ-45)
• 1 x USB 3.0, 1 x USB 2.0
• 5 x Intel i226V 2.5 Gigabit LAN
• 4 x 10G SFP+
• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x VGA (DB15)
• 1 x Nano SIM Slot
• 1 x Type C (USB 3.0)
• 1 x Mini SAS (SFF-8087 to 4 SATA)
Rear I/O
• 1 x DC Jack
• 1 x RS-232 (RJ-45)
• 1 x USB 3.0, 1 x USB 2.0
• 5 x Intel i226V 2.5 Gigabit LAN
• 4 x 10G SFP+

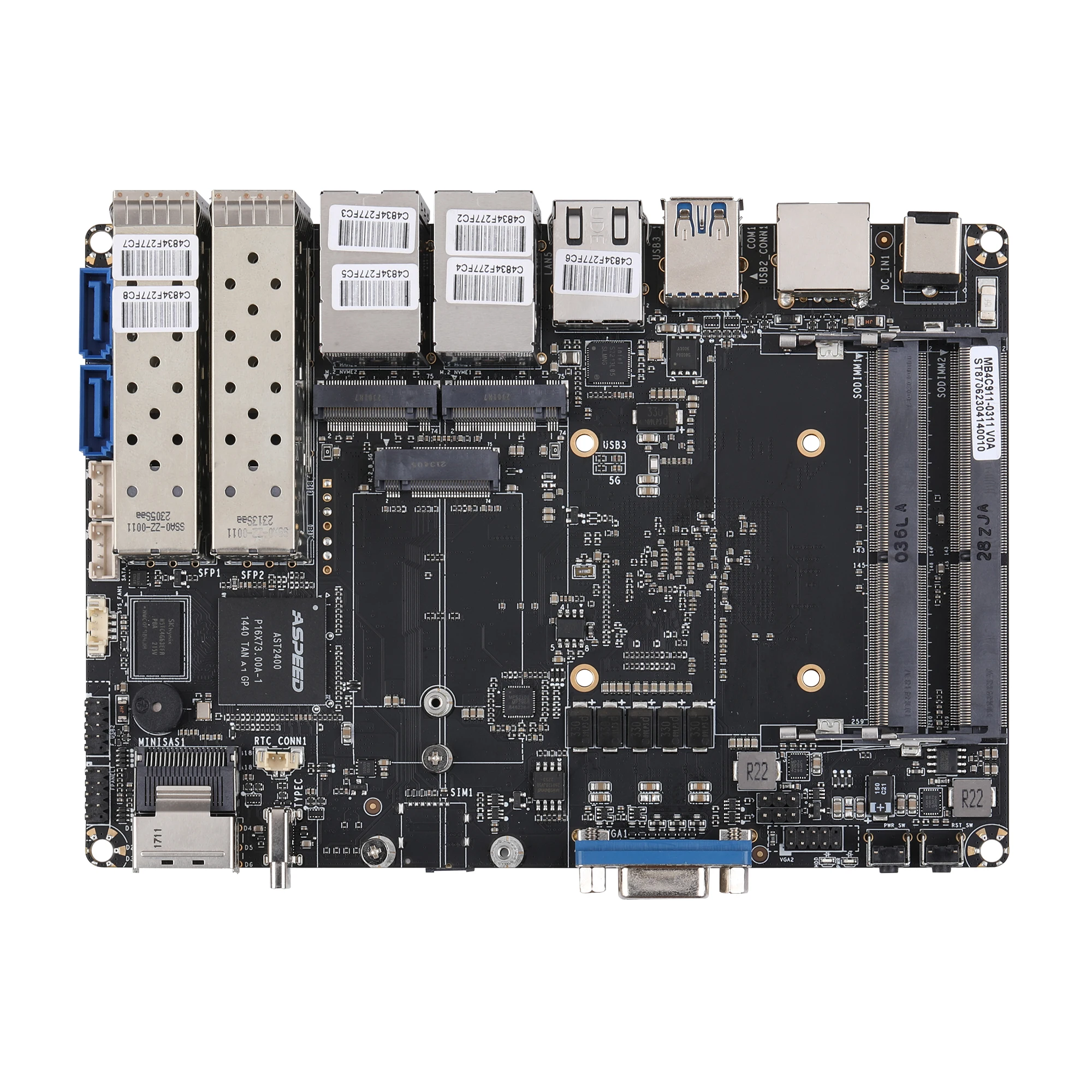

Internal Connectors
• 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
• 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
• 1 x SATA Connector for 2.5 inch SATA

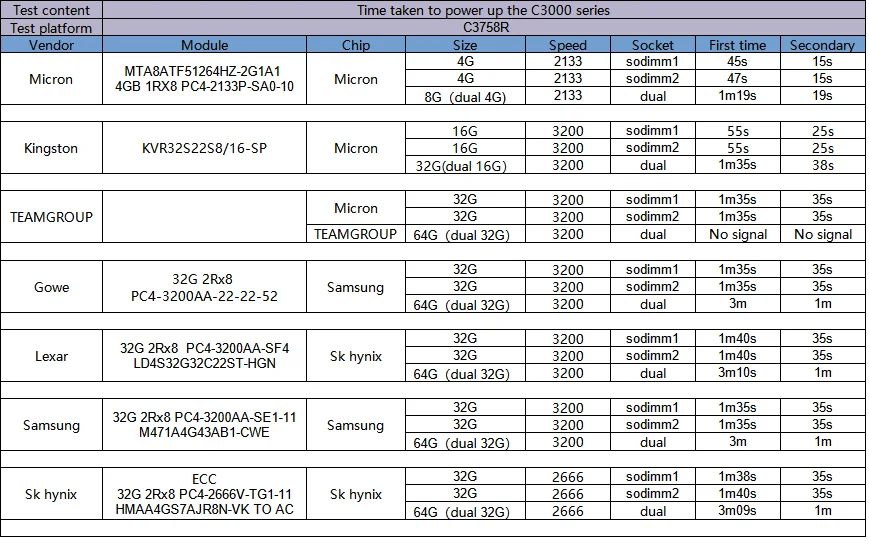

• 2 x DDR4 SO-DIMM Socket, Up to 64G. Support ECC memory
• 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
• 1 x SATA Connector for 2.5 inch SATA
• 2 x DDR4 SO-DIMM Socket, Up to 64G. Support ECC memory
You can place a order online directly, package will be shipped by DHL/ UPS/ Fedex. Contact us if you have questions or requirements.
Tips:
• It do not support Wi-Fi by default, contact us if you need it. Use a adapter board to support Wi-Fi card but 1x M.2 SSD is occupied.
• Contact us if you wanna install 4G/5G, we will customize panel to get more antennas holes.
• Pre-install inactive Windows 10 for test by default. Please re-install OS by yourself after receiving it.
• Come with No-ECC RAM by default, contact us if you prefer to ECC RAM.
• Contact if you need motherboard user manual, Custom Service or After-sales Service
• Contact us if you wanna install 4G/5G, we will customize panel to get more antennas holes.
• Pre-install inactive Windows 10 for test by default. Please re-install OS by yourself after receiving it.
• Come with No-ECC RAM by default, contact us if you prefer to ECC RAM.
• Contact if you need motherboard user manual, Custom Service or After-sales Service
• If the shipping cost to your country is too high, please contact us to check whether have better solutions.
Mechanical and Environmental
• Material: Aluminium Alloy
• Dimension: 440 x 127 x 44mm
• Weight: 1.16kg
• Packaging Dimension: 545 x 180 x 90mm
• Kensington Lock: No
• Cooling Mode: Fanless Design
• Operating Temp: 0°C~50°C
• Non-Operating Temp: -20°C~80°C
• Humidity: 10%~90%
• Dimension: 440 x 127 x 44mm
• Weight: 1.16kg
• Packaging Dimension: 545 x 180 x 90mm
• Kensington Lock: No
• Cooling Mode: Fanless Design
• Operating Temp: 0°C~50°C
• Non-Operating Temp: -20°C~80°C
• Humidity: 10%~90%
Packing
• 1 x Mini PC
• 1 x plug
• 1 x Neutral packaging box
We have US/ UK/ EU/ AU/ IT/CH plug and will choose them according to the destination.
• 1 x plug
• 1 x Neutral packaging box
We have US/ UK/ EU/ AU/ IT/CH plug and will choose them according to the destination.
Related Mini PC

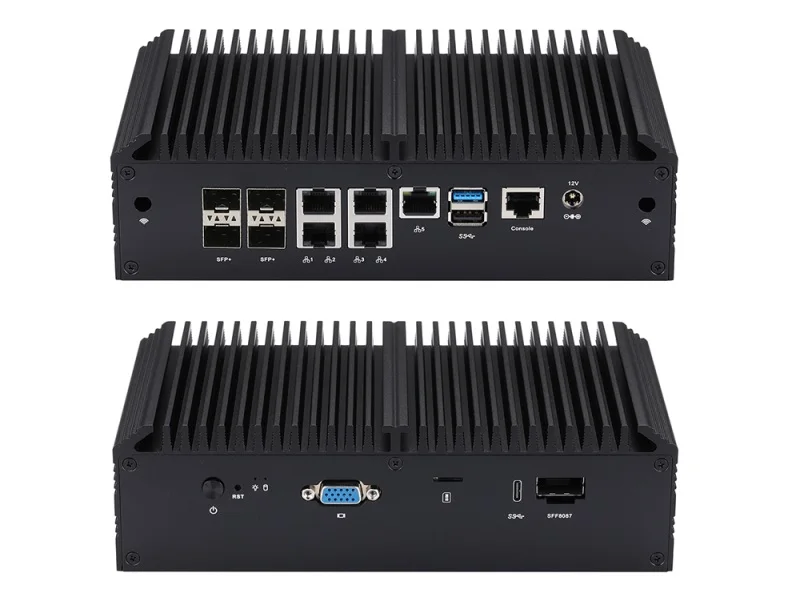

Q20342G9-S10
If you prefer to a Mini PC case, please choose this link:
Please note that S10 is fanless by default, if you wanna add a fan to enhance heat dissipation, please contact us.

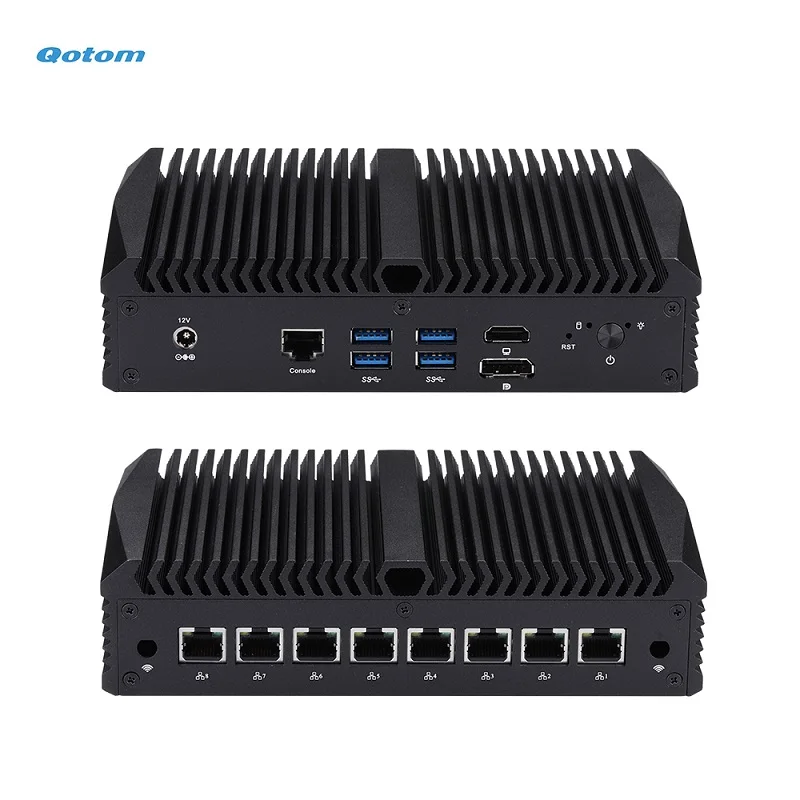

Q1000GE series
If SFP+ is unnecessary for you and just need many LAN ports, we recommend Q1000GE series with 8th/ 10th Gen Intel Celeron Core processors.
8x Intel i225V 2.5G LAN ports
Shipment
Ship by DHL/ UPS/ Fedex
• If you place a order on Alibaba, goods will be shipped by DHL/ UPS/ Fedex by default.
• All customs duties, taxes, to be collected on the territory of the Buyer, are to be paid by the Buyer.
If Buyer has forwarder/ agent in China
Seller can deliver goods in China mainland.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
Contact us for free if you have any questions about the shipment.
About Qotom
We are a professional Mini PC and Mini motherboard manufacturer in Shenzhen, China, was established in 2011.
There are more than 200 models and they are conveniently divided into three categories:
• Mini PC with reguar ports [2 LAN, 4~6 USB, 2 HD or HD +VGA, 1 COM]
• Mini PC with multi-COM ports [2 LAN, 4~6 USB, 2 HD or HD +DP, 4~6 COM]
• Mini PC with multi-LAN ports [4~8 LAN, 4~6 USB, 2 HD or HD +DP, 1 COM]
• Mini PC with multi-COM ports [2 LAN, 4~6 USB, 2 HD or HD +DP, 4~6 COM]
• Mini PC with multi-LAN ports [4~8 LAN, 4~6 USB, 2 HD or HD +DP, 1 COM]
CPU options: Intel 4th ~ 12th Gen processors
• Intel Celeron j1900/ j3710/ j4105/ j4125/ j6412
• 4th/ 5th/ 7th/ 8th/ 10th Gen Celeron/ Pentium/ Core i3 i5 i7
• We are designing new models with 15th Gen Intel Processors.
• 4th/ 5th/ 7th/ 8th/ 10th Gen Celeron/ Pentium/ Core i3 i5 i7
• We are designing new models with 15th Gen Intel Processors.
