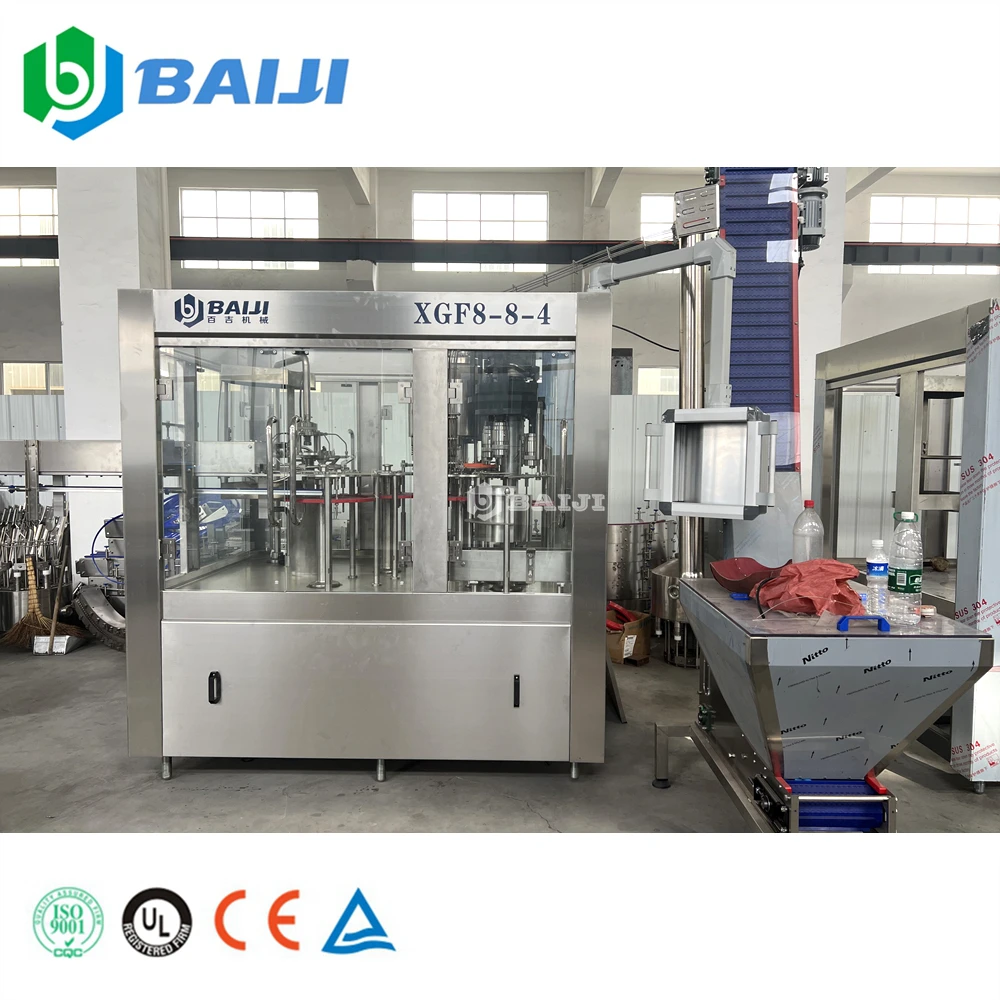

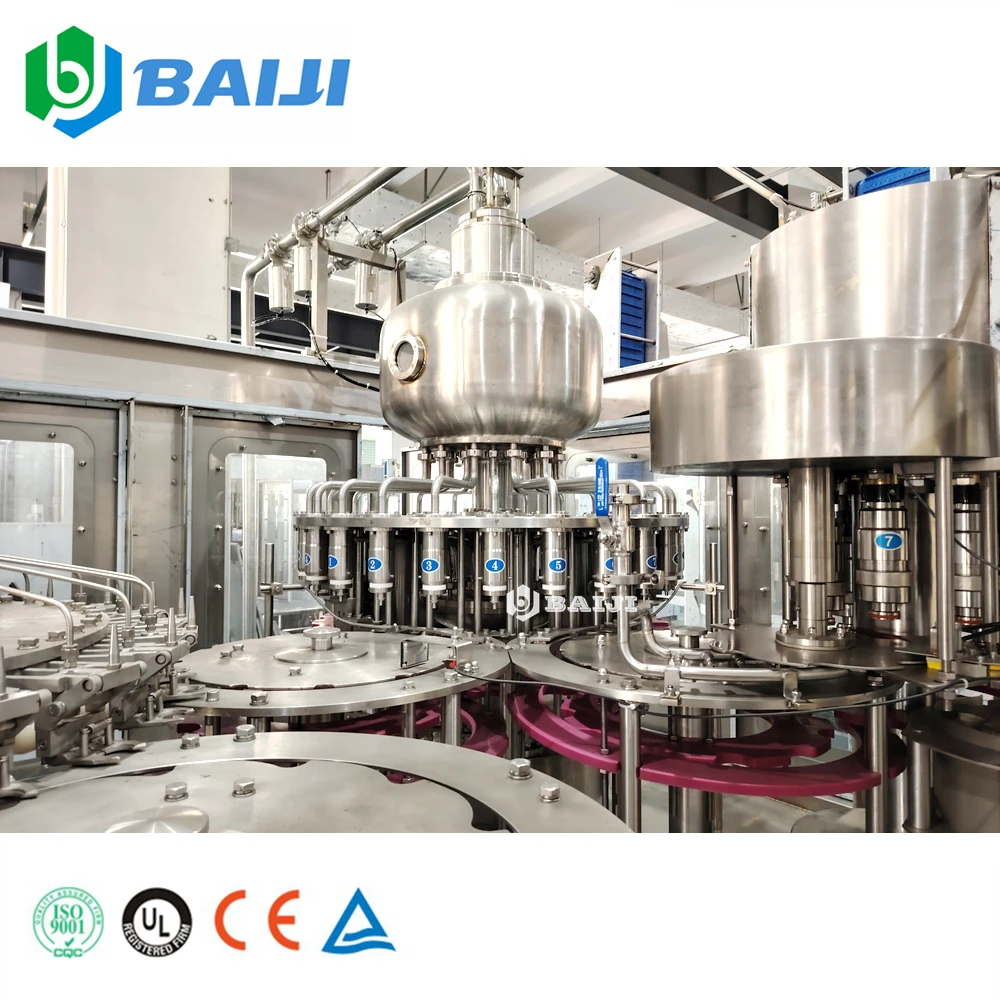

Complete automatic mango orange fruit juice hot filling bottling plant machine production line
- Category: >>>
- Supplier: Zhangjiagang Baiji Machinery Co. Ltd.
Share on (1601283099345):
Product Overview
Description
Product Description

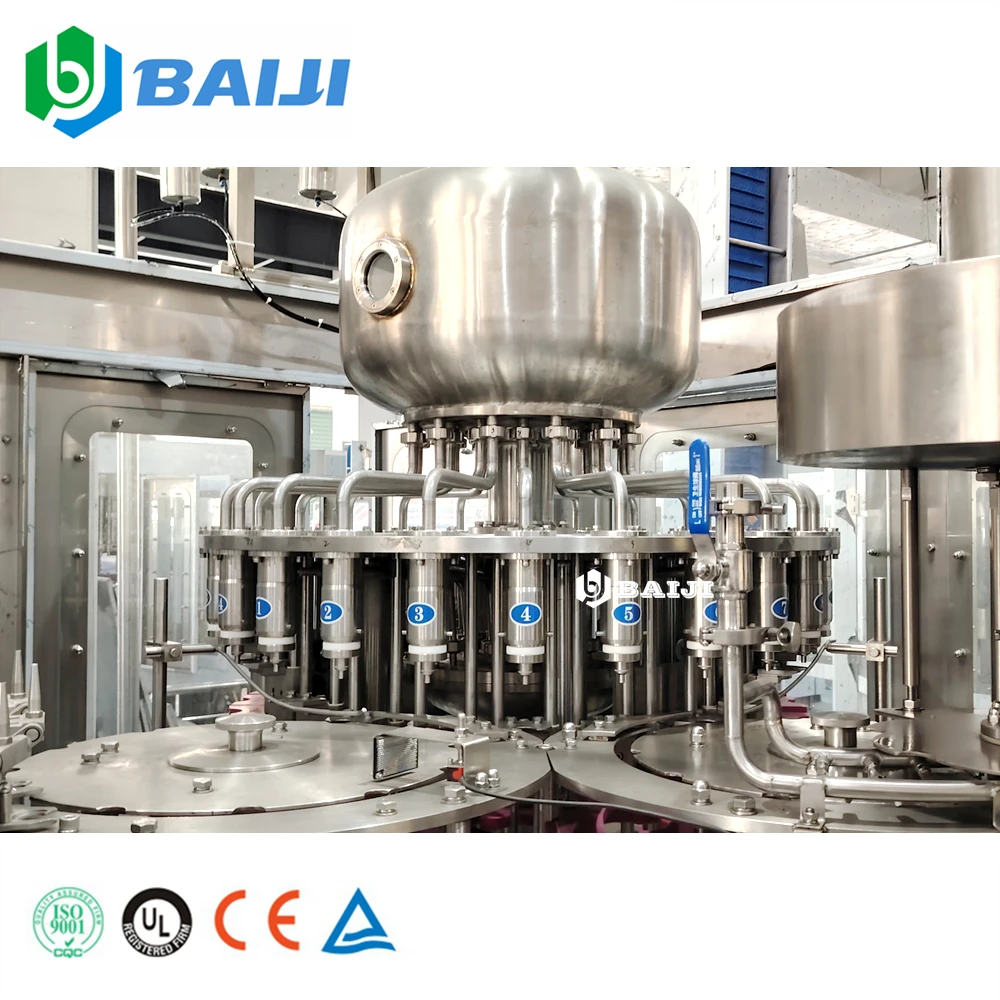

RCGF series of juice filling machine, it is used for bottling organic fruit juice and concentrate juice, fruit juice with additives, juice with pulp, coffee, flavoured water and so on.

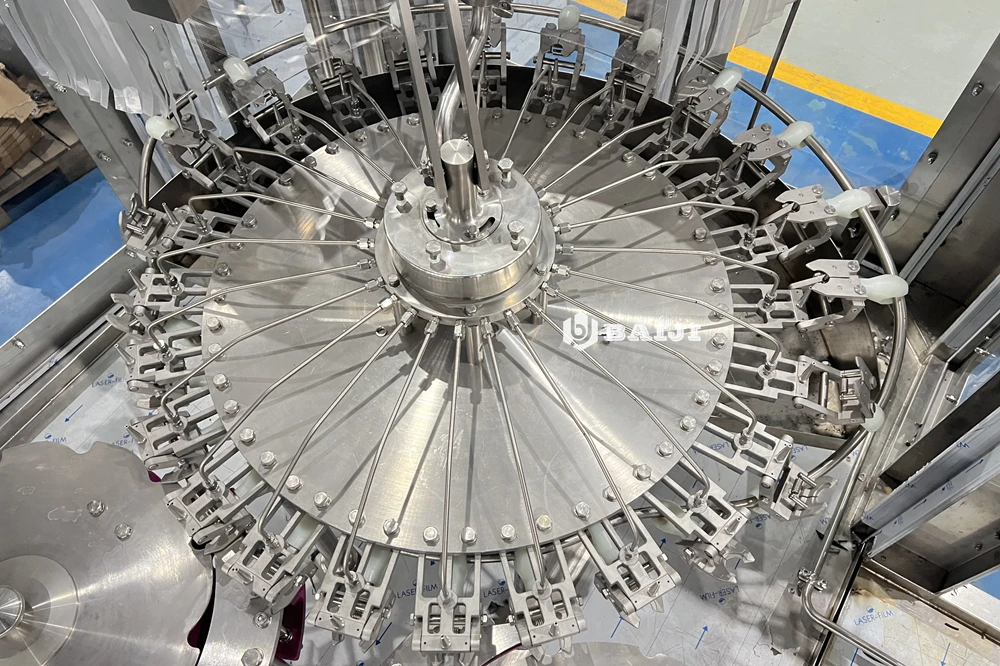

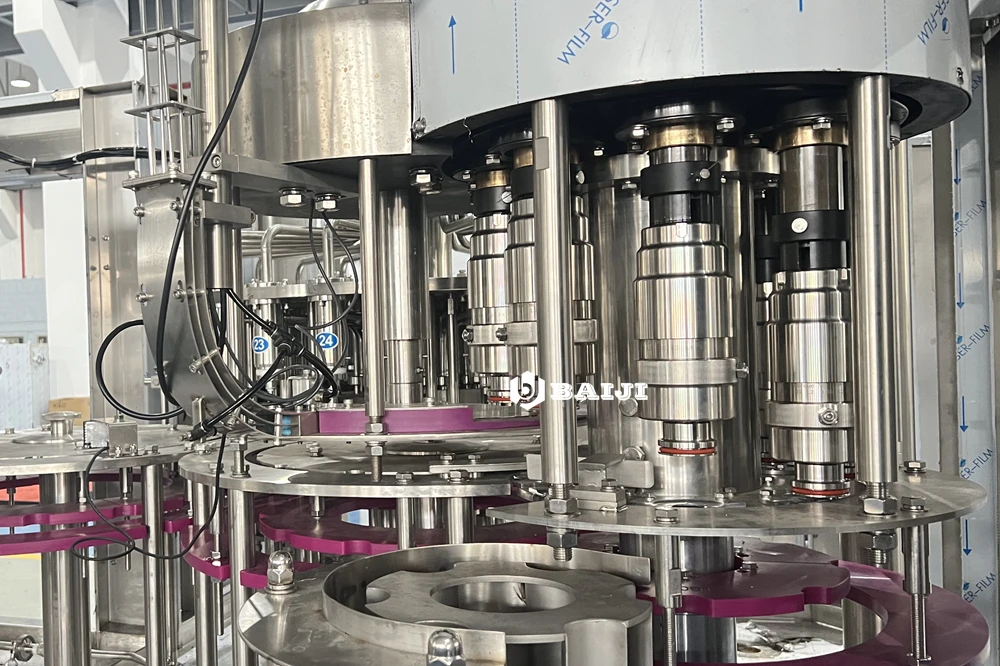

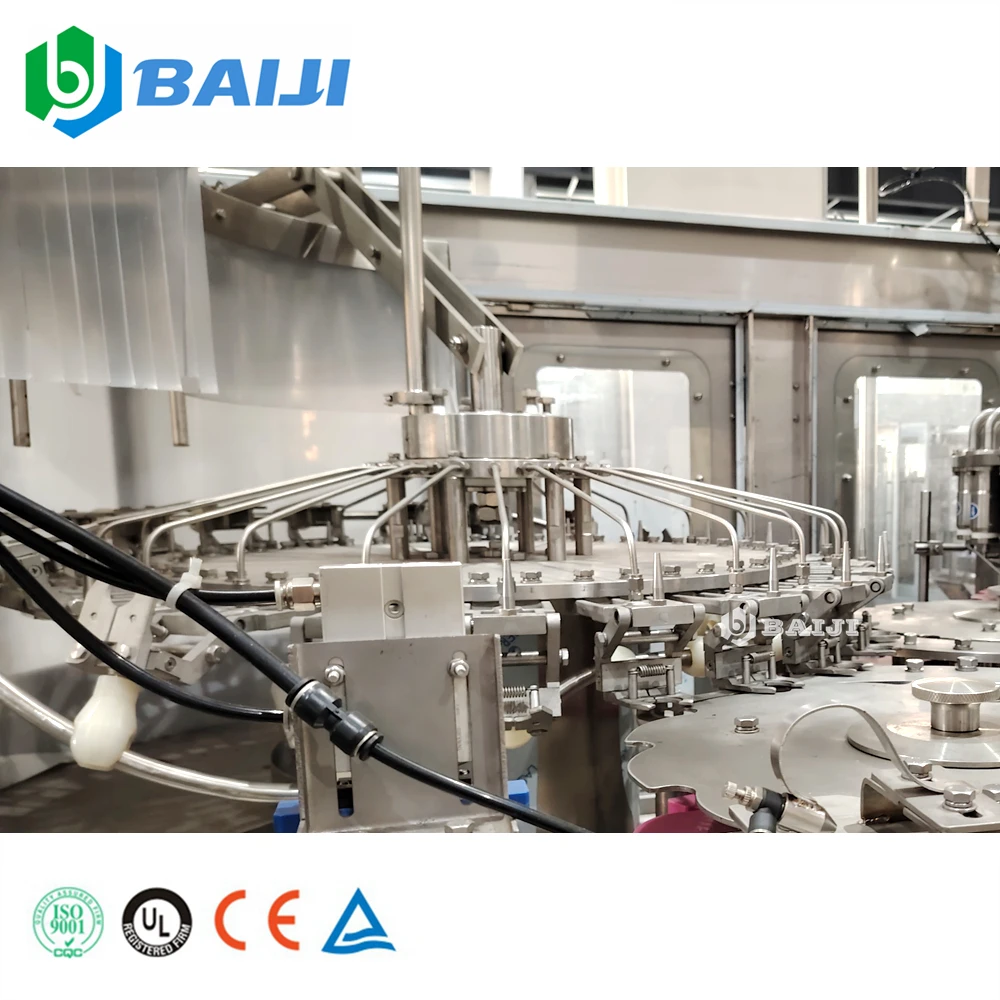

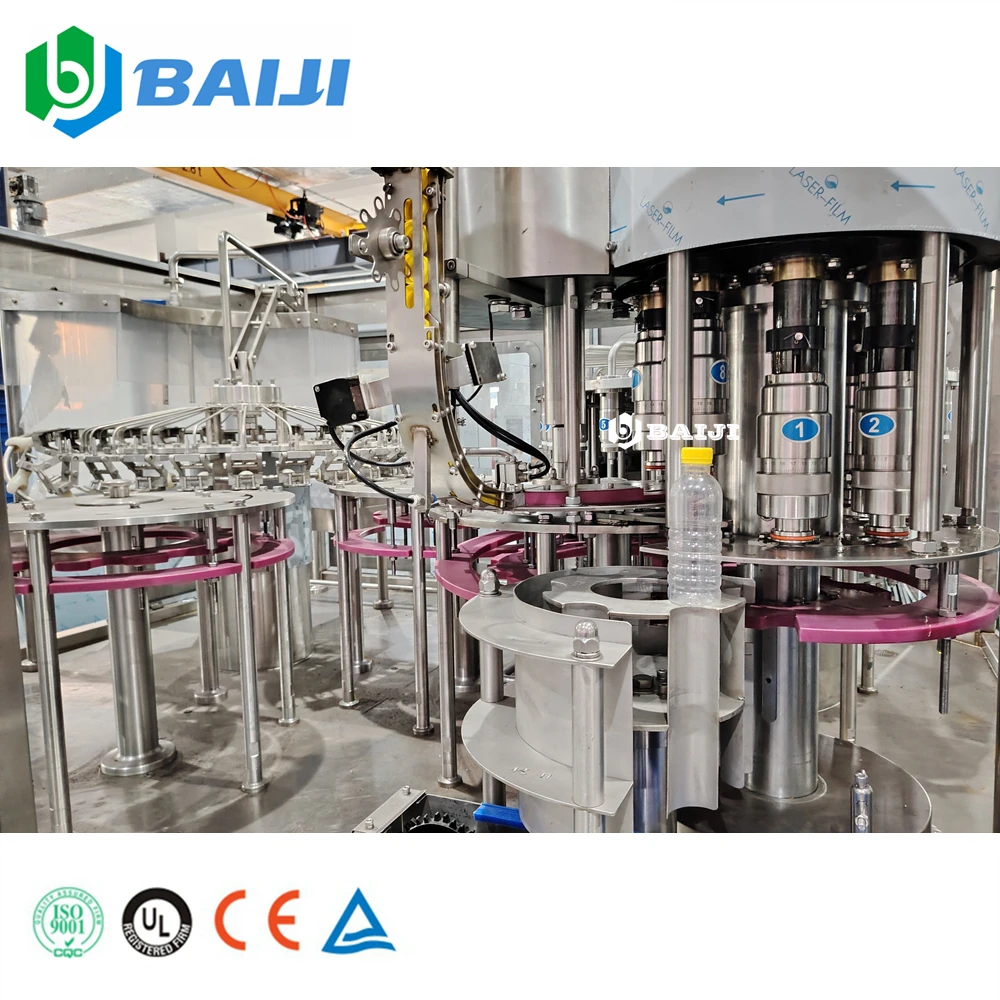

3 in 1 juice filling machine: bottle washing, juice filling, capping
4 in 1 juice filling machine: bottle washing, pulp filling ( ＞3mm ), juice filling, capping
It is mainly designed for hot temperature liquid(85-90℃). If temperature is lower than setting value, filling valves will stop, beverage return to UHT.

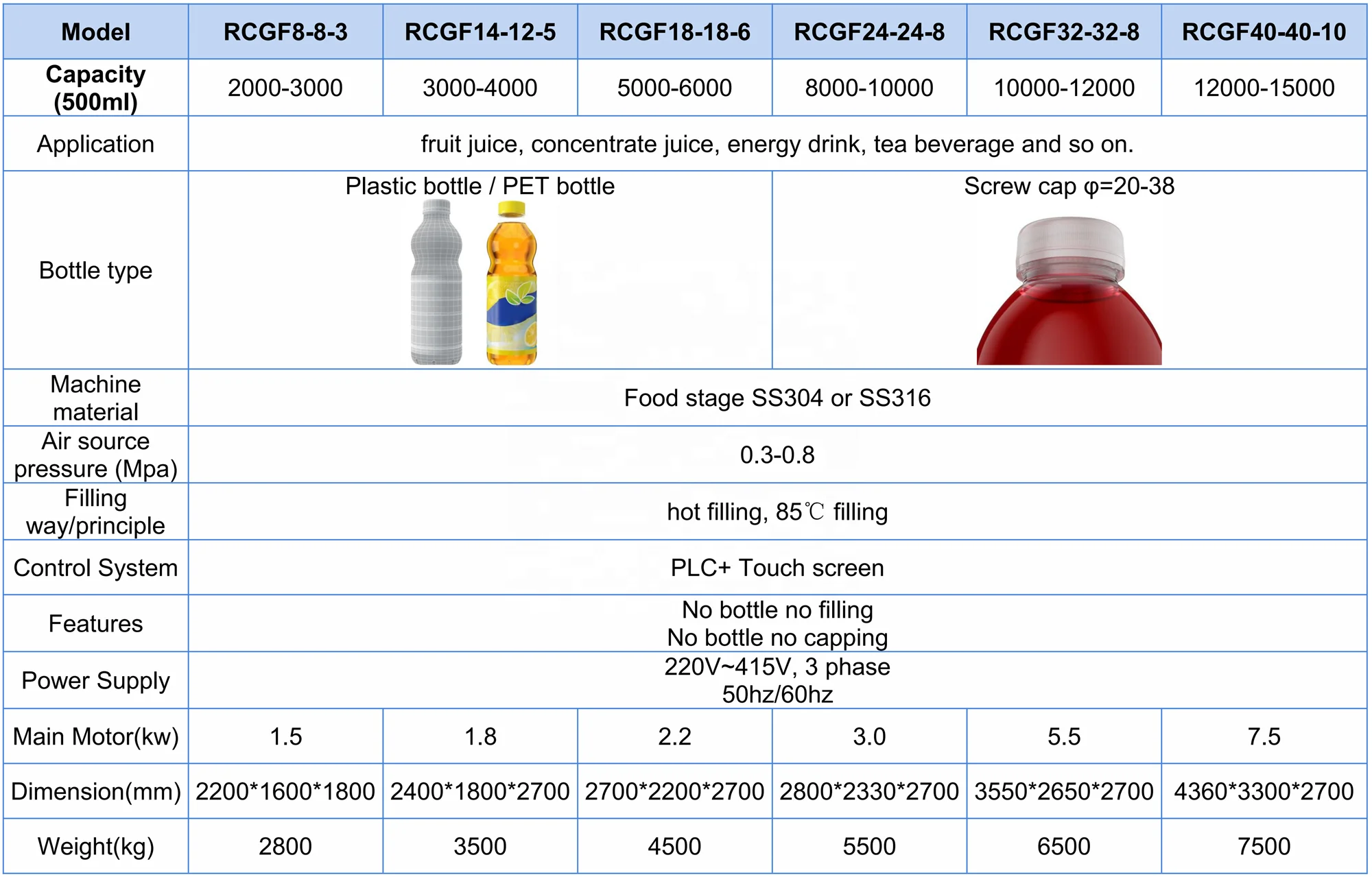

3 in 1 washing filling and capping machine | ||
Volume | 200ml - 2000ml | |
Bottle diameter(mm) | 50-115 | |
Bottle height(mm) | 160-320 | |
Filling temperature(℃) | 85℃ hot filling | |
Detailed Images

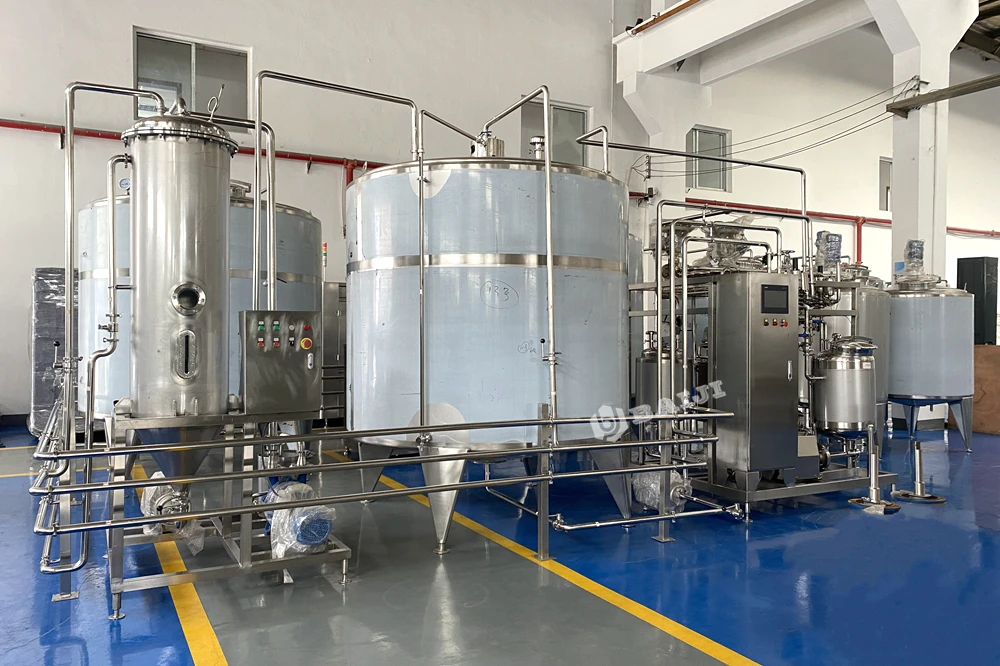

Juice pretreatment system
Sugar melting tank → syrup filter → blending tank → double filter → storage tank → homogenizer → storage tank → vacuum degasser → storage tank → plate type sterilization

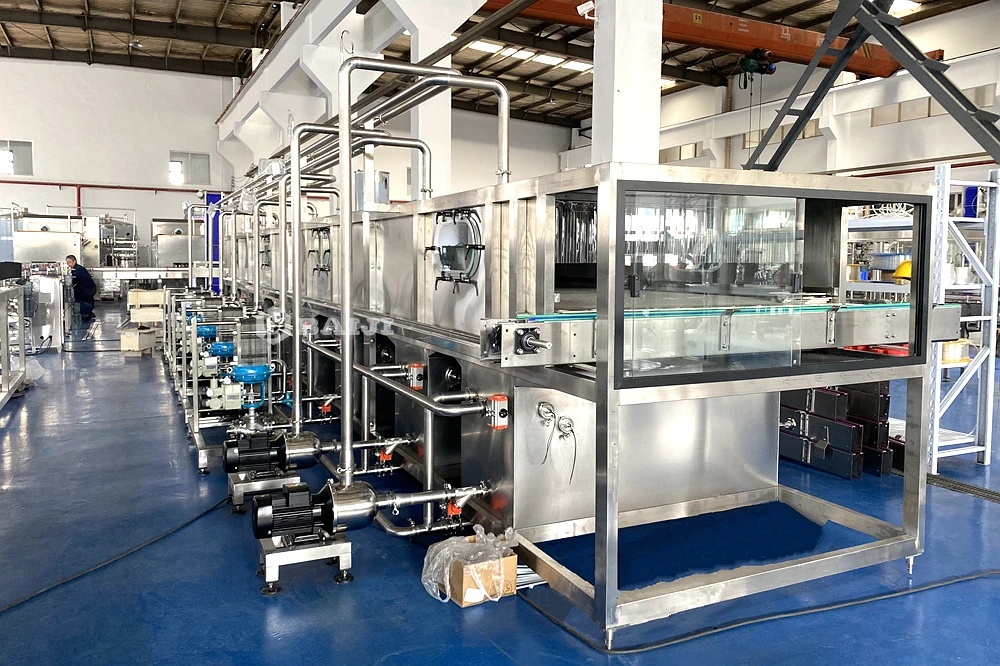

Pasteurization
It is usually used after fruit juice beverage finished hot filling and sealing, when enter the spray tunnel, the water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of cooling. This machine can also be used for secondary sterilization for fruit juice.

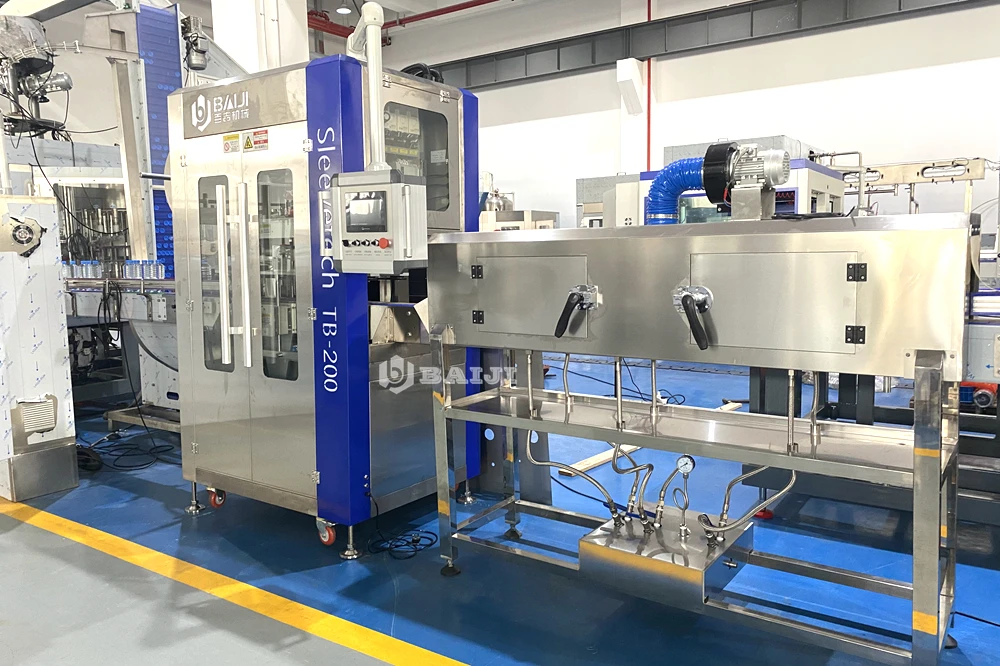

Automatic shrink sleeve labeling machine
It consists of auto labeling machine, heat shrink tunnel and steam generator.
It consists of auto labeling machine, heat shrink tunnel and steam generator.
It adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the
position which bottle body designated.
position which bottle body designated.

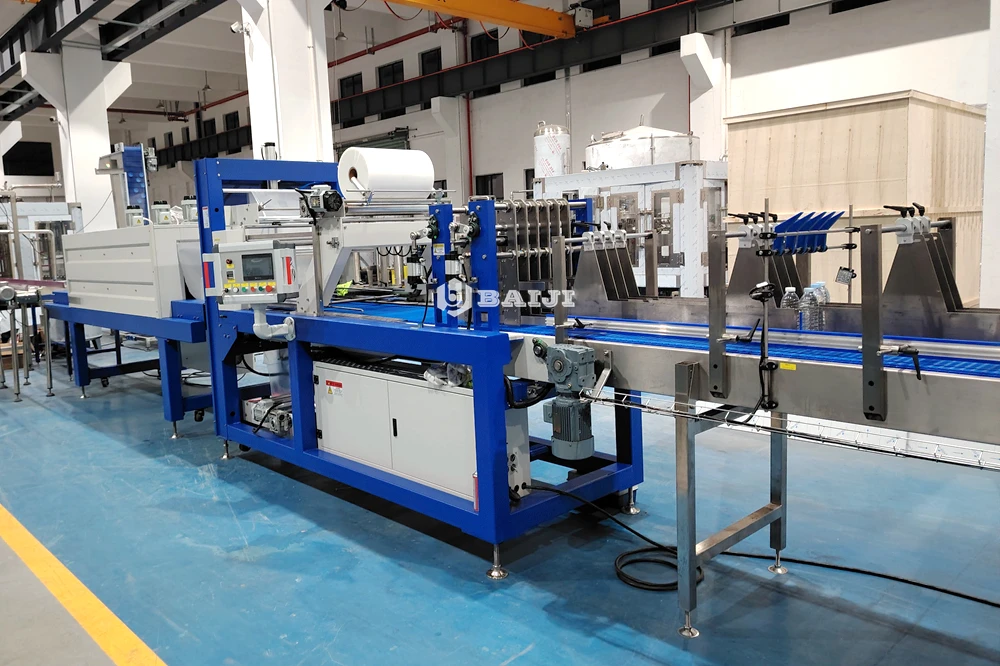

Automatic PE film wrapping machine
To pack several bottles into one package, make it easier for delivery.
You can have different group style, 24 bottles one package, 12 bottles one package, etc. It is changeable.
Our Company
We are not only a manufacturer of mechanical equipment, but also can provide you with plant design, equipment layout, waterway, circuit and airway layout, etc.
Sufficient stock of spare parts ensures timely delivery and supply of spare parts.
Equipment will be tested and run for 24 hours before leaving our factory.
Our mission is to ensure the smooth production of your plant and help you win your markets.
