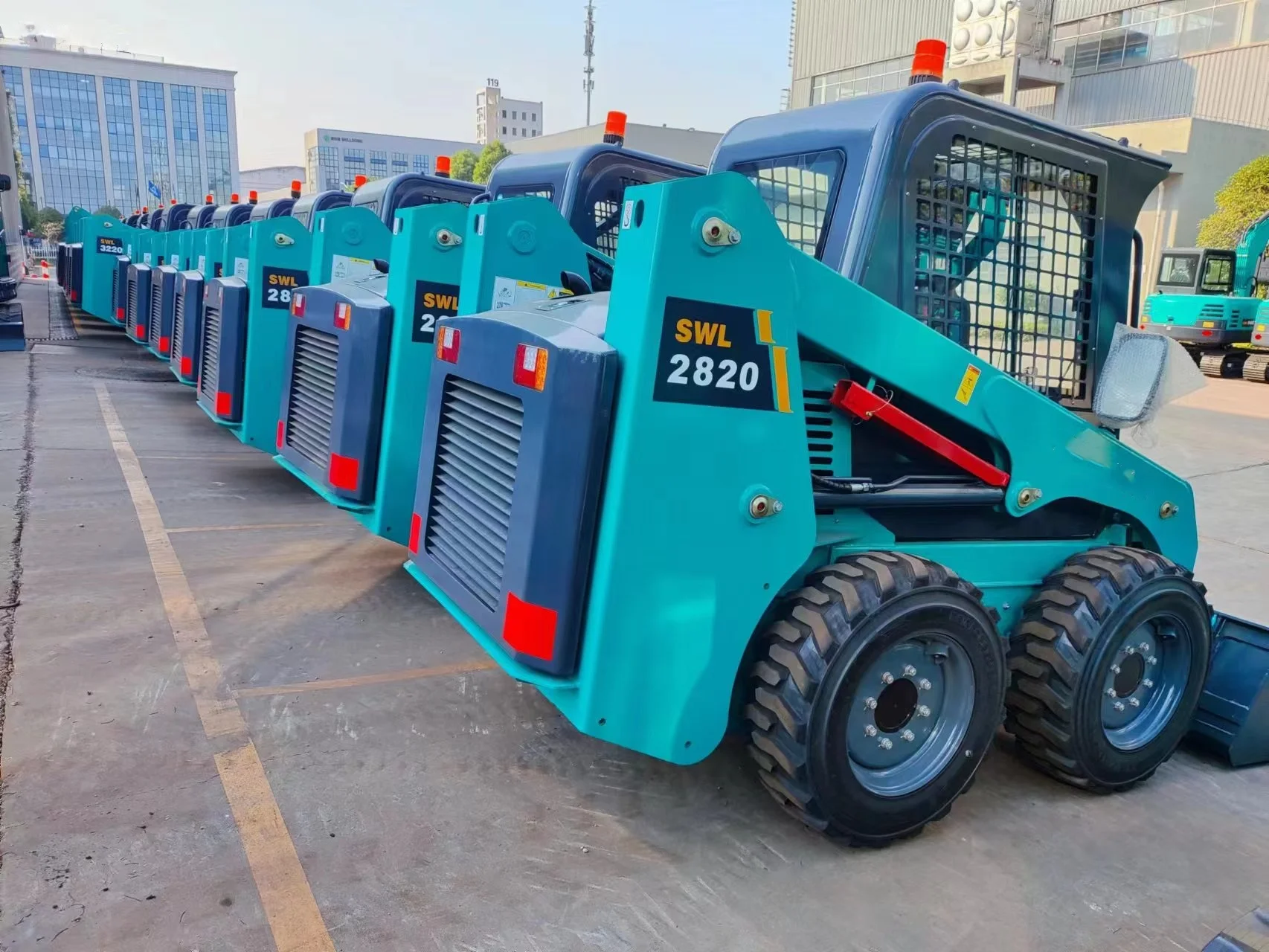

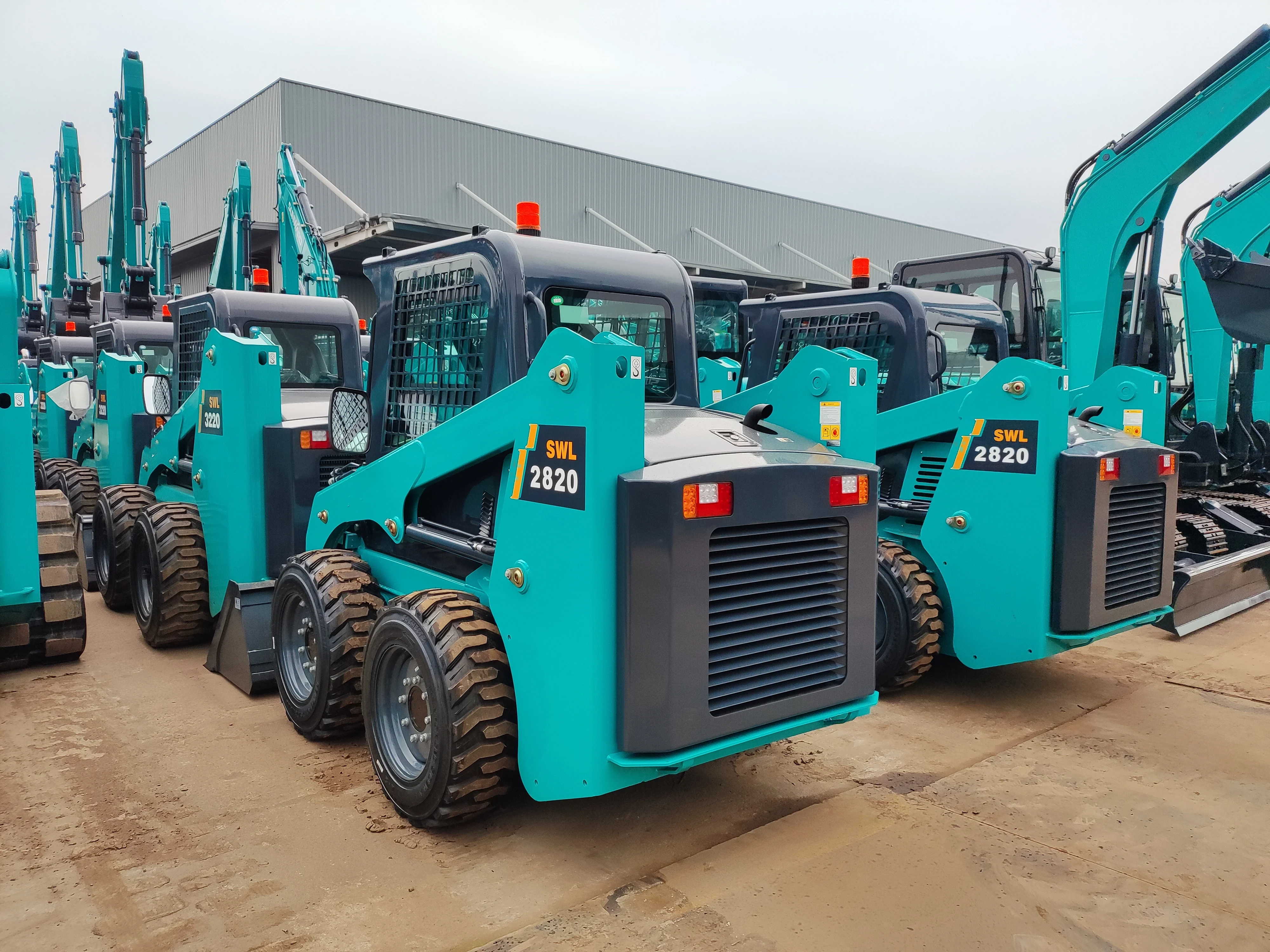

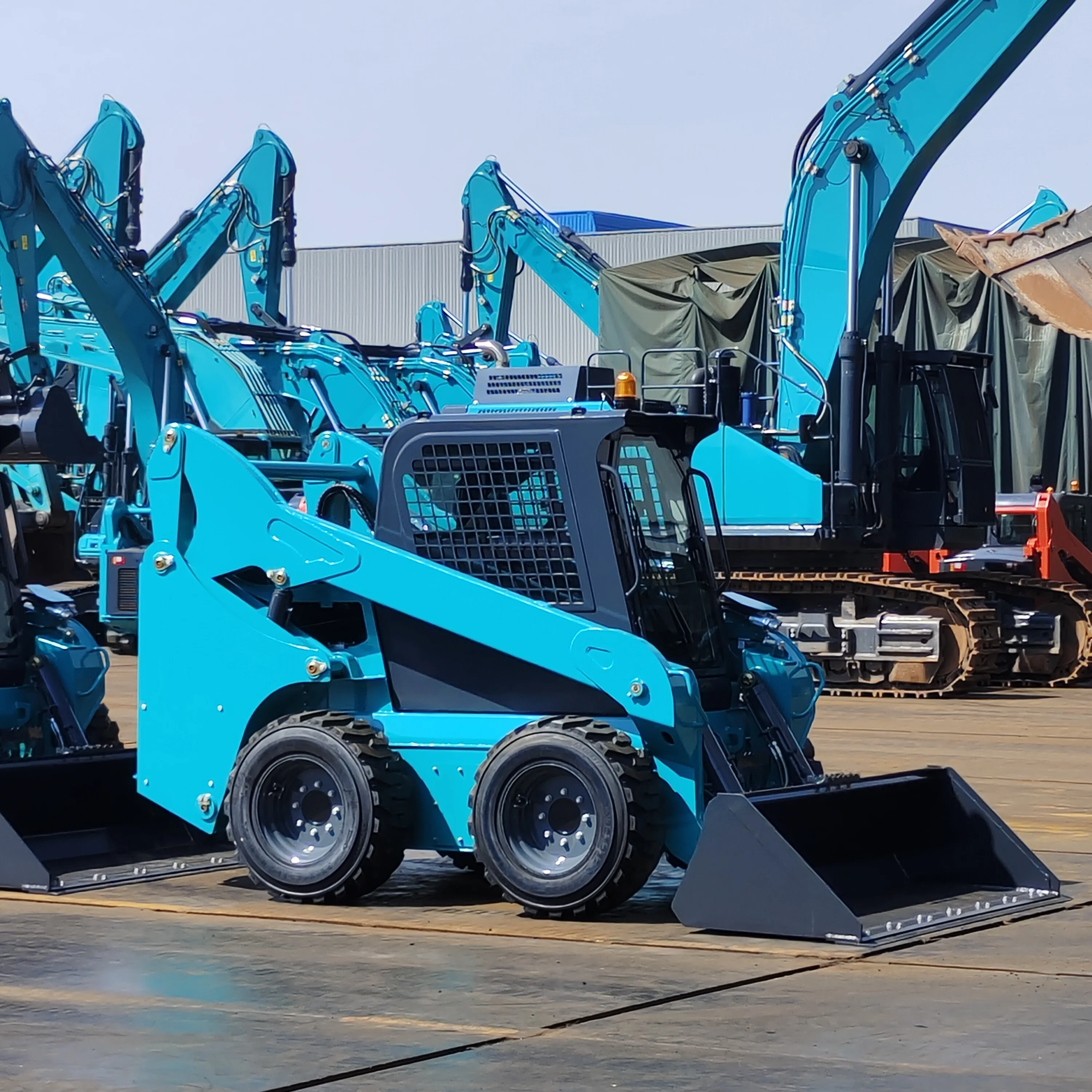

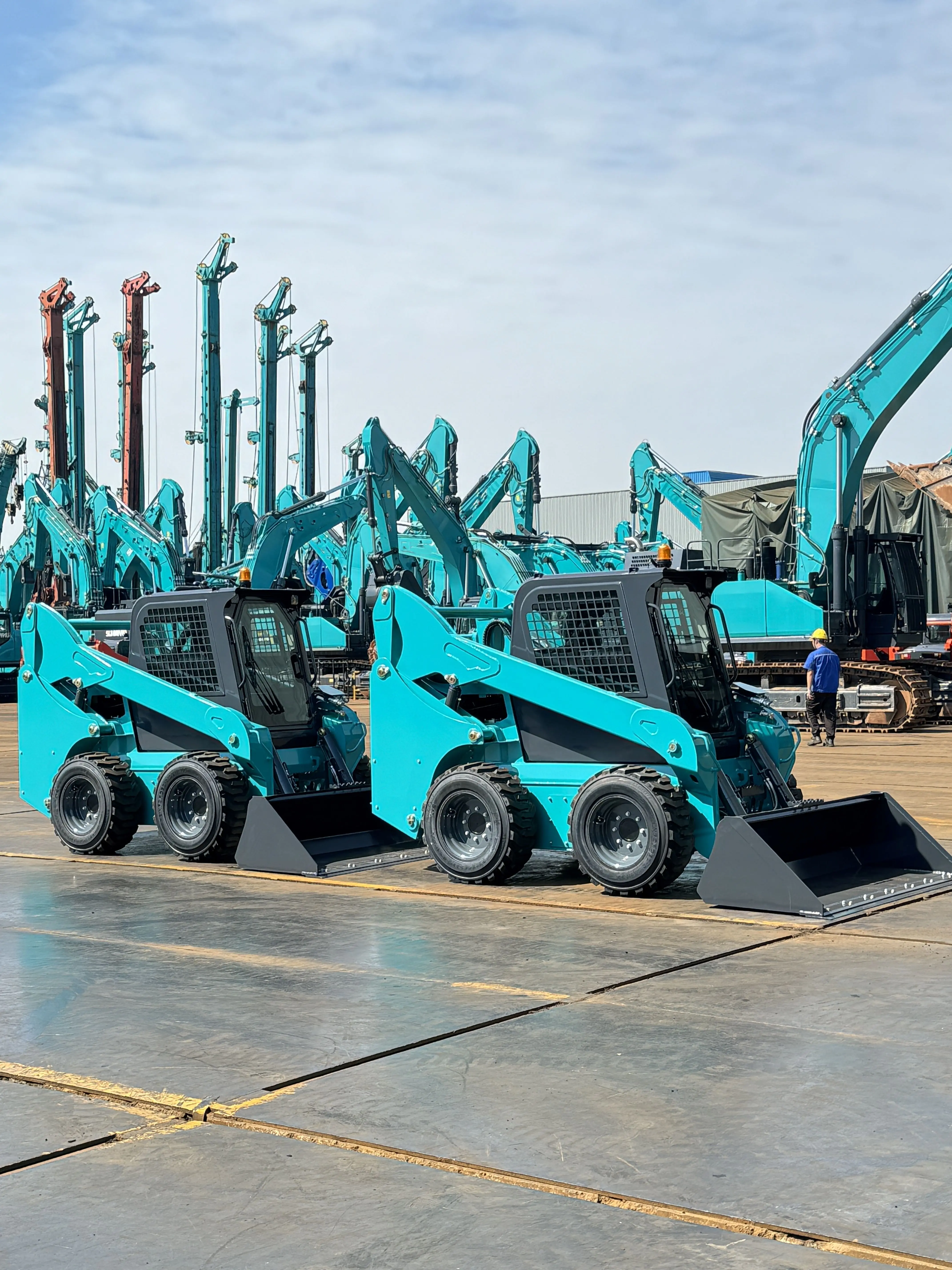

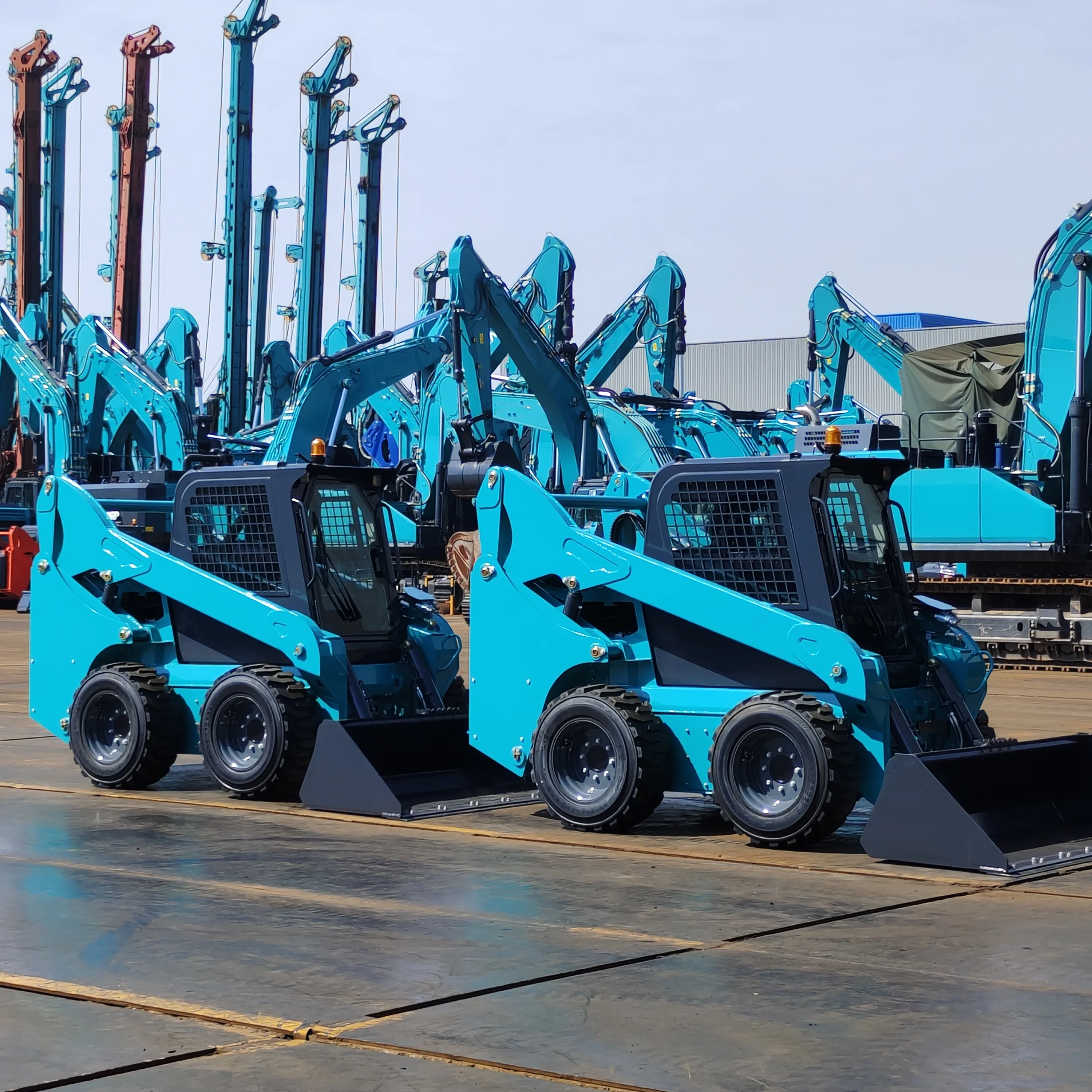

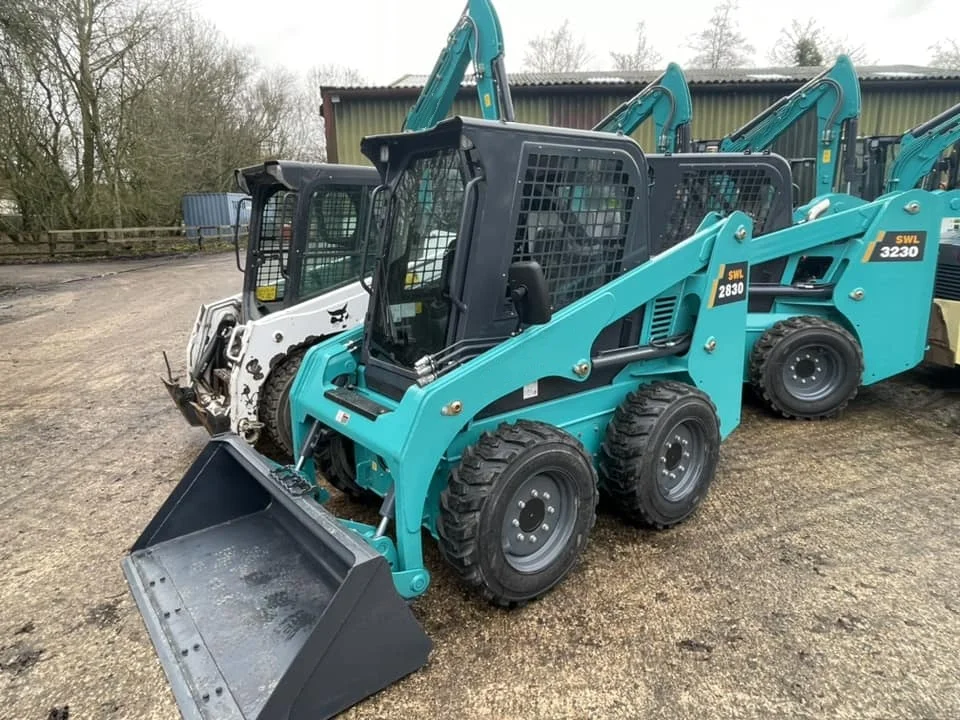

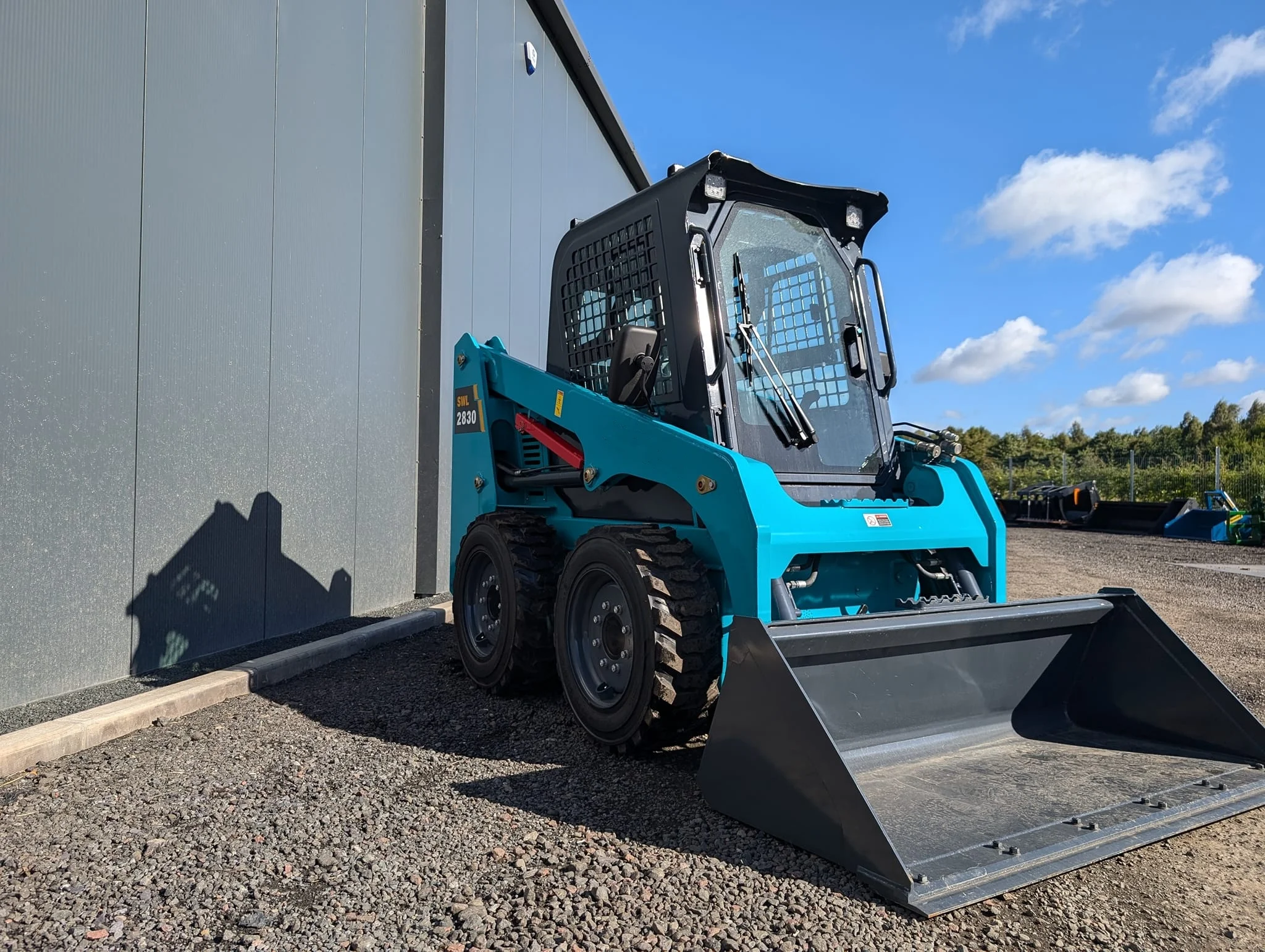

Fast delivery!!! Hot Sale 6 ton Mini Skid Steer Loader SWL2820 Four Wheel Drive With Attachments
- Category: >>>
- Supplier: Skymard Construction Machinery (Hunan) Co. Ltd.Skymard Ltd.
Share on (1601283141680):
Product Overview
Description
Overview
1.Durable Construction and Warranty: The product comes with a 1-year warranty on the machine and 1-year warranty on core components, ensuring peace of mind for users.
2.Wide Range of Applications: This skid steer loader is suitable for various applications, including earth material handling, and can be used in different industries such as farms, retail, and energy & mining.
3. Advanced Hydraulic System: The product features a top-brand hydraulic system, including hydraulic valve, pump, and cylinder, ensuring efficient and reliable operation.
4. Global Availability: The showroom locations of this product are available in multiple countries, including France, Philippines, Brazil, and more, providing convenience for users worldwide.
2.Wide Range of Applications: This skid steer loader is suitable for various applications, including earth material handling, and can be used in different industries such as farms, retail, and energy & mining.
3. Advanced Hydraulic System: The product features a top-brand hydraulic system, including hydraulic valve, pump, and cylinder, ensuring efficient and reliable operation.
4. Global Availability: The showroom locations of this product are available in multiple countries, including France, Philippines, Brazil, and more, providing convenience for users worldwide.
Product Description
Specification

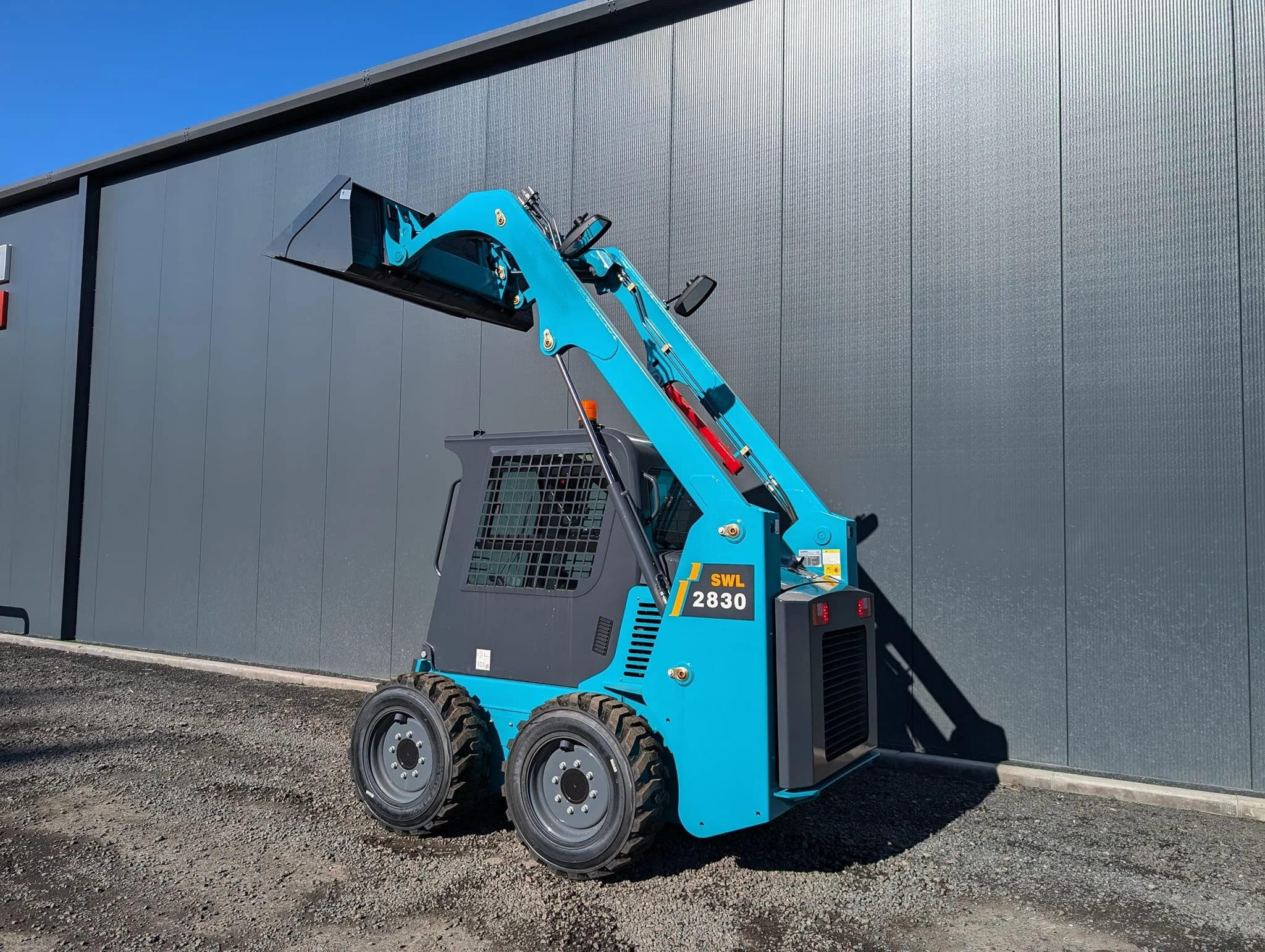

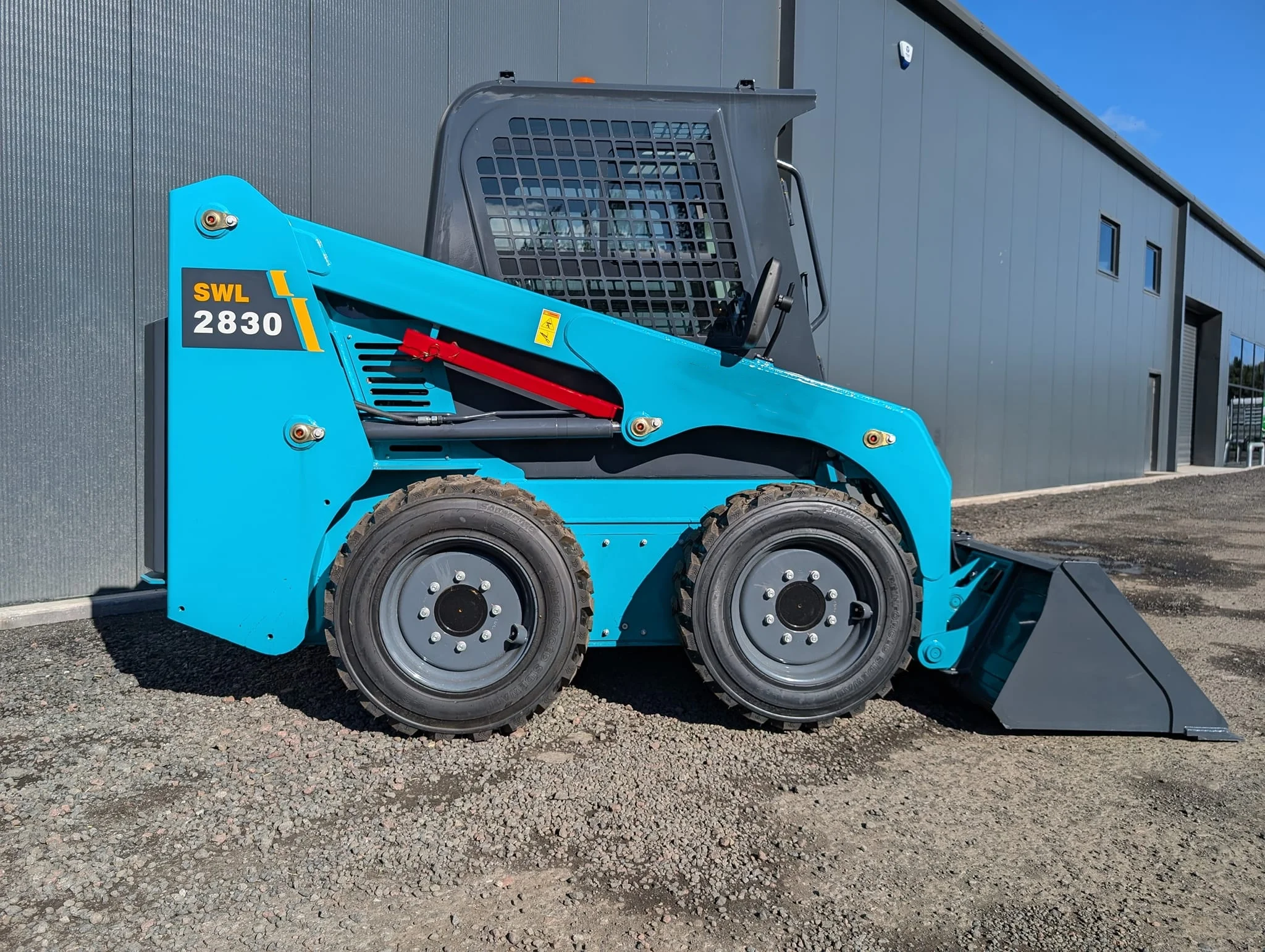

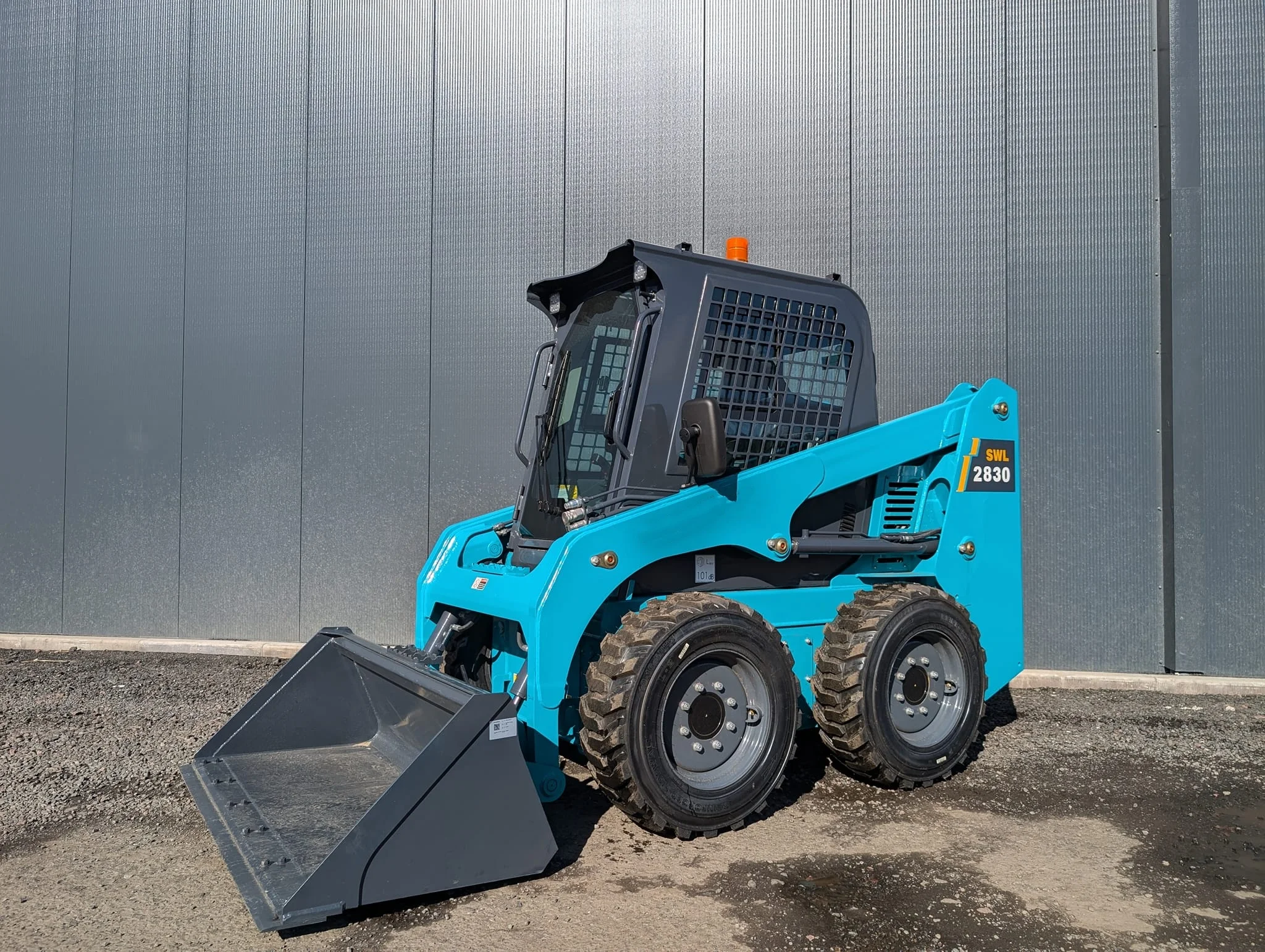

Model | SWL2830 | ||||
Pile parameters | mm | 3318*1600*2014 | |||
Operating parameters | Max. operating altitude | mm | 3850 | ||
Height to bucket hinge pin | mm | 3002 | |||
Height to top of cab | mm | 2014 | |||
Height to bottom of level bucket | mm | 2834 | |||
Overall length without attachment | mm | 2604 | |||
Overall length with standard bucket | mm | 3318 | |||
Dump angle at full height | ° | 42 | |||
Dumping height | mm | 2320 | |||
Dumping reach | mm | 475 | |||
Rollback at ground | ° | 30 | |||
Rollback angle at full height | ° | 97 | |||
Wheelbase (Crawlar base) | mm | 987 | |||
Ground clearance | mm | 220 | |||
Angle of departure | ° | 25 | |||
Without the attachments before turning radius | mm | 1235 | |||
Before turning radius | mm | 1953 | |||
After turning radius | mm | 1531 | |||
Tail length | mm | 1021 | |||
Wheel spacing (Track gauge) | mm | 1293 | |||
Bucket width | mm | 1600 | |||
Performance | Total weight | kg | 2830 | ||
Loading capacity | kg | 750 | |||
Tipping load | kg | 1500 | |||
Bucket breakout force lift | kg | 2000 | |||
Boom breakout force lift | kg | 1900 | |||
Max. traveling speed | km/h | 13 | |||
Engine | Brand | Japanese engine | |||
Model | V2403-CR-TE4B | ||||
Type | 4-cylinder, water-cooled, diesel engine | ||||
Emission standards | EPA Tier4F/ | ||||
EU Stage V | |||||
Power | kW/rpm | 48.6/2700 | |||
Max. torque | N.m/rpm | 198.5/1900 | |||
