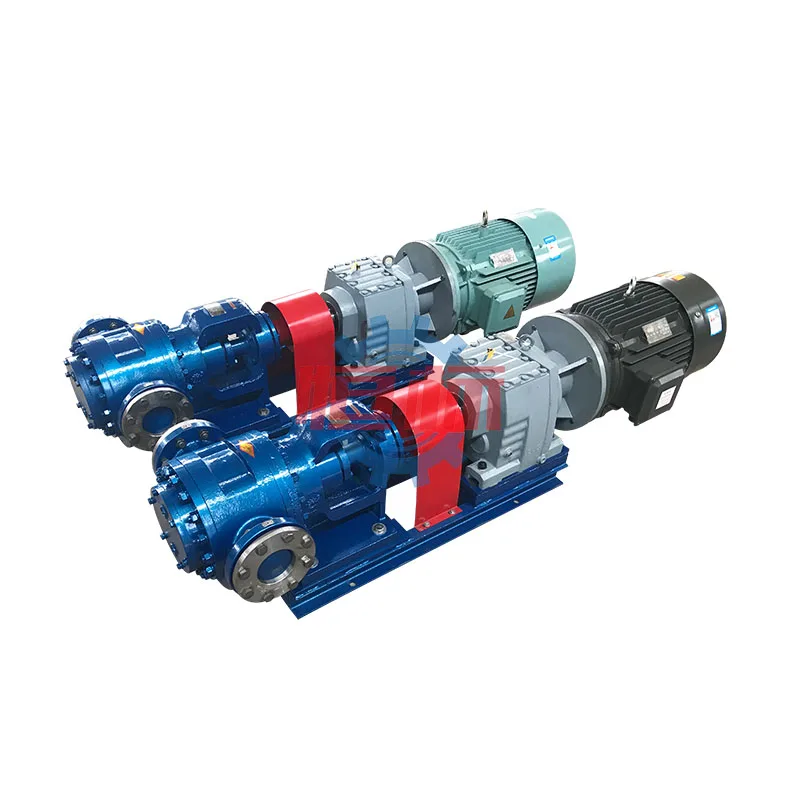

Pump for resin rosin polymer honey paste SHHLB high viscosity internal rotary petroleum pump
- Category: >>>
- Supplier: Hebei Shenghui Pump Co. Ltd.Hebei Ltd.
Share on (1601283185039):
Product Overview
Description
Product Description
SHHLB Internal gear pump high temperature high viscosity epoxy resin pump is a kind of new positive displacement pump, and is designed according to the different fields requirements of petroleum, chemical industry, paint, medicine, foodstuff and so on. It wildly applies to a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Proper medium temperature: -10℃ ~ 200℃
Proper medium viscosity: 1cst ~ 600.000cst
Proper medium viscosity: 1cst ~ 600.000cst
Work principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of liquid finished.

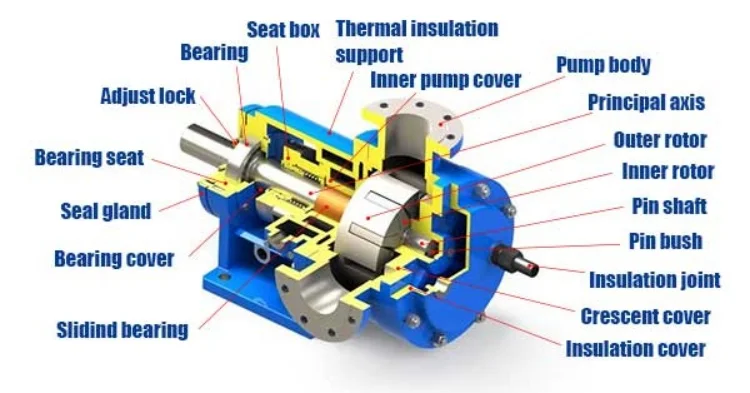

Structure Feature

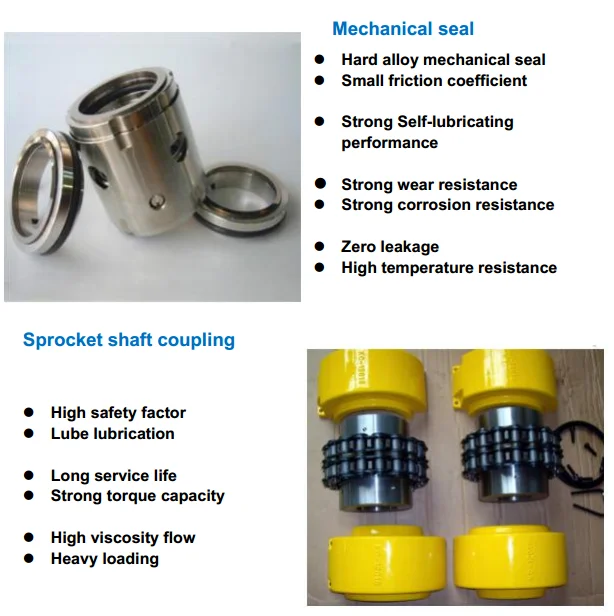

The pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing etc. The pump seal adopts packing seal or mechanical seal. When the delivered medium is high temperature, high vise or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystalline, we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam when working.
The pump can be also fitted with the safety valve.
The pump set is composed of the pump, motor and baseplate, the direction way is belt wheel driving or coupling driving.
Advantages
(1) Steady delivery without pulsation, little vibration and noise.
(2) Outstanding self-priming ability.
(3) The pump can deliver the varied corrosion mediums if the proper material of parts selected. In addition, the working temperature can reach 200℃
(4) The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5) The pump's flow capacity can be changed through adjusting the speed.
(6) It's specially suited to deliver high viscosity medium.
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of liquid finished.
Structure Feature
The pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing etc. The pump seal adopts packing seal or mechanical seal. When the delivered medium is high temperature, high vise or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystalline, we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam when working.
The pump can be also fitted with the safety valve.
The pump set is composed of the pump, motor and baseplate, the direction way is belt wheel driving or coupling driving.
Advantages
(1) Steady delivery without pulsation, little vibration and noise.
(2) Outstanding self-priming ability.
(3) The pump can deliver the varied corrosion mediums if the proper material of parts selected. In addition, the working temperature can reach 200℃
(4) The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5) The pump's flow capacity can be changed through adjusting the speed.
(6) It's specially suited to deliver high viscosity medium.
Specification
Model | Inlet/outlet | Capacity | Viscosity | Rev | Pressure | ||||||
Mpa | |||||||||||
mm | L/100rev | cSt | r/min | 0.4 | 0.6 | 0.8 | 1 | ||||
capacity(L/min) | |||||||||||
NYP0.78 | 15 | 0.78 | 20 | 1390 | 9.3 | 9 | 8.8 | 8.6 | |||
60 | 1390 | 9.5 | 9.2 | 9 | 8.9 | ||||||
200 | 1390 | 10.4 | 10.2 | 10 | 9.9 | ||||||
600 | 1390 | 10.4 | 10.3 | 10.3 | 10.2 | ||||||
2000 | 910 | 6.8 | 6.8 | 6.8 | 6.7 | ||||||
6000 | 720 | 5.4 | 6.1 | 6.8 | 6.8 | ||||||
NYP7.0 | 40 | 7 | 20 | 1450 | 98.1 | 96 | 94.7 | 93 | |||
60 | 1450 | 99 | 97 | 96.4 | 95 | ||||||
200 | 1450 | 99.8 | 98 | 97.5 | 97 | ||||||
600 | 960 | 62 | 65 | 44 | 64 | ||||||
2000 | 960 | 67 | 66 | 65 | 65 | ||||||
6000 | 640 | 44.5 | 44 | 44 | 44 | ||||||
20000 | 583 | 40.5 | 40 | 40 | 40 | ||||||
60000 | 455 | 31.5 | 31 | 31 | 31 | ||||||
NYP24 | 50 | 24 | 20 | 720 | 165 | 161 | 158 | 155 | |||
60 | 720 | 166 | 164 | 162 | 158 | ||||||
200 | 610 | 143 | 141 | 139 | 136 | ||||||
600 | 541 | 127 | 125 | 124 | 122 | ||||||
2000 | 475 | 112 | 111 | 110 | 109 | ||||||
6000 | 357 | 85 | 84 | 83 | 83 | ||||||
20000 | 303 | 72 | 72 | 72 | 71 | ||||||
60000 | 228 | 54 | 54 | 54 | 54 | ||||||
NYP52 | 50 | 52 | 20 | 720 | 362 | 355 | 348 | 340 | |||
60 | 720 | 364 | 358 | 352 | 346 | ||||||
200 | 610 | 309 | 304 | 300 | 294 | ||||||
600 | 541 | 275 | 271 | 268 | 264 | ||||||
2000 | 475 | 243 | 238 | 237 | 235 | ||||||
6000 | 357 | 184 | 182 | 181 | 180 | ||||||
20000 | 303 | 157 | 156 | 155 | 155 | ||||||
60000 | 228 | 119 | 118 | 118 | 118 | ||||||
NYP80 | 80 | 80 | 20 | 615 | 471 | 461 | 451 | 433 | |||
60 | 615 | 474 | 465 | 457 | 448 | ||||||
200 | 544 | 421 | 414 | 408 | 401 | ||||||
600 | 479 | 372 | 367 | 362 | 356 | ||||||
2000 | 417 | 326 | 322 | 319 | 315 | ||||||
6000 | 305 | 239 | 237 | 326 | 233 | ||||||
20000 | 228 | 180 | 179 | 178 | 177 | ||||||
60000 | 188 | 149 | 149 | 149 | 148 | ||||||
NYP111 | 80 | 111.4 | 20 | 615 | 660 | 647 | 634 | 622 | |||
60 | 615 | 664 | 652 | 642 | 631 | ||||||
200 | 544 | 589 | 580 | 573 | 563 | ||||||
600 | 479 | 521 | 514 | 508 | 502 | ||||||
2000 | 417 | 455 | 450 | 447 | 442 | ||||||
6000 | 305 | 335 | 332 | 331 | 328 | ||||||
20000 | 228 | 251 | 250 | 249 | 248 | ||||||
60000 | 188 | 209 | 208 | 208 | |||||||

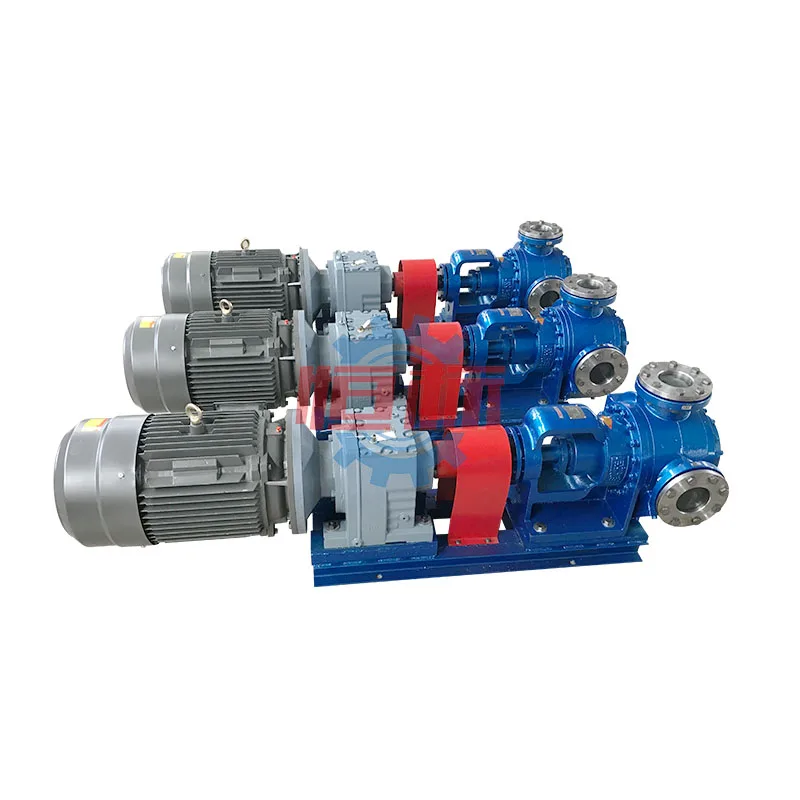

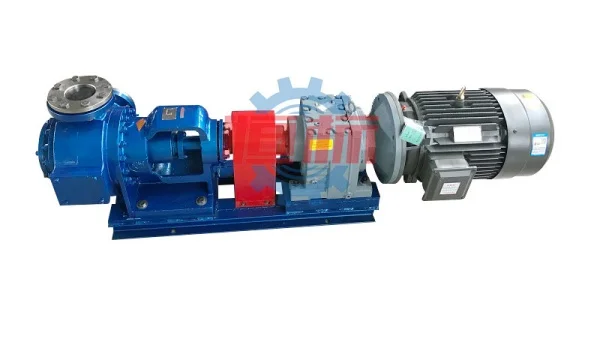

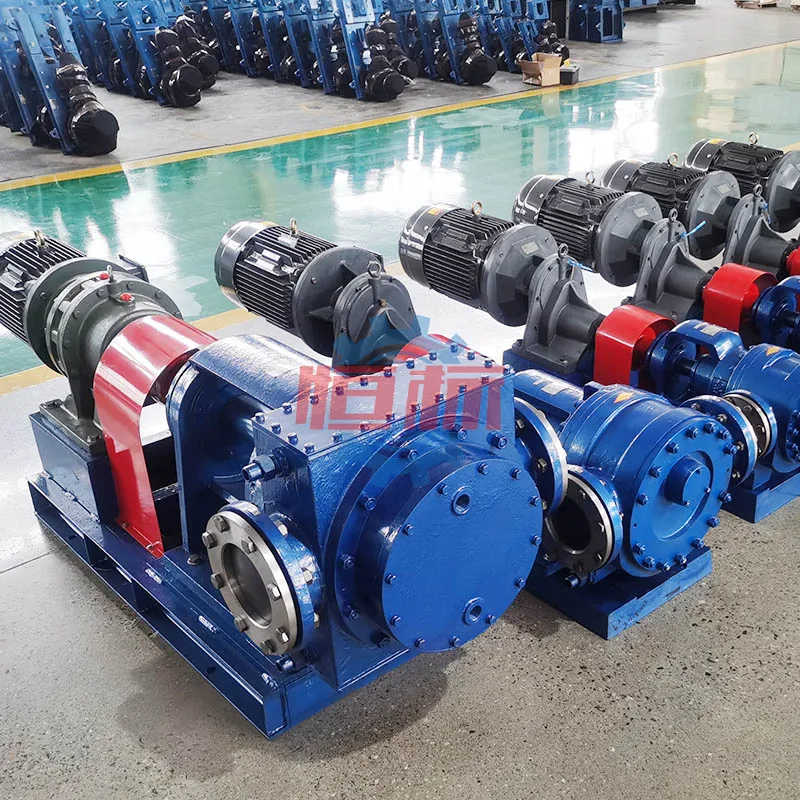

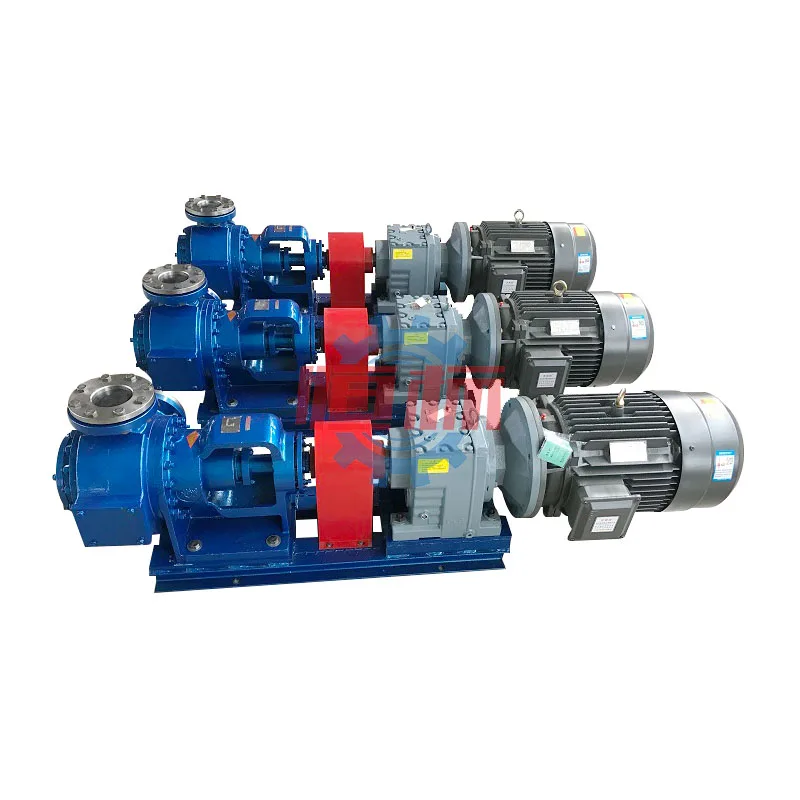

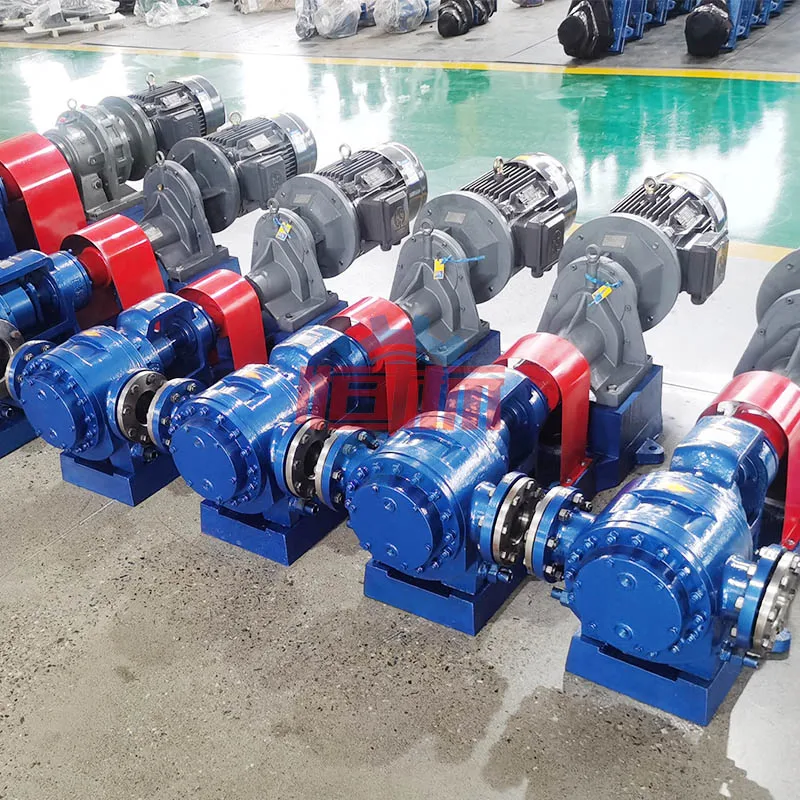

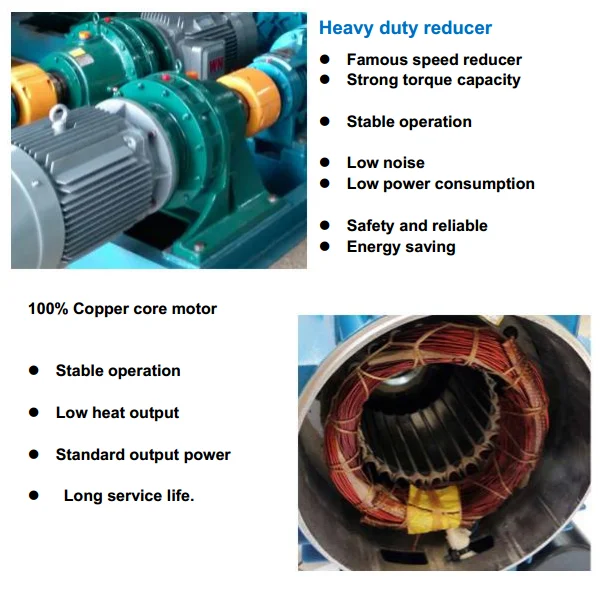

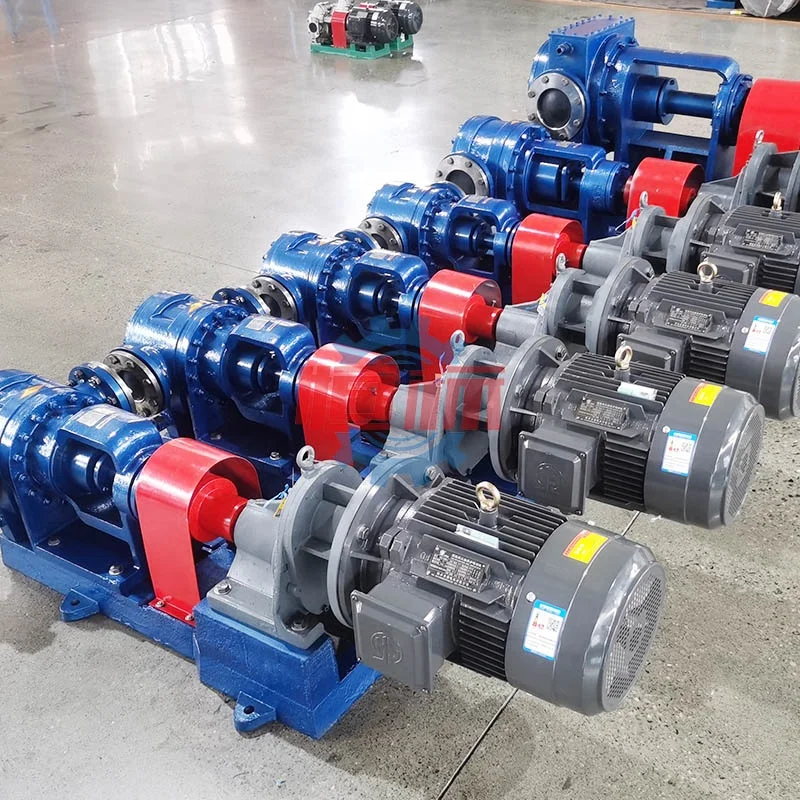

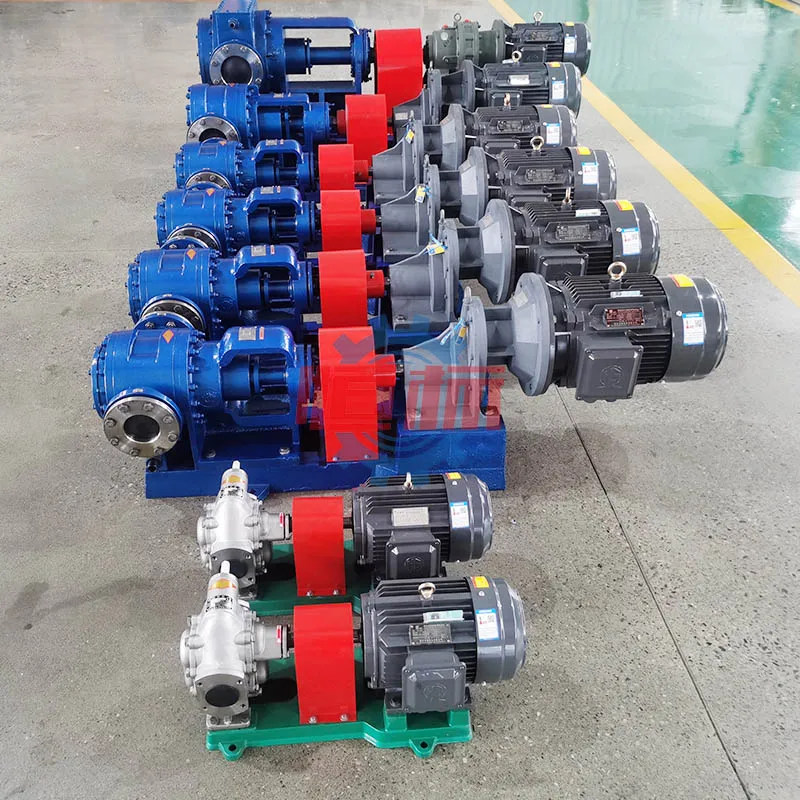

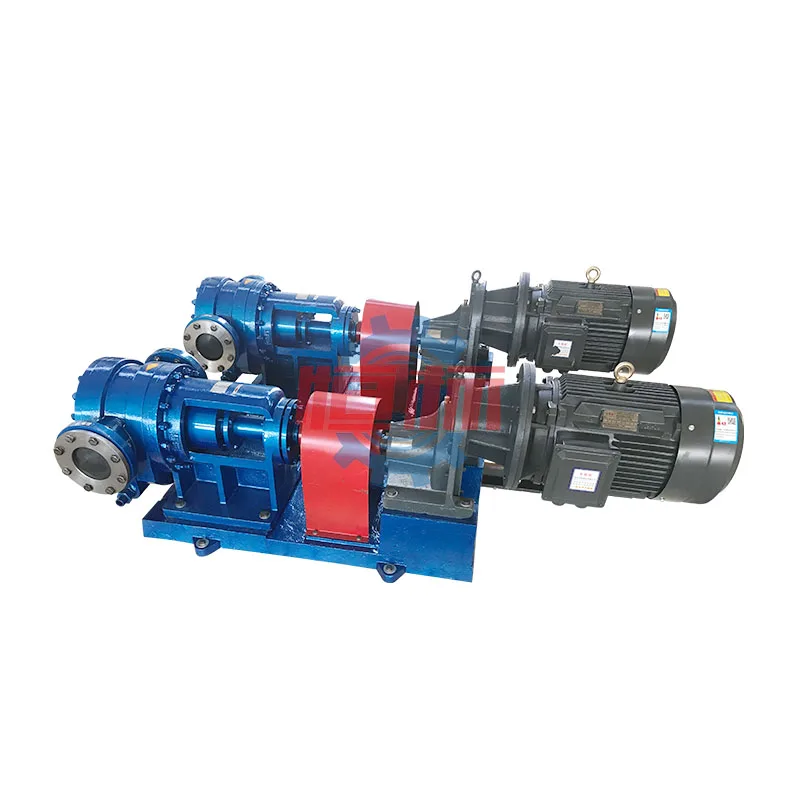

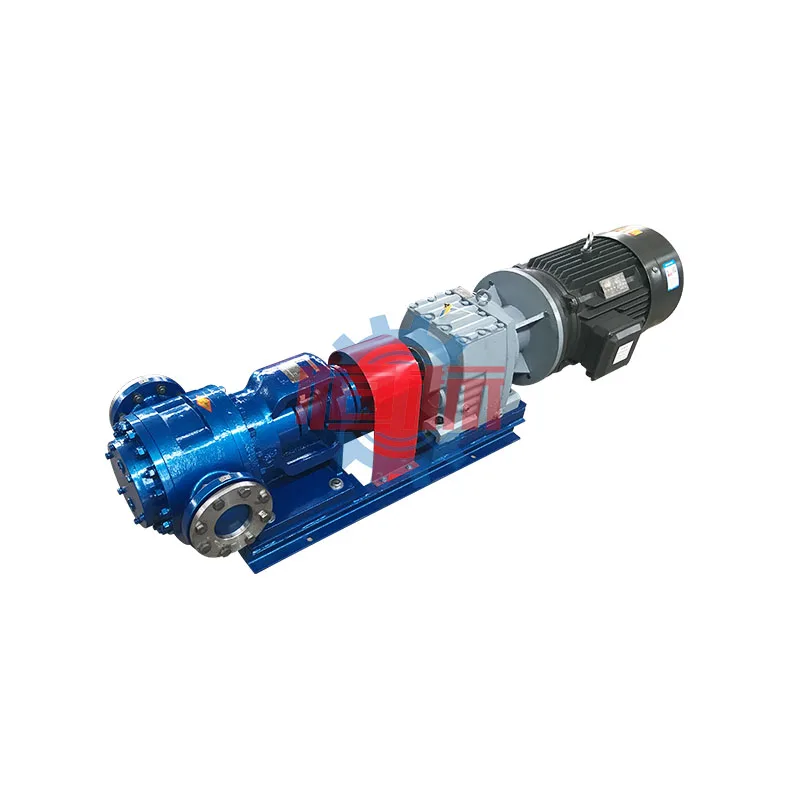

Details Images
Packaging&Shipping
Comanpy information
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology and get clients' acceptation to cooperate with Globe 500 enterprises .Rely on high precision numerical control and advanced testing equipments, and level B bed stand, the company can ensure the products quality and precision. The company has passed ISO9001:2008 certificate.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
Contact Us
Contact us for pump price and catalog
In order to confirm which type gear pump suitable for your job, could you please help us to confirm the following information:
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
Please kindly Contact us below:
