double shaft coal mixer
US $7999-$8699
Small Portable Concrete Mixer Truck Cement Construction Machinery Concrete Line Pump Trailer Fine Aggregate Concrete Mixer Pump
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.
Share on (1601283200314):
Product Overview
Description
Product Overview

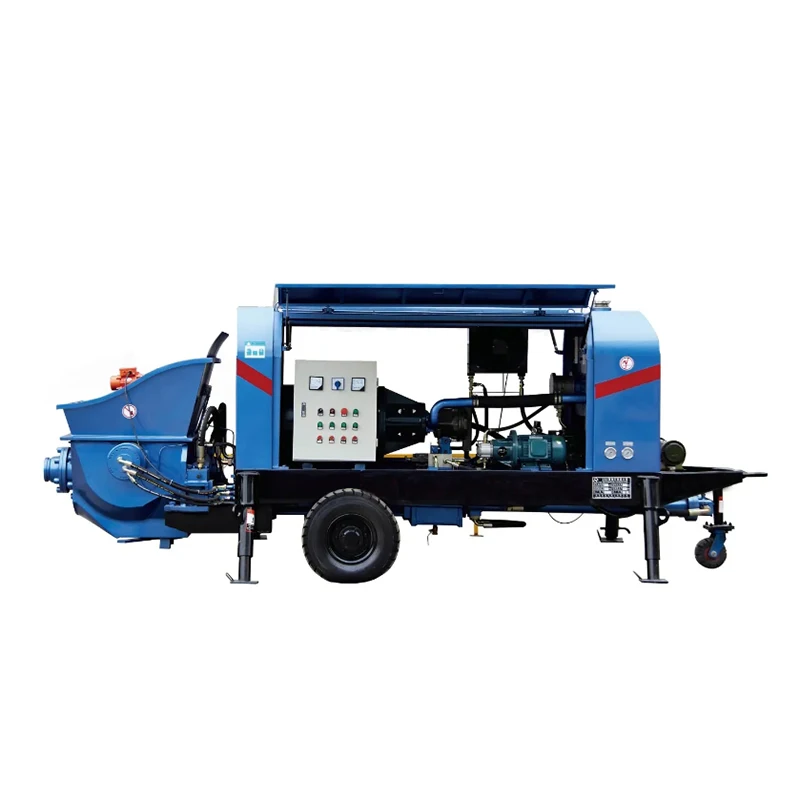

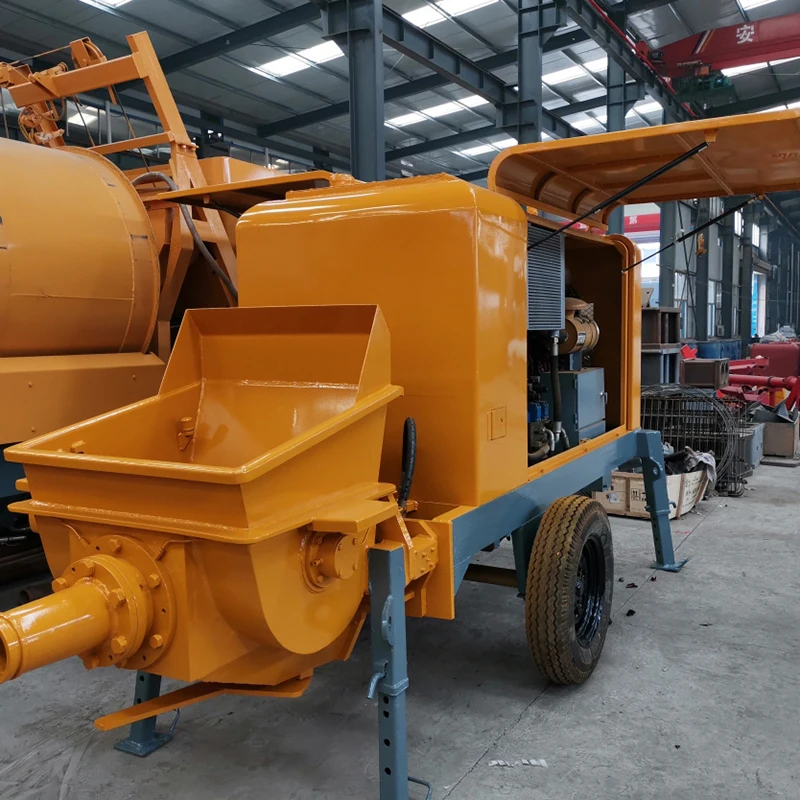

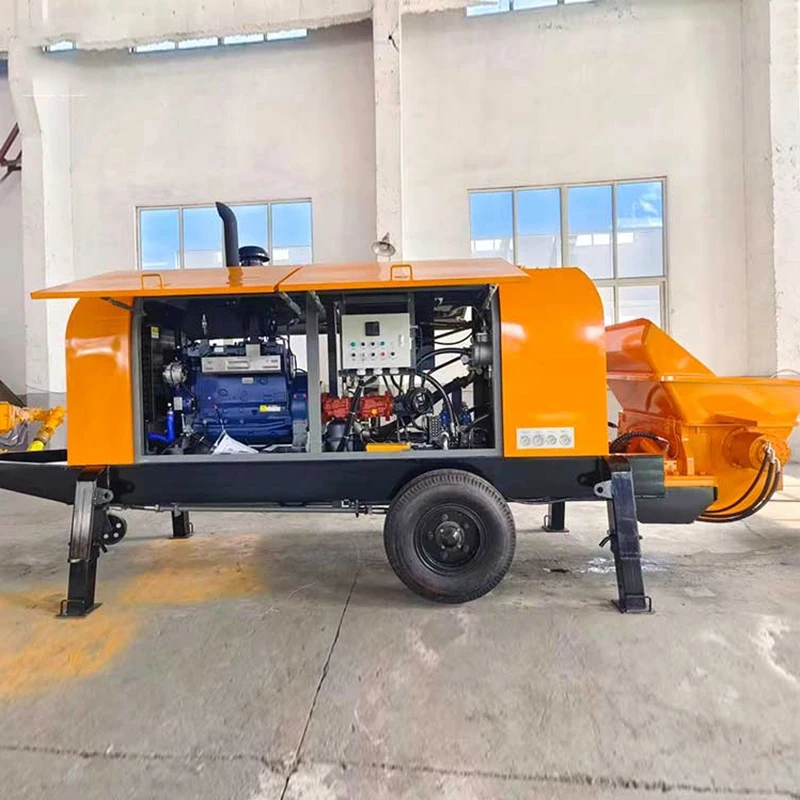

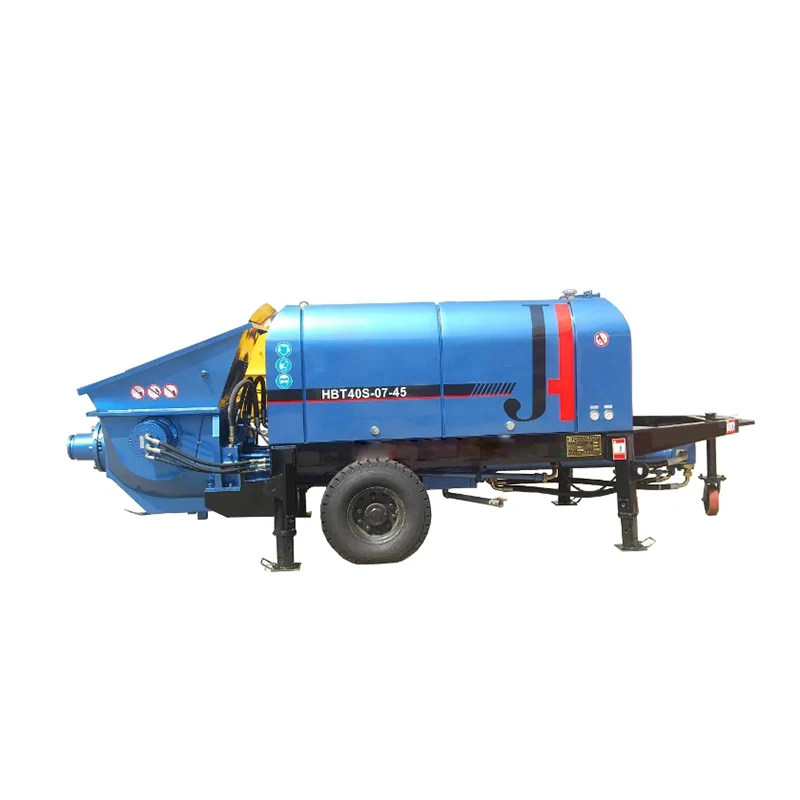

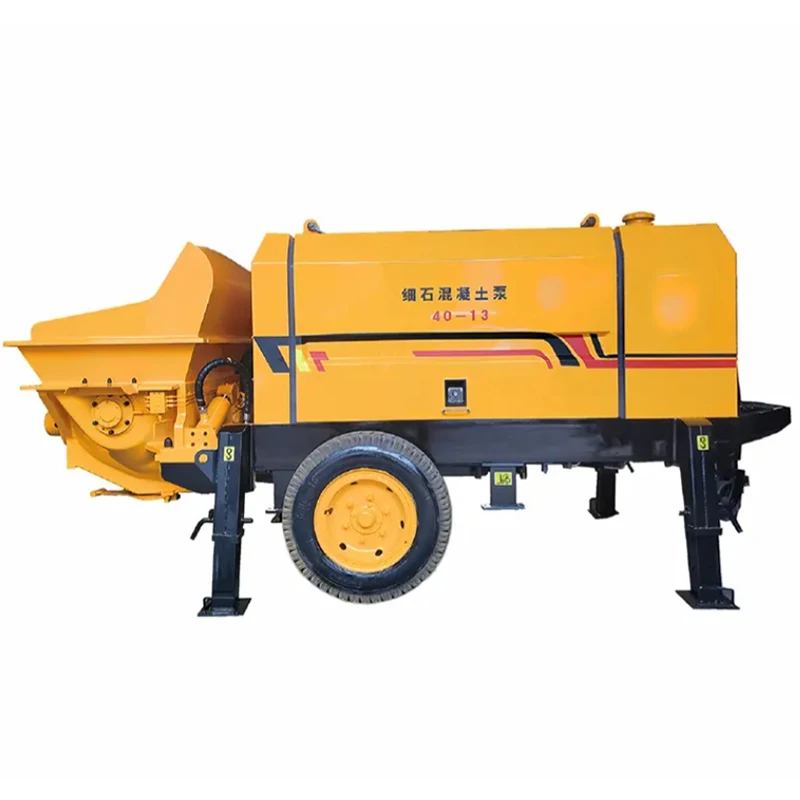

Small Portable Concrete Mixer Truck Cement Construction Machinery Concrete Line Pump Trailer Fine Aggregate Concrete Mixer Pump
Concrete mixer pump, also known as concrete pump, consists of a pump body and a delivery pipe.
A concrete pump is a machine that uses pressure to continuously deliver concrete along a pipeline. It is mainly used in building construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump. Another type is to install the pump body on the chassis of a car and equip it with a retractable or flexural distribution boom to form a pump truck.
A concrete pump is a machine that uses pressure to continuously deliver concrete along a pipeline. It is mainly used in building construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump. Another type is to install the pump body on the chassis of a car and equip it with a retractable or flexural distribution boom to form a pump truck.

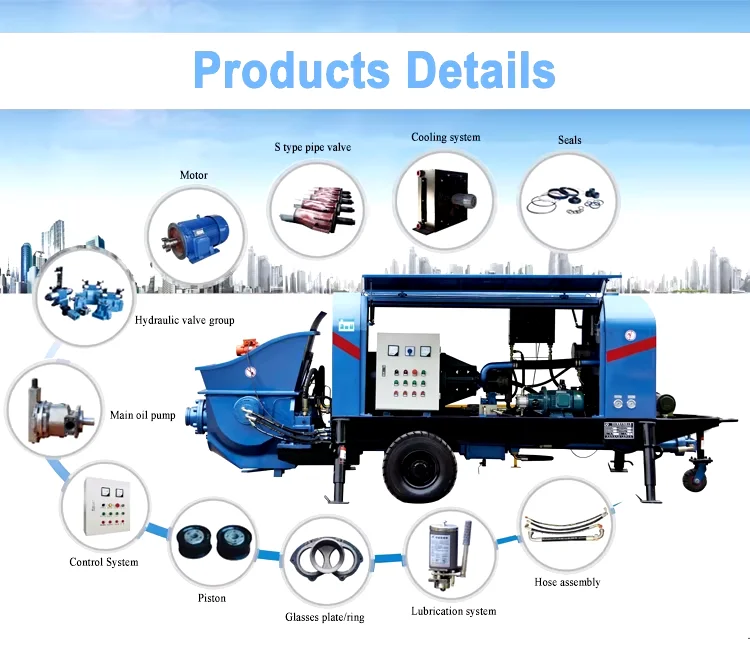

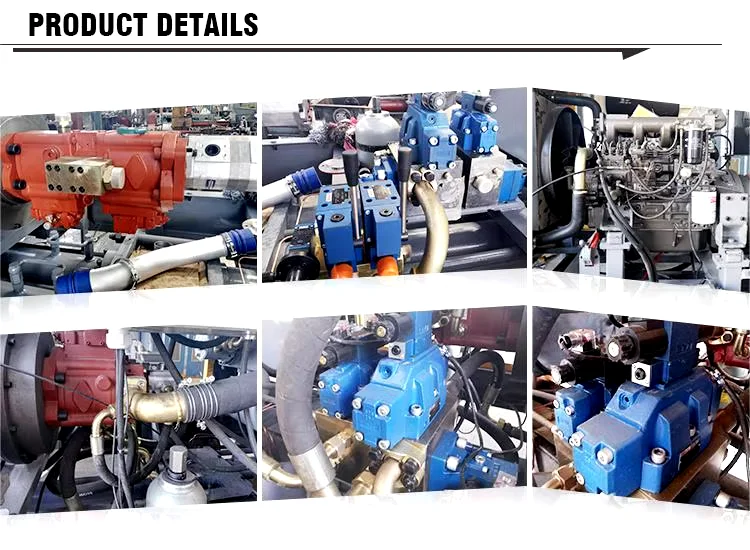

Product Details
Technical Characteristics:
1.It is equipped with special pipeline.
2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3.It is an ideal kind of existing concrete conveyance equipment.
4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
6.It is used for conveying concrete in large concrete projects.
1.It is equipped with special pipeline.
2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3.It is an ideal kind of existing concrete conveyance equipment.
4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
6.It is used for conveying concrete in large concrete projects.
PRODUCT SPECIFICATIONS
Fine aggregate Concrete Pump | Diesel Concrete Pump | Drum type diesel and electric concrete pump | |
Item | |||
Max.conveying capacity | 25-40m3/h | 15-90m3/h | 30-80m3/h |
Max.outlet pressure | 12 Mpa | Diesel engine 176 | 10Mpa |
Max.aggregate size | ≤30mm | ≤30mm | ≤40mm |
Motor power | 45KW | 80KW | 37KW |
Max.horizontal delivery | 600m | 1600m | 800m |
Max.vertical delivery | 180m | 350m | 400m |
Borex Trip | Φ140*700mm | Φ140*1800mm | Φ180*1300mm |
Conveying pipe inner diameter | Φ100(100)mm | Φ100(180)mm | Φ120(100)mm |
Distribution valve type | S Valve | S Valve | S Valve |
Dimension | 4500*1500*1700mm | 6000*2100*2260mm | 4200*1960*1800mm |
Weight | 3000kg | 2800kg | 3000kg |
Concrete pump HBT60.13.130RS technical parameter table | ||
Parameter list item | Technical parameters | |
Maximum theoretical concrete delivery volume | 60m3/h | |
Maximum theoretical delivery height/distance | 280/1000m | |
Total power | 130KW | |
Maximum aggregate | 40-50mm | |
Outlet pressure | 13MPa | |
Discharge port diameter | Φ180mm | |
Delivery cylinder | Φ200×1600 | |
Pumping hopper volume | 0.6m3 | |
Delivery pipe diameter | Φ125mm | |
Overall dimensions | 6300*2100*2250mm | |
Total mass | 6300KG | |
PRODUCT CONFIGURATION
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
Certifications
Our products concrete batching plant and concrete mixer both own CE QMS certifications.

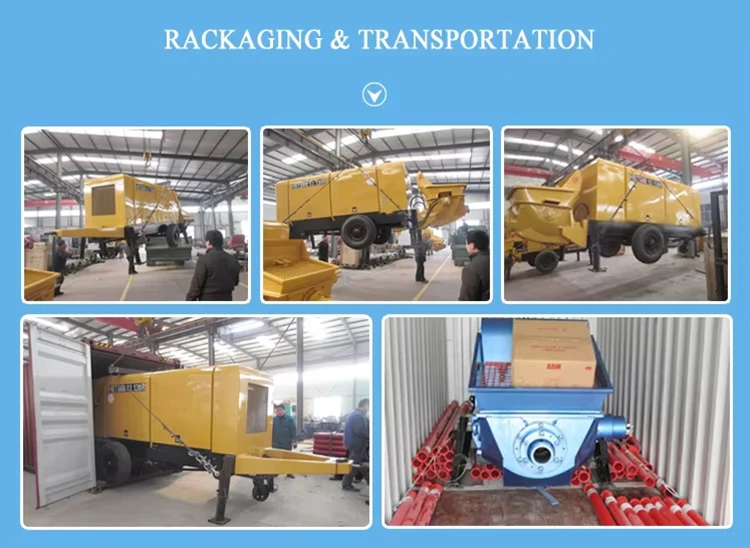

Packing and Delivery
Our products have been exported to more than 20 countries in Southeast Asia, Middle East, Africa and so on.
SALES AND SERVICE NETWORK
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to concrete batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Question 2: How to choose the suitable model of concrete batching plant? Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment. EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to concrete batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Question 2: How to choose the suitable model of concrete batching plant? Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment. EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
