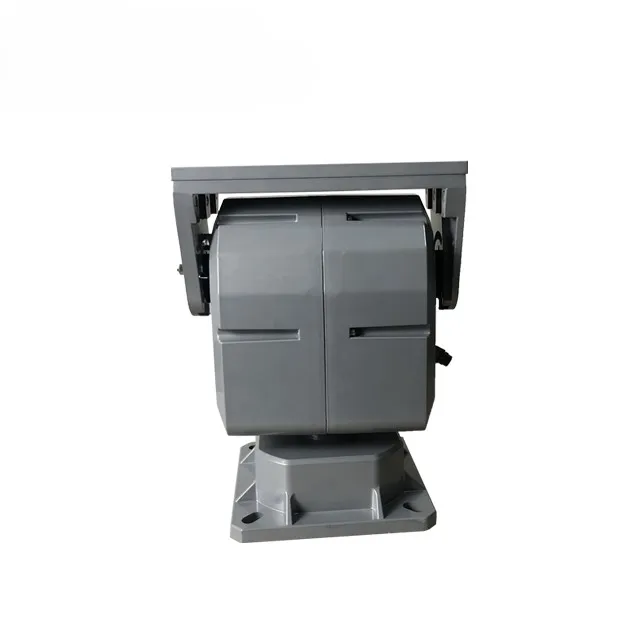

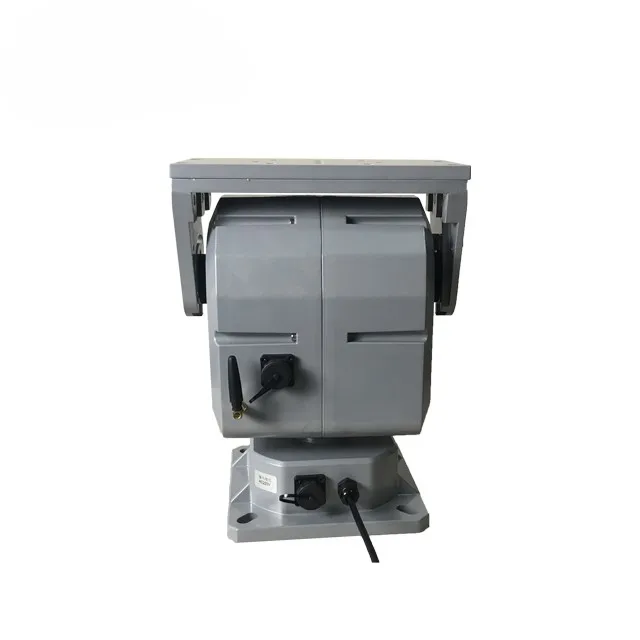

outdoor IP66 waterproof DC12/24V camera mount RS485 pan and tilt motorized head
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (1601283208239):
Product Overview
Description
outdoor IP66 waterproof DC12/24V camera mount RS485 pan and tilt motorized head
Products Description
Function:
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2)Three gears of high, medium and low switching in vertical ,horizontal
3)Remember function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· A specially designed worm gear, waterproof,
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
. One keyboard can control up to 9 devices
. Can be installed with shock abser and wear pad to reduce shock.extend pan tilt's life
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2)Three gears of high, medium and low switching in vertical ,horizontal
3)Remember function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· A specially designed worm gear, waterproof,
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
. One keyboard can control up to 9 devices
. Can be installed with shock abser and wear pad to reduce shock.extend pan tilt's life

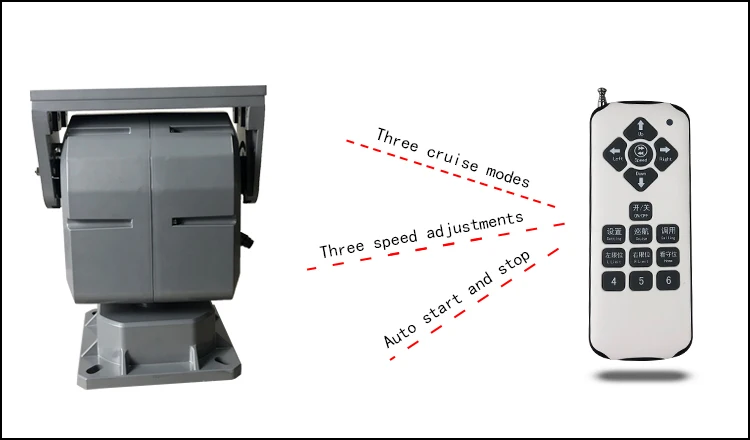

Wireless remote
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M ,
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom

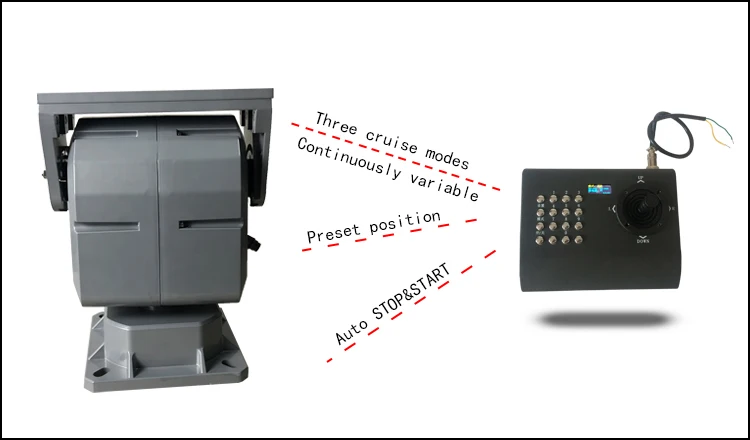

wired keyboard
One keyboard can be control up to 10 pan tilts, One/multiple keyboard for one /multiple pan tilts
Control range up to 1200 Meters,keyboard with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
Control range up to 1200 Meters,keyboard with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom

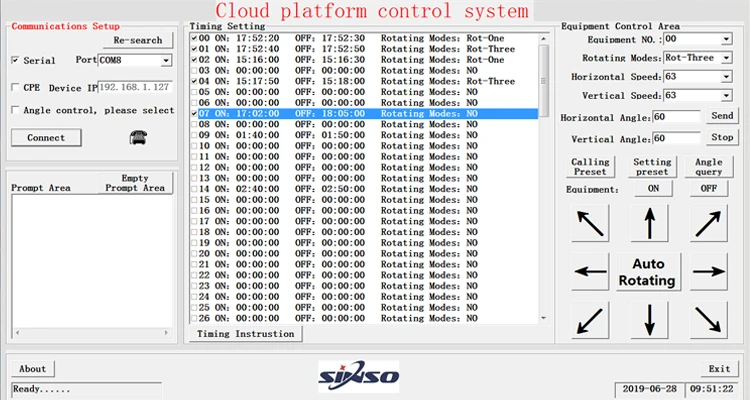

Software control
RS485 interface,PELCO-D,9600bps
one software can control multiple pan tilts
pan tilt with 8 directions adjustment ,autocruise,speed adjustment,8 presets
software can be offer for free
one software can control multiple pan tilts
pan tilt with 8 directions adjustment ,autocruise,speed adjustment,8 presets
software can be offer for free
Auto Cruise/Variable Speed Function
Autocruise Function:pan tilt reciprocating motion during limits,there are three cruise modes for auto cruise function :horizontal
mode,vertical mode,horizontal vertical mode.
Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed.
H:pan:20°/sec, tilt:7°/s,
M:pan:16°/sec,tilt:5°/s,
L:pan:13°/sec, tilt: 3°/s
mode,vertical mode,horizontal vertical mode.
Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed.
H:pan:20°/sec, tilt:7°/s,
M:pan:16°/sec,tilt:5°/s,
L:pan:13°/sec, tilt: 3°/s

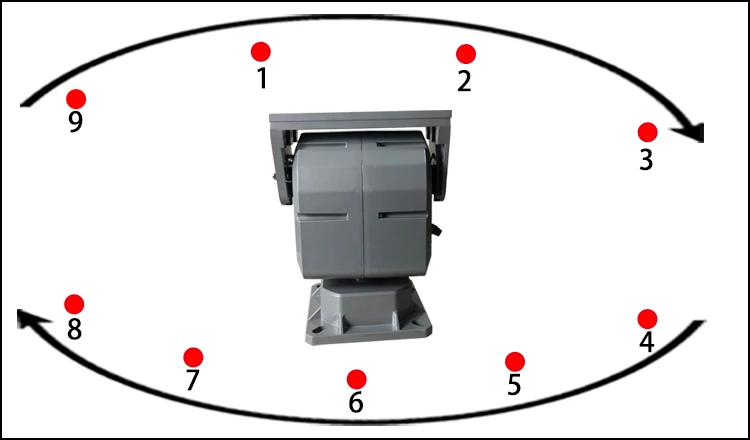

Preset/Auto Scan/Guard Function
Guard Function:pan tilt automatically to guard protected position after power on
Preset function:One-click Move to main area,
quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
Auto Scan(keyboard):stop and cruise between the presets ,residence time can be set

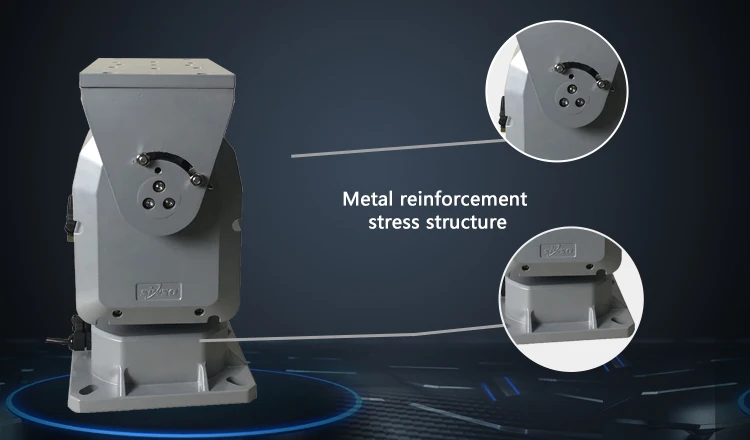

Material
IP66 protection grade,waterproof and dustproof,No fear of sun and rain;Aluminum material,stable and durable limits in horizontal
is and vertical is Photoelectric positioning and mechanical limi one vertical,So the rotation range can be adjusted
is and vertical is Photoelectric positioning and mechanical limi one vertical,So the rotation range can be adjusted
Product Paramenters
Item NO. | SN-3025FB-B |
Payload | 8Kg |
Control mode | wireless remote+ RS485+wired keyboard |
Control range | remote:50~100M,RS485/keyboard:1200M |
Power | 12VDC,24VDC,220VAC, custom made also acceptable |

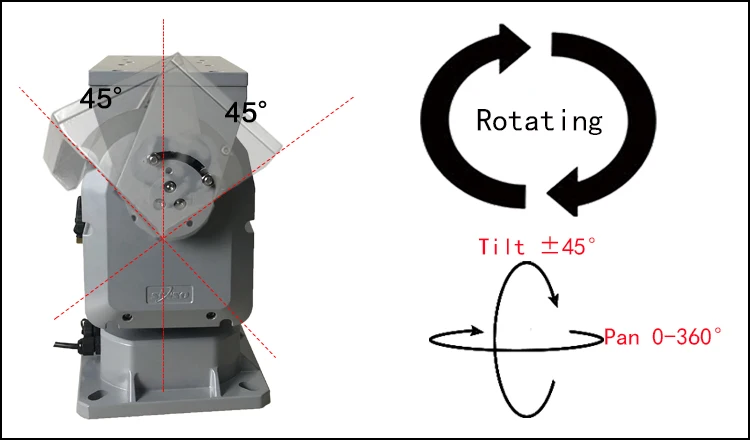

Rotation angle | Pan:360°，continuous,Tilt:±45° |
Rotation speed | Pan:0~30°/s，Tilt:0~10°s |
IP rate | IP66 |
Weight | 6.7Kg |

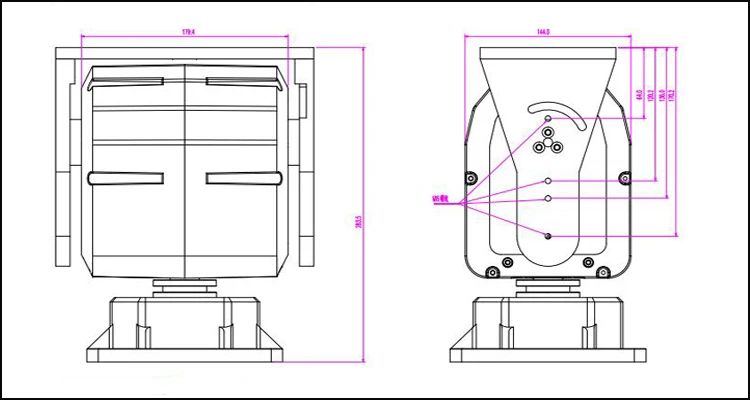

Dimension | 290(H)*181(W)*235(L)mm |
Lifespan | 20000h |
Working tempreture | Normal version:-10℃~+50℃ ,Heat version: -30℃~+50℃ |
Recommend Products
301 pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
303 pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Heavy duty pan tilt
Load:10Kg/25kg/45kg Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on

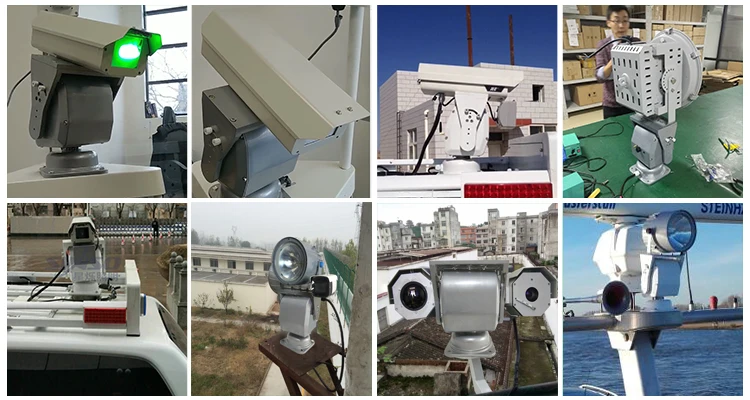

Application
Application:CCTV camera,Lighting,Laser,Bird Repellent System,Physiotherapy Instrument
