Malleable Iron Pipe Clamps Scaffolding Clamp Guardrail Railing Systems
- Category: >>>
- Supplier: Guangzhou Kingmetal Steel Industry Co. Ltd.
Share on (1601283233152):
Product Overview
Description

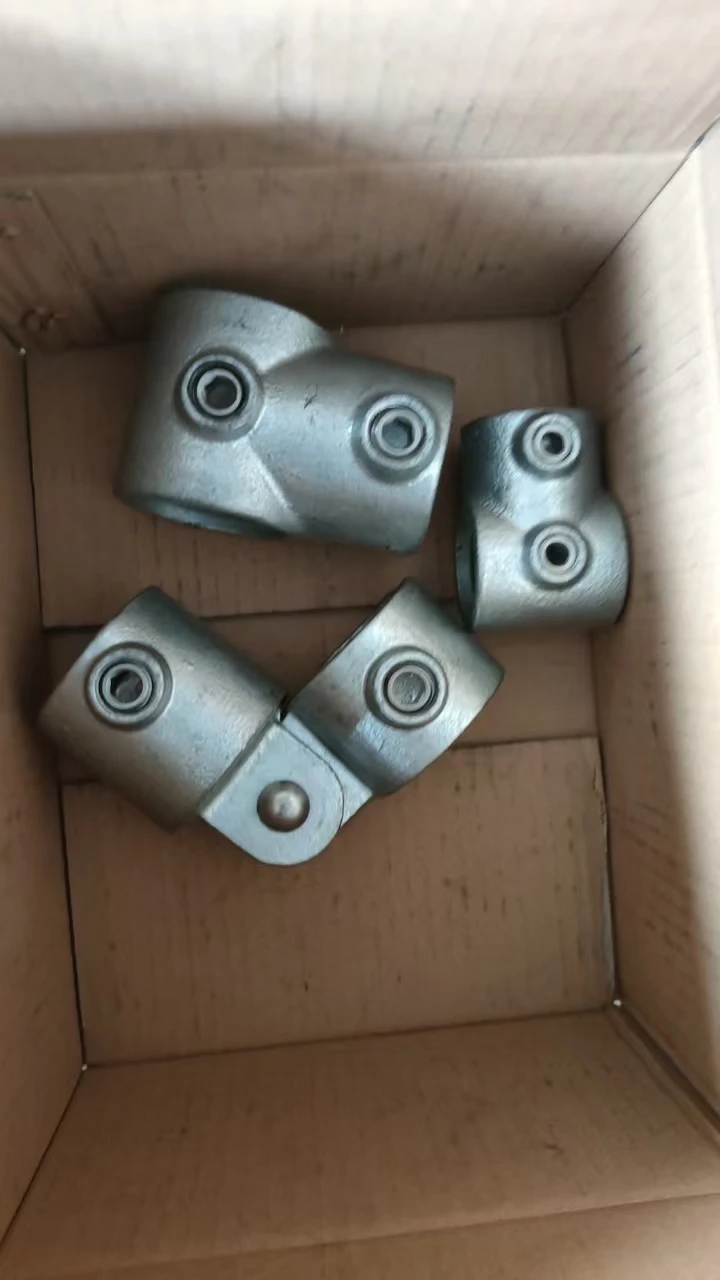

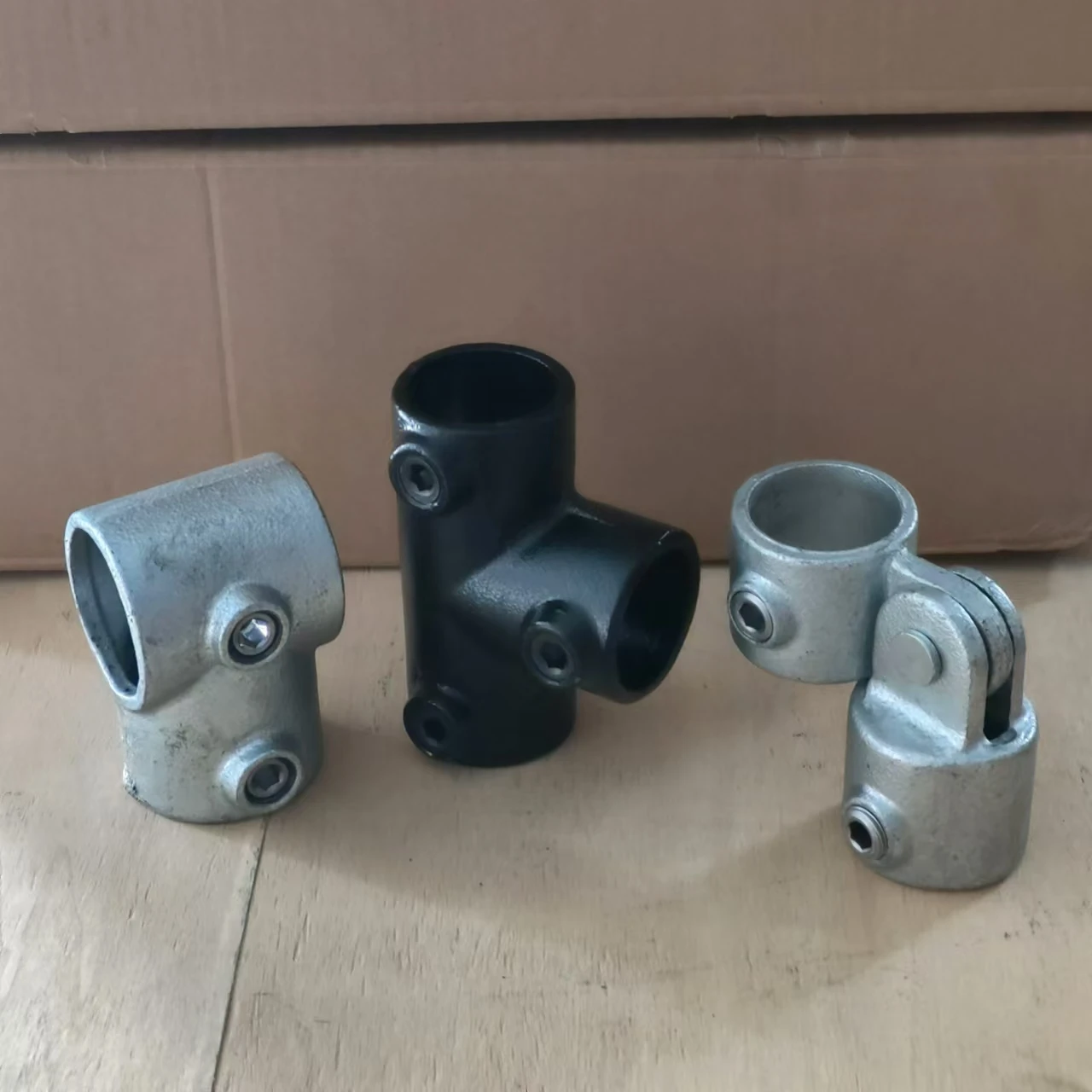

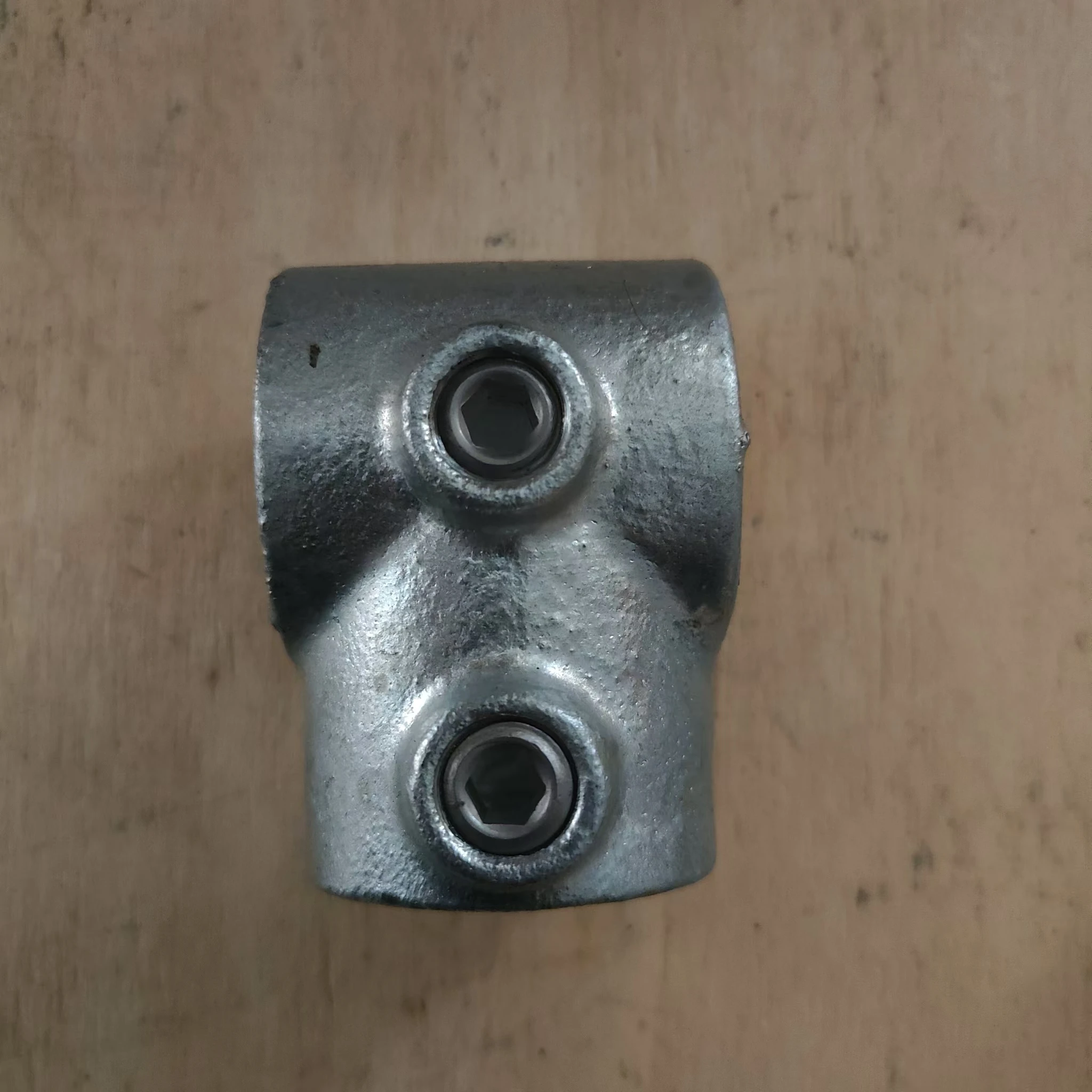

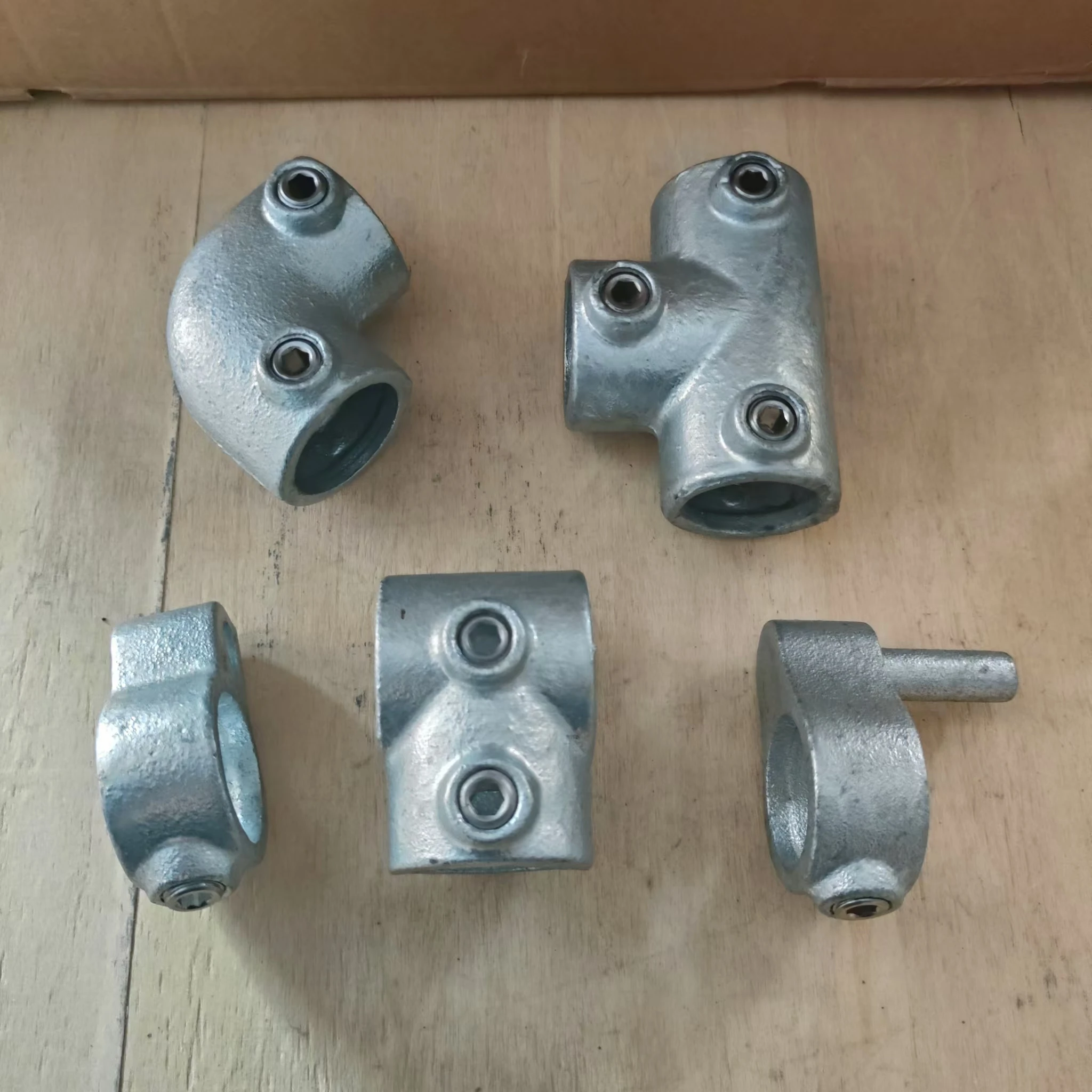

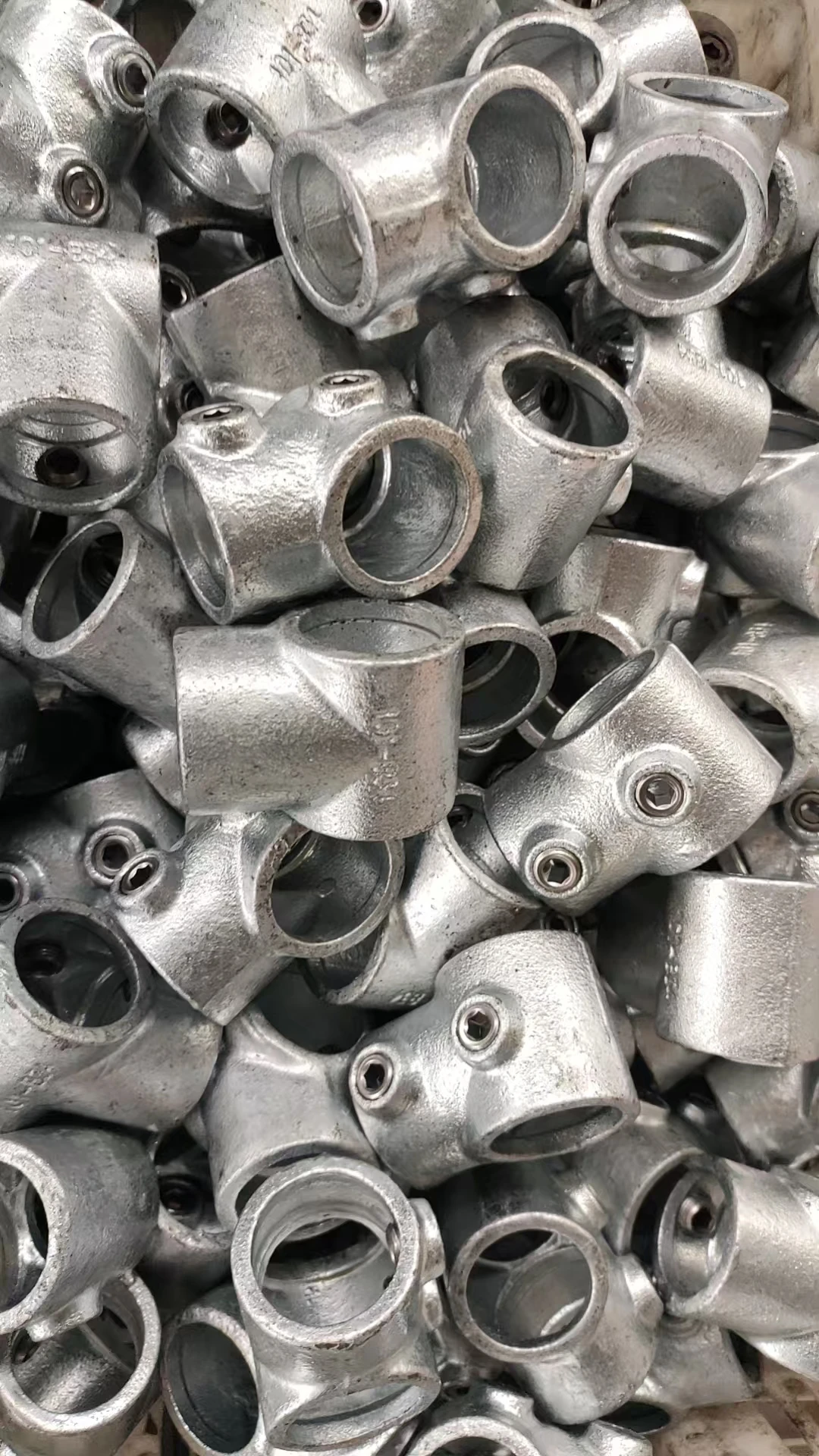

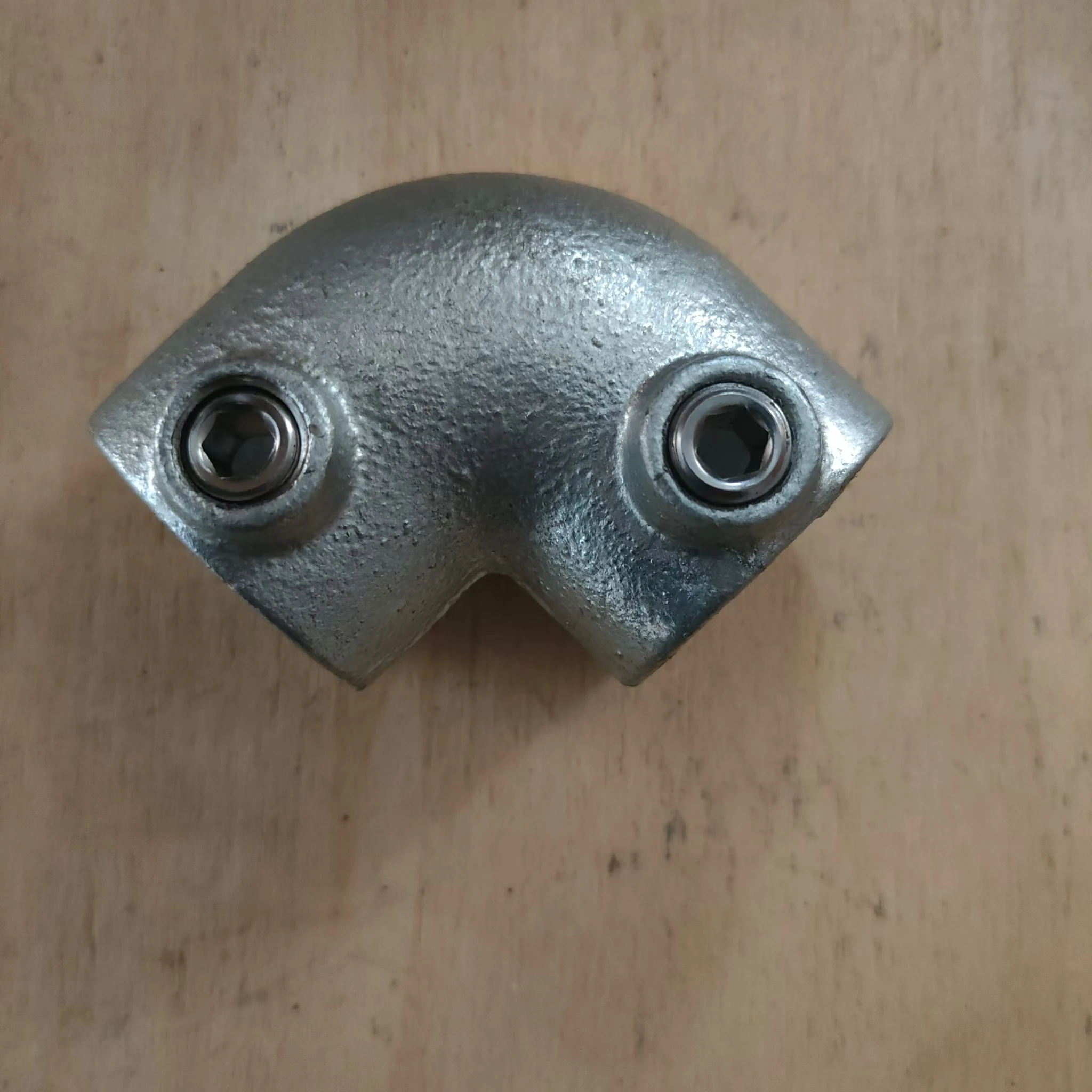

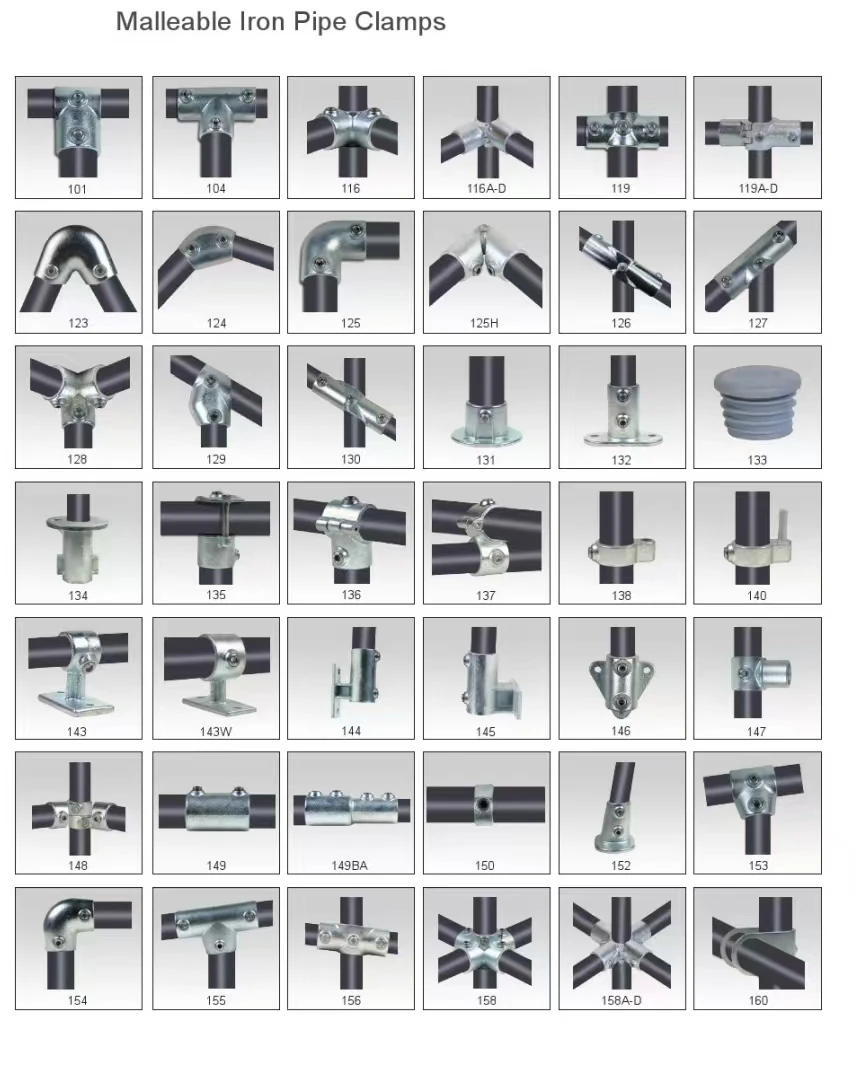

Malleable Iron Pipe Clamps Scaffolding Clamp Guardrail Railing Systems
Galvanized malleable iron pipe fittings
Materials: Malleable iron
Specifications:DN10-150
Standards:
ISO5922/ISO49/ISO7-1/ISO228
EN1562:1997/EN10242:2003
DIN2950/1692/2999
ANSI/ASTM A197M-2000 ANSI/ASME16.3-92/B1.20.1-83
Dimensions:
BS EN 10242
Mechanical Properties:
Tensile Strength>=330MPa;Elongation rate>=8%;Hardness<=HB150

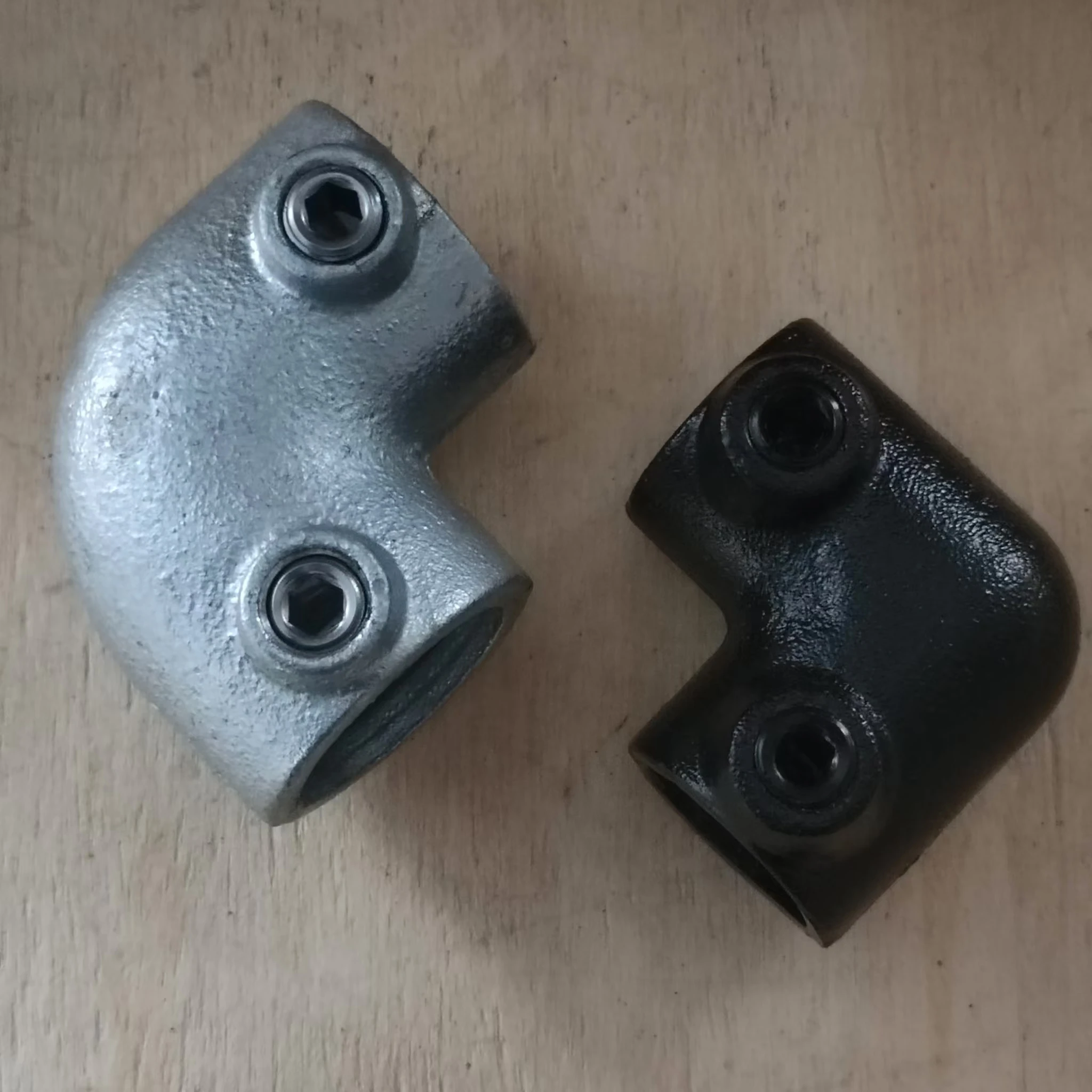

Finishing: (Black) Painting, Galvanizing, Elctro-plating
Suitable for pressure Max 1.6Mpa, temperature Max 200°C, and for pipeline holding water, oil, gas, etc.
| Size | 3/8"-6" | Material | Malleable Iron | ||
| Finishing | (Black) Painting, Galvanizing, Elctro-plating | ||||
| Type | Banded, Beaded , Plain | ||||
| Standard | ISO5922/IS049/ISO7-1 , BS EN1562:1997, DIN 2950/1692/2999 | ||||
| Mechanical Properties | Tensile Strength≥330MPA, Elongation rate≥8%, Hardness≤HB150 | ||||
| Mechanical Properties | C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0.18 Cr:0.09 | ||||
| Working pressure | Max 1.6MPA | Working temperature | Max 200°C | ||
| Producing Process | Pattern making - sand casting - heat treatment - galvanizing - threading - air pressure testing - packing | ||||
| Thickness of Hot-Dip Galvanization | Average Thickness of Hot-Dip Galvanization: 70um | ||||

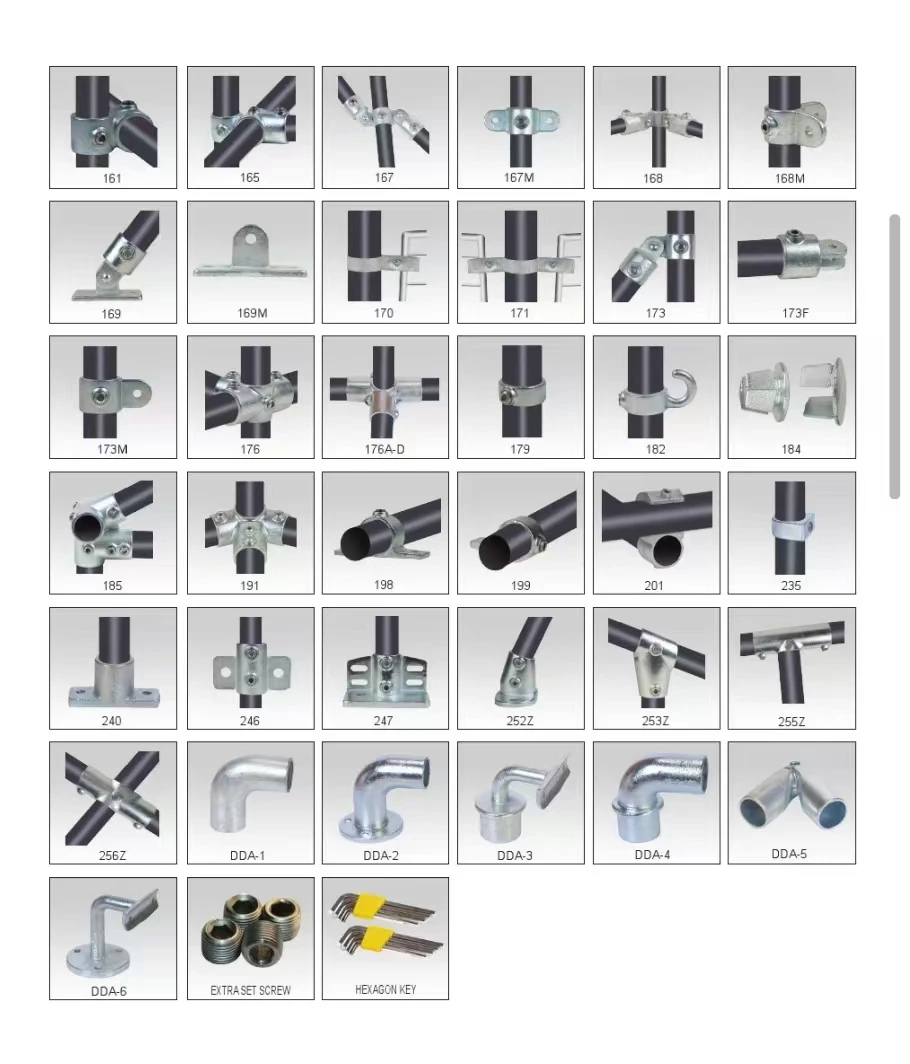

| Usage | For Handrail Systems ,Guard Rail,Playground and Scaff | ||||
| Testing | 100% Air pressure testing, not below 0.5Mpa | ||||
