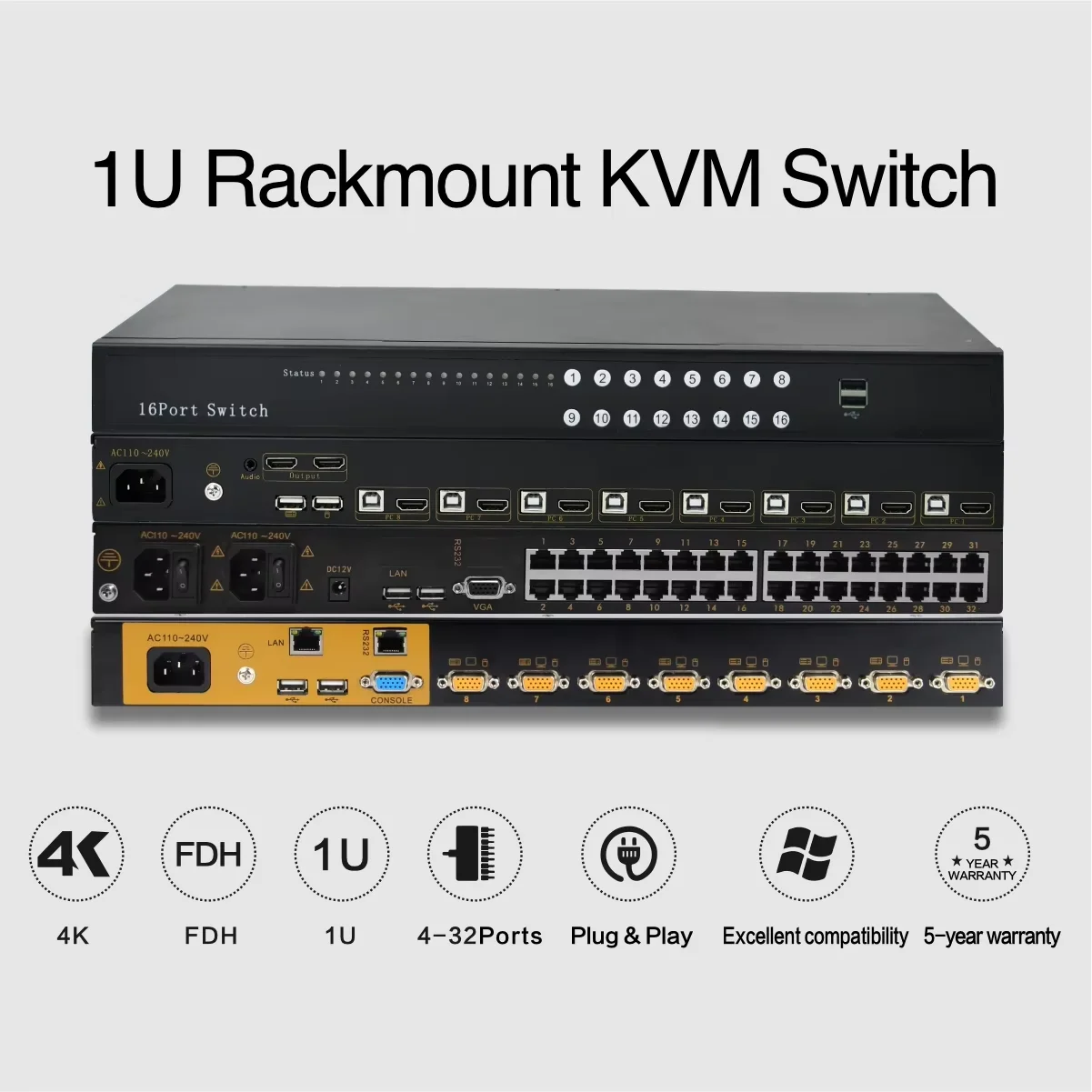

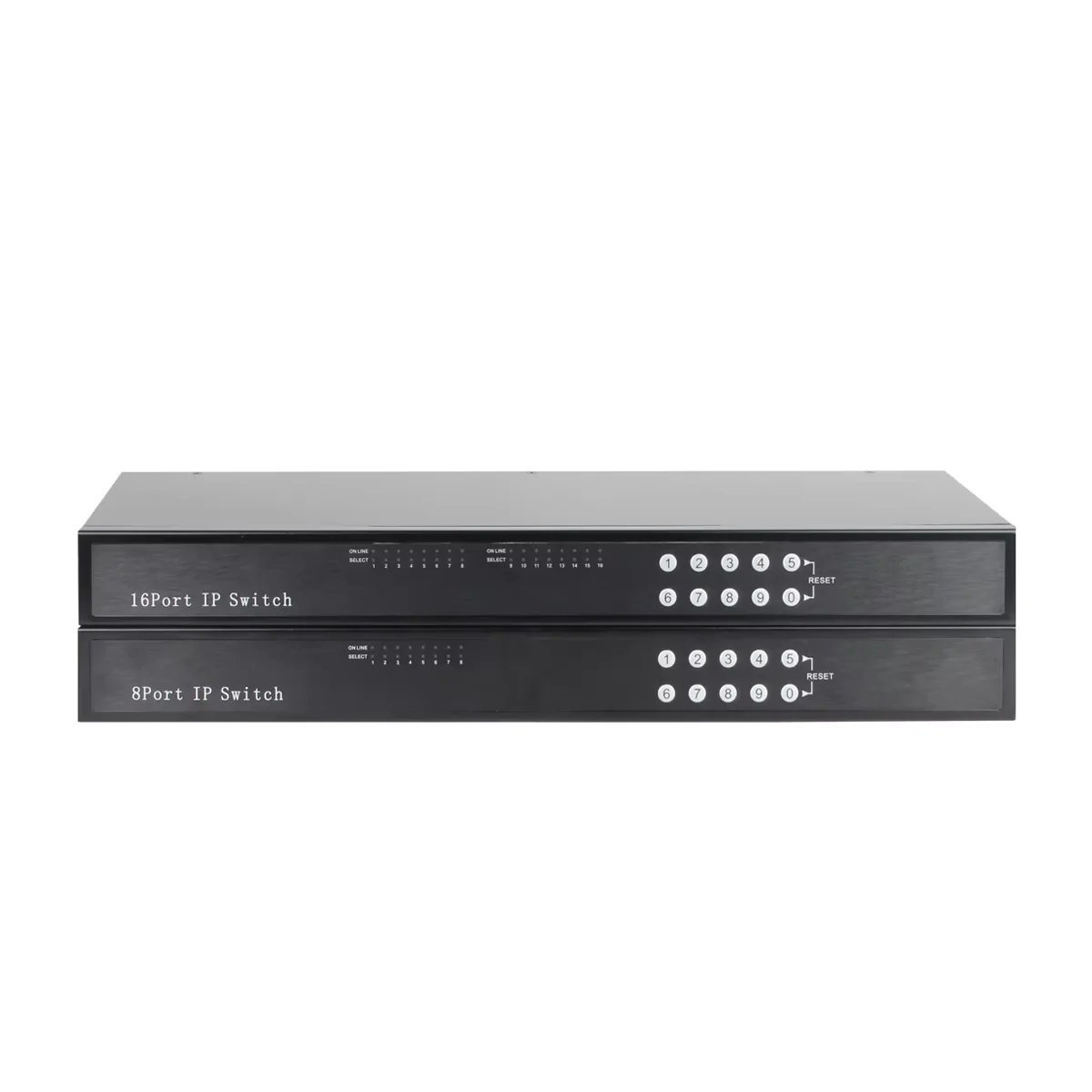

16 Ports FHD VGA 1U Rackmount Support Cascade OSD Hotkey Remote Control VGA Over IP KVM Switch

Share on (1601283283513):


Price:$270.00 - $300.00

Quantity:


Product Overview

Description







BASCO 1U Rack KVM switch, Customizable on Demand.
Interface
VGA
Cat
HDMI
Number of Interfaces
1/4/8/16
8/16/24/32
2004/8/16
Resolution
Support up to 2048 x 1536 / DDC2B
Support up to 4096 x 2160@60Hz
Switching Mode
Button / 0SD Menu / Hotkey
Button / Hotkey
Select Configuration
Local Control, Over IP control
Power Supply Mode
Input Voltage: AC 110V-240V 50-60Hz Output Voltage: DC 12V Power: 10W
Storage Temperature
·-30℃~70℃
Operating Temperature
·-10℃~60℃
Humidity
0%~80% RH
Switching Scan Time
1-255 Seconds (OSD Adjustable)
Applicable Cabinet
800-1200MM
Material of Box Body
High Strength Corrosion Resistant Steel Plate
Support System
Dos/Windows, Linux, UnixMac OS 8.6/9/10, SUN Solaris 8/9
Industrial Computer Support
Supports IBM, DELL, HP, SUN, Lenovo, Advantech, EVOC, etc


Products Description


The 1U rack-mounted switcher enables users to easily switch between multiple computers using a single USB keyboard and mouse. It features a 4-port USB hub, allowing USB keyboard and mouse data to be switched quickly and seamlessly via the KVM cable. Additionally, the USB hub provides each connected computer with the capability to access two extra USB 2.0 general-purpose peripheral devices. Installation is straightforward and convenient—simply plug the cables into their designated ports. No software configuration is necessary, ensuring compatibility and eliminating potential issues.


Features


>>1. Only authorized users can view and manage online computers;
>>2. The dual interface PS/2 /USB keyboard and mouse switch is connected to the control computer;
>>3. USB HUB function can be realized through the front USB2.0 interface;
>>4. Easily switch between servers with hotkeys and panel presses;
>>5. Provides automatic scanning mode to continuously monitor the user's choice The host of;
>>6. Supports hotplugging - servers can be added or removed at any time without power down;
>>7. Name the server and vaguely enter the SN number to quickly locate and select the server security features you need;
>>8. A single group of control end manages 4 servers, can cascade multiple devices, and can manage up to 128 computers;
>>9. Support to connect two monitors at the same time, support audio output;
>>10.Integrated shelf and desktop in one USB multi-function switch, support complete DDC2B function, not switch computer can also detect screen model keyboard hotkeys and OSD key switch mode 1U height, 19 "standard shelf structure;


Details Images

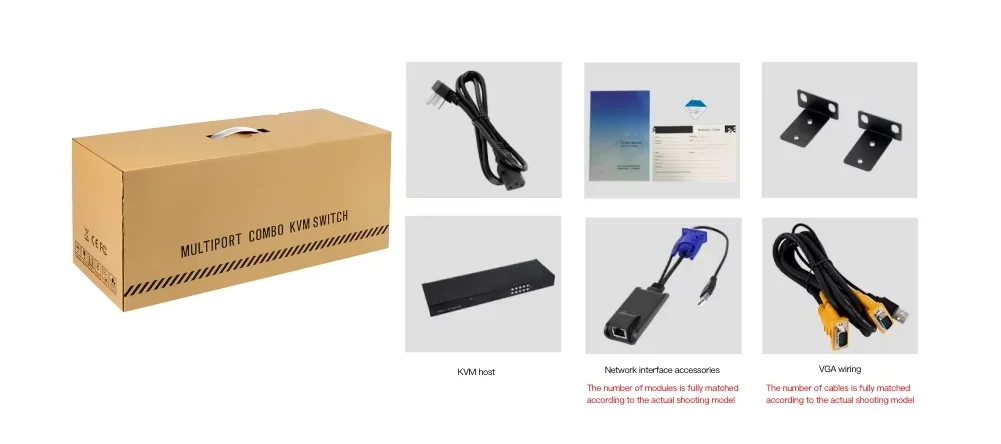

Package Content

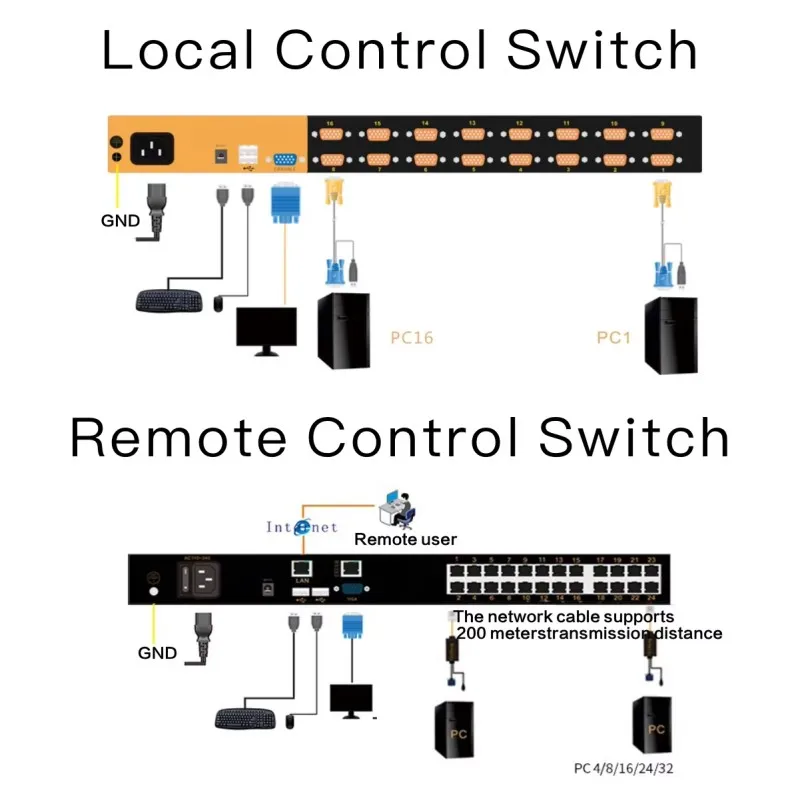

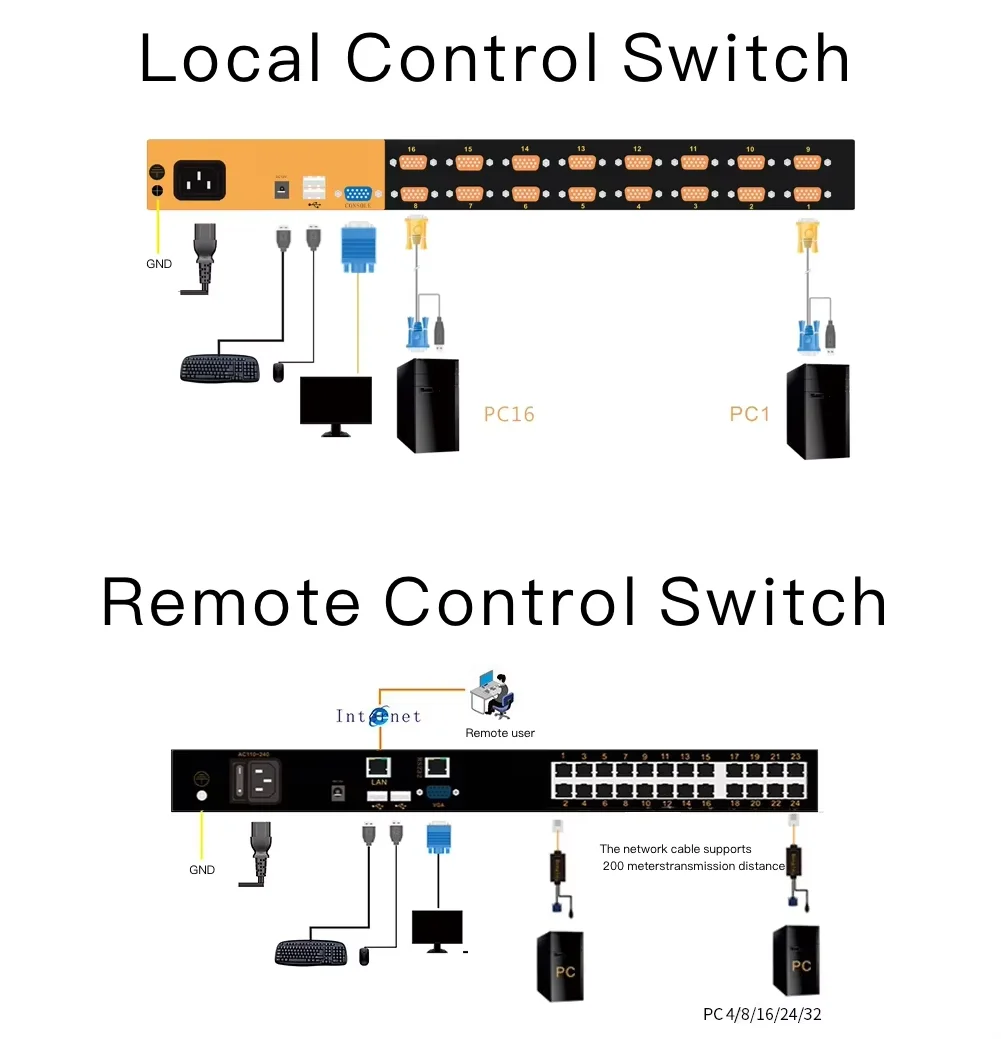

Connection Diagram




Customer Praise




FAQ


Q: Are You Manufacturer ? What Do You Mainly Supply With?
A:Yes, We Are An Industrial Grade Consumer Electronics Factory For Over 15+ Years. Our Main Products Are Industrial Tablet Computers,Industrial Control Computers, Canless Embedded Industrial Controlmainframe, ETC.

Q: Can I Get Some Samples?
A: We Are Honored To Offer You Samples For Quality Check, MOQ Is 1 Set, Welcome To Order Via The Link Directly. We Also Provide Free OEM ODM Service For Your Sample Order, Just feel Free To Contact Our Sales Here.If You Have A Forwarder In China, We Can Help You Deliver The Goods To Your Forwarder.

Q:How Many Days Will Samples Be Finished? And How About The Mass Production?
A:Generally 1-3 Working Days After Payment For Samples. The Lead Time For Mass Production Depends On The Quantity.

Q:How Do You Guarantee The Quality Of Your?
A:Our Products Comply With ISO9001 Quality System And CE/FCC/ROHS Standards. All Our Products Pass Strict QC Inspection In The Production Process. In Particular, Export Products Need To Complete 72 Hour Aging Test To Ensure No Problems Before Shipment.

Q:Can You Provide OEM&ODM Special Customized Service?
A:Of Course, Including Software, Packaging, Product Logo, ETC, Consult Customer Service For More Details.

Q:How Long Is The Warranty Time For Your Products?
A:We Provide 3 Year Warranty For All Of Our Products And Supply Life-time Maintenance.

Q:Do You Give Any Discount?
A:Yes, We Are Looking For Long Term Business Cooperation. We Will Always Offer Customers The Reasonable Price Based On The Right Solution.

Q:I Haven't Done Business With Your Company Before, How Can I Trust Your Company?
A:Our Company Is A Member Of Alibaba Verified Supplier, With More than 15+ Years Of Independent Research And Development And Sales Experience. We Have Our Own Factory And Professional Engineers To Meet Any Of Your Requirements, Please Feel Free To Contact Us For More Cases And Solutions. Welcome To Our Factory.

Q:What Payment Methods Your Company Accept?
A:Pay on ALibaba. For Partner Relationship, We
