Product Overview

Description

G9AS-DP room thermostats is applied to controlling the cold/hot water valve of capilliary radiation air conditioning in the commercial industrial and civil buildings. It with RS485 communication function



Feature:

1. With capacitive touch technology, gently touch function can be realized

2. LED display, high light, long life

3. Integrated design, easy to install, high reliability

4. 2 display colors, cooling: white, heating orange

5. With 485 communication interface





Technical parameter:

Working Voltage: 220VAC±10%, 50HZ

Working Environment: 0℃~50℃

Temperature Control Range: 5℃~35℃

Storing Environment Temperature: -10℃~55℃

Current load: <3A(resistive load)

Power: <1W

Sensing element: NTC

Button: Capacitive touch buttons

Temperature Control Precision: ±1℃

Relative humidity: RH<85% (Non-condensate)

Shell material: Flame retardant PC

Installation: 86 type standard box





Model Spec.:

Model	Apply to equipment	wifi	DC fan	RS485 communication	Signal linkage
G9AS-Y	fan coil+water floor heating			√
G9ASwifi-DYH1	fan coil+water floor heating	√	√	√	√
G9AS-DP	ceiling/wall capilliary radiation air conditioning		√	√

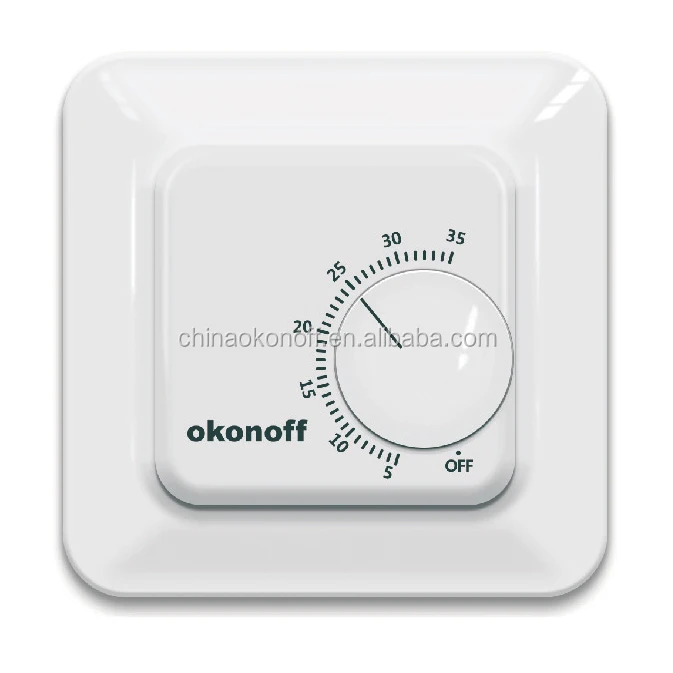

S603PE electric floor heating digital smart room thermostat	AZ41E mechanistic electric heating room thermostat	S430PWH water heating room thermostat with linkage signal	AZ43E electric radiant floor heating thermostat
