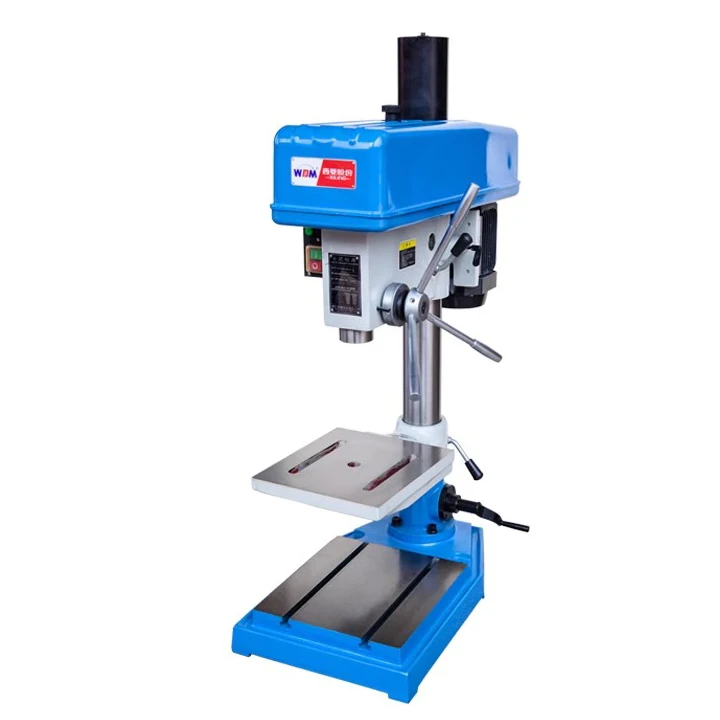

25mm 1100w Industrial powerful drilling machine spindle box lifting Bench Drilling
- Category: >>>
- Supplier: Foshan Deshi Electric Appliance Technology Co. Ltd.
Share on (1601283299618):
Product Overview
Description
Product Description
Specification

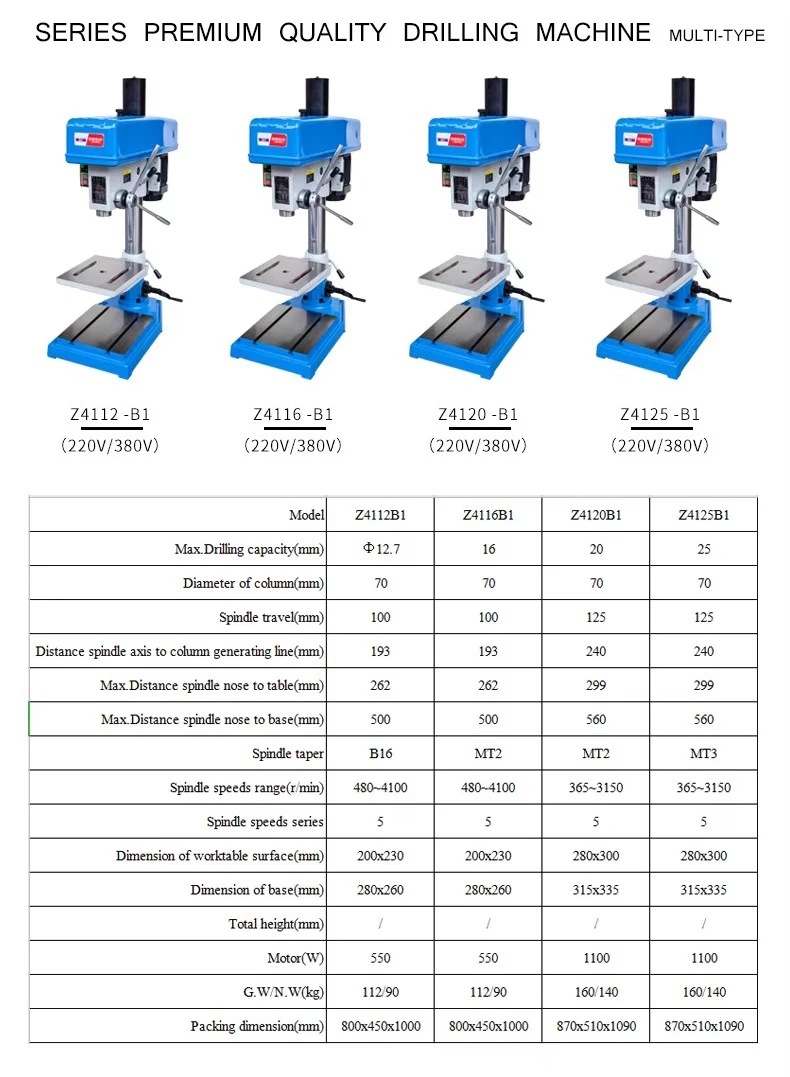

Model | Z4112B1 | Z4116B1 | Z4120B1 | Z4125B1 |
voltage V | 380v 50/60hz | 380v 50/60hz | 380v 50/60hz | 380v 50/60hz |
Power | 550w | 550w | 1100w | 1100w |
Max.Drilling capacity(mm) | 12.7 | 16 | 20 | 25 |
Diameter of column(mm) | 70 | 70 | 70 | 70 |
Spindle travel(mm) | 100 | 110 | 125 | 125 |
Distance spindle axis to column generating line(mm) | 193 | 193 | 240 | 240 |
Max Distance spindle nose to table(mm) | 262 | 262 | 299 | 299 |
Max Distance spindle nose to base(mm) | 500 | 500 | 560 | 560 |
Spindle taper | B16 | MT2 | MT2 | MT3 |
Spindle speeds range(r/min) | 480-4100 | 480-4100 | 365-3150 | 365-3150 |
Spindle speeds series | 5 | 5 | 5 | 5 |
Dimension of worktable surface(mm) | 200x230 | 200x230 | 280x300 | 280x300 |
Dimension of base(mm) | 280x260 | 280x260 | 315x335 | 315x335 |
Total height(mm) | / | / | / | / |
Motor(W) | 550 | 550 | 1100 | 1100 |
G.W/N.W(kg) | 112/90 | 112/90 | 160/140 | 160/140 |
Packing dimension(mm) | 800X450X1000 | 800X450X1000 | 870X510X1090 | 870X510X1090 |
