NOVKER 7 inch Fiber OTDR Tester NK6200 PT3 filtered PON OTDR 1310/1550/1625nm 42/40/40dB for splitter testing
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (1601283308104):
Product Overview
Description
NOVKER 7 inch Fiber OTDR Tester NK6200-PT3 filtered PON OTDR 1310/1550/1625nm 42/40/40dB for splitter testing
Product Description

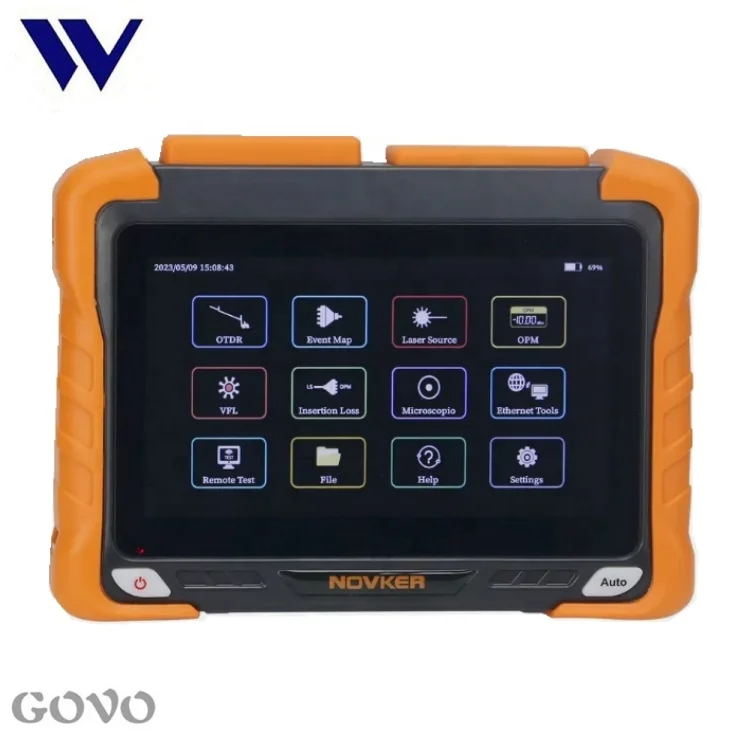

NK6200 series OTDR adopt 7 inch capacitance touch screen, which integrates 9 modules. With excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is higher. It is equipped with rich Ethernet test (Ping/PPOE, etc), support APP control.
NK6200 series is used to test the optical fiber length, loss and connection quality, and used in the engineering construction, link maintenance test, They are mainly used in urban trunk, bone trunk network and metropolitan area network.
Features
l 0.5m Event Dead Zone
l Support SM/MM/SM+MM test
l Online detection, effective APD active protection
l PON network online test
l Support fast charging protocol and power bank
l Maximum dynamic range 45dB
l Ethernet test, supporting Ethernet Remote Test
l Mobile APP wireless operation
l Integrate OTDR/VFL/LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/Remote test/File management

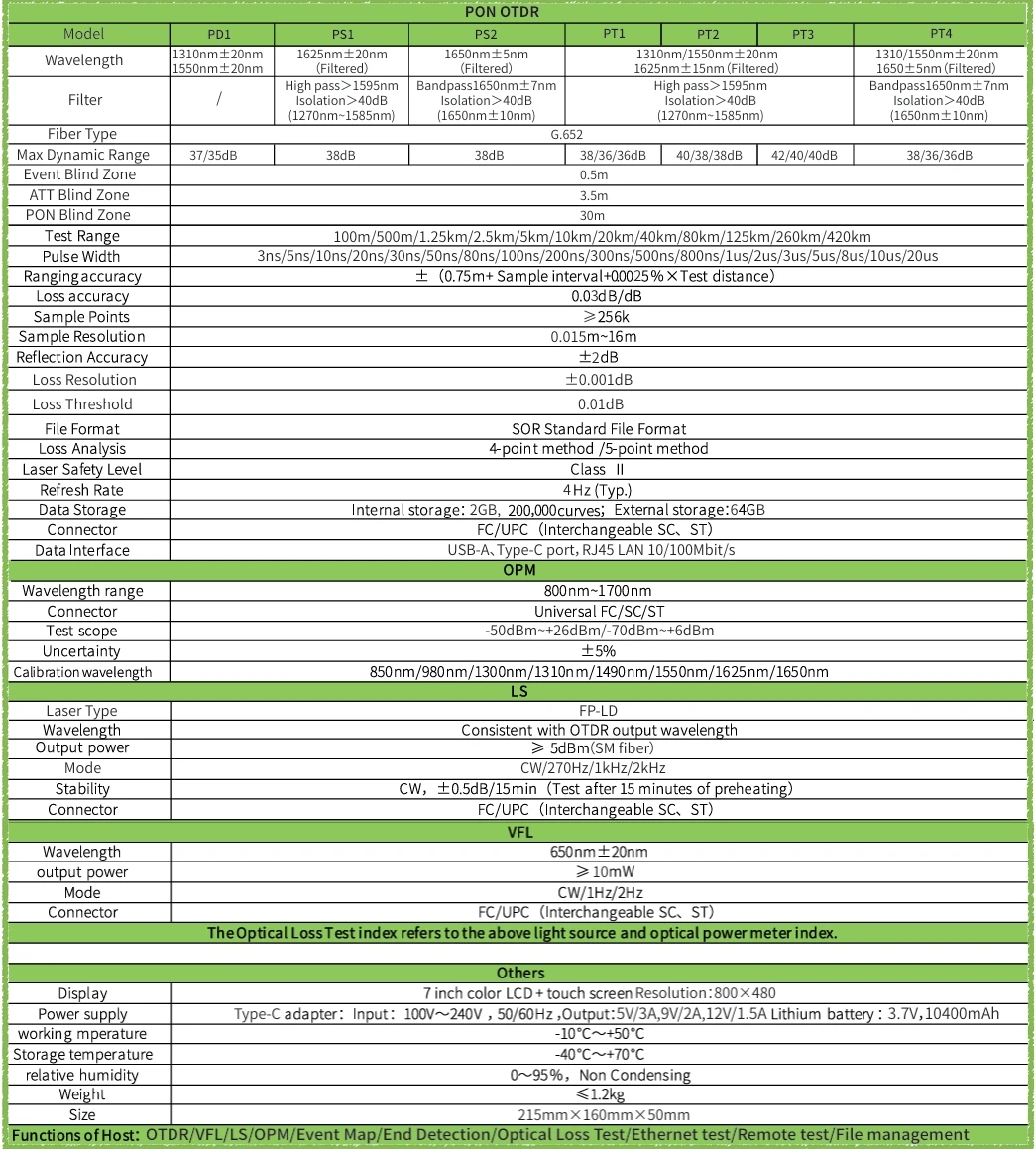

Specification
Packaging & Shipping
Ordering Information:
Model | Wavelengths | Dynamic range |
NK6200-S0 | 1310/1550nm | 32/30dB |
NK6200-S1 | 1310/1550nm | 35/33dB |
NK6200-PD1 | 1310/1550nm | 37/35dB |
NK6200-S2 | 1310/1550nm | 38/36dB |
NK6200-S3 | 1310/1550nm | 42/40dB |
NK6200-S4 | 1310/1550nm | 45/43dB |
NK6200-T1 | 1310/1490/1550nm | 32/30/30dB |
NK6200-T2 | 1310/1490/1550nm | 37/35/35dB |
NK6200-T3 | 1310/1550/1625nm | 32/30/30dB |
NK6200-T4 | 1310/1550/1625nm | 37/35/35dB |
NK6200-T5 | 1310/1550/1650nm | 32/30/30dB |
NK6200-T6 | 1310/1550/1650nm | 37/35/35dB |
NK6200-F1 | 1310/1490/1550/1625nm | 37/35/35/35dB |
NK6200-M1 | 850/1300nm | 26/28dB |
NK6200-SM1 | 850/1300/1310/1550nm | 26/28/35/33dB |
NK6200-SM2 | 850/1300/1310/1550nm | 26/28/37/35dB |
Model | Wavelengths | Dynamic range |
NK6200-PS1 | 1625nm filtered | 38dB |
NK6200-PS2 | 1650nm filtered | 38dB |
NK6200-PT1 | 1310/1550/1625nm filtered | 38/36/36dB |
NK6200-PT2 | 1310/1550/1625nm filtered | 40/38/38dB |
NK6200-PT3 | 1310/1550/1625nm filtered | 42/40/40dB |
NK6200-PT4 | 1310/1550/1650nm filtered | 38/36/36dB |

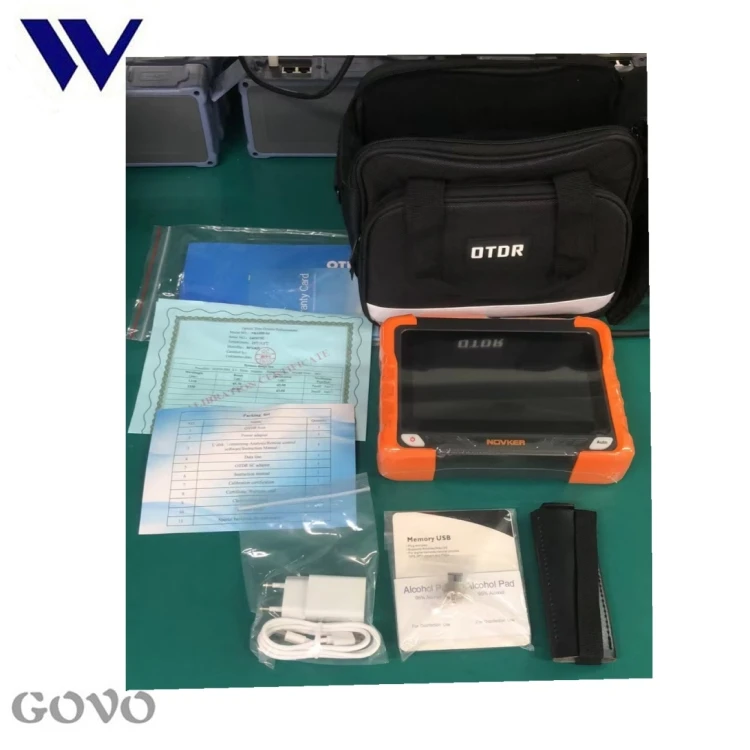

All NK62000 PON OTDR includes:
1.Host/Main body(OTDR) with built-in battery
2.AC/DC power adapter
3. U disk(containing analysis software/ User’s Manual)
4.Data line
5.OTDR SC adapter
6.OPM SC adapter
7.User’s Manual
8.Calibration certificate
9.Certificate/ Warranty card
10.Clean cotton Swab
11. Leather knob
12. soft carrying case
