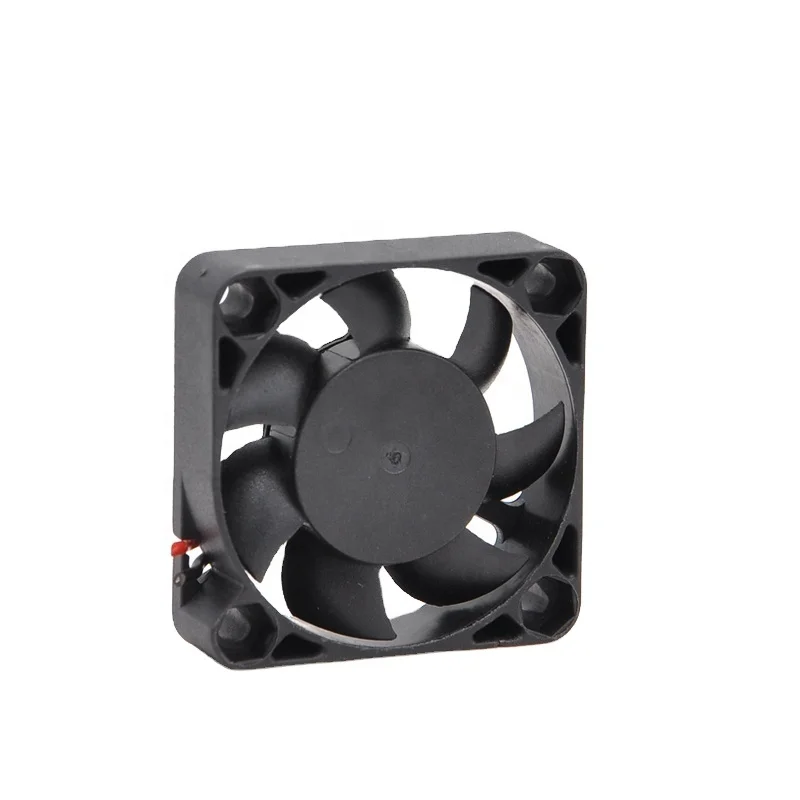

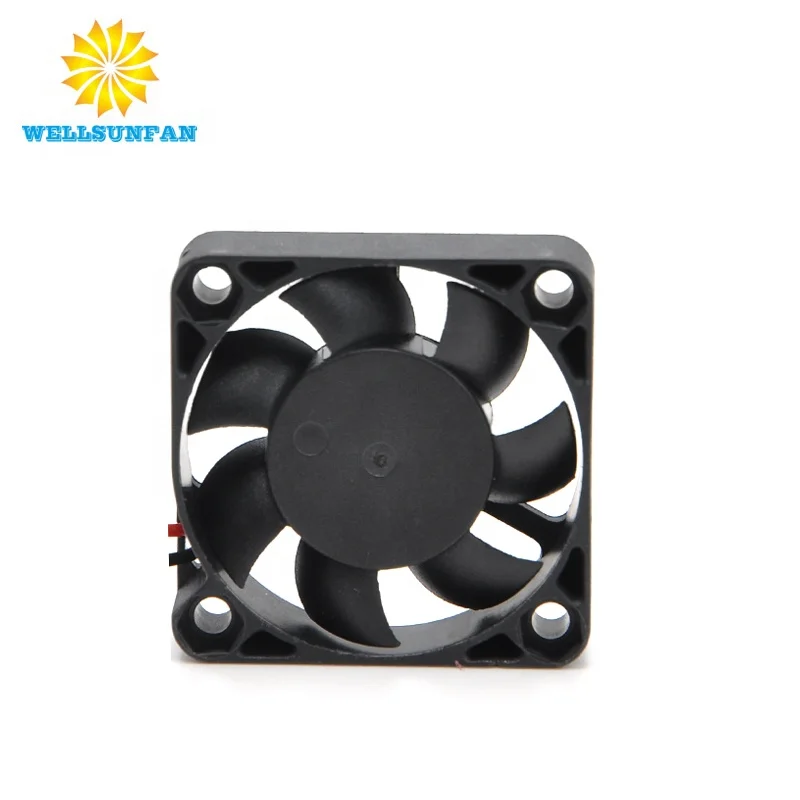

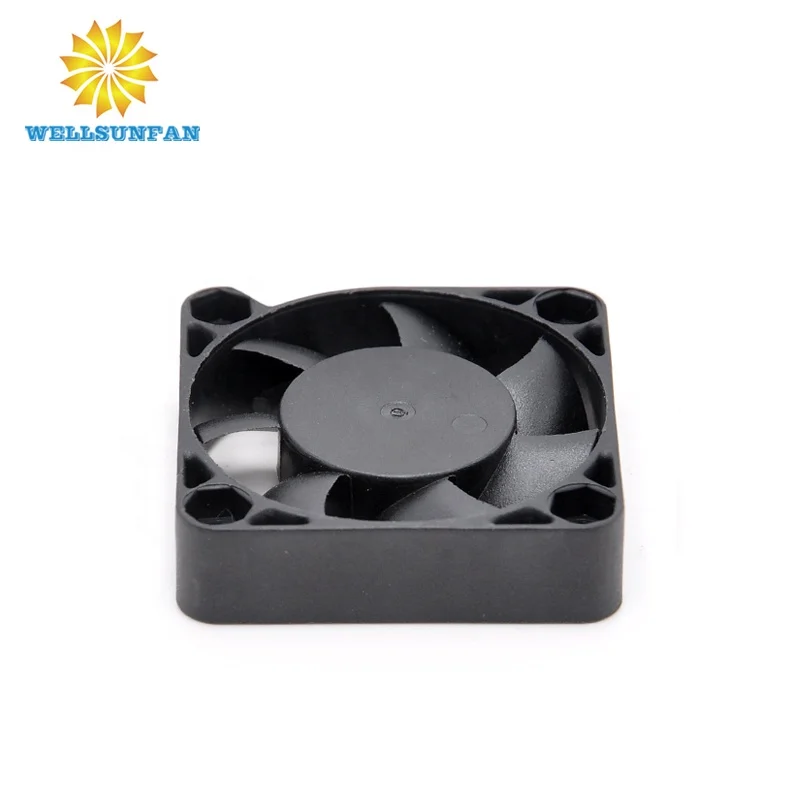

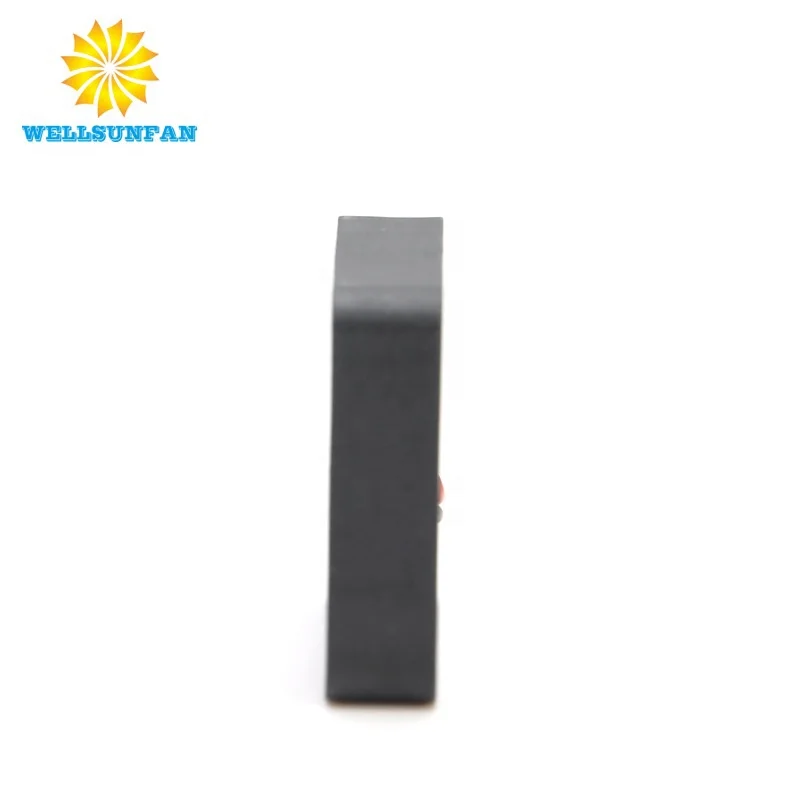

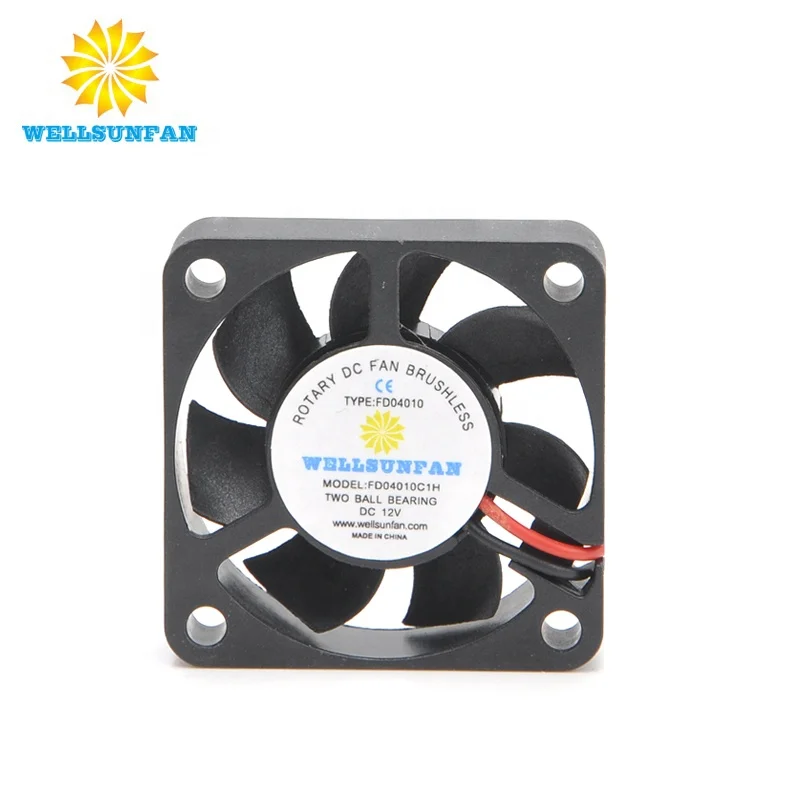

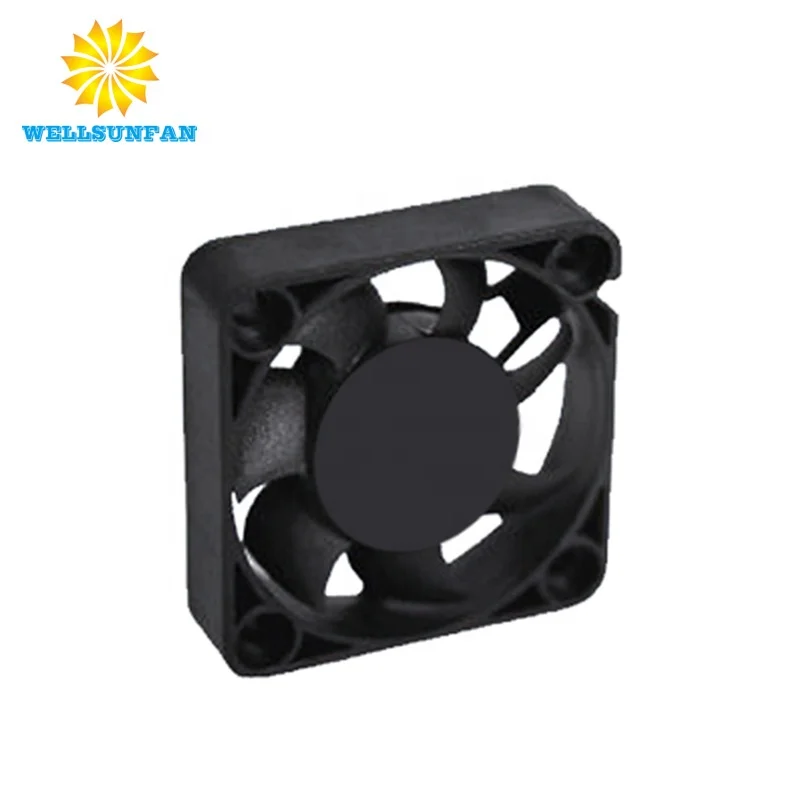

WELLSUNFAN 12v cooling fan High airflow cooler fan axial 40x40x10mm brushless fan powered humidifier
- Category: >>>
- Supplier: Shenzhen Weilishun Technology Limited
Share on (1601283364944):
Product Overview
Description
Product Description
| DC FAN 4010 40X40X10mm Features | |
| Size | 40x40x10mm(1.6x1.6x0.4inch) |
| Frame | Plastic UL94V0 |
| Impeller | Plastic UL94V0 |
| Lead Wire | UL1571AWG#28 or Equivalent (+) Red, (-) Black |
| Bearings | C=Ball Bearing&S=Sleeve Bearing |
| Life Expectancy | 70,000Hours at 20℃-Ball. 30,000Hours at 20℃-Sleeve |
| Temperature Range | Temperature Range...Operating Temperature -10*C~70'C(Non-condensing) |
| Storage Temperature -40'C~70'C(Non-condensing) | |
| Approvals | UL ETL TUV CE RoHS |
| DC FAN Specials | RD,FG, IP56 |
Cooling Fans Specification
| Model | Bearing System | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | VDC | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| FD04010#5U | √ | √ | 5 | 3.5~5.5 | 0.22 | 1.10 | 7000 | 7.41 | 0.18 | 4.57 | 34.8 | 16.0 | |
| FD04010#5E | √ | √ | 5 | 3.5~5.5 | 0.18 | 0.90 | 6500 | 6.84 | 0.16 | 4.06 | 32.7 | 16.0 | |
| FD04010#5H | √ | √ | 5 | 3.5~5.5 | 0.14 | 0.70 | 6000 | 6.20 | 0.13 | 3.30 | 30.5 | 16.0 | |
| FD04010#5M | √ | √ | 5 | 3.5~5.5 | 0.10 | 0.50 | 5000 | 5.07 | 0.09 | 2.29 | 25.7 | 16.0 | |
| FD04010#5L | √ | √ | 5 | 3.5~5.5 | 0.08 | 0.40 | 4000 | 4.02 | 0.06 | 1.52 | 22.3 | 16.0 | |
| FD04010#12U | √ | √ | 12 | 7.0~13.8 | 0.15 | 1.80 | 7000 | 7.41 | 0.18 | 4.57 | 34.8 | 16.0 | |
| FD04010#12E | √ | √ | 12 | 7.0~13.8 | 0.10 | 1.20 | 6500 | 6.84 | 0.16 | 4.06 | 32.7 | 16.0 | |
| FD04010#12H | √ | √ | 12 | 7.0~13.8 | 0.08 | 0.96 | 6000 | 6.20 | 0.13 | 3.30 | 30.5 | 16.0 | |
| FD04010#12M | √ | √ | 12 | 7.0~13.8 | 0.06 | 0.72 | 5000 | 5.07 | 0.09 | 2.29 | 25.7 | 16.0 | |
| FD04010#12L | √ | √ | 12 | 7.0~13.8 | 0.04 | 0.48 | 4000 | 4.02 | 0.06 | 1.52 | 22.3 | 16.0 | |
| FD04010#24E | √ | √ | 24 | 14~27.6 | 0.07 | 1.68 | 7000 | 7.41 | 0.18 | 4.57 | 34.8 | 16.0 | |
| FD04010#24H | √ | √ | 24 | 14~27.6 | 0.06 | 1.44 | 6500 | 6.84 | 0.16 | 4.06 | 32.7 | 16.0 | |
| FD04010#24M | √ | √ | 24 | 14~27.6 | 0.05 | 1.20 | 6000 | 6.20 | 0.13 | 3.30 | 30.5 | 16.0 | |
| FD04010#24L | √ | √ | 24 | 14~27.6 | 0.04 | 0.96 | 5000 | 5.07 | 0.09 | 2.29 | 25.7 | 16.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
