Qatar PVC Cable Tray And Trunking Electrical Cable Ducts Adhesive PVC Trunking Price

Product Overview

Description



1).Material:    New PVC Material

2).Standard:  IEC 61084-2-1

3).Apperance: Regular round, smooth, light, no impurity, beautiful Decent packagin

4).Color:    Color pure, no have discoloration and aging

5).Smell:    no scent,environmental.

6).Use:      For internal wiring,protecting the wire under 1200v.

7).Effect:    After using,wiring easily and trimly,installing reliably,and is convenient for maintaining and searching and exchanging.

8).Lifetime: ShingFong brand of PVC pipes and PVC trunking are Anti-aging,normal use life can be up to 50 years.



Product Features:

1).Thickness: With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled.

2). Toughness: If you bend ,can not be easier to break

3). Hardness:          Under pressure ability, high impact resistance

4).Fire-resistance:  Flame-retardant PVC resin,highly combustion-retardant,quickly self-extinguishing.

5).Corrosion resistance : moisture, acid and alkali resistance, assuring a lower maintenance cost and a longer performance life

7). Non-conductive:     excellent electricity insulation, which resist 25kv voltage , assuring a safe system

8).Installation: easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin

9).Save cost: Can save much more installation expense than metal pipe and fittings because of light weight and convenient for installation.









PVC TRUNKING	Model	Size(W*H)mm	Thickness(mm)	Packing(pcs/bud)
	SF10-1	10X10	0.5/0.6	50
	SF12-1	12X12	0.6	50
	SF15-1	15X10	0.55/0.70	30
	SF16-1	16X16	0.7/1.0	30
	SF18-1	18X9	0.55/0.70	30
	SF20-1	20X10	0.55/0.70/0.75/0.90	30
	SF20-2	20X20	1.0/1.20/1.40	25
	SF24-1	24X14	0.60/0.70/0.80/0.95	25

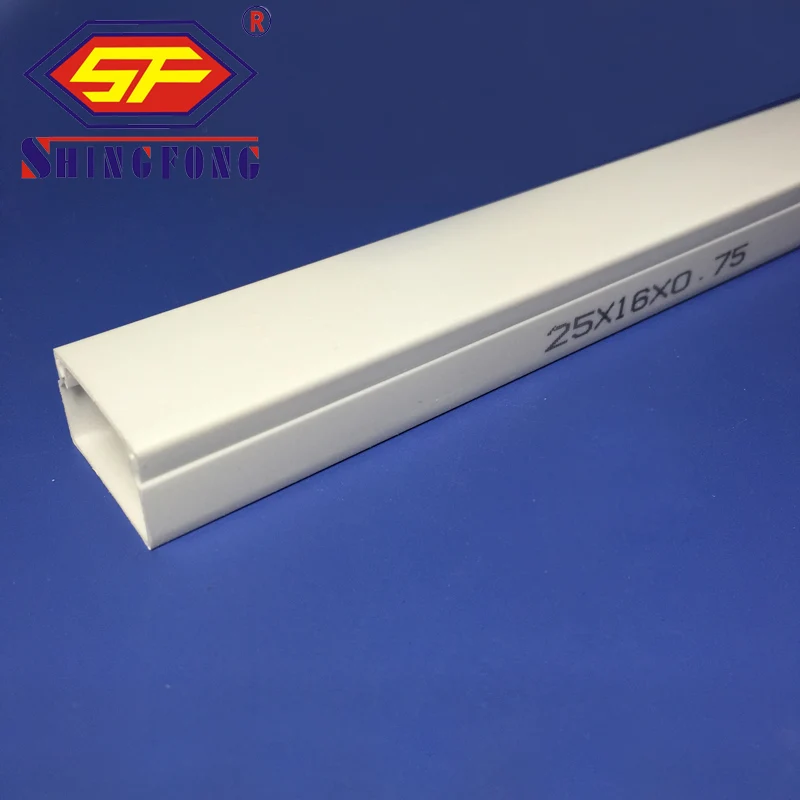

	SF25-1	25X16	0.55/0.60/0.65/0.75/0.85/1.0	25
	SF25-2	25X25	0.60/0.80/1.2	20
	SF30-1	30X13	0.60/0.80	20
	SF30-2	30X15	0.65/0.85	20
	SF39-1	39X19	0.70/0.80/0.90/1.0	15
	SF40-1	40X16	0.80/1.25	15
	SF40-2	40X25	0.80/1.0/1.3	12
	SF40-3	40X40	1.0/1.3	9
	SF50-1	50X25	0.75/1.0	10
	SF50-2	50X50	1.0/1.5	8
	SF60-1	59X22	0.85/1.0/1.3	10
	SF60-2	60X40	1.2/1.5	6
	SF60-3	60X60	1.1/1.6	6
	SF75-1	75X50	1.2/1.4/1.7	4
	SF75-2	75X75	1.3/1.7	2
	SF80-1	80X40	1.2/1.5	4
	SF80-2	80X50	1.2/1.4	4
	SF100-1	99X27	1.2/1.4	5
	SF100-2	100X40	1.3/1.7	4
	SF100-3	100X50	1.3/1.8	4
	SF100-4	100X60	1.4/1.8	2
	SF100-5	100X100	1.3/1.8	2
	SF150-1	150X50	2.3	2
	SF150-2	150X100	2.3	1
	SF200-1	200X100	2.3	1
	SFF25-1	25X8	1.25	30
	SFF35-1	35X10	1.4	30
	SFF50-1	50X15	1.8	20
	SFF70-1	70X20	2.1	10
	SFF100-1	100X30	2.3	5













M.O.Q	8000PCS
Package	Up to your requirement
Port of Loading	Shunde, China
Delivery	25 days after receipt of 30% deposit
Payment	By T/T or L/C
Certificates	CE, ISO9001
Life Span	30 years
Main Market	Europe, Mid east, South America, Africa, etc
OEM, ODM Capacity	It is acceptable to manufacture your brand products or set your brand on our own products instead our brand
Sample	Free













Item:   PVC trunking
Impact property (60°Cx240h, -5°Cx2h)		No damage
Impressive property	Load 1min	D<25%
	Load-off 1min	D<10%
Fire Test	Oxygen index	>32%
	Vertical Combustion	FV-0
	Horizontal Combustion	FH-1
Heat Resistance		D<2mm
Power frequency voltage (2500KV kv/min)		No damage
Insulation resistance		>500MΩ

pvc trunking

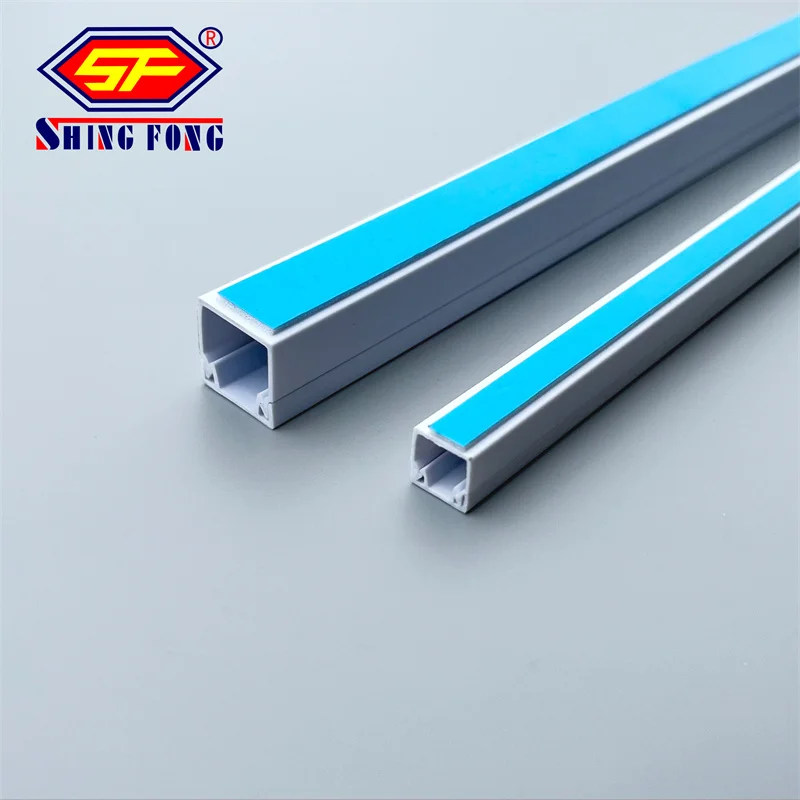

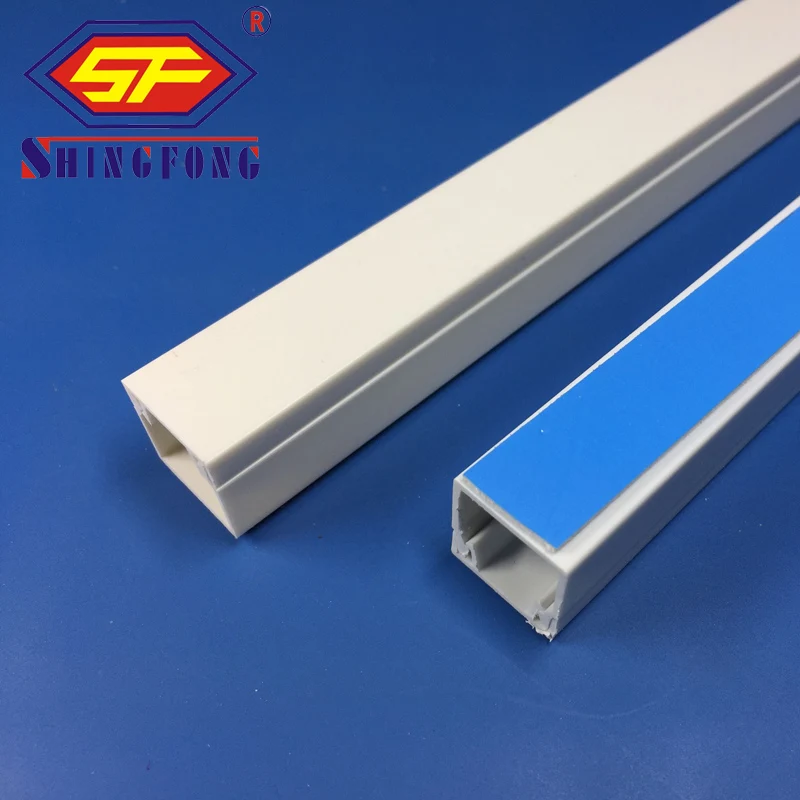

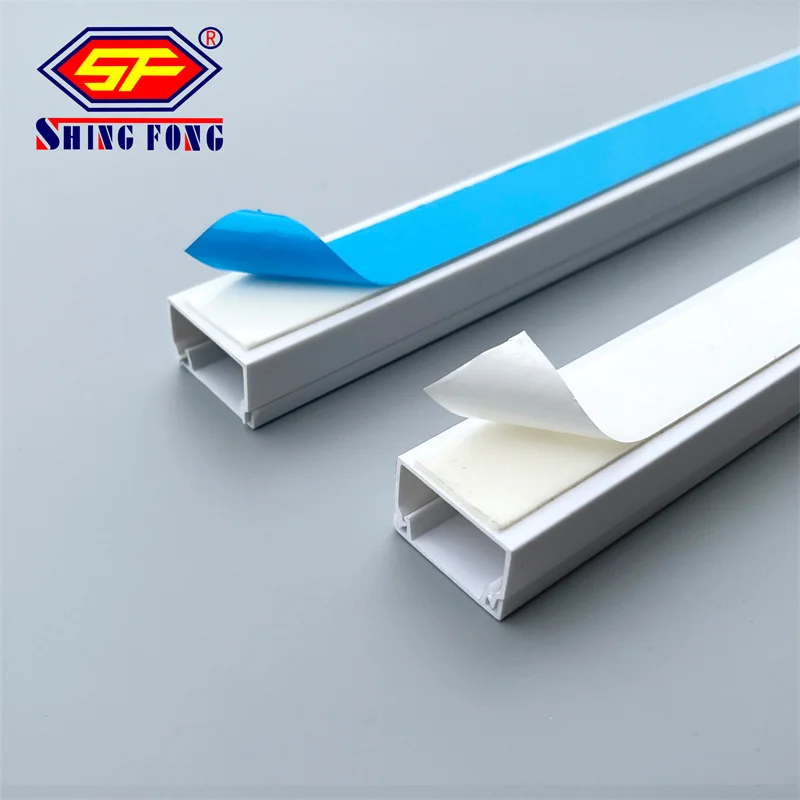

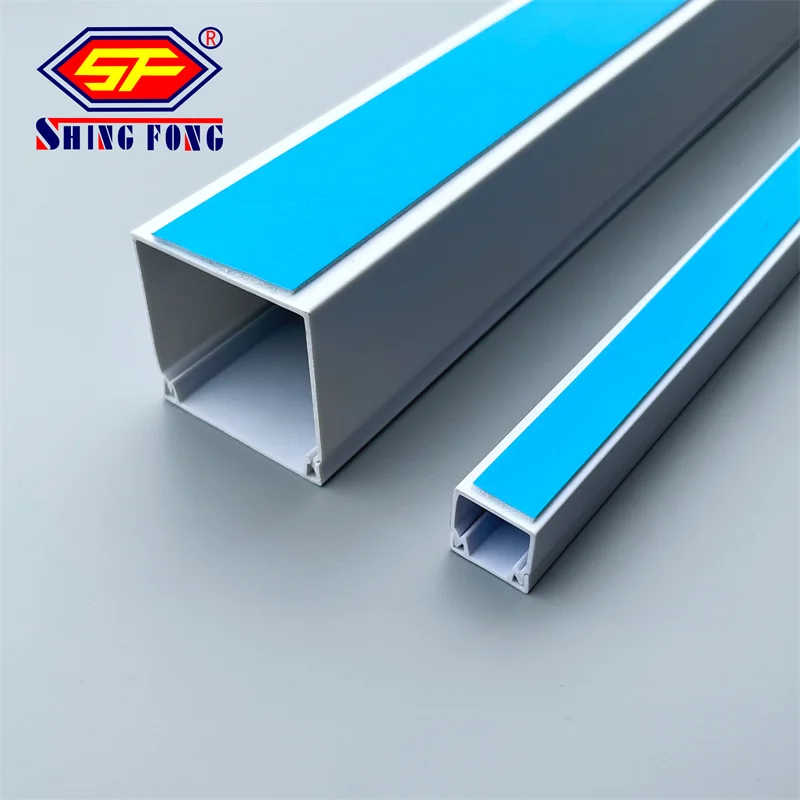

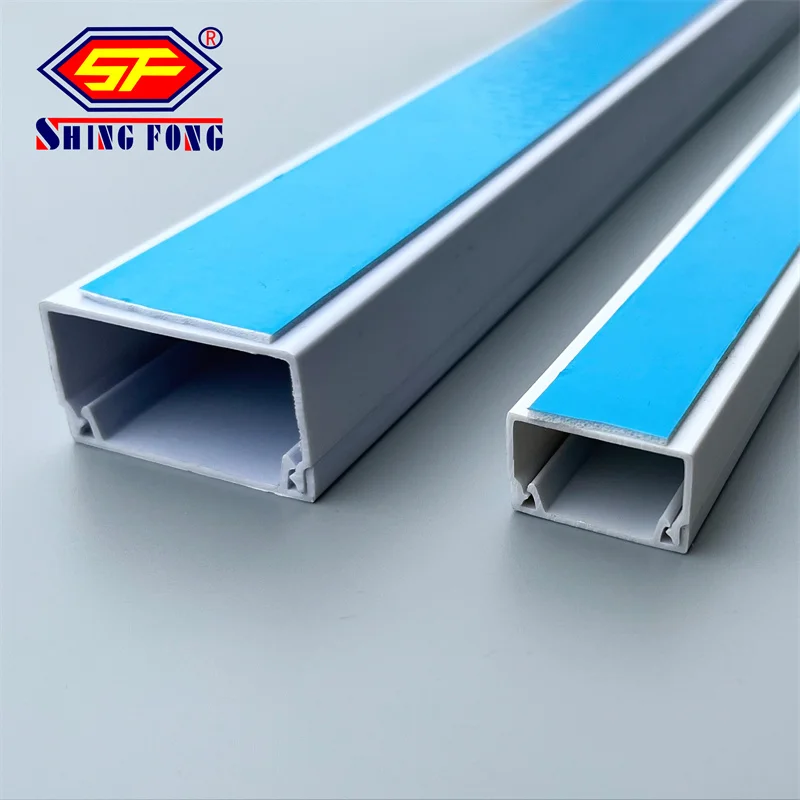

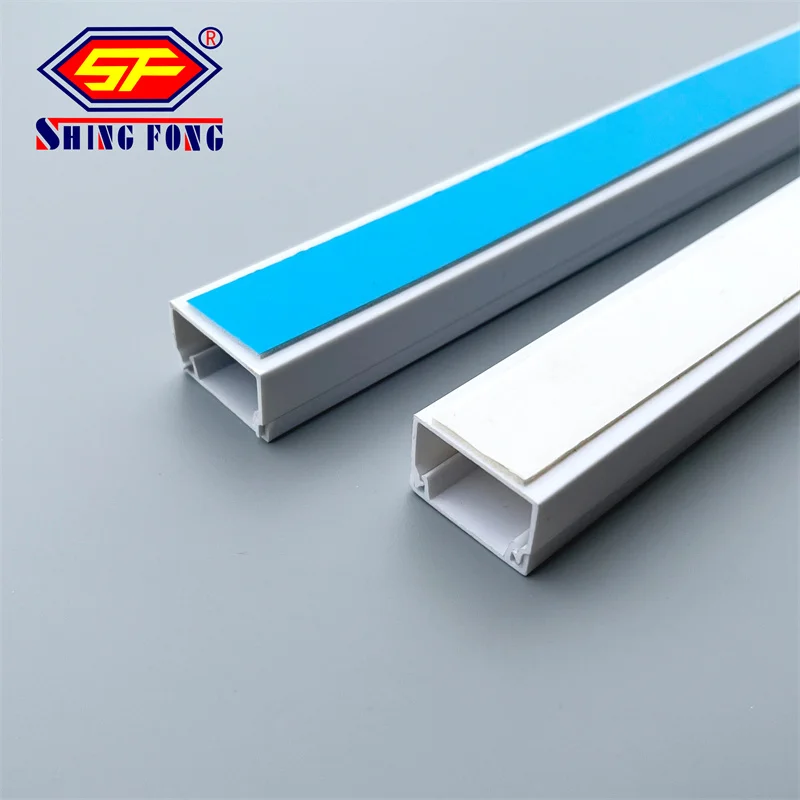

3.We have pvc trunking with self adhesive in blue,white or red color.





4.We have pvc trunking accessories/fittings from 20x10mm to 100x60mm,such as flat angle,flat tee,internal angle,external angle,terminal,coupler.





7.Certificates



Factory & Warehouse Overview













Our factory of PVC Trunking locates in Sihui city, it only takes one hour from guangzhou to our city by car. We manufacture a wide range size of PVC Trunking from 10x10mm to 200x100mm. With experience of more than 18 years, we sure to supply you good quality of PVC Trunking with competitive price.
