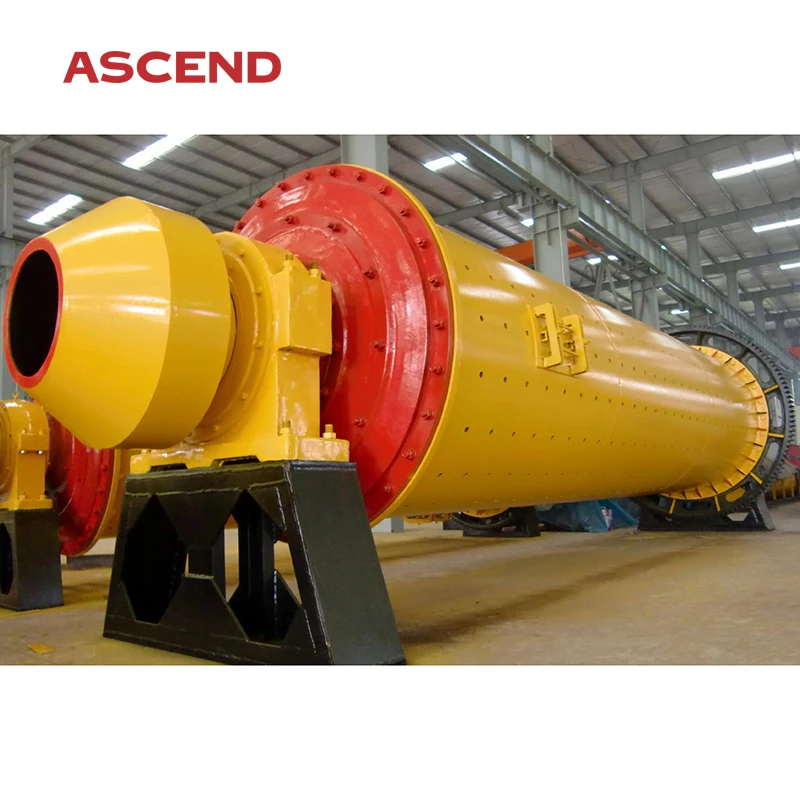

1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia
1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia

1200x2400 model 2 3 4 tons per hour capacity ball mill for gold silver copper ore grinding output size below 200 meshe in Zambia

Share on (1601283480040):


Price:$6,550.00 - $7,650.00

Quantity:


Product Overview

Description



Products Introduction

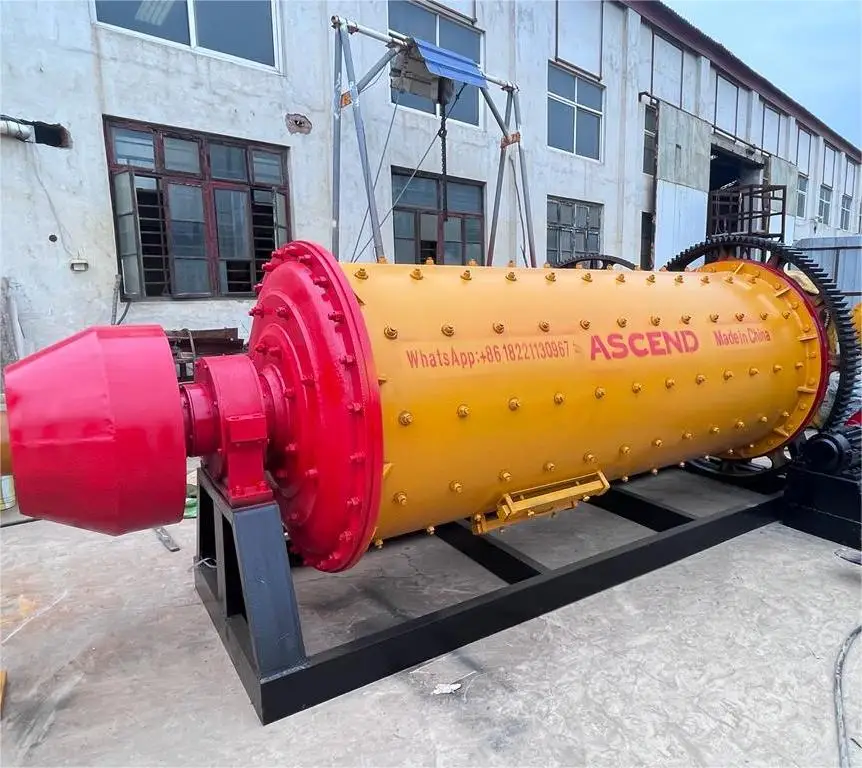

Gold silver ore ball mill grinding machine from China Ascend
Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, with medium hardness.






Working Principle


According to different milling modes, the ball mills can be divided into dry and wet types. Due to different dishcarging methods, there are two types of ball mills: into-lattice type and over-flow type, or center-discharging type and side-discharging type. According to the different kinds of support, they can be devided into two types: bearing mill and bushing mill.




Specifications


Model
Rotation
speed(r/m)
Grind
Media(ton)
Feed size
(mm)
Discharge
size(mm)
Capacity
(t/h)
Motor
(KW)
Weight
(ton)
900x1200
36
1.0
0-25
0.074-0.4
0.5-1.5
18.5
4
900x1800
36
1.5
0.5-2
22
4.8
900x2100
38
1.5





















0.5-2
22
4.8
900x2400
38
1.8
0.7-2.8
22
4.8
900x3000
38
2.5
0.8-3.5
30
5.0
1200x2400
32
3.8
0.9-4.8
30
9.2
1200x3000
32
4.5
1.2-5.6
37
11.5
1200x4500
30
5.5
1.5-6.0
55
13.6
1500x3000
27
7.0
2.5-6.5
75
15.0
1500x3500
27
8.5
3.0-8.2
75
15.6
1500x4500
27
11
4-10
95
21.0
1500x5700
27
12
4-13
110
23.5
1830x3000
24
12
5-15
130
31.0
1830x3600
24
13
5-16
130
32.0
1830x4500
24
14
5-18
155
33.5
1830x7000
24
21
6-20
210
36.0
2100x3000
24
18
7-26
210
38.0
2100x3600
24
21
7-35
215
39.5
2100x4500
24
26
8-42
245
43.5
2400x3000
21
23
8-60
285
55.0

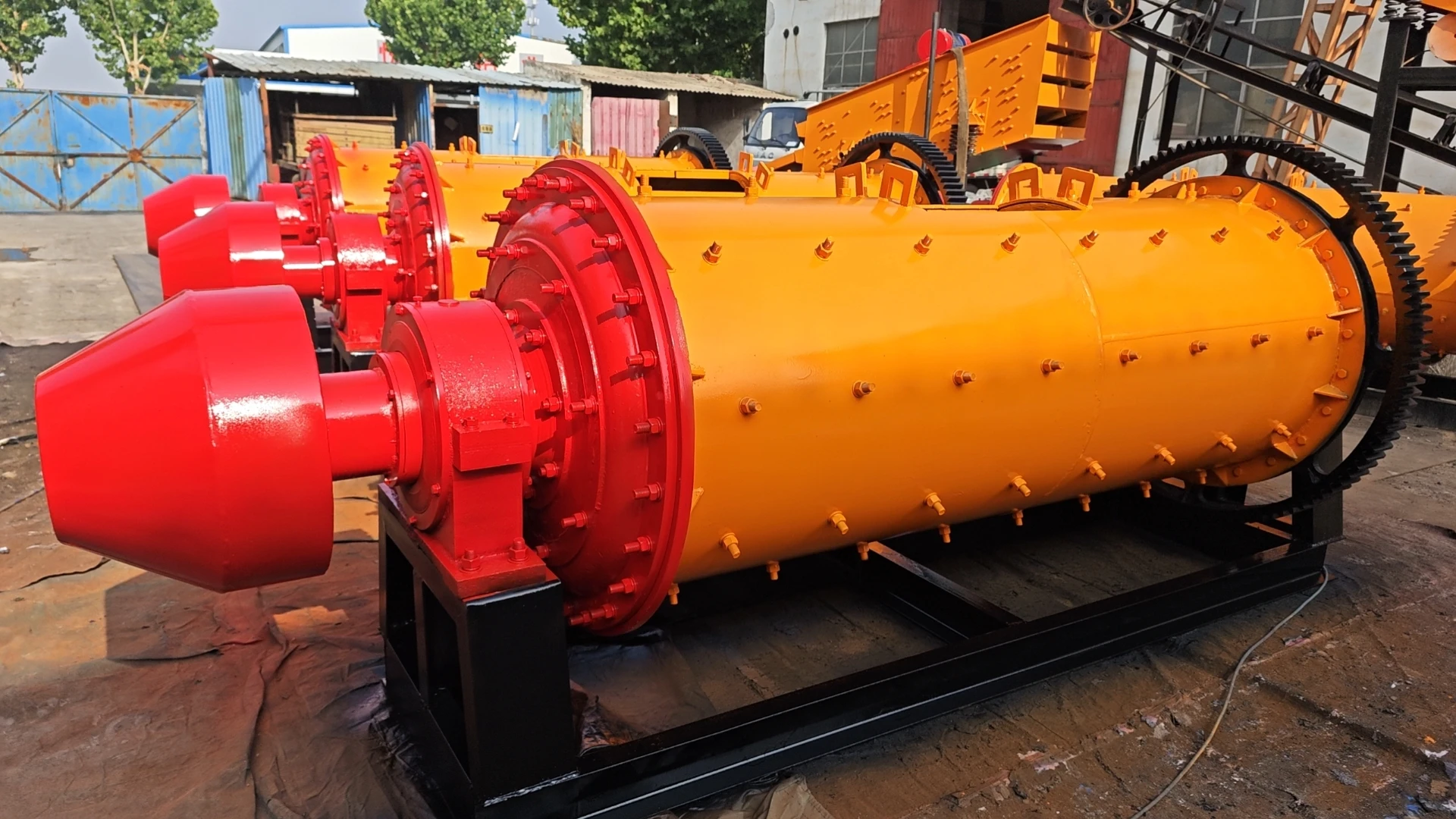

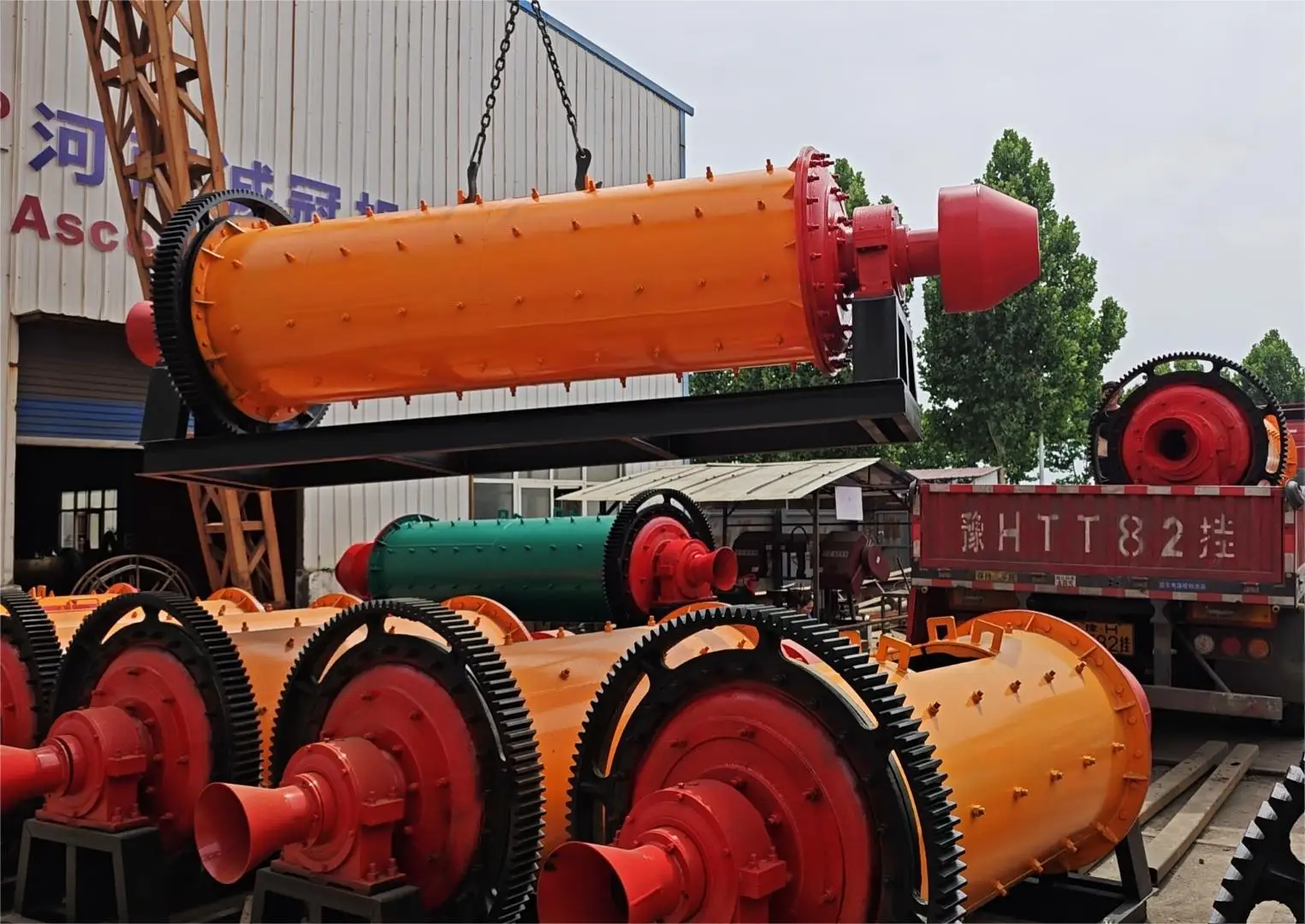

Detailed Pictures

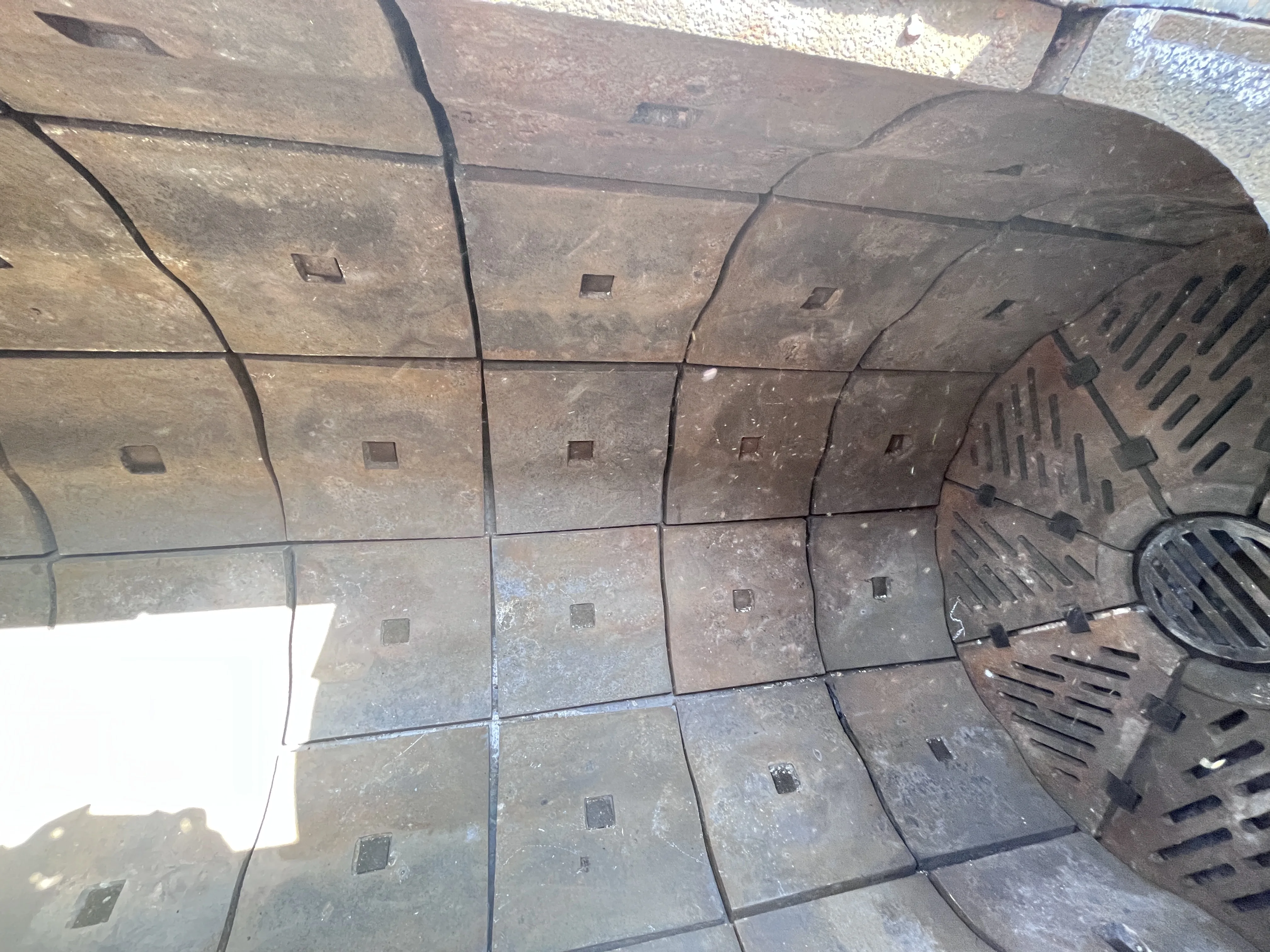

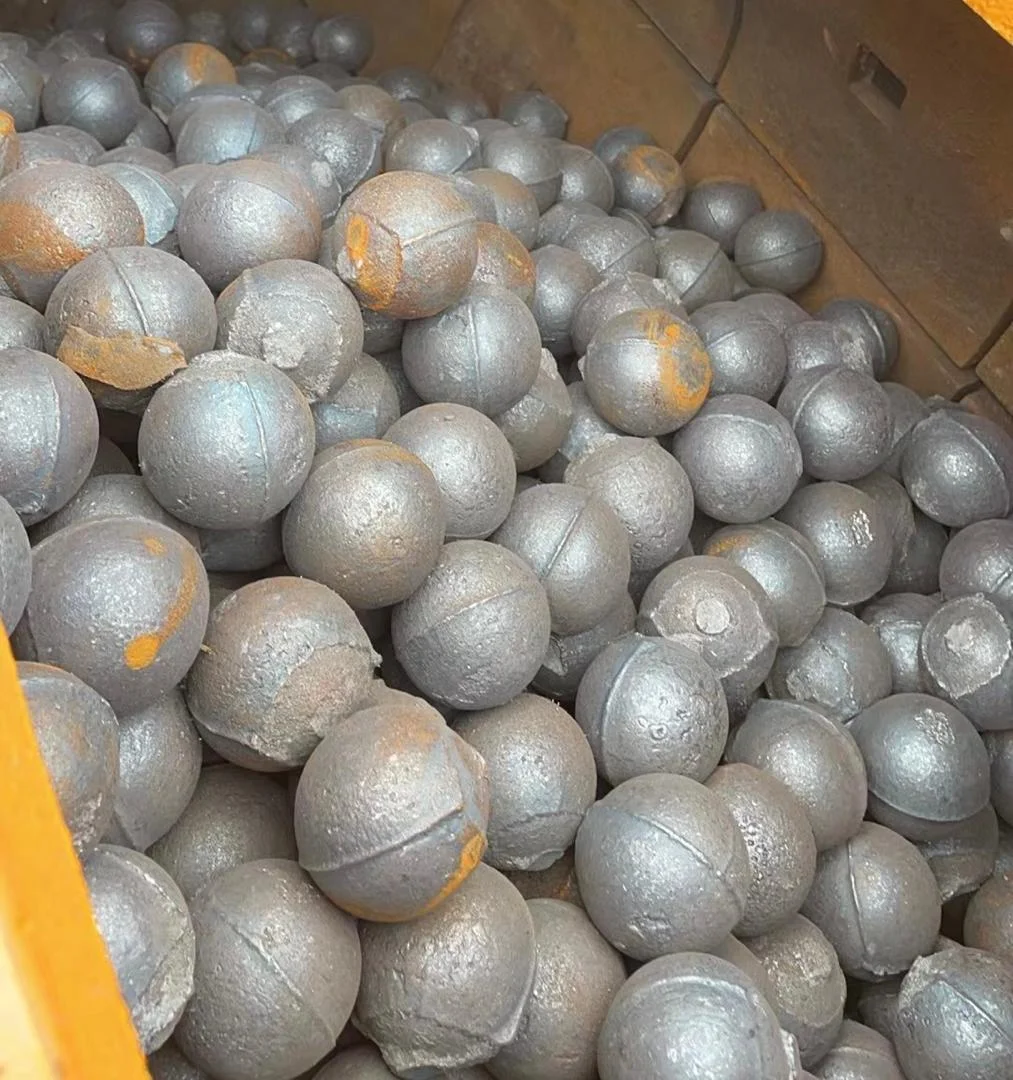

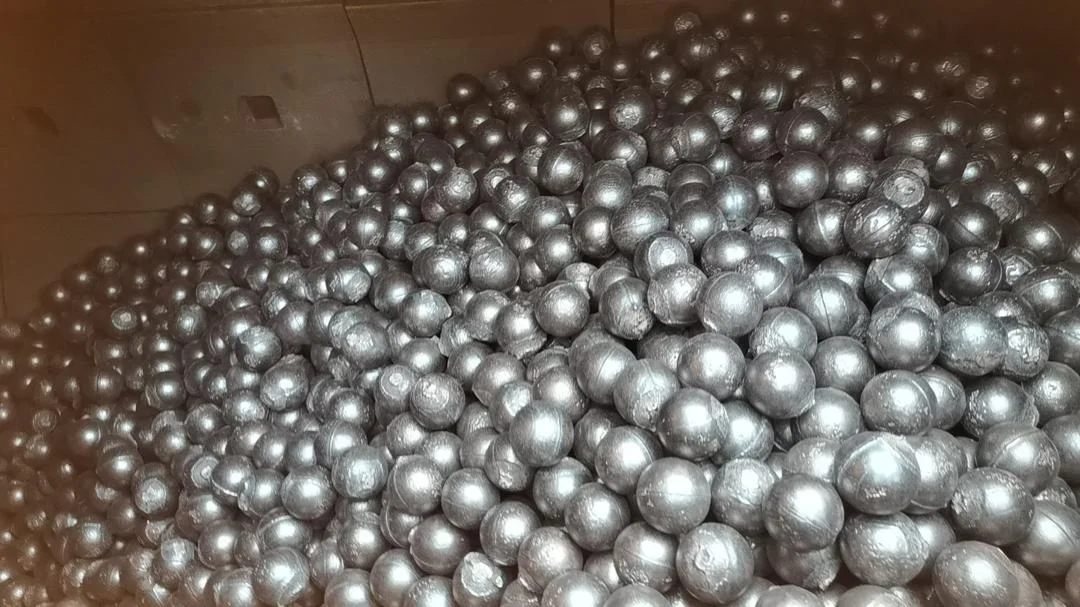

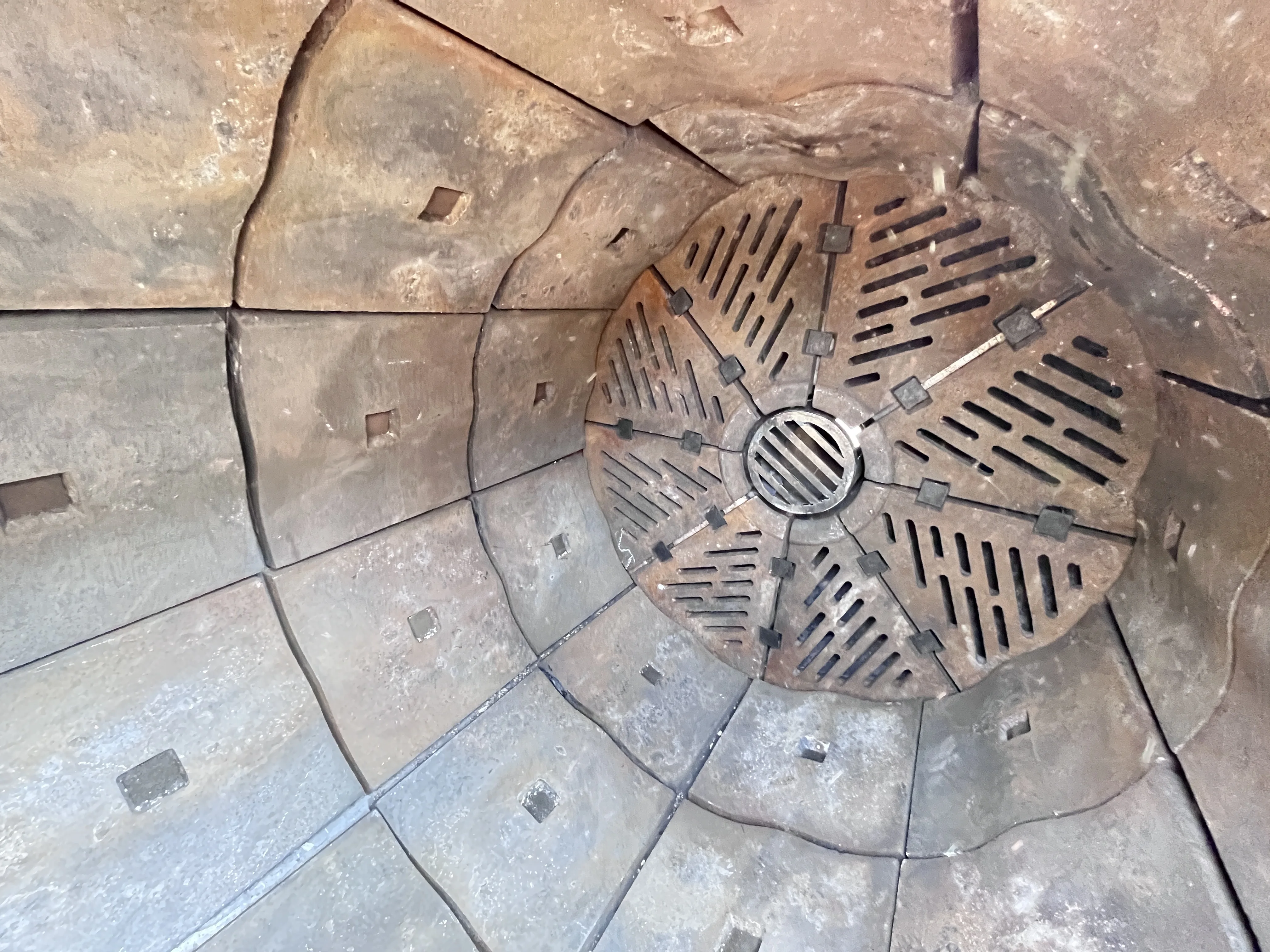

Main Parts & Spare parts

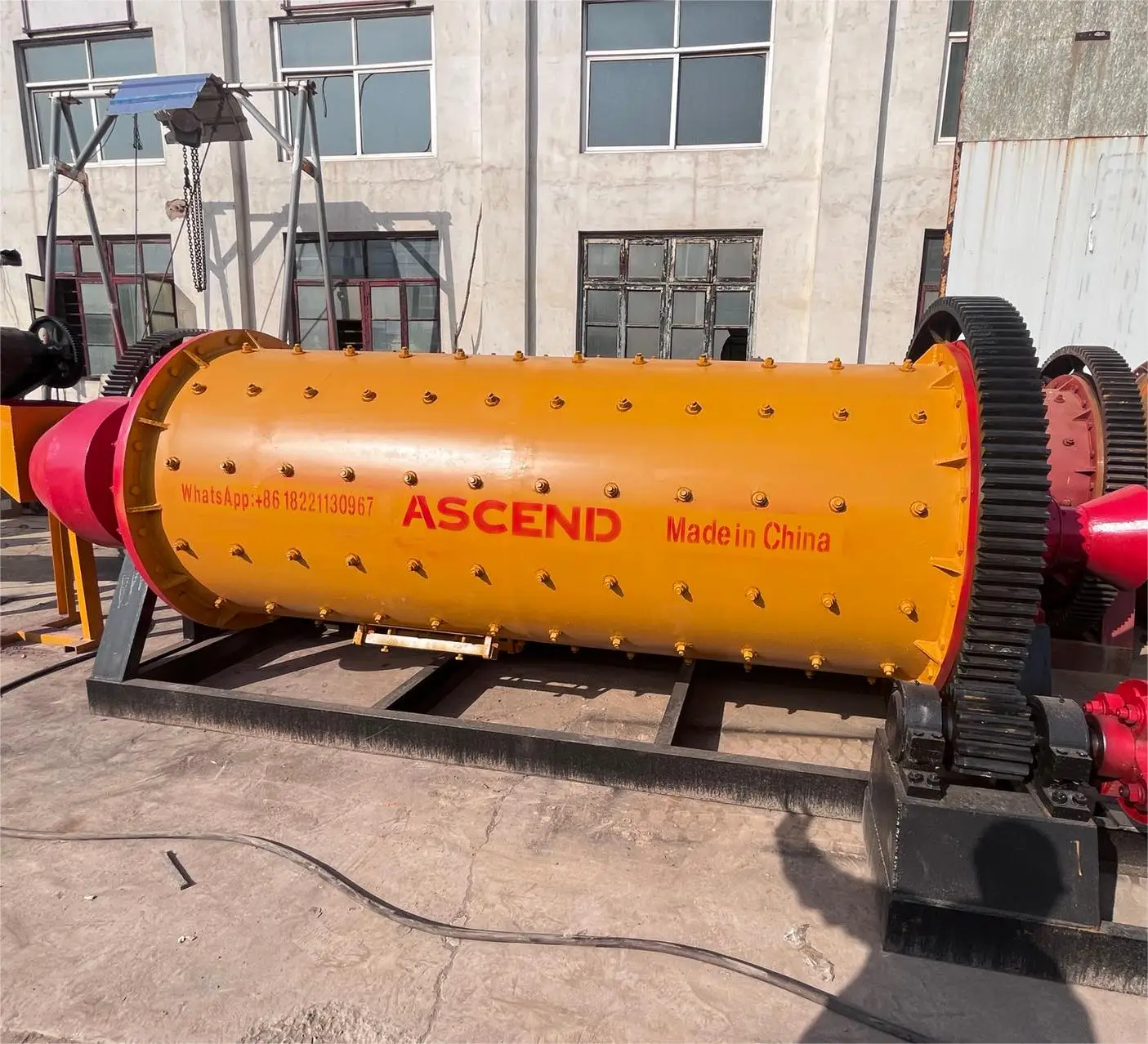

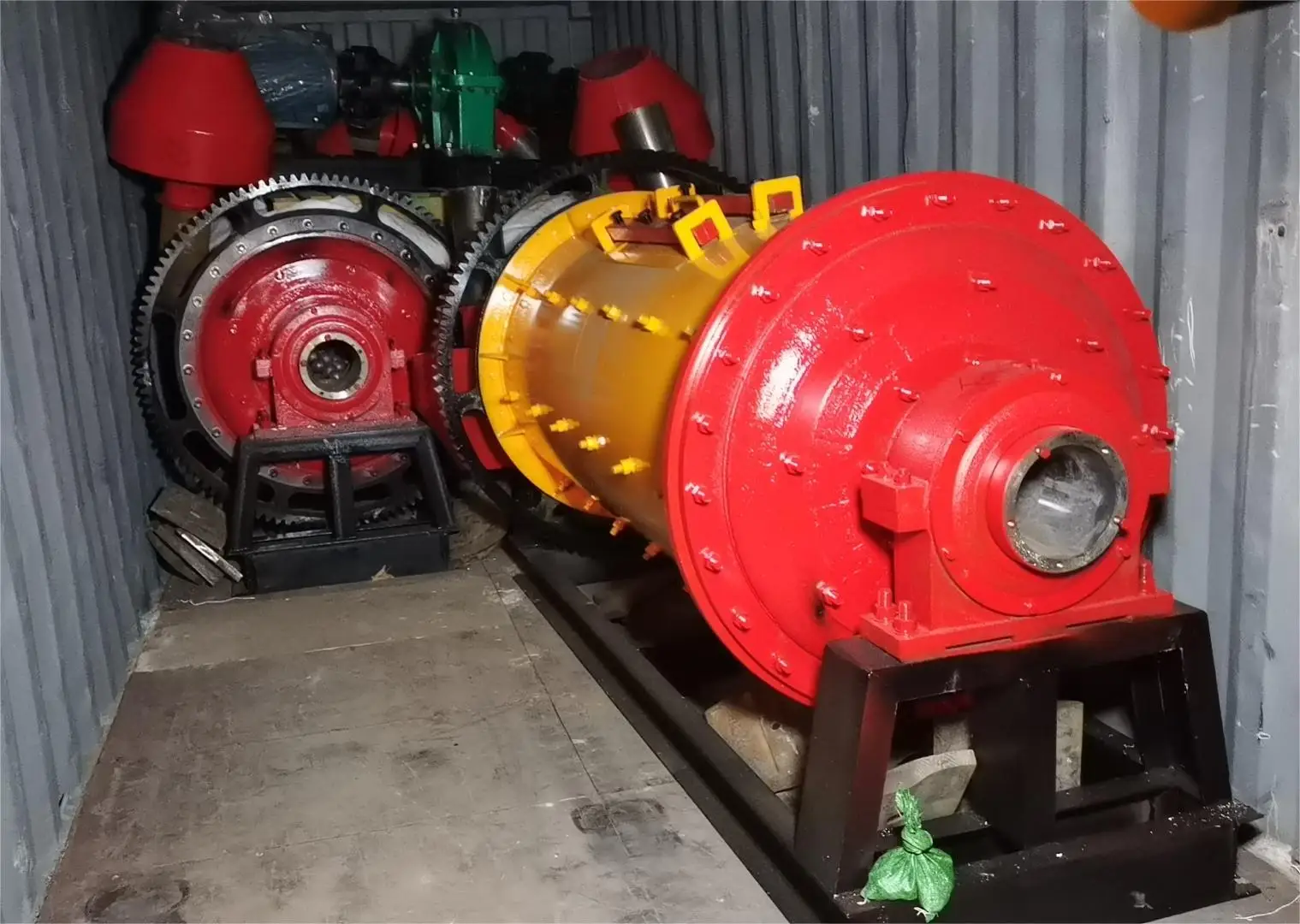

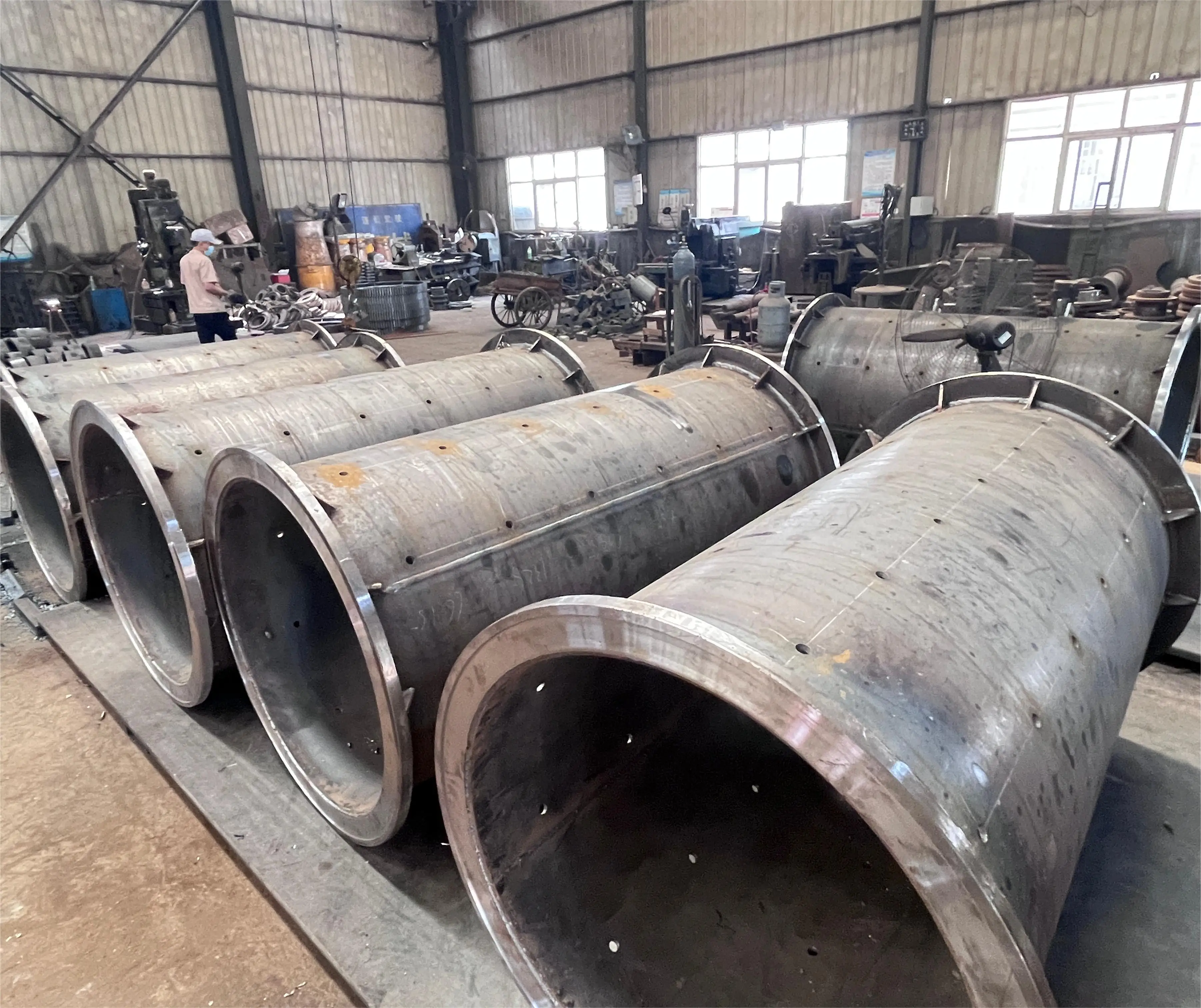

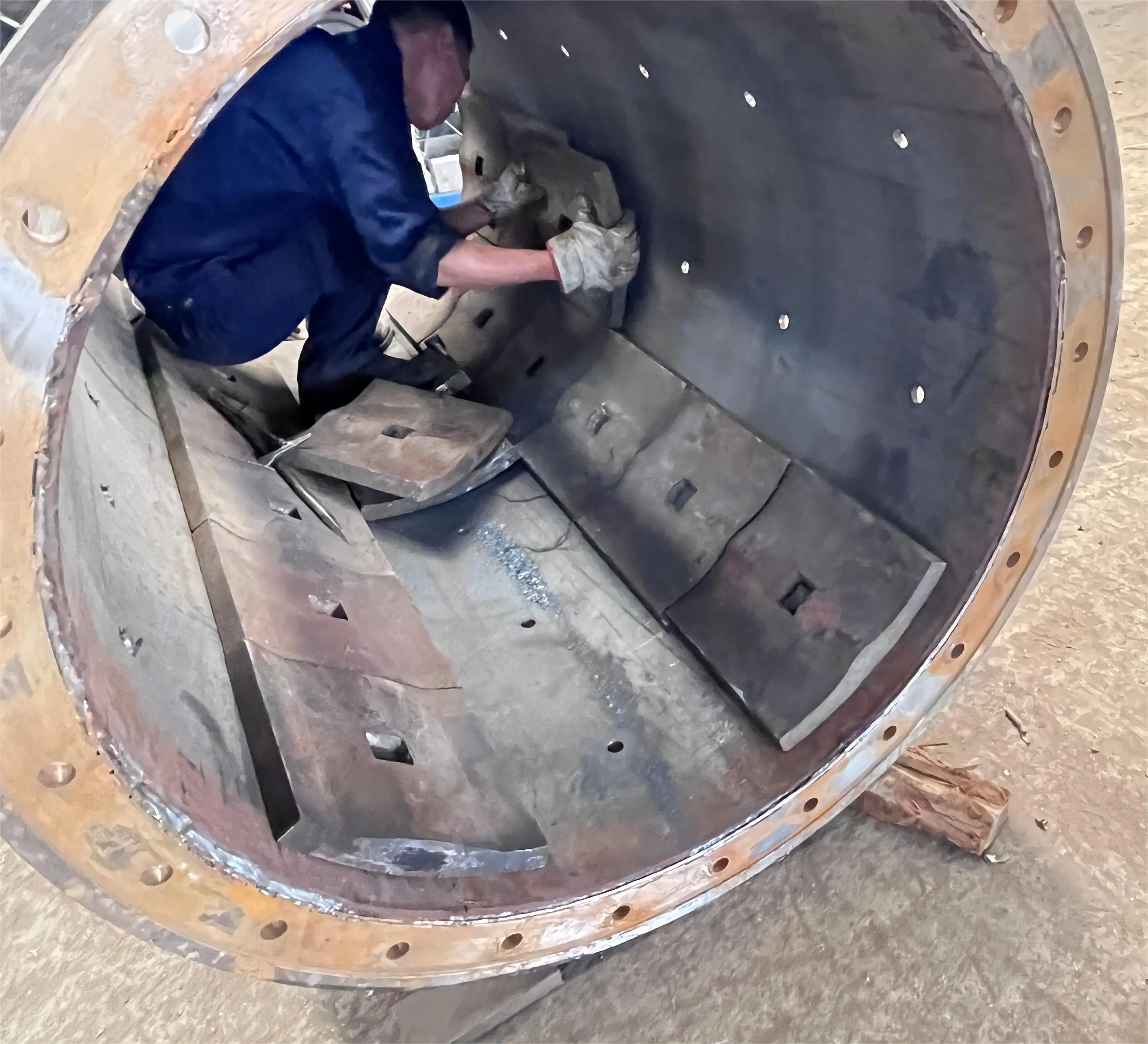

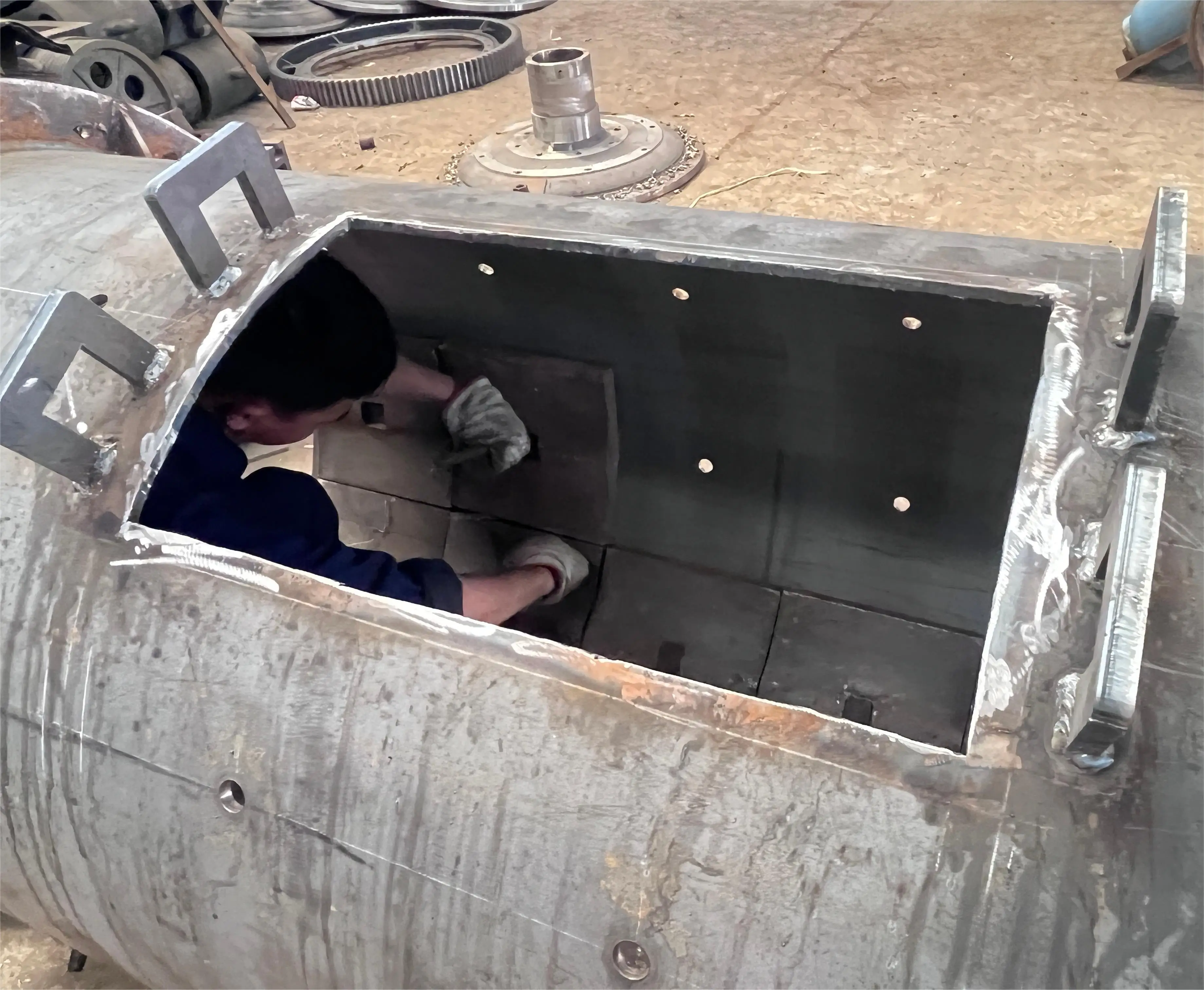

Ascend Ball Mill Processing









Ascend Ball Mill Processing

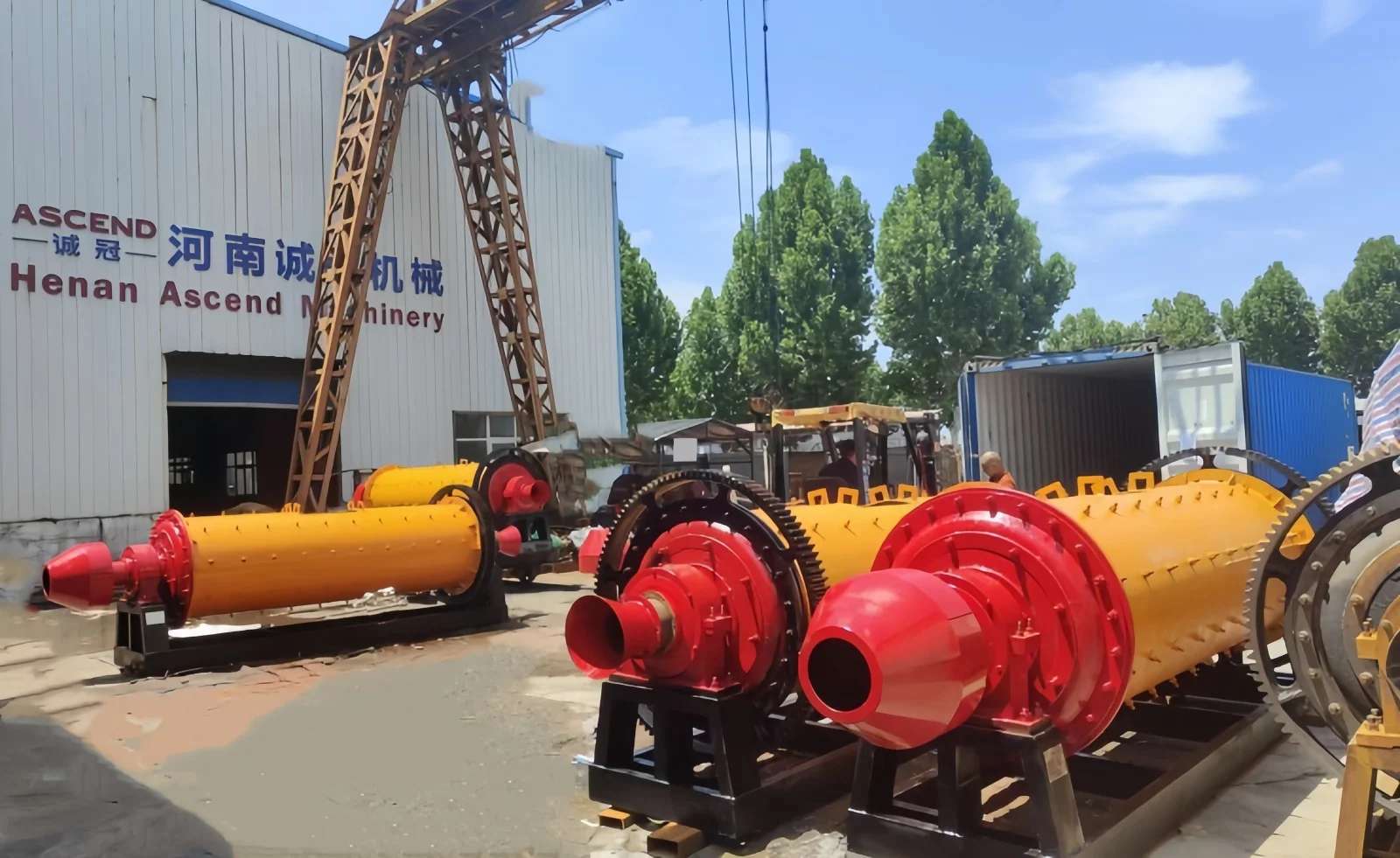

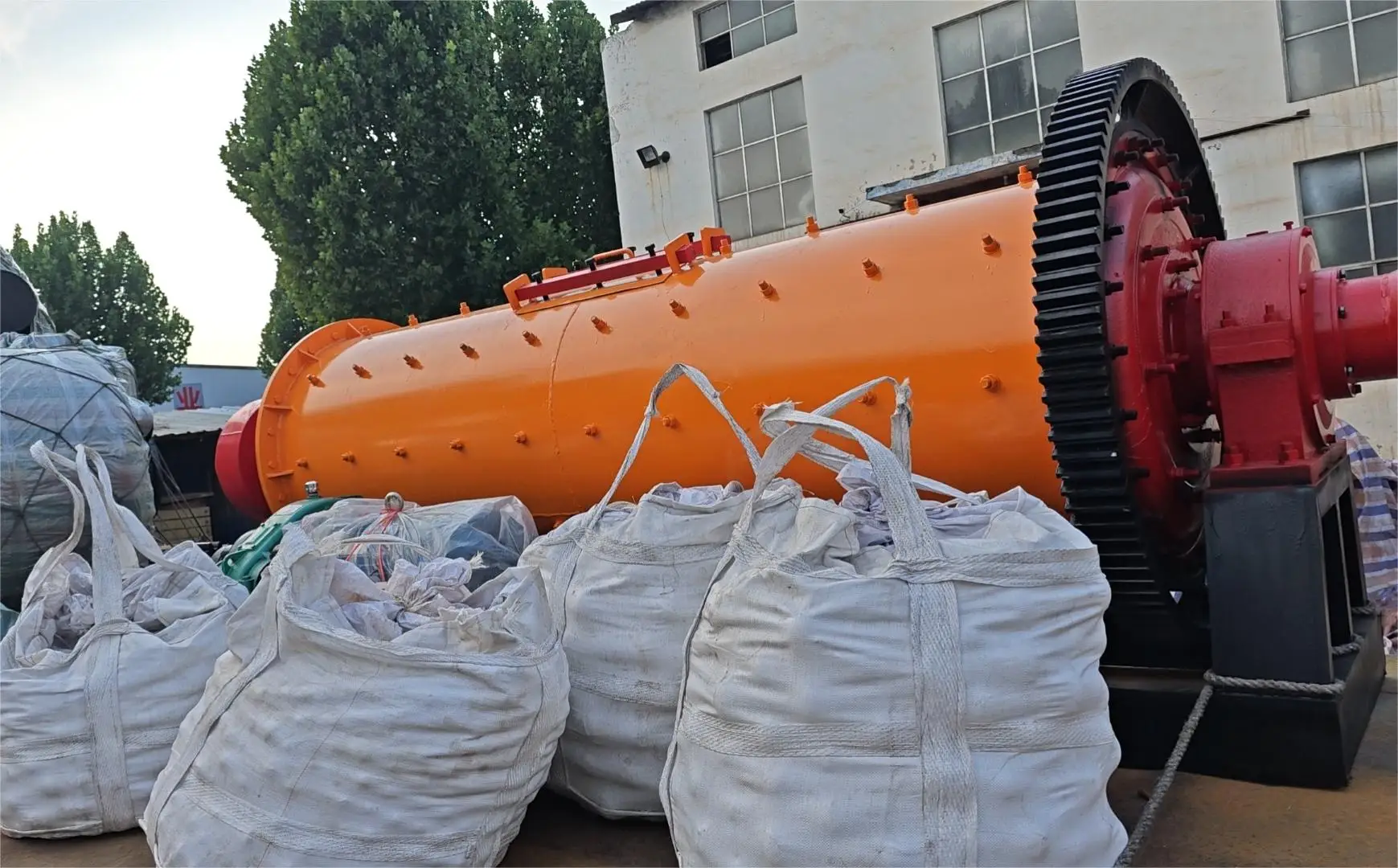

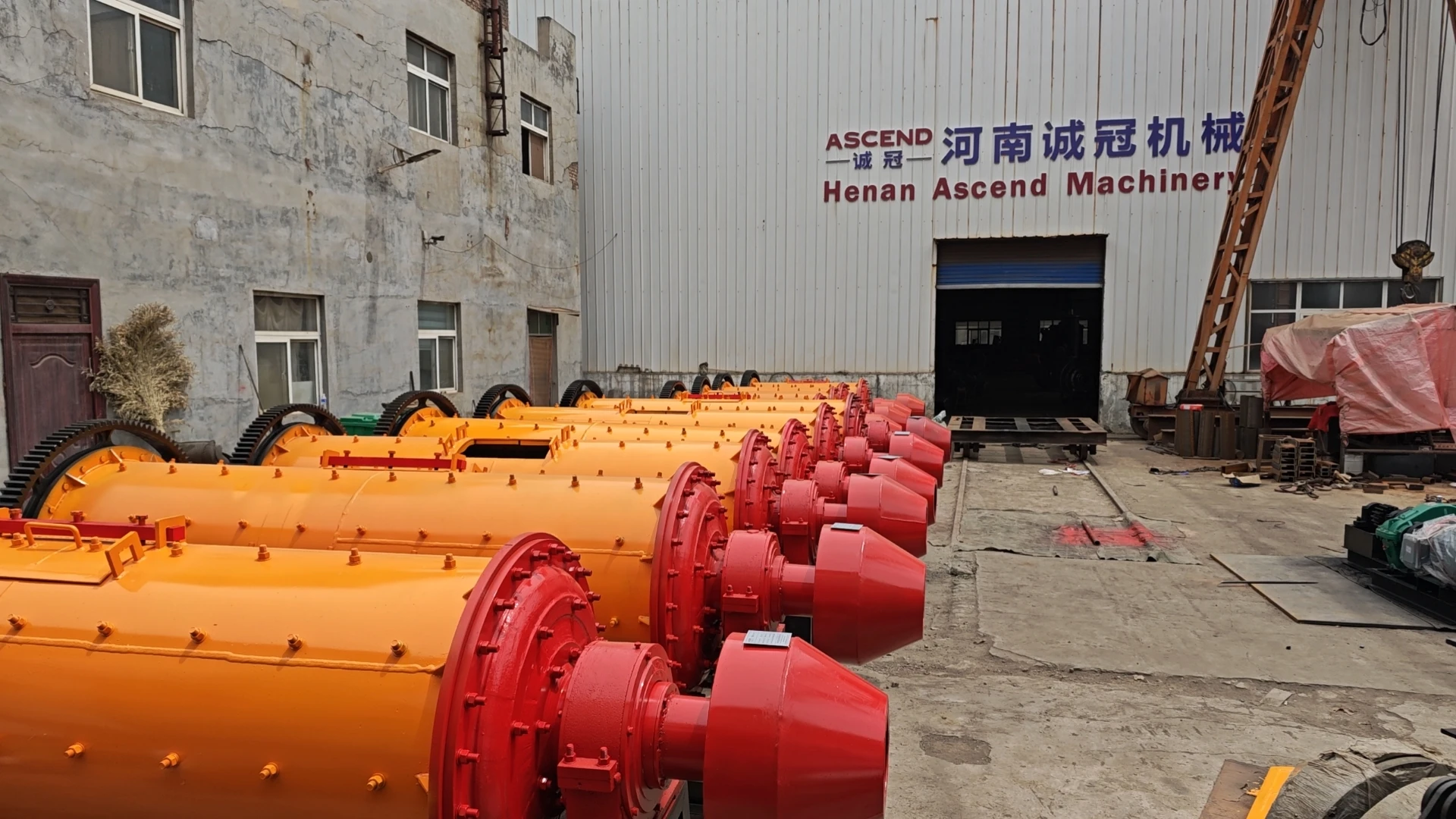

Working sites




Company Profile


China Ascend Mining Machinery company
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City,Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-salesservice of mining machinery and equipment.

The company's main products are crushers, grinding mill equipment, mineralbeneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascendmachinery expands its business in more than 160 countries and regions.

Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.




We also supply








Contact us




FAQ


●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every product before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●If I need thecomplete crushing plant can you help us to build it?
Answer: we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
●What Information should customers give us, So that we can be able to provide you suitable quotation and service.
Answer: 1.What minerals are you separating? 2.What's the maximum size of your raw minerals? 3.How much capacity do you need per hour for your project?
