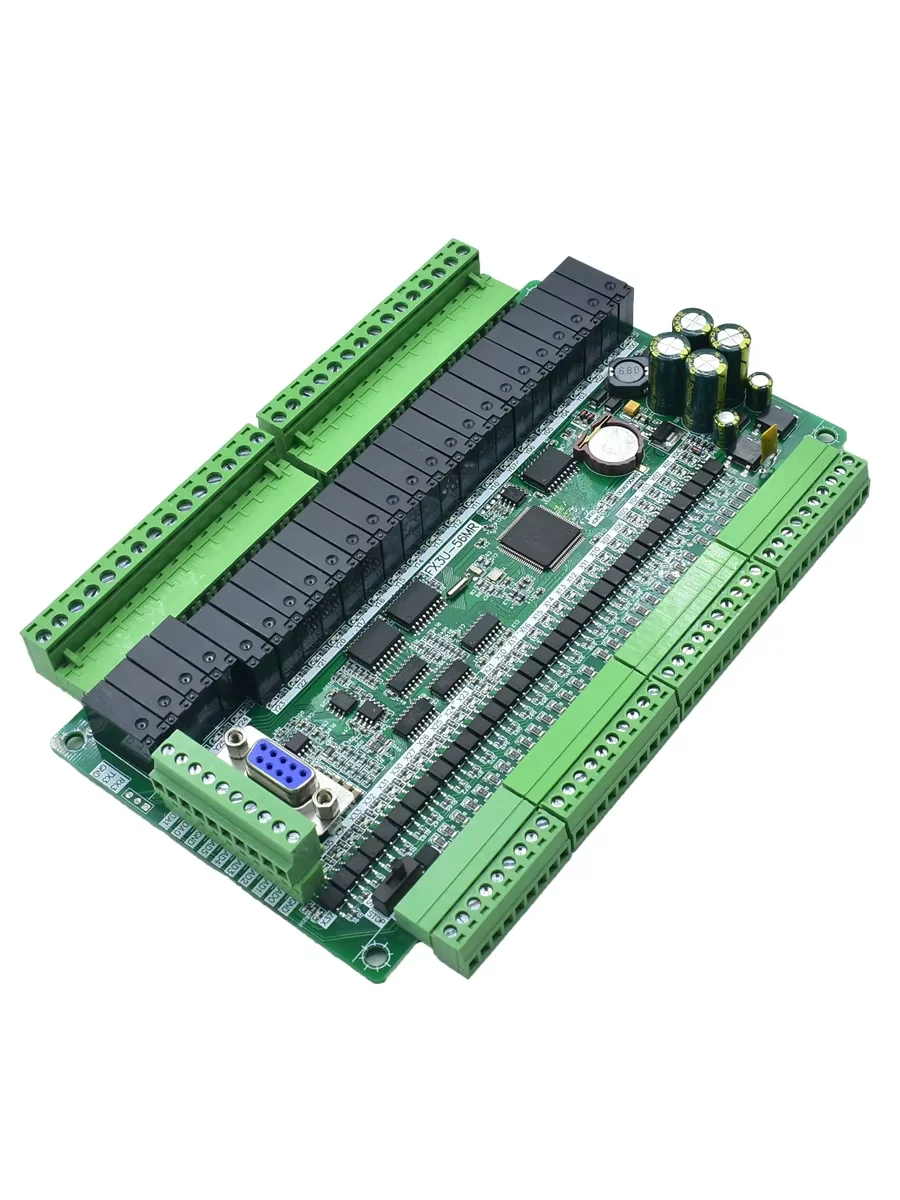

PLC Programmable Logic Controller FX3U 56MR Anti Interference High Speed Industrial Control Board 32 Input 24 Relay Output
- Category: >>>
- Supplier: Shenzhen Chuangyida Electronics Co. Limited
Share on (1601283530288):
Product Overview
Description
Input power: DC24 DC 24V
Program steps: 8000 steps; 3 communication ports :1 RS232(standard 9-pin serial port FX3u protocol 38400,7, E, 1) 1 RS485. 1 CAN.
Input point X element: X0-X37, a total of 32 input points, 0V low level effective, where X0-X5 can be changed to 12KHZ high-speed
counting input port (optional)
Output point Y component: YO-Y27, total 24 output points. Body tube output :Yo~y7 is 100K pulse output, Y10-Y27 is DC load within
3A. Relay output: can control AC load within 5A.
Analog input: 6 analog input, 12 bit precision, ADO~AD2 is voltage input :0-10V, AD3~AD5 is 0-20MA current input; Read analog with
RD3A instruction
Analog output: 2 analog output, 12-bit precision, output voltage :0-10V. Output analog voltage with WR3A instruction
Intermediate relay M: M0-M3071, power failure storage range can be set MO-M1023
Step point S: S0-1023, power failure storage range can be set to SO-S1023
100Ms timer: TO-T199, cumulative power down save T184-T199
10Ms timer: T200-T249, cumulative power down save T246-T249
1Ms timer: T250-T383, where T250-255 is the cumulative type
16-bit counter: CO-C199, power down save C100-199
32-bit counter: C200-C219, power down save C220-C234
32-bit high-speed counter: C235-255; C235-240 is a single phase counter, no frequency doubling; C21-240 is a single-phase counter
with frequency doubling C247-249 is a dual-phase counter with no frequency doubling; C250-252 is a two-phase counter, double
frequency; C253- is a two-phase counter, 4 times the frequency;
Register D: D0-D7999, power failure storage range can be set to D501-D1023
Indirect addressing pointer V, 7: V0-7, Z0-7
P subroutine jump number: P0-63
I Interrupt: X0-5 external interrupt. Timer interruption (unit: 1MS). Counter interrupt
Special M components: the M8000 runs constantly off, the M8002 has an electrical pulse, the M8011 has a 10Ms pulse, the M8012 has
a 100Ms pulse, the M8013 has a 1s pulse, and the M8014 has a minute pulse.
Program steps: 8000 steps; 3 communication ports :1 RS232(standard 9-pin serial port FX3u protocol 38400,7, E, 1) 1 RS485. 1 CAN.
Input point X element: X0-X37, a total of 32 input points, 0V low level effective, where X0-X5 can be changed to 12KHZ high-speed
counting input port (optional)
Output point Y component: YO-Y27, total 24 output points. Body tube output :Yo~y7 is 100K pulse output, Y10-Y27 is DC load within
3A. Relay output: can control AC load within 5A.
Analog input: 6 analog input, 12 bit precision, ADO~AD2 is voltage input :0-10V, AD3~AD5 is 0-20MA current input; Read analog with
RD3A instruction
Analog output: 2 analog output, 12-bit precision, output voltage :0-10V. Output analog voltage with WR3A instruction
Intermediate relay M: M0-M3071, power failure storage range can be set MO-M1023
Step point S: S0-1023, power failure storage range can be set to SO-S1023
100Ms timer: TO-T199, cumulative power down save T184-T199
10Ms timer: T200-T249, cumulative power down save T246-T249
1Ms timer: T250-T383, where T250-255 is the cumulative type
16-bit counter: CO-C199, power down save C100-199
32-bit counter: C200-C219, power down save C220-C234
32-bit high-speed counter: C235-255; C235-240 is a single phase counter, no frequency doubling; C21-240 is a single-phase counter
with frequency doubling C247-249 is a dual-phase counter with no frequency doubling; C250-252 is a two-phase counter, double
frequency; C253- is a two-phase counter, 4 times the frequency;
Register D: D0-D7999, power failure storage range can be set to D501-D1023
Indirect addressing pointer V, 7: V0-7, Z0-7
P subroutine jump number: P0-63
I Interrupt: X0-5 external interrupt. Timer interruption (unit: 1MS). Counter interrupt
Special M components: the M8000 runs constantly off, the M8002 has an electrical pulse, the M8011 has a 10Ms pulse, the M8012 has
a 100Ms pulse, the M8013 has a 1s pulse, and the M8014 has a minute pulse.
Product Description
Specification
Part Number | PLC Programmable Logic Controller FX3U-56MR Anti-Interference High Speed Industrial Control Board 32 Input 24 Relay Output |
Package | Original |
Brand Name | Original |
Latest Price | Please contact us. |
