Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Automatic Feeding Fiber Laser Round Pipe Punch Hole Square Tube Cutting Machine Price for Sale with Fully Auto Pipe Industry
- Category: >>>
- Supplier: Liaocheng Foster Laser Science & Technology Co. Ltd.
Share on (1601283553708):
Product Overview
Description

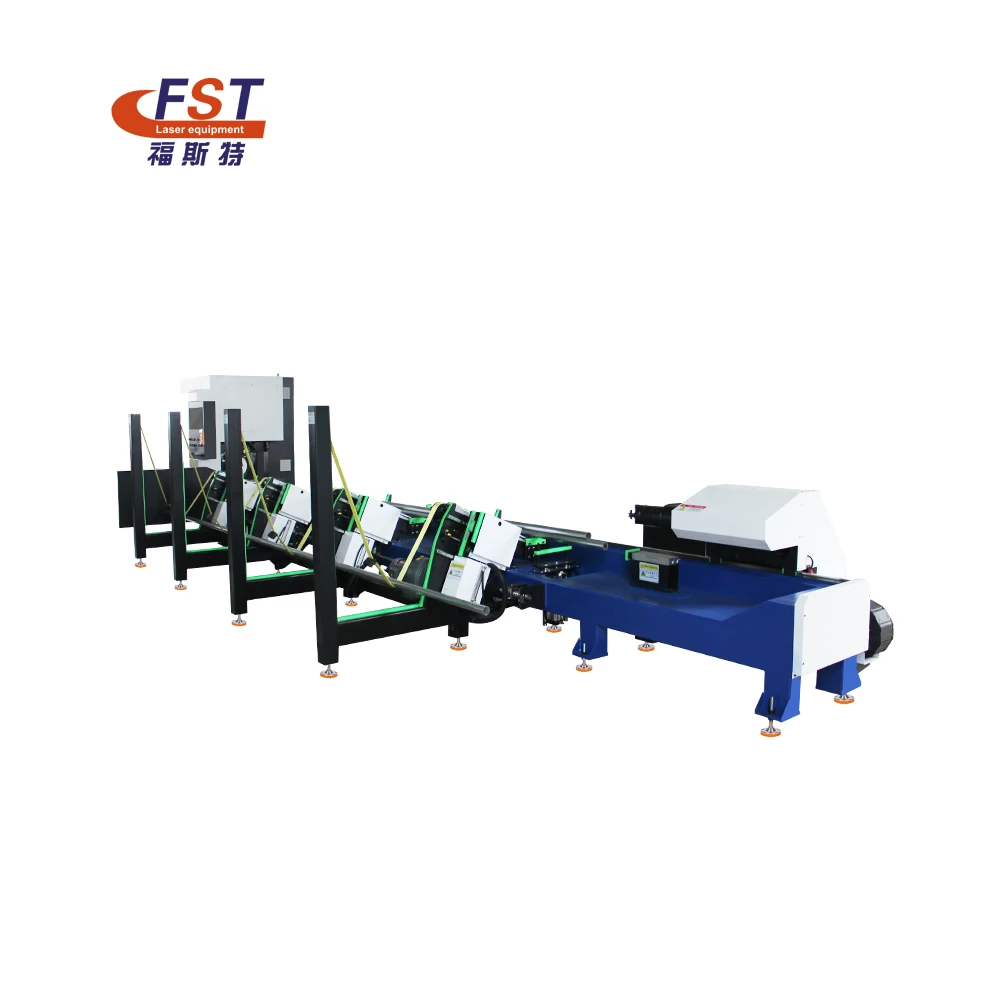

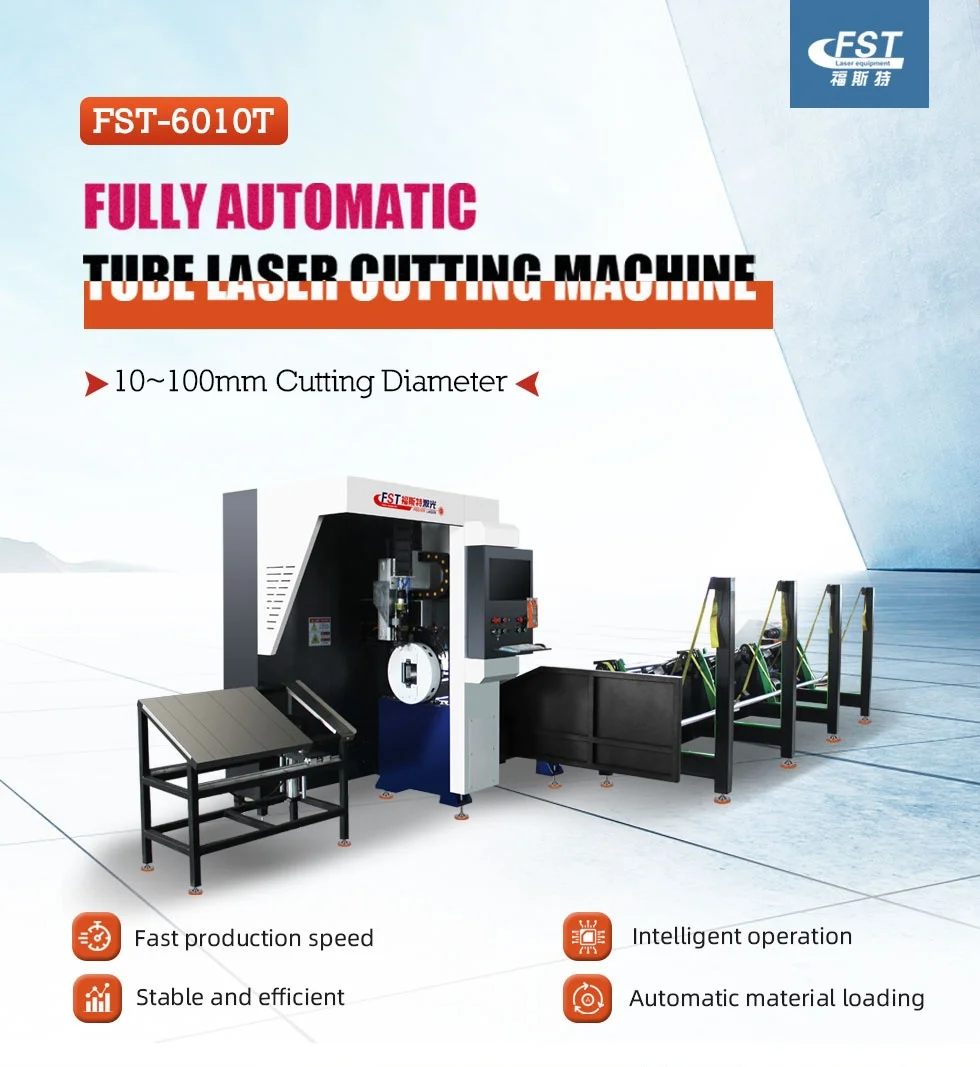

FST-6010 FULLY AUTOMATIG LASER TUBE CUTTING MACHINE
Specifically designed for high volume cutting of tubes and pipes provide far greater efficiency than normal laser systems when cutting pipes and tubular metals.Tube and rectangular tube can finish full automatic feeding without human operation. The fast corner response improves cutting efficiency greatly. The work pieces can be unloaded automatically in different areas after cutting.
SELLING POINT
1.WIDE RANGE OF PIPE CLAMPING:
Round tube and Square tube side length is 6000mm Φ10-100mm. support the cutting of various shapes of pipe materials, such as l-beam, channel steel, angle steel, elliptical pipe waist pipe, multi-deformed pipe, etc
Round tube and Square tube side length is 6000mm Φ10-100mm. support the cutting of various shapes of pipe materials, such as l-beam, channel steel, angle steel, elliptical pipe waist pipe, multi-deformed pipe, etc

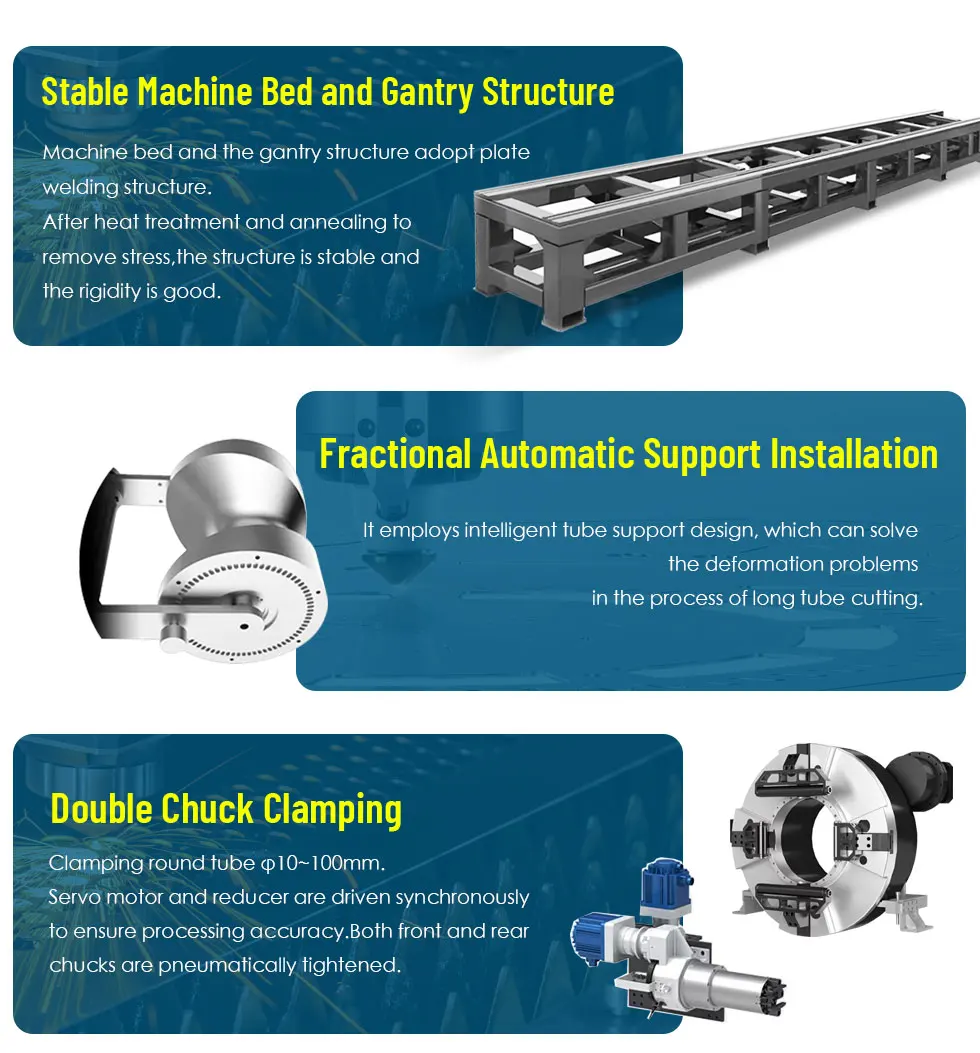

2.ONE-PIECE BED FRAME:
The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The bed is annealed at a high temperature to eliminate internal stress. The whole machine is highly integrated, with good system performance and long life.
The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The bed is annealed at a high temperature to eliminate internal stress. The whole machine is highly integrated, with good system performance and long life.
3.FULLY AUTOMATIC SELF-CENTERING PNEUMATIC CHUCK:
Fully automatic pneumatic chuck, precision gear transmission; Powerful automatic centering function, convenient and efficient; Pneumatic super strong clamping force, high cutting accuracy.
4.CUTTING HEAD SPECIALIZED FOR TUBE CUTTING:
Specialized smart cutting head makes various types of tube cutting easier; Tapered pointed design makes it easy to prevent a collision when cutting sharp tubes; New collimation and protection lenses, better protection for the core components.

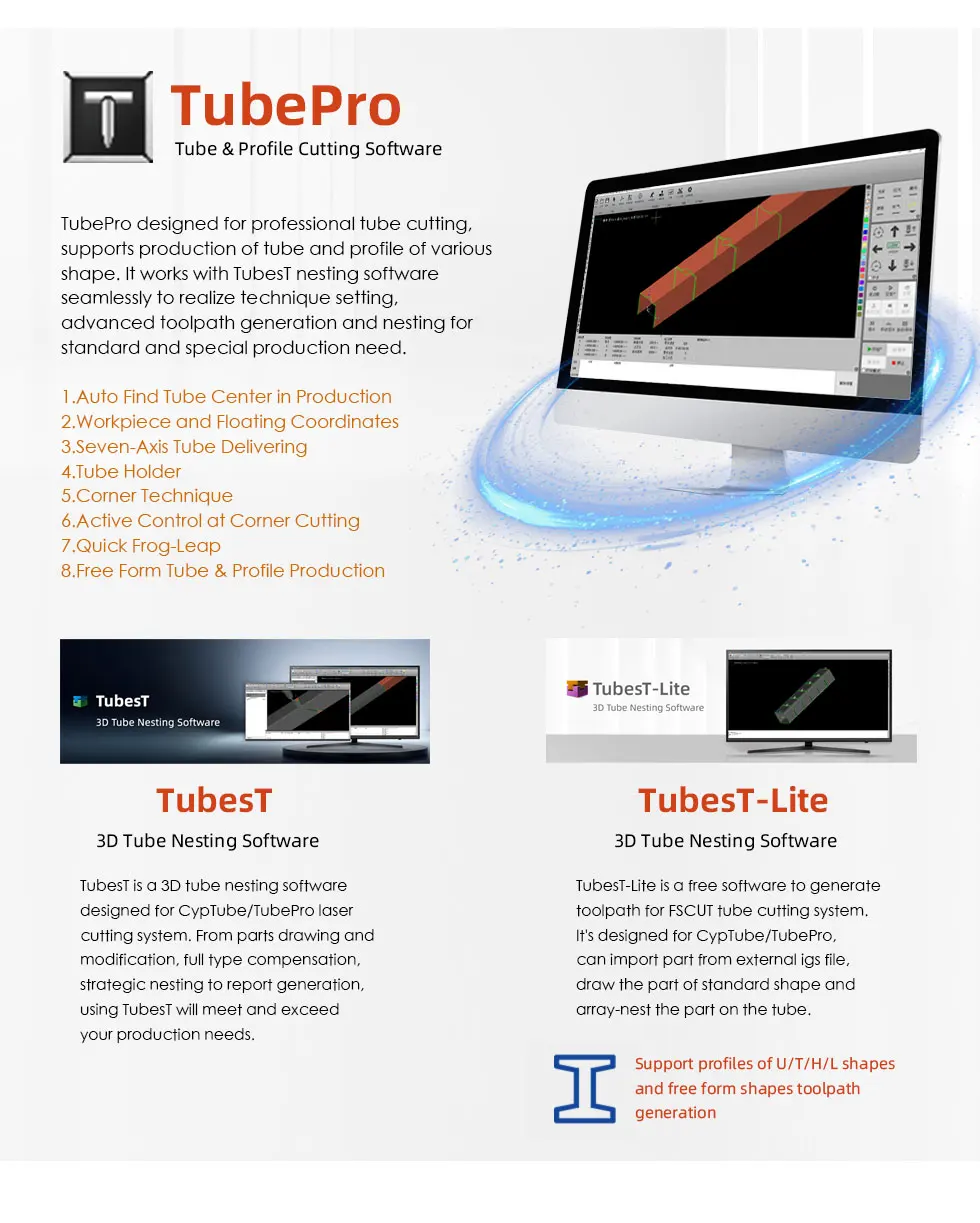

5.PROFESSIONAL, TUBE CUTTING SYSTEM:
Real-time core deviation compensation. High precision realization of perforation. Support corner crafting individually set. Support advanced technology such as cooling point, sharp corner ring cutting, release corner.
6.FULLY AUTOMATIC FEEDING SYSTEM:
High-rigidity material rack design, fast material changing and feeding speed and good stability, can realize automatic conveying, cutting, loading and unloading.
Product Paramenters
Model | FST-6010 Fully Automatic Tube Laser Cutting Machine |
Working Area | 6000mm Φ10-100mm |
Laser Power | 1000W/2000W/3000W/4000W/6000Wetc. |
Cooling Method | Water cooling protection |
Positioning Accuracy | ±0.03m |
Maximum Acceleration | 1.5G |
Repeatability | ±0.02m |
Cutting Materials | Round tube/Square tube |
Laser Source Brand | Raycus/Max/Reci/IPG |
Max Movement Speed | 100m/min |
Power Parameters | 380V/50HZ |
Maximum Speed | 150m/min |

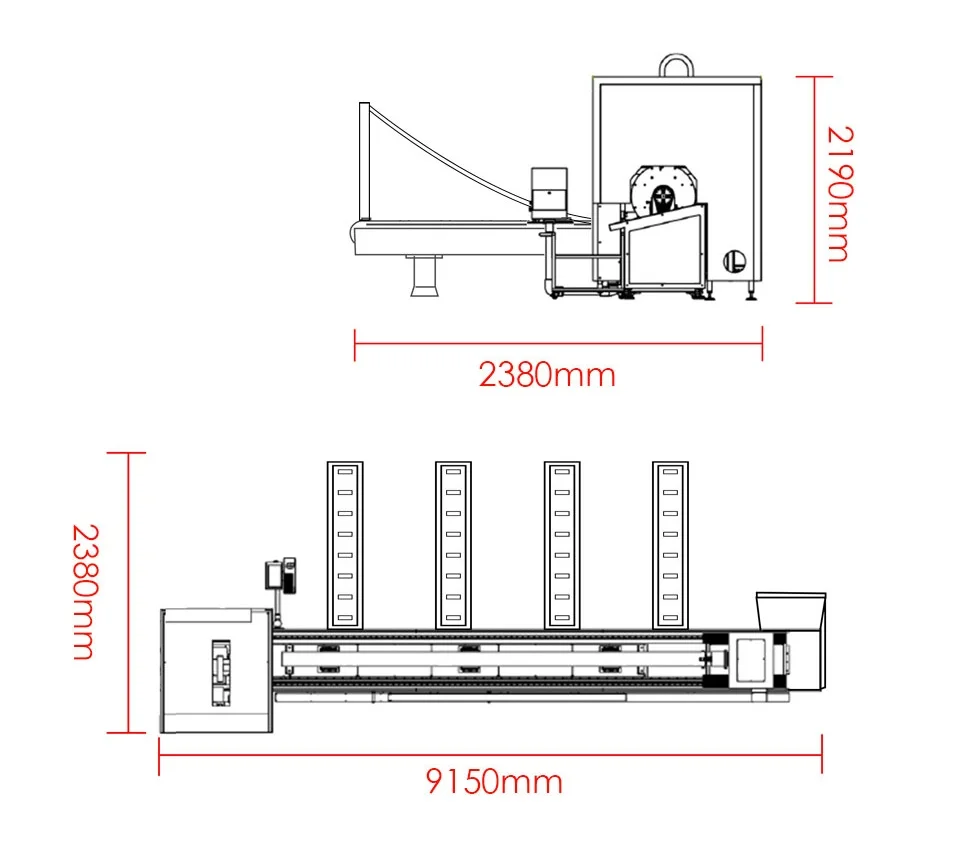

Machine Size | 9150*2380*2190mm |
Weight of filling material | 1.8T |
Power Parameters | Three-phase AC 380V 50Hz(Can be customized) |
Machine weight | 4.5T |
Material | 1500W | 2000W | 3000W |
Carbon Steel (mm) | 1-10mm | 1-10mm | 1-16mm |
Stainless Steel (mm) | 1-6mm | 1-6mm | 1-8mm |
Aluminum (mm) | 1-4mm | 1-6mm |

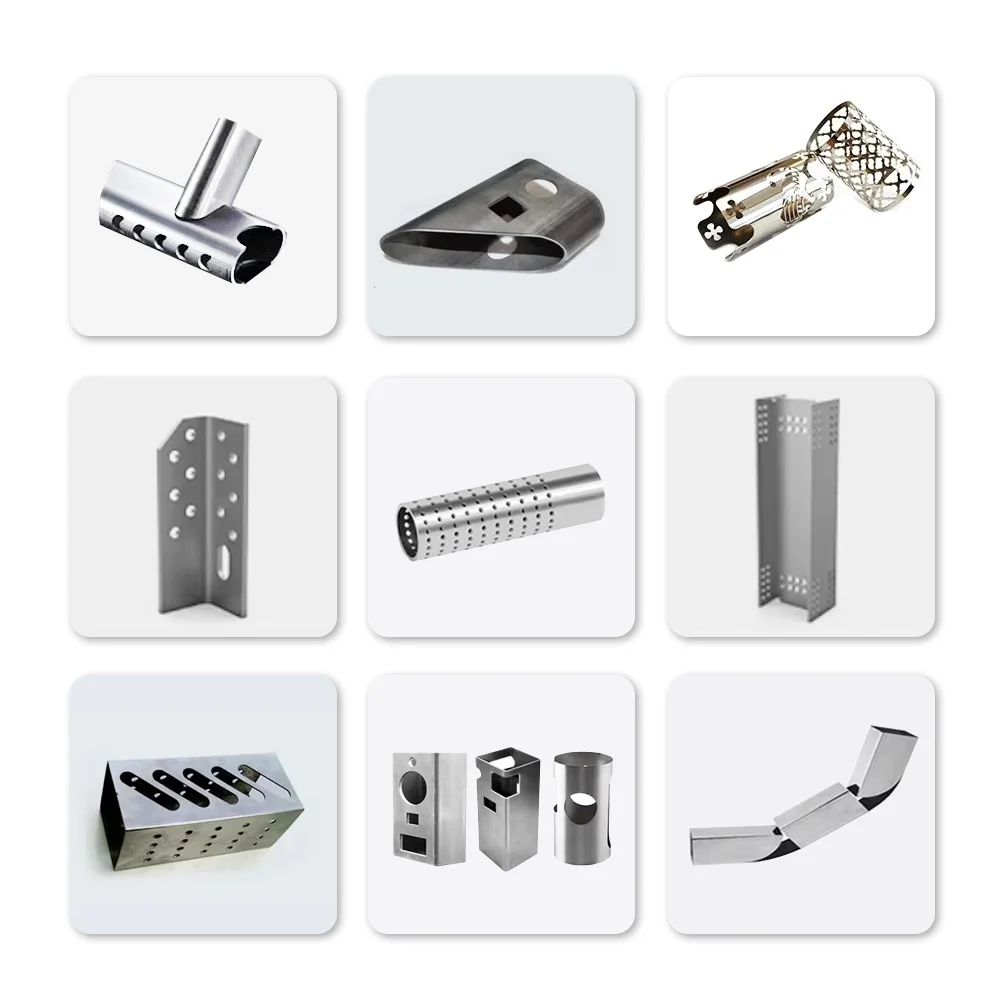

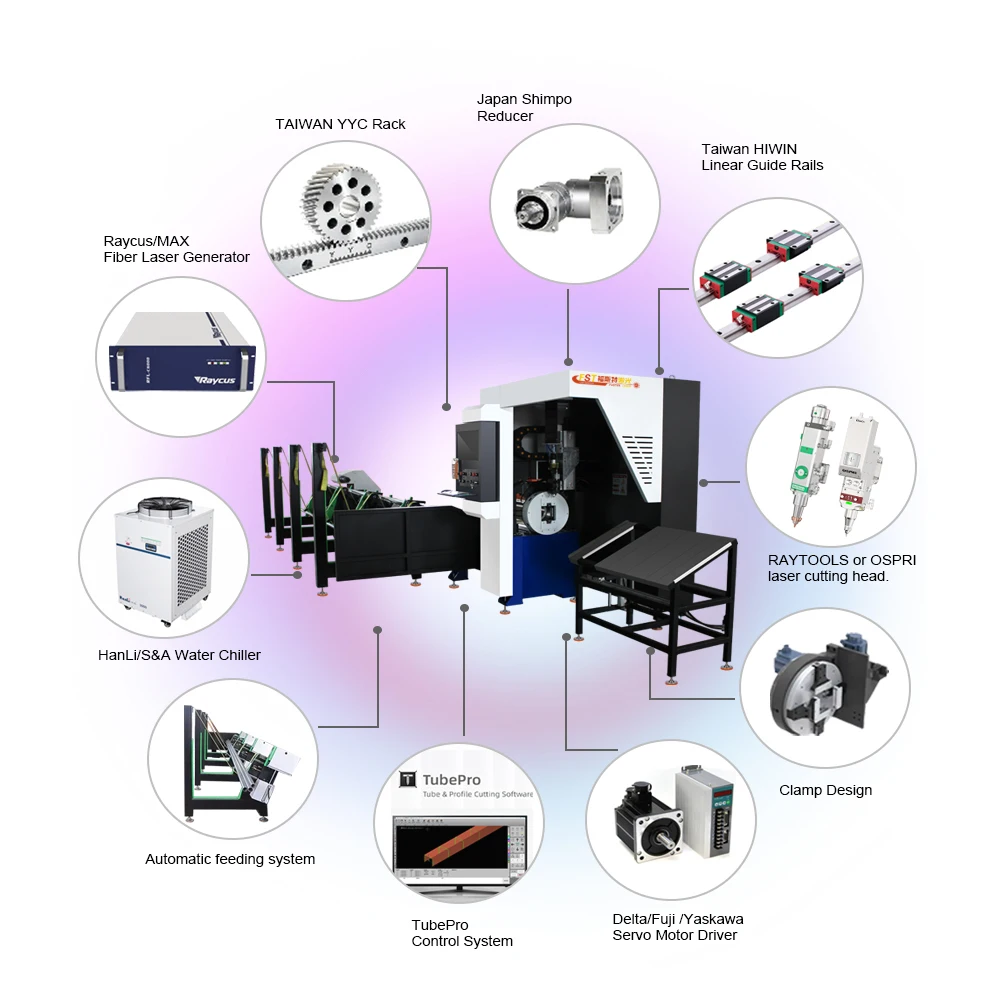

Detail display

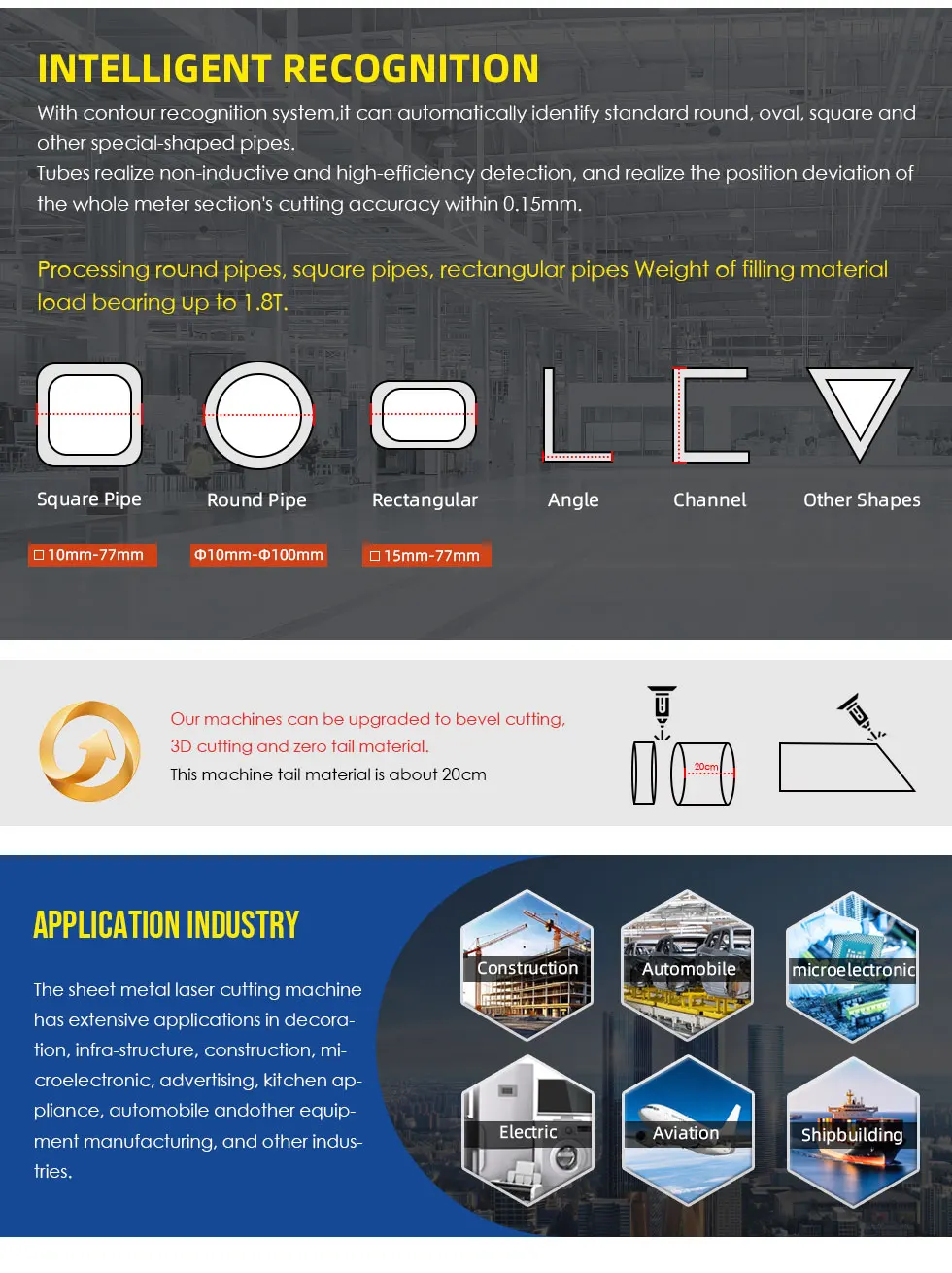

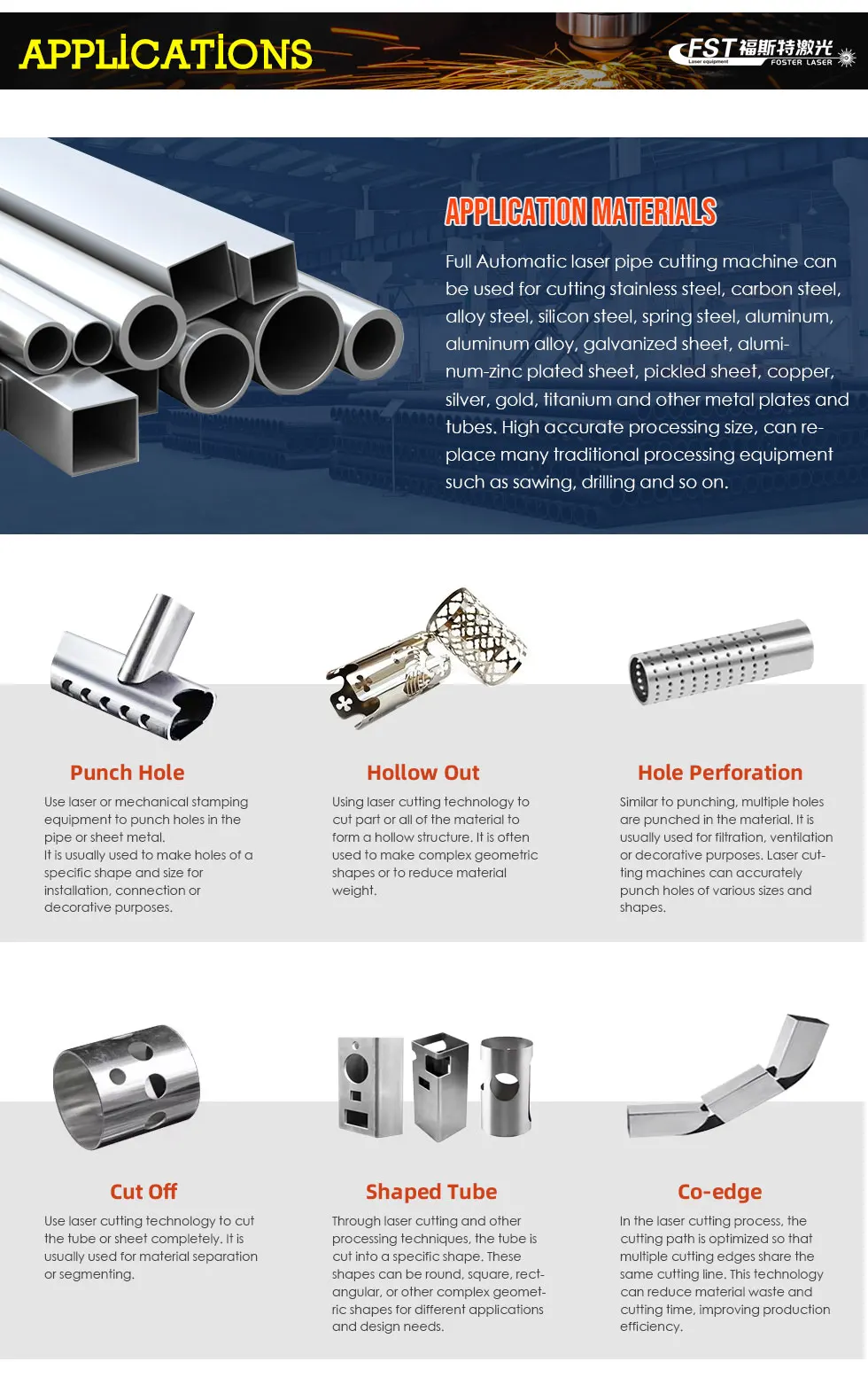

Application Industry

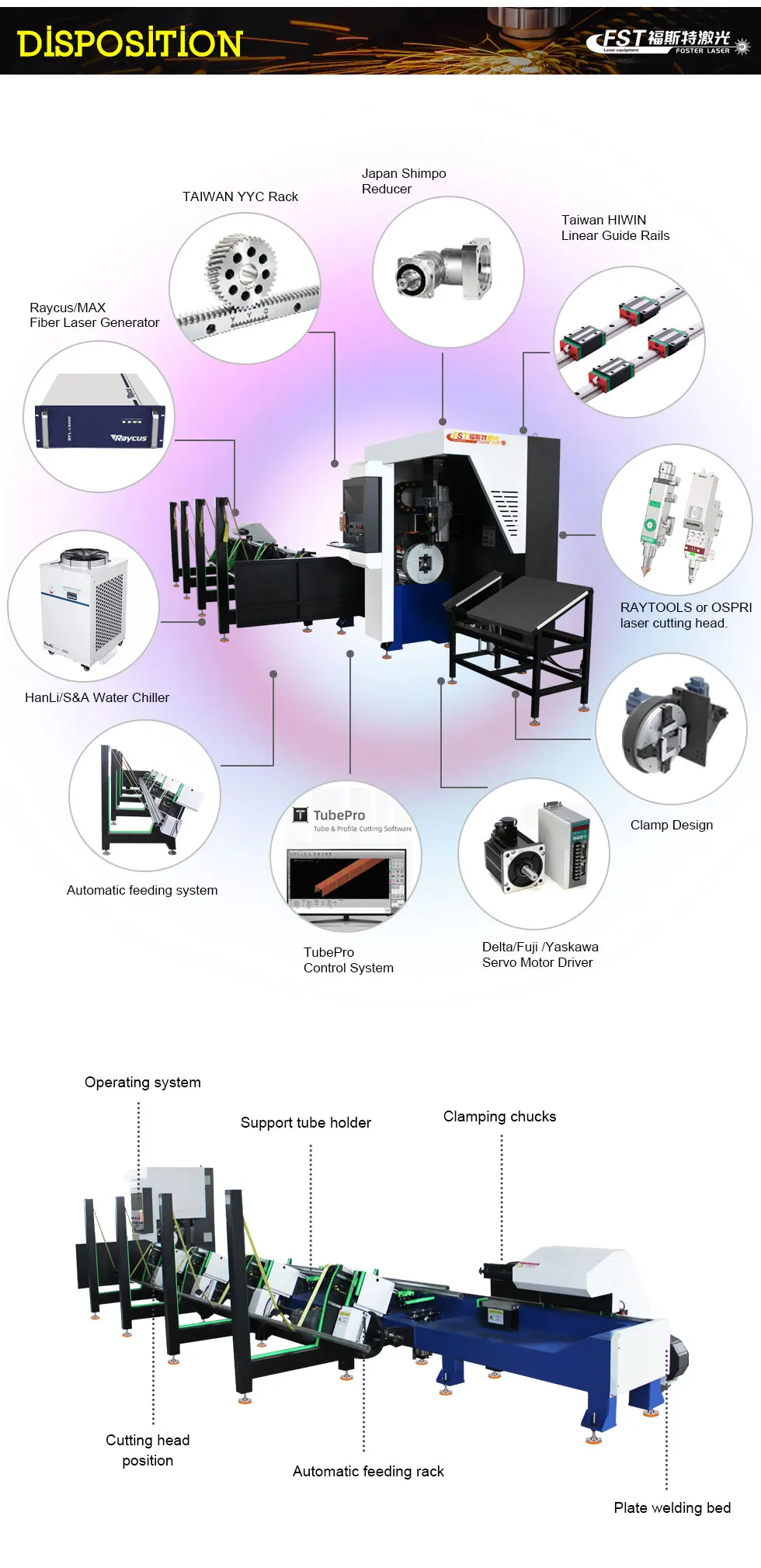

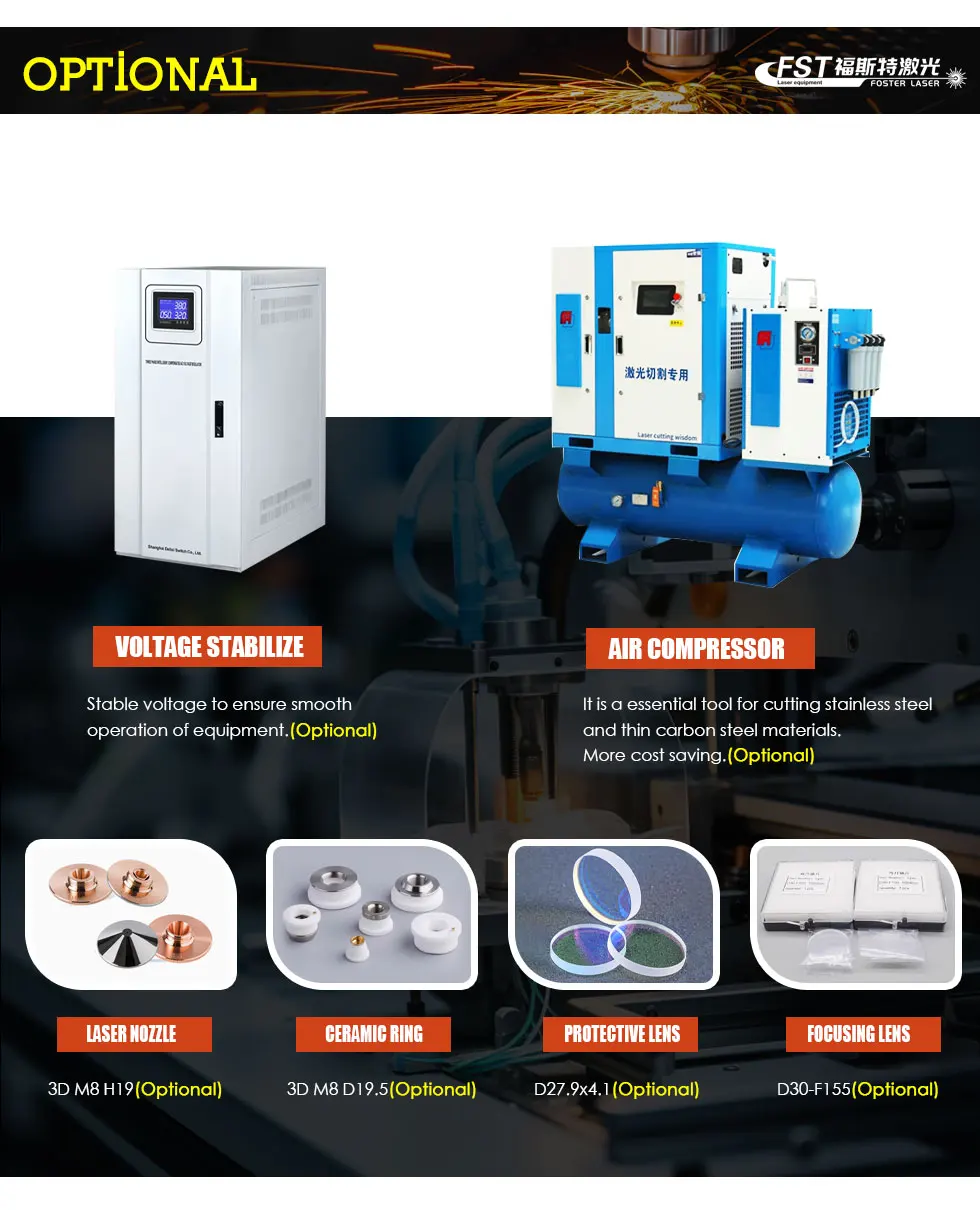

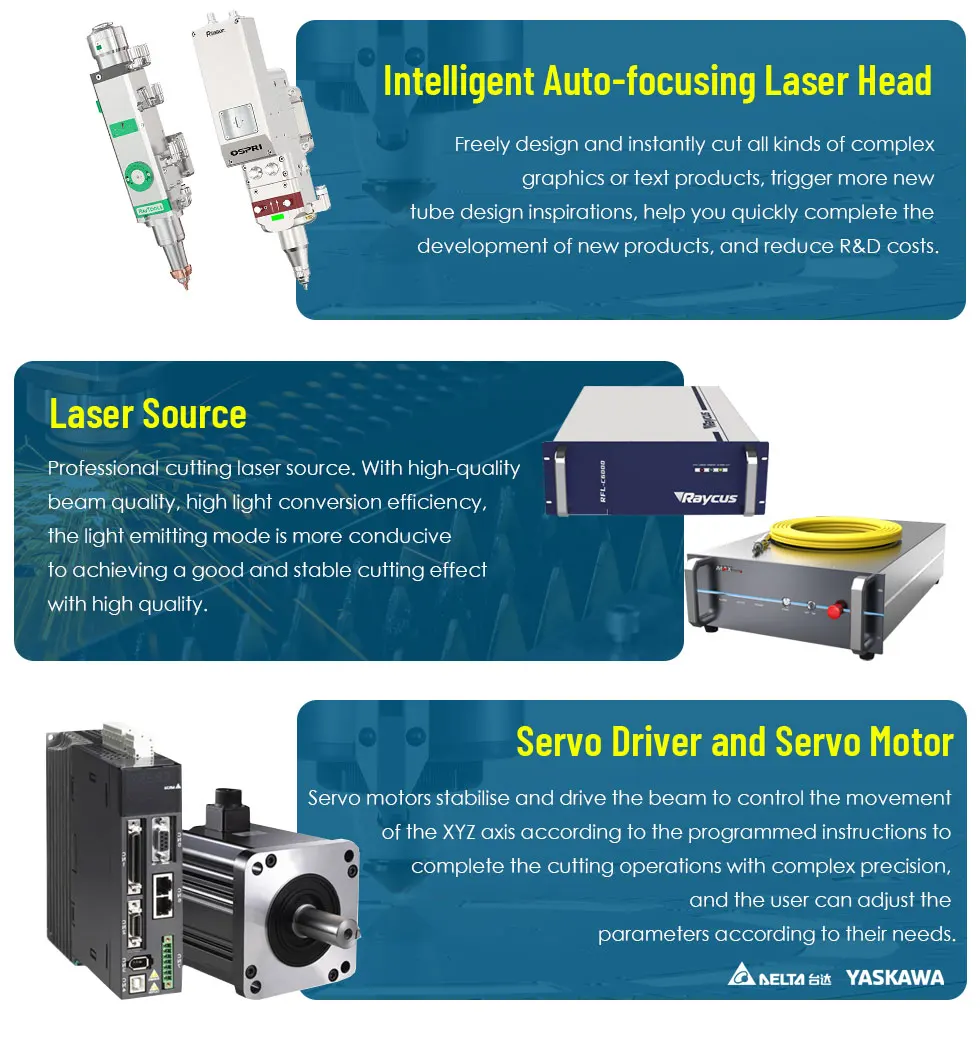

Optional Configuration

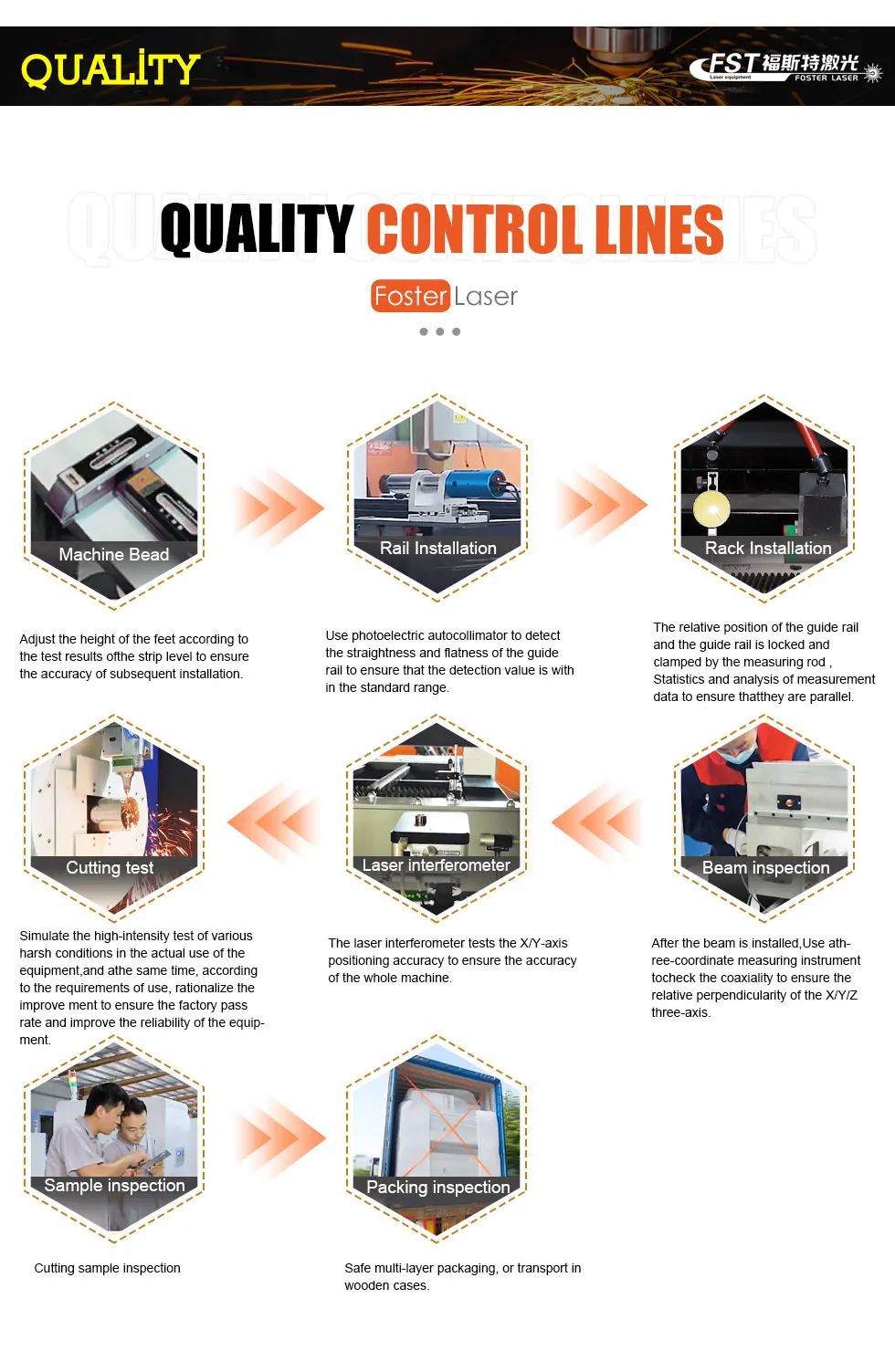

QUALITY COTROL LINES
Our certificate
Liaocheng foster Laser Science & Technology Co , Ltd is a professional manufacturer of laser engraving ma. chine , laser cutting machine , laser marking machine laser welding cleaning machine for 20 years
Since 2004 , foster Laser focused on the development and production of various types of laser engraving cutting / marking/welding/cleaning machine with the advanced management , strong research strength and steady globalization strategy , Foster Laser establish more perfect product sales and service system in China and around the world , make the worlds brand in laser industry.
Our target is scientific management , high quality , high reputation and takes continuous development as our-policy , regards customers as our center , double win with our customers ", and we adhere to our tenet of" take the market demand as the guide , continue to take innovation and make improvement " . We will try our best to provide the high quality products and perfect service for clients.
Further more , we pay much attention to after-sales service . Good service and good quality is same important for foster Laser will follow the spint Credibility and Integrity , try best to provide customer more super product and better service.
Foster Laser--reliable professional Laser equipment supplier.
Welcome to cooperate with us and achieve win-win !
Since 2004 , foster Laser focused on the development and production of various types of laser engraving cutting / marking/welding/cleaning machine with the advanced management , strong research strength and steady globalization strategy , Foster Laser establish more perfect product sales and service system in China and around the world , make the worlds brand in laser industry.
Our target is scientific management , high quality , high reputation and takes continuous development as our-policy , regards customers as our center , double win with our customers ", and we adhere to our tenet of" take the market demand as the guide , continue to take innovation and make improvement " . We will try our best to provide the high quality products and perfect service for clients.
Further more , we pay much attention to after-sales service . Good service and good quality is same important for foster Laser will follow the spint Credibility and Integrity , try best to provide customer more super product and better service.
Foster Laser--reliable professional Laser equipment supplier.
Welcome to cooperate with us and achieve win-win !
FAQ
Q How can l choose the most suitable machine?
A In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q When l get this machine, how do l use it?
A We will send operation video and manual for the machine. Our engineer will do training online.If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q If some problems happen to this machine, what should l do?
A We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).After the warranty, we still provide whole lifetime service. So any doubts, just let us know,we will give you solutions.
Q What is the payment terms?
A The payment terms we accept include:Western Union,T/T,VISA,online Bank Payment.
Q How about the shipping ways?
A Transport by sea is the normal way,;lf special requirement,need to be final confirmed on
both sides.
both sides.
